– disconnect the connector then
undo the screws A-fig. 136 to
access the bulbs to be replaced;
– remove the bulbs, pushing them
slightly and turning them
anticlockwise;
The bulbs fig. 136 are:
B - 12V-P21/5W for the brake lights
C - 12V-P21W for the reversing
lights
D - 12V-P21W for the direction
indicators
E - 12V-P21/5W for the side lights
and rear fog lights.3rdBRAKE LIGHT
The third brake light is LED type.
In the event of a failure, contact a
Fiat Dealership.NUMBER PLATE LIGHT
fig. 137
To replace the bulb:
1) undo the fixing screws A and
remove the lens.
2) remove the bulb holder, rotating
it slightly, and replace press-fitted
bulb B.
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 119

120
IF AN INTERNAL LIGHT
STOPS WORKING
FRONT ROOF LIGHT
With tilting lens
To replace the bulb:
– using a screwdriver at the points
indicted by the arrows fig. 138
remove the entire roof light unit;
– open the metal cover
A-fig. 139 in the direction of the
arrow;
– then replace cylindrical bulb B,
releasing it from the side contacts;
– close the metal cover, then press
fit the entire unit.With spot light
To replace the bulbs:
– using a screwdriver at the points
indicted by the arrows fig. 140
remove the entire roof light unit;
– remove lens A-fig. 141, operating
the retaining devices B;
– replace cylindrical bulb D,
releasing it from the side
contacts C;– to replace reading light E, rotate
the connector anticlockwise and
replace the press-fitted bulb;
– refit the lens then press fit the
entire unit.
fig. 138
F0X0118m
fig. 139
F0X0119m
fig. 141
F0X0121m
fig. 140
F0X0120m
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 120

121
fig. 143
F0X0123m
fig. 142
F0X0122m
fig. 144
F0X0124m
fig. 145
F0X0125m
GLOVE COMPARTMENT
LIGHT fig. 144
(for versions/markets,
where provided)
To replace the cylindrical bulb:
– remove lens A, pressing it and
pulling it downwards;
– replace cylindrical bulb B, releasing
it from the side contacts;
– refit lens A and fix it, pushing
upwards.IF YOU BLOW A FUSE
REPLACING FUSES
Fuses protect the electrical system:
they intervene (blow) in the event of
a fault or improper action on the
system.
Check the state of the
corresponding fuse when a device
does not work: the filament
A fig. 145 must be intact.
If it is not, replace the blown fuse
with another with the same
amperage (same colour).
B intact fuse.
C fuse with damaged filament. REAR ROOF LIGHT
(for versions/markets,
where provided)
To replace the cylindrical bulb:
– acting in the point indicated by the
arrow fig. 142, remove the
complete roof light unit;
– open the reflector A-fig. 143 and
replace cylindrical bulb B, releasing
it from the side contacts.
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 121

122
If a general protection
fuse (MEGA-FUSE,
MIDI-FUSE) is activated,
contact a Fiat Dealership.
WARNING
Before replacing a fuse,
make sure that the
ignition key has been removed
and that all the other services
are switched off and/or
deactivated.
WARNING
If a general protection
fuse for safety systems
(airbag system, braking
system), power unit systems
(engine system, transmission
system) or steering system
blows, contact a Fiat
Dealership.
WARNING
Refer to the tables on the following
pages to identify the protective fuse.
Never replace a blown
fuse with metal wires or
other material.
If the replaced fuse
blows again, contact a
Fiat Dealership.
WARNING
Never replace a fuse
with another with a
higher amp rating; DANGER
OF FIRE.
WARNING
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 122

123
To access the fuse box fig. 143, undo
the fixing screws A-fig. 144 and
remove the guard B.
The symbols which identify the main
electrical component that
corresponds to each fuse are
located on the inside of the cover.
fig. 143
F0X0126m
fig. 144
F0X0127m
DASHBOARD FUSE BOX fig. 143
The fuse box is located under the instrument panel, to the left of the steering
wheel.
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 123

124
ENGINE COMPARTMENT
FUSE BOX fig. 145
To access the fuse box, open the
cover.
fig. 145
F0X0128m
If you need to clean the
engine compartment,
take care not to direct
the jet of water specifically onto
the engine compartment wired
casing.
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 124

125
FUSE SUMMARY TABLE
Device protected No. Fuse Amps Location
F12
F13
F31
F32
F35
F37
F38
F39
F42
F43
F44
F47
F48
F49
F50
F51
F5315A
15A
7,5A
15A
10A
10A
20A
15A
7,5A
30A
20A
30A
30A
7,5A
7,5A
7,5A
10Afig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
fig. 143
ARight dipped headlight
Left dipped headlight, headlight alignment corrector
Supply for reversing light, relay switch coils on engine compartment
fuse box, manual climate control system
+30 exterior lighting control supply
Brake light switch supply (NC signal)
Brake lights, instrument panel node
Central locking
+30 supply for roof light, glove compartment light, radio
ABS control unit
Windscreen wiper, two-way pump
Power socket - cigar lighter
Front left electric window
Front right electric window
+15 services supply for radio, electric mirrors, central and side
control panel lighting, electric mirror control lighting
Airbag system
+ supply for number plate lights, heater control lighting,
power socket – cigar lighter lighting, radio lighting
Direction indicators, hazard warning lights, instrument panel node
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 125

126
Device protected No. Fuse Amps Location
F00
F01
F02
F03
F04
F06
F07
F08
F10
F11
F14
F15
F16
F17
F18
F19
F20
F21
F23
F24
F3060A
70A
40A
20A
50A
30A – 40A (*)
40A – 60A (*)
40A
15A
15A
10A
10A
7,5A
10A
7,5A
7,5A
20A
15A
15A
10A
15A
Plug preheating
Dashboard fuse box - basic
Dashboard fuse box - optional
Ignition switch
Anti-slip system
Single speed – Radiator fan first speed
Single speed – Radiator fan second speed
Climate control fan
Horn
Speedometer generator, canister solenoid valve, preheating
control unit, secondary loads, engine management system
Right main beam headlight
Left main beam headlight
Engine management control unit, engine management
system relay switch, engine cooling system remote control switch
Engine management control unit (supply), diesel pump solenoid
valve unit
Engine management control unit
Climate control compressor
Heated filter
Fuel pump, cut-off system
Additional headlights
Ignition-operated +15 positive pole
Fog lights
(*) For versions/markets, where provided.fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 126

127

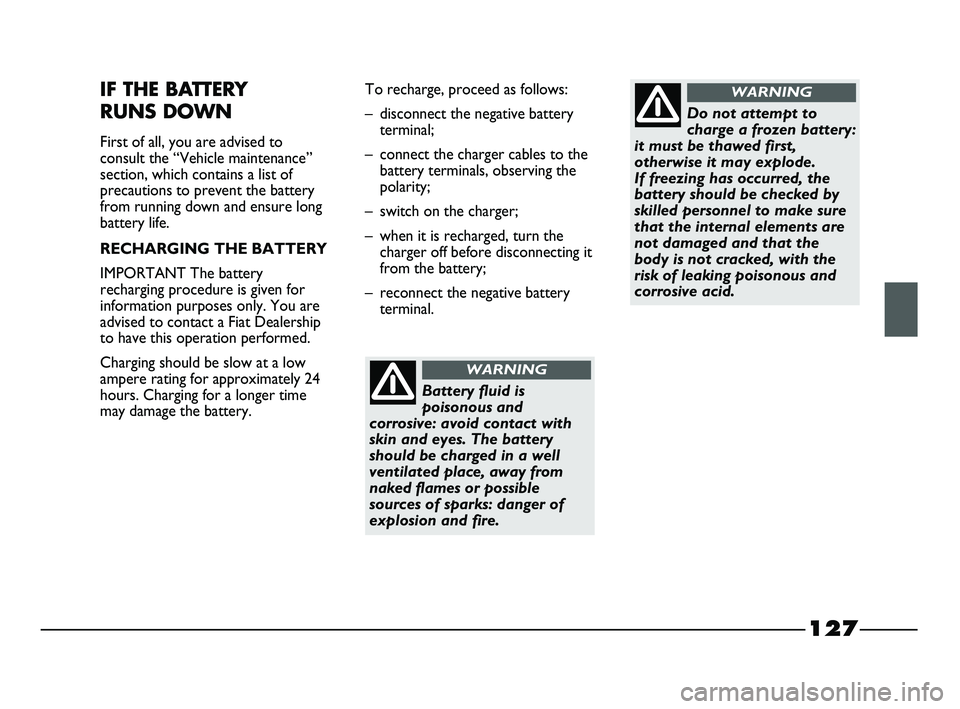

IF THE BATTERY
RUNS DOWN
First of all, you are advised to
consult the “Vehicle maintenance”
section, which contains a list of
precautions to prevent the battery
from running down and ensure long
battery life.
RECHARGING THE BATTERY
IMPORTANT The battery
recharging procedure is given for
information purposes only. You are
advised to contact a Fiat Dealership
to have this operation performed.
Charging should be slow at a low
ampere rating for approximately 24
hours. Charging for a longer time
may damage the battery.To recharge, proceed as follows:
– disconnect the negative battery
terminal;
– connect the charger cables to the
battery terminals, observing the
polarity;
– switch on the charger;
– when it is recharged, turn the
charger off before disconnecting it
from the battery;
– reconnect the negative battery
terminal.
Battery fluid is
poisonous and
corrosive: avoid contact with
skin and eyes. The battery
should be charged in a well
ventilated place, away from
naked flames or possible
sources of sparks: danger of
explosion and fire.
WARNING
Do not attempt to
charge a frozen battery:
it must be thawed first,
otherwise it may explode.
If freezing has occurred, the
battery should be checked by
skilled personnel to make sure
that the internal elements are
not damaged and that the
body is not cracked, with the
risk of leaking poisonous and
corrosive acid.
WARNING
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 127

128

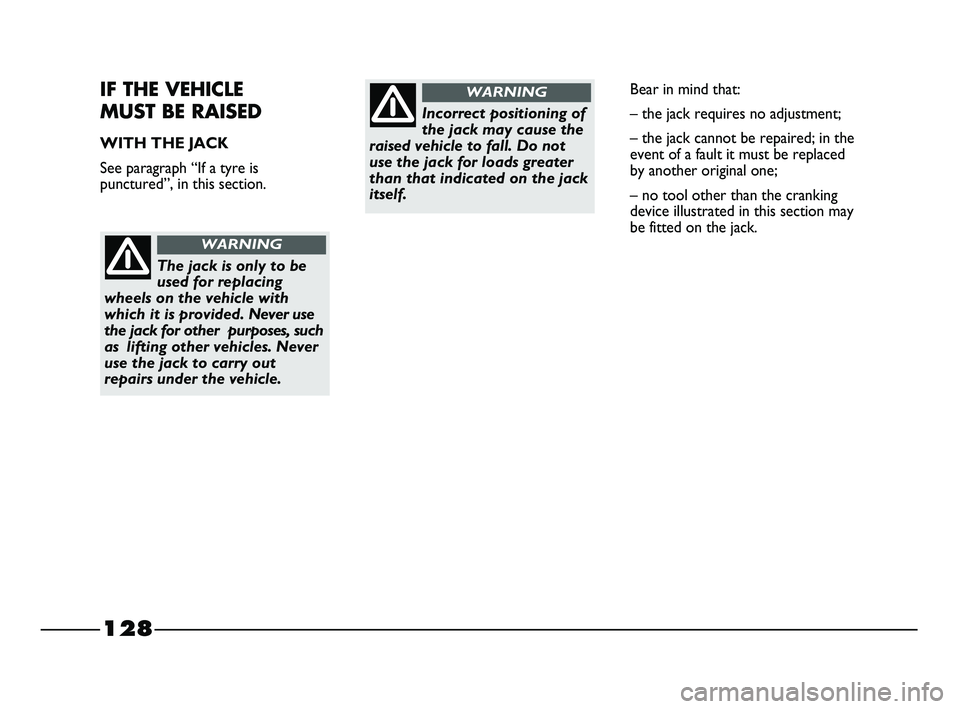

IF THE VEHICLE
MUST BE RAISED
WITH THE JACK
See paragraph “If a tyre is
punctured”, in this section.
The jack is only to be
used for replacing
wheels on the vehicle with
which it is provided.Never use
the jack for other purposes, such
as lifting other vehicles. Never
use the jack to carry out
repairs under the vehicle.
WARNING
Incorrect positioning of
the jack may cause the
raised vehicle to fall. Do not
use the jack for loads greater
than that indicated on the jack
itself.
WARNINGBear in mind that:
– the jack requires no adjustment;
– the jack cannot be repaired; in the
event of a fault it must be replaced
by another original one;
– no tool other than the cranking
device illustrated in this section may
be fitted on the jack.
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 128
