remote control FIAT STRADA 2014 Owner handbook (in English)

7
KNOW YOUR VEHICLE
SYMBOLS
Special coloured plates have been
attached near or on some of the
components of your Fiat Strada.
These plates bear symbols that draw
your attention to the precautions
required when handling the
component in question.THE KEYS fig. 1
The vehicle comes with a key A
(with remote control) or two keys B
(without remote control), according
to the version.
The keys can be used for:
– starting
– the doors
– fuel cap
– passenger airbag deactivation
– remote opening/closing
(key with remote control).
AB
fig. 1
F0X001m
THE FIAT CODE SYSTEM
To increase protection against theft,
the vehicle is equipped with an
electronic immobiliser system
(Fiat CODE) which is activated
automatically when the ignition key
is removed. Each key grip contains
an electronic device which
modulates the radio-frequency signal
emitted during ignition by an aerial
built into the ignition switch. The
modulated signal is the “password”,
by means of which the control unit
recognises the key and, only in this
circumstance, enables the engine to
be started.
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 7

8
For versions/markets where
provided, the CODE card fig. 2 is
supplied together with the keys and
bears:
A – the electronic code
B – the mechanical key code to be
given to the Fiat Dealership
when ordering duplicate keys.
fig. 2
F0X0002m
fig. 3
F0X0003m
Button D should only
be pressed when the
key is away from the body, in
particular from the eyes and
from objects that can be spoilt
(e.g. clothes). Do not leave the
key unattended to avoid the
button being accidentally
pressed while it is being
handled, e.g. by a child.
WARNING
To put metal insert A back in the
grip, press device D, put back the
metal insert then release device D. Key with remote control fig. 3
A – retractable metal insert
B – door release button
C – door lock button (the roof light
switches off at the same time)
D – metal insert opening device.
The metal insert A operates:
– the ignition switch
– door opening/closing.
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 8

9
The main functions that can be activated with the keys provided are the following:
Type of key Door unlocking Door locking
Key without remote control Anticlockwise rotation Clockwise rotation
Key with remote controlAnticlockwise rotation Clockwise rotationPress button B Press button C
Flashing the direction
indicators 2 flashes 1 flash
REQUEST FOR ADDITIONAL REMOTE CONTROLS
The receiver can recognise up to 8 remote controls.
Therefore, should it become necessary to acquire a new remote control for any reason during the life of the vehicle,
contact a Fiat Dealership directly, taking all the keys in your possession and the CODE card with you to the Dealership.
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 9

10
DUPLICATING KEYS
Customers who require additional
keys must contact a Fiat Dealership,
taking all available keys and CODE
card with them to the Dealership.
The Fiat Dealership will store (up to
a maximum of 8 keys) all keys, both
new and already owned, in the
system.
The Fiat Dealership may require the
Customer to demonstrate that they
are the owner of the vehicle.Codes
for the keys which are not
presented for the new storing
procedure are deleted from the
memory, to ensure that any keys
which may be mislaid cannot be used
to start the engine.– Take out battery compartment D
and replace battery E;
– Reinsert battery compartment D
into the key and lock it by turning
device C.
fig. 4
F0X0004m
All the keys and the
CODE card must be
handed over to the new
owner when the vehicle is sold.
Ministerial approval
In accordance with the legislation of
each country regarding radio
frequencies, note that:
– for markets where the transmitter
must be marked, the type approval
number is indicated in the key with
remote control.
REMOTE CONTROL
BATTERY REPLACEMENT –
fig. 4
To replace the battery, proceed as
follows:
– Press device A and open metal
insert B;
– Using a fine bit screwdriver, turn
locking device C;
Used batteries are
harmful to the
environment.
They must be disposed of in
special containers as specified
by law. Alternatively, they can
be taken to a Fiat Dealership,
who will dispose of them
correctly.
007-044 STRADA LUM GB 1ed 9-01-2012 14:49 Pagina 10

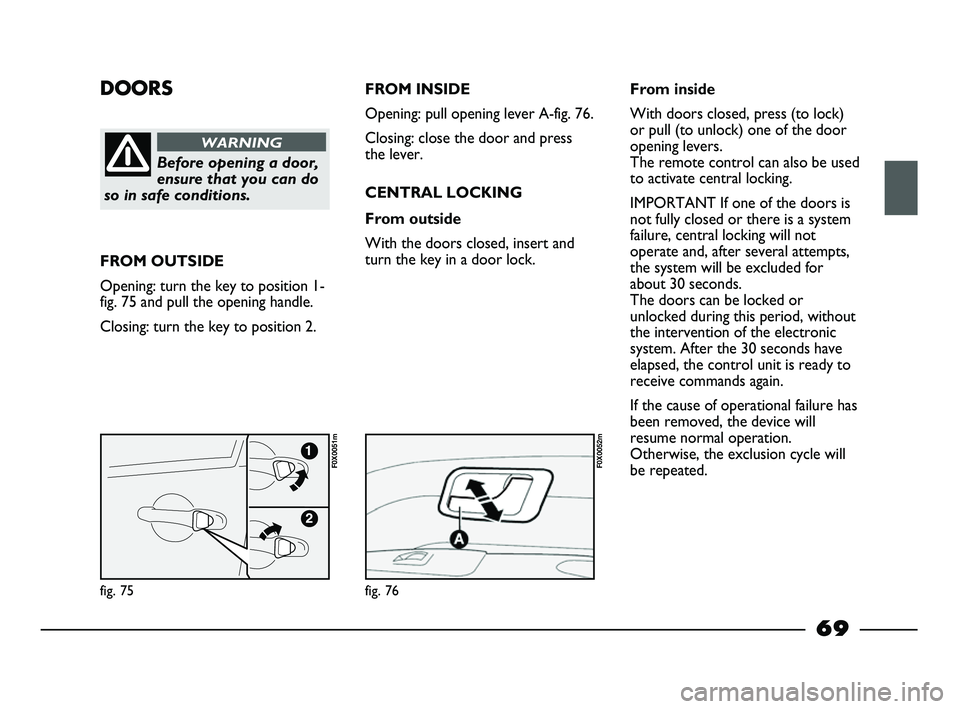

DOORS
Before opening a door,
ensure that you can do
so in safe conditions.
WARNING
FROM OUTSIDE
Opening: turn the key to position 1-
fig. 75 and pull the opening handle.
Closing: turn the key to position 2.
fig. 75
F0X0051m
fig. 76
F0X0052m
FROM INSIDE
Opening: pull opening lever A-fig. 76.
Closing: close the door and press
the lever.
CENTRAL LOCKING
From outside
With the doors closed, insert and
turn the key in a door lock.From inside
With doors closed, press (to lock)
or pull (to unlock) one of the door
opening levers.
The remote control can also be used
to activate central locking.
IMPORTANT If one of the doors is
not fully closed or there is a system
failure, central locking will not
operate and, after several attempts,
the system will be excluded for
about 30 seconds.
The doors can be locked or
unlocked during this period, without
the intervention of the electronic
system. After the 30 seconds have
elapsed, the control unit is ready to
receive commands again.
If the cause of operational failure has
been removed, the device will
resume normal operation.
Otherwise, the exclusion cycle will
be repeated.
69
045-094 STRADA LUM GB 1ed 23-01-2012 9:10 Pagina 69

126
Device protected No. Fuse Amps Location
F00
F01
F02
F03
F04
F06
F07
F08
F10
F11
F14
F15
F16
F17
F18
F19
F20
F21
F23
F24
F3060A
70A
40A
20A
50A
30A – 40A (*)
40A – 60A (*)
40A
15A
15A
10A
10A
7,5A
10A
7,5A
7,5A
20A
15A
15A
10A
15A
Plug preheating
Dashboard fuse box - basic
Dashboard fuse box - optional
Ignition switch
Anti-slip system
Single speed – Radiator fan first speed
Single speed – Radiator fan second speed
Climate control fan
Horn
Speedometer generator, canister solenoid valve, preheating
control unit, secondary loads, engine management system
Right main beam headlight
Left main beam headlight
Engine management control unit, engine management
system relay switch, engine cooling system remote control switch
Engine management control unit (supply), diesel pump solenoid
valve unit
Engine management control unit
Climate control compressor
Heated filter
Fuel pump, cut-off system
Additional headlights
Ignition-operated +15 positive pole
Fog lights
(*) For versions/markets, where provided.fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
fig. 145
107-132 STRADA LUM GB 1ed 9-01-2012 14:52 Pagina 126

Footboards..................................................................................... 79
Front ceiling light ......................................................................... 66
- bulb replacement ................................................................. 120
Front roof lights
- bulb replacement ................................................................. 120
- control ................................................................................... 66
Fuel consumption ........................................................................ 171
Fuel cut-off (automatic switch) .................................................65
Fuel cut-off switch ...................................................................... 65
Fuel level indicator gauge ...........................................................27
Fuel tank cap.................................................................................. 93
Fuel
- consumption ......................................................................... 171
- fuel cap ................................................................................... 93
- fuel cut-off ............................................................................. 65
- level gauge ............................................................................. 27
- refuelling.................................................................................. 92
- specification......................................................................158-168
Fuses .............................................................................................. 121
- dashboard fuse box ............................................................. 123
- engine compartment fuse box .......................................... 124
- fuse list .............................................................................125-126
- general information ............................................................. 121
Gearbox
- using the gearbox ................................................................. 99
Glasses holder ...............................................................................66
Glove box light
- bulb replacement ................................................................. 121
Glove compartment .................................................................. 65Handbrake ................................................................................... 98
Hazard lights ................................................................................. 63
Hazard warning lights switch ....................................................63
Headlights .....................................................................................79
- alignment corrector ............................................................ 79
- light beam direction ............................................................. 79
- washing ................................................................................... 153
Headrests
- front ........................................................................................ 17
- rear ......................................................................................... 18
Heating / climate control system ............................................. 55
Heating and ventilation................................................................ 55
- controls ................................................................................... 56
Heavy use of the vehicle............................................................. 137
How to save fuel........................................................................... 102
Identification data ........................................................................ 155
- VIN plate ............................................................................... 155
Ignition ........................................................................................... 11
Ignition switch .............................................................................. 11
In an emergency..................................................................... 107
Instrument panel ..........................................................................14-15
Interiors ..........................................................................................153
Internal features ........................................................................... 65
Jack ..................................................................................109-110-128
Key with remote control ......................................................... 8
Keys ................................................................................................ 7
- duplicating ...............................................................................10
Know your vehicle................................................................... 7
Leather trim
- cleaning ....................................................................................154
181
155-184 STRADA LUM GB 1ed 20-01-2012 9:34 Pagina 181

Rear fog lights
- bulb replacement............................................................118-119
- control ..................................................................................... 64
Rear roof light
- bulb replacement ................................................................. 121
- control ..................................................................................... 67
Rear roof light
- bulb replacement ................................................................. 121
- control ..................................................................................... 67
Rear view mirrors
- door mirrors ..........................................................................19
- interior .................................................................................... 18
Refuelling........................................................................................ 92
- filling the tank......................................................................... 93
- fuel cap .................................................................................... 93
- saving....................................................................................... 102
Remote control battery (replacement) ................................... 10
Remote control ............................................................................ 8
- additional................................................................................. 9
- ministerial approval............................................................... 10
- replacing the battery ............................................................ 10
Rev counter .................................................................................. 29
Reversing lights
- bulb replacement............................................................118-119
Right stalk ....................................................................................... 60
Rim Protector (tyres) ................................................................. 162
Rims
- correct reading ..................................................................... 163
- specifications ......................................................................... 163
Roll and pitch meters
- pitch meter............................................................................. 30
- recalibrating the instruments ............................................ 31
- roll meter................................................................................30
Rubber tubes................................................................................. 148Scrappage ................................................................................. 171
Scrapping the vehicle................................................................... 173
Seat belts .......................................................................................20
- front ........................................................................................ 20
- general instructions .............................................................. 22
- height adjustment ................................................................. 20
- maintenance .......................................................................... 24
- rear ......................................................................................... 21
Seats
- adjusting ..................................................................................16-17
- cleaning ....................................................................................153
Set-up menu................................................................................... 34
Side lights
- control ..................................................................................... 61
- front bulb replacement ....................................................... 117
- rear bulb replacement..........................................................118
Snow chains .................................................................................. 104
Socket ............................................................................................. 67
Speed ratings (tyres) ................................................................... 162
Speedometer................................................................................. 27
Starting the engine ......................................................................95-96
- bump starting ........................................................................ 108
- ignition switch ....................................................................... 11
- jump starting ......................................................................... 107
Steering lock ................................................................................. 11
Steering wheel ...............................................................................18
Steering........................................................................................... 160
Sun visors ...................................................................................... 68
Sun visors ....................................................................................... 68
Sunroof........................................................................................... 71
Suspension...................................................................................... 160
Symbols........................................................................................... 7
183
155-184 STRADA LUM GB 1ed 20-01-2012 9:34 Pagina 183
