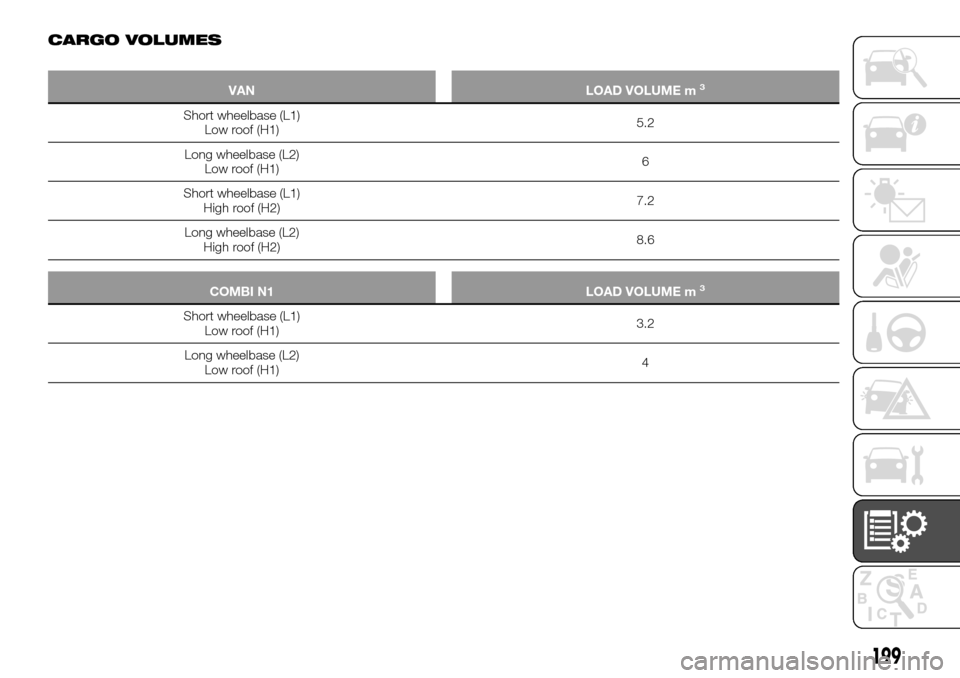

CARGO VOLUMES
VAN LOAD VOLUME m3
Short wheelbase (L1)
Low roof (H1)5.2
Long wheelbase (L2)
Low roof (H1)6
Short wheelbase (L1)
High roof (H2)7.2
Long wheelbase (L2)
High roof (H2)8.6
COMBI N1 LOAD VOLUME m3
Short wheelbase (L1)
Low roof (H1)3.2
Long wheelbase (L2)
Low roof (H1)4
199

COMBI M1 LOAD VOLUME m3
Short wheelbase (L1)
Low roof (H1)5/6 passengers 3.2
8/9 passengers 1
Long wheelbase (L2)
Low roof (H1)5/6 passengers 4
8/9 passengers 1.8
CREW CAB LOAD VOLUME m3
Short wheelbase (L1)
Low roof (H1)3.2
Long wheelbase (L2)
Low roof (H1)4
200
TECHNICAL DATA

VOLUMES
The volumes indicated are those for a basic vehicle without options: they vary depending on your vehicle's equipment. Contact
a Fiat Dealership. Volumes are indicated in kg.
Versions (marketed according to country) Standard VAN Raised VAN
Maximum authorised volume with full load (MMAC)
Total circulating volume (MTR)Weights indicated on the manufacturer's label (see the paragraph "Identification tag")
Weight of trailer with brakes (kg)
(*)2000
Weight of trailer without brakes (kg)
(*)750
Allowed load on tow point (kg)
(*)80
Load allowed on roof 200 (including carry container) 150 (including carry container)
(*) Trailer load (camper, boat, etc.)You need to respect the towing conditions established by the highway code. For any tow hook adaptation, contact a Fiat
Dealership.
In the case of towing a vehicle, the total circulating volume (vehicle + trailer) must not be exceeded. However, the rear MMTA
can be exceeded within the limit of 15% and the MMAC can be exceeded within the limit of 10% or 100 kg (the first of these
two limits to be reached). In both cases, the maximum speed of both must not exceed 80 km/h (depending on the local
legislation) and the tyre pressure must be increased 0.2 bar (3 PSI).
Given that the engine performance and behaviour on inclines are subject to a drop when going uphill, we advise reducing the
maximum allowed volume by 10% for altitudes of 1,000 meters and by 10% for every extra 1,000 meters.
201

VersionVan
Short wheelbase (L1) – Low roof (H1)
Engine type Multijet 95 – Ecojet 95
— Multijet 120Ecojet 125 – Ecojet 145 Multijet 95 – Ecojet 95
— Multijet 120Ecojet 125 – Ecojet 145
Capacity 1000 kg 1200 kg
Gear order weight 1726 1743 1726 1743
Maximum carrying
capacity (including the
driver)1074 1077 1224 1217
Total weight on the
ground2800 2820 2950 2960
VersionVan
Long wheelbase (L2) – Low roof (H1)
Engine type Multijet 95 – Ecojet 95 — Multijet 120 Ecojet 125 – Ecojet 145
Capacity1200 kg
Gear order weight 1781 1797
Maximum carrying capacity (including the
driver)1249 1243
Total weight on the ground 3030 3040
202
TECHNICAL DATA

VersionVan
Short wheelbase (L1) – High roof (H2) Long wheelbase (L2) – High roof (H2)
Engine type Ecojet 125 — Ecojet 145
Capacity1200 kg
Gear order weight 1847 1890
Maximum carrying capacity (including the
driver)1133 1170
Total weight on the ground 2980 3060
203

Version Combi N1
Short wheelbase (L1) – Low roof (H1)
Engine type Ecojet 95 Ecojet 125 – Ecojet 145 Ecojet 95 Ecojet 125 – Ecojet 145
Capacity 1000 kg 1200 kg
Gear order weight 1837 1847 1849 1859
Maximum carrying
capacity (including the
driver)1033 1033 1111 1111
Total weight on the
ground2870 2880 2960 2970
VersionCombi N1
Long wheelbase (L2) – Low roof (H1)
Ecojet 95 Ecojet 125 – Ecojet 145
Capacity1200 kg
Gear order weight 1925 1933
Maximum carrying capacity (including the
driver)1085 1087
Total weight on the ground 3010 3020
204
TECHNICAL DATA

Version Combi M1
Short wheelbase (L1) – Low roof (H1)
Engine type Ecojet 95 Ecojet 125 - Ecojet 145 Ecojet 95 Ecojet 125 - Ecojet 145
5/6 passengers
Capacity 1000 kg 1200 kg
Gear order weight 1844 1854 1844 1854
Maximum carrying
capacity (including the
driver)986 986 1081 1081
Total weight on the
ground2830 2840 2925 2935
Version Combi M1
Short wheelbase (L1) – Low roof (H1)
Engine type Ecojet 95 Ecojet 125 - Ecojet 145 Ecojet 95 Ecojet 125 - Ecojet 145
8/9 passengers
Capacity 1000 kg 1200 kg
Gear order weight 1906 1916 1906 1916
Maximum carrying
capacity (including the
driver)924 924 1019 1019
Total weight on the
ground2830 2840 2925 2935
205

Version Combi M1
Long wheelbase (L2) – Low roof (H1)
Engine type Ecojet 95 Ecojet 125 - Ecojet 145 Ecojet 95 Ecojet 125 - Ecojet 145
5/6 passengers 8/9 passengers
Capacity 1200 kg
Gear order weight 1914 1924 1977 1987
Maximum carrying
capacity (including the
driver)1096 1096 1033 1033
Total weight on the
ground3010 3020 3010 3020
206
TECHNICAL DATA

Version Crew cab
Short wheelbase (L1) – Low roof (H1)
Engine type Multijet 95 – Multijet
120 – Ecojet 95Ecojet 125 - Ecojet 145 Multijet 95 – Multijet
120 – Ecojet 95Ecojet 125 – cojet 145
Capacity 1000 kg 1200 kg
Gear order weight 1844 1864 1844 1864
Maximum carrying
capacity (including the
driver)981 971 991 981
Total weight on the
ground2825 2835 2835 2845
VersionCrew cab
Long wheelbase (L2) – Low roof (H1)
Engine type Multijet 95 – Multijet 120 – Ecojet 95 Ecojet 125 - Ecojet 145
Capacity1200 kg
Gear order weight 1895 1916
Maximum carrying capacity (including the
driver)1025 1024
Total weight on the ground 2920 2940
207

VersionFloor cab
Long wheelbase (L2) – Low roof (H1)
Engine type Ecojet 125 Ecojet 145
Capacity1200 kg
Gear order weight 1538 1538
Carrying capacity (including the driver) 1452 1452
Gross vehicle weight 2990 2990
