technical data FIAT TALENTO 2017 Owner handbook (in English)

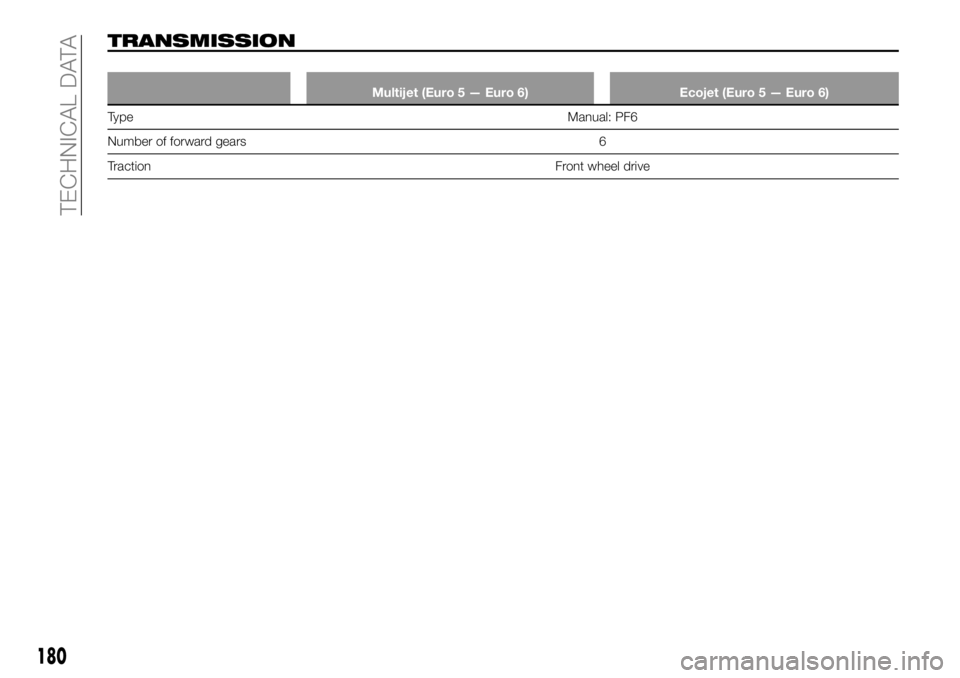

TRANSMISSION
Multijet (Euro 5 — Euro 6) Ecojet (Euro 5 — Euro 6)
TypeManual:
PF6
Number of forward gears 6
Traction Front wheel drive
180
TECHNICAL DATA

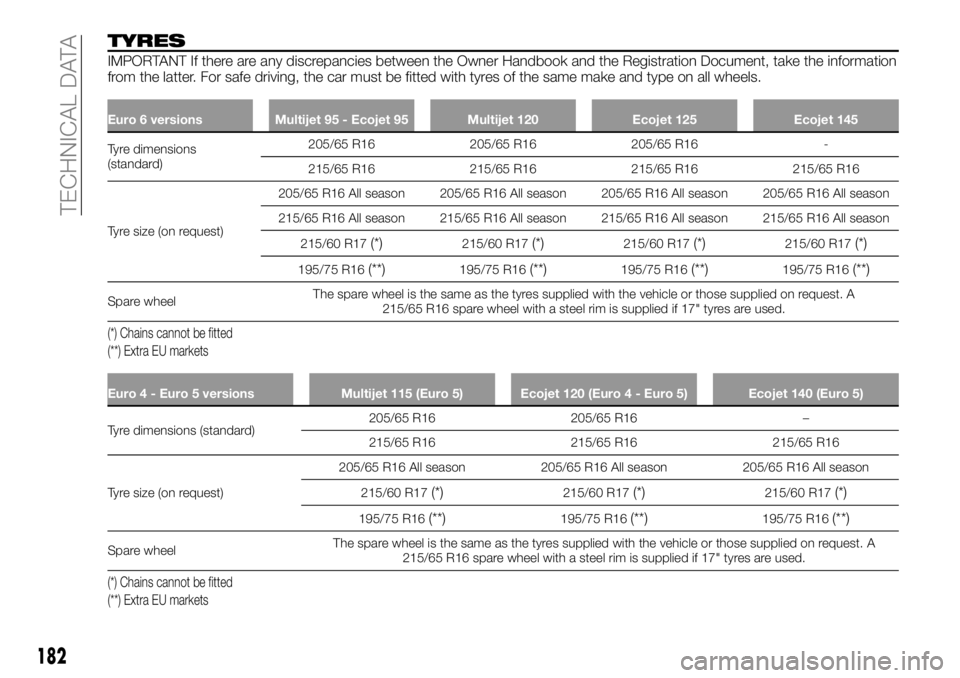

TYRES
IMPORTANT If there are any discrepancies between the Owner Handbook and the Registration Document, take the information
from the latter. For safe driving, the car must be fitted with tyres of the same make and type on all wheels.
Euro 6 versions Multijet 95 - Ecojet 95 Multijet 120 Ecojet 125 Ecojet 145
Tyre dimensions
(standard)205/65 R16 205/65 R16 205/65 R16 -
215/65 R16 215/65 R16 215/65 R16 215/65 R16
Tyre size (on request)205/65 R16 All season 205/65 R16 All season 205/65 R16 All season 205/65 R16 All season
215/65 R16 All season 215/65 R16 All season 215/65 R16 All season 215/65 R16 All season
215/60 R17
(*)215/60 R17(*)215/60 R17(*)215/60 R17(*)
195/75 R16(**)195/75 R16(**)195/75 R16(**)195/75 R16(**)
Spare wheelThe spare wheel is the same as the tyres supplied with the vehicle or those supplied on request. A
215/65 R16 spare wheel with a steel rim is supplied if 17" tyres are used.
(*) Chains cannot be fitted
(**) Extra EU markets
Euro 4 - Euro 5 versions Multijet 115 (Euro 5) Ecojet 120 (Euro 4 - Euro 5) Ecojet 140 (Euro 5)
Tyre dimensions (standard)205/65
R16 205/65 R16 –
215/65 R16 215/65 R16 215/65 R16
Tyre size (on request)205/65 R16 All season 205/65 R16 All season 205/65 R16 All season
215/60 R17
(*)215/60 R17(*)215/60 R17(*)
195/75 R16(**)195/75 R16(**)195/75 R16(**)
Spare wheelThe spare wheel is the same as the tyres supplied with the vehicle or those supplied on request. A
215/65 R16 spare wheel with a steel rim is supplied if 17" tyres are used.
(*) Chains cannot be fitted
(**) Extra EU markets
182
TECHNICAL DATA

Vehicles complete and with no further changes. Measurements i millimetres
VANShort wheelbase (L1) Long wheelbase (L2)
Low roof (H1) High roof (H2) Low roof (H1) High roof (H2)
A 3098 3098 3498 3498
B
4999 4999 5399 5399
C 933 933 933 933
D 968 968 968 968
E 1615 1615 1615 1615
F 1628 1628 1628 1628
G 2283 2283 2283 2283
H 1971 2493 1971 2490
J 552 552 552 552
Q 1387 1898 1387 1898
Y 1391 1391 1391 1391
Z 1320 1820 1320 1820
Z1 2537 2537 2937 2937
184
TECHNICAL DATA

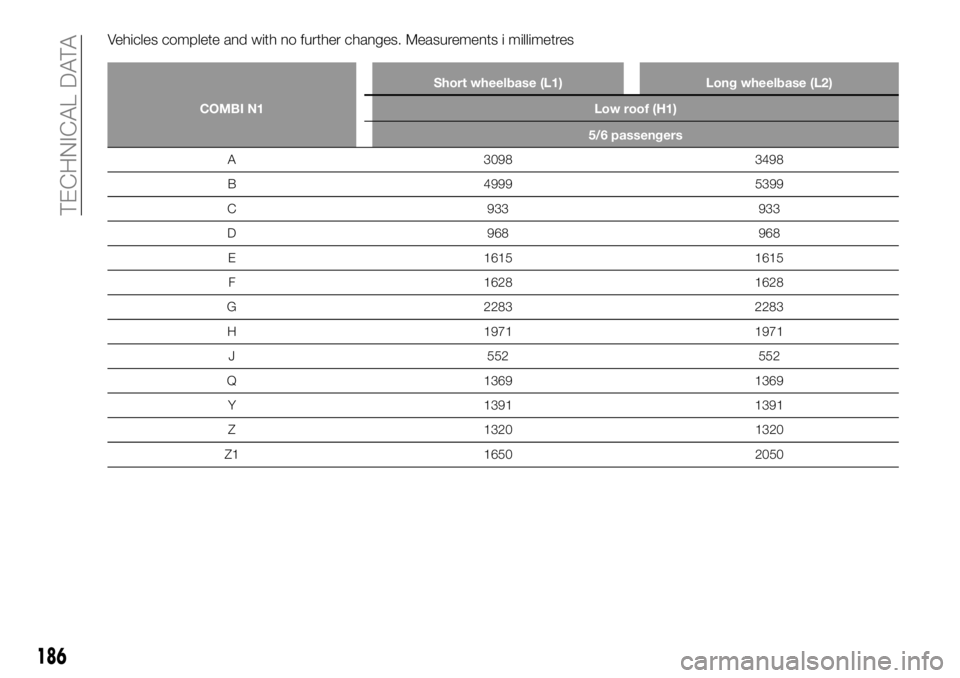

Vehicles complete and with no further changes. Measurements i millimetres
COMBI N1Short wheelbase (L1) Long wheelbase (L2)
Low roof (H1)
5/6 passengers
A 3098 3498
B
4999 5399
C 933 933
D 968 968
E 1615 1615
F 1628 1628
G 2283 2283
H 1971 1971
J 552 552
Q 1369 1369
Y 1391 1391
Z 1320 1320
Z1 1650 2050
186
TECHNICAL DATA

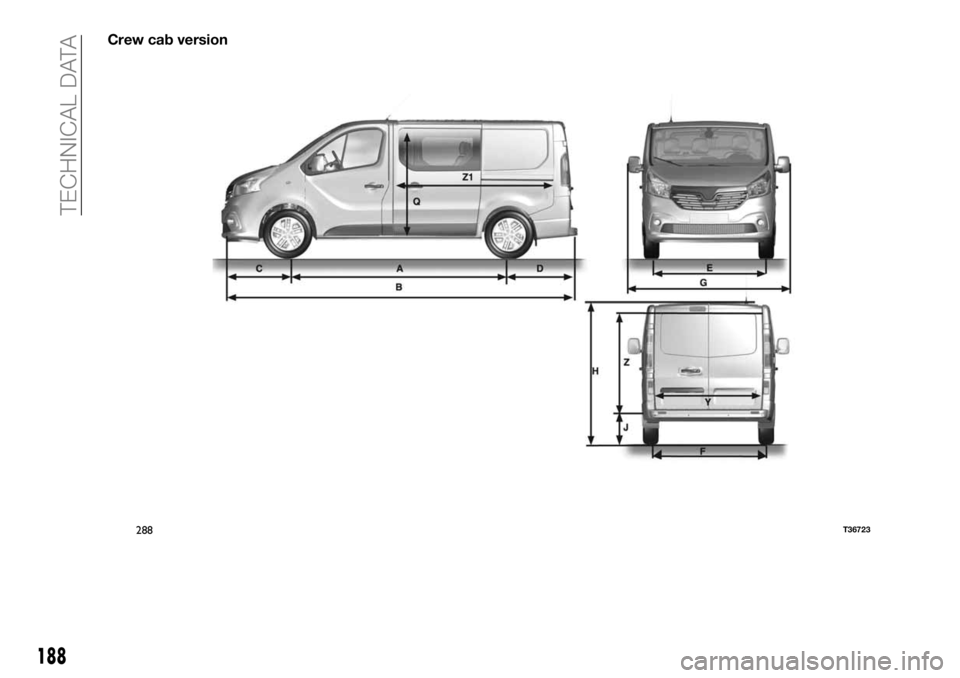

Crew cab version
288T36723
188
TECHNICAL DATA

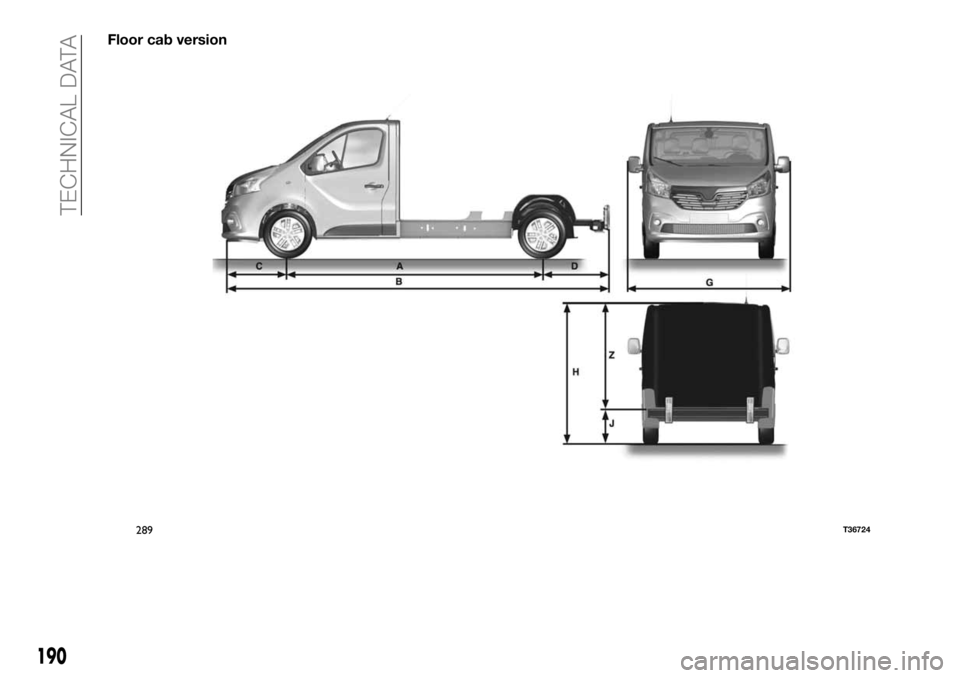

Floor cab version
289T36724
190
TECHNICAL DATA

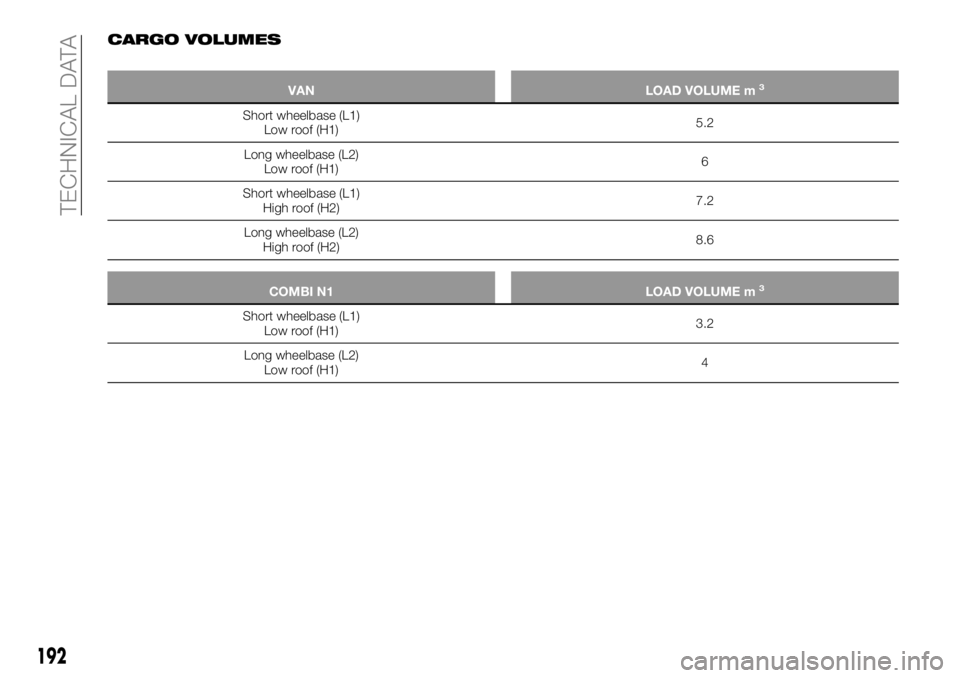

CARGO VOLUMES
VAN LOAD VOLUME m3
Short wheelbase (L1)
Low roof (H1)5.2
Long wheelbase (L2)
Low roof (H1)6
Short wheelbase (L1)
High roof (H2)7.2
Long wheelbase (L2)
High roof (H2)8.6
COMBI N1 LOAD VOLUME m3
Short wheelbase (L1)
Low roof (H1)3.2
Long wheelbase (L2)
Low roof (H1)4
192
TECHNICAL DATA

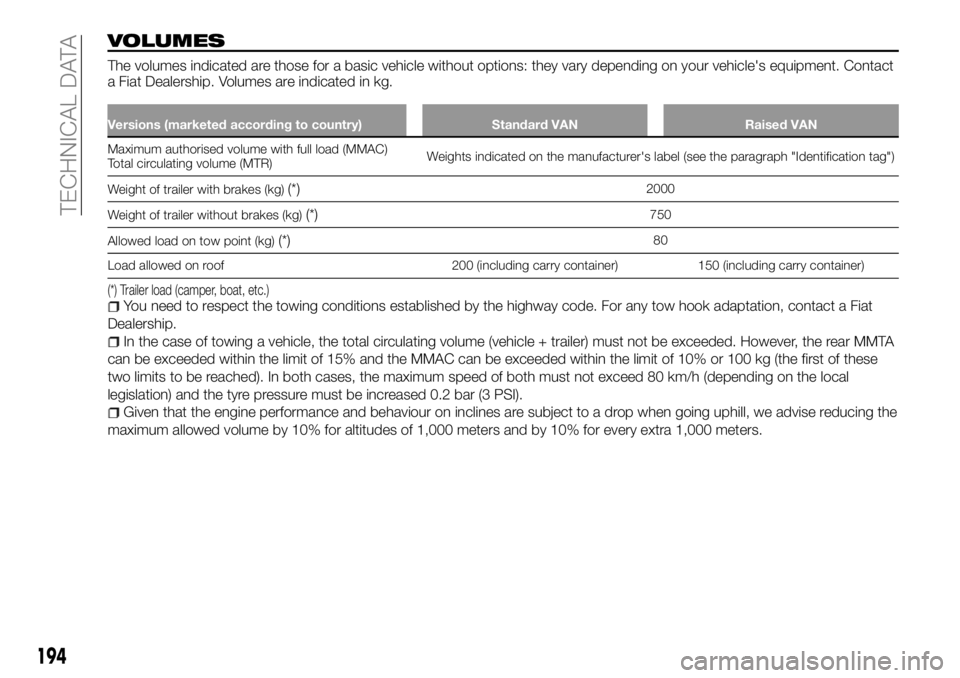

VOLUMES
The volumes indicated are those for a basic vehicle without options: they vary depending on your vehicle's equipment. Contact
a Fiat Dealership. Volumes are indicated in kg.
Versions (marketed according to country) Standard VAN Raised VAN
Maximum authorised volume with full load (MMAC)
T
otal circulating volume (MTR)Weights indicated on the manufacturer's label (see the paragraph "Identification tag")
Weight of trailer with brakes (kg)
(*)2000
Weight of trailer without brakes (kg)
(*)750
Allowed load on tow point (kg)
(*)80
Load allowed on roof 200 (including carry container) 150 (including carry container)
(*) Trailer load (camper, boat, etc.)You need to respect the towing conditions established by the highway code. For any tow hook adaptation, contact a Fiat
Dealership.
In the case of towing a vehicle, the total circulating volume (vehicle + trailer) must not be exceeded. However, the rear MMTA
can be exceeded within the limit of 15% and the MMAC can be exceeded within the limit of 10% or 100 kg (the first of these
two limits to be reached). In both cases, the maximum speed of both must not exceed 80 km/h (depending on the local
legislation) and the tyre pressure must be increased 0.2 bar (3 PSI).
Given that the engine performance and behaviour on inclines are subject to a drop when going uphill, we advise reducing the
maximum allowed volume by 10% for altitudes of 1,000 meters and by 10% for every extra 1,000 meters.
194
TECHNICAL DATA

VersionVan
Short wheelbase (L1) – High roof (H2) Long wheelbase (L2) – High roof (H2)
Engine type Ecojet 125 — Ecojet 145
Capacity1200
kg
Gear order weight 1847 1890
Maximum carrying capacity (including the
driver)1133 1170
Total weight on the ground 2980 3060
196
TECHNICAL DATA

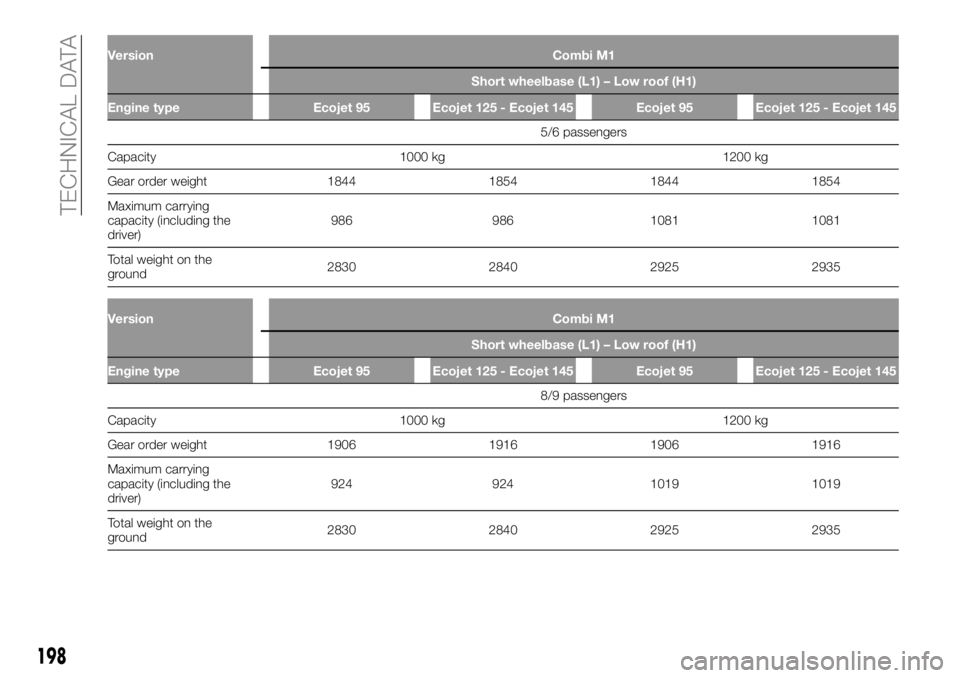

Version Combi M1
Short wheelbase (L1) – Low roof (H1)
Engine type Ecojet 95 Ecojet 125 - Ecojet 145 Ecojet 95 Ecojet 125 - Ecojet 145
5/6 passengers
Capacity
1000 kg 1200 kg
Gear order weight 1844 1854 1844 1854
Maximum carrying
capacity (including the
driver)986 986 1081 1081
Total weight on the
ground2830 2840 2925 2935
Version Combi M1
Short wheelbase (L1) – Low roof (H1)
Engine type Ecojet 95 Ecojet 125 - Ecojet 145 Ecojet 95 Ecojet 125 - Ecojet 145
8/9 passengers
Capacity
1000 kg 1200 kg
Gear order weight 1906 1916 1906 1916
Maximum carrying
capacity (including the
driver)924 924 1019 1019
Total weight on the
ground2830 2840 2925 2935
198
