FIAT TALENTO 2017 Owner handbook (in English)

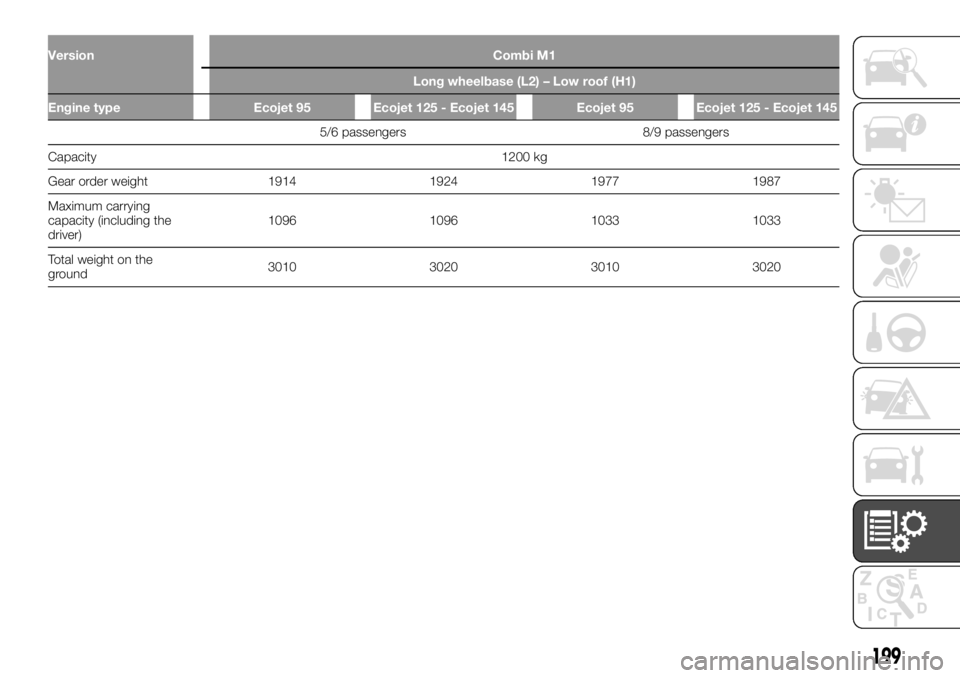

Version Combi M1
Long wheelbase (L2) – Low roof (H1)
Engine type Ecojet 95 Ecojet 125 - Ecojet 145 Ecojet 95 Ecojet 125 - Ecojet 145
5/6 passengers 8/9 passengers
Capacity
1200 kg
Gear order weight 1914 1924 1977 1987
Maximum carrying
capacity (including the
driver)1096 1096 1033 1033
Total weight on the
ground3010 3020 3010 3020
199

Version Crew cab
Short wheelbase (L1) – Low roof (H1)
Engine type Multijet 95 – Multijet
120 – Ecojet 95Ecojet 125 - Ecojet 145 Multijet 95 – Multijet
120 – Ecojet 95Ecojet 125 – cojet 145
Capacity 1000 kg 1200 kg
Gear
order weight 1844 1864 1844 1864
Maximum carrying
capacity (including the
driver)981 971 991 981
Total weight on the
ground2825 2835 2835 2845
VersionCrew cab
Long wheelbase (L2) – Low roof (H1)
Engine type Multijet 95 – Multijet 120 – Ecojet 95 Ecojet 125 - Ecojet 145
Capacity1200
kg
Gear order weight 1895 1916
Maximum carrying capacity (including the
driver)1025 1024
Total weight on the ground 2920 2940
200
TECHNICAL DATA

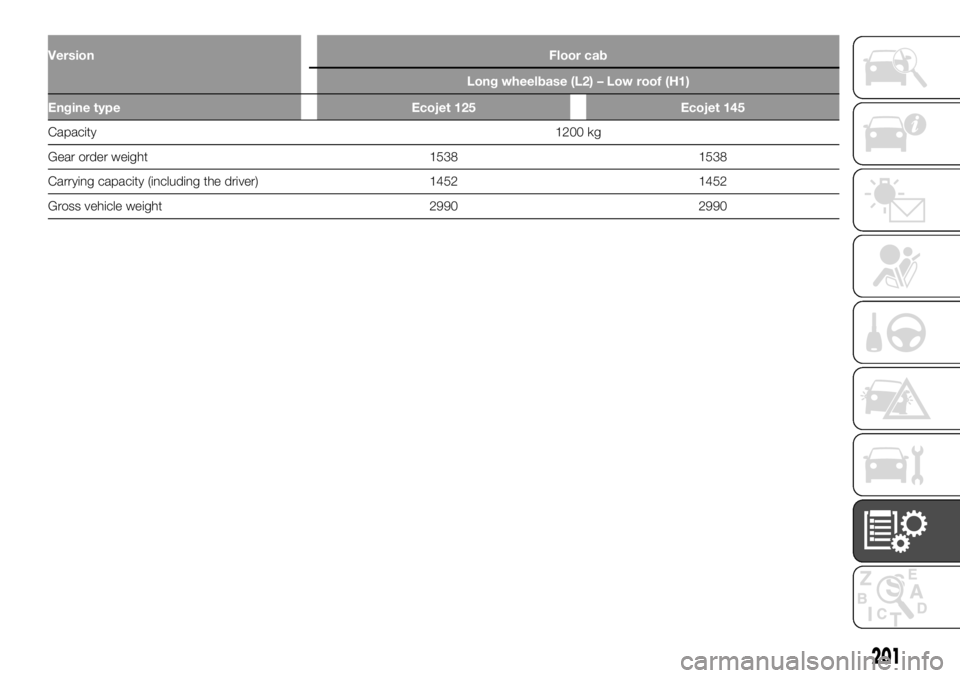

VersionFloor cab
Long wheelbase (L2) – Low roof (H1)
Engine type Ecojet 125 Ecojet 145
Capacity1200
kg
Gear order weight 1538 1538
Carrying capacity (including the driver) 1452 1452
Gross vehicle weight 2990 2990
201

REFUELLING
Use Multijet 115 (Euro 5) Ecojet 120 (Euro 4 – Euro
5) – Ecojet 140 (Euro 5)Recommended fuels
and original lubricants
Diesel engine lubricants (litres) 6.0 7.4SELENIA WR
FORWARD
5W-30 Contractual
Technical Reference No.
(F023.N15)
For non-Europe markets:
SELENIA
MULTIPOWER C3
Contractual Technical
Reference N° (F129.F11)
Protective agent for
radiators (litres)Without climate control
system8.3 9.5
PARAFLU UP
Contractual Technical
Reference No. F101.M01 With climate control
system9.9 11.0
Brake fluid (kg) 1.057TUTELA TOP 4S
Contractual Technical
Reference N° F001.A93
Lubricants and greases for drive transmission (litres) 2.7(TUTELA
TRANSMISSION
GEARSYNTH MT)
Contractual Technical
Reference N° F005.D16
Hydraulic power steering (litres)1.13
1.13 (right hand drive versions)
1.21 (left hand drive versions)–
202
TECHNICAL DATA

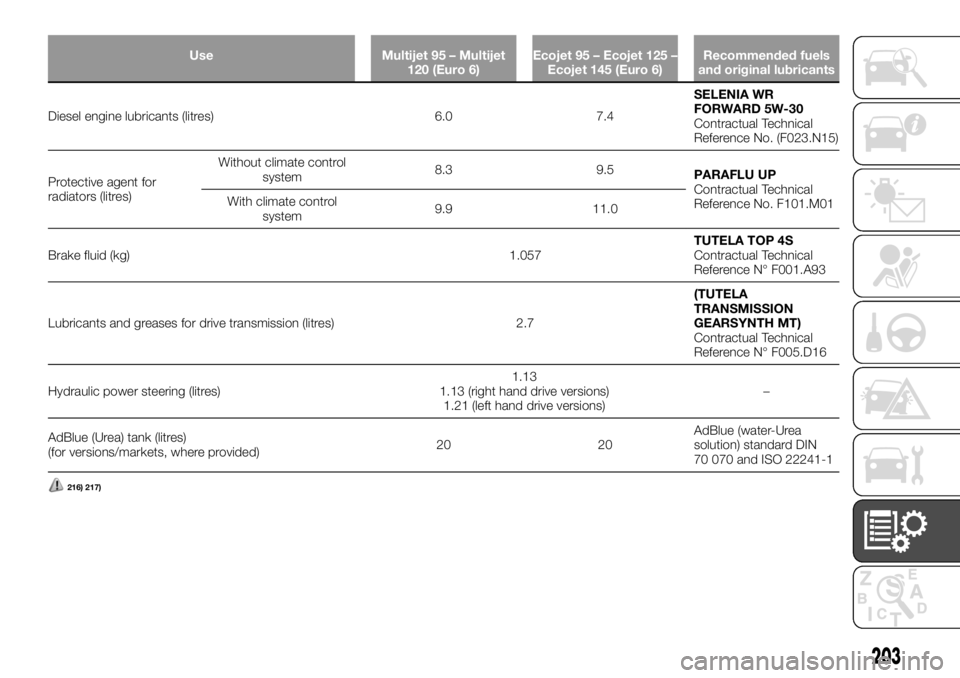

Use Multijet 95 – Multijet
120 (Euro 6)Ecojet 95 – Ecojet 125 –
Ecojet 145 (Euro 6)Recommended fuels
and original lubricants
Diesel engine lubricants (litres) 6.0 7.4SELENIA WR
FORWARD 5W-30
Contractual Technical
Reference No. (F023.N15)
Protective agent for
radiators (litres)Without climate control
system8.3 9.5
PARAFLU UP
Contractual Technical
Reference No. F101.M01 With climate control
system9.9 11.0
Brake fluid (kg) 1.057TUTELA TOP 4S
Contractual Technical
Reference N° F001.A93
Lubricants and greases for drive transmission (litres) 2.7(TUTELA
TRANSMISSION
GEARSYNTH MT)
Contractual Technical
Reference N° F005.D16
Hydraulic power steering (litres)1.13
1.13 (right hand drive versions)
1.21 (left hand drive versions)–
AdBlue (Urea) tank (litres)
(for versions/markets, where provided)20 20AdBlue (water-Urea
solution) standard DIN
70 070 and ISO 22241-1
216) 217)
203

WARNING
216)Use AdBlue (Urea) additive only
according to DIN 70 070 and ISO
22241-1. Other fluids may cause damage
to the system: also exhaust emissions
would no longer comply with the law.
217)The distribution companies are
responsible for the compliance of their
product. Observe the precautions of
storage and servicing, in order to preserve
the initial qualities. The manufacturer of the
vehicle does not recognise any guarantee
in case of malfunctions and damage
caused to the vehicle due to the use of
AdBlue (Urea) additive not in accordance
with regulations.
204
TECHNICAL DATA

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the
requirements of the scheduled servicing plan. Constant use of the prescribed lubricants guarantees the fuel
consumption and emission specifications. Lubricant quality is crucial for engine operation and duration.
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
Use Features Specification Original fluids and
lubricantsReplacement interval
Diesel engine lubricants (SAE 5W-30 – ACEA C4)9.55535-S4SELENIA WR Forward
5W-30
Contractual Technical
Reference No. (F023.N15)According to Scheduled
Servicing Plan
Diesel engine lubricants
(1)(SAE 5W-30 ACEA C3)9.55535-S3 or
MS-11106SELENIA
MULTIPOWER C3
Contractual Technical
Reference No. (F129.F11)According to Scheduled
Servicing Plan
(1) Product used for non-Europe countries.
If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to
top up. In this case optimal engine performance is not guaranteed. The use of products with different specifications than those
indicated above could cause damage to the engine not covered by the warranty.
205

Use Features SpecificationOriginal fluids and
lubricantsApplications
Brake fluid
ClutchfluidSynthetic fluid for brake
and clutch systems
Exceeds specifications:
DOT 49.55597 or MS-90039TUTELA TOP 4S
Contractual Technical
Reference No. F005.F15Hydraulic brakes and
hydraulic clutch controls
Lubricants and greases
for drive transmission
Manual transmission PF6SAE 75W-80 API GL-4+
grade synthetic lubricant.9.55550-MZ12TUTELA
TRANSMISSION
GEARSYNTH MTManual mechanical
transmission
Hydraulic power steering - - -
Protective agent for
radiatorsMixture of spirits and
surfactants. Exceeds
CUNA NC
956-16 specifications9.55523 or MS-90032PARAFLU
UP(1) (*) (**)
Contractual Technical
Reference No. F101.M01Cooling circuits
proportions of use: 50%
water 50% PARAFLUUP
Cooling gas for the air
conditioning system1. R134a 2. R1234yf - -
Additive for diesel
emissions AdBlue (Urea)Water-urea solutionDIN 70 070 and ISO
22241-1AdBlueTo be used for filling the
tank Urea on vehicles
equipped with system of
Selective Catalytic
Reduction (SCR).
(1) The product used for initial filling and PARAFLU UP can be fully mixed, even though the colours may differ. PARAFLU UP may be used for topping up amounts of
up to 1 litre. Over this amount, we recommend completely changing the coolant in the percentages given.
(*) Do not top up or mix with other fluids which have different specifications from the ones described.
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLU UP and 40% demineralised water.
206
TECHNICAL DATA

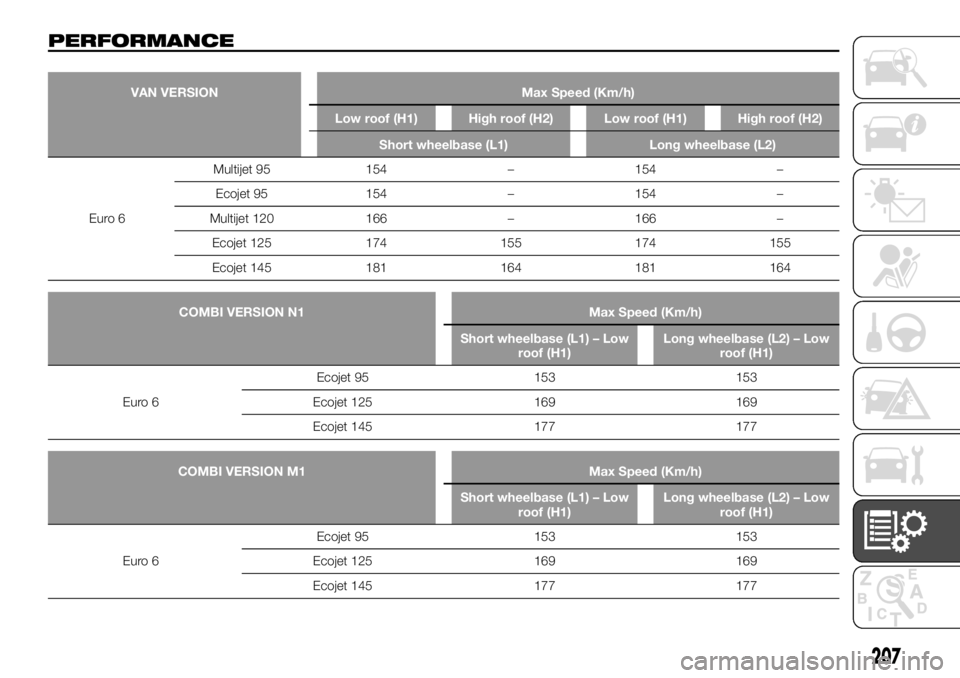

PERFORMANCE
VAN VERSION Max Speed (Km/h)
Low roof (H1) High roof (H2) Low roof (H1) High roof (H2)
Short wheelbase (L1) Long wheelbase (L2)
Euro 6Multijet
95 154 – 154 –
Ecojet 95 154 – 154 –
Multijet 120 166 – 166 –
Ecojet 125 174 155 174 155
Ecojet 145 181 164 181 164
COMBI VERSION N1 Max Speed (Km/h)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Ecojet
95 153 153
Ecojet 125 169 169
Ecojet 145 177 177
COMBI VERSION M1 Max Speed (Km/h)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Ecojet
95 153 153
Ecojet 125 169 169
Ecojet 145 177 177
207

CREW CAB VERSION Max Speed (Km/h)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Multijet 95 154 154
Ecojet 95 154 154
Multijet 120 166 166
Ecojet 125 174 174
Ecojet 145 181 181
FLOOR CAB VERSION Max Speed (Km/h)
Long wheelbase (L2) – Low roof (H1)
Euro 6Ecojet
125 –
Ecojet 145 –
208
