FIAT TALENTO 2017 Owner handbook (in English)

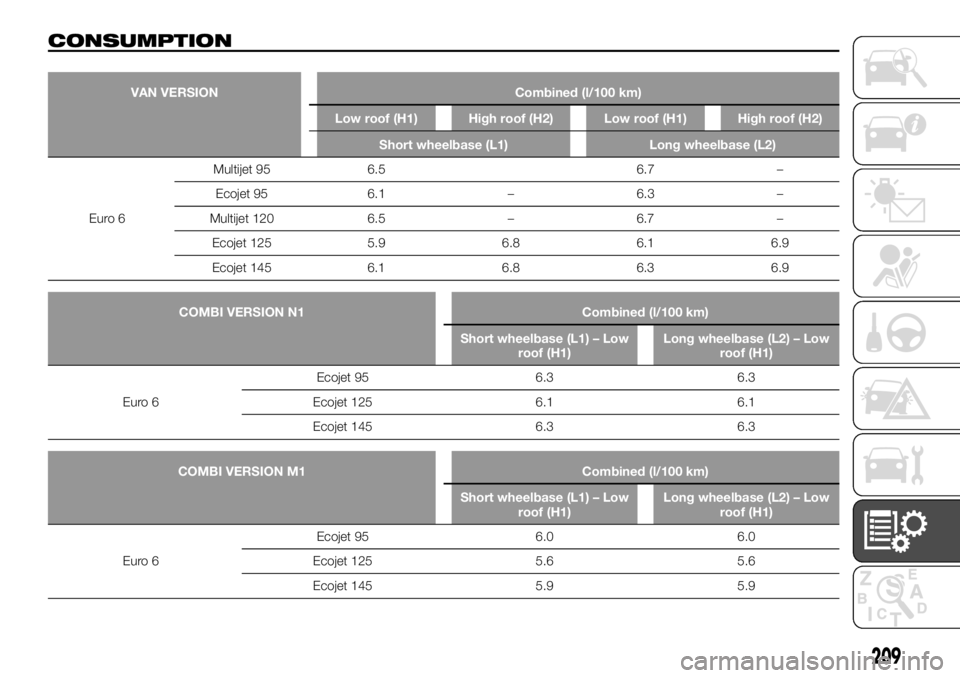

CONSUMPTION
VAN VERSION Combined (l/100 km)
Low roof (H1) High roof (H2) Low roof (H1) High roof (H2)
Short wheelbase (L1) Long wheelbase (L2)
Euro 6Multijet
95 6.5 6.7 –
Ecojet 95 6.1 – 6.3 –
Multijet 120 6.5 – 6.7 –
Ecojet 125 5.9 6.8 6.1 6.9
Ecojet 145 6.1 6.8 6.3 6.9
COMBI VERSION N1 Combined (l/100 km)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Ecojet
95 6.3 6.3
Ecojet 125 6.1 6.1
Ecojet 145 6.3 6.3
COMBI VERSION M1 Combined (l/100 km)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Ecojet
95 6.0 6.0
Ecojet 125 5.6 5.6
Ecojet 145 5.9 5.9
209

CREW CAB VERSION Combined (l/100 km)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Multijet 95 6.7 6.7
Ecojet 95 6.3 6.3
Multijet 120 6.7 6.7
Ecojet 125 6.1 6.1
Ecojet 145 6.3 6.3
FLOOR CAB VERSION Combined (l/100 km)
Long wheelbase (L2) – Low roof (H1)
Euro 6Ecojet
125 7.0
Ecojet 145 6.9
210
TECHNICAL DATA

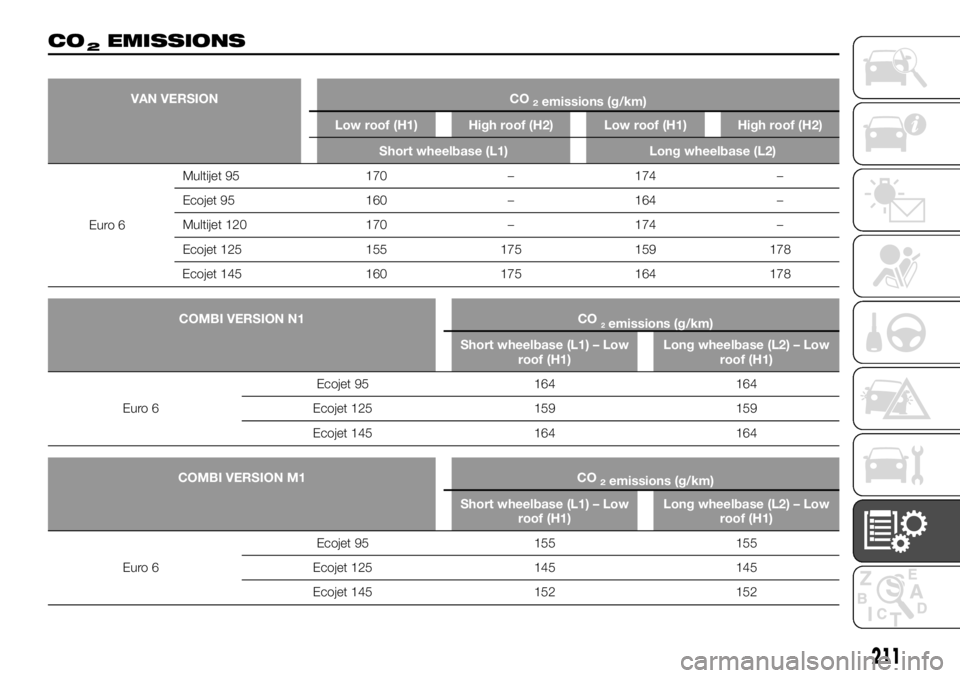

CO2EMISSIONS
VAN VERSION CO2emissions (g/km)
Low roof (H1) High roof (H2) Low roof (H1) High roof (H2)
Short wheelbase (L1) Long wheelbase (L2)
Euro 6Multijet 95 170 – 174 –
Ecojet 95 160 – 164 –
Multijet 120 170 – 174 –
Ecojet 125 155 175 159 178
Ecojet 145 160 175 164 178
COMBI VERSION N1 CO2emissions (g/km)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Ecojet 95 164 164
Ecojet 125 159 159
Ecojet 145 164 164
COMBI VERSION M1 CO2emissions (g/km)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Ecojet 95 155 155
Ecojet 125 145 145
Ecojet 145 152 152
211

CREW CAB VERSION CO2emissions (g/km)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Multijet
95 174 174
Ecojet 95 164 164
Multijet 120 174 174
Ecojet 125 159 159
Ecojet 145 164 164
FLOOR CAB VERSION CO2emissions (g/km)
Long wheelbase (L2) – Low roof (H1)
Euro 6Ecojet
125 181
Ecojet 145 178
212
TECHNICAL DATA

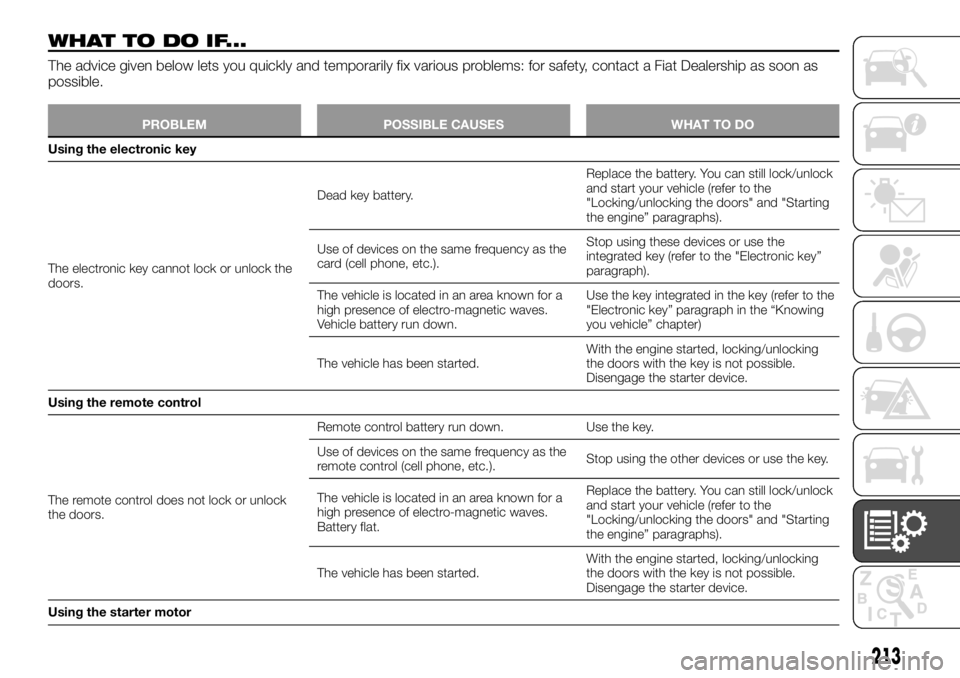

WHATTODOIF...
The advice given below lets you quickly and temporarily fix various problems: for safety, contact a Fiat Dealership as soon as
possible.
PROBLEM POSSIBLE CAUSES WHAT TO DO
Using the electronic key
The
electronic key cannot lock or unlock the
doors.Dead key battery.Replace the battery. You can still lock/unlock
and start your vehicle (refer to the
"Locking/unlocking the doors" and "Starting
the engine” paragraphs).
Use of devices on the same frequency as the
card (cell phone, etc.).Stop using these devices or use the
integrated key (refer to the "Electronic key”
paragraph).
The vehicle is located in an area known for a
high presence of electro-magnetic waves.
Vehicle battery run down.Use the key integrated in the key (refer to the
"Electronic key” paragraph in the “Knowing
you vehicle” chapter)
The vehicle has been started.With the engine started, locking/unlocking
the doors with the key is not possible.
Disengage the starter device.
Using the remote control
The remote control does not lock or unlock
the doors.Remote control battery run down. Use the key.
Use of devices on the same frequency as the
remote control (cell phone, etc.).Stop using the other devices or use the key.
The vehicle is located in an area known for a
high presence of electro-magnetic waves.
Battery flat.Replace the battery. You can still lock/unlock
and start your vehicle (refer to the
"Locking/unlocking the doors" and "Starting
the engine” paragraphs).
The vehicle has been started.With the engine started, locking/unlocking
the doors with the key is not possible.
Disengage the starter device.
Using the starter motor
213

PROBLEM POSSIBLE CAUSES WHAT TO DO
The instrument panel warning lights are dim
or do not turn on, the starter motor does not
turn over.Battery terminal loose, disconnected or
rusted.Tighten it, reconnect it or clean it if it is
rusted.
Battery run down or out of order.Connect another battery to the defective one.
See the paragraph "Emergency starting" or
replace the battery if necessary. Do not push
the vehicle if the steering wheel lock is
engaged.
Circuit defective. Contact a Fiat Dealership.
The engine does not start.Starting conditions were not satisfied.Refer to the “Starting the engine” paragraph
in the “Knowing your vehicle” chapter.
The electronic key "easy access" does not
work.Insert the key in the reader to start the
engine. Refer to the “Starting the engine”
paragraph in the “Knowing your vehicle”
chapter.
The engine does not stop.Electronic key not recognised. Insert key into the reader.
Electronic problem.Press the starter button five times in a row,
quickly.
The steering wheel stays locked.Steering wheel locked.Turn the steering wheel and press the start
button at the same time (refer to the "Starting
the engine” paragraph in the “Knowing your
vehicle” chapter).
Circuit defective. Contact a Fiat Dealership.
During driving
White smoke coming from the exhaust pipe.This does not necessarily indicate a defect:
the smoke comes from regenerating the
particulate filter.Please see the paragraph "Details about the
Diesel version".
214
TECHNICAL DATA

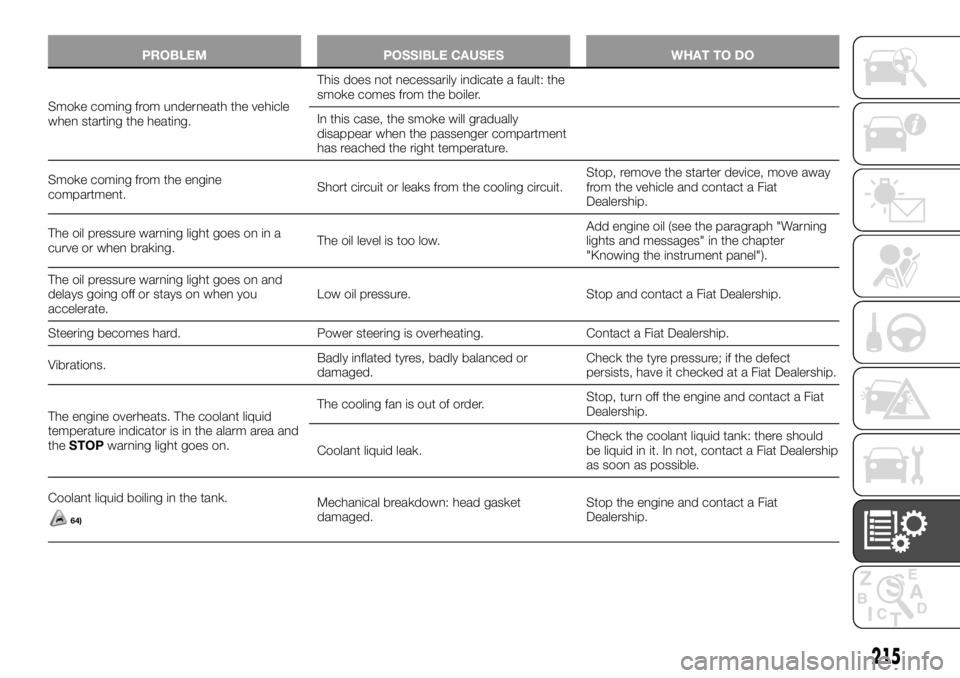

PROBLEM POSSIBLE CAUSES WHAT TO DO
Smoke coming from underneath the vehicle
when starting the heating.This does not necessarily indicate a fault: the
smoke comes from the boiler.
In this case, the smoke will gradually
disappear when the passenger compartment
has reached the right temperature.
Smoke coming from the engine
compartment.Short circuit or leaks from the cooling circuit.Stop, remove the starter device, move away
from the vehicle and contact a Fiat
Dealership.
The oil pressure warning light goes on in a
curve or when braking.The oil level is too low.Add engine oil (see the paragraph "Warning
lights and messages" in the chapter
"Knowing the instrument panel").
The oil pressure warning light goes on and
delays going off or stays on when you
accelerate.Low oil pressure. Stop and contact a Fiat Dealership.
Steering becomes hard. Power steering is overheating. Contact a Fiat Dealership.
Vibrations.Badly inflated tyres, badly balanced or
damaged.Check the tyre pressure; if the defect
persists, have it checked at a Fiat Dealership.
The engine overheats. The coolant liquid
temperature indicator is in the alarm area and
theSTOPwarning light goes on.The cooling fan is out of order.Stop, turn off the engine and contact a Fiat
Dealership.
Coolant liquid leak.Check the coolant liquid tank: there should
be liquid in it. In not, contact a Fiat Dealership
as soon as possible.
Coolant liquid boiling in the tank.
64)
Mechanical breakdown: head gasket
damaged.Stop the engine and contact a Fiat
Dealership.
215

PROBLEM POSSIBLE CAUSES WHAT TO DO
Windscreen wiper not working.Windscreen wiper blade blocked. Detach the blade before moving the wiper.
Electrical circuit defective. Contact a Fiat Dealership.
Fuse damaged.Replace the fuse, referring to the “Passenger
compartment fuses” paragraph in the “In an
emergency” chapter.
The windscreen wiper does not stop. Defective electrical controls. Contact a Fiat Dealership.
Faster directional signal frequency. Bulb blown.Please see the paragraph "Replacing a light
bulb" in the "Emergency" chapter.
The direction indicators do not work.Electrical circuit or control is defective. Contact a Fiat Dealership.
Fuse damaged.Replace the fuse, referring to the “Passenger
compartment fuses” paragraph in the “In an
emergency” chapter.
The headlights do not go on or do not go off.Electrical circuit or control is defective. Contact a Fiat Dealership.
Fuse damaged.Replace the fuse, referring to the “Passenger
compartment fuses” paragraph in the “In an
emergency” chapter.
Electric equipment
Traces of condensation in the lights.Traces of condensation can be due to natural
causes linked to temperature variations. In
this case, they will gradually disappear when
you turn the lights on.
The front seat belt warning light turns on
even if the seat belts are fastened.An object has come between the floorboard
and the seat, obstructing the sensor's
function.Remove any object that is beneath the front
seats.
216
TECHNICAL DATA
Electric equipment

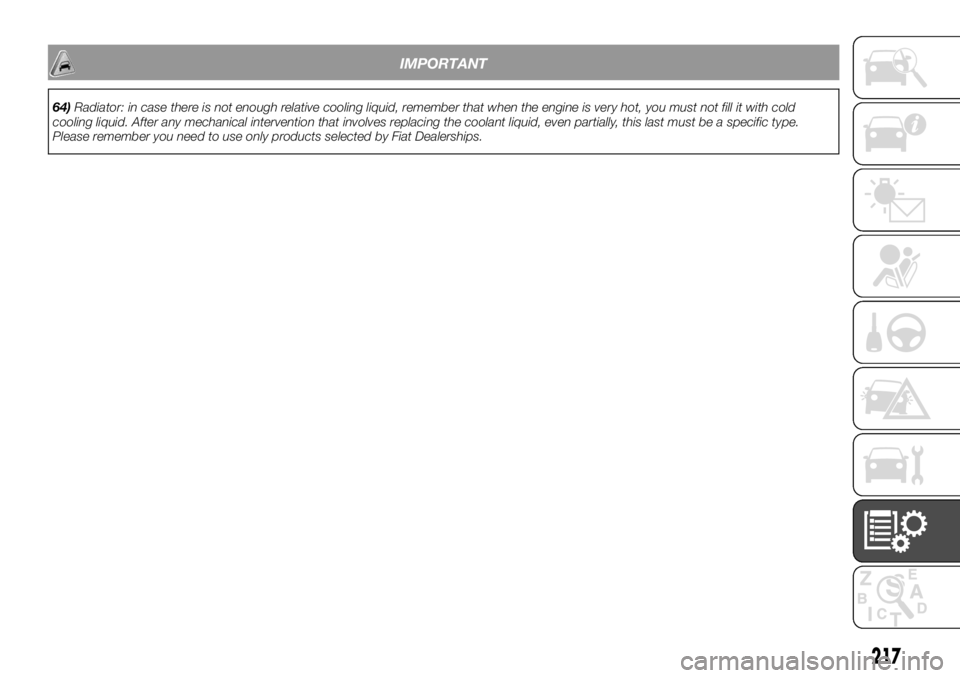

IMPORTANT
64)Radiator: in case there is not enough relative cooling liquid, remember that when the engine is very hot, you must not fill it with cold
cooling liquid. After any mechanical intervention that involves replacing the coolant liquid, even partially, this last must be a specific type.
Please remember you need to use only products selected by Fiat Dealerships.
217
