FIAT TALENTO 2017 Owner handbook (in English)

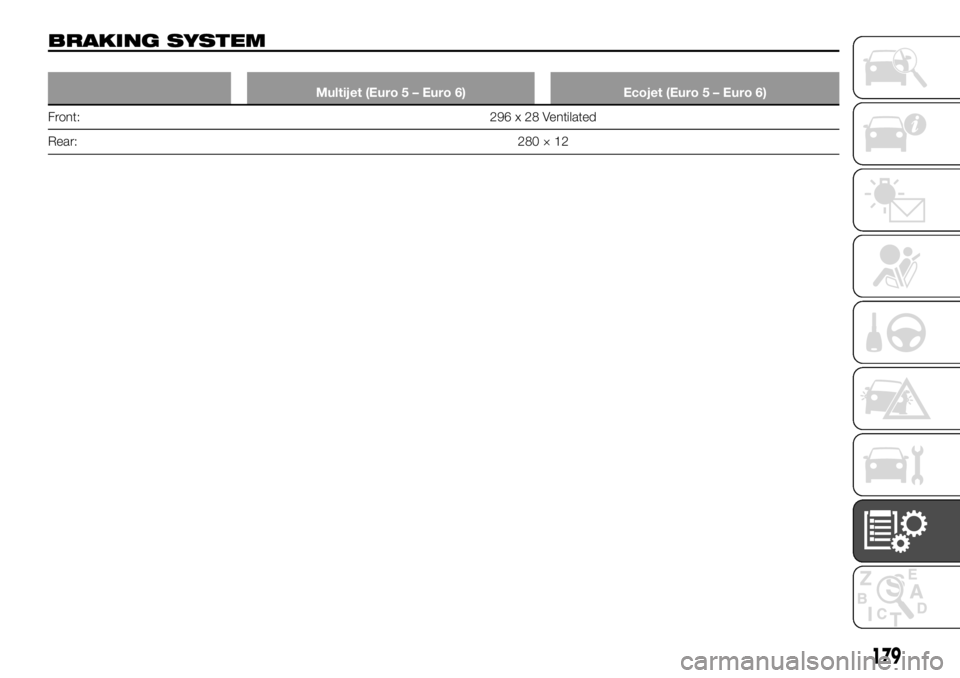

BRAKING SYSTEM
Multijet (Euro 5 – Euro 6) Ecojet (Euro 5 – Euro 6)
Front: 296 x 28 Ventilated
Rear:2
80×12
179

TRANSMISSION
Multijet (Euro 5 — Euro 6) Ecojet (Euro 5 — Euro 6)
TypeManual:
PF6
Number of forward gears 6
Traction Front wheel drive
180
TECHNICAL DATA

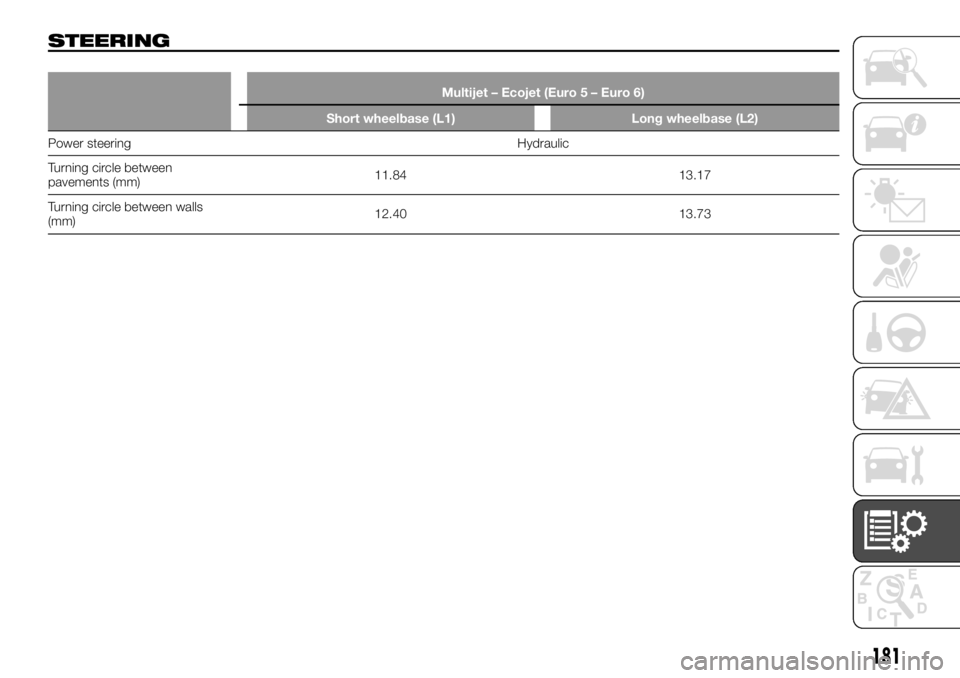

STEERING
Multijet – Ecojet (Euro 5 – Euro 6)
Short wheelbase (L1) Long wheelbase (L2)
Power steering Hydraulic
T
urning circle between
pavements (mm)11.84 13.17
Turning circle between walls
(mm)12.40 13.73
181

TYRES
IMPORTANT If there are any discrepancies between the Owner Handbook and the Registration Document, take the information
from the latter. For safe driving, the car must be fitted with tyres of the same make and type on all wheels.
Euro 6 versions Multijet 95 - Ecojet 95 Multijet 120 Ecojet 125 Ecojet 145
Tyre dimensions
(standard)205/65 R16 205/65 R16 205/65 R16 -
215/65 R16 215/65 R16 215/65 R16 215/65 R16
Tyre size (on request)205/65 R16 All season 205/65 R16 All season 205/65 R16 All season 205/65 R16 All season
215/65 R16 All season 215/65 R16 All season 215/65 R16 All season 215/65 R16 All season
215/60 R17
(*)215/60 R17(*)215/60 R17(*)215/60 R17(*)
195/75 R16(**)195/75 R16(**)195/75 R16(**)195/75 R16(**)
Spare wheelThe spare wheel is the same as the tyres supplied with the vehicle or those supplied on request. A
215/65 R16 spare wheel with a steel rim is supplied if 17" tyres are used.
(*) Chains cannot be fitted
(**) Extra EU markets
Euro 4 - Euro 5 versions Multijet 115 (Euro 5) Ecojet 120 (Euro 4 - Euro 5) Ecojet 140 (Euro 5)
Tyre dimensions (standard)205/65
R16 205/65 R16 –
215/65 R16 215/65 R16 215/65 R16
Tyre size (on request)205/65 R16 All season 205/65 R16 All season 205/65 R16 All season
215/60 R17
(*)215/60 R17(*)215/60 R17(*)
195/75 R16(**)195/75 R16(**)195/75 R16(**)
Spare wheelThe spare wheel is the same as the tyres supplied with the vehicle or those supplied on request. A
215/65 R16 spare wheel with a steel rim is supplied if 17" tyres are used.
(*) Chains cannot be fitted
(**) Extra EU markets
182
TECHNICAL DATA

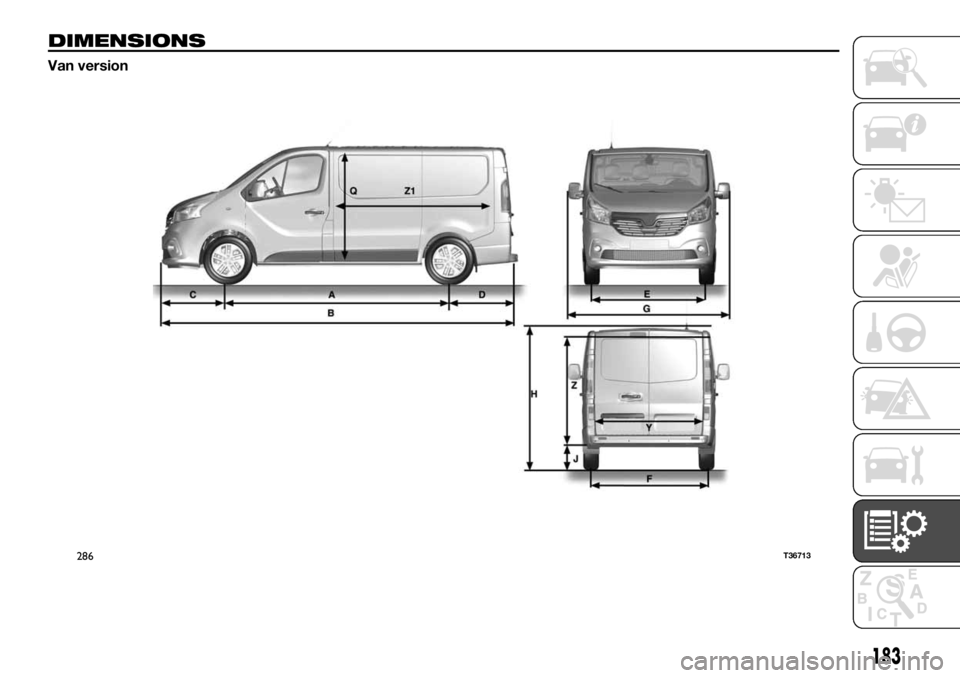

DIMENSIONS
Van version
286T36713
183

Vehicles complete and with no further changes. Measurements i millimetres
VANShort wheelbase (L1) Long wheelbase (L2)
Low roof (H1) High roof (H2) Low roof (H1) High roof (H2)
A 3098 3098 3498 3498
B
4999 4999 5399 5399
C 933 933 933 933
D 968 968 968 968
E 1615 1615 1615 1615
F 1628 1628 1628 1628
G 2283 2283 2283 2283
H 1971 2493 1971 2490
J 552 552 552 552
Q 1387 1898 1387 1898
Y 1391 1391 1391 1391
Z 1320 1820 1320 1820
Z1 2537 2537 2937 2937
184
TECHNICAL DATA

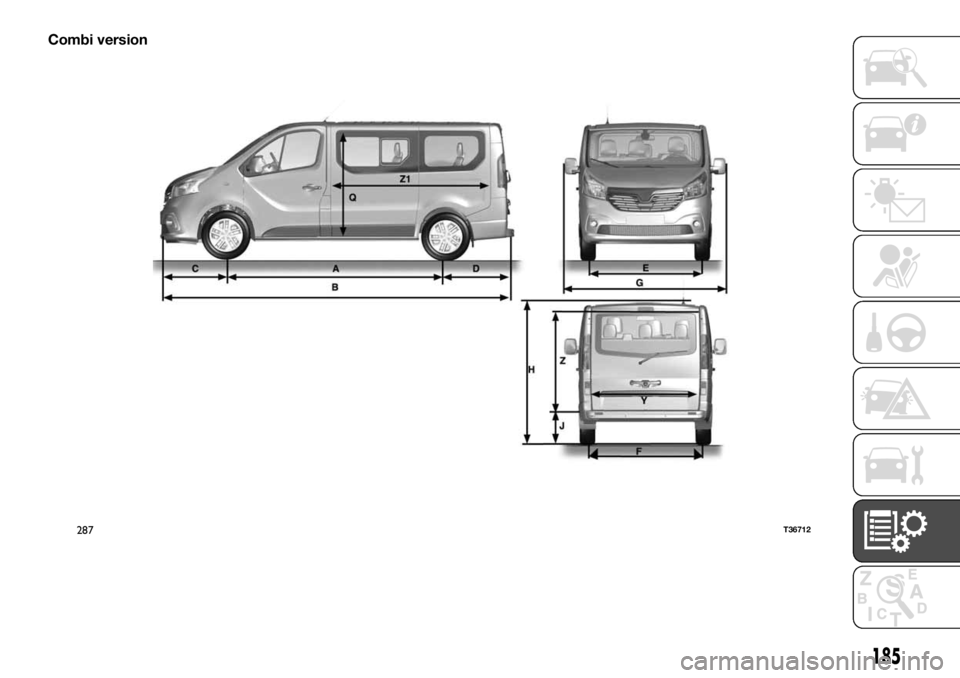

Combi version
287T36712
185

Vehicles complete and with no further changes. Measurements i millimetres
COMBI N1Short wheelbase (L1) Long wheelbase (L2)
Low roof (H1)
5/6 passengers
A 3098 3498
B
4999 5399
C 933 933
D 968 968
E 1615 1615
F 1628 1628
G 2283 2283
H 1971 1971
J 552 552
Q 1369 1369
Y 1391 1391
Z 1320 1320
Z1 1650 2050
186
TECHNICAL DATA

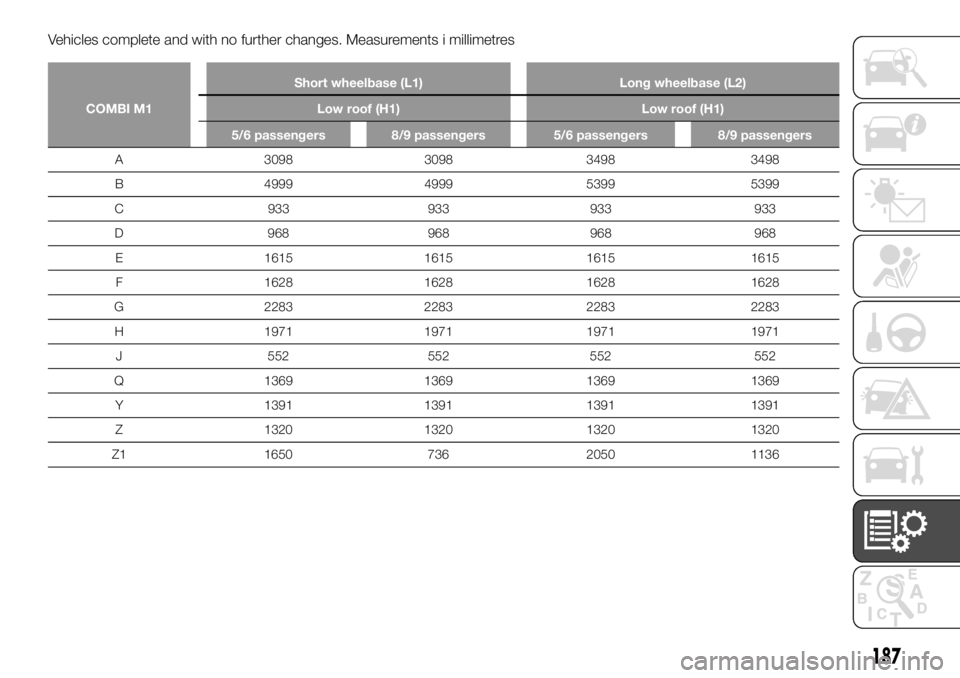

Vehicles complete and with no further changes. Measurements i millimetres
COMBI M1Short wheelbase (L1) Long wheelbase (L2)
Low roof (H1) Low roof (H1)
5/6 passengers 8/9 passengers 5/6 passengers 8/9 passengers
A 3098 3098 3498 3498
B
4999 4999 5399 5399
C 933 933 933 933
D 968 968 968 968
E 1615 1615 1615 1615
F 1628 1628 1628 1628
G 2283 2283 2283 2283
H 1971 1971 1971 1971
J 552 552 552 552
Q 1369 1369 1369 1369
Y 1391 1391 1391 1391
Z 1320 1320 1320 1320
Z1 1650 736 2050 1136
187

Crew cab version
288T36723
188
TECHNICAL DATA
