technical data FIAT TALENTO 2018 Owner handbook (in English)

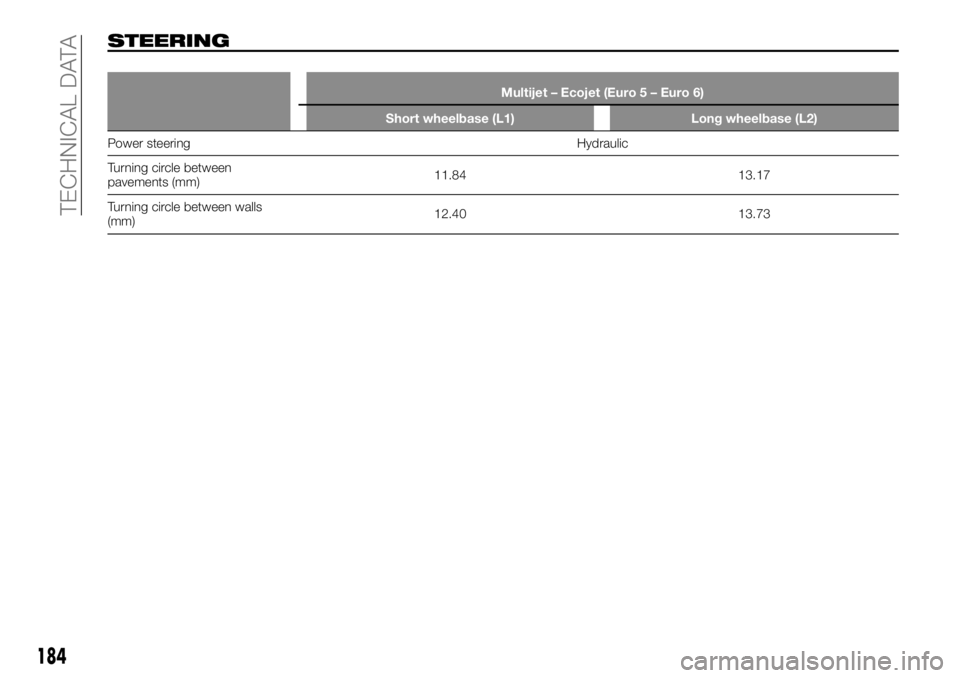

STEERING
Multijet – Ecojet (Euro 5 – Euro 6)
Short wheelbase (L1) Long wheelbase (L2)
Power steering Hydraulic
Turning circle between
pavements (mm)11.84 13.17
Turning circle between walls
(mm)12.40 13.73
184
TECHNICAL DATA

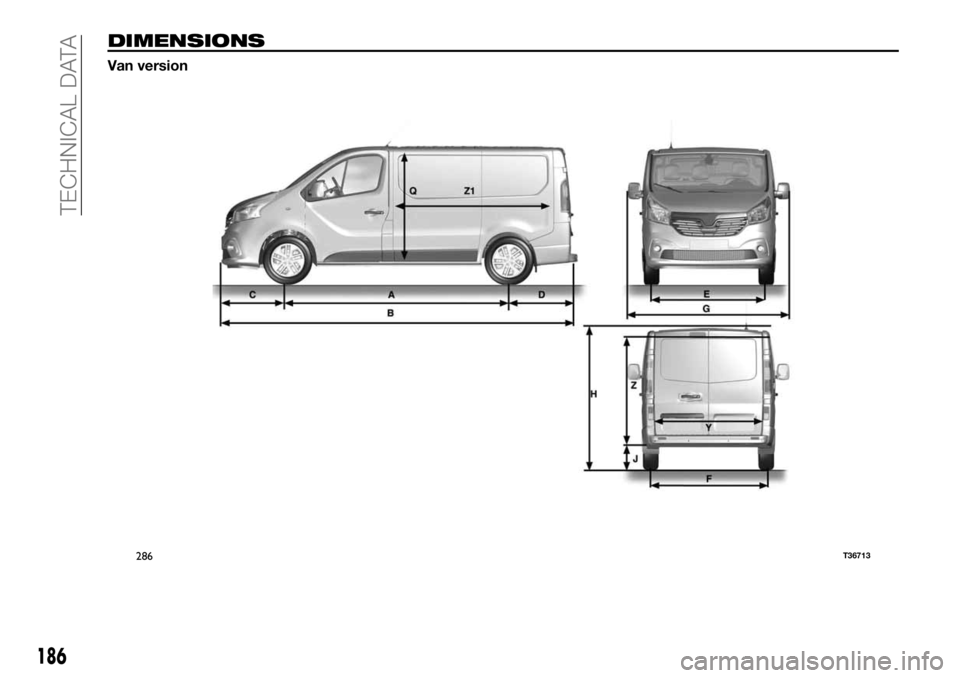

DIMENSIONS
Van version
286T36713
186
TECHNICAL DATA

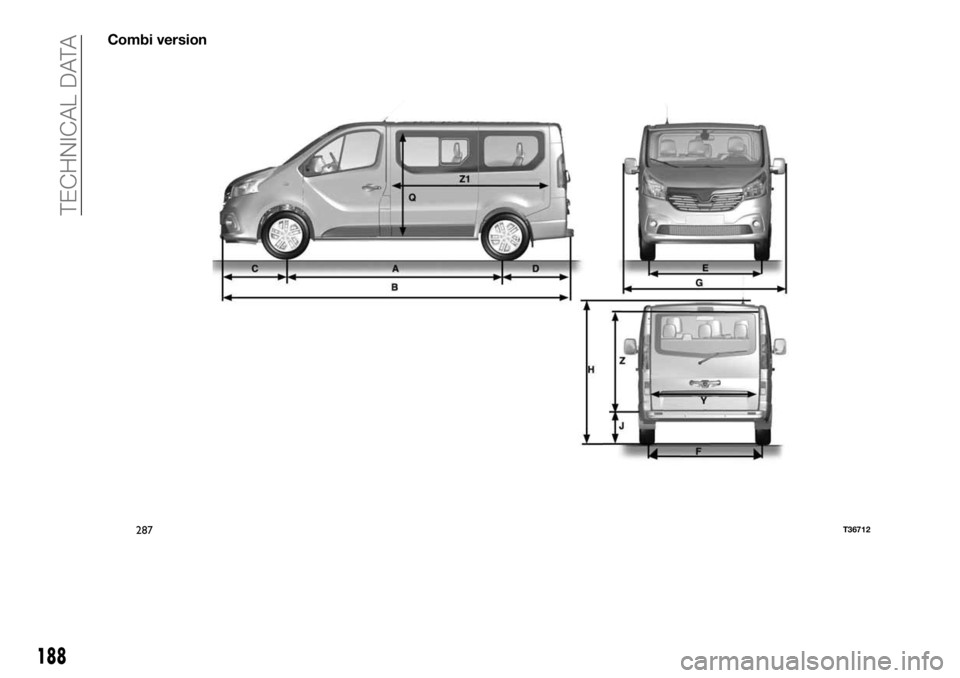

Combi version
287T36712
188
TECHNICAL DATA

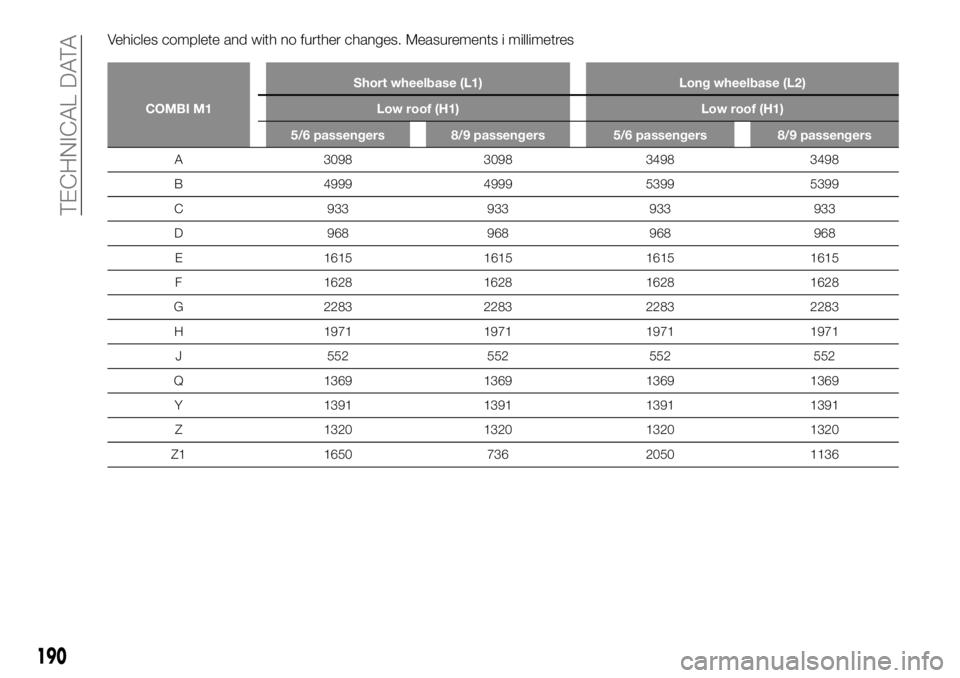

Vehicles complete and with no further changes. Measurements i millimetres
COMBI M1Short wheelbase (L1) Long wheelbase (L2)
Low roof (H1) Low roof (H1)
5/6 passengers 8/9 passengers 5/6 passengers 8/9 passengers
A 3098 3098 3498 3498
B 4999 4999 5399 5399
C 933 933 933 933
D 968 968 968 968
E 1615 1615 1615 1615
F 1628 1628 1628 1628
G 2283 2283 2283 2283
H 1971 1971 1971 1971
J 552 552 552 552
Q 1369 1369 1369 1369
Y 1391 1391 1391 1391
Z 1320 1320 1320 1320
Z1 1650 736 2050 1136
190
TECHNICAL DATA

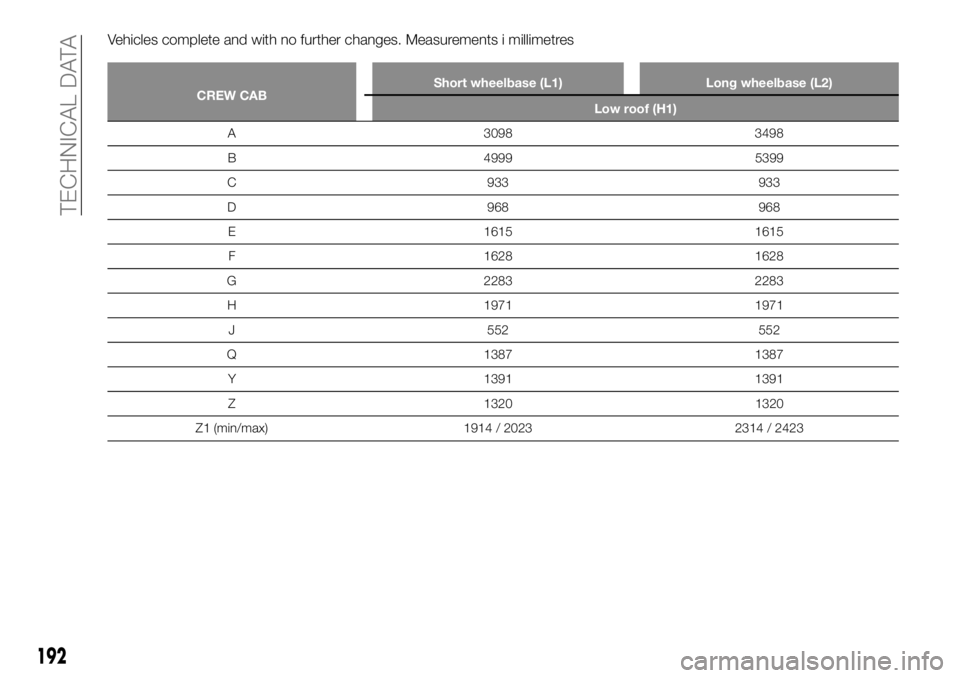

Vehicles complete and with no further changes. Measurements i millimetres
CREW CABShort wheelbase (L1) Long wheelbase (L2)
Low roof (H1)
A 3098 3498
B
4999 5399
C 933 933
D 968 968
E 1615 1615
F 1628 1628
G 2283 2283
H 1971 1971
J 552 552
Q 1387 1387
Y 1391 1391
Z 1320 1320
Z1 (min/max) 1914 / 2023 2314 / 2423
192
TECHNICAL DATA

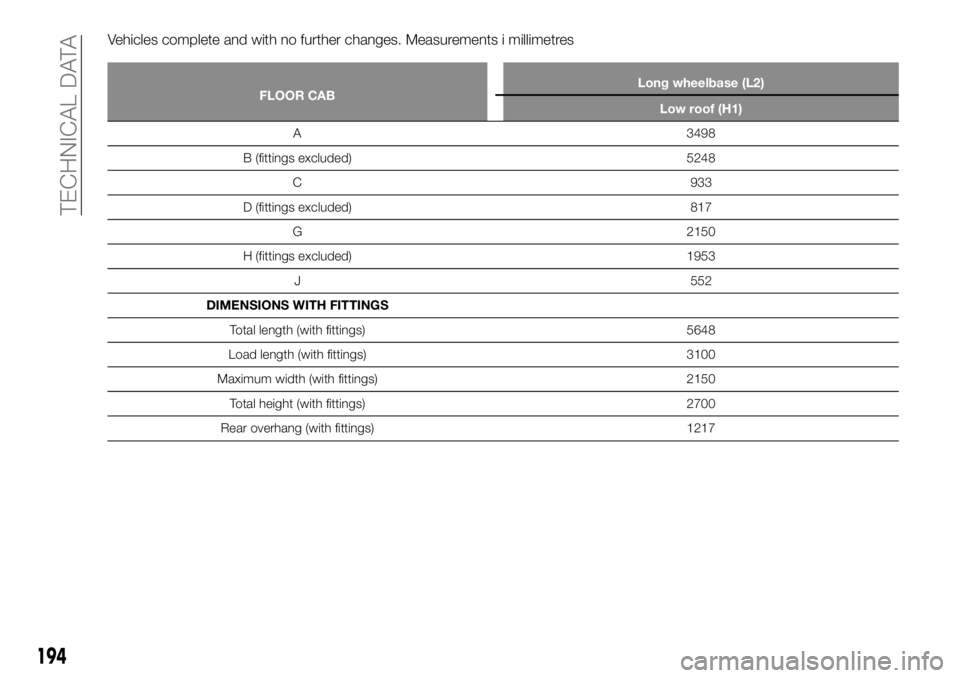

Vehicles complete and with no further changes. Measurements i millimetres
FLOOR CABLong wheelbase (L2)
Low roof (H1)
A 3498
B
(fittings excluded) 5248
C 933
D (fittings excluded) 817
G 2150
H (fittings excluded) 1953
J 552
DIMENSIONS WITH FITTINGS
Total length (with fittings) 5648
Load length (with fittings) 3100
Maximum width (with fittings) 2150
Total height (with fittings) 2700
Rear overhang (with fittings) 1217
194
TECHNICAL DATA

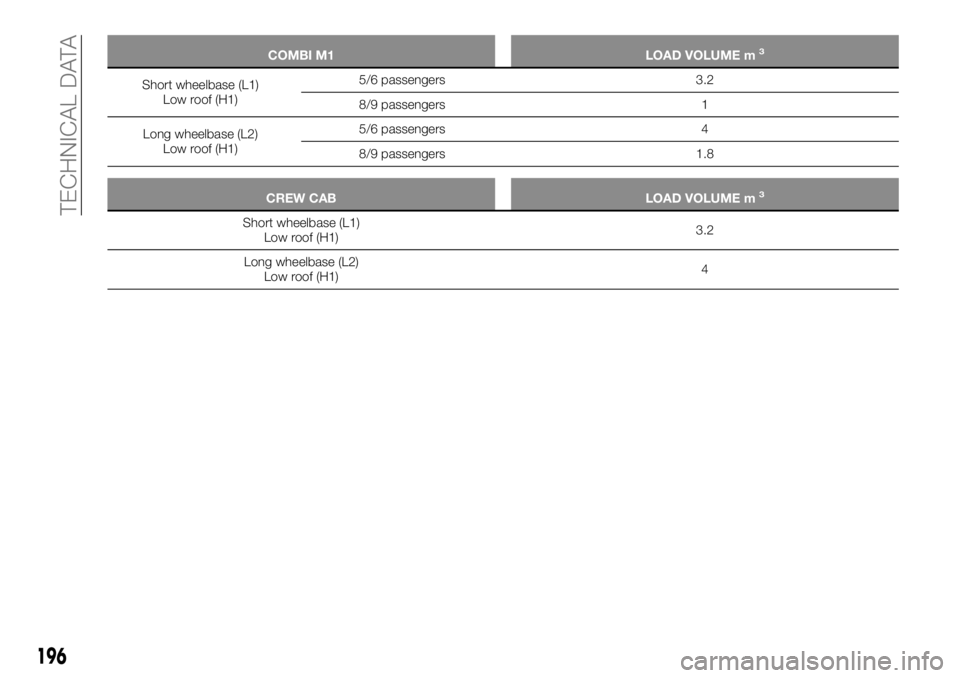

COMBI M1 LOAD VOLUME m3
Short wheelbase (L1)
Low roof (H1)5/6 passengers 3.2
8/9 passengers 1
Long wheelbase (L2)
Low roof (H1)5/6 passengers 4
8/9 passengers 1.8
CREW CAB LOAD VOLUME m3
Short wheelbase (L1)
Low roof (H1)3.2
Long wheelbase (L2)
Low roof (H1)4
196

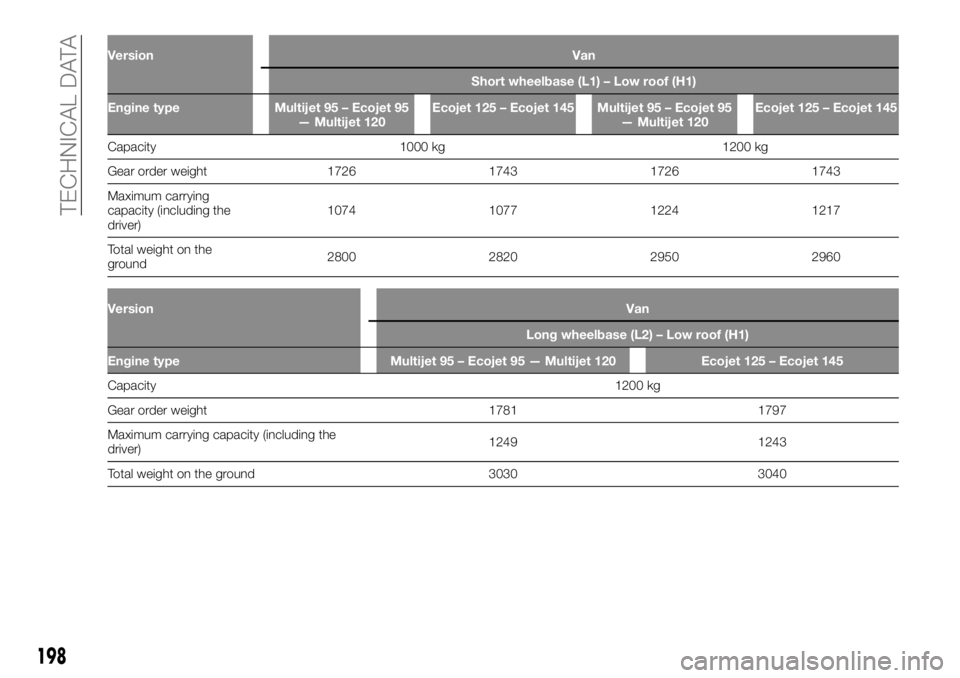

TECHNICAL DATA

VersionVan
Short wheelbase (L1) – Low roof (H1)
Engine type Multijet 95 – Ecojet 95
— Multijet 120Ecojet 125 – Ecojet 145 Multijet 95 – Ecojet 95
— Multijet 120Ecojet 125 – Ecojet 145
Capacity 1000 kg 1200 kg
Gear
order weight 1726 1743 1726 1743
Maximum carrying
capacity (including the
driver)1074 1077 1224 1217
Total weight on the
ground2800 2820 2950 2960
VersionVan
Long wheelbase (L2) – Low roof (H1)
Engine type Multijet 95 – Ecojet 95 — Multijet 120 Ecojet 125 – Ecojet 145
Capacity1200
kg
Gear order weight 1781 1797
Maximum carrying capacity (including the
driver)1249 1243
Total weight on the ground 3030 3040
198

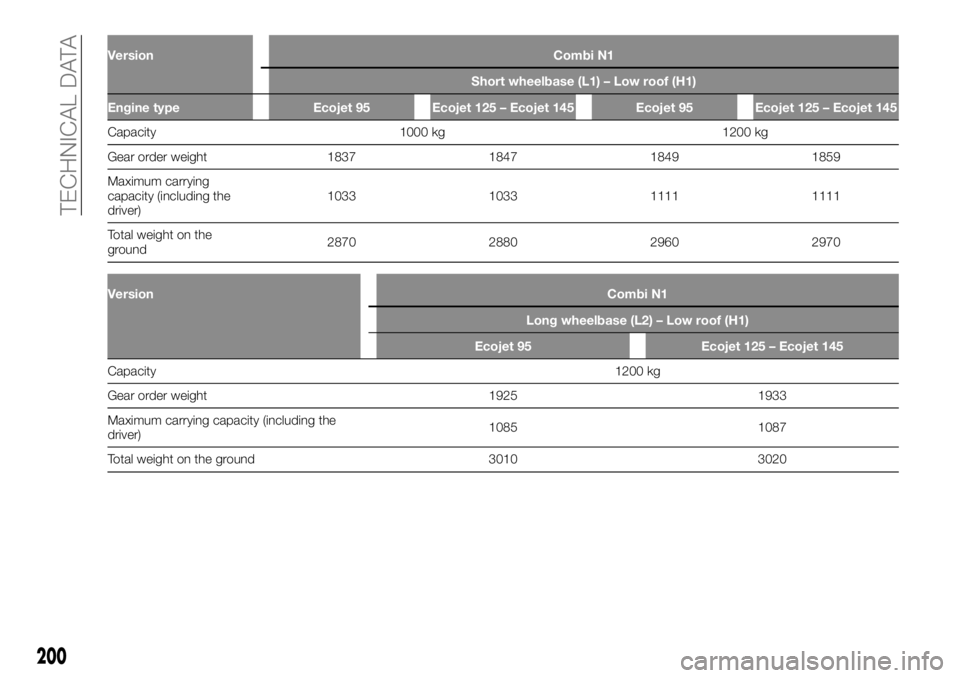

TECHNICAL DATA

Version Combi N1
Short wheelbase (L1) – Low roof (H1)
Engine type Ecojet 95 Ecojet 125 – Ecojet 145 Ecojet 95 Ecojet 125 – Ecojet 145
Capacity 1000 kg 1200 kg
Gear
order weight 1837 1847 1849 1859
Maximum carrying
capacity (including the
driver)1033 1033 1111 1111
Total weight on the
ground2870 2880 2960 2970
VersionCombi N1
Long wheelbase (L2) – Low roof (H1)
Ecojet 95 Ecojet 125 – Ecojet 145
Capacity1200
kg
Gear order weight 1925 1933
Maximum carrying capacity (including the
driver)1085 1087
Total weight on the ground 3010 3020
200

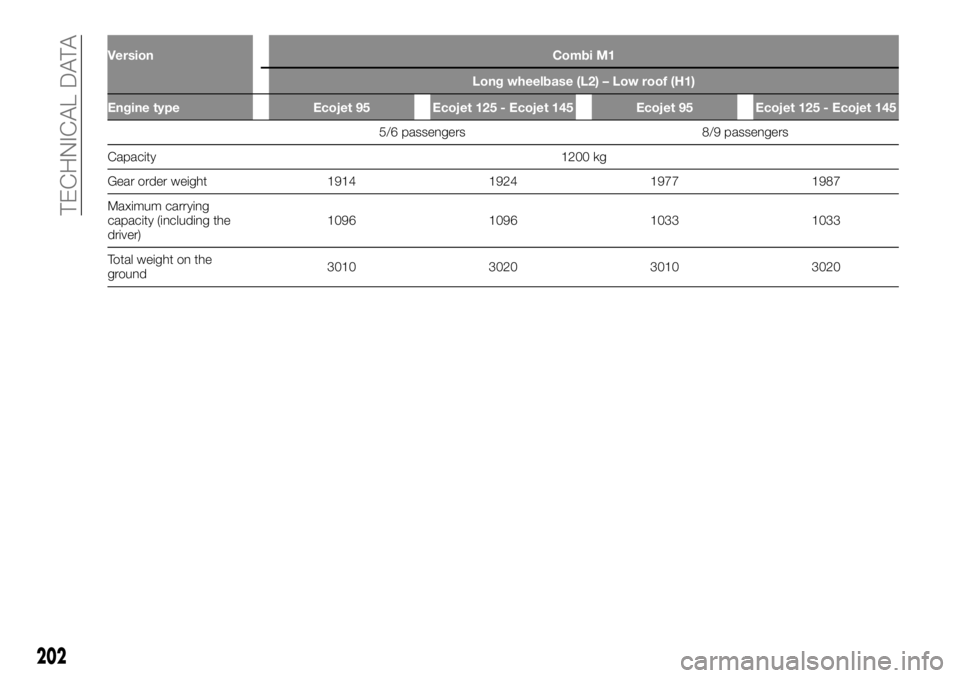

TECHNICAL DATA

Version Combi M1
Long wheelbase (L2) – Low roof (H1)
Engine type Ecojet 95 Ecojet 125 - Ecojet 145 Ecojet 95 Ecojet 125 - Ecojet 145
5/6 passengers 8/9 passengers
Capacity
1200 kg
Gear order weight 1914 1924 1977 1987
Maximum carrying
capacity (including the
driver)1096 1096 1033 1033
Total weight on the
ground3010 3020 3010 3020
202
