FIAT TALENTO 2021 Owner handbook (in English)

TYRES
IMPORTANT If there are any discrepancies between the Owner Handbook and the Registration Document, take the information
from the latter. For safe driving, the car must be fitted with tyres of the same make and type on all wheels.
Euro 6 versions Multijet 95 - Ecojet 95 Multijet 120 Ecojet 125 Ecojet 145
Tyre dimensions
(standard)205/65 R16 205/65R16 205/65 R16 -
215/65 R16 215/65 R16 215/65 R16 215/65 R16
Tyre size (on request)205/65 R16 All season 205/65 R16 All season 205/65 R16 All season 205/65 R16 All season
215/65 R16 All season 215/65 R16 All season 215/65 R16 All season 215/65 R16 All season
215/60 R17
(*)215/60 R17(*)215/60 R17(*)215/60 R17(*)
195/75 R16(**)195/75 R16(**)195/75 R16(**)195/75 R16(**)
Spare wheelThe spare wheel is the same as the tyres supplied with the vehicle or those supplied on request. A
215/65 R16 spare wheel with a steel rim is supplied if 17" tyres are used.
(*) Chains cannot be fitted
(**) Extra EU markets
Euro 4 - Euro 5 versions Multijet 115 (Euro 5) Ecojet 120 (Euro 4 - Euro 5) Ecojet 140 (Euro 5)
Tyre dimensions (standard)205/65 R16 205/65 R16 –
215/65
R16 215/65 R16 215/65 R16
Tyre size (on request)205/65 R16 All season 205/65 R16 All season 205/65 R16 All season
215/60 R17
(*)215/60 R17(*)215/60 R17(*)
195/75 R16(**)195/75 R16(**)195/75 R16(**)
Spare wheelThe spare wheel is the same as the tyres supplied with the vehicle or those supplied on request. A
215/65 R16 spare wheel with a steel rim is supplied if 17" tyres are used.
(*) Chains cannot be fitted
(**) Extra EU markets
189

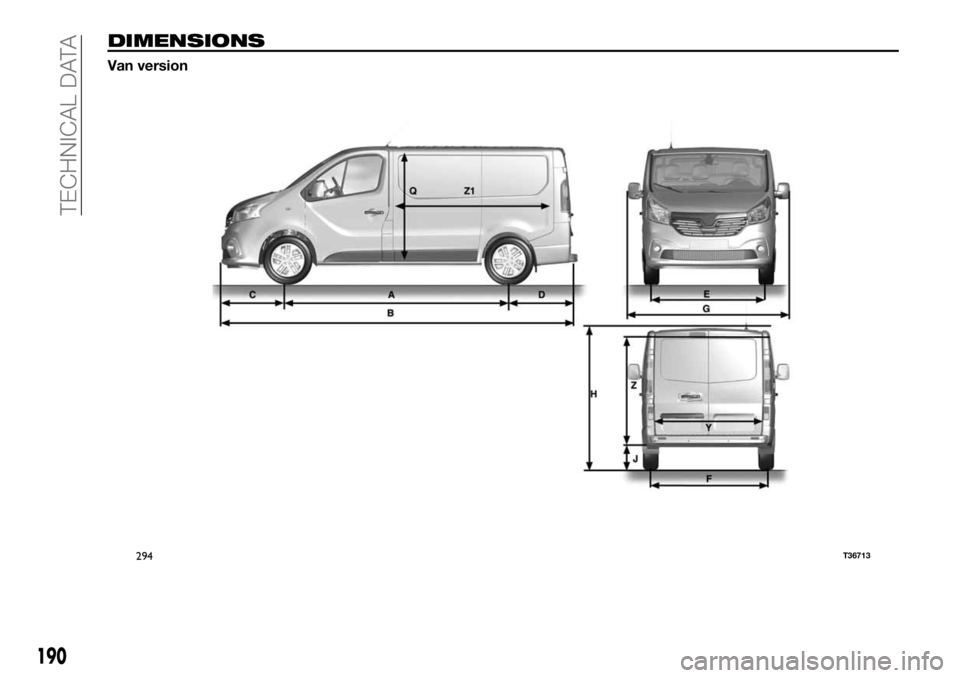

DIMENSIONS
Van version
294T36713
190
TECHNICAL DATA

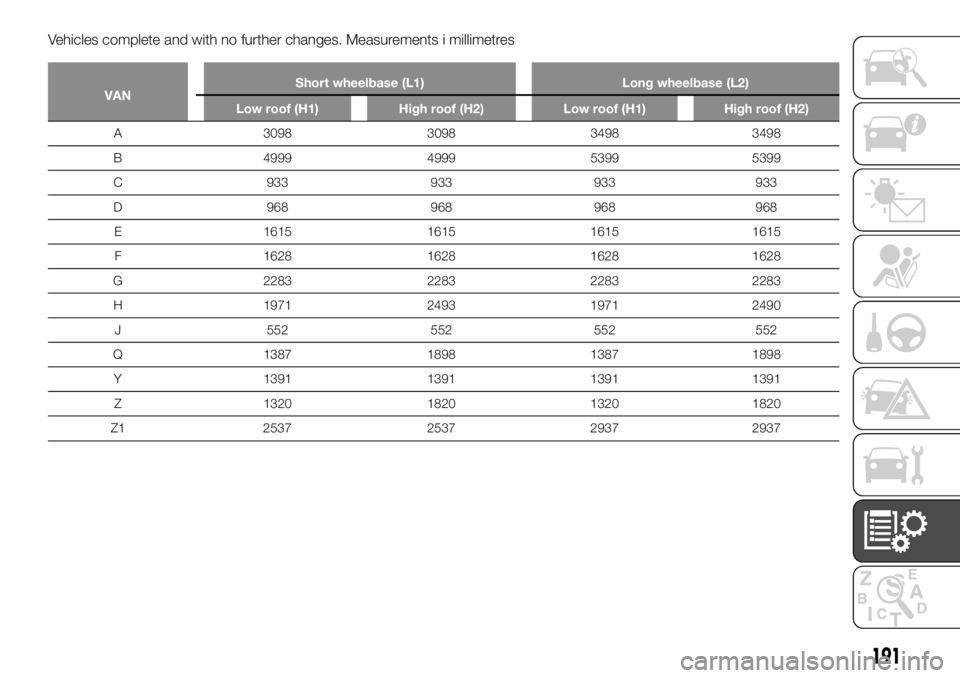

Vehicles complete and with no further changes. Measurements i millimetres
VANShort wheelbase (L1) Long wheelbase (L2)
Low roof (H1) High roof (H2) Low roof (H1) High roof (H2)
A 3098 3098 3498 3498
B
4999 4999 5399 5399
C 933 933 933 933
D 968 968 968 968
E 1615 1615 1615 1615
F 1628 1628 1628 1628
G 2283 2283 2283 2283
H 1971 2493 1971 2490
J 552 552 552 552
Q 1387 1898 1387 1898
Y 1391 1391 1391 1391
Z 1320 1820 1320 1820
Z1 2537 2537 2937 2937
191

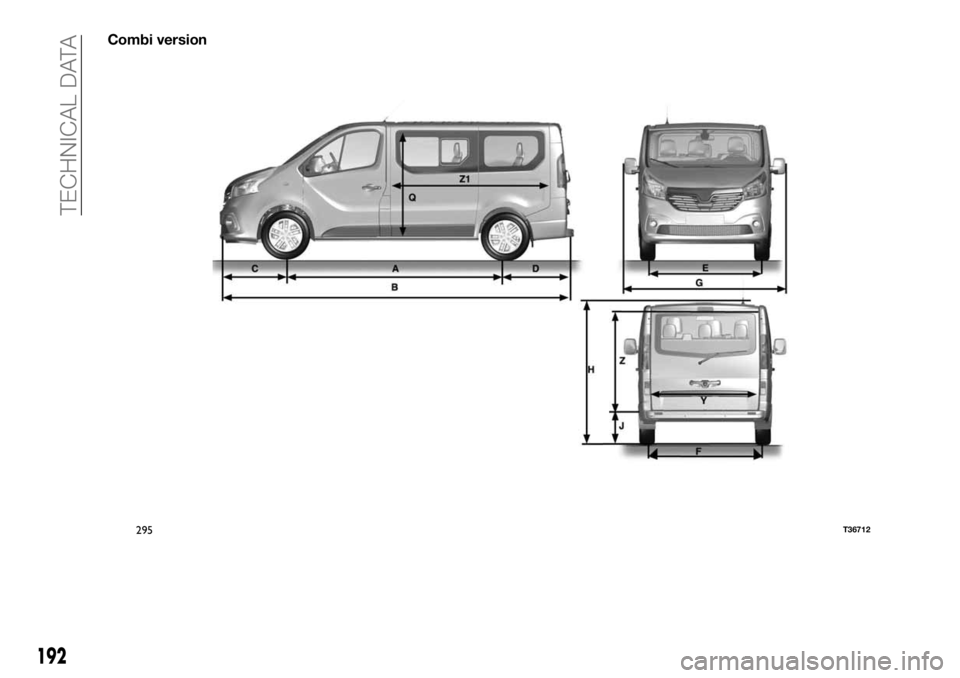

Combi version
295T36712
192
TECHNICAL DATA

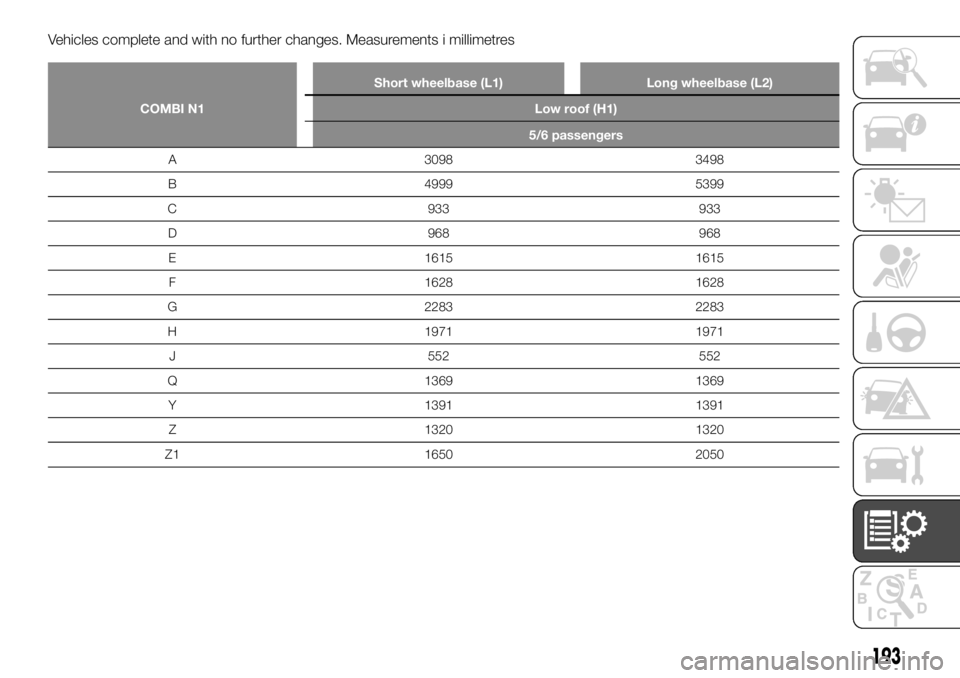

Vehicles complete and with no further changes. Measurements i millimetres
COMBI N1Short wheelbase (L1) Long wheelbase (L2)
Low roof (H1)
5/6 passengers
A 3098 3498
B 4999 5399
C 933 933
D 968 968
E 1615 1615
F 1628 1628
G 2283 2283
H 1971 1971
J 552 552
Q 1369 1369
Y 1391 1391
Z 1320 1320
Z1 1650 2050
193

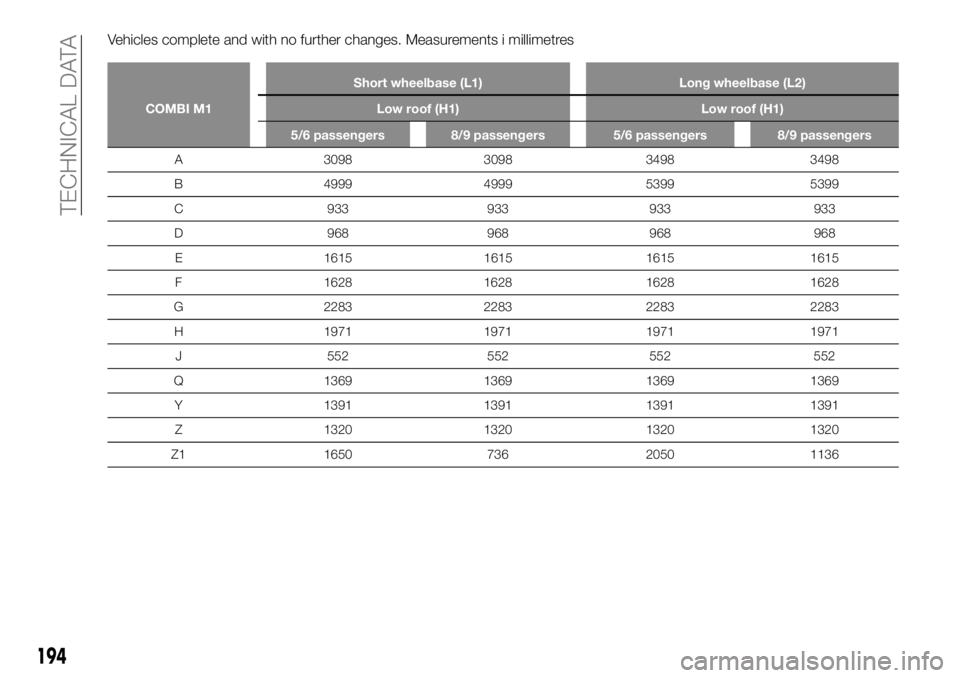

Vehicles complete and with no further changes. Measurements i millimetres
COMBI M1Short wheelbase (L1) Long wheelbase (L2)
Low roof (H1) Low roof (H1)
5/6 passengers 8/9 passengers 5/6 passengers 8/9 passengers
A 3098 3098 3498 3498
B 4999 4999 5399 5399
C 933 933 933 933
D 968 968 968 968
E 1615 1615 1615 1615
F 1628 1628 1628 1628
G 2283 2283 2283 2283
H 1971 1971 1971 1971
J 552 552 552 552
Q 1369 1369 1369 1369
Y 1391 1391 1391 1391
Z 1320 1320 1320 1320
Z1 1650 736 2050 1136
194
TECHNICAL DATA

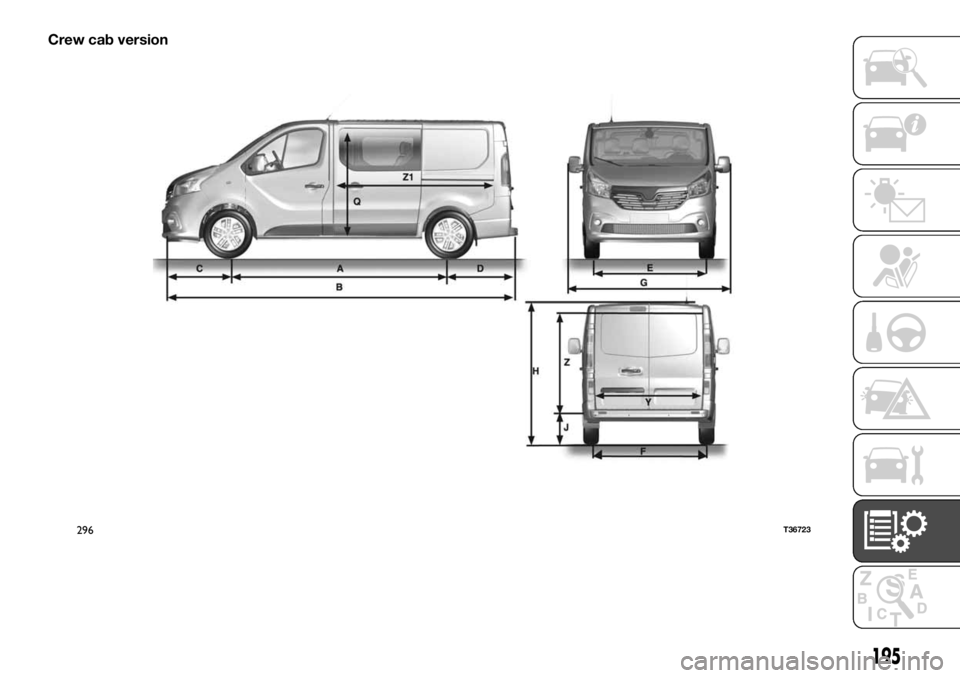

Crew cab version
296T36723
195

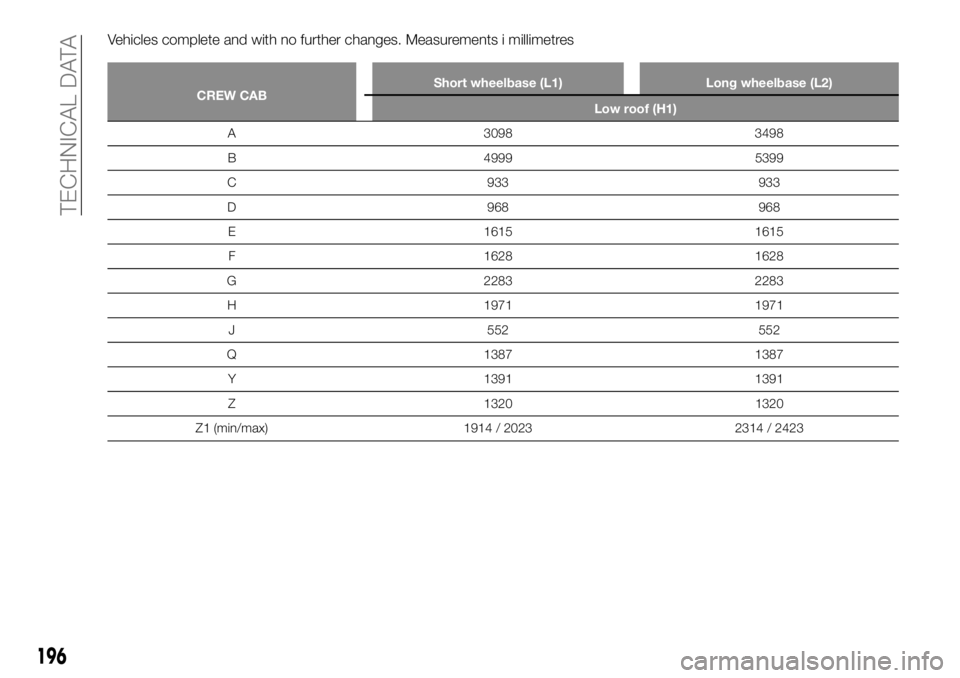

Vehicles complete and with no further changes. Measurements i millimetres
CREW CABShort wheelbase (L1) Long wheelbase (L2)
Low roof (H1)
A 3098 3498
B
4999 5399
C 933 933
D 968 968
E 1615 1615
F 1628 1628
G 2283 2283
H 1971 1971
J 552 552
Q 1387 1387
Y 1391 1391
Z 1320 1320
Z1 (min/max) 1914/ 2023 2314 / 2423
196
TECHNICAL DATA

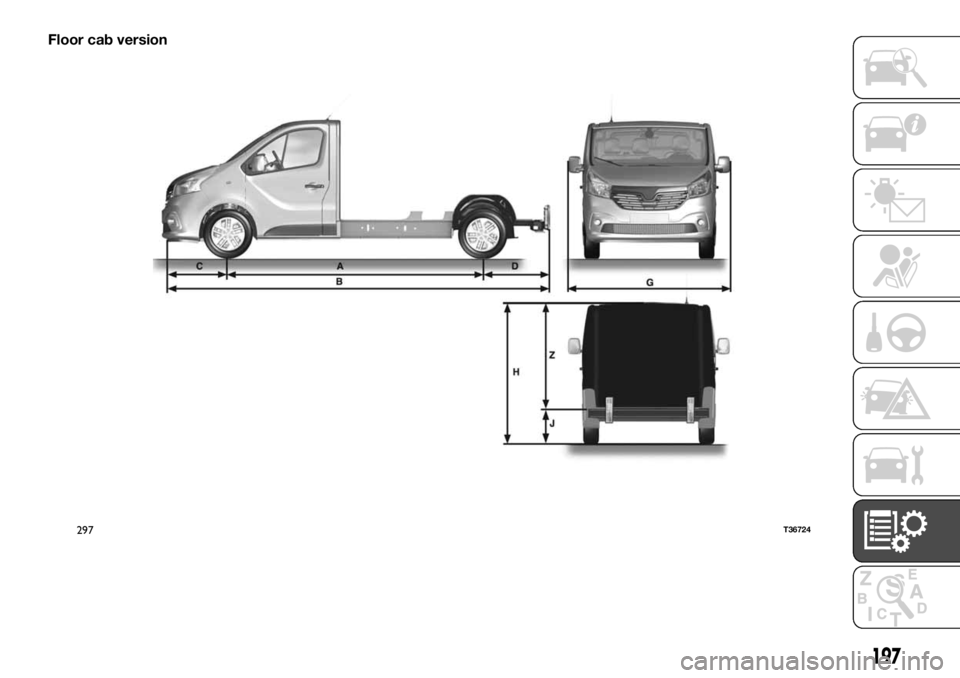

Floor cab version
297T36724
197

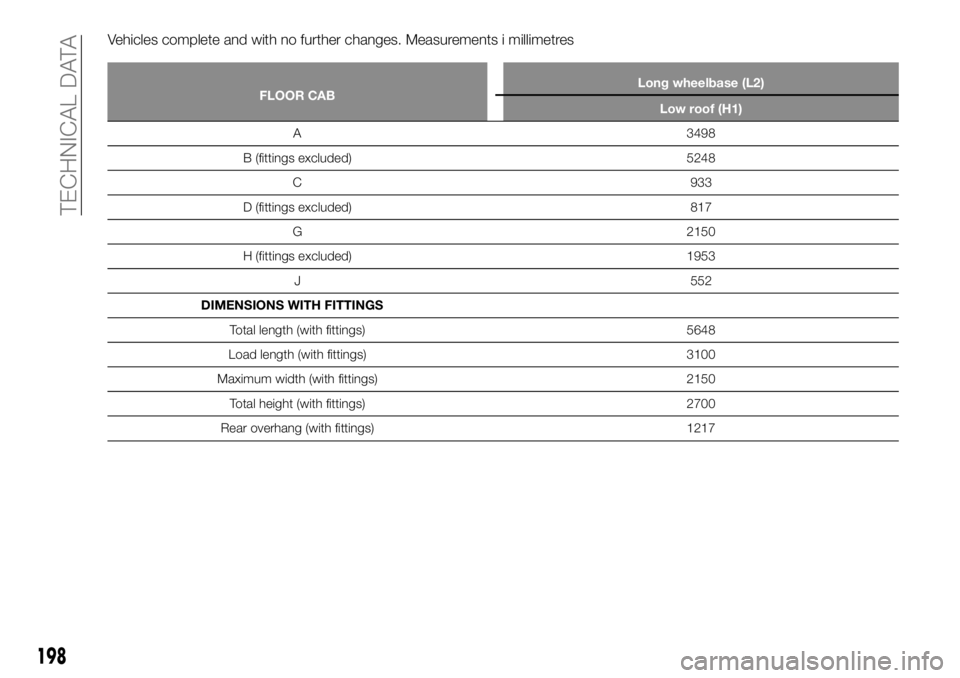

Vehicles complete and with no further changes. Measurements i millimetres
FLOOR CABLong wheelbase (L2)
Low roof (H1)
A 3498
B (fittings excluded) 5248
C 933
D (fittings excluded) 817
G 2150
H (fittings excluded) 1953
J 552
DIMENSIONS WITH FITTINGS
Total length (with fittings) 5648
Load length (with fittings) 3100
Maximum width (with fittings) 2150
Total height (with fittings) 2700
Rear overhang (with fittings) 1217
198
TECHNICAL DATA
