FIAT TALENTO 2021 Owner handbook (in English)

219

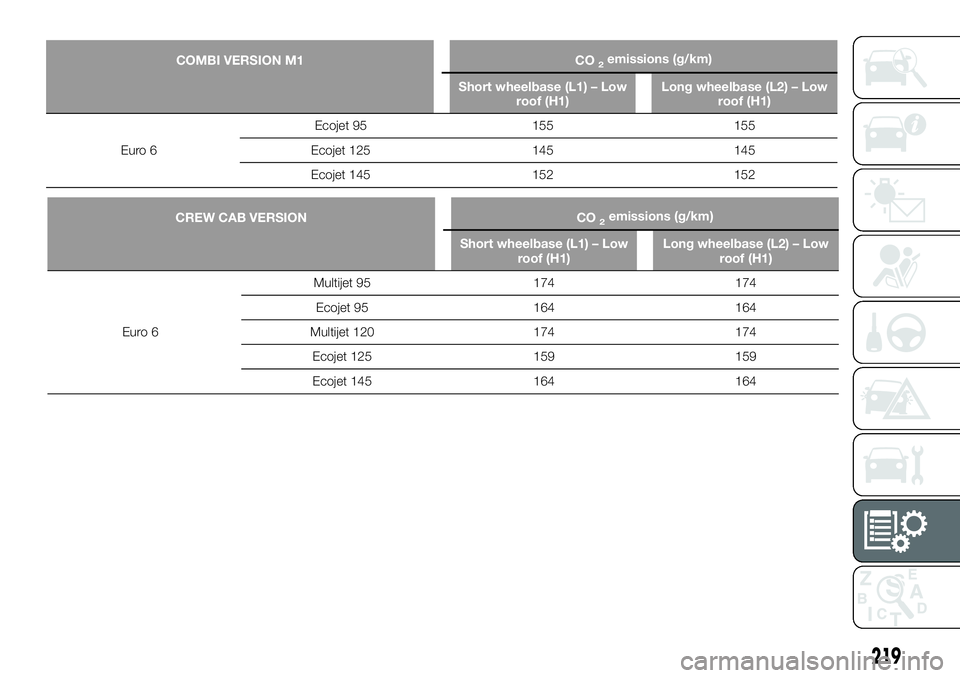

CREW CAB VERSION CO2emissions (g/km)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Multijet 95 174 174
Ecojet 95 164 164
Multijet 120 174 174
Ecojet 125 159 159
Ecojet 145 164 164
COMBI VERSION M1 CO2emissions (g/km)
Short wheelbase (L1) – Low
roof (H1)Long wheelbase (L2) – Low
roof (H1)
Euro 6Ecojet 95 155 155
Ecojet 125 145 145
Ecojet 145 152 152

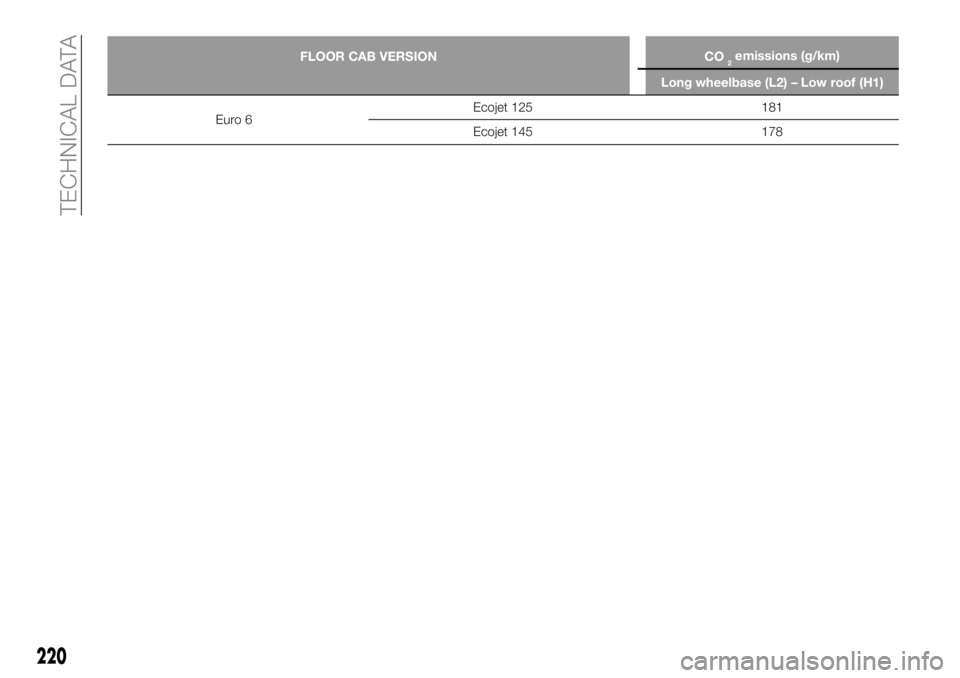

FLOOR CAB VERSION CO2emissions (g/km)
Long wheelbase (L2) – Low roof (H1)
Euro 6Ecojet 125 181
Ecojet 145 178
220
TECHNICAL DATA

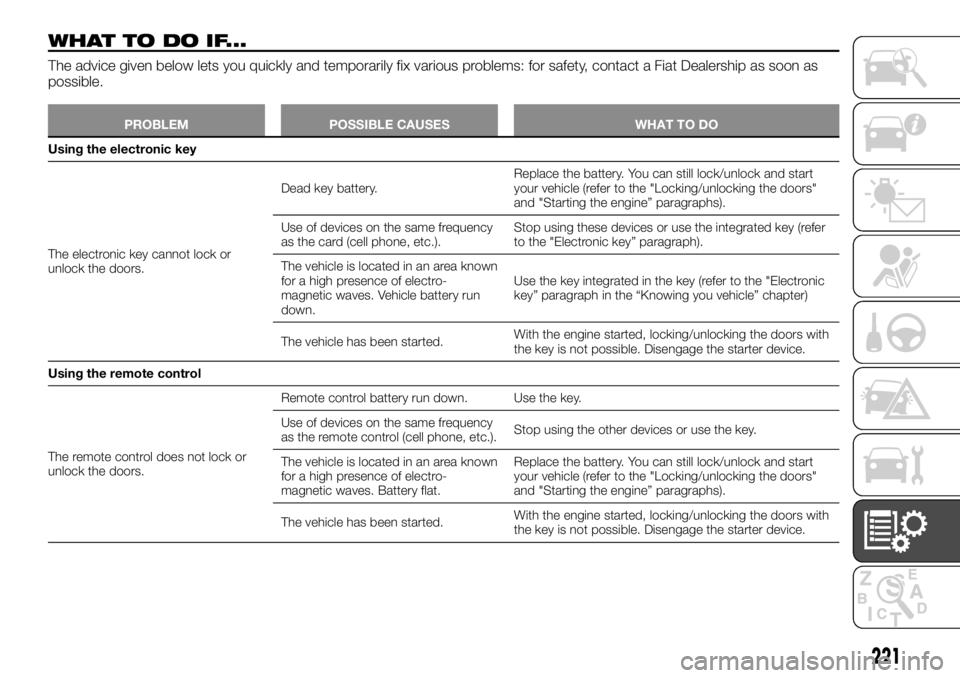

WHATTODOIF...
The advice given below lets you quickly and temporarily fix various problems: for safety, contact a Fiat Dealership as soon as
possible.
PROBLEM POSSIBLE CAUSES WHAT TO DO
Using the electronic key
The electronic
key cannot lock or
unlock the doors.Dead key battery.Replace the battery. You can still lock/unlock and start
your vehicle (refer to the "Locking/unlocking the doors"
and "Starting the engine” paragraphs).
Use of devices on the same frequency
as the card (cell phone, etc.).Stop using these devices or use the integrated key (refer
to the "Electronic key” paragraph).
The vehicle is located in an area known
for a high presence of electro-
magnetic waves. Vehicle battery run
down.Use the key integrated in the key (refer to the "Electronic
key” paragraph in the “Knowing you vehicle” chapter)
The vehicle has been started.With the engine started, locking/unlocking the doors with
the key is not possible. Disengage the starter device.
Using the remote control
The remote control does not lock or
unlock the doors.Remote control battery run down. Use the key.
Use of devices on the same frequency
as the remote control (cell phone, etc.).Stop using the other devices or use the key.
The vehicle is located in an area known
for a high presence of electro-
magnetic waves. Battery flat.Replace the battery. You can still lock/unlock and start
your vehicle (refer to the "Locking/unlocking the doors"
and "Starting the engine” paragraphs).
The vehicle has been started.With the engine started, locking/unlocking the doors with
the key is not possible. Disengage the starter device.
221

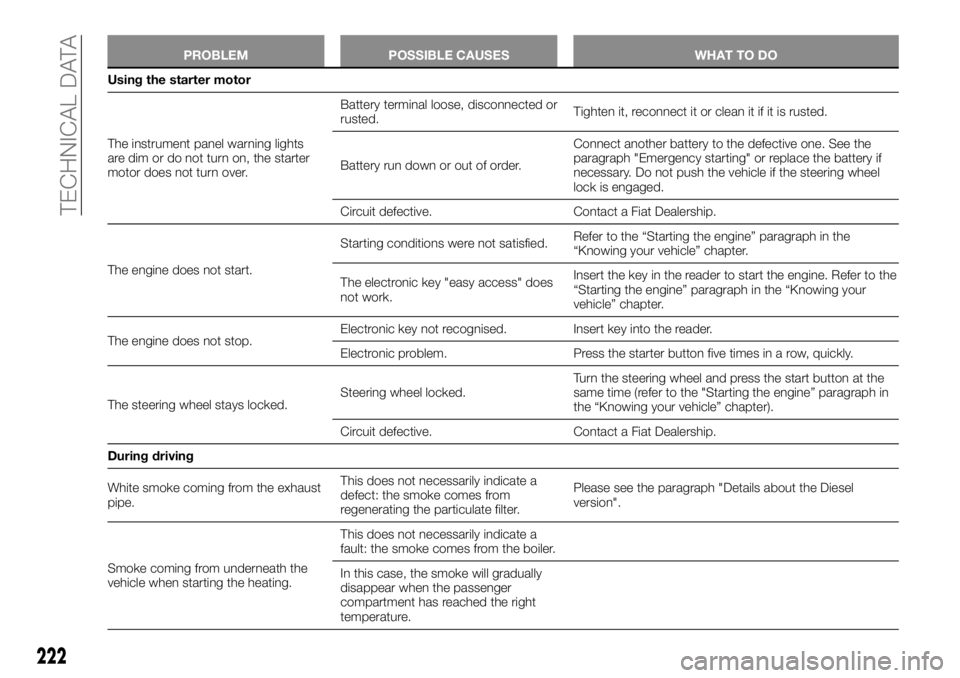

PROBLEM POSSIBLE CAUSES WHAT TO DO
Using the starter motor
The instrument panel
warning lights
are dim or do not turn on, the starter
motor does not turn over.Battery terminal loose, disconnected or
rusted.Tighten it, reconnect it or clean it if it is rusted.
Battery run down or out of order.Connect another battery to the defective one. See the
paragraph "Emergency starting" or replace the battery if
necessary. Do not push the vehicle if the steering wheel
lock is engaged.
Circuit defective. Contact a Fiat Dealership.
The engine does not start.Starting conditions were not satisfied.Refer to the “Starting the engine” paragraph in the
“Knowing your vehicle” chapter.
The electronic key "easy access" does
not work.Insert the key in the reader to start the engine. Refer to the
“Starting the engine” paragraph in the “Knowing your
vehicle” chapter.
The engine does not stop.Electronic key not recognised. Insert key into the reader.
Electronic problem. Press the starter button five times in a row, quickly.
The steering wheel stays locked.Steering wheel locked.Turn the steering wheel and press the start button at the
same time (refer to the "Starting the engine” paragraph in
the “Knowing your vehicle” chapter).
Circuit defective. Contact a Fiat Dealership.
During driving
White smoke coming from the exhaust
pipe.This does not necessarily indicate a
defect: the smoke comes from
regenerating the particulate filter.Please see the paragraph "Details about the Diesel
version".
Smoke coming from underneath the
vehicle when starting the heating.This does not necessarily indicate a
fault: the smoke comes from the boiler.
In this case, the smoke will gradually
disappear when the passenger
compartment has reached the right
temperature.
222
TECHNICAL DATA

PROBLEM POSSIBLE CAUSES WHAT TO DO
Smoke coming from the engine
compartment.Short circuit or leaks from the cooling
circuit.Stop, remove the starter device, move away from the
vehicle and contact a Fiat Dealership.
The oil pressure warning light goes on
in a curve or when braking.The oil level is too low.Add engine oil (see the paragraph "Warning lights and
messages" in the chapter "Knowing the instrument
panel").
The oil pressure warning light goes on
and delays going off or stays on when
you accelerate.Low oil pressure. Stop and contact a Fiat Dealership.
Steering becomes hard.Power steering is overheating.
Drive carefully at slow speed taking into account the level
of effort on the steering wheel needed to turn the wheels.
Contact a Fiat Dealership. Servo electrical motor fault.
Servo system fault.
Vibrations.Badly inflated tyres, badly balanced or
damaged.Check the tyre pressure; if the defect persists, have it
checked at a Fiat Dealership.
The engine overheats. The coolant
liquid temperature indicator is in the
alarm area and theSTOPwarning light
goes on.The cooling fan is out of order. Stop, turn off the engine and contact a Fiat Dealership.
Coolant liquid leak.Check the coolant liquid tank: there should be liquid in it.
In not, contact a Fiat Dealership as soon as possible.
Coolant liquid boiling in the tank.
64)
Mechanical breakdown: head gasket
damaged.Stop the engine and contact a Fiat Dealership.
223

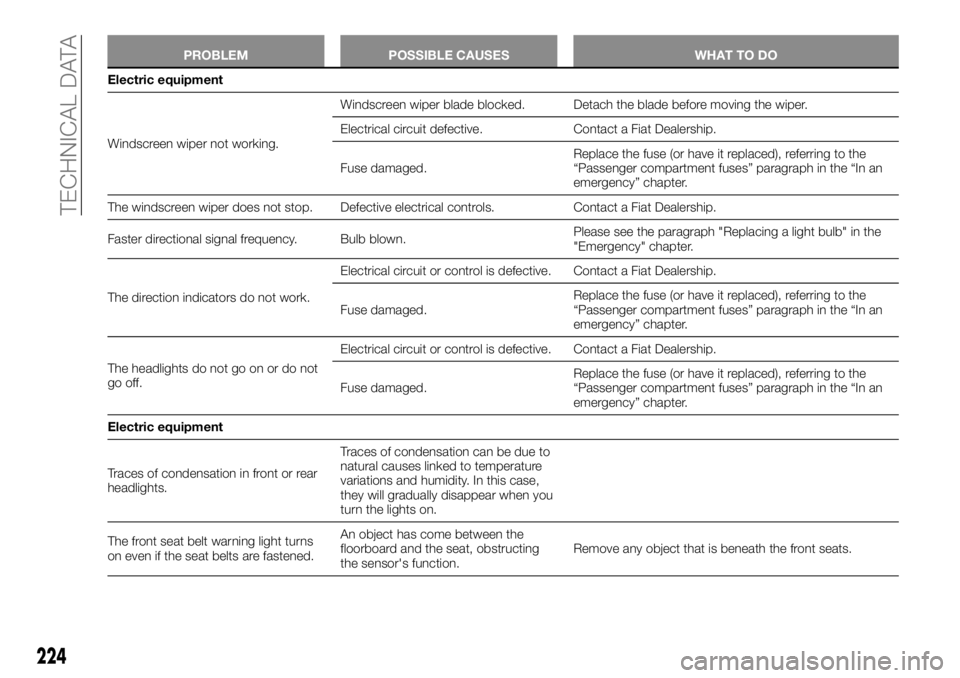

PROBLEM POSSIBLE CAUSES WHAT TO DO
Electric equipment
Windscreen
wiper not working.Windscreen wiper blade blocked. Detach the blade before moving the wiper.
Electrical circuit defective. Contact a Fiat Dealership.
Fuse damaged.Replace the fuse (or have it replaced), referring to the
“Passenger compartment fuses” paragraph in the “In an
emergency” chapter.
The windscreen wiper does not stop. Defective electrical controls. Contact a Fiat Dealership.
Faster directional signal frequency. Bulb blown.Please see the paragraph "Replacing a light bulb" in the
"Emergency" chapter.
The direction indicators do not work.Electrical circuit or control is defective. Contact a Fiat Dealership.
Fuse damaged.Replace the fuse (or have it replaced), referring to the
“Passenger compartment fuses” paragraph in the “In an
emergency” chapter.
The headlights do not go on or do not
go off.Electrical circuit or control is defective. Contact a Fiat Dealership.
Fuse damaged.Replace the fuse (or have it replaced), referring to the
“Passenger compartment fuses” paragraph in the “In an
emergency” chapter.
Electric equipment
Traces of condensation in front or rear
headlights.Traces of condensation can be due to
natural causes linked to temperature
variations and humidity. In this case,
they will gradually disappear when you
turn the lights on.
The front seat belt warning light turns
on even if the seat belts are fastened.An object has come between the
floorboard and the seat, obstructing
the sensor's function.Remove any object that is beneath the front seats.
224
TECHNICAL DATA

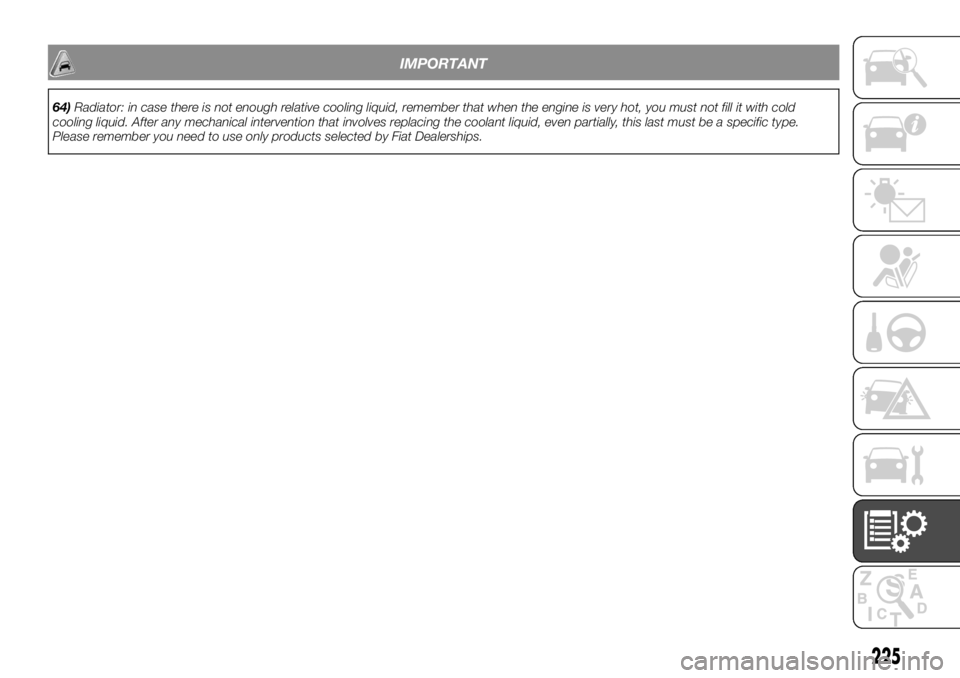

IMPORTANT
64)Radiator: in case there is not enough relative cooling liquid, remember that when the engine is very hot, you must not fill it with cold
cooling liquid. After any mechanical intervention that involves replacing the coolant liquid, even partially, this last must be a specific type.
Please remember you need to use only products selected by Fiat Dealerships.
