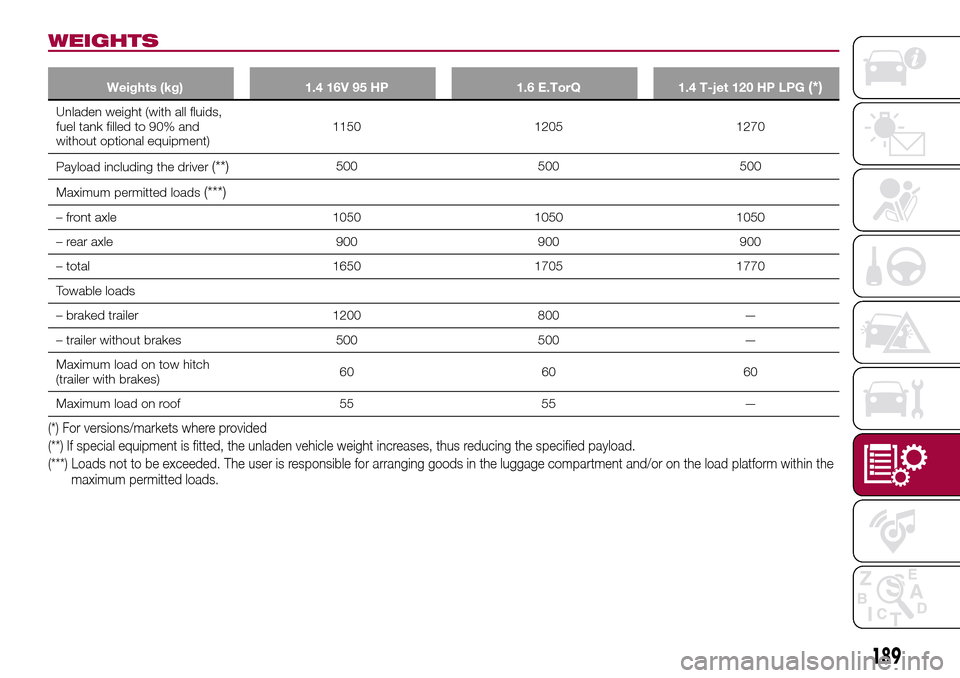

WEIGHTS
Weights (kg) 1.4 16V 95 HP 1.6 E.TorQ 1.4 T-jet 120 HP LPG(*)
Unladen weight (with all fluids,
fuel tank filled to 90% and
without optional equipment)1150 1205 1270
Payload including the driver
(**)500 500 500
Maximum permitted loads
(***)
– front axle 1050 1050 1050
– rear axle 900 900 900
– total 1650 1705 1770
Towable loads
– braked trailer 1200 800 —
– trailer without brakes 500 500 —
Maximum load on tow hitch
(trailer with brakes)60 60 60
Maximum load on roof 55 55 —
(*) For versions/markets where provided
(**) If special equipment is fitted, the unladen vehicle weight increases, thus reducing the specified payload.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the
maximum permitted loads.
189

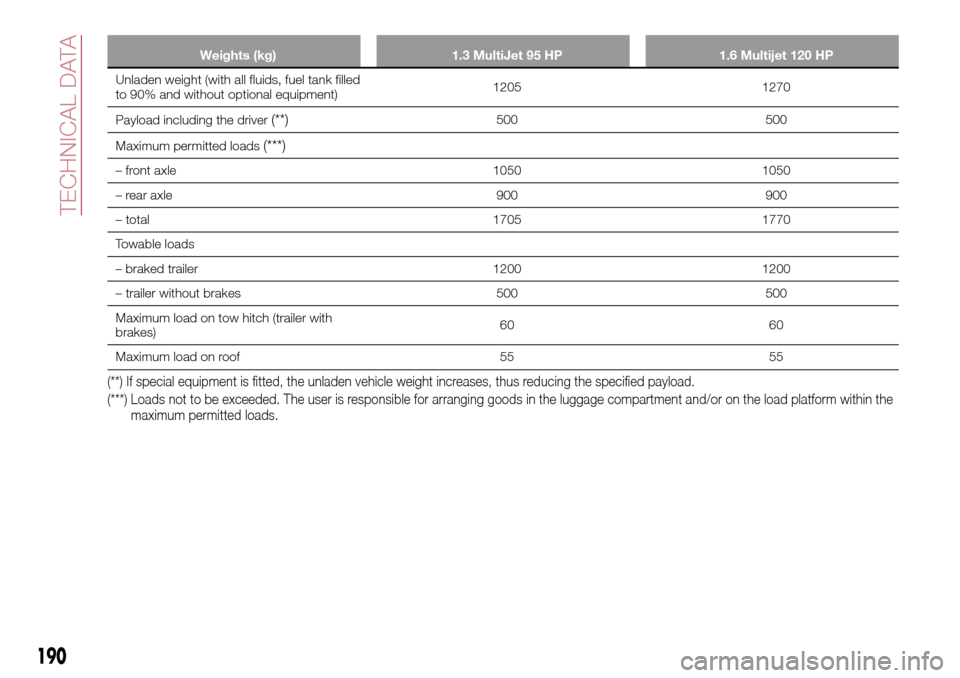

Weights (kg) 1.3 MultiJet 95 HP 1.6 Multijet 120 HP
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)1205 1270
Payload including the driver
(**)500 500
Maximum permitted loads
(***)
– front axle 1050 1050
– rear axle 900 900
– total 1705 1770
Towable loads
– braked trailer 1200 1200
– trailer without brakes 500 500
Maximum load on tow hitch (trailer with
brakes)60 60
Maximum load on roof 55 55
(**) If special equipment is fitted, the unladen vehicle weight increases, thus reducing the specified payload.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the
maximum permitted loads.
190
TECHNICAL DATA

REFUELLING
1.4 16V 95 HP 1.6 E.TorQ Prescribed fuels and original lubricants
Fuel tank (litres) 45 45
Unleaded petrol with R.O.N. no lower than 95 (EN
228 specifications)
(*)including a reserve of (litres) 7 7
Engine cooling system (litres) 4.6 5.4Mixture of distilled water and PARAFLU
UPliquid at 50%
(**)
Engine sump (litres) 2.8 4.4
SELENIA K P.E. (1.4 16V 95 HP versions) / SELENIA
DIGITEK P.E. (1.6 E.TorQ versions)
Engine sump and filter (litres) 2.95 4.7
Gearbox casing/differential (litres) 1.76 6.2TUTELA TRANSMISSION GEARFORCE (1.4 16V 95hp
versions) / TUTELA TRANSMISSION GI/VI (1.6 E.TorQ
versions)
Hydraulic brake circuit (kg) 0.74 0.74 TUTELA TOP 4/S
Windscreen washer fluid reservoir
(litres)3 3 Mixture of water and TUTELA PROFESSIONAL SC35
(*) It is advised to use petrol with low sulphur content only (max. sulphur content: 50 ppm)
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLUUPand 40%
demineralised water.
191

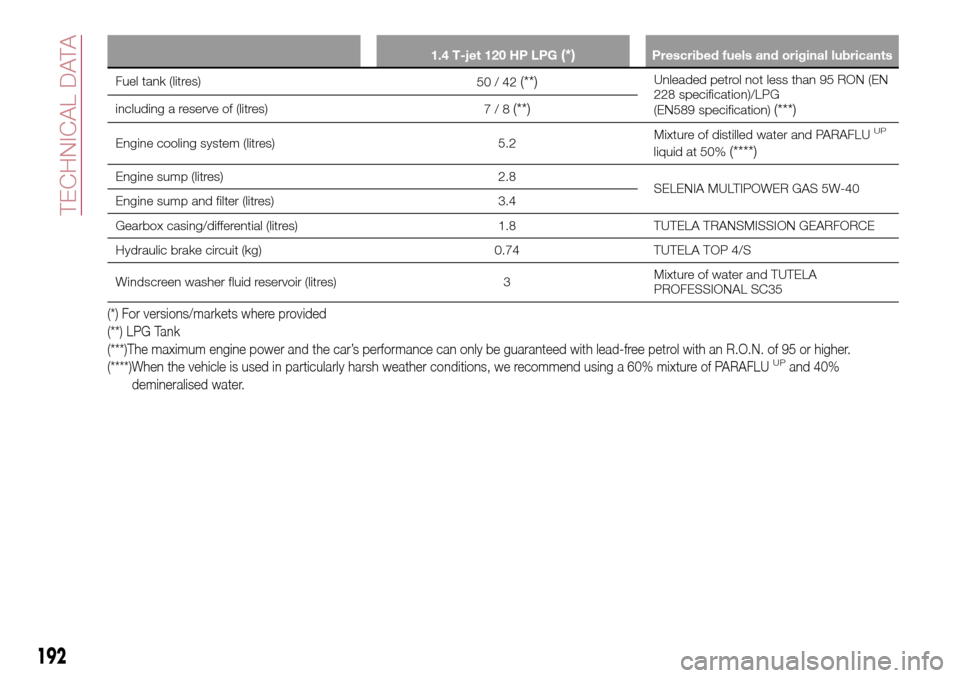

1.4 T-jet 120 HP LPG(*)Prescribed fuels and original lubricants
Fuel tank (litres)
50/42(**)Unleaded petrol not less than 95 RON (EN
228 specification)/LPG
(EN589 specification)
(***)including a reserve of (litres)
7/8(**)
Engine cooling system (litres) 5.2Mixture of distilled water and PARAFLUUP
liquid at 50%(****)
Engine sump (litres) 2.8
SELENIA MULTIPOWER GAS 5W-40
Engine sump and filter (litres) 3.4
Gearbox casing/differential (litres) 1.8 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (kg) 0.74 TUTELA TOP 4/S
Windscreen washer fluid reservoir (litres) 3Mixture of water and TUTELA
PROFESSIONAL SC35
(*) For versions/markets where provided
(**) LPG Tank
(***)The maximum engine power and the car’s performance can only be guaranteed with lead-free petrol with an R.O.N. of 95 or higher.
(****)When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLU
UPand 40%
demineralised water.
192
TECHNICAL DATA

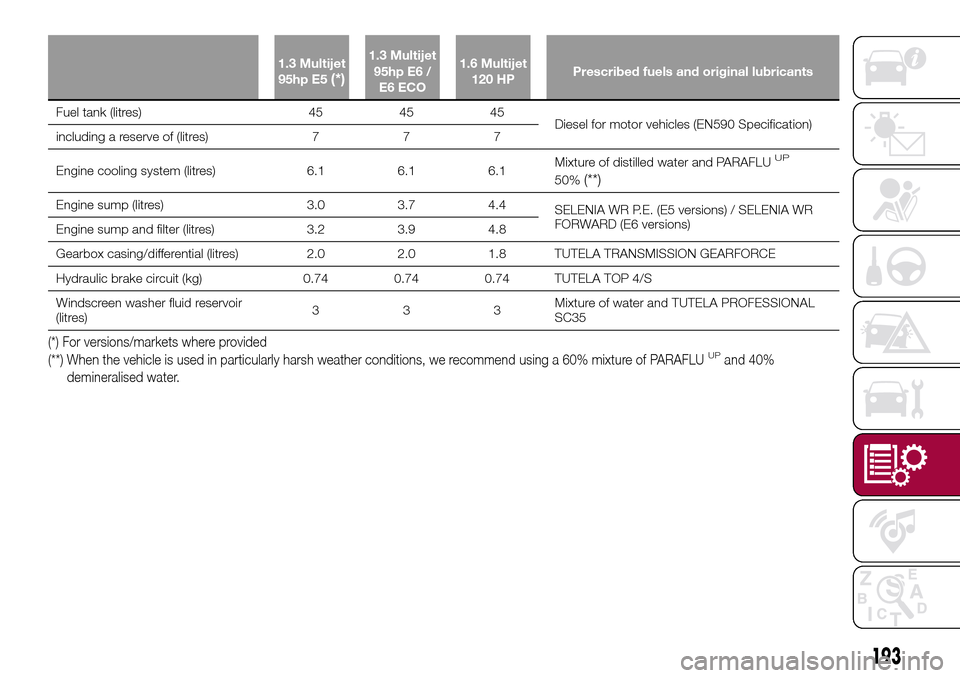

1.3 Multijet
95hp E5(*)
1.3 Multijet
95hp E6 /
E6 ECO1.6 Multijet
120 HPPrescribed fuels and original lubricants
Fuel tank (litres) 45 45 45
Diesel for motor vehicles (EN590 Specification)
including a reserve of (litres) 7 7 7
Engine cooling system (litres) 6.1 6.1 6.1Mixture of distilled water and PARAFLU
UP
50%(**)
Engine sump (litres) 3.0 3.7 4.4
SELENIA WR P.E. (E5 versions) / SELENIA WR
FORWARD (E6 versions)
Engine sump and filter (litres) 3.2 3.9 4.8
Gearbox casing/differential (litres) 2.0 2.0 1.8 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (kg) 0.74 0.74 0.74 TUTELA TOP 4/S
Windscreen washer fluid reservoir
(litres)333Mixture of water and TUTELA PROFESSIONAL
SC35
(*) For versions/markets where provided
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLUUPand 40%
demineralised water.
193

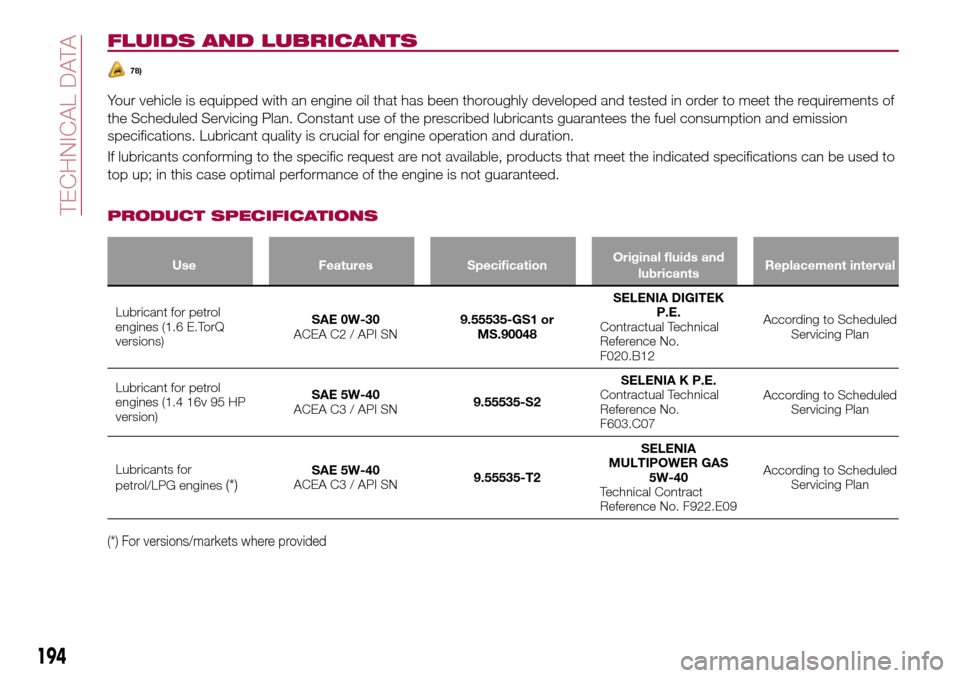

FLUIDS AND LUBRICANTS
78)
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to
top up; in this case optimal performance of the engine is not guaranteed.
PRODUCT SPECIFICATIONS
Use Features SpecificationOriginal fluids and
lubricantsReplacement interval
Lubricant for petrol
engines (1.6 E.TorQ
versions)SAE 0W-30
ACEA C2 / API SN9.55535-GS1 or
MS.90048SELENIA DIGITEK
P.E.
Contractual Technical
Reference No.
F020.B12According to Scheduled
Servicing Plan
Lubricant for petrol
engines (1.4 16v 95 HP
version)SAE 5W-40
ACEA C3 / API SN9.55535-S2SELENIA K P.E.
Contractual Technical
Reference No.
F603.C07According to Scheduled
Servicing Plan
Lubricants for
petrol/LPG engines
(*)SAE 5W-40
ACEA C3 / API SN9.55535-T2SELENIA
MULTIPOWER GAS
5W-40
Technical Contract
Reference No. F922.E09According to Scheduled
Servicing Plan
(*) For versions/markets where provided
194
TECHNICAL DATA

Use Features SpecificationOriginal fluids and
lubricantsReplacement interval

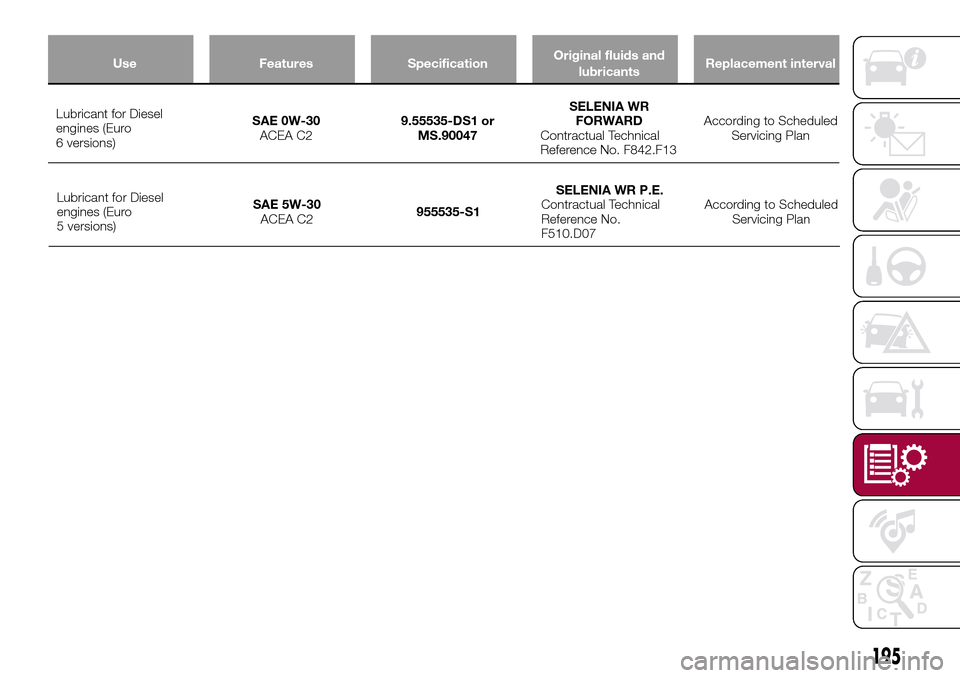

Lubricant for Diesel
engines (Euro
6 versions)SAE 0W-30
ACEA C29.55535-DS1 or
MS.90047SELENIA WR
FORWARD
Contractual Technical
Reference No. F842.F13According to Scheduled
Servicing Plan
195
Lubricant for Diesel
engines (Euro
5 versions)SAE 5W-30
ACEA C2955535-S1SELENIA WR P.E.
Contractual Technical
Reference No.
F510.D07According to Scheduled
Servicing Plan

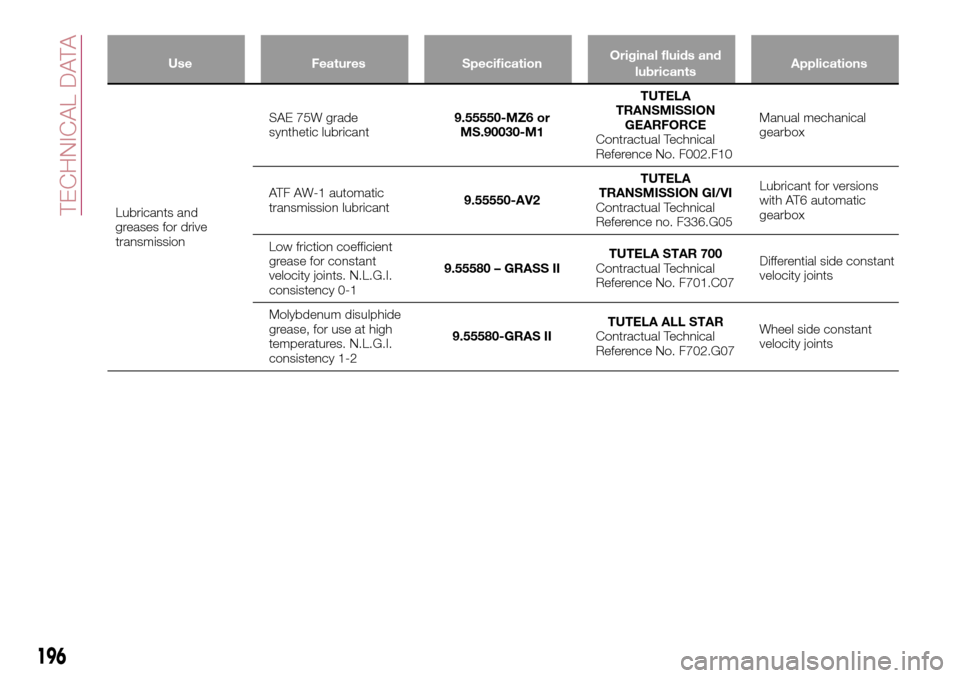

Use Features SpecificationOriginal fluids and
lubricantsApplications
Lubricants and
greases for drive
transmissionSAE 75W grade
synthetic lubricant9.55550-MZ6 or
MS.90030-M1TUTELA
TRANSMISSION
GEARFORCE
Contractual Technical
Reference No. F002.F10Manual mechanical
gearbox
ATF AW-1 automatic
transmission lubricant9.55550-AV2TUTELA
TRANSMISSION GI/VI
Contractual Technical
Reference no. F336.G05Lubricant for versions
with AT6 automatic
gearbox
Low friction coefficient
grease for constant
velocity joints. N.L.G.I.
consistency 0-19.55580 – GRASS IITUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential side constant
velocity joints
Molybdenum disulphide
grease, for use at high
temperatures. N.L.G.I.
consistency 1-29.55580-GRAS IITUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
196
TECHNICAL DATA

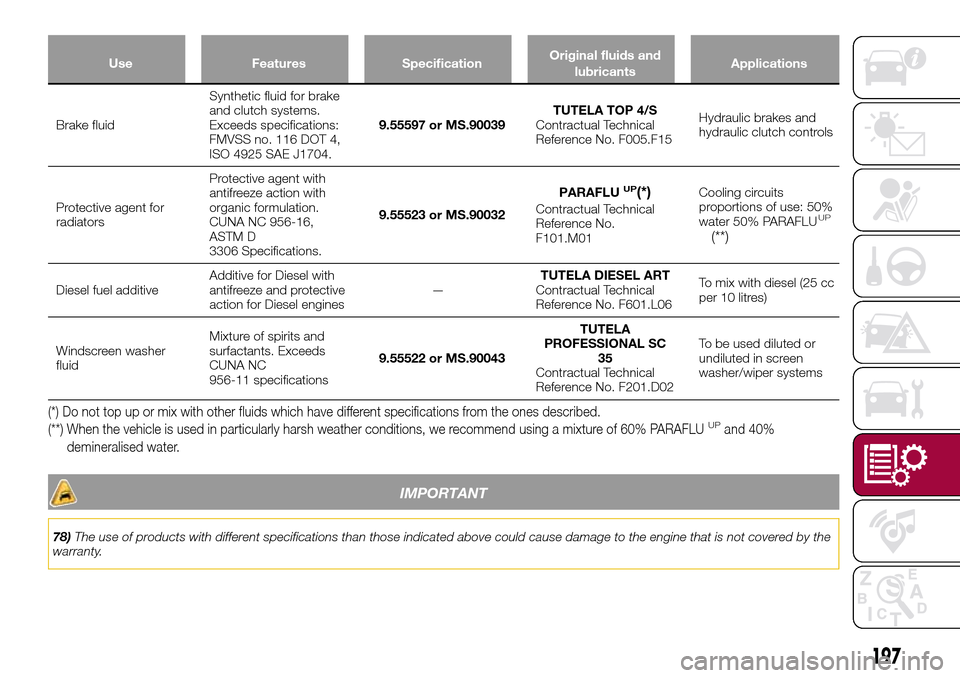

Use Features SpecificationOriginal fluids and
lubricantsApplications
Brake fluidSynthetic fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704.9.55597 or MS.90039TUTELA TOP 4/S
Contractual Technical
Reference No. F005.F15Hydraulic brakes and
hydraulic clutch controls
Protective agent for
radiatorsProtective agent with
antifreeze action with
organic formulation.
CUNA NC 956-16,
ASTM D
3306 Specifications.9.55523 or MS.90032PARAFLU
UP(*)
Contractual Technical
Reference No.
F101.M01Cooling circuits
proportions of use: 50%
water 50% PARAFLUUP
(**)
Diesel fuel additiveAdditive for Diesel with
antifreeze and protective
action for Diesel engines—TUTELA DIESEL ART
Contractual Technical
Reference No. F601.L06To mix with diesel (25 cc
per 10 litres)
Windscreen washer
fluidMixture of spirits and
surfactants. Exceeds
CUNA NC
956-11 specifications9.55522 or MS.90043TUTELA
PROFESSIONAL SC
35
Contractual Technical
Reference No. F201.D02To be used diluted or
undiluted in screen
washer/wiper systems
(*) Do not top up or mix with other fluids which have different specifications from the ones described.
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLUUPand 40%
demineralised water.
IMPORTANT
78)The use of products with different specifications than those indicated above could cause damage to the engine that is not covered by the
warranty.
197

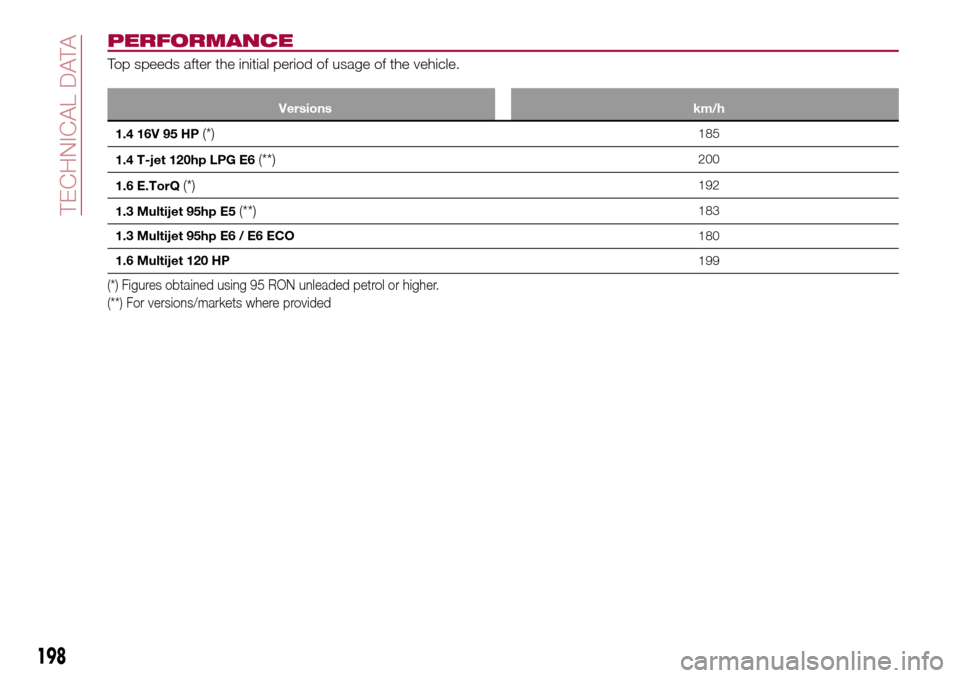

PERFORMANCE
Top speeds after the initial period of usage of the vehicle.
Versions km/h
1.4 16V 95 HP(*)185
1.4 T-jet 120hp LPG E6
(**)200
1.6 E.TorQ
(*)192
1.3 Multijet 95hp E5
(**)183
1.3 Multijet 95hp E6 / E6 ECO180
1.6 Multijet 120 HP199
(*) Figures obtained using 95 RON unleaded petrol or higher.
(**) For versions/markets where provided
198
