FIAT TIPO 4DOORS 2017 1.G Owners Manual

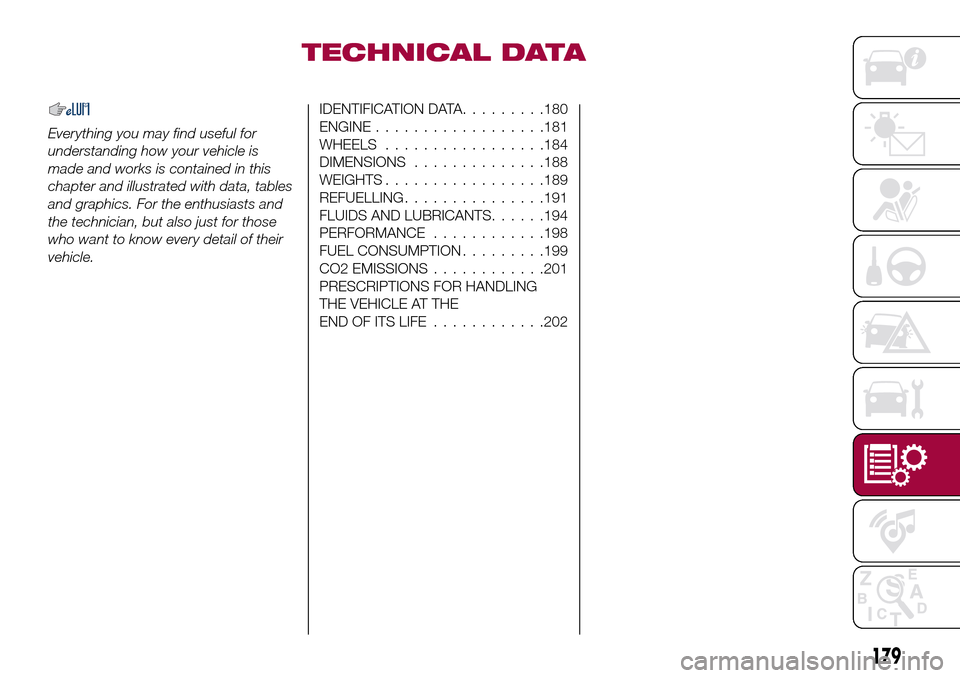

TECHNICAL DATA
Everything you may find useful for
understanding how your vehicle is
made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
vehicle.
IDENTIFICATION DATA.........180
ENGINE..................181
WHEELS.................184
DIMENSIONS..............188
WEIGHTS.................189
REFUELLING...............191
FLUIDS AND LUBRICANTS......194
PERFORMANCE............198
FUEL CONSUMPTION.........199
CO2 EMISSIONS............201
PRESCRIPTIONS FOR HANDLING
THE VEHICLE AT THE
END OF ITS LIFE............202
179

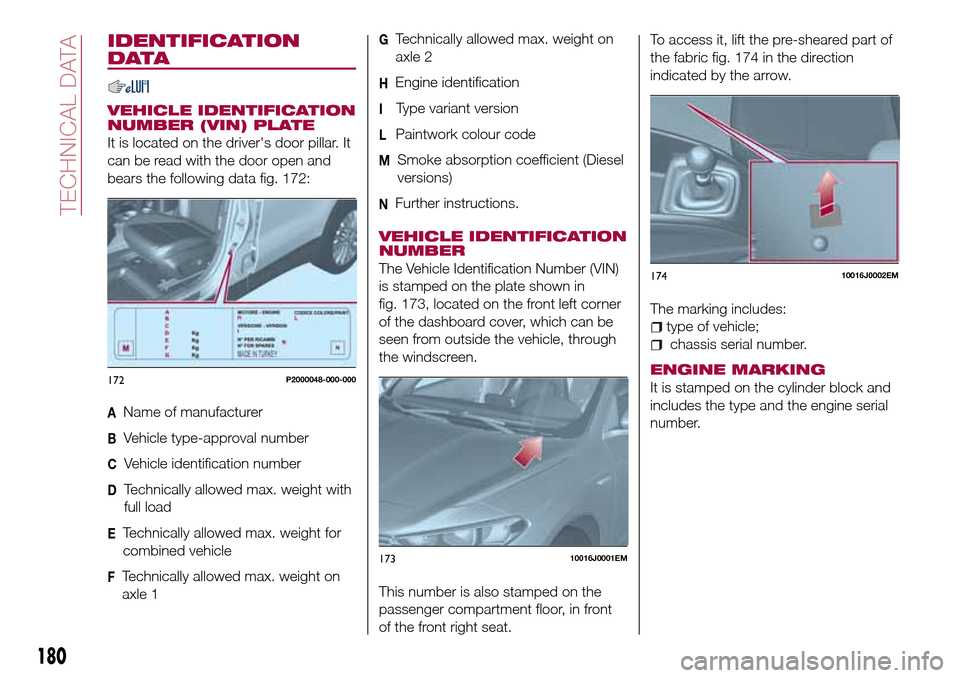

IDENTIFICATION
DATA
VEHICLE IDENTIFICATION
NUMBER (VIN) PLATE
It is located on the driver's door pillar. It
can be read with the door open and
bears the following data fig. 172:
AName of manufacturer
BVehicle type-approval number
CVehicle identification number
DTechnically allowed max. weight with
full load
ETechnically allowed max. weight for
combined vehicle
FTechnically allowed max. weight on
axle 1
GTechnically allowed max. weight on
axle 2
HEngine identification
IType variant version
LPaintwork colour code
MSmoke absorption coefficient (Diesel
versions)
NFurther instructions.
VEHICLE IDENTIFICATION
NUMBER
The Vehicle Identification Number (VIN)
is stamped on the plate shown in
fig. 173, located on the front left corner
of the dashboard cover, which can be
seen from outside the vehicle, through
the windscreen.
This number is also stamped on the
passenger compartment floor, in front
of the front right seat.To access it, lift the pre-sheared part of
the fabric fig. 174 in the direction
indicated by the arrow.
The marking includes:
type of vehicle;
chassis serial number.
ENGINE MARKING
It is stamped on the cylinder block and
includes the type and the engine serial
number.172P2000048-000-000
17310016J0001EM
17410016J0002EM
180
TECHNICAL DATA

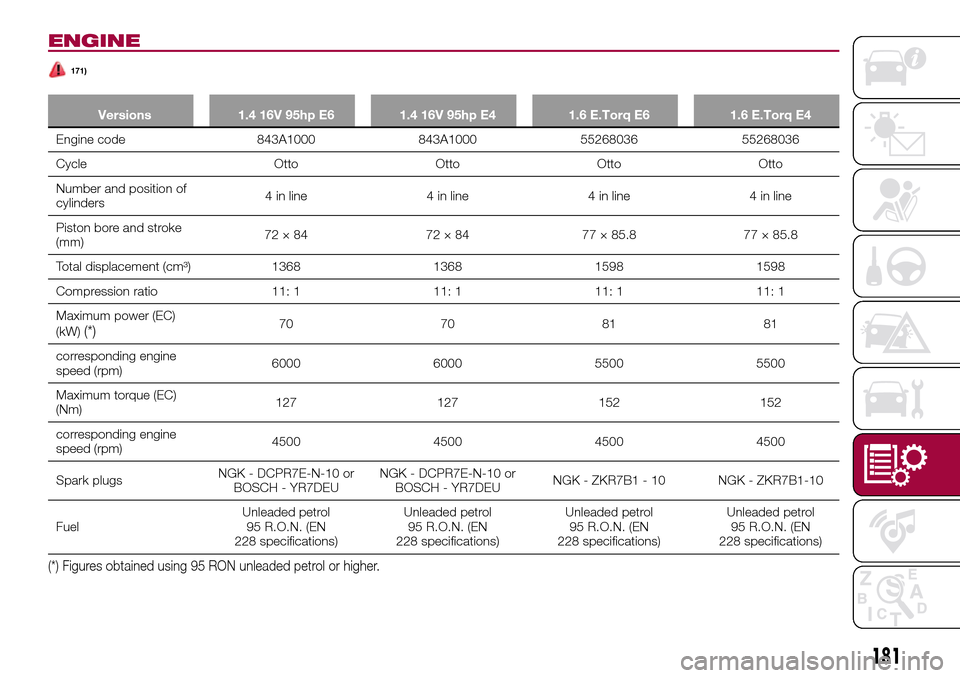

ENGINE
171)
Versions 1.4 16V 95hp E6 1.4 16V 95hp E4 1.6 E.Torq E6 1.6 E.Torq E4
Engine code 843A1000 843A1000 55268036 55268036
Cycle Otto Otto Otto Otto
Number and position of
cylinders4 in line 4 in line 4 in line 4 in line
Piston bore and stroke
(mm)72 × 84 72 × 84 77 × 85.8 77 × 85.8
Total displacement (cm³) 1368 1368 1598 1598
Compression ratio 11: 1 11: 1 11: 1 11: 1
Maximum power (EC)
(kW)
(*)70 70 81 81
corresponding engine
speed (rpm)6000 6000 5500 5500
Maximum torque (EC)
(Nm)127 127 152 152
corresponding engine
speed (rpm)4500 4500 4500 4500
Spark plugsNGK - DCPR7E-N-10 or
BOSCH - YR7DEUNGK - DCPR7E-N-10 or
BOSCH - YR7DEUNGK - ZKR7B1 - 10 NGK - ZKR7B1-10
FuelUnleaded petrol
95 R.O.N. (EN
228 specifications)Unleaded petrol
95 R.O.N. (EN
228 specifications)Unleaded petrol
95 R.O.N. (EN
228 specifications)Unleaded petrol
95 R.O.N. (EN
228 specifications)
(*) Figures obtained using 95 RON unleaded petrol or higher.
181

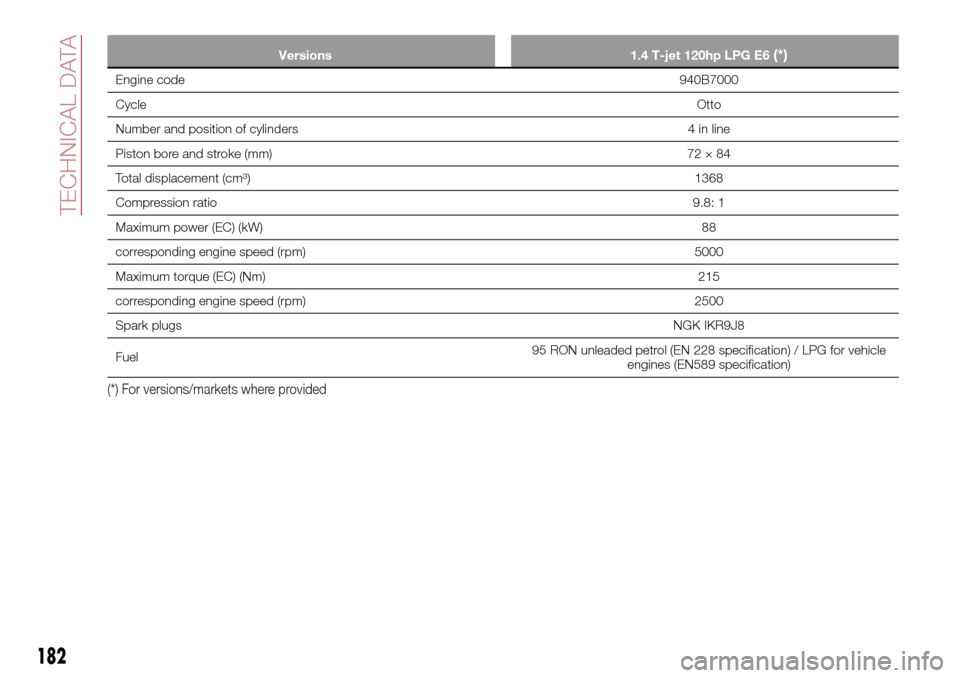

Versions 1.4 T-jet 120hp LPG E6(*)
Engine code940B7000
CycleOtto
Number and position of cylinders 4 in line
Piston bore and stroke (mm)72×84
Total displacement (cm³)1368
Compression ratio9.8: 1
Maximum power (EC) (kW)88
corresponding engine speed (rpm) 5000
Maximum torque (EC) (Nm)215
corresponding engine speed (rpm) 2500
Spark plugsNGK IKR9J8
Fuel95 RON unleaded petrol (EN 228 specification) / LPG for vehicle
engines (EN589 specification)
(*) For versions/markets where provided
182
TECHNICAL DATA

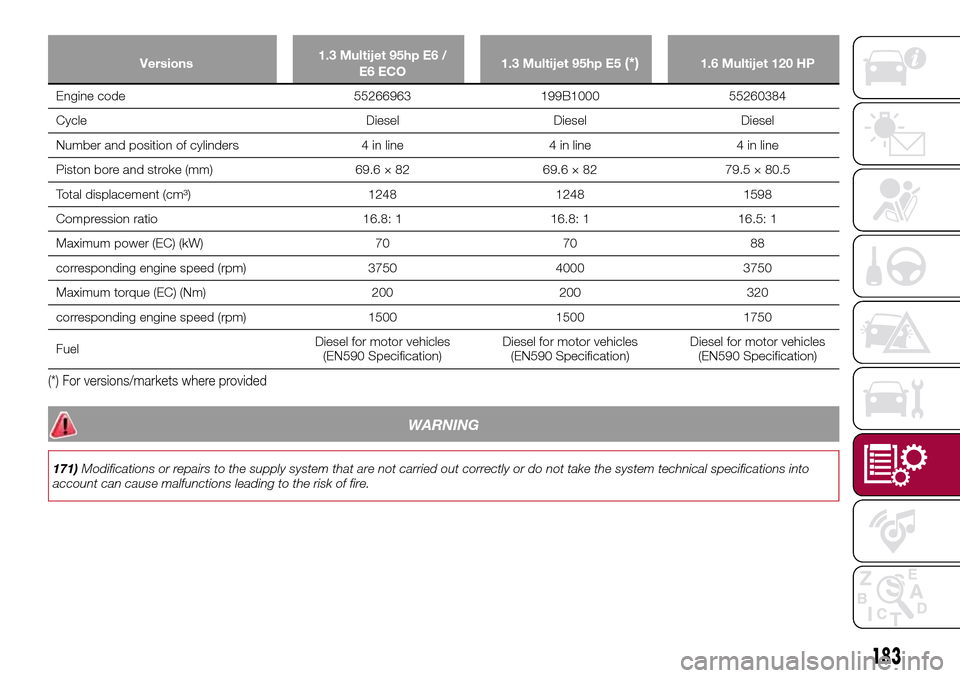

Versions1.3 Multijet 95hp E6 /
E6 ECO1.3 Multijet 95hp E5(*)1.6 Multijet 120 HP
Engine code 55266963 199B1000 55260384
Cycle Diesel Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 69.6 × 82 69.6 × 82 79.5 × 80.5
Total displacement (cm³) 1248 1248 1598
Compression ratio 16.8: 1 16.8: 1 16.5: 1
Maximum power (EC) (kW) 70 70 88
corresponding engine speed (rpm) 3750 4000 3750
Maximum torque (EC) (Nm) 200 200 320
corresponding engine speed (rpm) 1500 1500 1750
FuelDiesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)
(*) For versions/markets where provided
WARNING
171)Modifications or repairs to the supply system that are not carried out correctly or do not take the system technical specifications into
account can cause malfunctions leading to the risk of fire.
183

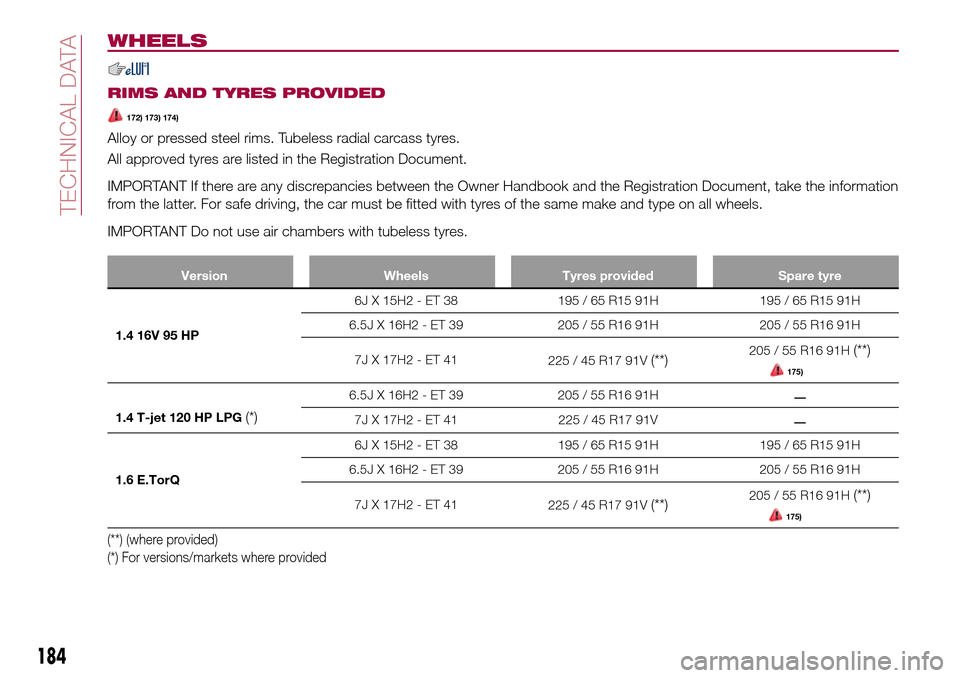

WHEELS
RIMS AND TYRES PROVIDED
172) 173) 174)
Alloy or pressed steel rims. Tubeless radial carcass tyres.
All approved tyres are listed in the Registration Document.
IMPORTANT If there are any discrepancies between the Owner Handbook and the Registration Document, take the information
from the latter. For safe driving, the car must be fitted with tyres of the same make and type on all wheels.
IMPORTANT Do not use air chambers with tubeless tyres.
Version Wheels Tyres provided Spare tyre
1.4 16V 95 HP6J X 15H2 - ET 38 195 / 65 R15 91H 195 / 65 R15 91H
6.5J X 16H2 - ET 39 205 / 55 R16 91H 205 / 55 R16 91H
7JX17H2-ET41
225 / 45 R17 91V
(**)205 / 55 R16 91H(**)
175)
1.4 T-jet 120 HP LPG(*)
6.5J X 16H2 - ET 39 205 / 55 R16 91H
7J X 17H2 - ET 41 225 / 45 R17 91V
1.6 E.TorQ6J X 15H2 - ET 38 195 / 65 R15 91H 195 / 65 R15 91H
6.5J X 16H2 - ET 39 205 / 55 R16 91H 205 / 55 R16 91H
7JX17H2-ET41
225 / 45 R17 91V
(**)205 / 55 R16 91H(**)
175)
(**) (where provided)
(*) For versions/markets where provided
184
TECHNICAL DATA
__

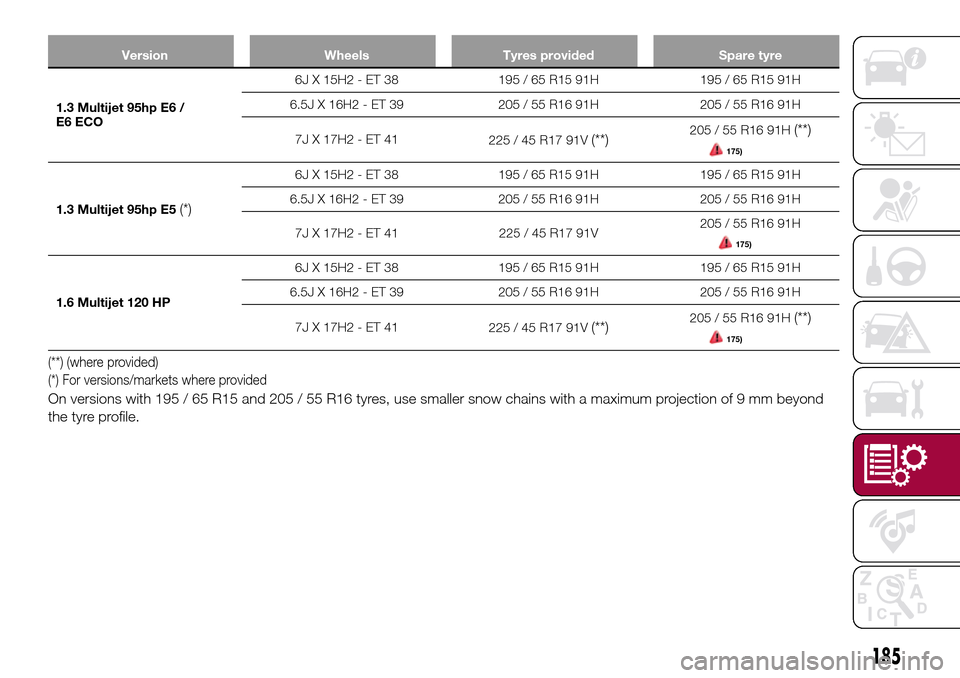

Version Wheels Tyres provided Spare tyre
1.3 Multijet 95hp E6 /
E6 ECO6J X 15H2 - ET 38 195 / 65 R15 91H 195 / 65 R15 91H
6.5J X 16H2 - ET 39 205 / 55 R16 91H 205 / 55 R16 91H
7JX17H2-ET41
225 / 45 R17 91V
(**)205 / 55 R16 91H(**)
175)
1.3 Multijet 95hp E5(*)
6J X 15H2 - ET 38 195 / 65 R15 91H 195 / 65 R15 91H
6.5J X 16H2 - ET 39 205 / 55 R16 91H 205 / 55 R16 91H
7J X 17H2 - ET 41 225 / 45 R17 91V205 / 55 R16 91H
175)
1.6 Multijet 120 HP6J X 15H2 - ET 38 195 / 65 R15 91H 195 / 65 R15 91H
6.5J X 16H2 - ET 39 205 / 55 R16 91H 205 / 55 R16 91H
7JX17H2-ET41
225 / 45 R17 91V
(**)205 / 55 R16 91H(**)
175)
(**) (where provided)
(*) For versions/markets where provided
On versions with 195 / 65 R15 and 205 / 55 R16 tyres, use smaller snow chains with a maximum projection of 9 mm beyond
the tyre profile.
185

COLD TYRE INFLATION PRESSURE (bar)
When the tires are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure. However, recheck
that the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
If it is necessary to raise the vehicle, refer to the "Raising the vehicle" paragraph in the "In an emergency" chapter.
Versions TyresUnladen/medium load Full load
Spare tyre(*)Front Rear Front Rear
1.4 16V 95 HP195 / 65 R15
2.2 2.1 2.6 2.5
2.4 205 / 55 R16
225 / 45 R17
1.4 T-jet 120 HP
LPG
(**)
205 / 55 R16
2.3 2.1 2.6 2.5
225 / 45 R17
1.6 E.TorQ /
1.3 Multijet 95 HP
E6 / E6 ECO /
1.3 Multijet 95 HP
E5
(**)/ 1.6 Multijet
120hp
195 / 65 R15
2.3 2.1 2.6 2.5 205 / 55 R16
225 / 45 R17
(*) After using the spare wheel in an emergency, where necessary, align the pressure of the wheel to the recommended value as soon as
possible, with reference to the following table.
(**) For versions/markets where provided
186
TECHNICAL DATA
2.4
_

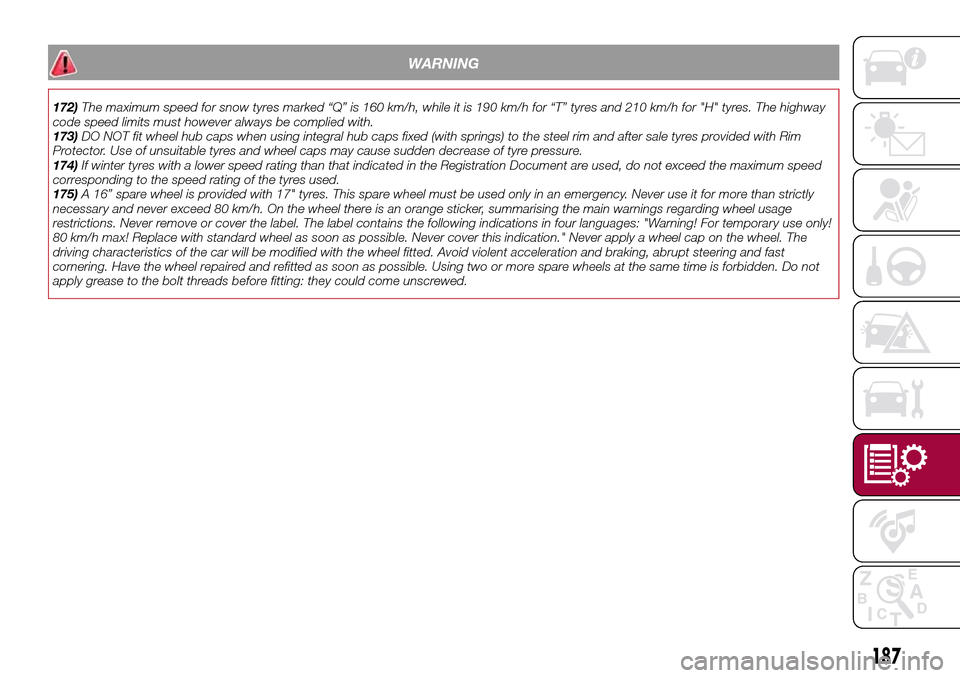

WARNING
172)The maximum speed for snow tyres marked “Q” is 160 km/h, while it is 190 km/h for “T” tyres and 210 km/h for "H" tyres. The highway
code speed limits must however always be complied with.
173)DO NOT fit wheel hub caps when using integral hub caps fixed (with springs) to the steel rim and after sale tyres provided with Rim
Protector. Use of unsuitable tyres and wheel caps may cause sudden decrease of tyre pressure.
174)If winter tyres with a lower speed rating than that indicated in the Registration Document are used, do not exceed the maximum speed
corresponding to the speed rating of the tyres used.
175)A 16” spare wheel is provided with 17" tyres. This spare wheel must be used only in an emergency. Never use it for more than strictly
necessary and never exceed 80 km/h. On the wheel there is an orange sticker, summarising the main warnings regarding wheel usage
restrictions. Never remove or cover the label. The label contains the following indications in four languages: "Warning! For temporary use only!
80 km/h max! Replace with standard wheel as soon as possible. Never cover this indication." Never apply a wheel cap on the wheel. The
driving characteristics of the car will be modified with the wheel fitted. Avoid violent acceleration and braking, abrupt steering and fast
cornering. Have the wheel repaired and refitted as soon as possible. Using two or more spare wheels at the same time is forbidden. Do not
apply grease to the bolt threads before fitting: they could come unscrewed.
187

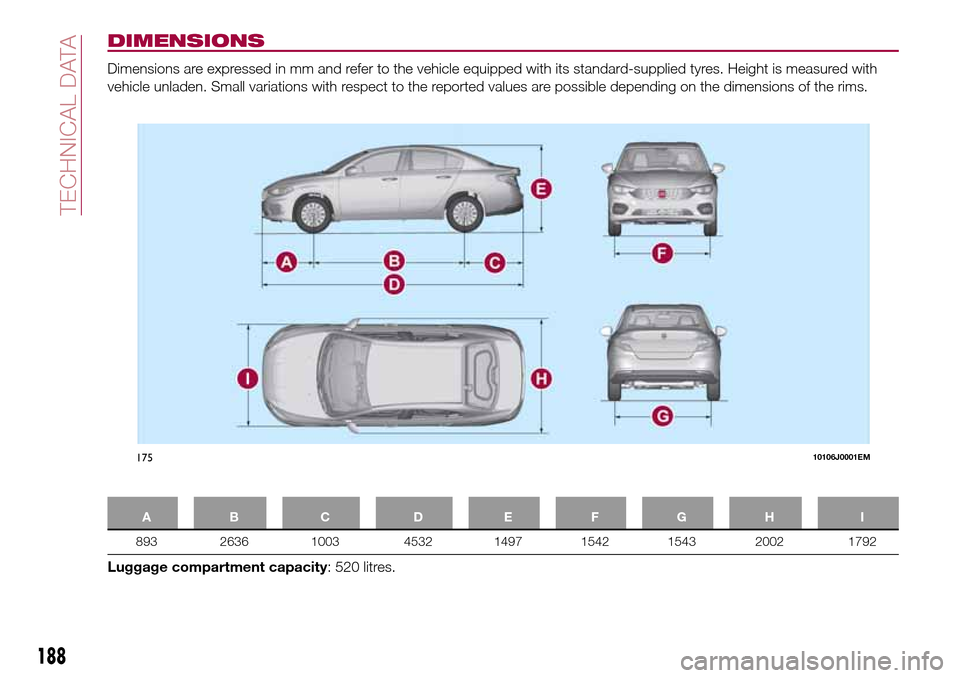

DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen. Small variations with respect to the reported values are possible depending on the dimensions of the rims.
AB C D EFGH I
893 2636 1003 4532 1497 1542 1543 2002 1792
Luggage compartment capacity: 520 litres.
17510106J0001EM
188
