Page 11 of 252

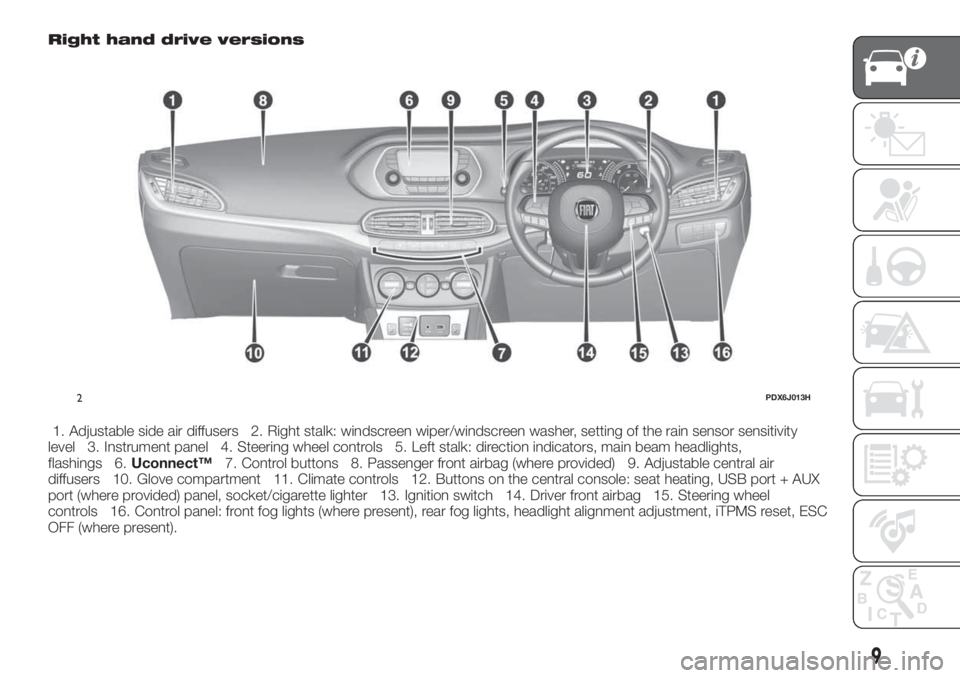

FIAT TIPO 4DOORS 2020  Owner handbook (in English) Right hand drive versions
1. Adjustable side air diffusers 2. Right stalk: windscreen wiper/windscreen washer, setting of the rain sensor sensitivity
level 3. Instrument panel 4. Steering wheel contro

Page 12 of 252

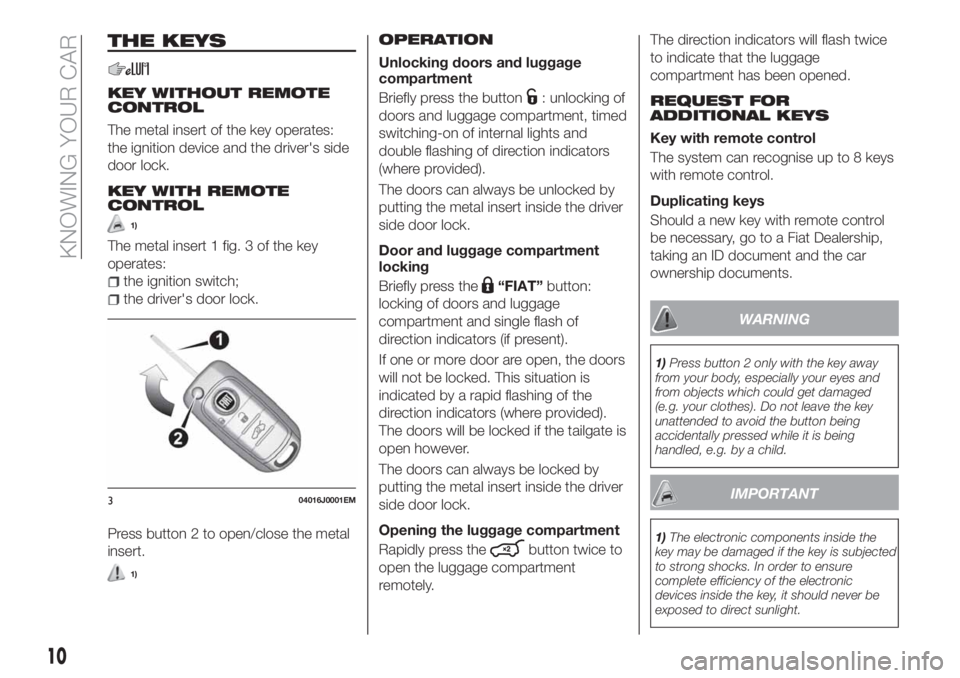

FIAT TIPO 4DOORS 2020  Owner handbook (in English) THE KEYS
KEY WITHOUT REMOTE
CONTROL
The metal insert of the key operates:
the ignition device and the driver's side
door lock.
KEY WITH REMOTE
CONTROL
1)
The metal insert 1 fig. 3 of the key
opera

Page 13 of 252

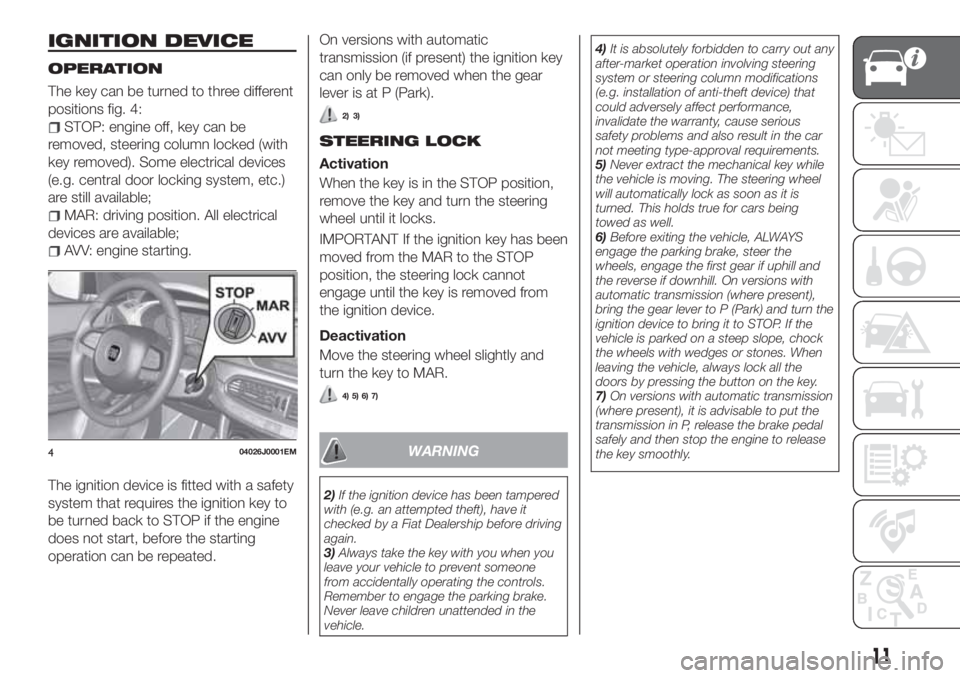

FIAT TIPO 4DOORS 2020  Owner handbook (in English) IGNITION DEVICE
OPERATION
The key can be turned to three different
positions fig. 4:
STOP: engine off, key can be
removed, steering column locked (with
key removed). Some electrical devices
(e.g. cent

Page 14 of 252

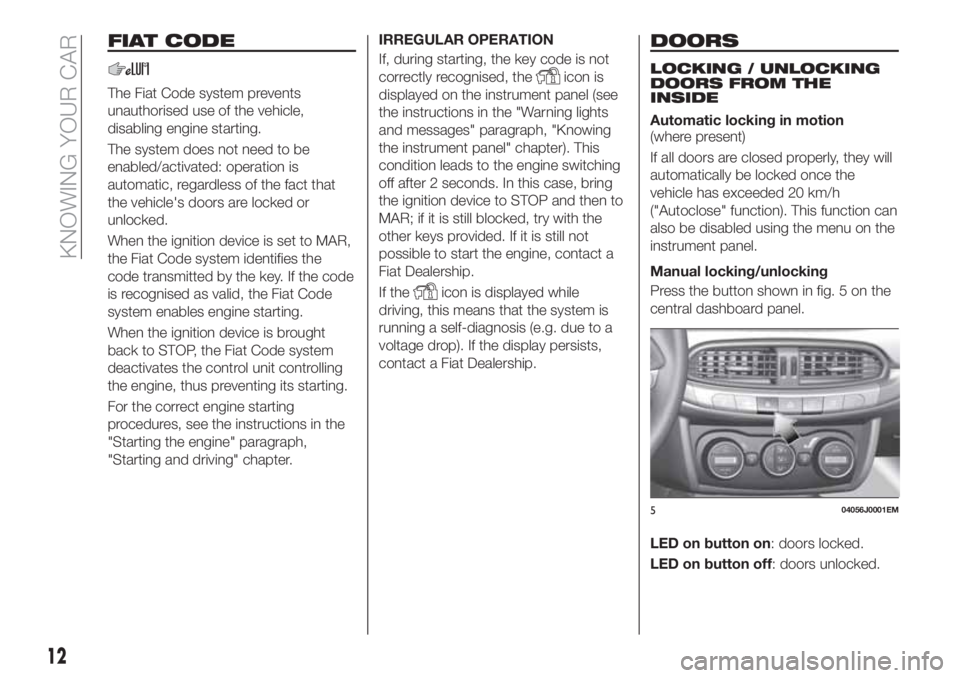

FIAT TIPO 4DOORS 2020  Owner handbook (in English) FIAT CODE
The Fiat Code system prevents
unauthorised use of the vehicle,
disabling engine starting.
The system does not need to be
enabled/activated: operation is
automatic, regardless of the fact tha

Page 15 of 252

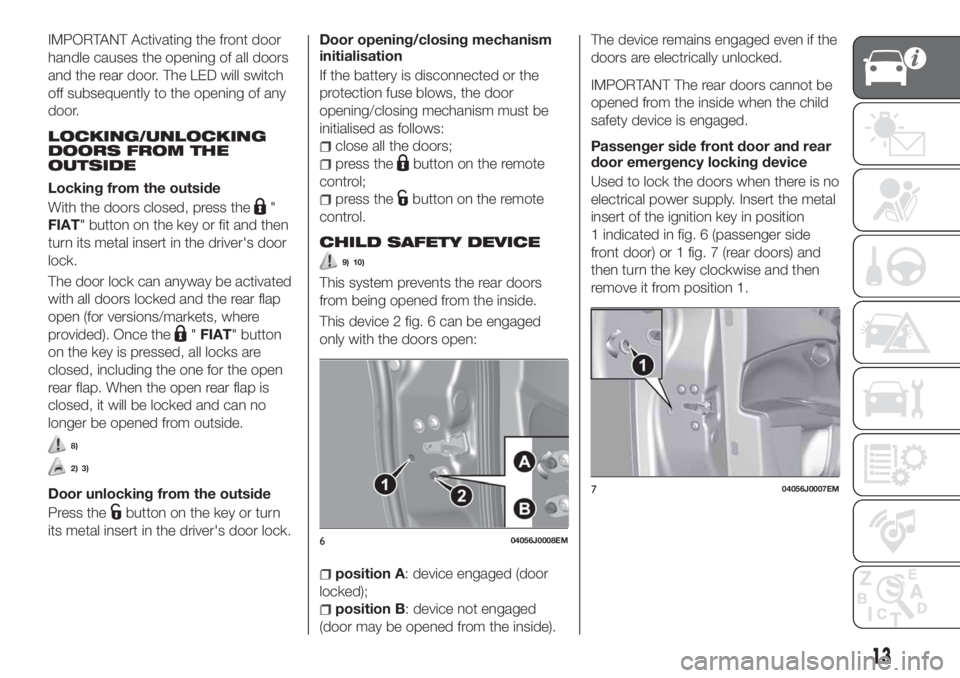

FIAT TIPO 4DOORS 2020  Owner handbook (in English) IMPORTANT Activating the front door
handle causes the opening of all doors
and the rear door. The LED will switch
off subsequently to the opening of any
door.
LOCKING/UNLOCKING
DOORS FROM THE
OUTSIDE

Page 16 of 252

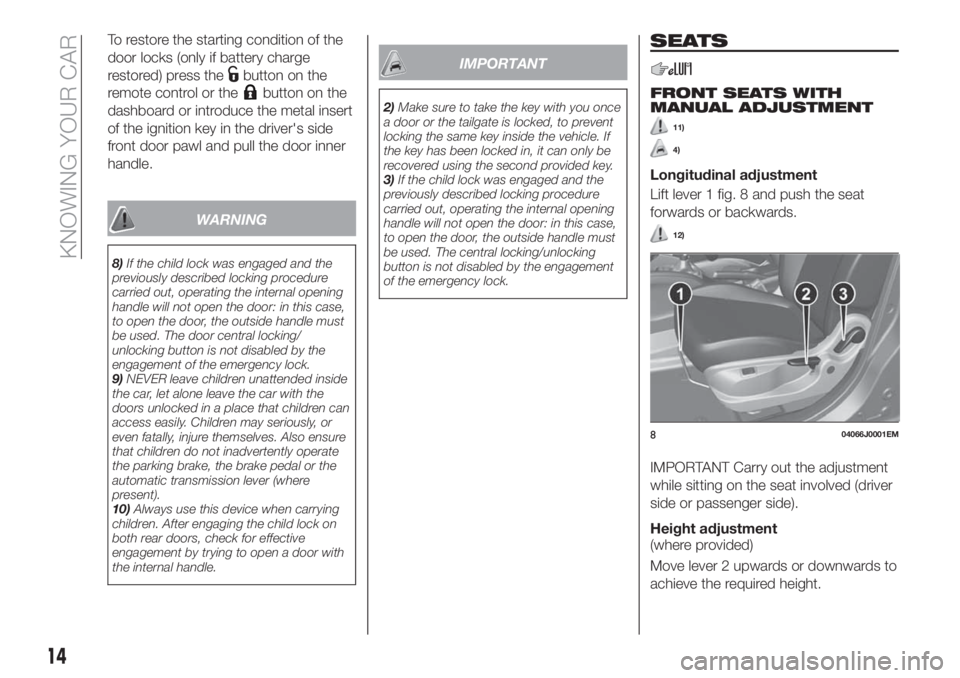

FIAT TIPO 4DOORS 2020  Owner handbook (in English) To restore the starting condition of the
door locks (only if battery charge
restored) press the
button on the
remote control or the
button on the
dashboard or introduce the metal insert
of the ignitio

Page 17 of 252

FIAT TIPO 4DOORS 2020  Owner handbook (in English) IMPORTANT Carry out the adjustment
while sitting on the seat involved (driver
side or passenger side).
Backrest angle adjustment
Pull lever 3 and accompanying the
backrest with the movement of your
to

Page 18 of 252

FIAT TIPO 4DOORS 2020  Owner handbook (in English) operate release device 1 (right or left)
fig. 12 to fold the required backrest
section.
Total luggage compartment
extension
Tilting the rear seat completely forwards
allows maximum loading volume.
Pro

Page 19 of 252

FIAT TIPO 4DOORS 2020  Owner handbook (in English) HEADRESTS
FRONT HEAD
RESTRAINTS
16)
Adjustment
They can be adjusted to 4 height
positions (completely raised /
2 intermediate positions / completely
lowered).
Upward adjustment: raise the head
restrai

Page 20 of 252

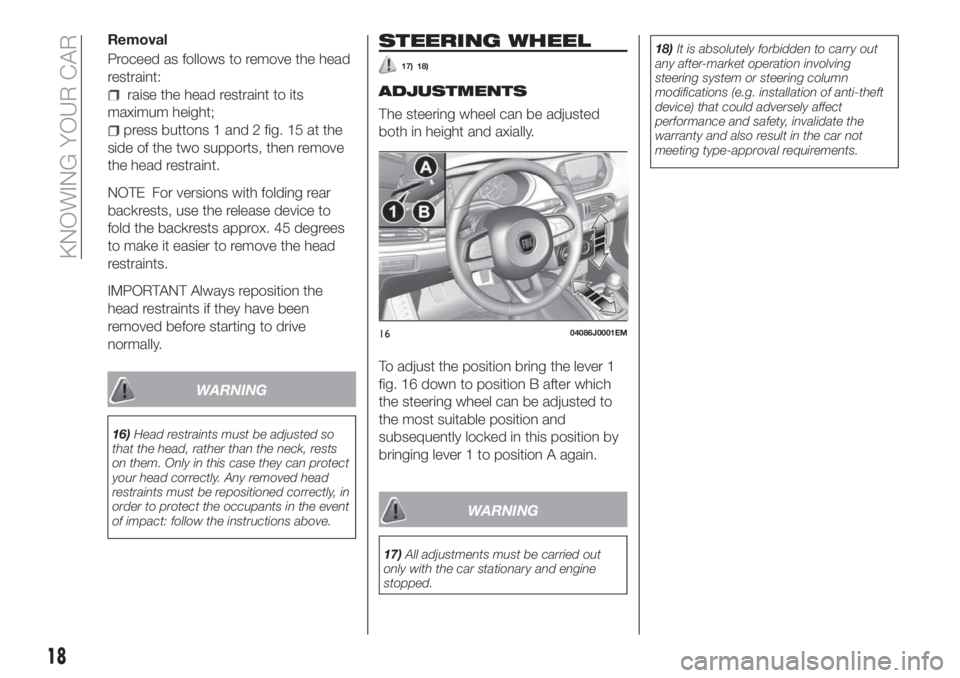

FIAT TIPO 4DOORS 2020  Owner handbook (in English) Removal
Proceed as follows to remove the head
restraint:
raise the head restraint to its
maximum height;
press buttons 1 and 2 fig. 15 at the
side of the two supports, then remove
the head restraint.
