GETTING TO KNOW YOUR CAR
50

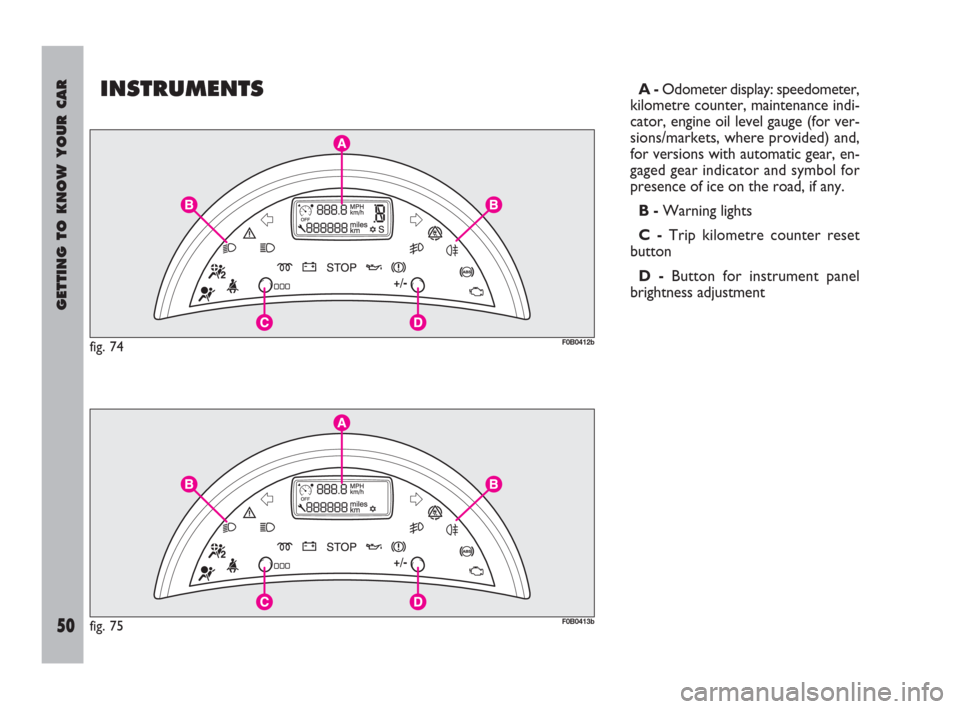

INSTRUMENTSA -Odometer display: speedometer,
kilometre counter, maintenance indi-
cator, engine oil level gauge (for ver-
sions/markets, where provided) and,
for versions with automatic gear, en-
gaged gear indicator and symbol for
presence of ice on the road, if any.
B -Warning lights
C -Trip kilometre counter reset
button
D -Button for instrument panel
brightness adjustment
fig. 74F0B0412b
fig. 75F0B0413b
001-077 ULYSSE ING:001-077 ULYSSE ING 5-11-2009 12:11 Pagina 50
Page 52 of 254
GETTING TO KNOW YOUR CAR
51

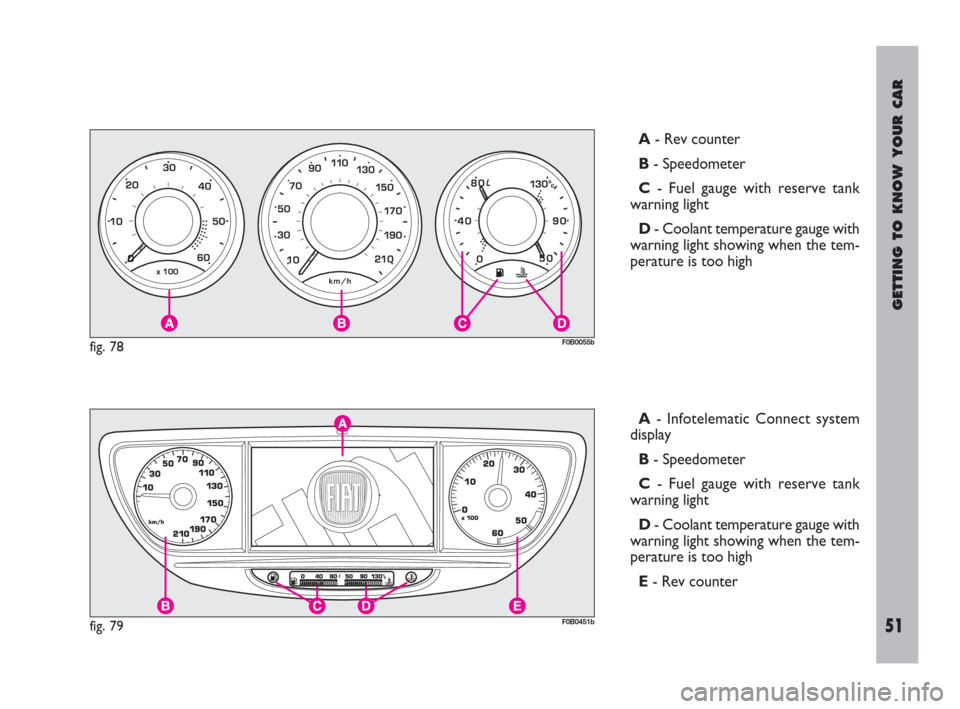

A - Rev counter
B- Speedometer
C- Fuel gauge with reserve tank
warning light
D- Coolant temperature gauge with
warning light showing when the tem-
perature is too high
fig. 78F0B0055b
A- Infotelematic Connect system
display
B- Speedometer
C- Fuel gauge with reserve tank
warning light
D- Coolant temperature gauge with
warning light showing when the tem-
perature is too high
E- Rev counter
fig. 79F0B0451b
001-077 ULYSSE ING:001-077 ULYSSE ING 5-11-2009 12:11 Pagina 51
Page 53 of 254
GETTING TO KNOW YOUR CAR
52
Warning light ucomes on when the
coolant is too hot.
Even travelling too slowly when the
outside temperature is very hot can
cause the needle to approach the red
sector. In this case it is better to stop
and turn off the engine. After a few
moments you can start the engine
again and accelerate slightly.
FUEL GAUGE
The instrument shows the level of fu-
el in the tank.
The reserve warning light Kwill light
up to indicate that there are approxi-
mately 5÷8 litres of fuel level left in the
tank and that refuelling is needed as
soon as possible.
Do not travel with the fuel tank al-
most empty: the gaps in fuel delivery
could damage the catalyser.
MULTIFUNCTION DISPLAY
(with sound system)
CONTROLS fig. 79a
A– button for opening the main menu
B– buttons for surfing the main menu REV COUNTER
If the needle is in the red zone, it
shows your vehicle is overrevving.
This is only acceptable for a few mo-
ments.
IMPORTANTThe electronic in-
jection control system cuts off the
flow of fuel when the engine is “over-
revving”. This will lead to a loss of en-
gine power.
When the engine is running idle, the
revolution counter can indicate a
gradual or sudden revolution in-
crease. This is normal and should not
worry you, since it usually happens
during normal operations, such as the
climate system activation or the fan
activation. In particular, a slow revo-
lution variation is needed to preserve
the battery charge.
ENGINE COOLANT
TEMPERATURE GAUGE
Under normal conditions, the needle
of the temperature gauge should hov-
er around the middle of the scale. If
it approaches the red section it means
the engine is being overtaxed and you
should reduce your demands on it.C– button for confirming the se-
lected function or for confirming set
values
D– button for canceling the function
/ going back to previous screen
E– button for selecting the type of
information displayed on the right side
of the screen (date, radio – CD, trip
computer)
Main menu
Press button Ato open the main
menu and to display the following
functions:
– Radio/CD(see the corresponding
functions on the attached "Sound Sys-
tem" Supplement);
– Trip computer: to display info
concerning: range, instant consump-
fig. 79a
F0B0434b
001-077 ULYSSE ING:001-077 ULYSSE ING 5-11-2009 12:11 Pagina 52
Page 54 of 254
GETTING TO KNOW YOUR CAR
53
tion, distance covered, average con-
sumption, average speed, distance to
destination; to display also info con-
cerning: automatic light turning on,
ESP, rain sensor.
To reset the trip computer data,
keep pressed the button set at the end
of the right stalk fig. 79b;
– Personal/set-up menu: to acti-
vate/deactivate electric rear wheel
lock, to activate/deactivate rear win-
dow wiper, to activate/deactivate au-
tomatic light turning on and to set
date, clock, display brightness, units
and language.
MULTIFUNCTION DISPLAY
(with infotelematic Connect /
Connect Nav+ system)
CONTROLS fig. 79c
A– button for opening the main
menu
B– buttons for surfing the main
menu
C– button for confirming the se-
lected function or for confirming set
values
D– button for canceling the function
/ going back to previous screenE– button for selecting the type of
information displayed on the right side
of the screen (date, radio – CD, trip
computer)
Main menu
Press button Ato open the main
menu and to display the following
functions:
– Navigation
– Audio
– Trip computer: to display info
concerning: range, instant consump-
tion, distance covered, average con-
sumption, average speed, distance to
destination; to display also info con-cerning: automatic light turning on,
ESP, rain sensor.
To reset the trip computer data,
keep pressed the button set at the end
of the right stalk fig. 79b;
– Address book
– Personal/set-up menu: to acti-
vate/deactivate electric rear wheel
lock, to activate/deactivate rear win-
dow wiper, to activate/deactivate au-
tomatic light turning on and to set
date, clock, display brightness, units
and language.
– Map
– Video
For Navigation, Audio, Address
book, Telematic, Map and Video func-
tions, refer to the attached “Connect
Nav+” Supplement.
fig. 79b
F0B0435b
fig. 79c
F0B0452b
001-077 ULYSSE ING:001-077 ULYSSE ING 5-11-2009 12:11 Pagina 53
Page 55 of 254
GETTING TO KNOW YOUR CAR
54
ODOMETER DISPLAY
This instrument displays the follow-
ing values:
on the upper line:partial kilome-
tres and engine oil level gauge (for ver-
sions/markets, where provided)
on the lower line:total kilometres
and programmed maintenance indica-
tor; versions with automatic gear are
also fitted with engaged gear indicator
(for further details see the chapter
“Automatic gear”).
Trip kilometre counter fig. 80
Press button Ato display the trip
kilometres. Keep it pressed to reset.Engine oil level gauge
(for versions/markets, where provided)
After turning the ignition key to M,
this indicator first displays the kilo-
metres to be reached before carrying
out the next maintenance operation
and then displays the engine oil level
in the engine sump for a limited time.
Fig. 81shows the correct oil level
condition. Flashing of the wording
“OIL”, together with the sound of the
buzzer and the dedicated message in-
dicate low engine oil level. Flashing of
wording “OIL –“ indicates an engine
oil level sensor failure.
fig. 80
F0B0244b
fig. 81
F0B0415b
fig. 82
F0B0246b
Scheduled maintenance
indicator fig. 82
The maintenance indicator uses
warning lamp Aand kilometre
counter Bto indicate when oil and oil
filter are to be replaced in accordance
with the service schedule. To keep the
warranty valid, go to a Fiat Dealer-
ship(see also the “Car maintenance”
chapter).
001-077 ULYSSE ING:001-077 ULYSSE ING 5-11-2009 12:11 Pagina 54
Page 56 of 254
GETTING TO KNOW YOUR CAR
55

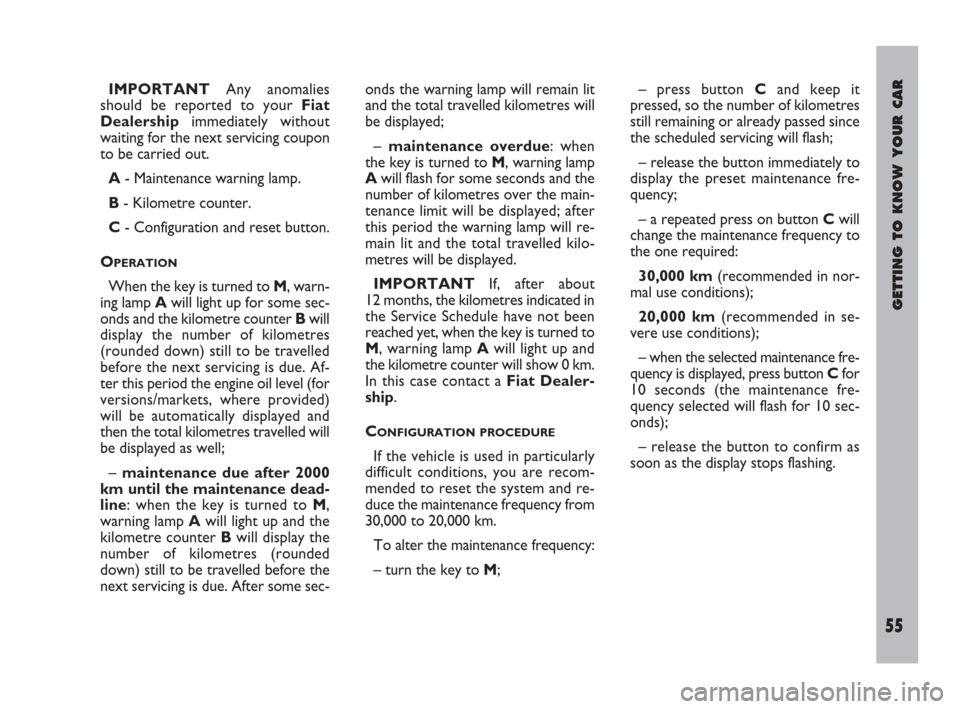

IMPORTANTAny anomalies
should be reported to your Fiat
Dealershipimmediately without
waiting for the next servicing coupon
to be carried out.
A- Maintenance warning lamp.
B- Kilometre counter.
C- Configuration and reset button.
O
PERATION
When the key is turned to M, warn-
ing lamp Awill light up for some sec-
onds and the kilometre counter Bwill
display the number of kilometres
(rounded down) still to be travelled
before the next servicing is due. Af-
ter this period the engine oil level (for
versions/markets, where provided)
will be automatically displayed and
then the total kilometres travelled will
be displayed as well;
– maintenance due after 2000
km until the maintenance dead-
line: when the key is turned to M,
warning lamp Awill light up and the
kilometre counter Bwill display the
number of kilometres (rounded
down) still to be travelled before the
next servicing is due. After some sec-onds the warning lamp will remain lit
and the total travelled kilometres will
be displayed;
– maintenance overdue: when
the key is turned to M, warning lamp
Awill flash for some seconds and the
number of kilometres over the main-
tenance limit will be displayed; after
this period the warning lamp will re-
main lit and the total travelled kilo-
metres will be displayed.
IMPORTANTIf, after about
12 months, the kilometres indicated in
the Service Schedule have not been
reached yet, when the key is turned to
M, warning lamp Awill light up and
the kilometre counter will show 0 km.
In this case contact a Fiat Dealer-
ship.
C
ONFIGURATION PROCEDURE
If the vehicle is used in particularly
difficult conditions, you are recom-
mended to reset the system and re-
duce the maintenance frequency from
30,000 to 20,000 km.
To alter the maintenance frequency:
– turn the key to M;– press button Cand keep it
pressed, so the number of kilometres
still remaining or already passed since
the scheduled servicing will flash;
– release the button immediately to
display the preset maintenance fre-
quency;
– a repeated press on button C will
change the maintenance frequency to
the one required:
30,000 km(recommended in nor-
mal use conditions);
20,000 km(recommended in se-
vere use conditions);
– when the selected maintenance fre-
quency is displayed, press button Cfor
10 seconds (the maintenance fre-
quency selected will flash for 10 sec-
onds);
– release the button to confirm as
soon as the display stops flashing.
001-077 ULYSSE ING:001-077 ULYSSE ING 5-11-2009 12:11 Pagina 55
Page 57 of 254
GETTING TO KNOW YOUR CAR
56
The navigation system
helps the driver while dri-
ving by suggesting, vocal-
ly and graphically, the best route
to be followed to reach the pre-
set destination. The suggestions
given by the navigation system do
not exempt the driver from fully
responsibility due to driving be-
haviour and compliance with
road and other traffic regulations.
The responsibility for road safety
always and anyway lies with the
vehicle’s driver.RESETTING
To reset the maintenance indicator:
– turn the ignition key to S;
– press and keep button Cpressed;
– turn the key to M;
– press and keep button Cpressed
for around 10 seconds so that the
maintenance indicator starts progres-
sive resetting until = 0 will be dis-
played;
– release button C and warning lamp
Awill go off to confirm successful re-
setting.
Your Fiat Dealership will reset
the maintenance indicator after
each control carried out.
INFOTELEMATIC
CONNECT SYSTEM
(for versions/markets, where provided)
The vehicle can be fitted with the in-
fotelematic CONNECT system which
includes a radio with CD-ROM/Audio
player, GSM cell phone, navigator and
on-board computer, designed in ac-
cordance with the specific features of
the passenger compartment and with
a personalised design that blends with
the styling of the dashboard.
The system is installed in an user-
friendly position for the driver and the
graphics on the front panel make it
easy to quickly locate the controls
which facilitate the use of them.
To use the system keep to the
instructions and warnings con-
cerning both its functions and the
relative road safety rules con-
tained in the specific Annex pro-
vided with the present Owner
Handbook.
001-077 ULYSSE ING:001-077 ULYSSE ING 5-11-2009 12:11 Pagina 56
Page 58 of 254
GETTING TO KNOW YOUR CAR
57
If the warning lamp
lights up while the vehicle
is moving, switch the en-
gine off and get in touch with a Fi-
at Dealership.
WARNING LIGHTS
IMPORTANTWhen a malfunction
warning lamp lights up, the related
message can be viewed on the display
and two or more sound warnings
(“gong”) are emitted.
The indicator and warning lights
come on in the following circum-
stances:
BATTERY NOT
RECHARGED
PROPERLY (Red)
When there is a malfunction in the
current generating system.
The light comes on when you turn
the ignition key to M, but it should go
out when the engine starts.
A delay in the light going out is ac-
ceptable only when the engine is idling.
If the warning light remains lit con-
tact immediately a Fiat Dealership.HANDBRAKE
ON/BRAKE FLUID
LEVEL TOO LOW
(Red)
The light comes on when you turn
the ignition key to M, but it should go
out after a couple of seconds. The
warning light comes on when the
brake fluid level falls below the mini-
mum due to a possible leakage in the
circuit, and when the handbrake is ap-
plied.
w
x
ANTILOCK BRAKING
SYSTEM (ABS)
MALFUNCTION
(Amber)
The warning light comes on when
you turn the ignition key to M, but it
should go out after a couple of sec-
onds.
The warning light comes on when
the ABS is not working properly. The
normal braking system continues to
function normally without ABS, but it
is as well to have the vehicle checked
at a Fiat Dealership as soon as pos-
sible.
>
ELECTRONIC
BRAKING
DEVICE (EBD)
MALFUNCTION (Red)
The car is fitted with an electronic
braking device (EBD). These warning
lights will come on at the same time
when the engine is running to indicate
that there is an EBD system failure.
x>+
001-077 ULYSSE ING:001-077 ULYSSE ING 5-11-2009 12:11 Pagina 57
Page 59 of 254
GETTING TO KNOW YOUR CAR
58
ENGINE COOLANT
LEVEL TOO LOW
(Red)
The light comes on when you turn
the ignition key to M, but it should go
out after a couple of seconds. The light
comes on when the engine is over-
heated. If the warning lamp lights up
while the vehicle is moving, stop the
vehicle with the engine running slight-
ly accelerated, to facilitate the coolant
circulation.
STOP (Red)
Comes on at the same time
with any other warning light.SEAT BELTS
UNFASTENED
(Amber)
The light comes on when you turn
the ignition key to Mand the driver's
or passenger's seat belt (if any) is not
fastened correctly.
When the pilot lamp turns on, the
multifunction display, provides for 8
seconds, the display of a dedicated
message.
Warning light comes on together
with a warning beep (for 90 seconds)
when the car speed exceeds 25 km/h.
EOBD ENGINE
FAILURE CONTROL
SYSTEM (Amber)
In normal conditions, the warning
light will come on when the ignition
is turned to M and should go out as
soon as the engine is started. The ini-
tial lighting up shows that the warn-
ing light is working properly.
u
ì
<
U
If the warning lamp does
not go out within the next
2 or 3 minutes, switch the
engine off and get in touch with a
Fiat Dealership.
OIL PRESSURE TOO
LOW (Red)
The light comes on when
you turn the ignition key to M, but it
should go out when the engine starts.
A delay in the light going out is ac-
ceptable only when the engine is idling.
If the engine has been taxed heavily,
the light may flash when idling. It
should, however, go out when you ac-
celerate slightly.
v
In this case violent brak-
ing may be accompanied
by early rear wheel lock-
ing with the possibility of skid-
ding. Drive the car extremely
carefully to the nearest Fiat Deal-
ership to have the system
checked.
If the warning lamp
lights up while the vehicle
is moving, switch the en-
gine off and get in touch with a Fi-
at Dealership.
001-077 ULYSSE ING:001-077 ULYSSE ING 5-11-2009 12:11 Pagina 58
Page 60 of 254
GETTING TO KNOW YOUR CAR
59
If the warning light either stays on or
comes on while travelling:
fixed light- warning of a fuel
feed/ignition system failure which may
increase emissions in exhaust or cause
possible drops in performance, poor
handling and high consumption.
In such conditions, you can continue
driving but you should not tax the en-
gine and you should moderate the
speed. Prolonged use with the warning
light on can cause damage. Contact a
Fiat Dealershipas soon as possible.
The warning light goes off if the fault
disappears but it is however stored by
the system.
flashing(only petrol versions) -
warning that the catalyser can be dam-
aged (see “EOBD system” in this chap-
ter).
If the warning light starts flashing, re-
lease the accelerator pedal and slow
the engine until the warning light stops
flashing. Continue driving at moderate
speed, preventing the warning light
from coming on again. Contact a Fi-
at Dealershipas soon as possible. AIR BAG
MALFUNCTION
(Amber)
When the system is inefficient.
When you turn the ignition key to
the Mposition the light comes on. It
should, however, go out after about
4 seconds.
¬
Contact a Fiat Dealer-
ship as soon as possible if
the warning light either
does not come on when the key
is turned to M or comes on, with
fixed or flashing light, when trav-
elling.
If the warning light ¬
does not turn on when
turning the ignition key to
M or if it stays on when travelling,
this could indicate a failure in safe-
ty retaining systems; under this
condition air bags or pretension-
ers could not trigger in the event
of collision or, in a restricted num-
ber of cases, they could trigger ac-
cidentally. Stop the car and con-
tact Fiat Dealership to have the
system checked immediately.
FRONT PASSENGER
AIR BAG
DEACTIVATED
(Amber)
With the front passenger air bag ac-
tivated, the light comes on when you
turn the ignition key to M, but it
should go out after about 4 seconds.
Warning light
“indi-
cates also warning light
¬
failure. This is indicated
by intermittent flashing, over 4
seconds, of warning light
“. In
this event, warning light
¬could
be not up to indicate restraint
system failures, if any. Stop the
car and contact Fiat Dealership
to have the system checked.
“
001-077 ULYSSE ING:001-077 ULYSSE ING 5-11-2009 12:11 Pagina 59
