GETTING TO KNOW YOUR CAR
66

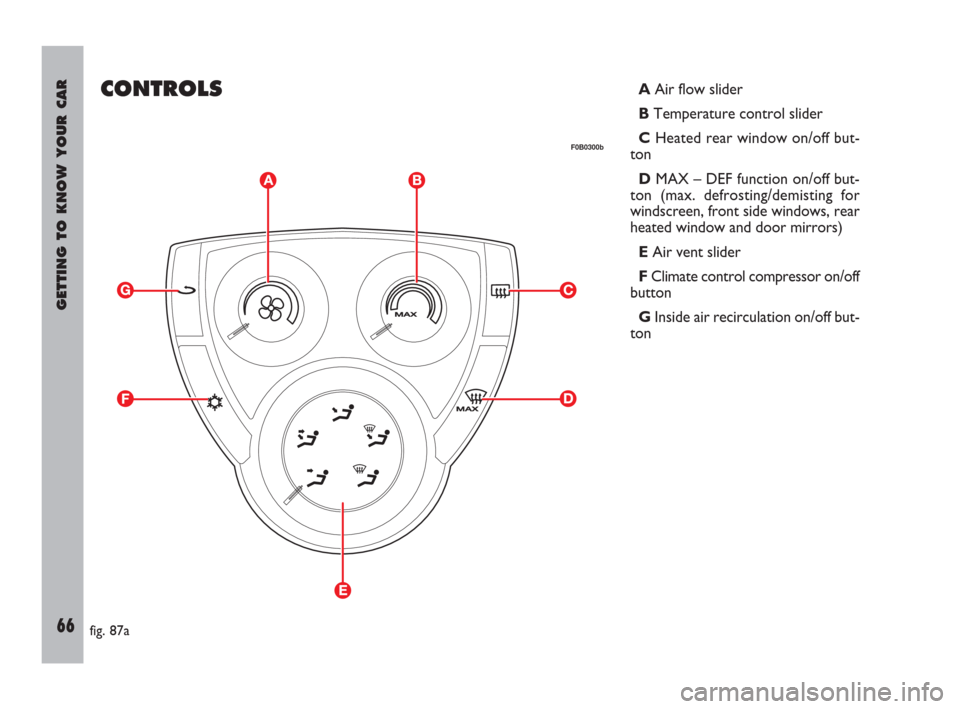

CONTROLSAAir flow slider
B Temperature control slider
C Heated rear window on/off but-
ton
DMAX – DEF function on/off but-
ton (max. defrosting/demisting for
windscreen, front side windows, rear
heated window and door mirrors)
EAir vent slider
FClimate control compressor on/off
button
GInside air recirculation on/off but-
ton
fig. 87a
F0B0300b
001-077 ULYSSE ING:001-077 ULYSSE ING 5-11-2009 12:11 Pagina 66

GETTING TO KNOW YOUR CAR
71
SENSORS
The system is fitted not only with
outside and inside temperature sen-
sors, but also with a sunlight sensor
which transmits the sunlight value to
the control unit, thus making the tem-
perature control by the system more
accurate.
The sunlight sensor is placed in the
middle of the dashboard, while the
outside temperature sensor is on the
passenger side door mirror. CONTROLS fig. 88-89
Versions with standard equipment
fig. 88
F0B0174b
001-077 ULYSSE ING:001-077 ULYSSE ING 5-11-2009 12:11 Pagina 71

IN AN EMERGENCY
174
FUSEBOX IN THE GLOVE COMPARTMENT fig. 37
1
2
4
5
7
9
10
11
12
14
15
16
17
18
20
22
23
24
2610A
15A
15A
10A
20A
30A
20A
15A
10A
30A
30A
5A
15A
10A
10A
10A
15A
15A
40ARear fog lights
Rear heated window
Main electronic control unit power supply
Left brake light
Spot light, cigar lighter, glove compartment light on passenger’s side,
automatic rear view mirror
Front sunroof, front windscreen wipers
Diagnosis socket
Electronic alarm, infotelematic Connect system, sound system,
multifunction display, steering column controls, particulate filter
Right side light, number plate lights, climate system control lights, ceiling lights
(first, second and third row)
Door locking system, Super door lock
Rear window wiper
Air bag system power supply, main electronic control unit power supply
Right brake light, third brake light, trailer brake lights
Diagnosis socket power supply, brake and clutch pedal switch
Sound system power supply for main electronic control unit
Left side light; trailer side light
Electronic alarm siren
Parking sensor power supply for main electronic control unit
Heated rear window
