FORD BRONCO 1988 User Guide

8
%*
[IN07100(BEF )04/95]
Cleaning the Outside of Your
Vehicle
%*
[IN07200(BEF )04/95]
Washing and Polishing Your Vehicle
*
[IN07300(BEF )04/95]
Wash the outside of your vehicle, including the
underside, with a mild detergent.
*
[IN07400(BEF )04/95]
DO NOT:
*
[IN07500(BEF )04/95]
q
Wash your vehicle with hot water
*
[IN07600(BEF )04/95]
q
Wash your vehicle while it sits in direct
sunlight
*
[IN07700(BEF )04/95]
q
Wash your vehicle while the body is hot
*
[IN07800(BEF )05/95]
Pollen, bird droppings and tree sap can damage
the paint, especially in hot weather. Wash your
vehicle as often as necessary to keep it clean.
*
[IN07900(BEF )05/95]
Take similar precautions if your vehicle is
exposed to chemical industrial fallout.
*
[IN08000(BE )05/95]
Paint damage resulting from fallout is not
related to a defect in paint materials or
workmanship and therefore is not covered by
warranty. Ford, however, believes that continual
improvement in customer satisfaction is a high
priority. For this reason, Ford has authorized its
dealers to repair, at no charge to the owner, the
surfaces of new vehicles damaged by
environmental fallout within 12 months or 12,000
miles (20,000 km) of purchase, whichever comes
first. Customers may be required to bring their
vehicle in for inspection by a Ford
representative.
*
[IN08100(BEF )04/95]
Polish your vehicle to remove harmful deposits
and protect the finish.
File:ltinb.ex
Update:Fri Jun 9 15:32:32 1995
ProCarManuals.com

9 %
*
[IN08200(BEF )04/95]
Cleaning Chrome and Aluminum Parts
*
[IN08300(BEF )04/95]
Wash chrome and aluminum parts with the
same detergent you use to wash the vehicle
body, such as Ford Premium Car Wash
Concentrate. You can use Ford Extra Strength
Tar and Road Oil Remover or equivalent to
clean grease, oil, and tar from chrome-plated
parts, including wheelcovers, aluminum wheels,
bumpers, or anodized aluminum parts.
%*
[IN08400(BEF )04/95]
Cleaning Plastic Parts
*
[IN08500(BEF )04/95]
Some of your vehicle's exterior trim parts are
plastic. Clean with a tar and road oil remover if
necessary. Use a vinyl cleaner for routine
cleaning.
*
[IN08600(BEF )04/95]
Do not clean plastic parts with thinners, solvents
or petroleum-based cleaners.
%*
[IN08700(BEF )04/95]
If you have your vehicle rustproofed, remove
oversprayed rustproofing with a tar and road oil
remover. If rustproofing is not removed from
plastic and rubber parts, it can cause
deterioration.
File:ltinb.ex
Update:Fri Jun 9 15:32:32 1995
ProCarManuals.com

11
Safety Restraints
*
[SR00500(BEF )04/95]
Important Safety Belt Information
*
[SR00600(BEF )03/95]
The use of safety belts helps to restrain you and
your passengers in case of a collision. In most
states and in Canada the law requires their use.
*
[SR00700(BEF )01/95]
Safety belts provide best restraint when:
*
[SR00800(BEF )01/95]
q
the seatback is upright
*
[SR00900(BEF )01/95]
q
the occupant is sitting upright (not slouched)
*
[SR01000(BEF )01/95]
q
the lap belt is snug and low on the hips
*
[SR01100(BEF )01/95]
q
the shoulder belt is snug against the chest
*
[SR01200(BEF )01/95]
q
the knees are straight forward
*
[SR02000(BEF )05/95]
To help you remember to fasten your safety belt,
a warning light may come on and a chime may
sound. SeeSafety Belt Warning Light and Chimein
theWarning Lights and Gaugeschapter.
*
[SR02100(BEF )01/95]
See the following sections in this chapter for
directions on how to properly use these safety
belts. Also seeSafety Restraints for Childrenin this
chapter for special instructions about using
safety belts for children.
%*
[SR02200(BEF )05/95]
RWARNING
Make sure that you and your passengers
wear safety belts. Always drive and ride
with your seatback upright and the lap
belt snug and low across the hips.
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
ProCarManuals.com

12
*
[SR02400(BEF )05/95]
RWARNING
Passengers should not be allowed to ride
in the cargo area. Persons not riding in a
seat with a fastened seat belt are much
more likely to suffer serious injury in a
collision. Cargo should always be secured
to prevent it from shifting and causing
damage to the vehicle or harm to
passengers.
*
[SR02500(BEF )05/95]
RWARNING
Never let a passenger hold a child on his
or her lap while the vehicle is moving.
The passenger cannot protect the child
from injury in a collision.
*
[SR02600(BEF )05/95]
RWARNING
To reduce the risk of serious injury in a
collision, children should always ride with
the seatback upright.
*
[SR02800(BEF )03/95]
RWARNING
Never wear the shoulder belt under the
arm. Never swing it around the neck over
the inside shoulder. Never use a single
belt for more than one person or across
more than one seating position. Each
seating position in your vehicle has a
specific safety belt assembly which is
made up of one buckle and one tongue
that are designed to be used as a pair.
Failure to follow these precautions could
increase the risk and/or severity of injury
in a collision.
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
ProCarManuals.com

13
*
[SR02900(BEF )05/95]
Lock the doors of your vehicle before driving to
lessen the risk of the door coming open in a
collision.
[SR02920(B )04/95]
Your vehicle is equipped with a dual locking
mode retractor on the shoulder belt portion of
the combination lap/shoulder safety belt for
front seat passenger and a locking ªcinch
tongueº for rear seat outboard passengers.
[SR02930(BEF )04/95]
Dual Locking Mode Retractors
[SR02940(BEF )04/95]
Vehicle Sensitive (Emergency) Locking Mode
[SR02950(BEF )04/95]
In this operating mode, the shoulder belt
retractor will allow the occupant freedom of
movement, locking tight only on hard braking,
hard cornering or impacts of approximately
5 mph (8 km/h) or more.
[SR02960(BEF )04/95]
The front seat belt retractor can also be made to
lock by pulling/jerking on the belt.
[SR02970(BEF )04/95]
Automatic Locking Mode
[SR02980(BEF )04/95]
In this operating mode, the shoulder belt
retractor will be automatically locked and remain
locked when the combination lap/shoulder
safety belt is buckled, and does not allow the
occupant freedom of movement. This mode
provides the following:
[SR02990(BEF )04/95]
q
A tight lap/shoulder belt fit on occupant
[SR03000(BEF )04/95]
q
Child seat/infant carrier installation restraint
[SR03010(B F )04/95]
RWARNING
Rear-facing infant seats should never be
placed in the front seat.
[SR03020(BEF )04/95]
This mode must be used when installing a child
seat on the front passenger seat and rear
outboard seats where dual locking retractors are
provided.
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
ProCarManuals.com

14 [SR03030(BEF )04/95]To switch the retractor from the ªemergency
locking modeº to the ªautomatic locking mode,º
perform the following steps:
[SR03040(BEF )04/95]
1. Buckle the lap/shoulder combination belt.
[SR03050(BEF )04/95]
2. Grasp the shoulder portion of the belt and
pull downward until all of the belt is
extracted, and when allowed to retract, a
clicking sound will be heard. At this time,
the belt retractor is in the ªautomatic locking
modeº (child restraint mode).
[SR03060(BEF )04/95]
3. A clicking sound will continue to be heard
as the belt is allowed to retract. This
indicates that the retractor is in the
ªautomatic locking mode.º
[SR03070(BEF )04/95]
NOTE: When the combination lap/shoulder
belt is unbuckled and allowed to
retract completely, the retractor will
switch back to the vehicle sensitive
(emergency) locking mode. See the
detailed instructions underSafety Seats
for Childrenin this chapter.
[SR03080(B )04/95]
Locking Cinch Tongue
[SR03085(B )04/95]
The ªlocking cinch tongueº will slide up and
down the belt webbing when belt is in the
stowed position or while putting seat belt on.
When the ªlocking cinch tongueº of the
lap/shoulder combination seat belt is latched
into buckle, the ªcinch tongueº will allow the
lap portion to become shorter, but locks the
webbing in-place to restrict it from becoming
longer.
[SR03090(B )04/95]
Your vehicle is equipped with safety seat belts
containing a ªcinch tongueº at the rear outboard
seating positions.
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
ProCarManuals.com

15 [SR03095(B )04/95]

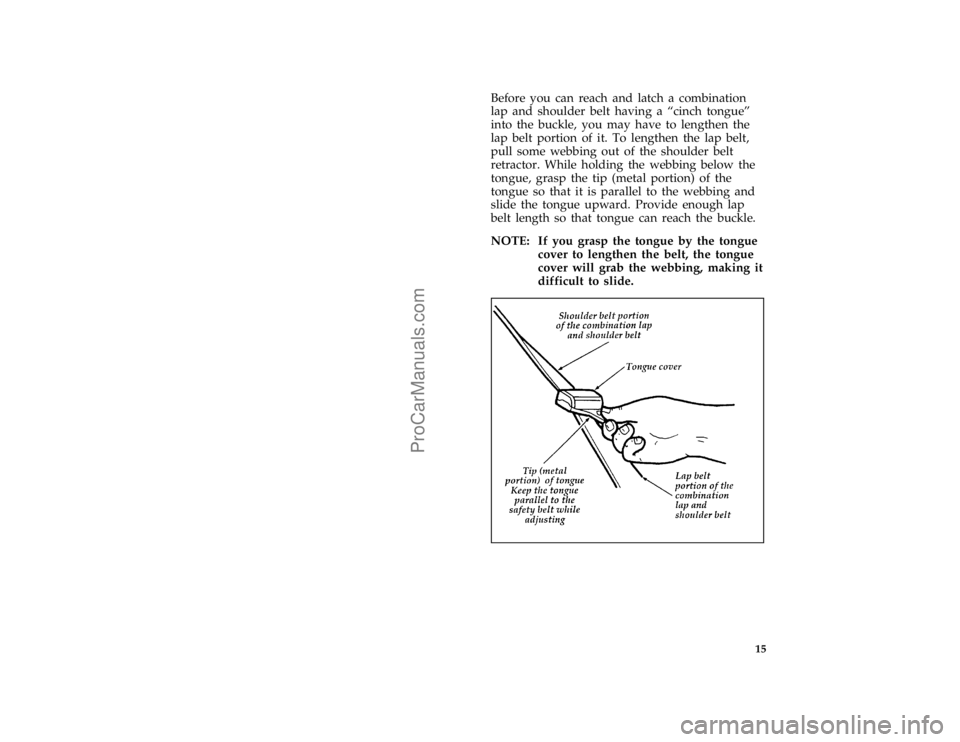

Before you can reach and latch a combination
lap and shoulder belt having a ªcinch tongueº
into the buckle, you may have to lengthen the
lap belt portion of it. To lengthen the lap belt,
pull some webbing out of the shoulder belt
retractor. While holding the webbing below the
tongue, grasp the tip (metal portion) of the
tongue so that it is parallel to the webbing and
slide the tongue upward. Provide enough lap
belt length so that tongue can reach the buckle.
[SR03100(B )04/95]
NOTE: If you grasp the tongue by the tongue
cover to lengthen the belt, the tongue
cover will grab the webbing, making it
difficult to slide.
[SR03105(B )05/95]
half page art:0021501-AFile:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
ProCarManuals.com

16 [SR03110(B )04/95]To fasten a ªcinch tongue,º pull the combination
lap and shoulder belt from the retractor so that
the shoulder belt portion of the safety belt
crosses your shoulder and chest. Be sure the belt
is not twisted. If the belt is twisted, remove the
twist. (For instructions on how to remove a
twist, see theHow to Untwist or Unjam a Safety
Belt Retractorsection in this chapter.) Insert the
belt tongue into the proper buckle for your
seating position until you hear a snap and feel it
latch. Make sure the tongue is securely fastened
to the buckle by pulling on tongue. Adjust the
lap belt portion of the safety belt by pulling up
on the shoulder belt until the lap belt fits snugly
and as low as possible around your hips.
[SR03115(B )05/95]

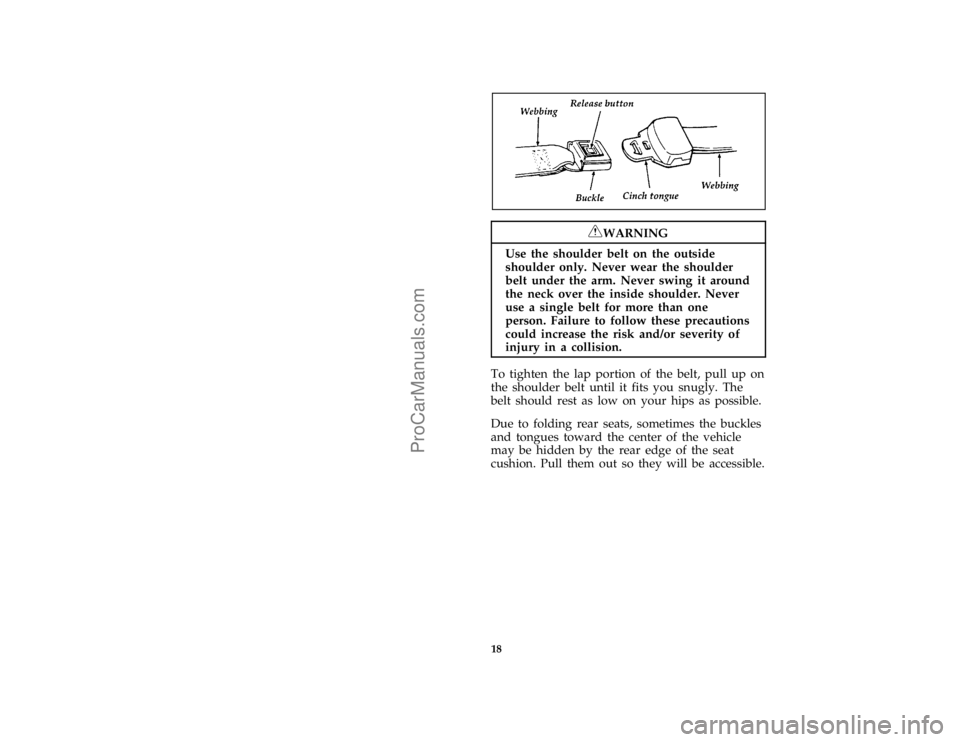

half page art:0000841-B
Lab and shoulder belt fastened
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
ProCarManuals.com

17
*
[SR03120(BEF )05/95]
Combination Lap and Shoulder
Belts
*
[SR03125(BEF )05/95]
While your vehicle is in motion, the combination
lap and shoulder belt adjusts to your movement.
However, if you brake hard, corner hard or if
your truck receives an impact of 5 mph
(8 km/h) or more, the combination lap/shoulder
belt locks and helps reduce your forward
movement. The front seat belt systems can also
be made to lock by jerking on the shoulder belt.
*
[SR03130(BEF )05/95]
NOTE: The rear belts cannot be made to lock
up by jerking on shoulder belt.
*
[SR03135(BEF )05/95]
After you get into your vehicle, close the door
and lock it. Then adjust the seat to the position
that suits you best.
[SR03137(BEF )05/95]
To fasten the belt
*
[SR03140(BEF )05/95]
Pull the combination lap/shoulder belt from the
retractor so that the shoulder portion of the belt
crosses your shoulder and chest. Be sure the belt
is not twisted. If it is, remove the twist. Insert
the belt tongue into the proper buckle until you
hear a snap and feel it latch. Make sure the
tongue is securely fastened to the buckle by
pulling on tongue.
[SR03150(B )05/95]
one third page art:0020639-DFile:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
ProCarManuals.com

18 [SR03155(B )05/95]
7-1/2 pica art:0021500-A
*
[SR03160(BEF )05/95]
RWARNING
Use the shoulder belt on the outside
shoulder only. Never wear the shoulder
belt under the arm. Never swing it around
the neck over the inside shoulder. Never
use a single belt for more than one
person. Failure to follow these precautions
could increase the risk and/or severity of
injury in a collision.
*
[SR03165(BEF )05/95]
To tighten the lap portion of the belt, pull up on
the shoulder belt until it fits you snugly. The
belt should rest as low on your hips as possible.
[SR03185(BEF )05/95]
Due to folding rear seats, sometimes the buckles
and tongues toward the center of the vehicle
may be hidden by the rear edge of the seat
cushion. Pull them out so they will be accessible.
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
ProCarManuals.com
