Installing Child Safety Seats
[SR16315(B )04/95]
Your vehicle is equipped with a dual locking
mode retractor on the shoulder belt portion of
the combination lap/shoulder safety belt for the
front seat passenger and locking ªcinch tongueº
for rear outboard passengers.
[SR16330(B )04/95]
If you choose to install a forward-facing child
safety seat in the front seating positions, move
vehicle seat as far back as possible.
[SR16335(B )04/95]
For front passenger seating positions equipped
with a dual-locking mode retractor, use the
following procedure:
[SR16340(B )04/95]
For rear outboard seating positions, refer to
cinch tongue procedure.
*
[SR16345(BEF )04/95]
1. Position the child seat in the center of the
passenger seat.
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
ProCarManuals.com

40
*
[SR16350(BEF )04/95]
2. Pull down on shoulder belt, then grasp
shoulder belt and lap belt together. Figure 1.
*
[SR16355(BEF )04/95]
half page art:0011238-B
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
ProCarManuals.com

41
*
[SR16360(BEF )04/95]
3. While holding the shoulder and lap belt
portions together, route the tongue through
the child seat according to the child seat
manufacturer's instructions. See Figure 2. Be
sure that the belt webbing is not twisted.
[SR16365(BEF )04/95]
half page art:0011239-B
Routing the lap/shoulder belt
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
ProCarManuals.com

42
*
[SR16370(BEF )04/95]
4. Insert the belt tongue into the buckle for that
seating position until you hear and feel the
latch engage. Figure 3. Make sure tongue is
latched securely to buckle by pulling on
tongue.
*
[SR16375(BEF )04/95]
half page art:0011240-B
Buckling the belt
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
ProCarManuals.com

43
*
[SR16380(BEF )04/95]

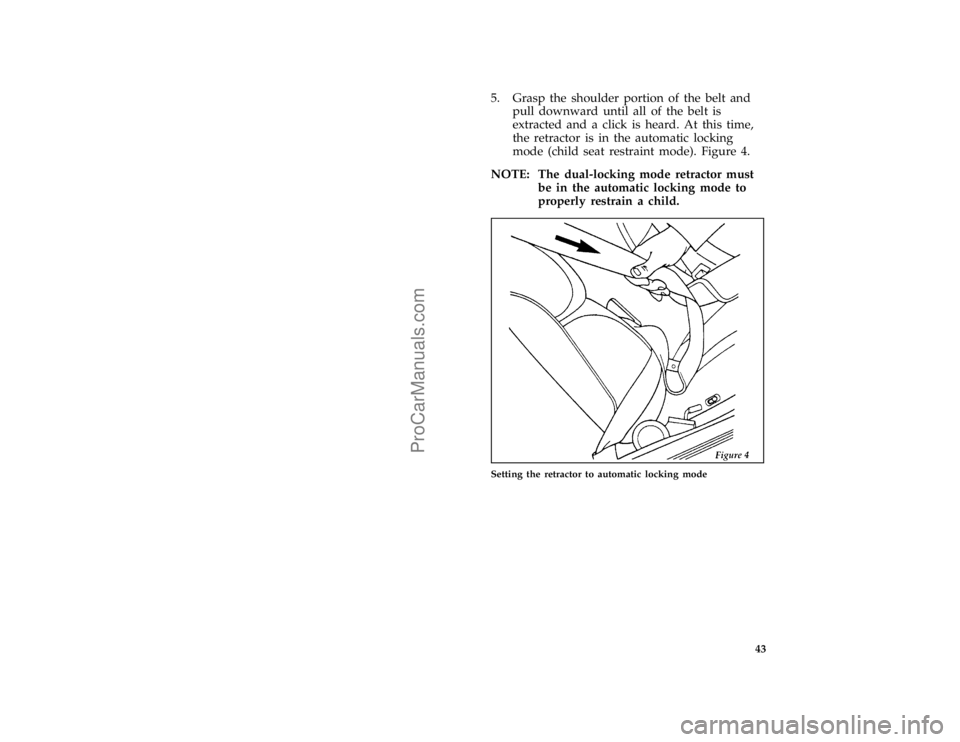

5. Grasp the shoulder portion of the belt and
pull downward until all of the belt is
extracted and a click is heard. At this time,
the retractor is in the automatic locking
mode (child seat restraint mode). Figure 4.
*
[SR16385(BEF )04/95]
NOTE: The dual-locking mode retractor must
be in the automatic locking mode to
properly restrain a child.
*
[SR16390(BEF )04/95]
half page art:0011241-A
Setting the retractor to automatic locking mode
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
ProCarManuals.com

44
*
[SR16395(BEF )04/95]

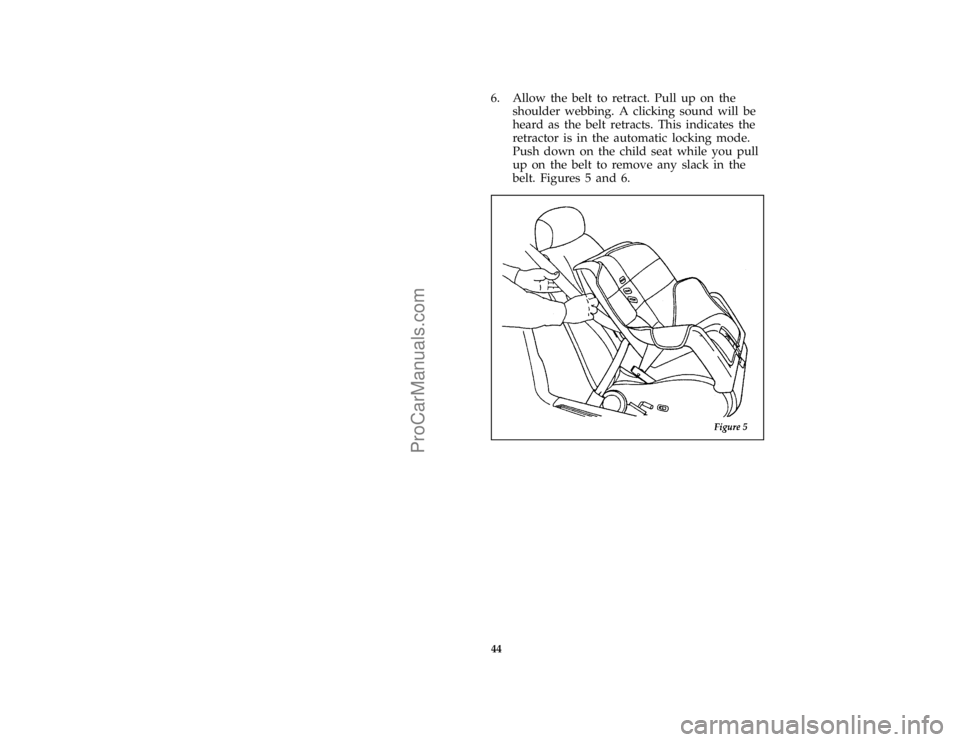

6. Allow the belt to retract. Pull up on the
shoulder webbing. A clicking sound will be
heard as the belt retracts. This indicates the
retractor is in the automatic locking mode.
Push down on the child seat while you pull
up on the belt to remove any slack in the
belt. Figures 5 and 6.
*
[SR16400(BEF )04/95]
half page art:0011242-A
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
ProCarManuals.com

45
*
[SR16405(BEF )04/95]
half page art:0011243-A
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
ProCarManuals.com

46
*
[SR16410(BEF )04/95]

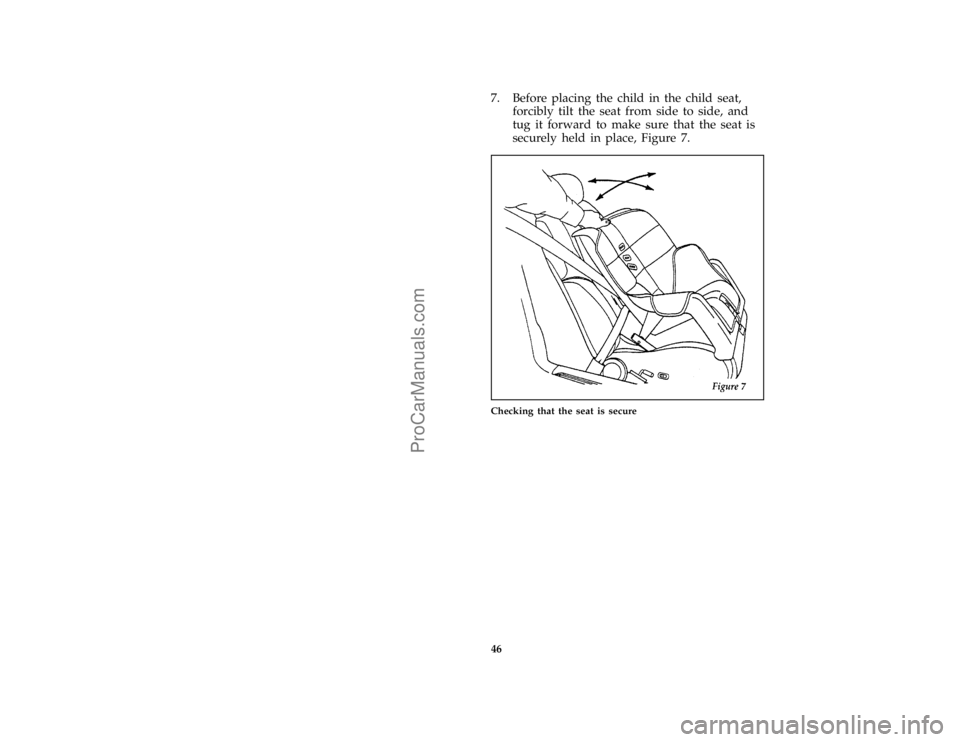

7. Before placing the child in the child seat,
forcibly tilt the seat from side to side, and
tug it forward to make sure that the seat is
securely held in place, Figure 7.
*
[SR16412(BEF )04/95]
half page art:0011244-A
Checking that the seat is secure
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
ProCarManuals.com

47
*
[SR16415(BEF )04/95]

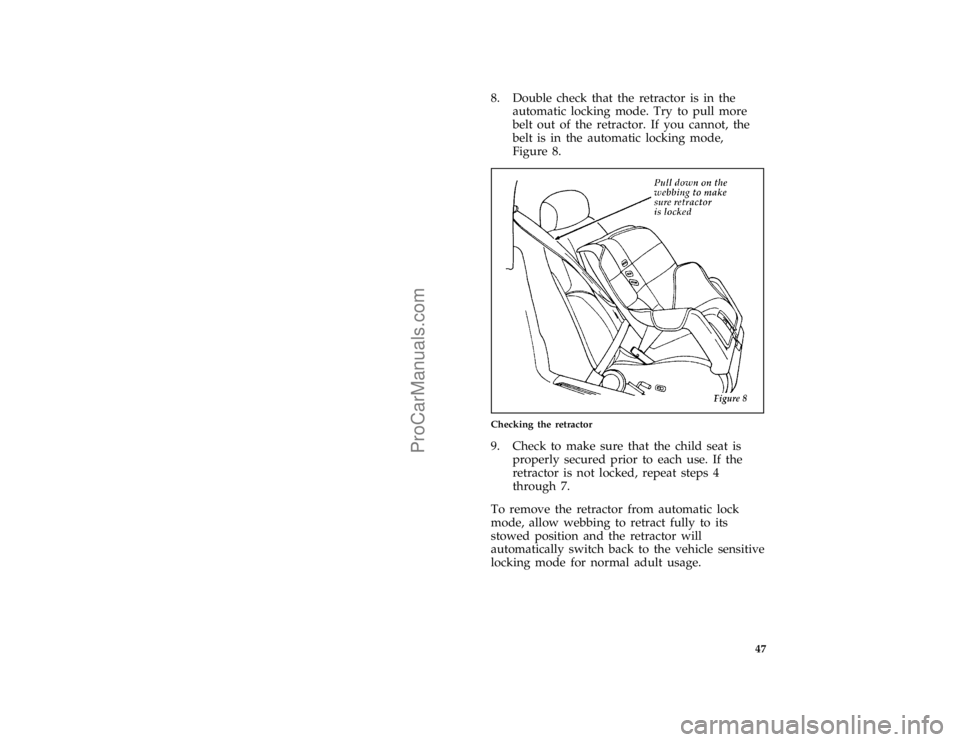

8. Double check that the retractor is in the
automatic locking mode. Try to pull more
belt out of the retractor. If you cannot, the
belt is in the automatic locking mode,
Figure 8.
*
[SR16420(BEF )04/95]
half page art:0011245-B
Checking the retractor
*
[SR16425(BEF )04/95]
9. Check to make sure that the child seat is
properly secured prior to each use. If the
retractor is not locked, repeat steps 4
through 7.
*
[SR16430(BEF )04/95]
To remove the retractor from automatic lock
mode, allow webbing to retract fully to its
stowed position and the retractor will
automatically switch back to the vehicle sensitive
locking mode for normal adult usage.
File:ltsrb.ex
Update:Tue Jun 20 16:58:10 1995
ProCarManuals.com

48 [SR16440(BEF )04/95]Installing a Child Safety Seat at the Rear
Center Seating Position with Locking
Adjustable Lap Belt
[SR16450(BEF )04/95]
1. Lengthen the lap belt. To lengthen the belt,
hold the tongue so that its bottom is
perpendicular to the direction of webbing
while sliding the tongue up the webbing.
[SR16455(BEF )04/95]
2. Place the child safety seat in the center
seating position.
[SR16460(BEF )04/95]
3. Route the tongue and webbing through the
child seat according to the child seat
manufacturer's instructions.
[SR16465(BEF )04/95]
4. Insert the belt tongue into the proper buckle
for the center seating position until you hear
a snap and feel it latch. Make sure the
tongue is securely fastened to the buckle by
pulling on tongue.
[SR16470(BEF )04/95]
5. Push down on the child seat while pulling
on the loose end of the lap belt webbing to
tighten the belt.
[SR16475(BEF )04/95]
6. Before placing the child into child seat,
forcibly tilt the child seat from side-to-side
and in forward directions to ensure that the
seat is held securely in place. If the child
seat moves excessively, repeat steps 5
through 6, or properly install the child seat
in a different seating position.
