FORD BRONCO 2023 Service Manual

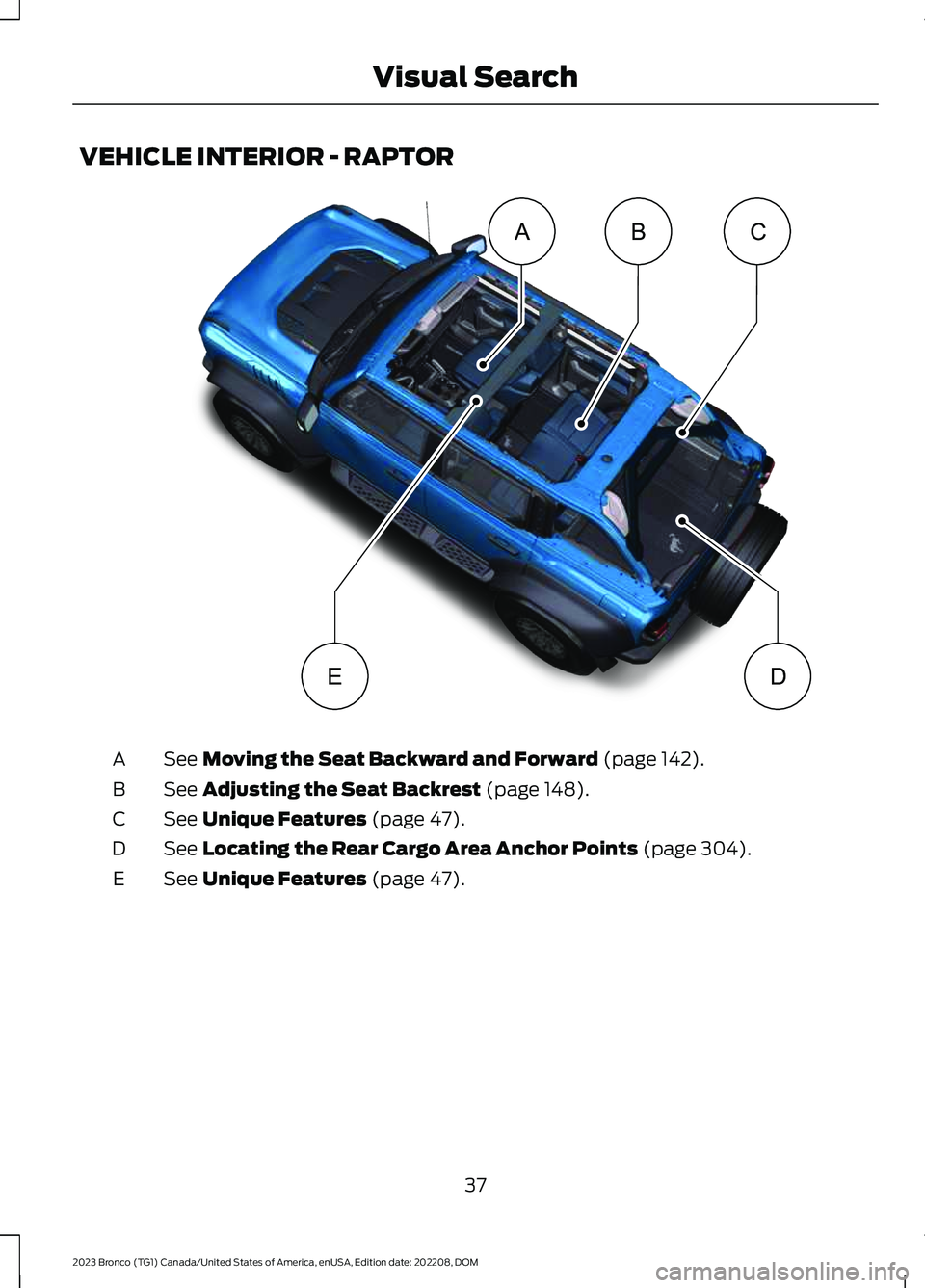

VEHICLE INTERIOR - RAPTOR
See Moving the Seat Backward and Forward (page 142).A
See Adjusting the Seat Backrest (page 148).B
See Unique Features (page 47).C
See Locating the Rear Cargo Area Anchor Points (page 304).D
See Unique Features (page 47).E
37
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMVisual SearchABCED E366560

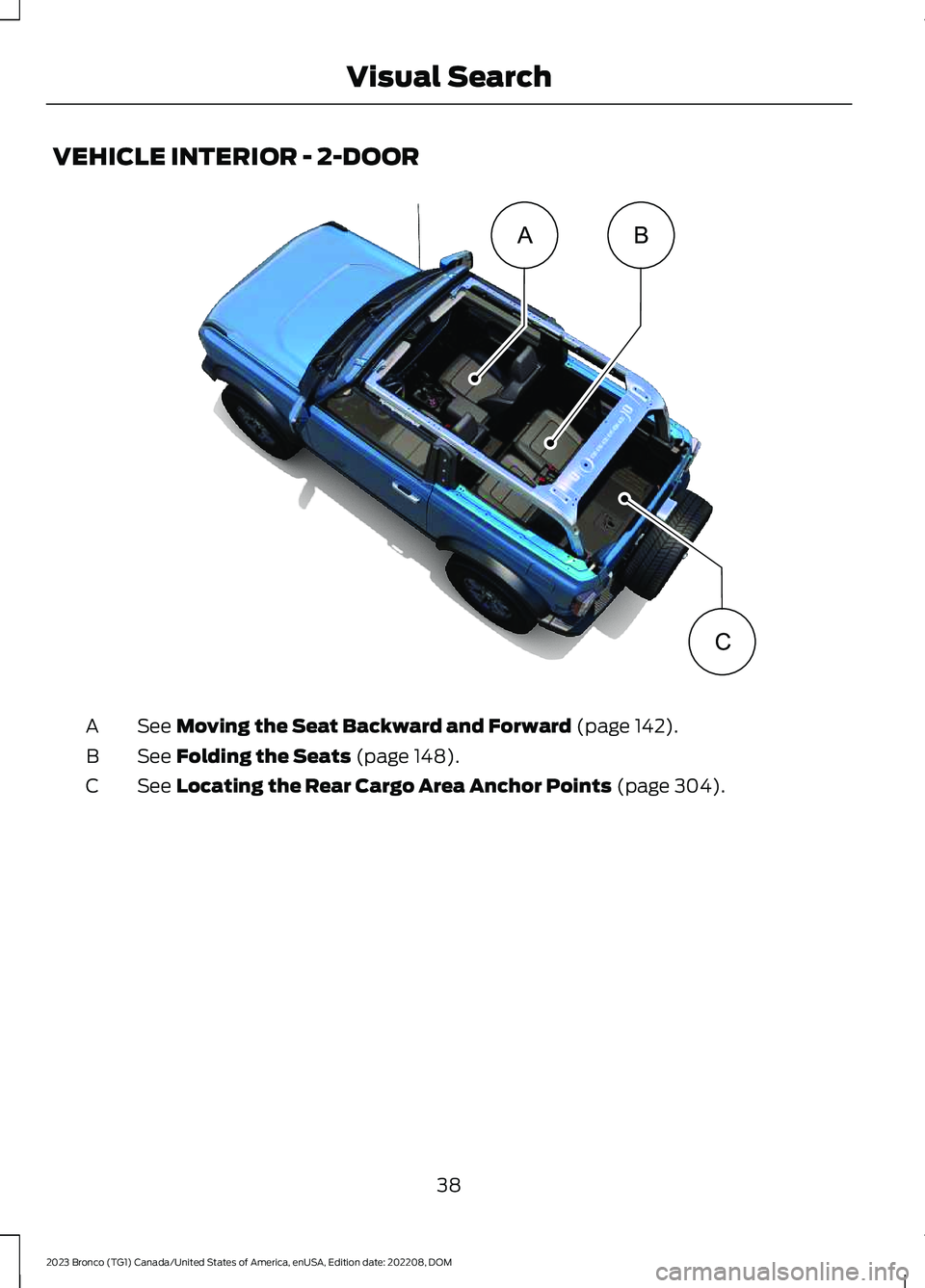

VEHICLE INTERIOR - 2-DOOR
See Moving the Seat Backward and Forward (page 142).A
See Folding the Seats (page 148).B
See Locating the Rear Cargo Area Anchor Points (page 304).C
38
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMVisual SearchABCE331279

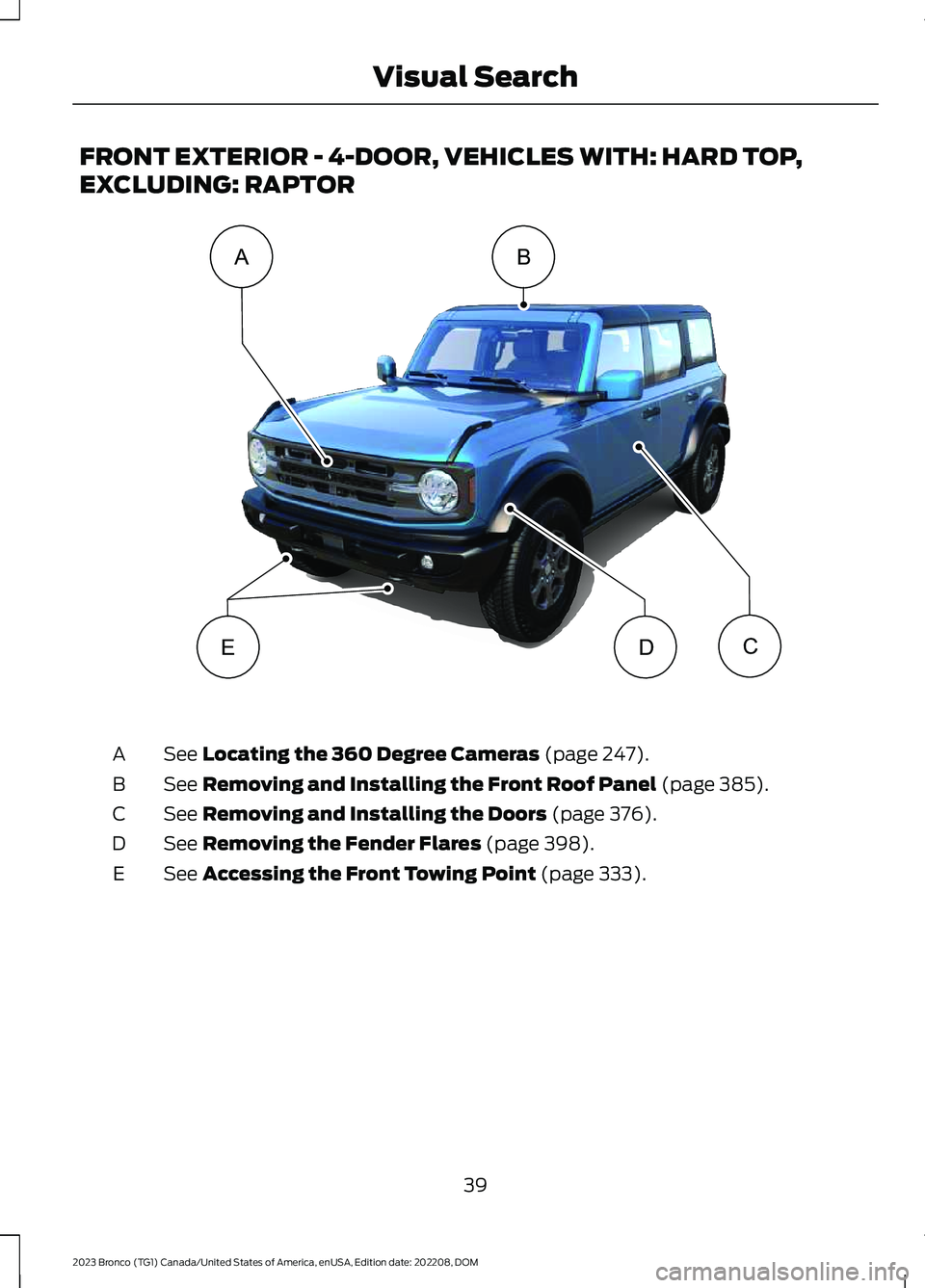

FRONT EXTERIOR - 4-DOOR, VEHICLES WITH: HARD TOP,
EXCLUDING: RAPTOR
See Locating the 360 Degree Cameras (page 247).A
See Removing and Installing the Front Roof Panel (page 385).B
See Removing and Installing the Doors (page 376).C
See Removing the Fender Flares (page 398).D
See Accessing the Front Towing Point (page 333).E
39
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMVisual SearchABDCEE341196

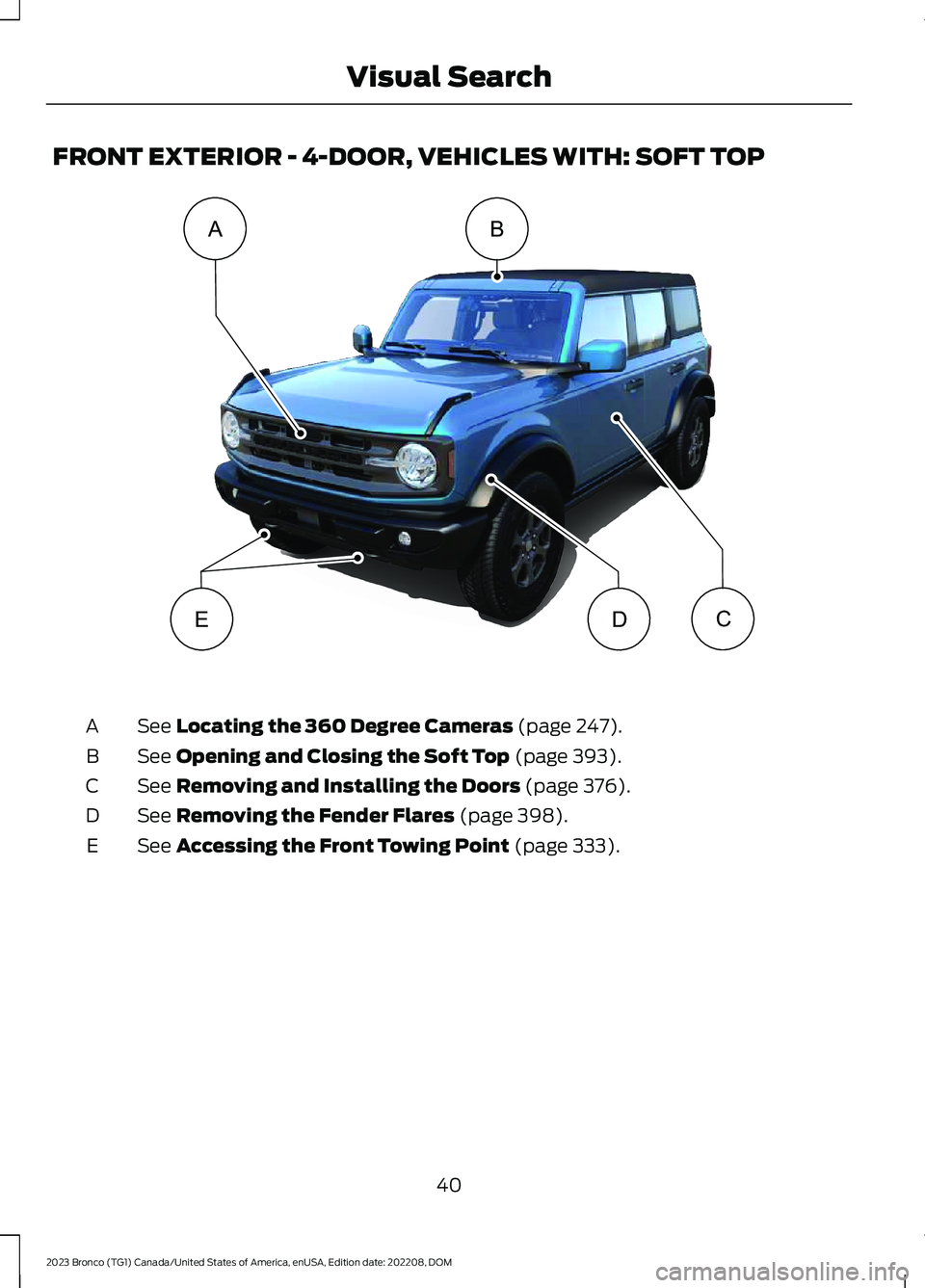

FRONT EXTERIOR - 4-DOOR, VEHICLES WITH: SOFT TOP
See Locating the 360 Degree Cameras (page 247).A
See Opening and Closing the Soft Top (page 393).B
See Removing and Installing the Doors (page 376).C
See Removing the Fender Flares (page 398).D
See Accessing the Front Towing Point (page 333).E
40
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMVisual SearchABDCEE341712

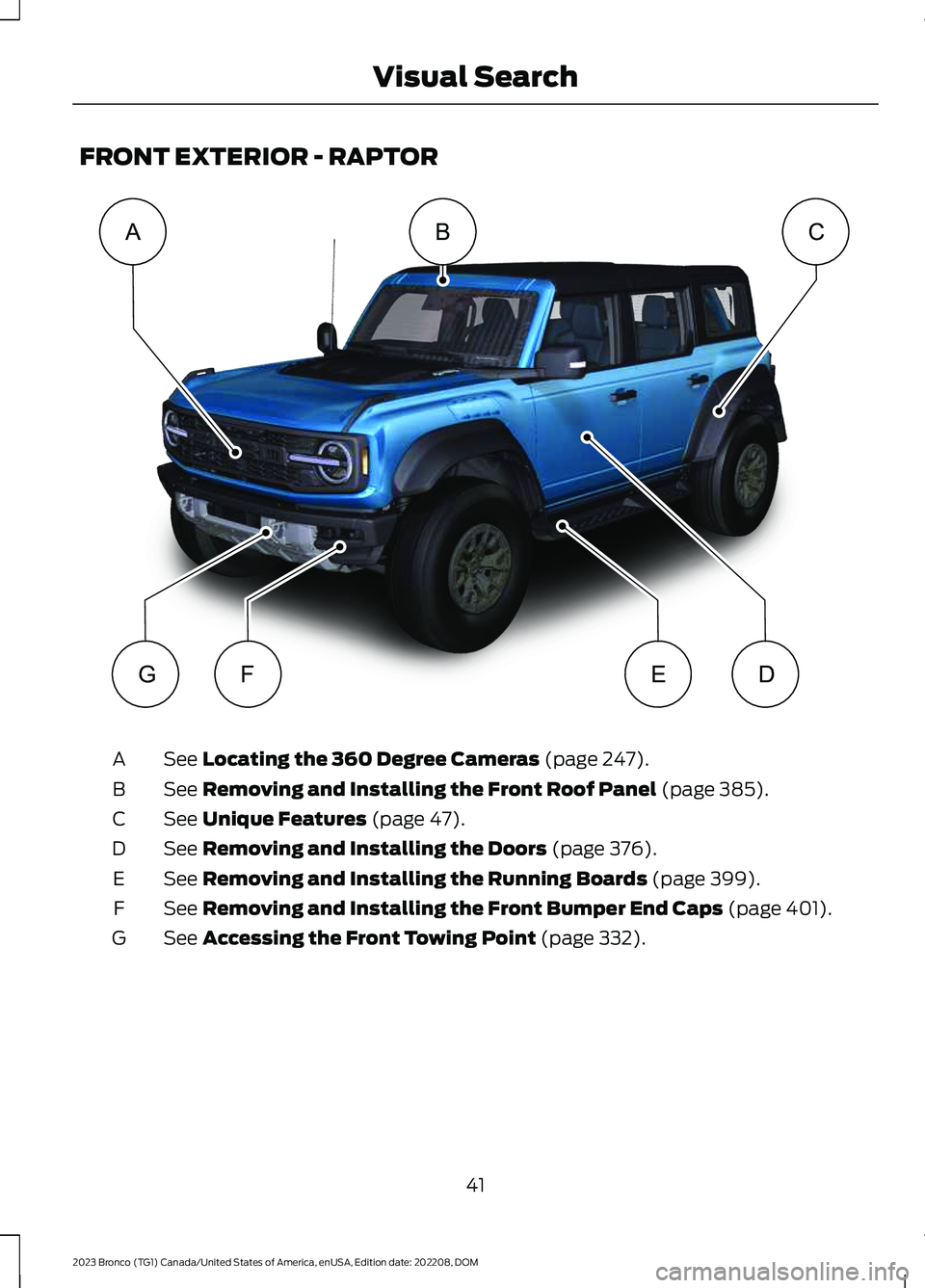

FRONT EXTERIOR - RAPTOR
See Locating the 360 Degree Cameras (page 247).A
See Removing and Installing the Front Roof Panel (page 385).B
See Unique Features (page 47).C
See Removing and Installing the Doors (page 376).D
See Removing and Installing the Running Boards (page 399).E
See Removing and Installing the Front Bumper End Caps (page 401).F
See Accessing the Front Towing Point (page 332).G
41
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMVisual SearchACBDEGF E366561

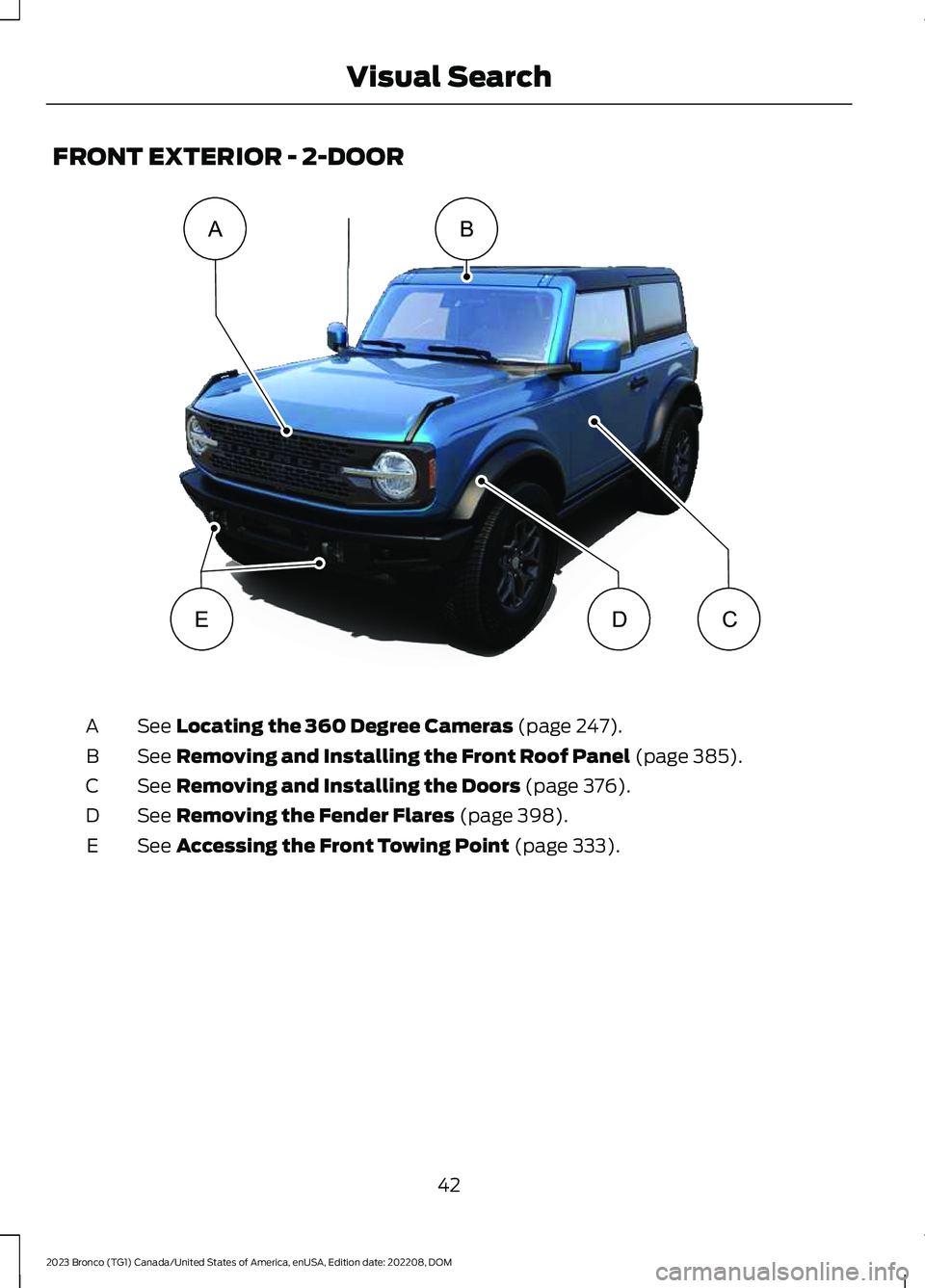

FRONT EXTERIOR - 2-DOOR
See Locating the 360 Degree Cameras (page 247).A
See Removing and Installing the Front Roof Panel (page 385).B
See Removing and Installing the Doors (page 376).C
See Removing the Fender Flares (page 398).D
See Accessing the Front Towing Point (page 333).E
42
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMVisual SearchABDCEE331280

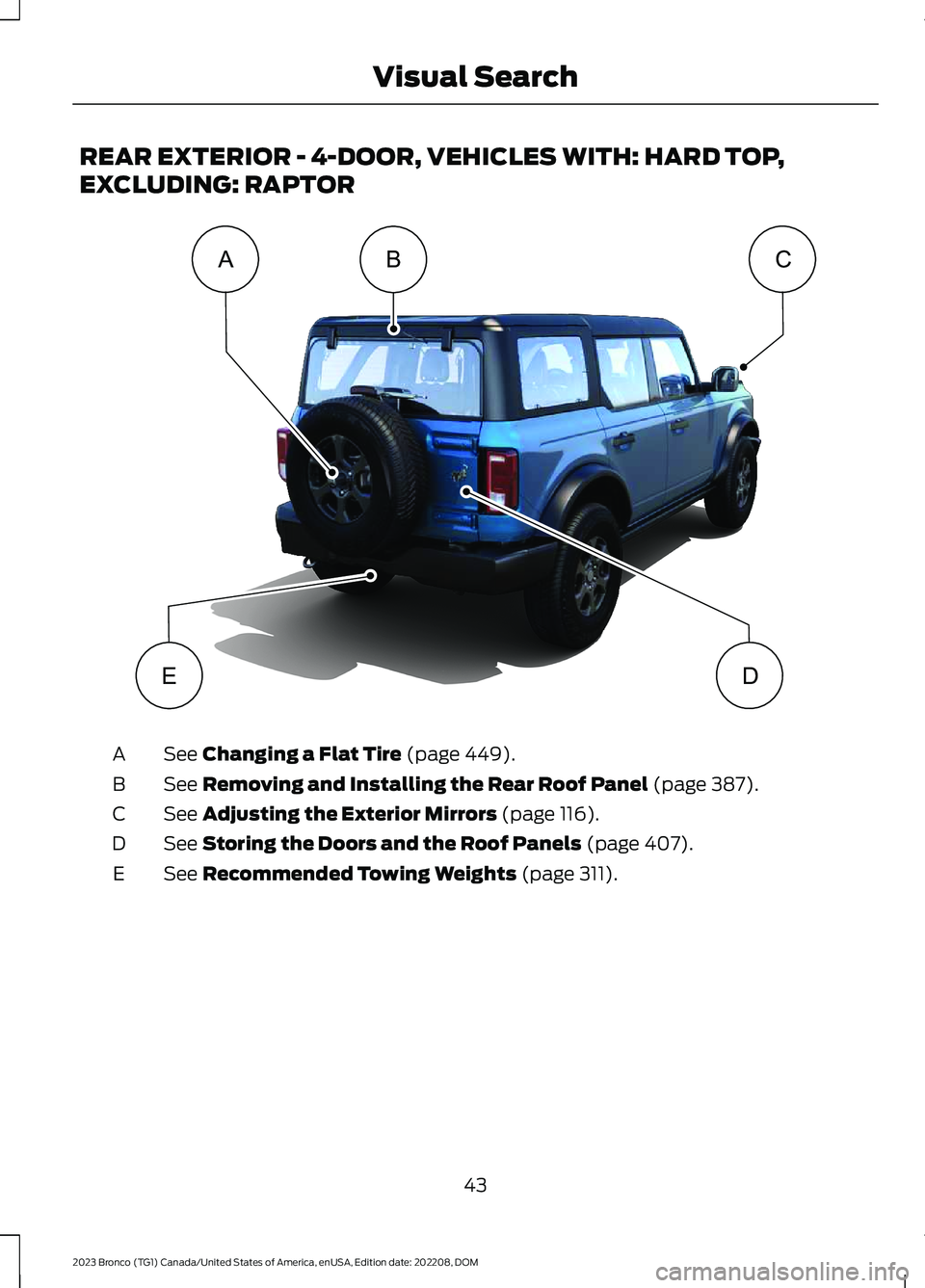

REAR EXTERIOR - 4-DOOR, VEHICLES WITH: HARD TOP,
EXCLUDING: RAPTOR
See Changing a Flat Tire (page 449).A
See Removing and Installing the Rear Roof Panel (page 387).B
See Adjusting the Exterior Mirrors (page 116).C
See Storing the Doors and the Roof Panels (page 407).D
See Recommended Towing Weights (page 311).E
43
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMVisual SearchACBDEE341633

REAR EXTERIOR - 4-DOOR, VEHICLES WITH: SOFT TOP
See Changing a Flat Tire (page 449).A
See Removing and Installing the Rear Window (page 374).B
See Removing and Installing the Soft Top (page 396).C
See Adjusting the Exterior Mirrors (page 116).D
See Locking and Unlocking the Tailgate (page 93).E
See Recommended Towing Weights (page 311).F
44
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMVisual SearchABFECDE341713

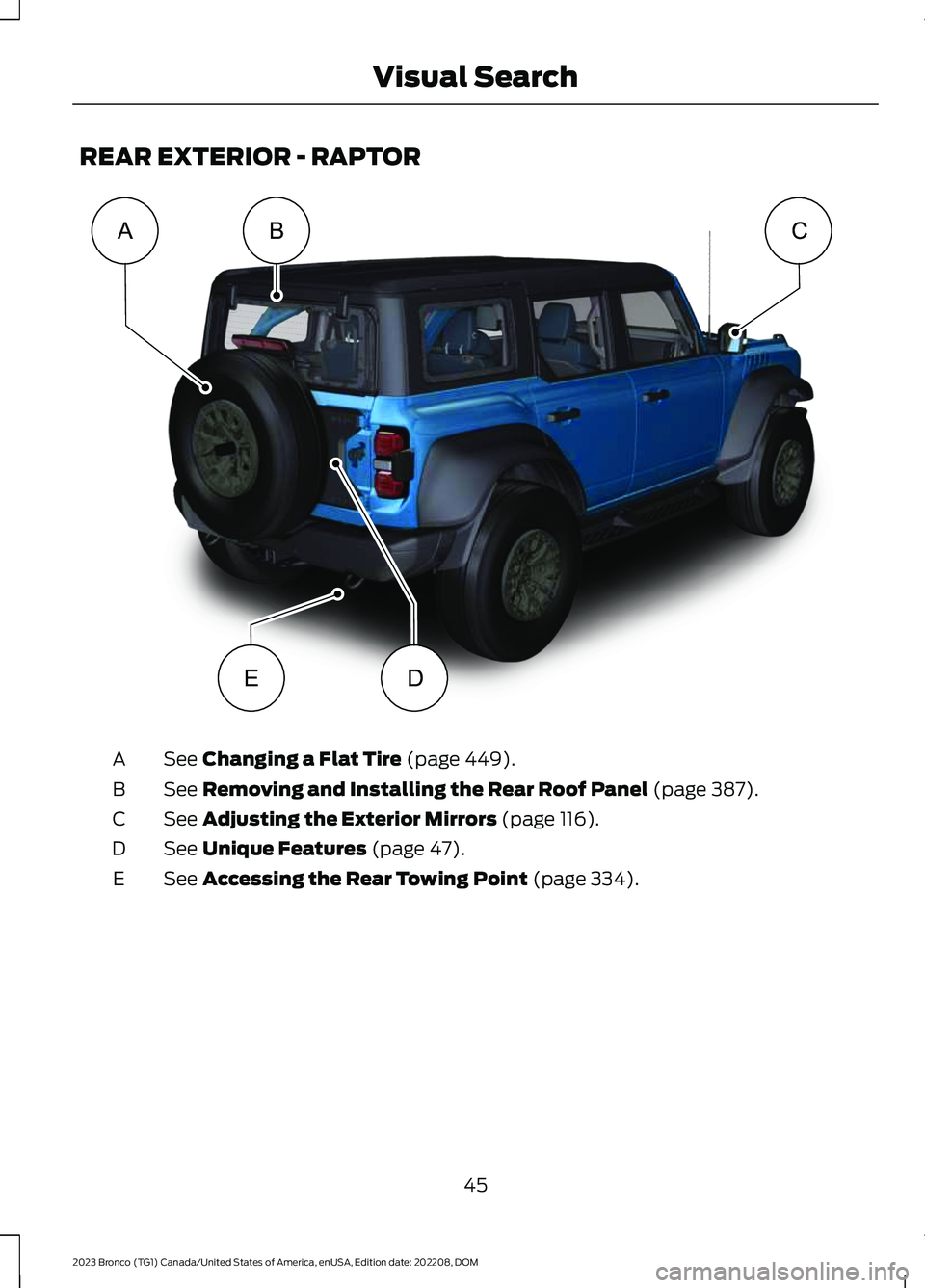

REAR EXTERIOR - RAPTOR
See Changing a Flat Tire (page 449).A
See Removing and Installing the Rear Roof Panel (page 387).B
See Adjusting the Exterior Mirrors (page 116).C
See Unique Features (page 47).D
See Accessing the Rear Towing Point (page 334).E
45
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMVisual SearchACBDE E366562

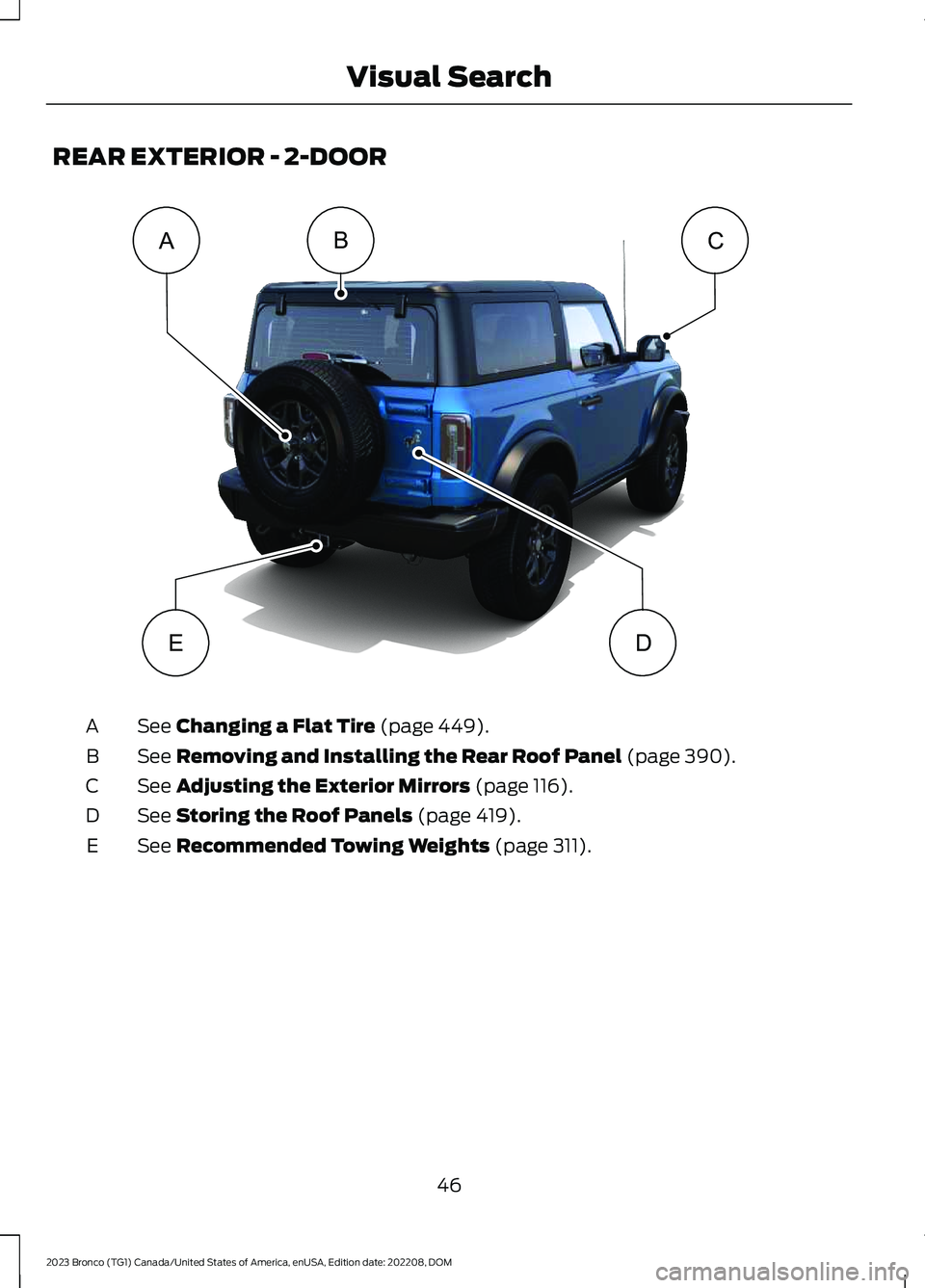

REAR EXTERIOR - 2-DOOR
See Changing a Flat Tire (page 449).A
See Removing and Installing the Rear Roof Panel (page 390).B
See Adjusting the Exterior Mirrors (page 116).C
See Storing the Roof Panels (page 419).D
See Recommended Towing Weights (page 311).E
46
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMVisual SearchABCDEE331281
