FORD BRONCO SPORT 2023 Owners Manual

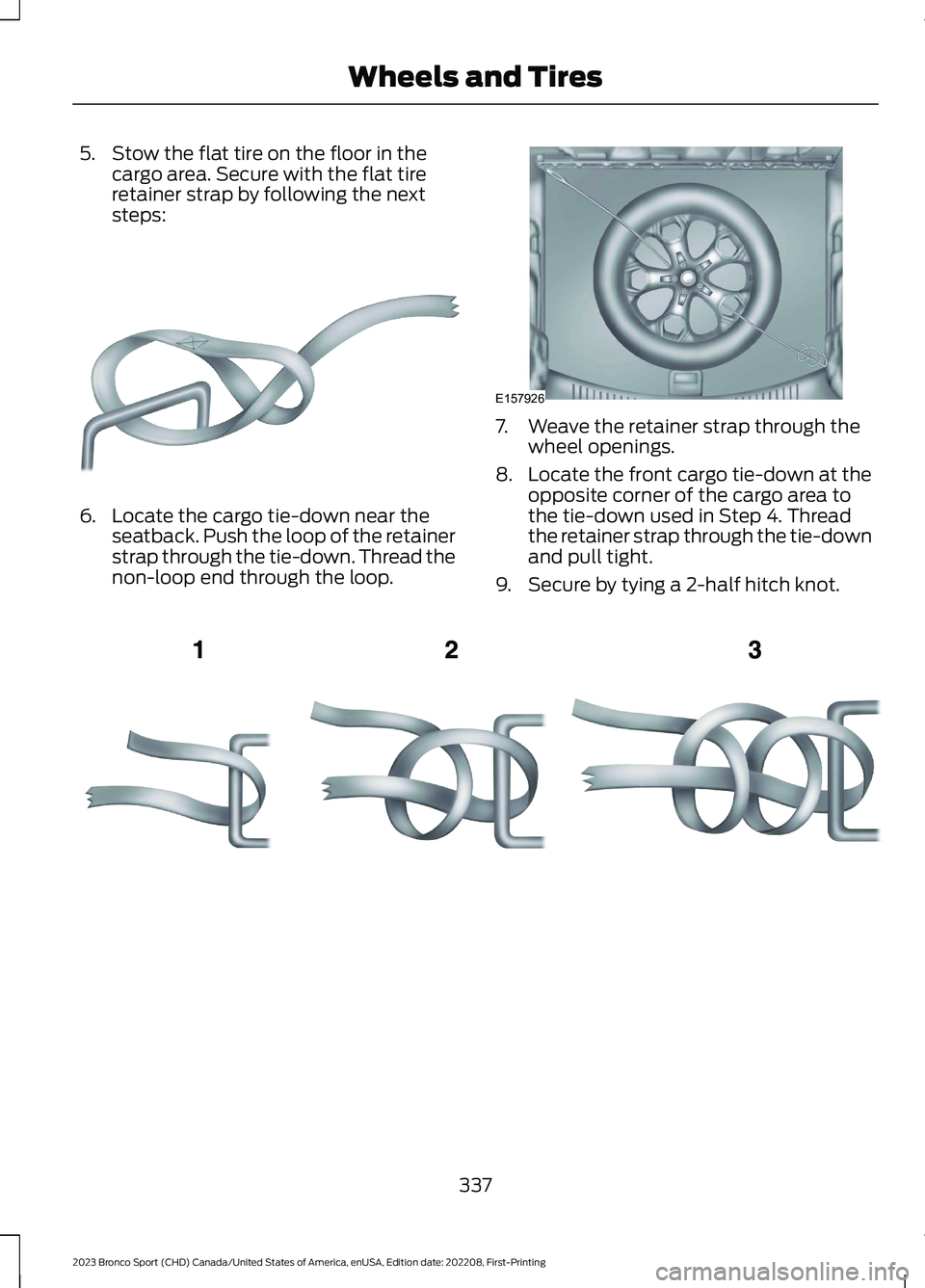

5.Stow the flat tire on the floor in thecargo area. Secure with the flat tireretainer strap by following the nextsteps:
6.Locate the cargo tie-down near theseatback. Push the loop of the retainerstrap through the tie-down. Thread thenon-loop end through the loop.
7.Weave the retainer strap through thewheel openings.
8.Locate the front cargo tie-down at theopposite corner of the cargo area tothe tie-down used in Step 4. Threadthe retainer strap through the tie-downand pull tight.
9.Secure by tying a 2-half hitch knot.
337
2023 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingWheels and TiresE142906 E157926 E143746

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING: When you install a wheel, always remove any corrosion, dirt or foreignmaterials present on the mounting surfaces of the wheel or the surface of the wheelhub, brake drum or brake disc that contacts the wheel. Make sure to secure any fastenersthat attach the rotor to the hub so they do not interfere with the mounting surfaces ofthe wheel. Installing wheels without correct metal-to-metal contact at the wheelmounting surfaces can cause the wheel nuts to loosen and the wheel to come off whileyour vehicle is in motion, resulting in loss of vehicle control, personal injury or death.
Ib-ft (Nm)*Bolt size
100 lb.ft (135 Nm)M12 x 1.5
*Torque specifications are for nut and bolt threads free of dirt and rust. Use only Fordrecommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 mi (160 km) after any wheeldisturbance, such as tire rotation, changing a flat tire, wheel removal.
Wheel pilot bore.A
Inspect the wheel pilot bore andmounting surface prior to installation.Remove any visible corrosion or looseparticles.
338
2023 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingWheels and TiresE145950

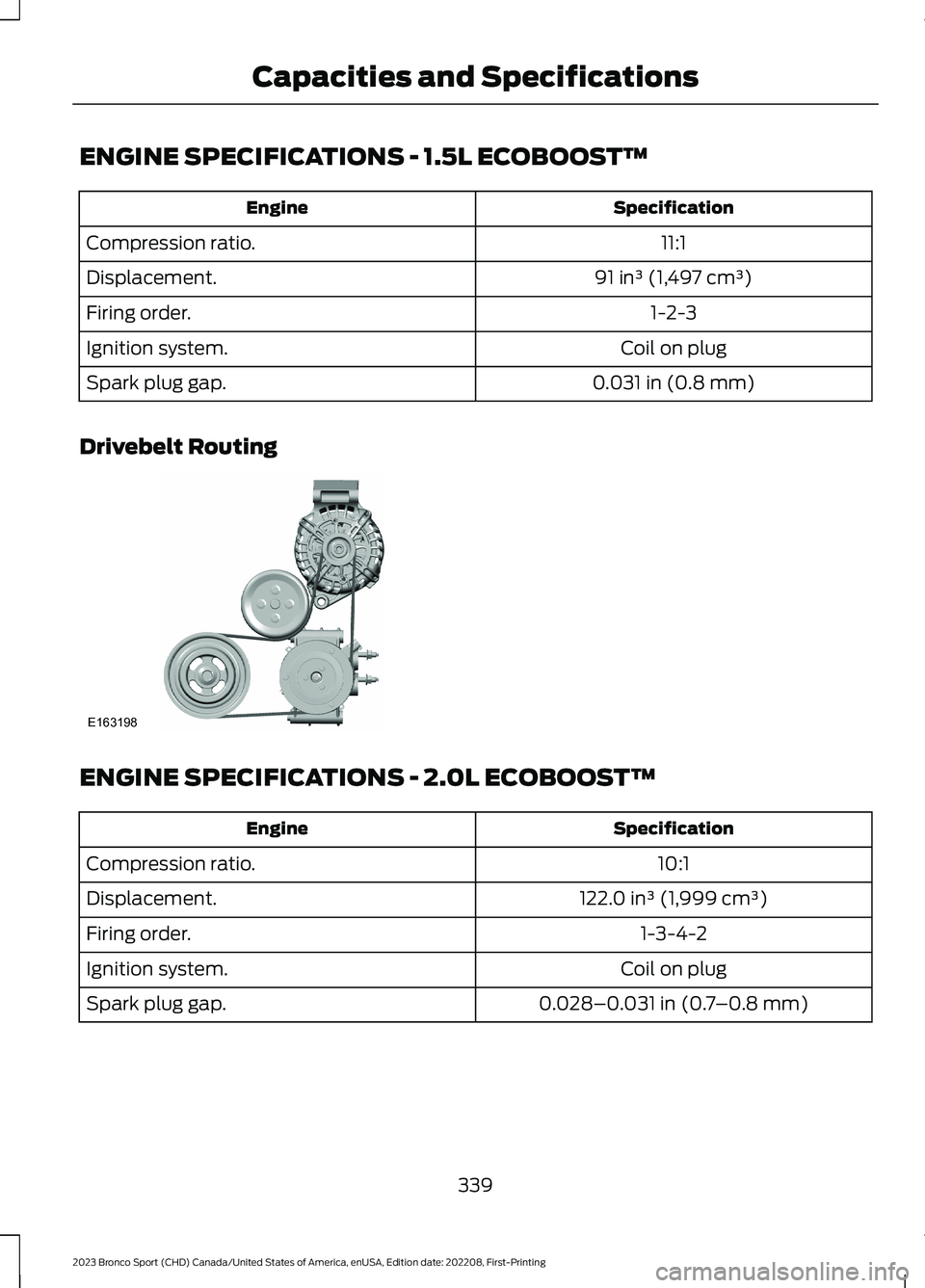

ENGINE SPECIFICATIONS - 1.5L ECOBOOST™
SpecificationEngine
11:1Compression ratio.
91 in³ (1,497 cm³)Displacement.
1-2-3Firing order.
Coil on plugIgnition system.
0.031 in (0.8 mm)Spark plug gap.
Drivebelt Routing
ENGINE SPECIFICATIONS - 2.0L ECOBOOST™
SpecificationEngine
10:1Compression ratio.
122.0 in³ (1,999 cm³)Displacement.
1-3-4-2Firing order.
Coil on plugIgnition system.
0.028–0.031 in (0.7–0.8 mm)Spark plug gap.
339
2023 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingCapacities and SpecificationsE163198

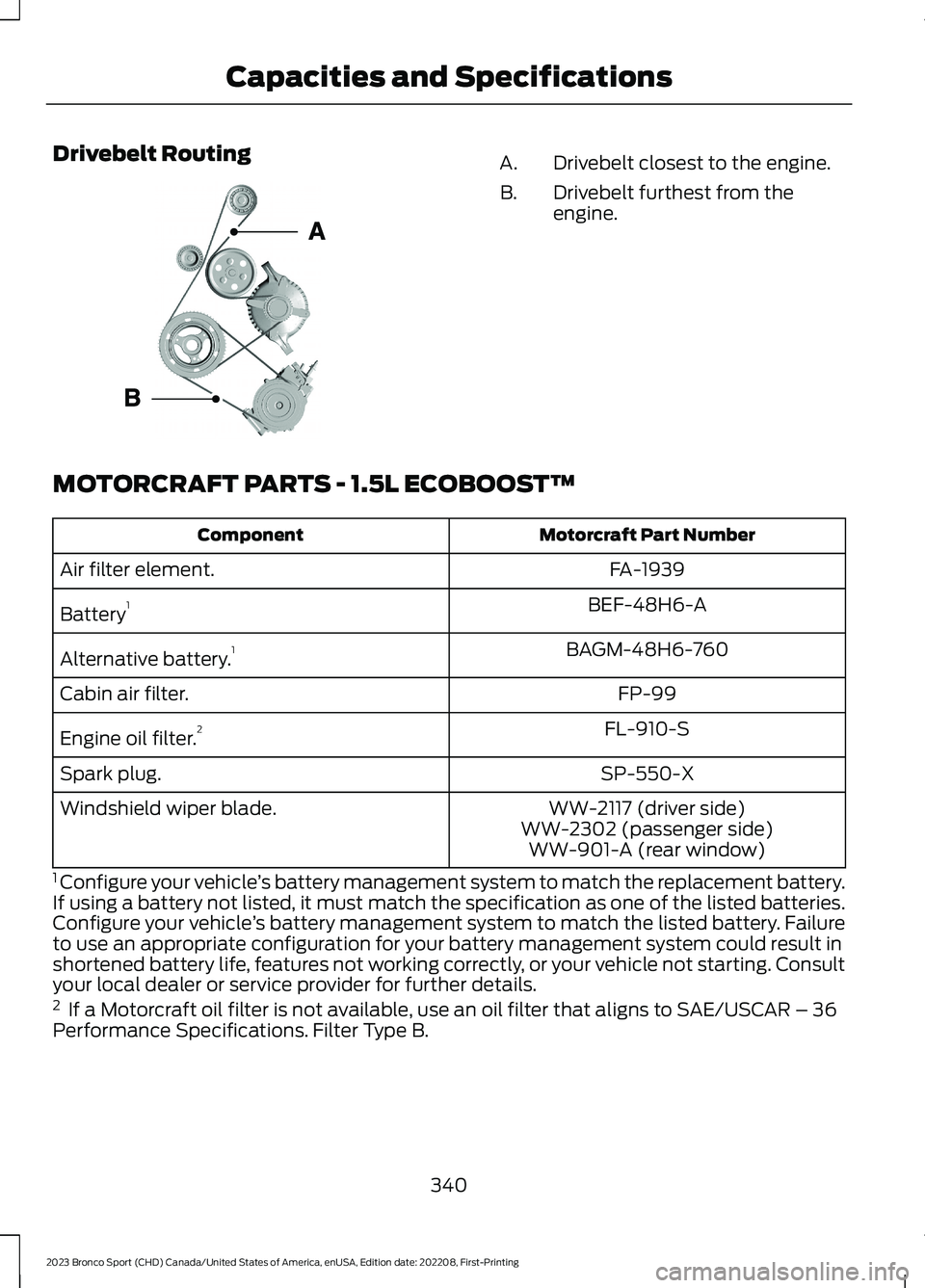

Drivebelt RoutingDrivebelt closest to the engine.A.
Drivebelt furthest from theengine.B.
MOTORCRAFT PARTS - 1.5L ECOBOOST™
Motorcraft Part NumberComponent
FA-1939Air filter element.
BEF-48H6-ABattery1
BAGM-48H6-760Alternative battery.1
FP-99Cabin air filter.
FL-910-SEngine oil filter.2
SP-550-XSpark plug.
WW-2117 (driver side)Windshield wiper blade.WW-2302 (passenger side)WW-901-A (rear window)
1 Configure your vehicle’s battery management system to match the replacement battery.If using a battery not listed, it must match the specification as one of the listed batteries.Configure your vehicle’s battery management system to match the listed battery. Failureto use an appropriate configuration for your battery management system could result inshortened battery life, features not working correctly, or your vehicle not starting. Consultyour local dealer or service provider for further details.2 If a Motorcraft oil filter is not available, use an oil filter that aligns to SAE/USCAR – 36Performance Specifications. Filter Type B.
340
2023 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingCapacities and Specifications E161383

We recommend Motorcraft parts that areavailable at your authorized dealer or atwww.fordparts.com. We engineer theseparts for your vehicle to meet or exceedour specifications. Use of other parts could
impact vehicle performance, emissionsand durability. Your warranty could be voidfor any damage related to use of otherparts.

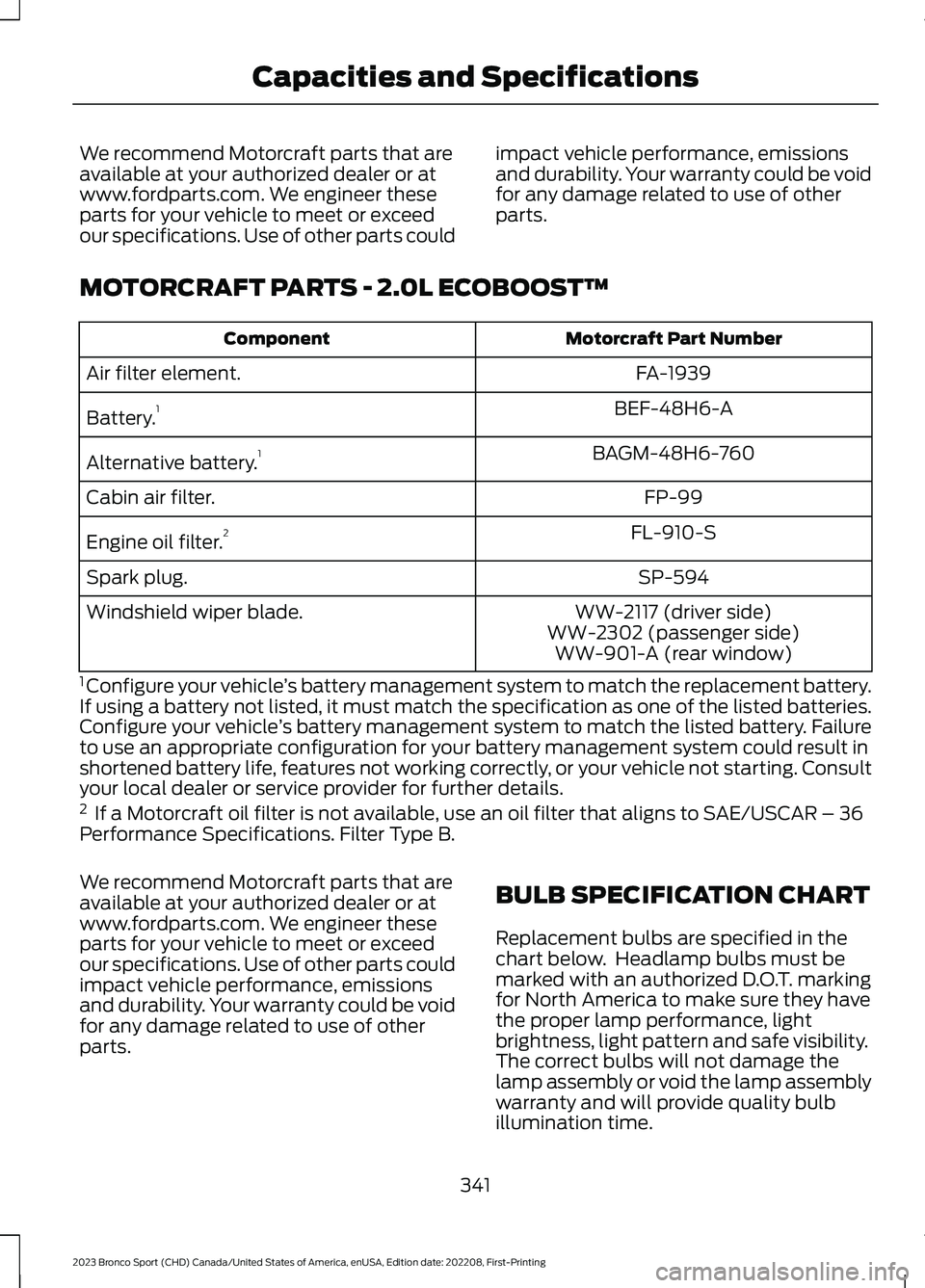

MOTORCRAFT PARTS - 2.0L ECOBOOST™
Motorcraft Part NumberComponent
FA-1939Air filter element.
BEF-48H6-ABattery.1
BAGM-48H6-760Alternative battery.1
FP-99Cabin air filter.
FL-910-SEngine oil filter.2
SP-594Spark plug.
WW-2117 (driver side)Windshield wiper blade.WW-2302 (passenger side)WW-901-A (rear window)
1 Configure your vehicle’s battery management system to match the replacement battery.If using a battery not listed, it must match the specification as one of the listed batteries.Configure your vehicle’s battery management system to match the listed battery. Failureto use an appropriate configuration for your battery management system could result inshortened battery life, features not working correctly, or your vehicle not starting. Consultyour local dealer or service provider for further details.2 If a Motorcraft oil filter is not available, use an oil filter that aligns to SAE/USCAR – 36Performance Specifications. Filter Type B.
We recommend Motorcraft parts that areavailable at your authorized dealer or atwww.fordparts.com. We engineer theseparts for your vehicle to meet or exceedour specifications. Use of other parts couldimpact vehicle performance, emissionsand durability. Your warranty could be voidfor any damage related to use of otherparts.
BULB SPECIFICATION CHART
Replacement bulbs are specified in thechart below. Headlamp bulbs must bemarked with an authorized D.O.T. markingfor North America to make sure they havethe proper lamp performance, lightbrightness, light pattern and safe visibility.The correct bulbs will not damage thelamp assembly or void the lamp assemblywarranty and will provide quality bulbillumination time.
341
2023 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingCapacities and Specifications

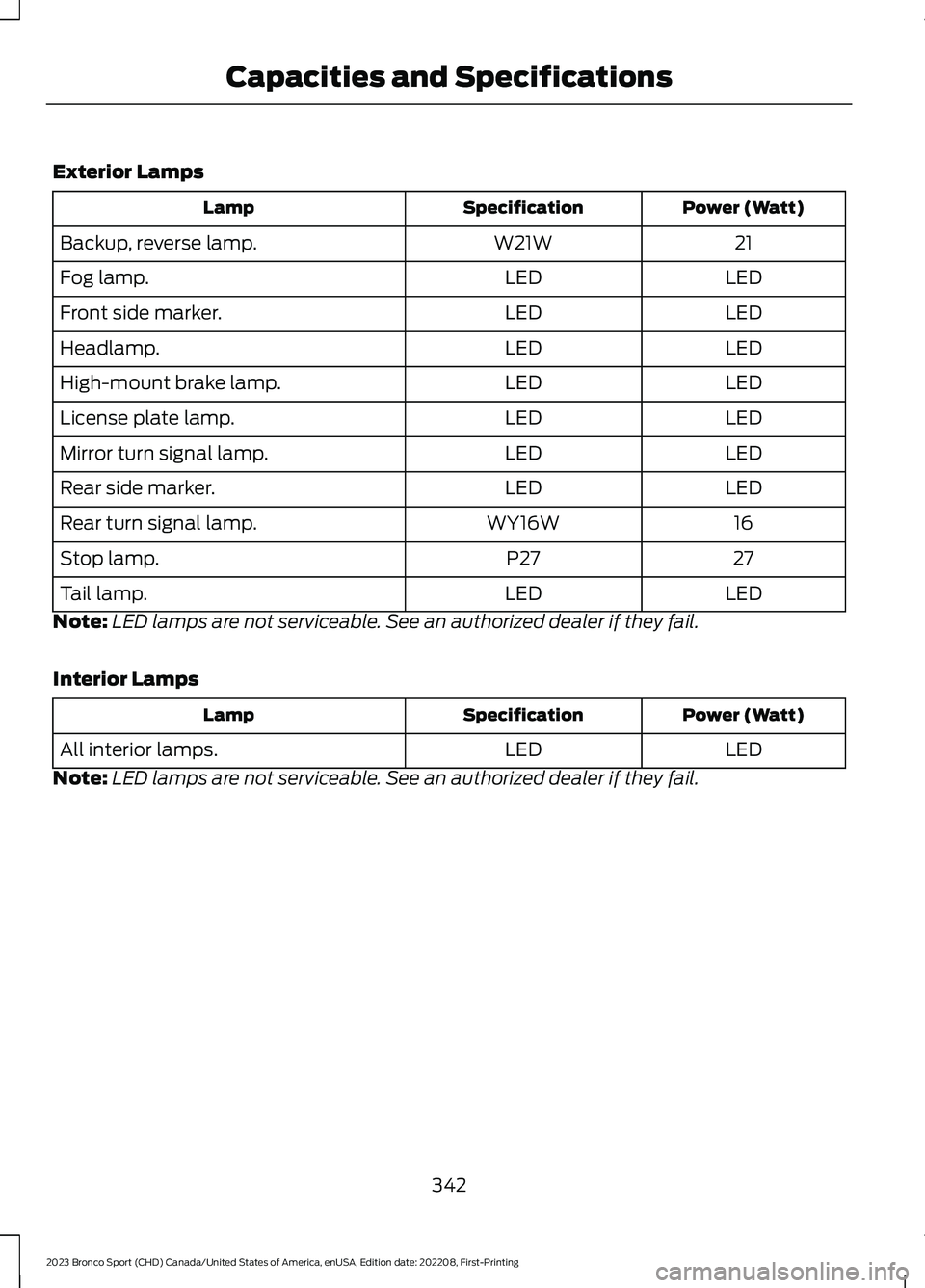

Exterior Lamps
Power (Watt)SpecificationLamp
21W21WBackup, reverse lamp.
LEDLEDFog lamp.
LEDLEDFront side marker.
LEDLEDHeadlamp.
LEDLEDHigh-mount brake lamp.
LEDLEDLicense plate lamp.
LEDLEDMirror turn signal lamp.
LEDLEDRear side marker.
16WY16WRear turn signal lamp.
27P27Stop lamp.
LEDLEDTail lamp.
Note:LED lamps are not serviceable. See an authorized dealer if they fail.
Interior Lamps
Power (Watt)SpecificationLamp
LEDLEDAll interior lamps.
Note:LED lamps are not serviceable. See an authorized dealer if they fail.
342
2023 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingCapacities and Specifications

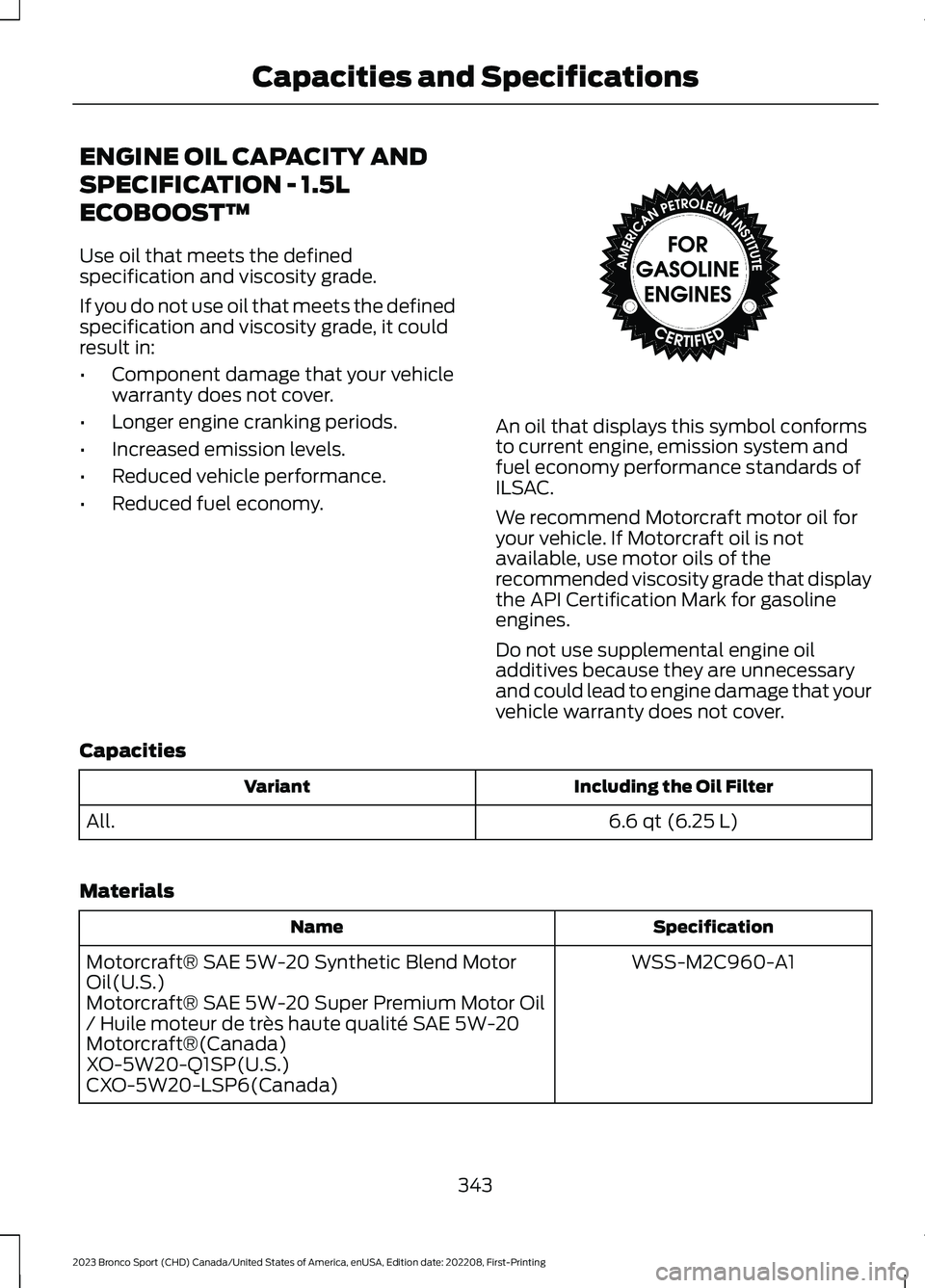

ENGINE OIL CAPACITY AND
SPECIFICATION - 1.5L
ECOBOOST™
Use oil that meets the definedspecification and viscosity grade.
If you do not use oil that meets the definedspecification and viscosity grade, it couldresult in:
•Component damage that your vehiclewarranty does not cover.
•Longer engine cranking periods.
•Increased emission levels.
•Reduced vehicle performance.
•Reduced fuel economy.
An oil that displays this symbol conformsto current engine, emission system andfuel economy performance standards ofILSAC.
We recommend Motorcraft motor oil foryour vehicle. If Motorcraft oil is notavailable, use motor oils of therecommended viscosity grade that displaythe API Certification Mark for gasolineengines.
Do not use supplemental engine oiladditives because they are unnecessaryand could lead to engine damage that yourvehicle warranty does not cover.
Capacities
Including the Oil FilterVariant
6.6 qt (6.25 L)All.
Materials
SpecificationName
WSS-M2C960-A1Motorcraft® SAE 5W-20 Synthetic Blend MotorOil(U.S.)Motorcraft® SAE 5W-20 Super Premium Motor Oil/ Huile moteur de très haute qualité SAE 5W-20Motorcraft®(Canada)XO-5W20-Q1SP(U.S.)CXO-5W20-LSP6(Canada)
343
2023 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingCapacities and SpecificationsE142732

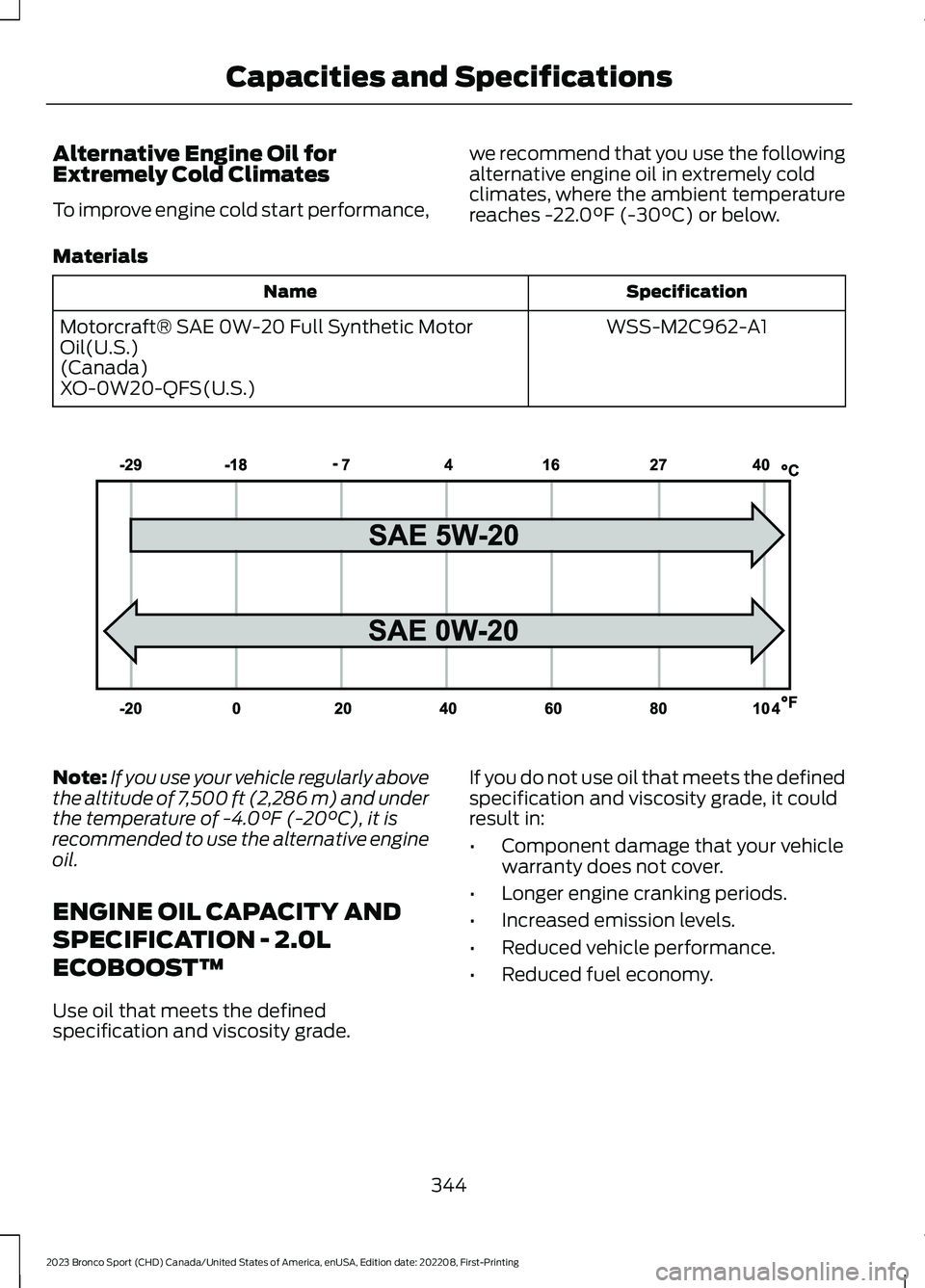

Alternative Engine Oil forExtremely Cold Climates
To improve engine cold start performance,
we recommend that you use the followingalternative engine oil in extremely coldclimates, where the ambient temperaturereaches -22.0°F (-30°C) or below.
Materials
SpecificationName
WSS-M2C962-A1Motorcraft® SAE 0W-20 Full Synthetic MotorOil(U.S.)(Canada)XO-0W20-QFS(U.S.)
Note:If you use your vehicle regularly abovethe altitude of 7,500 ft (2,286 m) and underthe temperature of -4.0°F (-20°C), it isrecommended to use the alternative engineoil.
ENGINE OIL CAPACITY AND
SPECIFICATION - 2.0L
ECOBOOST™
Use oil that meets the definedspecification and viscosity grade.
If you do not use oil that meets the definedspecification and viscosity grade, it couldresult in:
•Component damage that your vehiclewarranty does not cover.
•Longer engine cranking periods.
•Increased emission levels.
•Reduced vehicle performance.
•Reduced fuel economy.
344
2023 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingCapacities and SpecificationsE240522

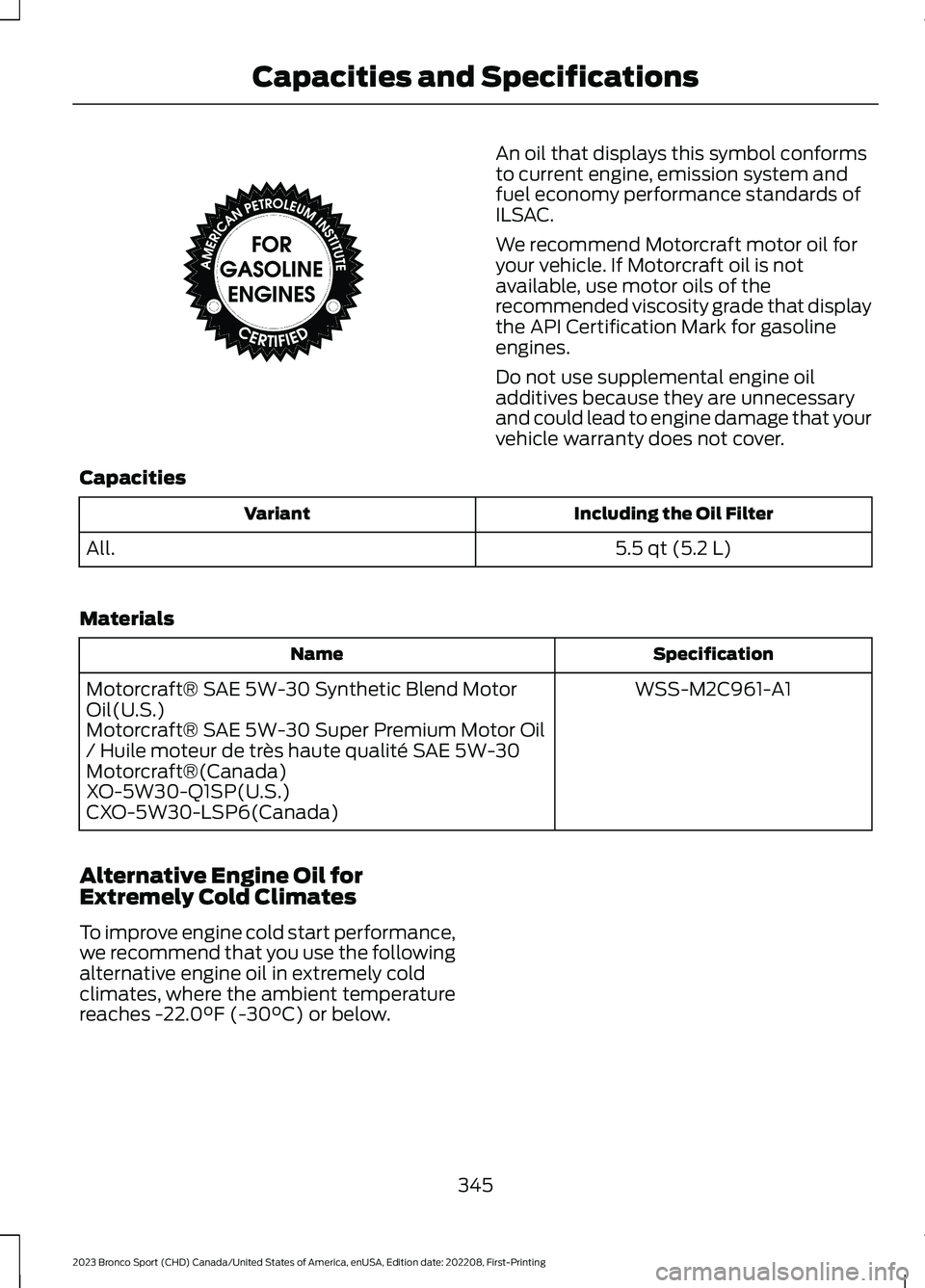

An oil that displays this symbol conformsto current engine, emission system andfuel economy performance standards ofILSAC.
We recommend Motorcraft motor oil foryour vehicle. If Motorcraft oil is notavailable, use motor oils of therecommended viscosity grade that displaythe API Certification Mark for gasolineengines.
Do not use supplemental engine oiladditives because they are unnecessaryand could lead to engine damage that yourvehicle warranty does not cover.
Capacities
Including the Oil FilterVariant
5.5 qt (5.2 L)All.
Materials
SpecificationName
WSS-M2C961-A1Motorcraft® SAE 5W-30 Synthetic Blend MotorOil(U.S.)Motorcraft® SAE 5W-30 Super Premium Motor Oil/ Huile moteur de très haute qualité SAE 5W-30Motorcraft®(Canada)XO-5W30-Q1SP(U.S.)CXO-5W30-LSP6(Canada)
Alternative Engine Oil forExtremely Cold Climates
To improve engine cold start performance,we recommend that you use the followingalternative engine oil in extremely coldclimates, where the ambient temperaturereaches -22.0°F (-30°C) or below.
345
2023 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingCapacities and SpecificationsE142732

Materials
SpecificationName
WSS-M2C963-A1Engine Oil - SAE 0W-30 - Synthetic Blend
Note:If you use your vehicle regularly abovethe altitude of 7,500 ft (2,286 m) and underthe temperature of -4.0°F (-20°C), it isrecommended to use the alternative engineoil.
COOLING SYSTEM CAPACITY
AND SPECIFICATION - 1.5L
ECOBOOST™
Use coolant that meets the definedspecification.
If you do not use coolant that meets thedefined specification, it could result in:
•Component damage that your vehiclewarranty does not cover.
•Reduced vehicle performance.
Capacities
QuantityVariant
7.7 qt (7.3 L)All.
346
2023 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202208, First-PrintingCapacities and SpecificationsE240523
