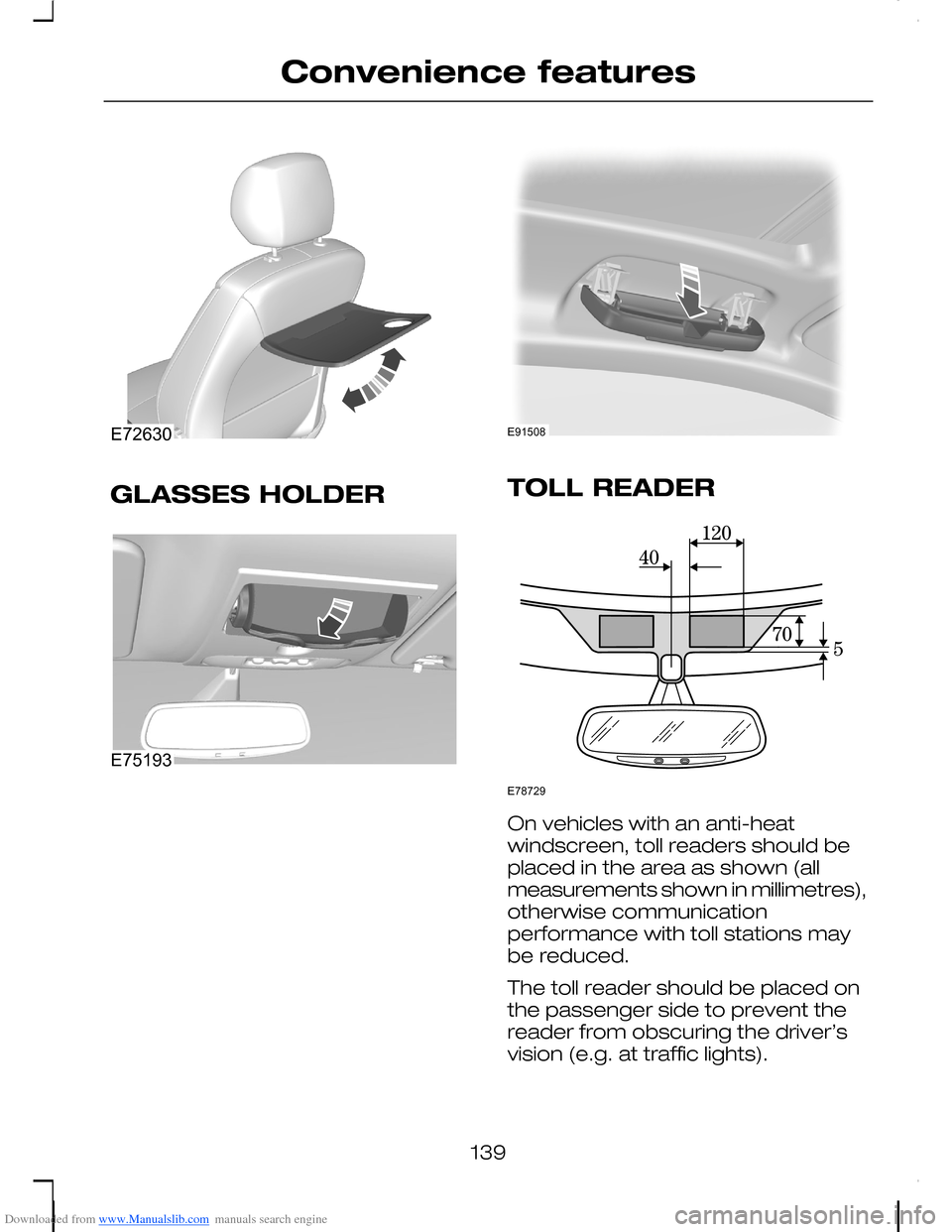

Downloaded from www.Manualslib.com manuals search engine GLASSES HOLDERTOLL READER
On vehicles with an anti-heatwindscreen, toll readers should beplaced in the area as shown (allmeasurements shown in millimetres),otherwise communicationperformance with toll stations maybe reduced.
The toll reader should be placed onthe passenger side to prevent thereader from obscuring the driver’svision (e.g. at traffic lights).
139
Convenience featuresE72630 E75193 E91508 E78729

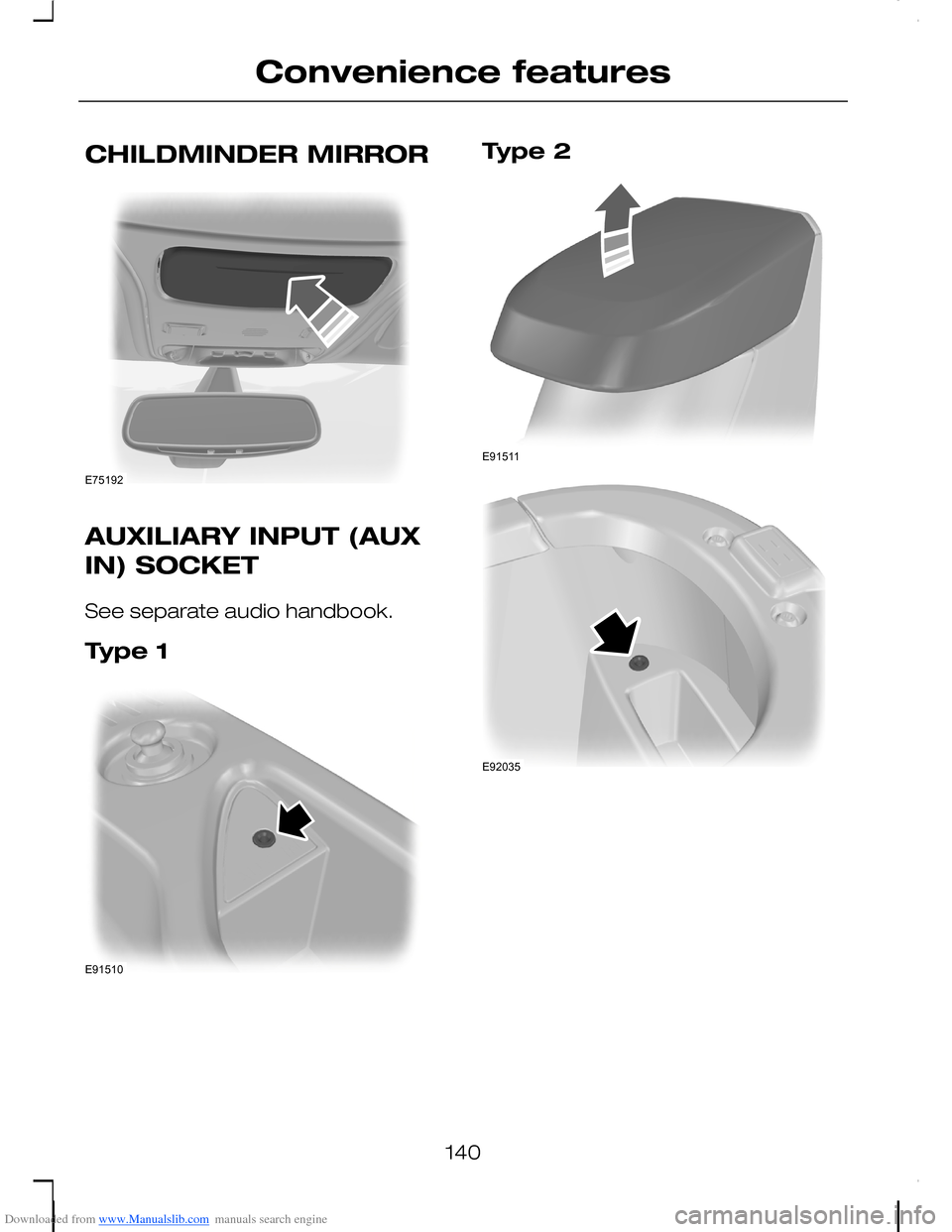

Downloaded from www.Manualslib.com manuals search engine CHILDMINDER MIRROR
AUXILIARY INPUT (AUX
IN) SOCKET
See separate audio handbook.
Type 1
Type 2
140
Convenience featuresE75192 E91510 E91511 E92035

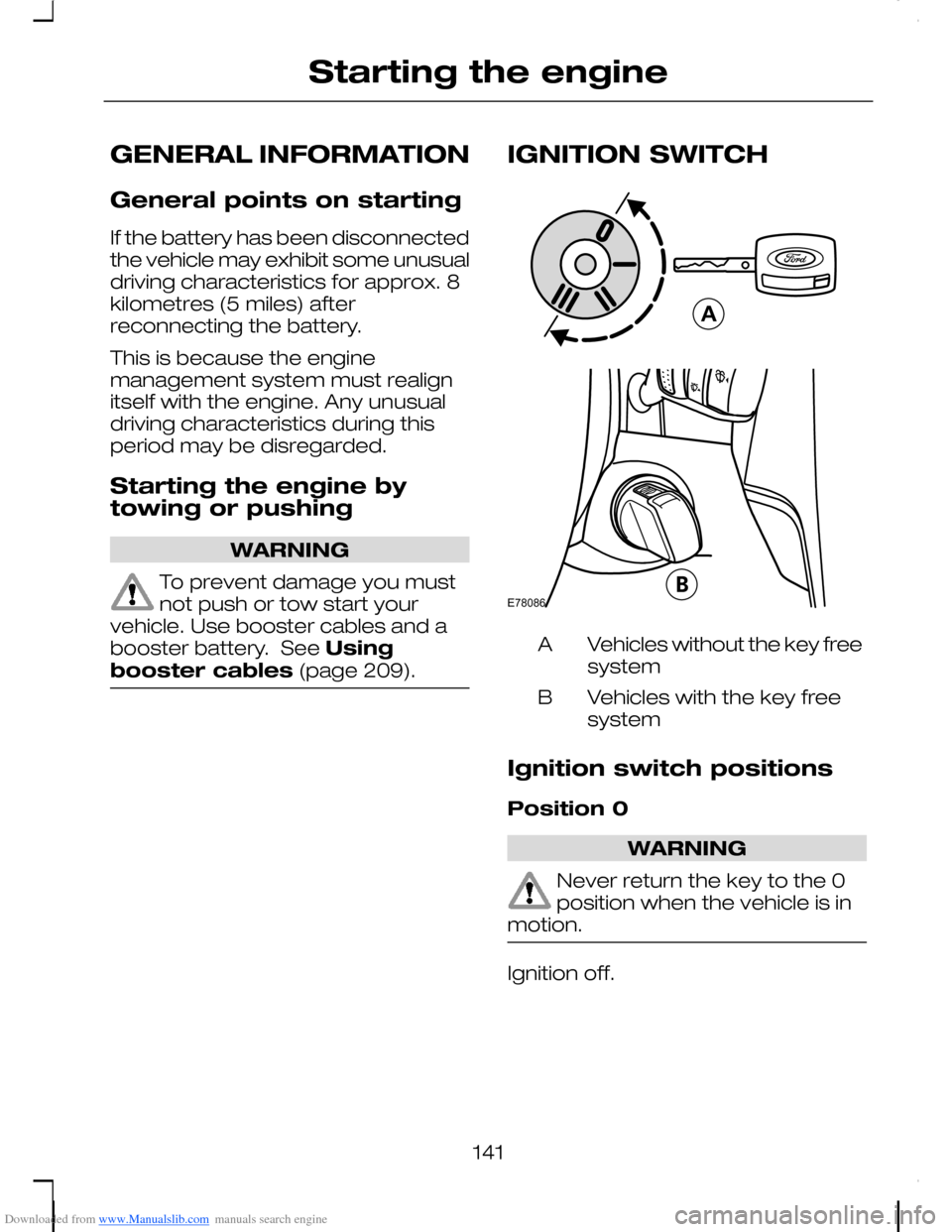

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
General points on starting
If the battery has been disconnectedthe vehicle may exhibit some unusualdriving characteristics for approx. 8kilometres (5 miles) afterreconnecting the battery.
This is because the enginemanagement system must realignitself with the engine. Any unusualdriving characteristics during thisperiod may be disregarded.
Starting the engine bytowing or pushing
WARNING
To prevent damage you mustnot push or tow start yourvehicle. Use booster cables and abooster battery. See Usingbooster cables (page 209).
IGNITION SWITCH
Vehicles without the key freesystemA
Vehicles with the key freesystemB
Ignition switch positions
Position 0
WARNING
Never return the key to the 0position when the vehicle is inmotion.
Ignition off.
141
Starting the engineE78086

Downloaded from www.Manualslib.com manuals search engine Position I
Steering unlocked. Ignition and allmain electrical circuits are disabled.The ignition key should not be left inthis position for too long to avoiddischarging the battery.
Positon II
Ignition switched on, all electricalcircuits operational. Warning andindicator lamps illuminate. This is thekey position when driving, and mustalso be selected when being towed.
Postion III
Starter motor activated. Release thekey as soon as the engine starts.
STEERING WHEEL LOCK
WARNING
Always check that the steeringis unlocked before attemptingto move your vehicle.
Vehicles without keylessstarting
To activate the steering wheel lock;
1.Remove the key from the ignitionswitch.
2.Turn the steering wheel.
Vehicles with keylessstarting
Your vehicle has an electronicallycontrolled steering wheel lock. Thisoperates automatically.
The steering wheel lock is activatedif the ignition is off, the engine notrunning and your vehicle is stationary.
The steering wheel lock isdeactivated when the ignition isswitched on.
STARTING A PETROL
ENGINE
All vehicles
WARNING
If the engine does not start,refer to the instructionsregarding the fuel cut-off switch. SeeFuel cut-off switch (page 175).
Engine idle speed afterstarting
The speed at which the engine idlesimmediately after starting will varydepending on the enginetemperature.
If the engine is cold then the idlespeed will automatically be increasedin order to heat the catalyticconverter as quickly as possible. Thisensures that vehicle emissions arekept to an absolute minimum.
The idle speed will slowly decreaseto the normal level as the catalyticconverter warms up.
142
Starting the engine

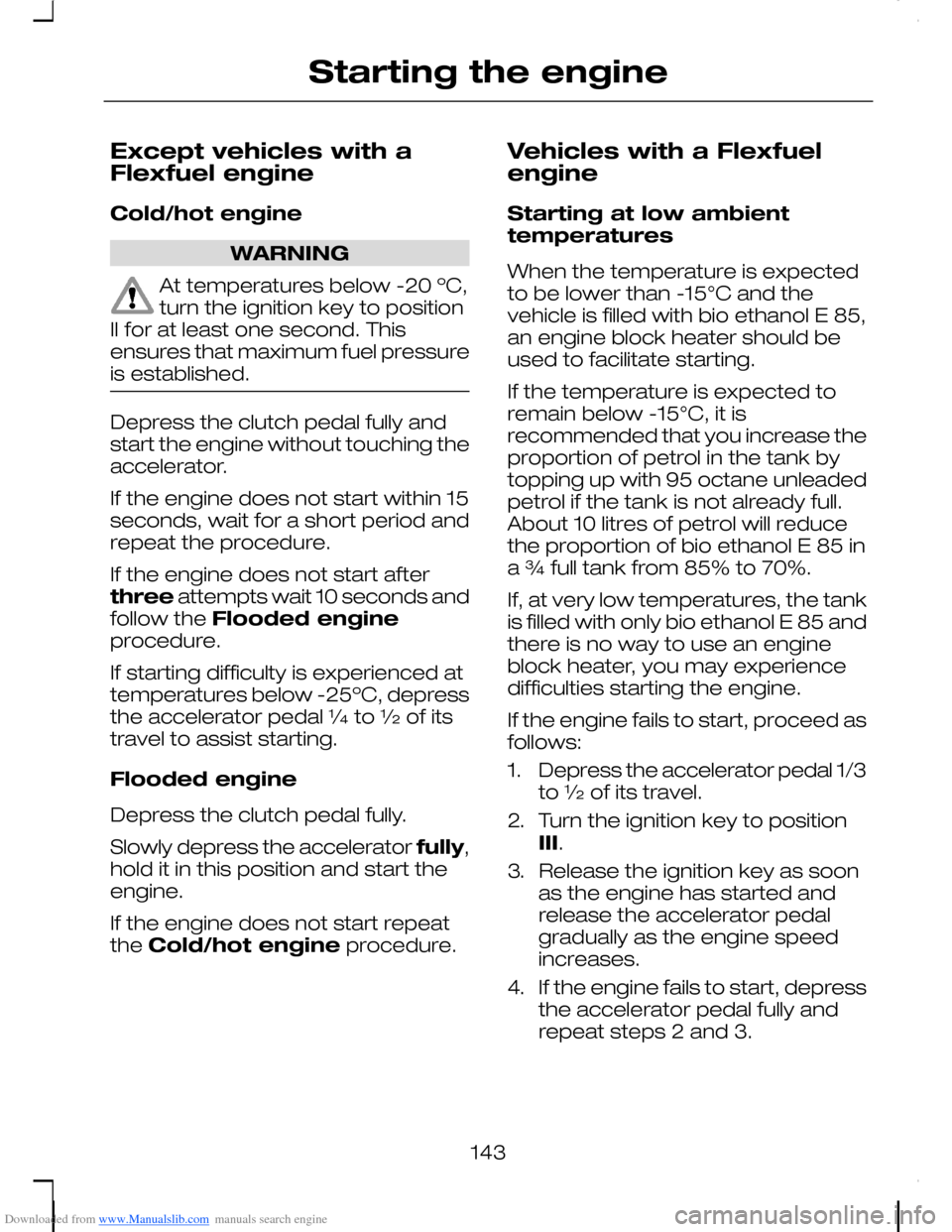

Downloaded from www.Manualslib.com manuals search engine Except vehicles with aFlexfuel engine
Cold/hot engine
WARNING
At temperatures below -20 ºC,turn the ignition key to positionII for at least one second. Thisensures that maximum fuel pressureis established.
Depress the clutch pedal fully andstart the engine without touching theaccelerator.
If the engine does not start within 15seconds, wait for a short period andrepeat the procedure.
If the engine does not start afterthree attempts wait 10 seconds andfollow the Flooded engineprocedure.
If starting difficulty is experienced attemperatures below -25ºC, depressthe accelerator pedal ¼ to ½ of itstravel to assist starting.
Flooded engine
Depress the clutch pedal fully.
Slowly depress the accelerator fully,hold it in this position and start theengine.
If the engine does not start repeatthe Cold/hot engine procedure.
Vehicles with a Flexfuelengine
Starting at low ambienttemperatures
When the temperature is expectedto be lower than -15°C and thevehicle is filled with bio ethanol E 85,an engine block heater should beused to facilitate starting.
If the temperature is expected toremain below -15°C, it isrecommended that you increase theproportion of petrol in the tank bytopping up with 95 octane unleadedpetrol if the tank is not already full.About 10 litres of petrol will reducethe proportion of bio ethanol E 85 ina ¾ full tank from 85% to 70%.
If, at very low temperatures, the tankis filled with only bio ethanol E 85 andthere is no way to use an engineblock heater, you may experiencedifficulties starting the engine.
If the engine fails to start, proceed asfollows:
1.Depress the accelerator pedal 1/3to ½ of its travel.
2.Turn the ignition key to positionIII.
3.Release the ignition key as soonas the engine has started andrelease the accelerator pedalgradually as the engine speedincreases.
4.If the engine fails to start, depressthe accelerator pedal fully andrepeat steps 2 and 3.
143
Starting the engine

Downloaded from www.Manualslib.com manuals search engine During starting, the fuel injectors areturned off as long as the acceleratorpedal is depressed. This can be usedto drain excessive fuel from theintake manifold after severalunsuccessful starting attempts.
If the battery has been disconnectedor after the fuel type has beenchanged, the idle speed may beirregular. This will improve after 10 to30 seconds.
Vehicles with the key freesystem
Vehicles with a manualtransmission
Note:If the clutch pedal is notdepressed, a message appears inthe information display.
Depress the clutch pedal.
Vehicles with an automatictransmission
Note:If the brake pedal is notdepressed, a message appears inthe information display.
Depress the brake pedal.
All vehicles
Push the ignition switch in and turn itto switch on the ignition and to startthe engine.
Once the system recognizes apassive key, the engine can bestarted. If no passive key is detected,PASSIVE KEY NOT DETECTEDwill appear in the information display.
STARTING A DIESEL
ENGINE
Cold/hot engine
Depress the clutch pedal withouttouching the accelerator.
Turn the key to position IIand ensure the glow plugindicator lamp illuminates.
Wait until the lamp extinguishesbefore starting and continue crankingwithout pausing until the enginestarts.
If the engine stalls, repeat the fullstarting procedure.
144
Starting the engineE87381

Downloaded from www.Manualslib.com manuals search engine At temperatures below -15 ºC it maybe necessary to operate the starterfor up to 30 seconds. If theseweather conditions persist, an engineblock heater is recommended.
Vehicles with the key freesystem
Vehicles with a manualtransmission
Note:If the clutch pedal is notdepressed, a message appears inthe information display.
Depress the clutch pedal.
Vehicles with an automatictransmission
Note:If the brake pedal is notdepressed, a message appears inthe information display.
Depress the brake pedal.
All vehicles
Push the ignition switch in and turn itto switch on the ignition and to startthe engine.
Once the system recognizes apassive key, the engine can bestarted. If no passive key is detected,PASSIVE KEY NOT DETECTEDwill appear in the information display.
Starting the engine with aspare key
Assemble the spare key. SeeKeyless entry (page 44).
Insert the spare key into the ignitionswitch.
Push the ignition switch in and turn itto switch on the ignition and to startthe engine.
KEYLESS STARTING
WARNINGS
The keyless starting systemmay not function if the key isclose to metal objects or electronicdevices such as mobile phones.
145
Starting the engineE78300 E78301

Downloaded from www.Manualslib.com manuals search engine WARNINGS
Always check that the steeringwheel lock is deactivated beforeattempting to move your vehicle.See Cigar lighter (page 134).
Note:A valid passive key must belocated inside the vehicle to switchthe ignition on and start the engine.
Note:To start your engine you mustalso fully depress the brake or clutchpedal, depending on the transmissionfitted.
Ignition on
Press the start button once. Allelectrical circuits are operational,warning lamps and indicatorsilluminate.
Starting with automatictransmission
CAUTION
Release the start button as soonas the engine starts.
Note:Releasing the start button orthe brake pedal during engine startwill stop the engine cranking andreturn to ignition on.
1.Make sure the transmission is inP or N.
2.Fully depress the brake pedal.
3.Press the start button.
Starting with manualtransmission
CAUTION
Release the start button as soonas the engine starts.
Note:Releasing the start button orthe clutch pedal during engine startwill stop the engine cranking andreturn to ignition on.
1.Fully depress the clutch pedal.
2.Press the start button.
Starting a diesel engine
Note:Engine cranking will notcommence until the engine glow plugcycle has been completed. This maytake several seconds in extremelycold conditions.
Note:Continue to press the startbutton and the clutch or brake pedaluntil engine cranking begins.
146
Starting the engineE85766

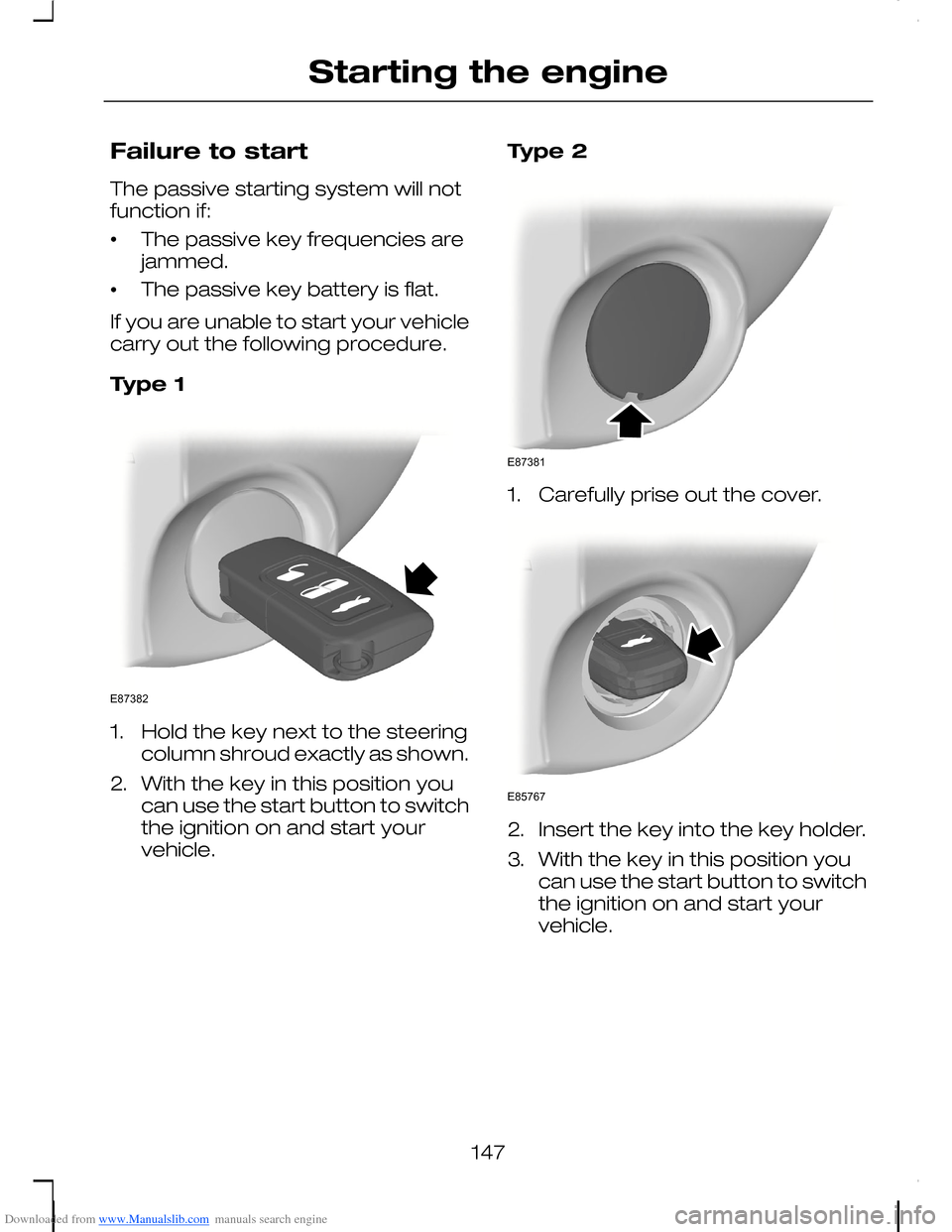

Downloaded from www.Manualslib.com manuals search engine Failure to start
The passive starting system will notfunction if:
•The passive key frequencies arejammed.
•The passive key battery is flat.
If you are unable to start your vehiclecarry out the following procedure.
Type 1
1.Hold the key next to the steeringcolumn shroud exactly as shown.
2.With the key in this position youcan use the start button to switchthe ignition on and start yourvehicle.
Type 2
1.Carefully prise out the cover.
2.Insert the key into the key holder.
3.With the key in this position youcan use the start button to switchthe ignition on and start yourvehicle.
147
Starting the engineE87382 E87381 E85767

Downloaded from www.Manualslib.com manuals search engine Stopping the engine
When your vehicle is stationary, pressthe start button to stop the engine.The ignition, all electrical circuits,warning lamps and indicators will beswitched off.
SWITCHING OFF THE
ENGINE
Vehicles with aturbocharger
CAUTION
Do not switch the engine offwhen it is running at high speed.If you do, the turbocharger willcontinue running after the engine oilpressure has dropped to zero. Thiswill lead to premature turbochargerbearing wear.
Release the accelerator pedal. Waituntil the engine has reached idlespeed and then switch it off.
ENGINE HEATER
CAUTION
Make sure you disconnect thepower cable from the engineheater connector before drivingaway.
Note:Only use the engine heater intemperatures below -10°C (14°F).
Note:The engine heater connectoris located in the radiator grille at thefront of your vehicle.
Connect the engine heater for 2 to3 hours before starting the engine.
148
