technical specifications FORD C MAX 2008 1.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Fuel and refuelling
Safety precautions........................149
Fuel quality - Petrol........................149
Fuel quality - Flexible Fuel............149
Fuel quality - Diesel.......................150
Catalytic converter........................150
Fuel filler flap....................................151
Refuelling.........................................151
Fuel consumption..........................151
Technical specifications................152
Transmission
Manual transmission.....................154
Automatic transmission................154
Brakes
Principle of operation....................158
Hints on driving with ABS.............158
Parking brake.................................159
Stability control
Principle of operation....................160
Using stability control.....................161
Parking aid
Principle of operation....................162
Using the parking aid....................162
Cruise control
Principle of operation....................164
Using cruise control......................164
Automatic speed limiter
(ASL)
Principle of operation....................166
Load carrying
General information.......................167
Luggage covers.............................167
Rear under floor storage..............168
Towing
Towing a trailer...............................169
Detachable tow ball......................169
Driving hints
Running-in.......................................173
Emergency
equipment
First aid kit.......................................174
Warning triangle.............................174
Status after a
collision
Fuel cut-off switch.........................175
Inspecting safety systemcomponents...............................175
Fuses
Fuse box locations........................176
Changing a fuse.............................177
Fuse labels......................................177
Fuse specification chart................179
Vehicle recovery
Towing points.................................185
Towing the vehicle on fourwheels.........................................186
3
Table of contents

Downloaded from www.Manualslib.com manuals search engine Maintenance
General information......................188
Opening and closing thebonnet.........................................189
Engine compartment overview -1.6L Duratec-16V (Sigma)/1.6LDuratec-16V Ti-VCT (Sigma).....190
Engine compartment overview -1.8L Duratec-HE (MI4)/2.0LDuratec-HE (MI4).......................192
Engine compartment overview -1.6L Duratorq-TDCi (DV)Diesel...........................................194
Engine compartment overview -1.8L Duratorq-TDCi (Lynx)Diesel...........................................196
Engine compartment overview -2.0L Duratorq-TDCi (Puma)Diesel...........................................198
Engine oil dipstick - 1.6LDuratec-16V (Sigma)/1.6LDuratec-16V Ti-VCT (Sigma).....199
Engine oil dipstick - 1.8LDuratec-HE (MI4)/2.0LDuratec-HE (MI4).......................199
Engine oil dipstick - 1.6LDuratorq-TDCi (DV) Diesel......200
Engine oil dipstick - 1.8LDuratorq-TDCi (Lynx) Diesel....200
Engine oil dipstick - 2.0LDuratorq-TDCi (DW) Diesel.....200
Engine oil check............................200
Engine coolant check...................201
Brake and clutch fluid check......202
Power steering fluid check.........202
Washer fluid check.......................203
Technical specifications...............204
Vehicle care
Cleaning the exterior....................207
Cleaning the interior.....................208
Repairing minor paint damage....208
Vehicle battery
Battery care...................................209
Using booster cables...................209
Changing the vehicle battery......210
Wheels and tyres
General information.......................211
Changing a road wheel.................211
Tyre repair kit..................................217
Tyre care........................................223
Using winter tyres.........................223
Using snow chains.......................223
Technical specifications...............224
Vehicle identification
Vehicle identification plate...........226
Vehicle identification number(VIN).............................................226
Engine number - 1.6L Duratec-16V(Sigma)/1.6L Duratec-16V Ti-VCT(Sigma).......................................226
Engine number - 1.8L Duratec-HE(MI4)/2.0L Duratec-HE(MI4)............................................226
Engine number - 1.6LDuratorq-TDCi (DV) Diesel/2.0LDuratorq-TDCi (Puma)Diesel...........................................227
Engine number - 1.8LDuratorq-TDCi (Lynx) Diesel.....227
4
Table of contents

Downloaded from www.Manualslib.com manuals search engine Technical specific-
ations
Technical specifications...............228
Telephone
General information......................231
Telephone setup...........................231
Bluetooth setup............................233
Telephone controls......................234
Using the telephone - VehiclesWithout: Navigation System.....235
Using the telephone - Travel PilotEX................................................238
Voice control
Principle of operation....................241
Using voice control.......................242
Audio unit commands.................242
Telephone commands................247
Navigation systemcommands.................................252
Climate control commands........252
Appendices
Type approvals..............................255
Type approvals..............................255
Electromagnetic compatibility.....262
5
Table of contents

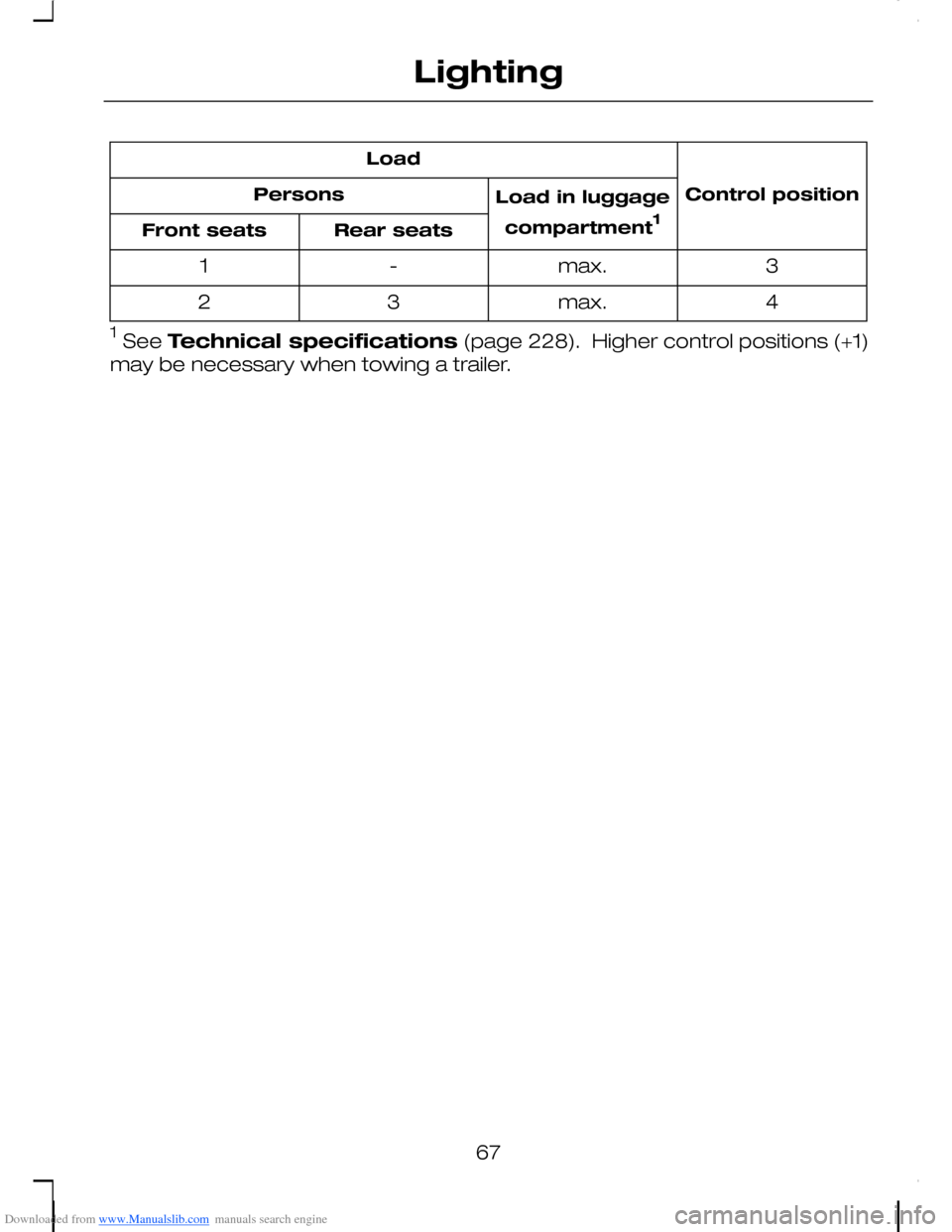

Downloaded from www.Manualslib.com manuals search engine Control position
Load
Load in luggage
compartment1
Persons
Rear seatsFront seats
3max.-1
4max.32
1 See Technical specifications (page 228). Higher control positions (+1)
may be necessary when towing a trailer.
67
Lighting

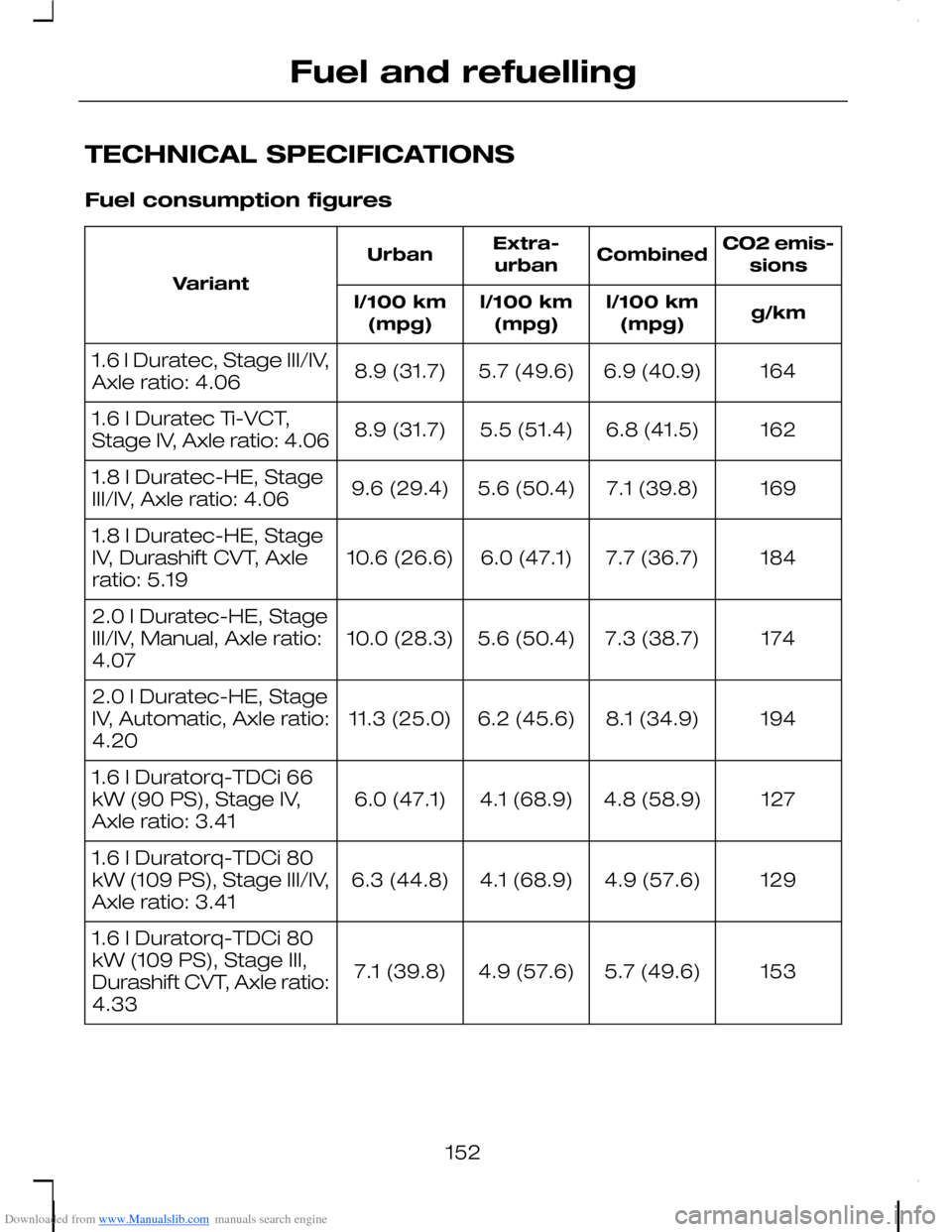

Downloaded from www.Manualslib.com manuals search engine TECHNICAL SPECIFICATIONS
Fuel consumption figures
CO2 emis-sionsCombinedExtra-urbanUrban
Variant
g/kml/100 km(mpg)l/100 km(mpg)l/100 km(mpg)
1646.9 (40.9)5.7 (49.6)8.9 (31.7)1.6 l Duratec, Stage III/IV,Axle ratio: 4.06
1626.8 (41.5)5.5 (51.4)8.9 (31.7)1.6 l Duratec Ti-VCT,Stage IV, Axle ratio: 4.06
1697.1 (39.8)5.6 (50.4)9.6 (29.4)1.8 l Duratec-HE, StageIII/IV, Axle ratio: 4.06
1847.7 (36.7)6.0 (47.1)10.6 (26.6)1.8 l Duratec-HE, StageIV, Durashift CVT, Axleratio: 5.19
1747.3 (38.7)5.6 (50.4)10.0 (28.3)2.0 l Duratec-HE, StageIII/IV, Manual, Axle ratio:4.07
1948.1 (34.9)6.2 (45.6)11.3 (25.0)2.0 l Duratec-HE, StageIV, Automatic, Axle ratio:4.20
1274.8 (58.9)4.1 (68.9)6.0 (47.1)1.6 l Duratorq-TDCi 66kW (90 PS), Stage IV,Axle ratio: 3.41
1294.9 (57.6)4.1 (68.9)6.3 (44.8)1.6 l Duratorq-TDCi 80kW (109 PS), Stage III/IV,Axle ratio: 3.41
1535.7 (49.6)4.9 (57.6)7.1 (39.8)
1.6 l Duratorq-TDCi 80kW (109 PS), Stage III,Durashift CVT, Axle ratio:4.33
152
Fuel and refuelling

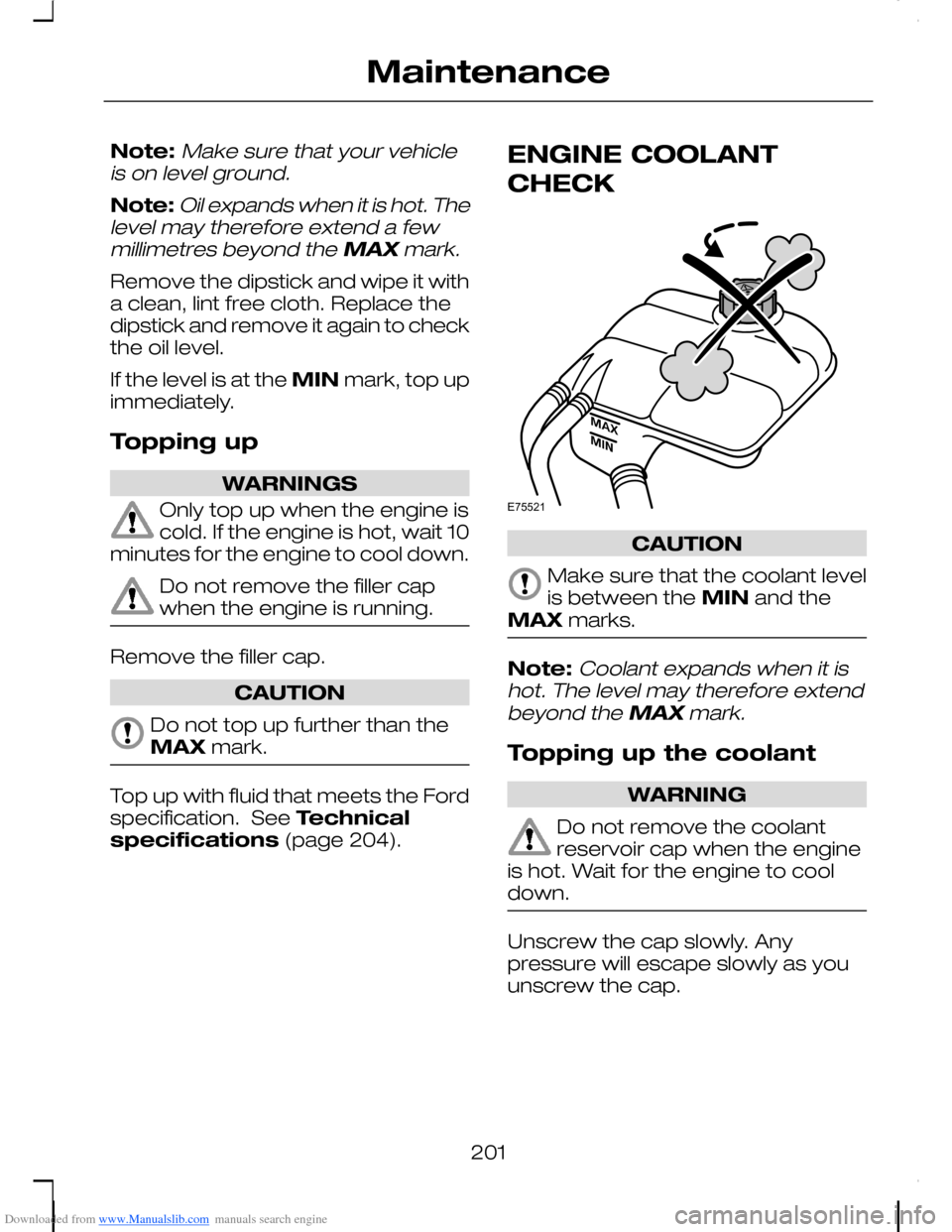

Downloaded from www.Manualslib.com manuals search engine Note:Make sure that your vehicleis on level ground.
Note:Oil expands when it is hot. Thelevel may therefore extend a fewmillimetres beyond the MAX mark.
Remove the dipstick and wipe it witha clean, lint free cloth. Replace thedipstick and remove it again to checkthe oil level.
If the level is at the MIN mark, top upimmediately.
Topping up
WARNINGS
Only top up when the engine iscold. If the engine is hot, wait 10minutes for the engine to cool down.
Do not remove the filler capwhen the engine is running.
Remove the filler cap.
CAUTION
Do not top up further than theMAX mark.
Top up with fluid that meets the Fordspecification. See Technicalspecifications (page 204).
ENGINE COOLANT
CHECK
CAUTION
Make sure that the coolant levelis between the MIN and theMAX marks.
Note:Coolant expands when it ishot. The level may therefore extendbeyond the MAX mark.
Topping up the coolant
WARNING
Do not remove the coolantreservoir cap when the engineis hot. Wait for the engine to cooldown.
Unscrew the cap slowly. Anypressure will escape slowly as youunscrew the cap.
201
MaintenanceE75521

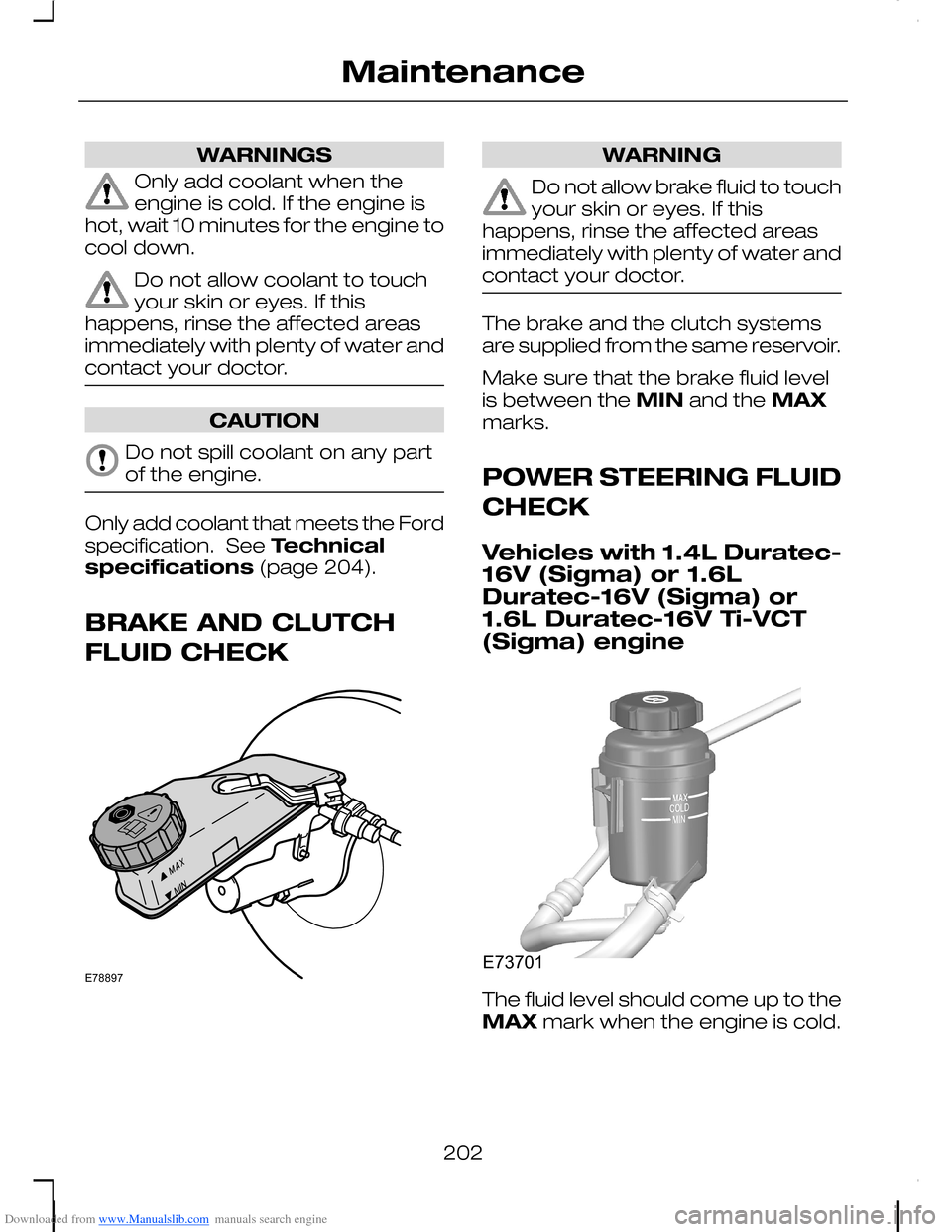

Downloaded from www.Manualslib.com manuals search engine WARNINGS
Only add coolant when theengine is cold. If the engine ishot, wait 10 minutes for the engine tocool down.
Do not allow coolant to touchyour skin or eyes. If thishappens, rinse the affected areasimmediately with plenty of water andcontact your doctor.
CAUTION
Do not spill coolant on any partof the engine.
Only add coolant that meets the Fordspecification. See Technicalspecifications (page 204).
BRAKE AND CLUTCH
FLUID CHECK
WARNING
Do not allow brake fluid to touchyour skin or eyes. If thishappens, rinse the affected areasimmediately with plenty of water andcontact your doctor.
The brake and the clutch systemsare supplied from the same reservoir.
Make sure that the brake fluid levelis between the MIN and the MAXmarks.
POWER STEERING FLUID
CHECK
Vehicles with 1.4L Duratec-16V (Sigma) or 1.6LDuratec-16V (Sigma) or1.6L Duratec-16V Ti-VCT(Sigma) engine
The fluid level should come up to theMAX mark when the engine is cold.
202
MaintenanceE78897 E73701

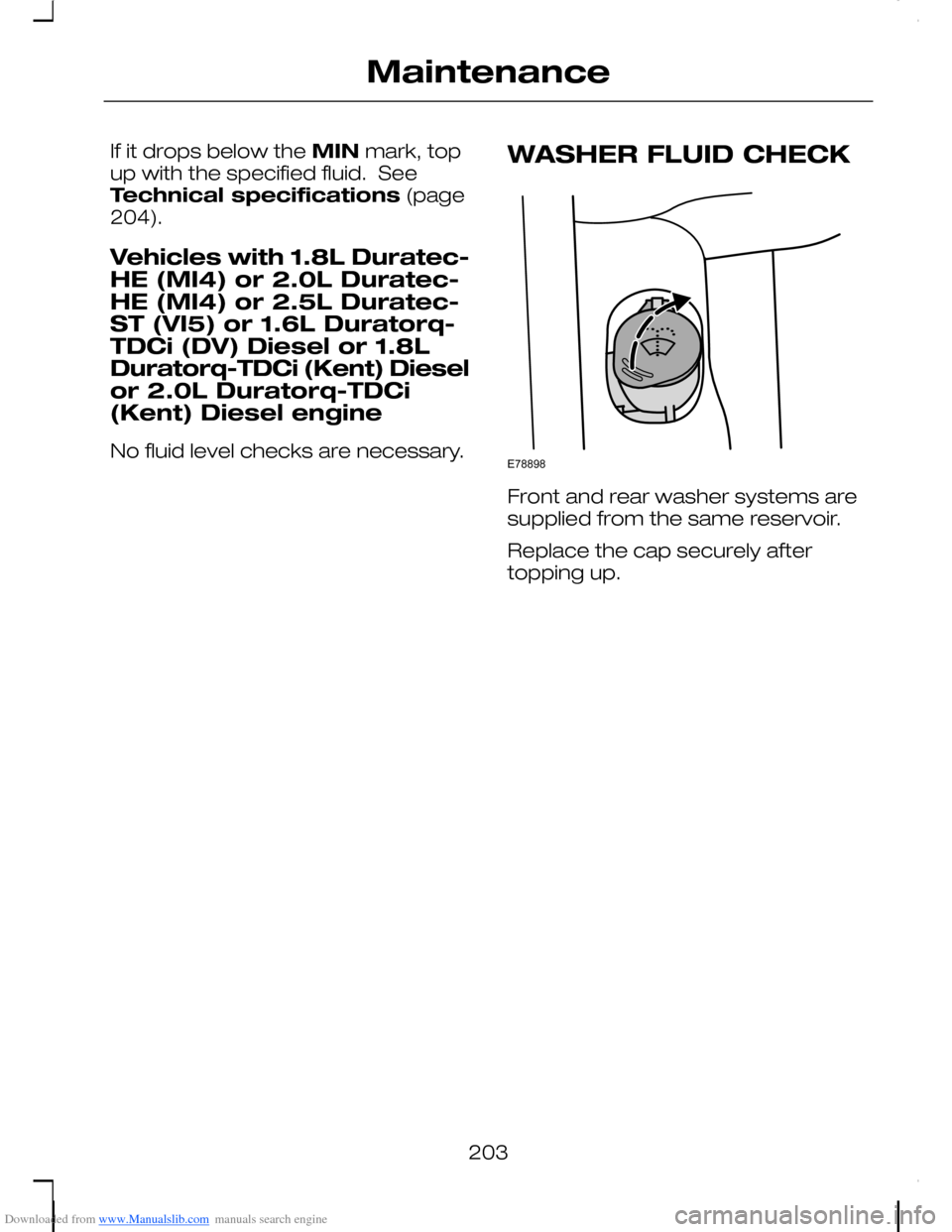

Downloaded from www.Manualslib.com manuals search engine If it drops below the MIN mark, topup with the specified fluid. SeeTechnical specifications (page204).
Vehicles with 1.8L Duratec-HE (MI4) or 2.0L Duratec-HE (MI4) or 2.5L Duratec-ST (VI5) or 1.6L Duratorq-TDCi (DV) Diesel or 1.8LDuratorq-TDCi (Kent) Dieselor 2.0L Duratorq-TDCi(Kent) Diesel engine
No fluid level checks are necessary.
WASHER FLUID CHECK
Front and rear washer systems aresupplied from the same reservoir.
Replace the cap securely aftertopping up.
203
MaintenanceE78898

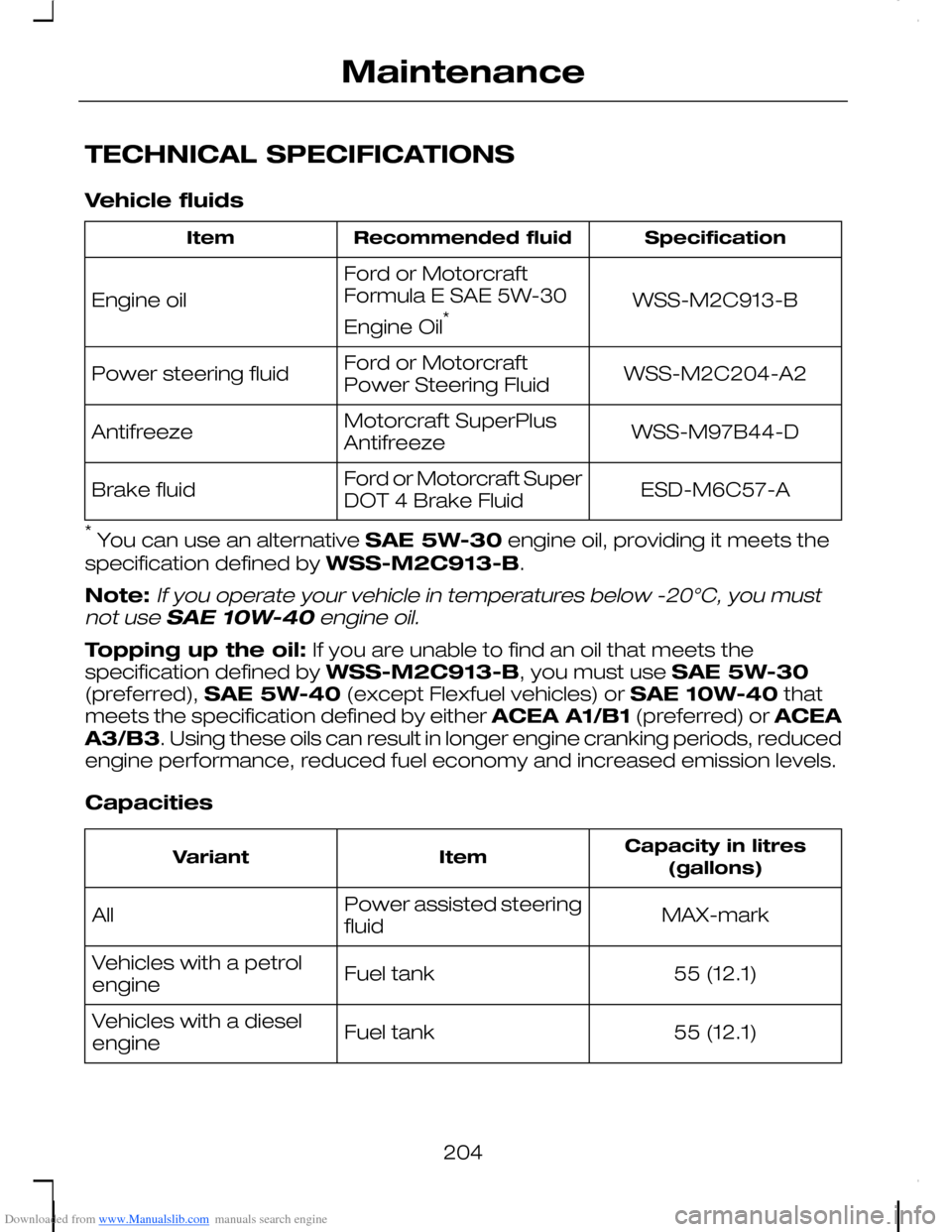

Downloaded from www.Manualslib.com manuals search engine TECHNICAL SPECIFICATIONS
Vehicle fluids
SpecificationRecommended fluidItem
WSS-M2C913-B
Ford or MotorcraftFormula E SAE 5W-30
Engine Oil*Engine oil
WSS-M2C204-A2Ford or MotorcraftPower Steering FluidPower steering fluid
WSS-M97B44-DMotorcraft SuperPlusAntifreezeAntifreeze
ESD-M6C57-AFord or Motorcraft SuperDOT 4 Brake FluidBrake fluid
* You can use an alternative SAE 5W-30 engine oil, providing it meets the
specification defined by WSS-M2C913-B.
Note:If you operate your vehicle in temperatures below -20°C, you mustnot use SAE 10W-40 engine oil.
Topping up the oil: If you are unable to find an oil that meets thespecification defined by WSS-M2C913-B, you must use SAE 5W-30(preferred), SAE 5W-40 (except Flexfuel vehicles) or SAE 10W-40 thatmeets the specification defined by either ACEA A1/B1 (preferred) or ACEAA3/B3. Using these oils can result in longer engine cranking periods, reducedengine performance, reduced fuel economy and increased emission levels.
Capacities
Capacity in litres(gallons)ItemVariant
MAX-markPower assisted steeringfluidAll
55 (12.1)Fuel tankVehicles with a petrolengine
55 (12.1)Fuel tankVehicles with a dieselengine
204
Maintenance

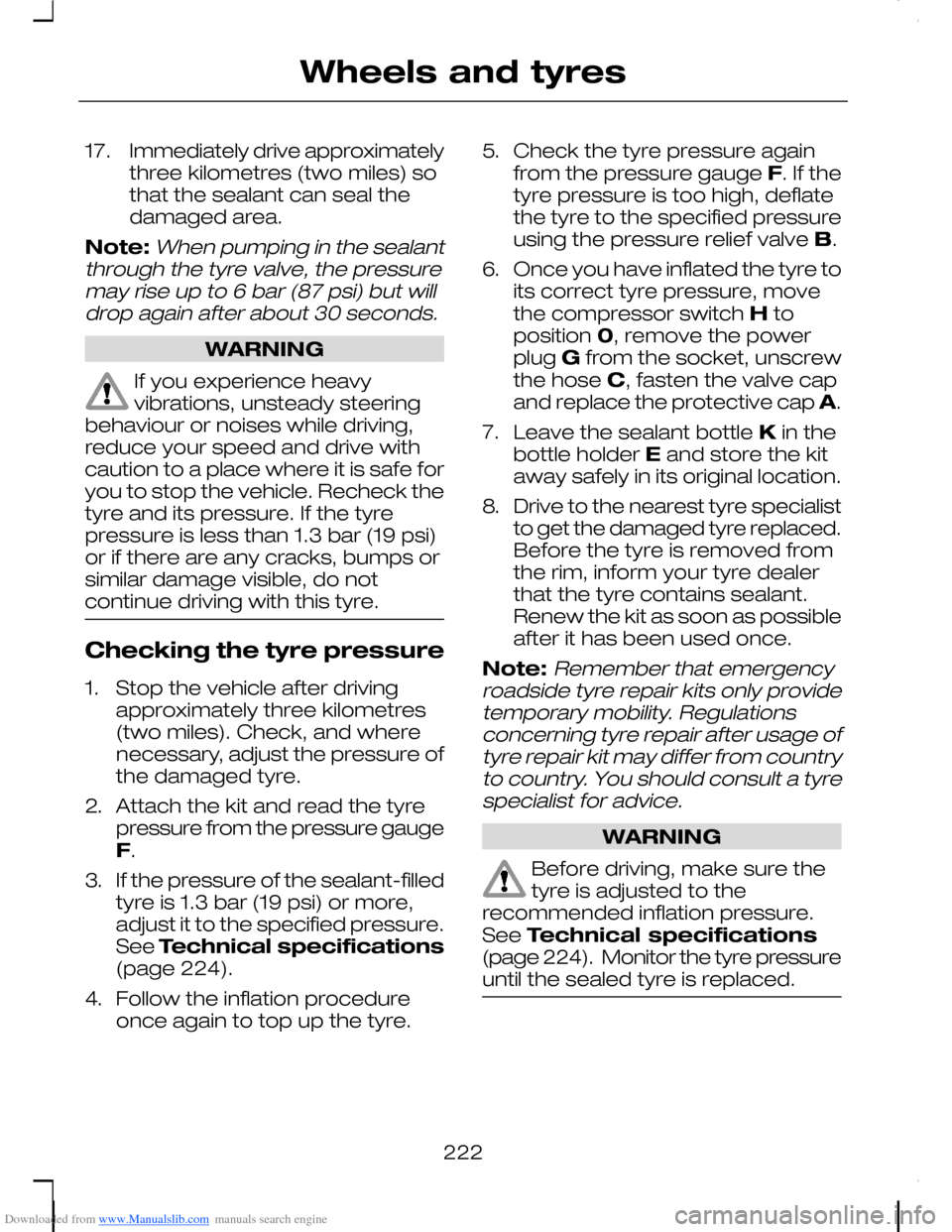

Downloaded from www.Manualslib.com manuals search engine 17.Immediately drive approximatelythree kilometres (two miles) sothat the sealant can seal thedamaged area.
Note:When pumping in the sealantthrough the tyre valve, the pressuremay rise up to 6 bar (87 psi) but willdrop again after about 30 seconds.
WARNING
If you experience heavyvibrations, unsteady steeringbehaviour or noises while driving,reduce your speed and drive withcaution to a place where it is safe foryou to stop the vehicle. Recheck thetyre and its pressure. If the tyrepressure is less than 1.3 bar (19 psi)or if there are any cracks, bumps orsimilar damage visible, do notcontinue driving with this tyre.
Checking the tyre pressure
1.Stop the vehicle after drivingapproximately three kilometres(two miles). Check, and wherenecessary, adjust the pressure ofthe damaged tyre.
2.Attach the kit and read the tyrepressure from the pressure gaugeF.
3.If the pressure of the sealant-filledtyre is 1.3 bar (19 psi) or more,adjust it to the specified pressure.See Technical specifications(page 224).
4.Follow the inflation procedureonce again to top up the tyre.
5.Check the tyre pressure againfrom the pressure gauge F. If thetyre pressure is too high, deflatethe tyre to the specified pressureusing the pressure relief valve B.
6.Once you have inflated the tyre toits correct tyre pressure, movethe compressor switch H toposition 0, remove the powerplug G from the socket, unscrewthe hose C, fasten the valve capand replace the protective cap A.
7.Leave the sealant bottle K in thebottle holder E and store the kitaway safely in its original location.
8.Drive to the nearest tyre specialistto get the damaged tyre replaced.Before the tyre is removed fromthe rim, inform your tyre dealerthat the tyre contains sealant.Renew the kit as soon as possibleafter it has been used once.
Note:Remember that emergencyroadside tyre repair kits only providetemporary mobility. Regulationsconcerning tyre repair after usage oftyre repair kit may differ from countryto country. You should consult a tyrespecialist for advice.
WARNING
Before driving, make sure thetyre is adjusted to therecommended inflation pressure.See Technical specifications(page 224). Monitor the tyre pressureuntil the sealed tyre is replaced.
222
Wheels and tyres
