Downloaded from www.Manualslib.com manuals search engine Lighting
•Rear lamps
•Headlamp
9
IntroductionE89935 E89936

Downloaded from www.Manualslib.com manuals search engine QUICK START
Instrument panel overview
Left-hand drive
Lighting control. See Lighting control (page 64). Front fog lamps.See Front fog lamps (page 65). Rear fog lamp. See Rear foglamps (page 65).
A
Headlamp levelling control. See Headlamp levelling (page 66).B
10
Quick startCDABEFGHIJKUTSRQPONMLE78209

Downloaded from www.Manualslib.com manuals search engine Multi-function lever: Information display controls. Direction indicators.See Direction indicators (page 71). Main beam. See Lightingcontrol (page 64).
C
Instrument cluster. See Gauges (page 88). See Warning lampsand indicators (page 90).
D
Horn. See Horn (page 55).E
Wiper lever. See Wipers and washers (page 59).F
Card holder.G
Air vents. See Air vents (page 107).H
Hazard warning flasher switch. See Hazard warning flashers(page 70).I
Airbag deactivation indicator. See Disabling the passengerairbag (page 33). Parking aid switch. See Using the parkingaid (page 162).
J
Start button. See Keyless starting (page 145).J
Heated windscreen switch. See Heated windows and mirrors(page 114).K
Heated rear window switch. See Heated windows and mirrors(page 114).L
Stability control (ESP) switch. See Using stability control (page161).M
Climate controls. See Climate control (page 107).N
Audio or navigation unit. See separate handbook.O
Heated front seat switch. See Heated seats (page 132).P
Ignition switch. See Ignition switch (page 141).Q
Steering wheel adjustment. See Adjusting the steering wheel(page 55).R
Cruise control switches. See Using cruise control (page 164).S
Audio controls. See Audio control (page 55).T
Instrument lighting dimmer. See Instrument lighting dimmer(page 134).U
11
Quick start

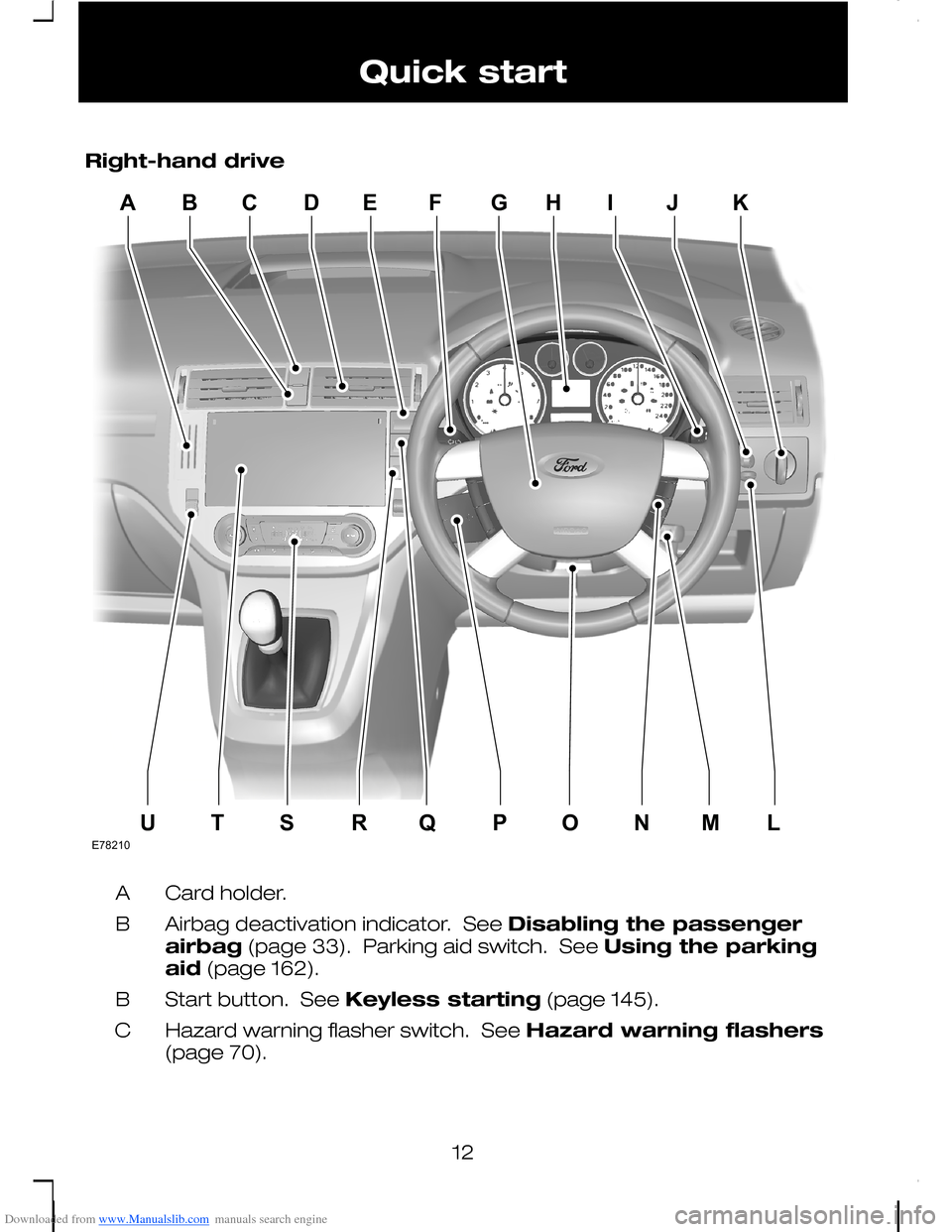

Downloaded from www.Manualslib.com manuals search engine Right-hand drive
Card holder.A
Airbag deactivation indicator. See Disabling the passengerairbag (page 33). Parking aid switch. See Using the parkingaid (page 162).
B
Start button. See Keyless starting (page 145).B
Hazard warning flasher switch. See Hazard warning flashers(page 70).C
12
Quick startE78210CDABEFGHIJKUTSRQPONML

Downloaded from www.Manualslib.com manuals search engine Air vents. See Air vents (page 107).D
Heated windscreen switch. See Heated windows and mirrors(page 114).E
Multi-function lever: Information display controls. See Informationdisplays (page 96). Direction indicators. See Directionindicators (page 71). Main beam. See Lighting control (page64).
F
Horn. See Horn (page 55).G
Instrument cluster. See Gauges (page 88). See Warning lampsand indicators (page 90).
H
Wiper lever. See Wipers and washers (page 59).I
Headlamp levelling control. See Headlamp levelling (page 66).J
Lighting control. See Lighting control (page 64). Front fog lamps.See Front fog lamps (page 65). Rear fog lamp. See Rear foglamps (page 65).
K
Instrument lighting dimmer. See Instrument lighting dimmer(page 134).L
Ignition switch. See Ignition switch (page 141).M
Cruise control switches. See Using cruise control (page 164).N
Steering wheel adjustment. See Adjusting the steering wheel(page 55).O
Audio controls. See Audio control (page 55).P
Heated rear window switch. See Heated windows and mirrors(page 114).Q
Stability control (ESP) switch. See Using stability control (page161).R
Climate controls. See Climate control (page 107).S
Audio/navigation unit. See separate handbook.T
Heated front seat switch. See Heated seats (page 132).U
13
Quick start

Downloaded from www.Manualslib.com manuals search engine Locking and unlocking
Unlocking the vehicle
UnlockA
LockB
Tailgate unlockC
Press the unlock button once tounlock the vehicle. SeeProgramming the remotecontrol (page 35).
Press and hold the unlock button forthree seconds to unlock the vehicleand open the windows and sunroof(global opening)*.
Press the lock button once toactivate central locking and arm thealarm.
Press the lock button twice withinthree seconds to activate doublelocking and arm the interior sensors.
Press and hold the lock button forthree seconds to lock the vehicle andclose the windows and sunroof(global closing)*.
Press the tailgate unlock button twicewithin three seconds to unlock theluggage compartment.
* only in combination with four electricwindows (in combination with twoelectric windows, only the sunroofcan be opened and closed in thisway).
Opening the tailgate
To open the luggage compartment,press the switch. The driver’s doormust be unlocked.
See Locking and unlocking(page 40).
14
Quick startE71963ABC E78262

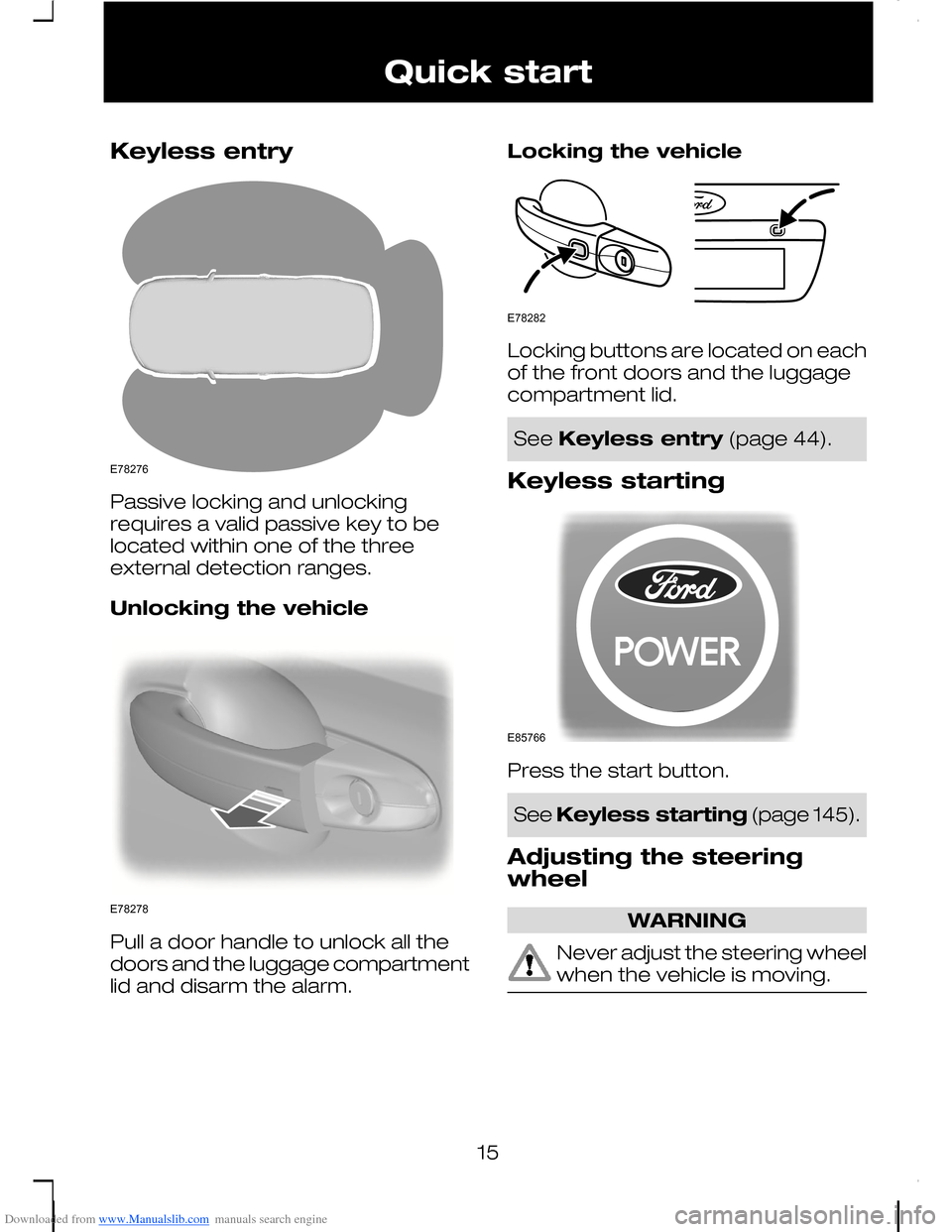

Downloaded from www.Manualslib.com manuals search engine Keyless entry
Passive locking and unlockingrequires a valid passive key to belocated within one of the threeexternal detection ranges.
Unlocking the vehicle
Pull a door handle to unlock all thedoors and the luggage compartmentlid and disarm the alarm.
Locking the vehicle
Locking buttons are located on eachof the front doors and the luggagecompartment lid.
See Keyless entry (page 44).
Keyless starting
Press the start button.
See Keyless starting (page 145).
Adjusting the steeringwheel
WARNING
Never adjust the steering wheelwhen the vehicle is moving.
15
Quick startE78276 E78278 E78282 E85766

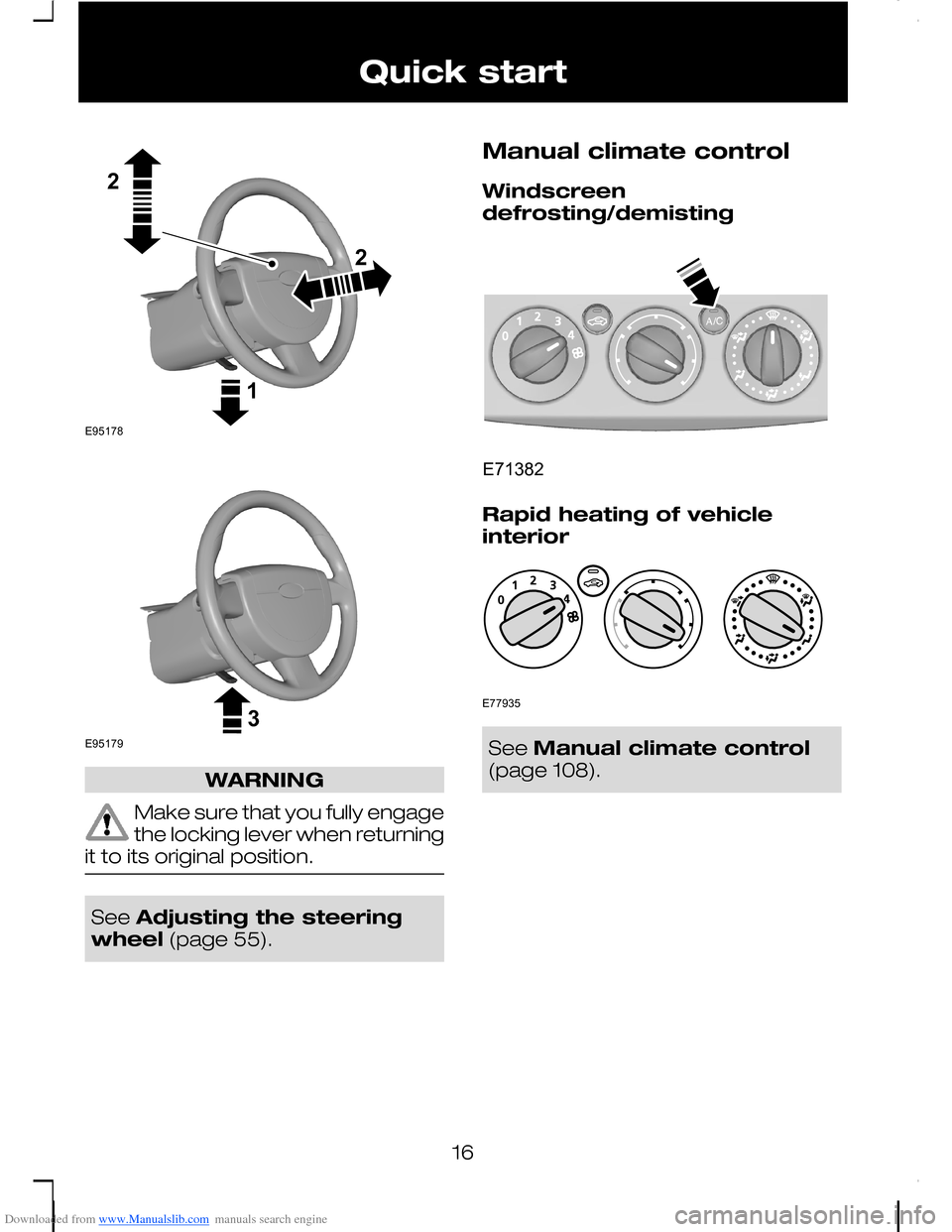

Downloaded from www.Manualslib.com manuals search engine WARNING
Make sure that you fully engagethe locking lever when returningit to its original position.
See Adjusting the steeringwheel (page 55).
Manual climate control
Windscreendefrosting/demisting
Rapid heating of vehicleinterior
See Manual climate control(page 108).
16
Quick start122E95178 3E95179 E71382 E77935

Downloaded from www.Manualslib.com manuals search engine Automatic climate control
Windscreendefrosting/demistingA
Toggle mono mode on andoffB
Air conditioning OFFC
Recirculated airD
Air conditioning ONE
See Automatic climate control(page 111).
Autolamps
When the lighting control is set toposition AUTO the dipped beamheadlamps will switch on and offautomatically depending on theambient light.
See Lighting control (page 64).
Direction indicators
If the lever is tapped up or down, thedirection indicators will flash threetimes.
See Direction indicators (page71).
Autowipers
Move the lever up one position.
17
Quick startE78730EDCBA E72162 E71098 E71014B

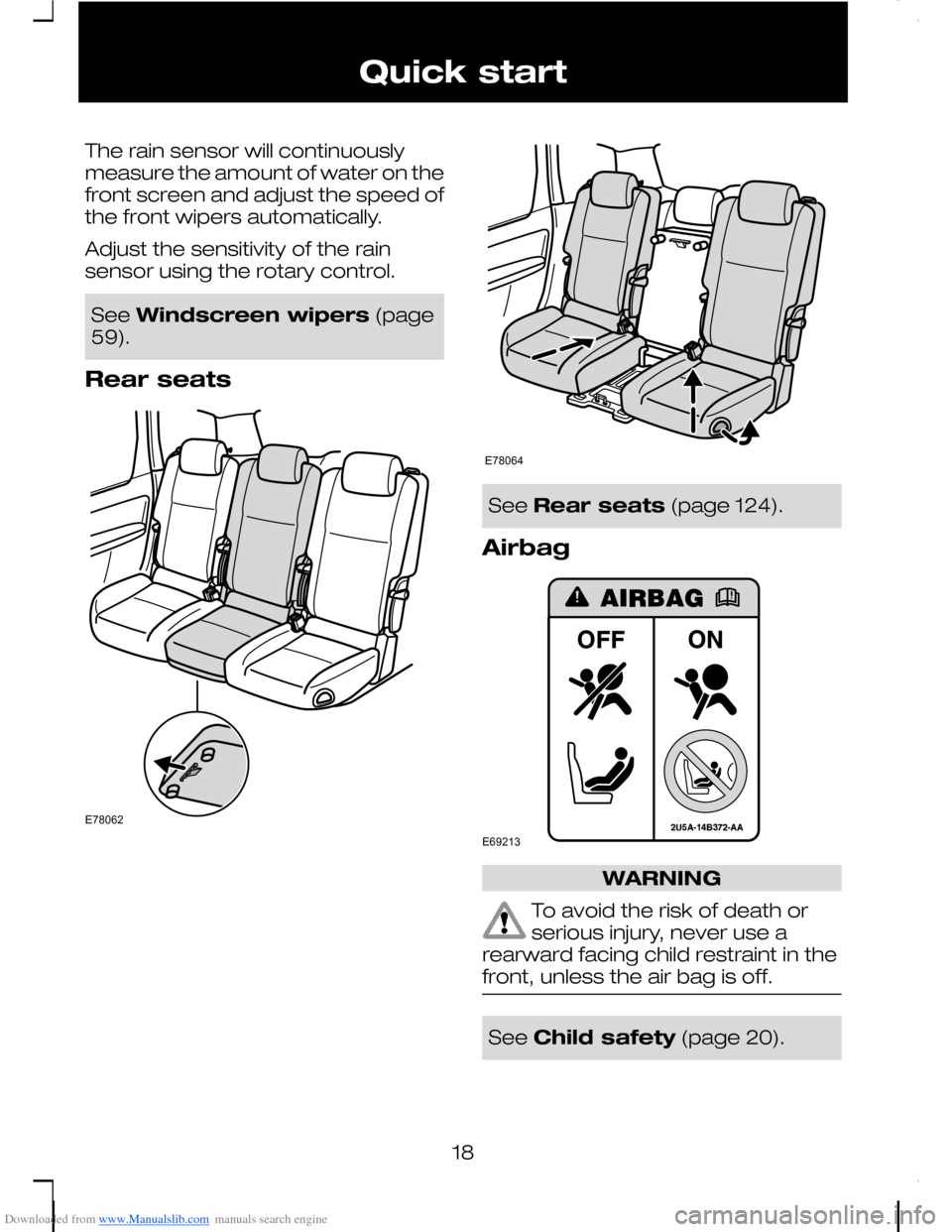

Downloaded from www.Manualslib.com manuals search engine The rain sensor will continuouslymeasure the amount of water on thefront screen and adjust the speed ofthe front wipers automatically.
Adjust the sensitivity of the rainsensor using the rotary control.
See Windscreen wipers (page59).
Rear seats
See Rear seats (page 124).
Airbag
WARNING
To avoid the risk of death orserious injury, never use arearward facing child restraint in thefront, unless the air bag is off.
See Child safety (page 20).
18
Quick startE78062 E78064 E69213
