FORD C MAX 2008 1.G Owner's Manual

Downloaded from www.Manualslib.com manuals search engine See Disabling the passengerairbag (page 33).

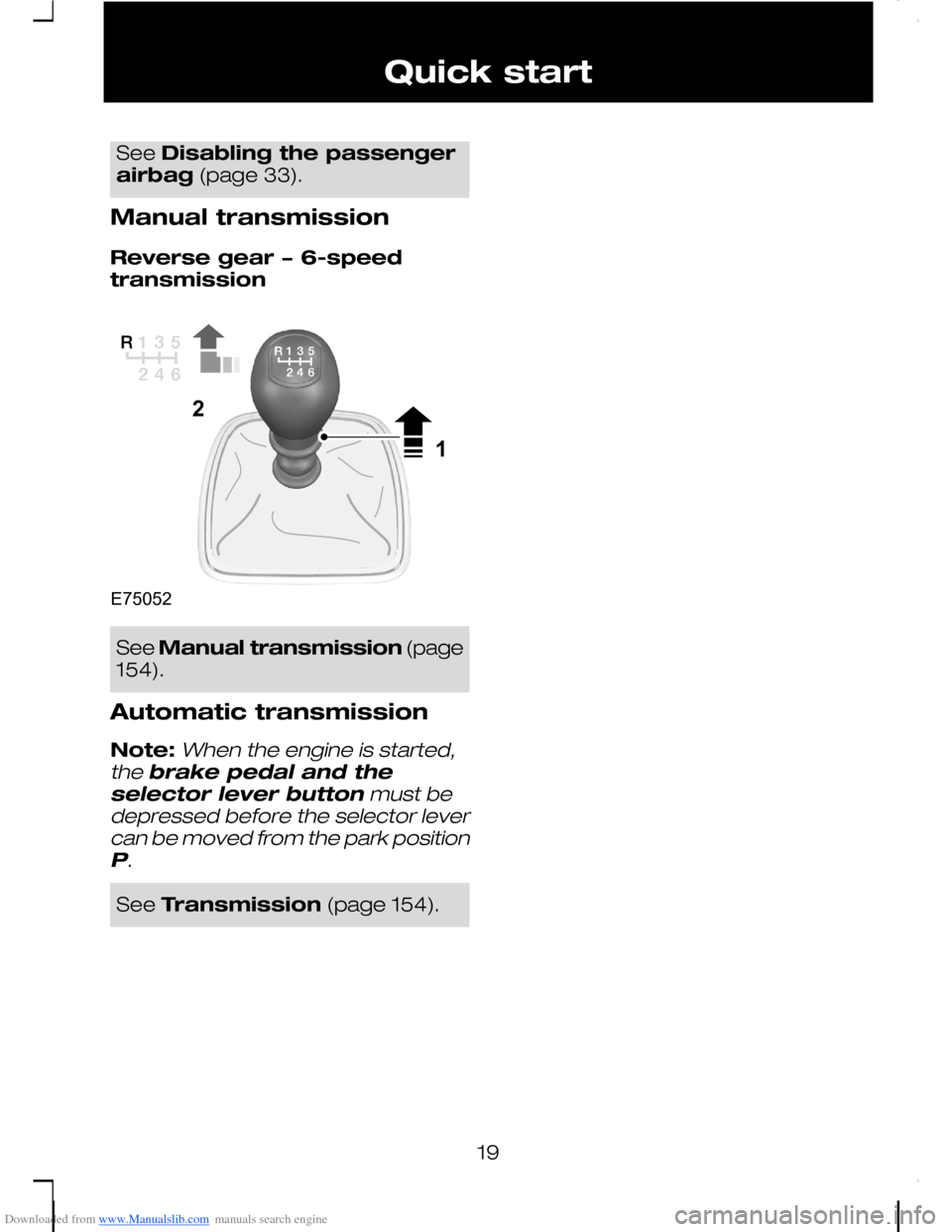

Manual transmission
Reverse gear − 6-speedtransmission
See Manual transmission (page154).
Automatic transmission
Note:When the engine is started,the brake pedal and theselector lever button must bedepressed before the selector levercan be moved from the park positionP.
See Transmission (page 154).
19
Quick startE7505221

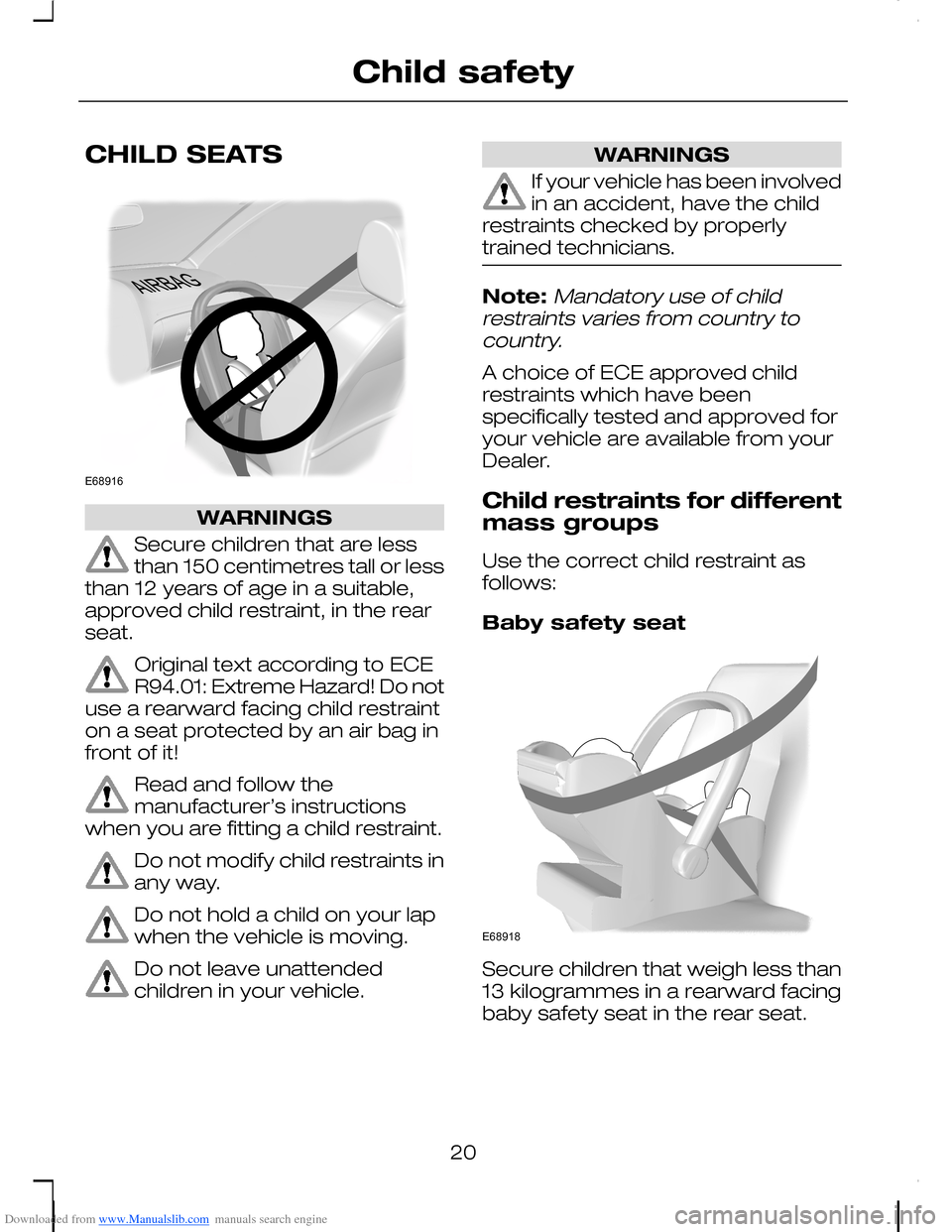

Downloaded from www.Manualslib.com manuals search engine CHILD SEATS
WARNINGS
Secure children that are lessthan 150 centimetres tall or lessthan 12 years of age in a suitable,approved child restraint, in the rearseat.
Original text according to ECER94.01: Extreme Hazard! Do notuse a rearward facing child restrainton a seat protected by an air bag infront of it!
Read and follow themanufacturer’s instructionswhen you are fitting a child restraint.
Do not modify child restraints inany way.
Do not hold a child on your lapwhen the vehicle is moving.
Do not leave unattendedchildren in your vehicle.
WARNINGS
If your vehicle has been involvedin an accident, have the childrestraints checked by properlytrained technicians.
Note:Mandatory use of childrestraints varies from country tocountry.
A choice of ECE approved childrestraints which have beenspecifically tested and approved foryour vehicle are available from yourDealer.
Child restraints for differentmass groups
Use the correct child restraint asfollows:
Baby safety seat
Secure children that weigh less than13 kilogrammes in a rearward facingbaby safety seat in the rear seat.
20
Child safetyE68916 E68918

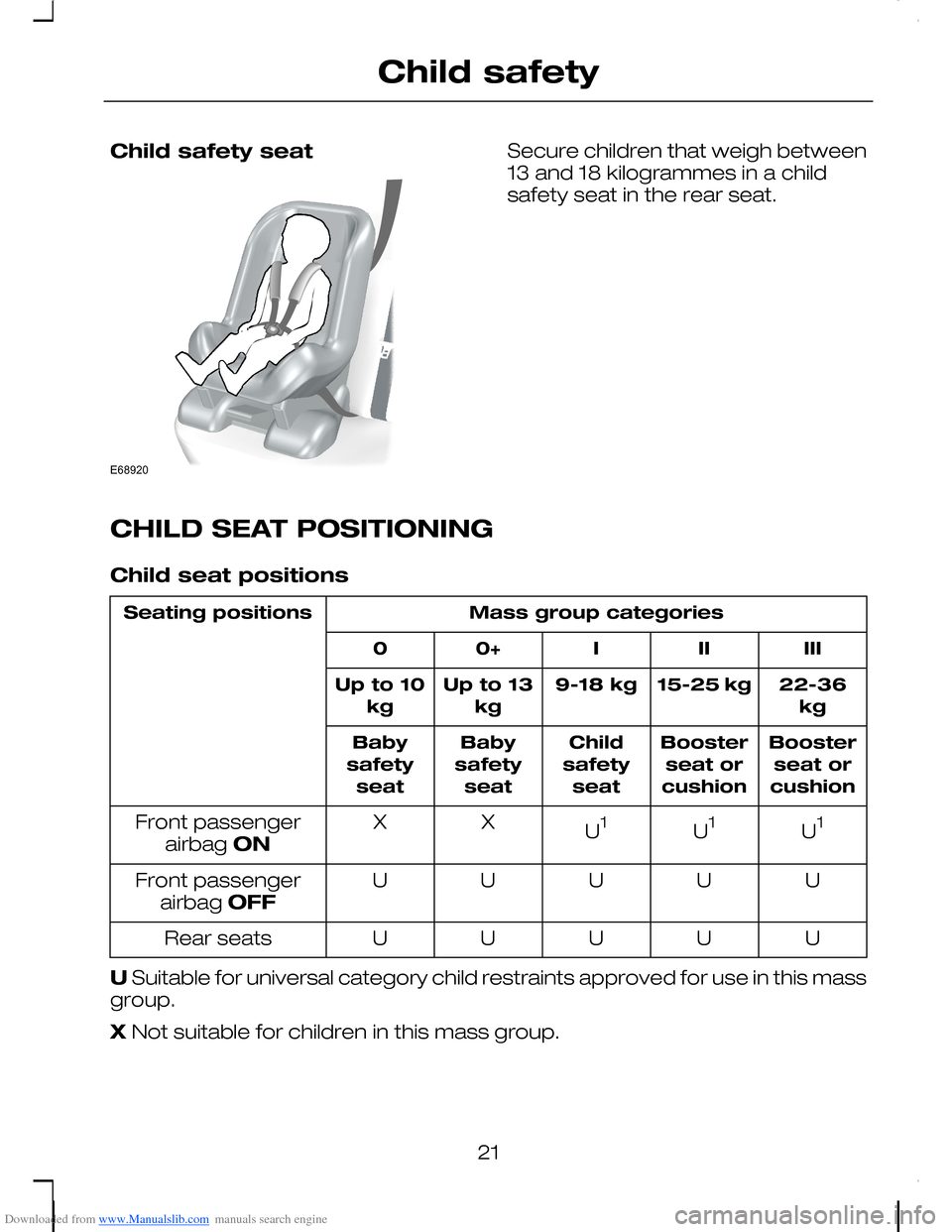

Downloaded from www.Manualslib.com manuals search engine Child safety seatSecure children that weigh between13 and 18 kilogrammes in a childsafety seat in the rear seat.
CHILD SEAT POSITIONING
Child seat positions
Mass group categoriesSeating positions
IIIIII0+0
22-36kg15-25 kg9-18 kgUp to 13kgUp to 10kg
Boosterseat orcushion
Boosterseat orcushion
Childsafetyseat
Babysafetyseat
Babysafetyseat
U1U1U1XXFront passengerairbag ON
UUUUUFront passengerairbag OFF
UUUUURear seats
U Suitable for universal category child restraints approved for use in this massgroup.
X Not suitable for children in this mass group.
21
Child safetyE68920

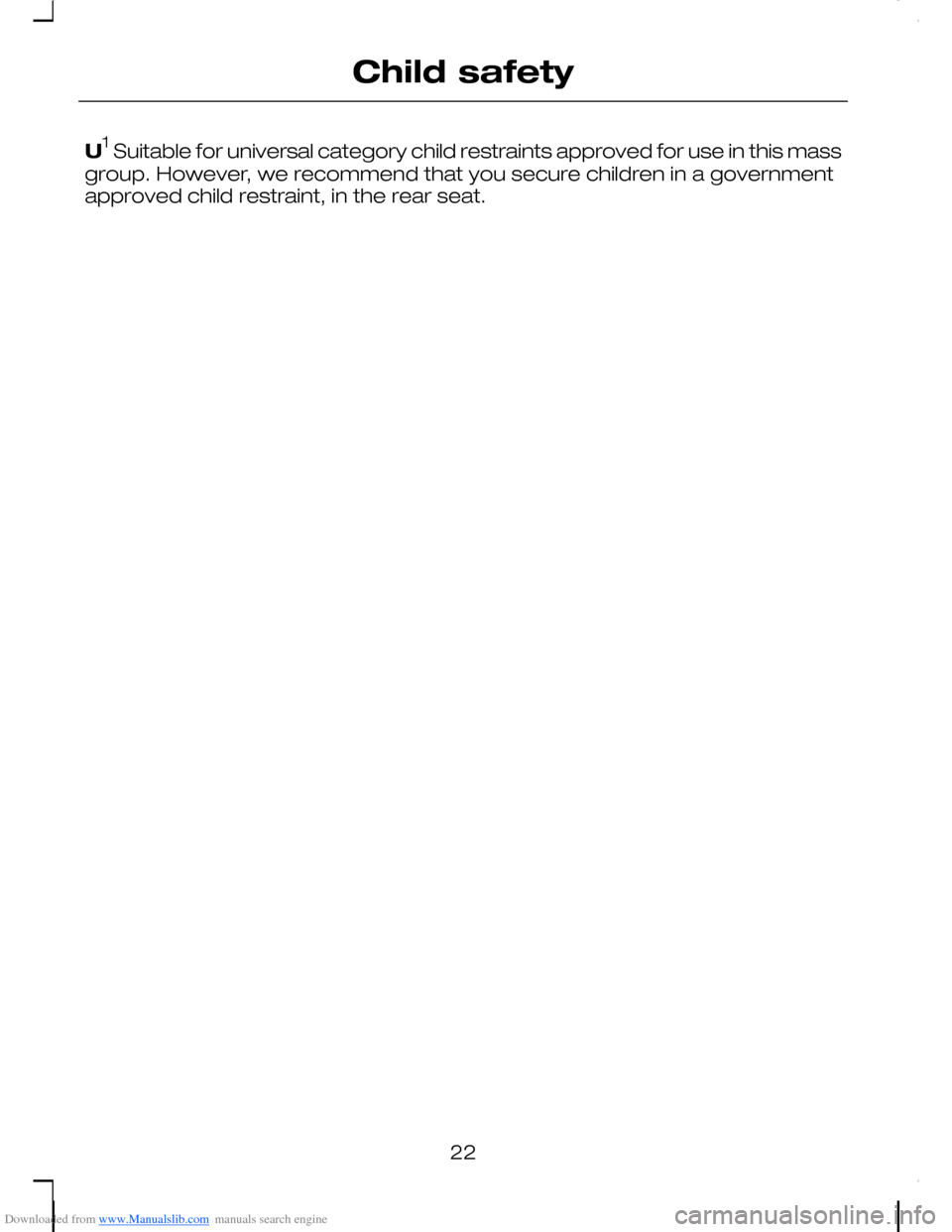

Downloaded from www.Manualslib.com manuals search engine U1 Suitable for universal category child restraints approved for use in this mass
group. However, we recommend that you secure children in a governmentapproved child restraint, in the rear seat.
22
Child safety

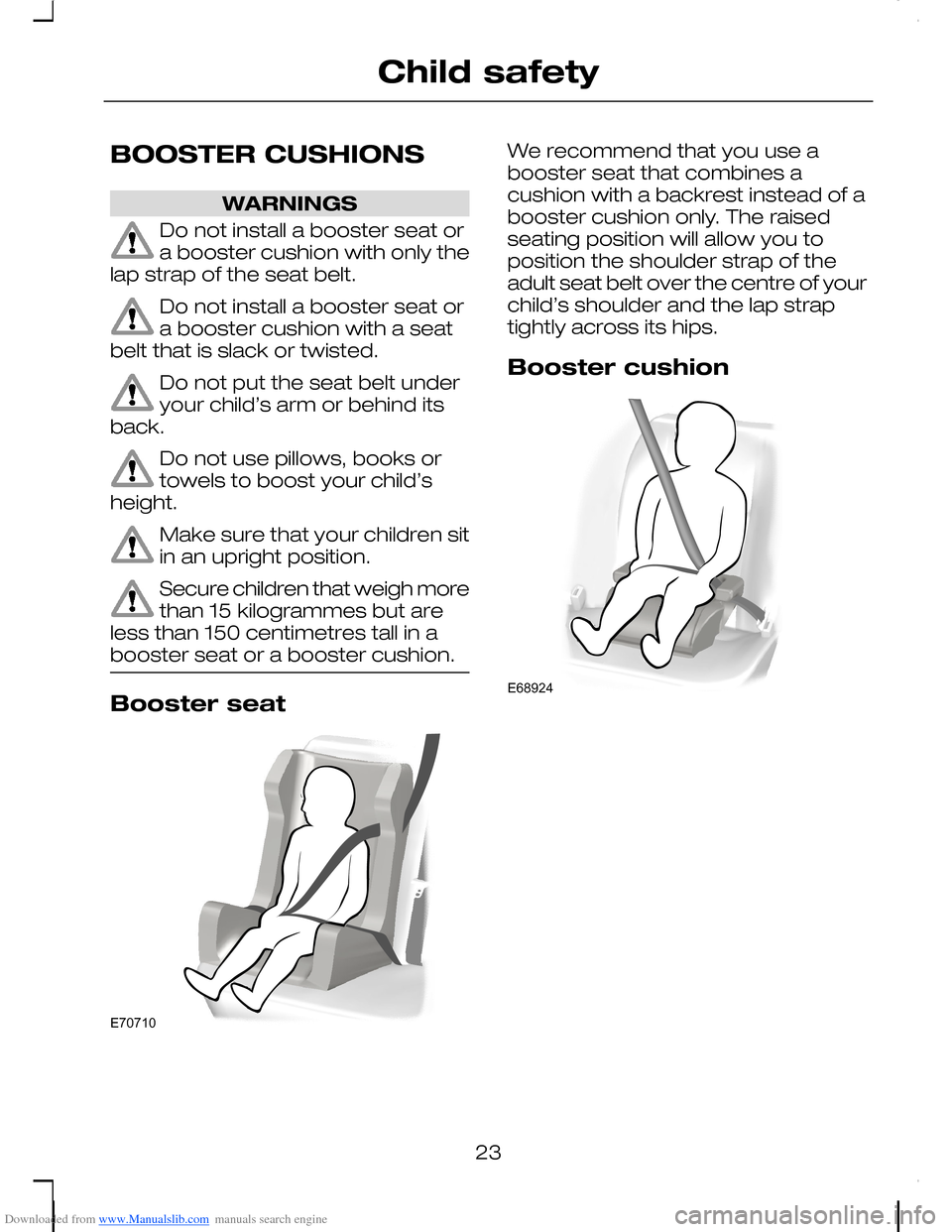

Downloaded from www.Manualslib.com manuals search engine BOOSTER CUSHIONS
WARNINGS
Do not install a booster seat ora booster cushion with only thelap strap of the seat belt.
Do not install a booster seat ora booster cushion with a seatbelt that is slack or twisted.
Do not put the seat belt underyour child’s arm or behind itsback.
Do not use pillows, books ortowels to boost your child’sheight.
Make sure that your children sitin an upright position.
Secure children that weigh morethan 15 kilogrammes but areless than 150 centimetres tall in abooster seat or a booster cushion.
Booster seat
We recommend that you use abooster seat that combines acushion with a backrest instead of abooster cushion only. The raisedseating position will allow you toposition the shoulder strap of theadult seat belt over the centre of yourchild’s shoulder and the lap straptightly across its hips.
Booster cushion
23
Child safetyE70710 E68924

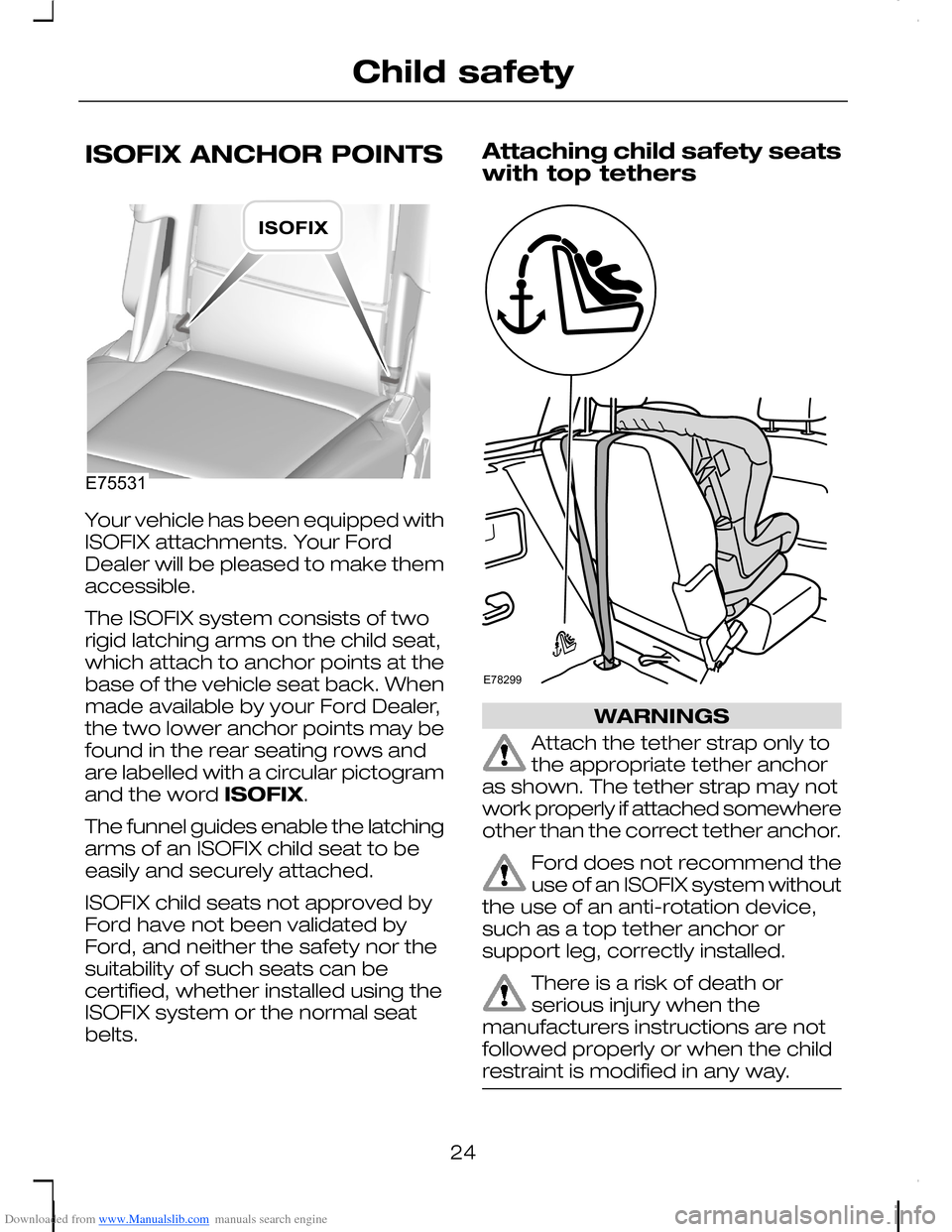

Downloaded from www.Manualslib.com manuals search engine ISOFIX ANCHOR POINTS
Your vehicle has been equipped withISOFIX attachments. Your FordDealer will be pleased to make themaccessible.
The ISOFIX system consists of tworigid latching arms on the child seat,which attach to anchor points at thebase of the vehicle seat back. Whenmade available by your Ford Dealer,the two lower anchor points may befound in the rear seating rows andare labelled with a circular pictogramand the word ISOFIX.
The funnel guides enable the latchingarms of an ISOFIX child seat to beeasily and securely attached.
ISOFIX child seats not approved byFord have not been validated byFord, and neither the safety nor thesuitability of such seats can becertified, whether installed using theISOFIX system or the normal seatbelts.
Attaching child safety seatswith top tethers
WARNINGS
Attach the tether strap only tothe appropriate tether anchoras shown. The tether strap may notwork properly if attached somewhereother than the correct tether anchor.
Ford does not recommend theuse of an ISOFIX system withoutthe use of an anti-rotation device,such as a top tether anchor orsupport leg, correctly installed.
There is a risk of death orserious injury when themanufacturers instructions are notfollowed properly or when the childrestraint is modified in any way.
24
Child safetyE75531 E78299

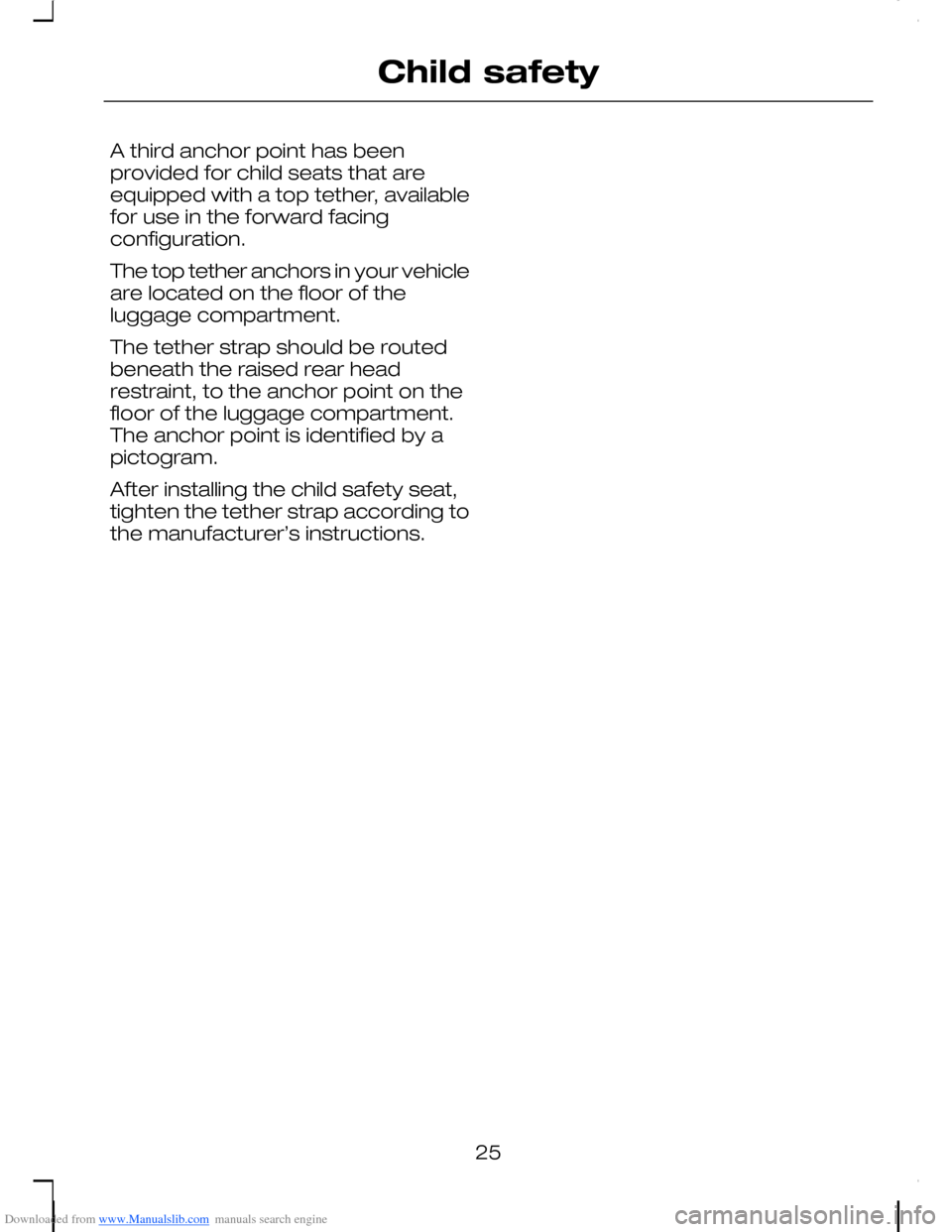

Downloaded from www.Manualslib.com manuals search engine A third anchor point has beenprovided for child seats that areequipped with a top tether, availablefor use in the forward facingconfiguration.
The top tether anchors in your vehicleare located on the floor of theluggage compartment.
The tether strap should be routedbeneath the raised rear headrestraint, to the anchor point on thefloor of the luggage compartment.The anchor point is identified by apictogram.
After installing the child safety seat,tighten the tether strap according tothe manufacturer’s instructions.
25
Child safety

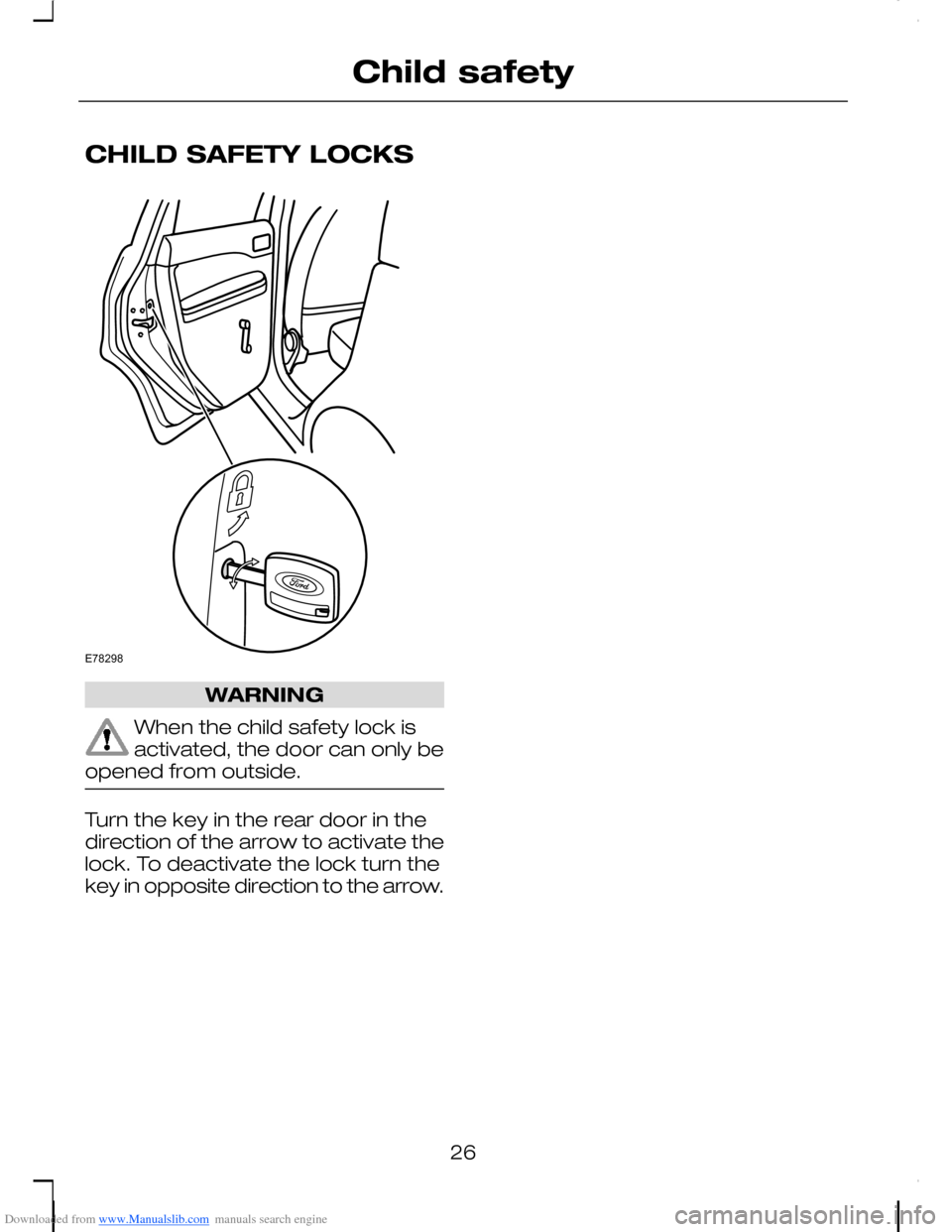

Downloaded from www.Manualslib.com manuals search engine CHILD SAFETY LOCKS
WARNING
When the child safety lock isactivated, the door can only beopened from outside.
Turn the key in the rear door in thedirection of the arrow to activate thelock. To deactivate the lock turn thekey in opposite direction to the arrow.
26
Child safetyE78298

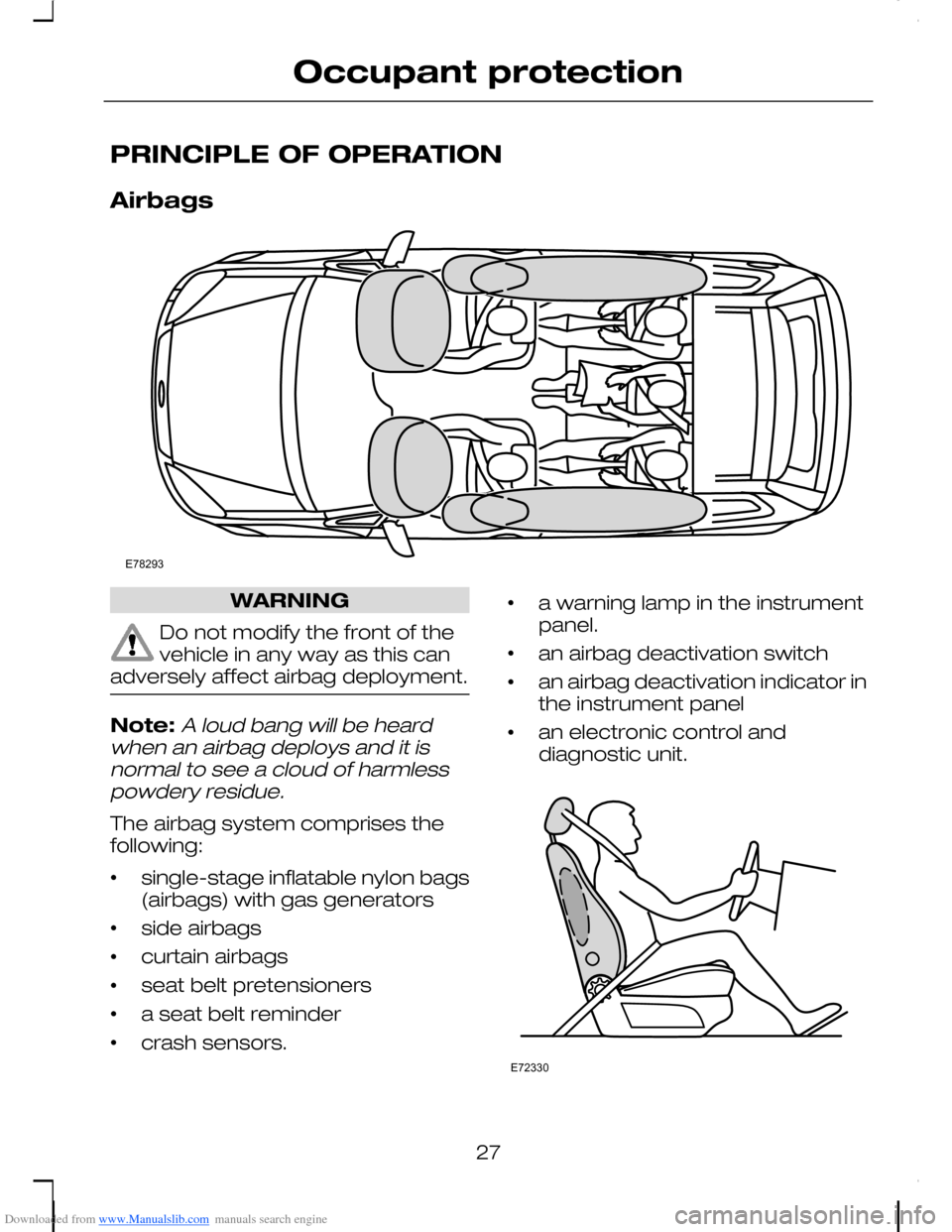

Downloaded from www.Manualslib.com manuals search engine PRINCIPLE OF OPERATION
Airbags
WARNING
Do not modify the front of thevehicle in any way as this canadversely affect airbag deployment.
Note:A loud bang will be heardwhen an airbag deploys and it isnormal to see a cloud of harmlesspowdery residue.
The airbag system comprises thefollowing:
•single-stage inflatable nylon bags(airbags) with gas generators
•side airbags
•curtain airbags
•seat belt pretensioners
•a seat belt reminder
•crash sensors.
•a warning lamp in the instrumentpanel.
•an airbag deactivation switch
•an airbag deactivation indicator inthe instrument panel
•an electronic control anddiagnostic unit.
27
Occupant protectionE78293 E72330

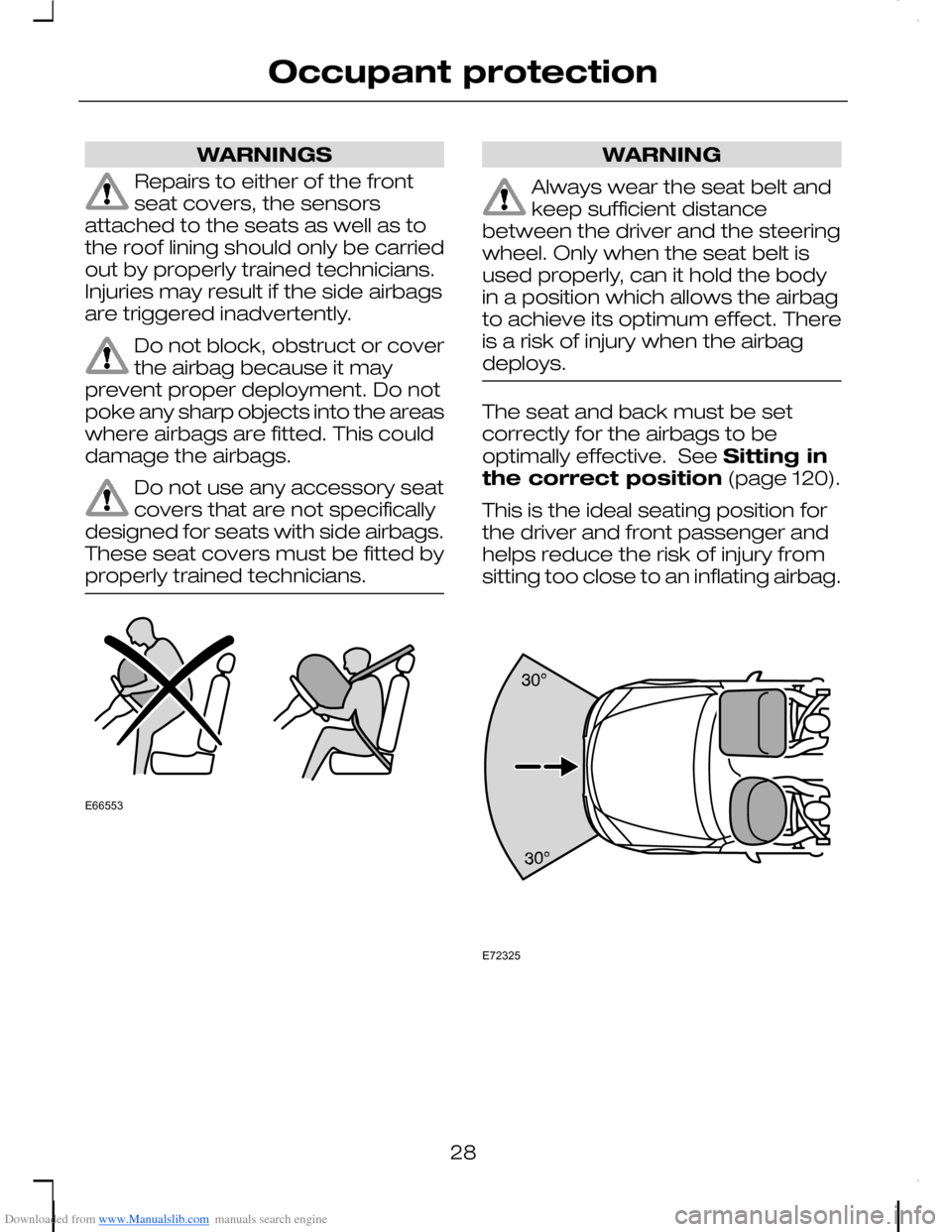

Downloaded from www.Manualslib.com manuals search engine WARNINGS
Repairs to either of the frontseat covers, the sensorsattached to the seats as well as tothe roof lining should only be carriedout by properly trained technicians.Injuries may result if the side airbagsare triggered inadvertently.
Do not block, obstruct or coverthe airbag because it mayprevent proper deployment. Do notpoke any sharp objects into the areaswhere airbags are fitted. This coulddamage the airbags.
Do not use any accessory seatcovers that are not specificallydesigned for seats with side airbags.These seat covers must be fitted byproperly trained technicians.
WARNING
Always wear the seat belt andkeep sufficient distancebetween the driver and the steeringwheel. Only when the seat belt isused properly, can it hold the bodyin a position which allows the airbagto achieve its optimum effect. Thereis a risk of injury when the airbagdeploys.
The seat and back must be setcorrectly for the airbags to beoptimally effective. See Sitting inthe correct position (page 120).
This is the ideal seating position forthe driver and front passenger andhelps reduce the risk of injury fromsitting too close to an inflating airbag.
28
Occupant protectionE66553 E72325
