WARNING
Do not operate the informationdisplay controls when thevehicle is moving.
Various systems can beprogrammed using the informationdisplay and the multi-function leveron the steering column.
Controls
Turn the rotary control to scrollthrough the available displays withina menu or to choose a setting. Toscroll automatically, hold the rotarycontrol in the upward or downwardposition.
Press the SET/RESET button tochoose a sub-menu and adjust thesettings. If the chimes are activated,a short tone will sound each time thebutton is pressed.
Type 2 and 3
Press the up and down arrowbuttons on the steering wheel toscroll through the trip computerdisplays. See Informationmessages (page 103).
96
Information displaysE73265 E73266

Downloaded from www.Manualslib.com manuals search engine Menu structure
97

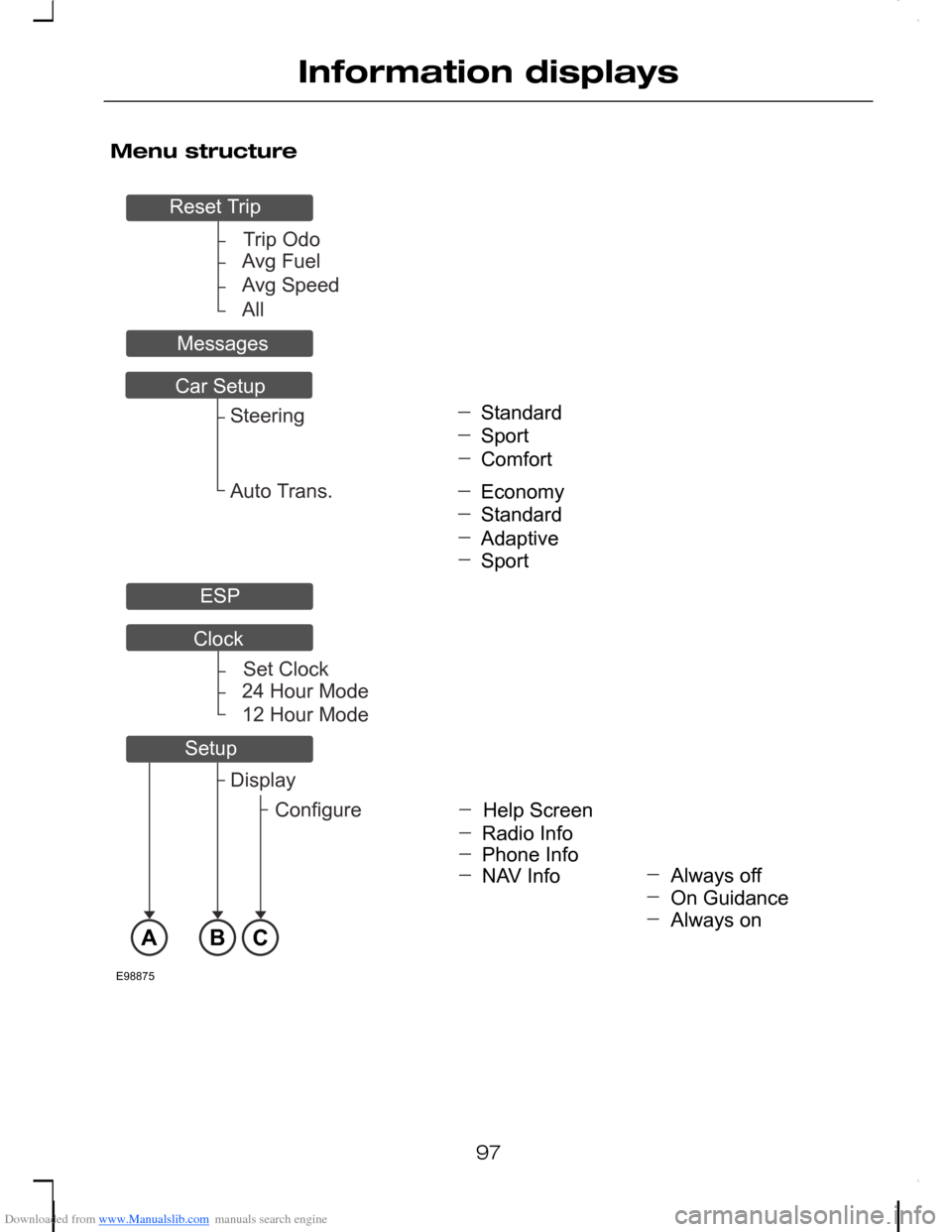

Information displaysTripOdoAvgFuelAvgSpeedAllSetClock24HourMode12HourModeABCE98875StandardSportComfortAlwaysoffHelpScreenDisplayConfigureRadioInfoEconomyStandardAdaptiveSportPhoneInfoNAVInfoOnGuidanceAlwaysonSteeringAutoTrans.ResetTripMessagesCarSetupESPClockSetup

Downloaded from www.Manualslib.com manuals search engine 98

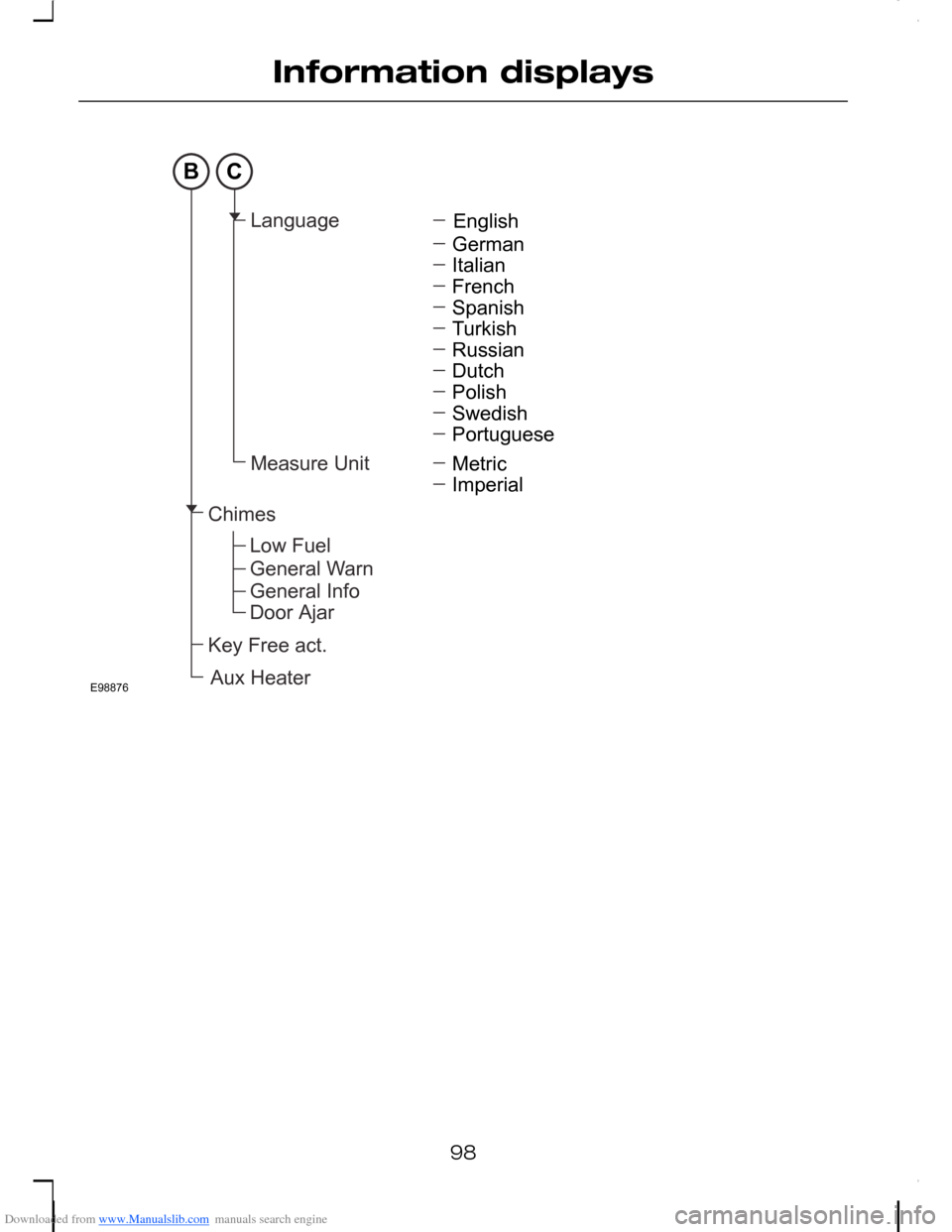

Information displaysBCE98876EnglishLanguageMeasureUnitGermanItalianFrenchSpanishTurkishRussianDutchPolishSwedishPortugueseMetricImperialChimesKeyFreeact.AuxHeaterLowFuelGeneralWarnGeneralInfoDoorAjar

Downloaded from www.Manualslib.com manuals search engine PERSONALISED
SETTINGS
Car Setup menu
Note:For road safety reasons,changes in the Car Setup menucan only be made while the vehicleis stationary. If this menu or one of itssub-menus is open when the vehiclebegins to move, the informationdisplay will automatically exit the CarSetup menu.
Use the rotary control to scrollthrough the displays and pressSET/RESET to choose a sub-menuand adjust the settings.
Scroll to the Car Setup displayusing the rotary control and press theSET/RESET button.
EHPAS personalisation
Note:When the vehicle is stationary,the steering assistance is optimizedin all three settings and does notdiffer noticeably.
Standard: The standard settingsuitable for all driving styles.
Sport: The steering assistance isreduced. This suits a sportier drivingstyle by increasing the feedbackthrough the steering wheel. The sportsetting is also an advantage whendriving on icy and snowy roadconditions.
Comfort: The steering assistanceis increased. The steering will feellighter and you will not need to exertas much force on the wheel.
99

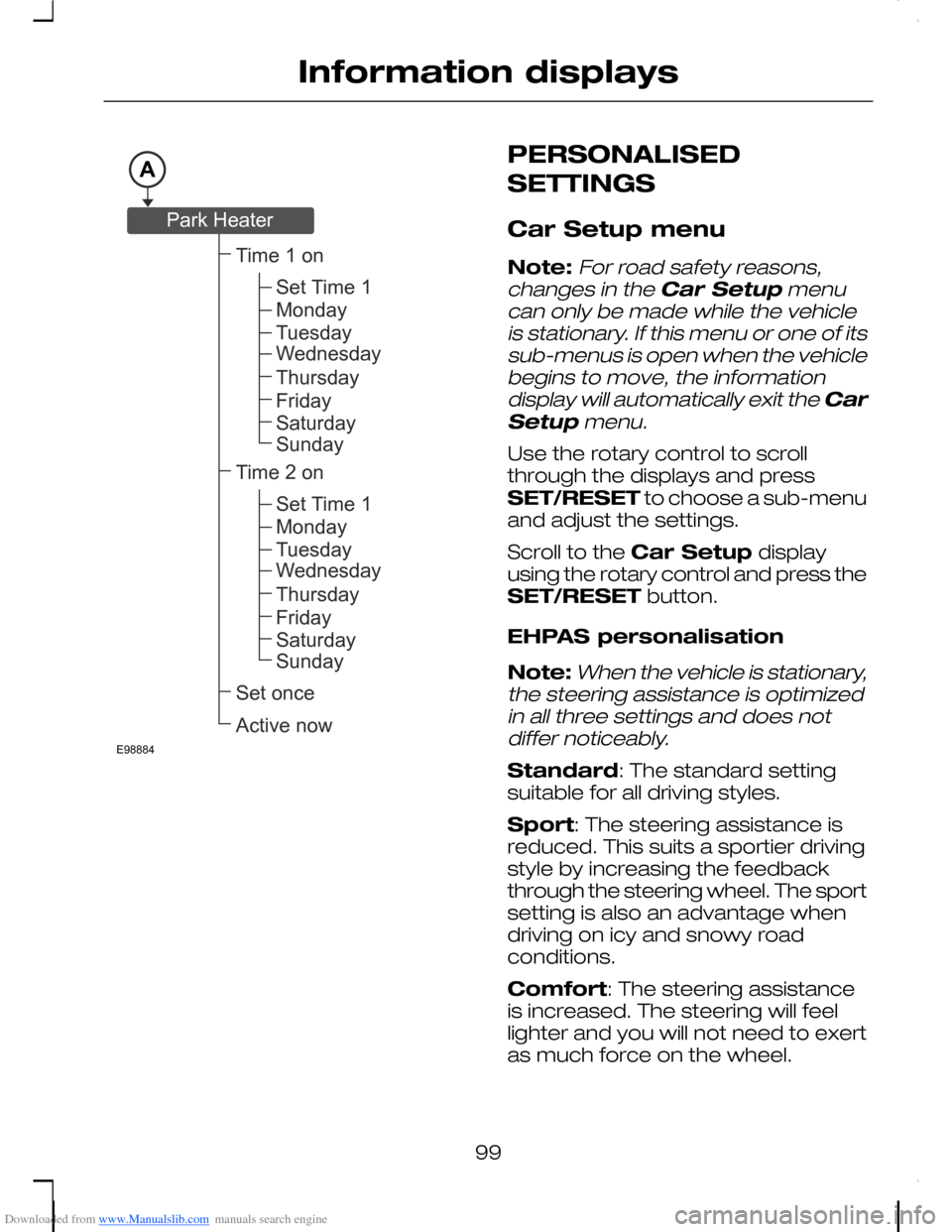

Information displaysAE98884Time1onSetonceActivenowSetTime1MondayTuesdayWednesdayThursdayFridaySaturdaySundayTime2onSetTime1MondayTuesdayWednesdayThursdayFridaySaturdaySundayParkHeater

Downloaded from www.Manualslib.com manuals search engine ATM personalisation
Note:Kickdown functions in thesame way in all three modes.
Economy: The transmission keepsthe engine at lower engine speedsin order to optimize fuel economy.
Adaptive: The standard setupsuitable for all driving styles.
Sport: Initially, the transmission letsthe engine run at higher enginespeeds to provide faster accelerationand greater engine braking efficiency.Thereafter, it will adapt to yourindividual driving style.
ESP
Select this option to activate ESP.
Language setting
A choice of eleven languages areavailable.
Scroll to this display using the rotarycontrol and press the SET/RESETbutton to select the desiredlanguage. Turn the rotary control tosave the setting and exit the menu.
Clock setting
Note:This display is only present onvehicles equipped with aprogrammable auxiliary heater butno Ford audio or navigation system.If the vehicle is equipped with a Fordaudio or navigation system, the timeis set on the audio or navigationsystem. See separate audio ornavigation handbook.
Scroll to this display using the rotarycontrol and press SET/RESET. Thehours start to flash and can be setusing the rotary control.
Press the SET/RESET button toconfirm the setting and move to theminutes.
Proceed in the same way to set theminutes and the date.
After setting the year and pressingSET/RESET, the time and date arestored.
Units of measure
To toggle between metric andimperial units, scroll to this display andpress the SET/RESET button.
Toggling the units of measure usingthis display will affect the followingdisplays:
•Distance to empty
•Average fuel consumption
•Instantaneous fuel consumption
•Average speed
•Outside air temperature
•The temperature display in theautomatic climate control.
The units of measure for outside airtemperature and the automaticclimate control can be toggledindependent of the other displays.See General information (page96).
Auxiliary heaterprogramming
See Auxiliary heater (page 114).
100
Information displays

Downloaded from www.Manualslib.com manuals search engine To programme the auxiliary heater,scroll to this display using the rotarycontrol and press the SET/RESETbutton.
Instant control
To switch on the programmableauxiliary heater or fuel operatedheater, scroll to this display and pressSET/RESET. The cursor will changeto a tick. The tick in this displayconfirms that the heater is nowactivated and will perform oneheating cycle.
AUX. HEATER ON will appear inthe display.
To switch off the programmableauxiliary heater or fuel operatedheater during a heating cycle, scrollto this display and pressSET/RESET. The cursor will changeto a tick. The tick in this displayconfirms that the heater is nowdeactivated.
AUX. HEATER OFF will appear inthe display.
Programme times
Note:The programmed time is thetime at which you wish the vehicle tobe warm and ready to drive, not thetime at which the heater switches on.
Note:Times must be programmedat least 70 minutes in advance of thetime you wish to set.
Note:The time and date must becorrectly set on the audio/ navigationsystem or on the information display.See Clock setting.
Four functions are available forsetting the times at which the vehicleshould be warmed up:
Seven days in the week
One or two times can beprogrammed for every day of theweek.
Five days in the week
One or two times can beprogrammed for the days Mondayto Friday.
Single day within week
One or two times can beprogrammed for one particular dayof the week.
Any time and date
One time can be programmed forone particular day in the next 12months from the date ofprogramming.
Programming procedure forSeven days in the week, Fivedays in the week, Single daywithin week:
In the Auxiliary heaterprogramming menu, scroll to therelevant display using the rotarycontrol and press the SET/RESETbutton.
When programming the functionSingle day within week, choosethe day using the rotary control andpress SET/RESET.
The first programme time will flash.
Press SET/RESET and the hourswill flash.
101
Information displays

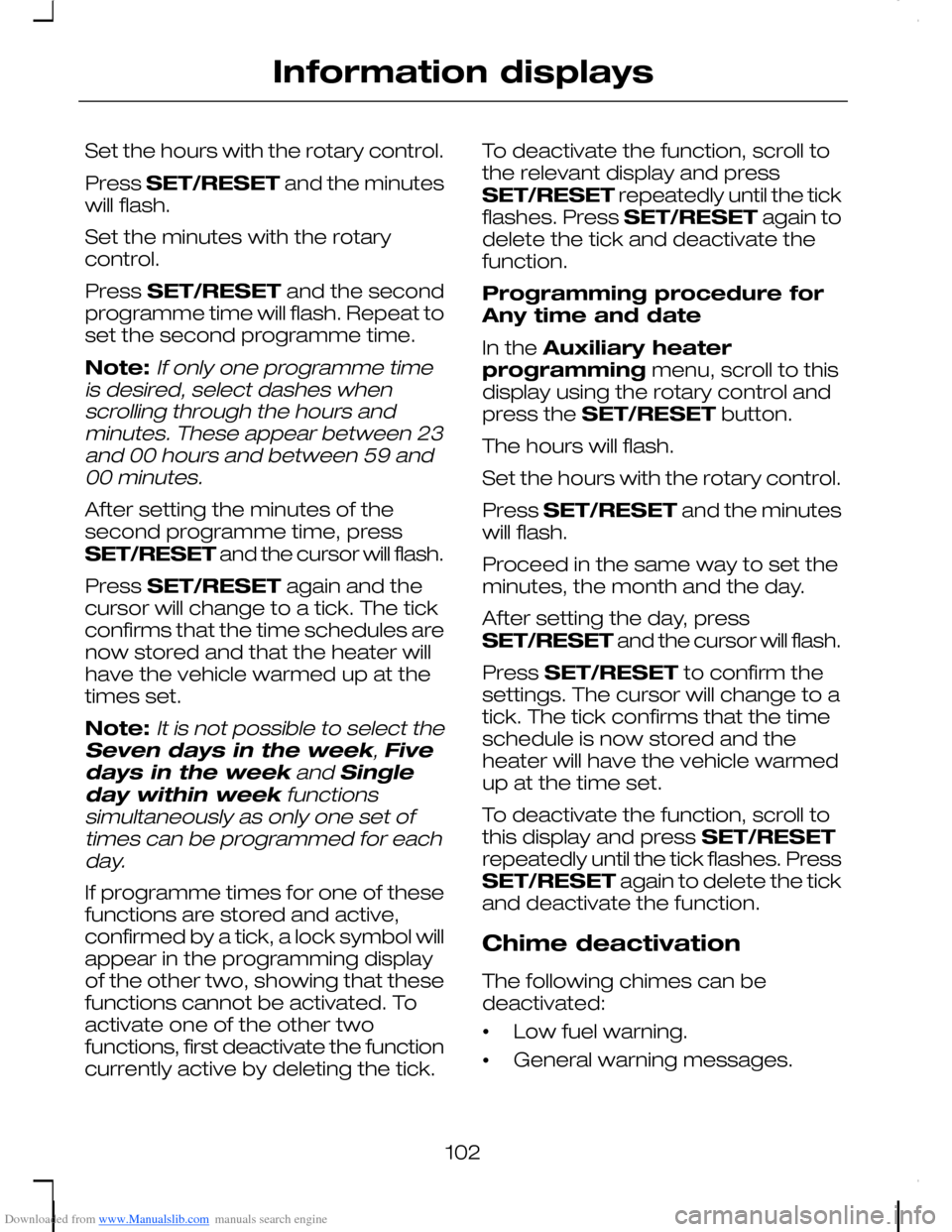

Downloaded from www.Manualslib.com manuals search engine Set the hours with the rotary control.
Press SET/RESET and the minuteswill flash.
Set the minutes with the rotarycontrol.
Press SET/RESET and the secondprogramme time will flash. Repeat toset the second programme time.
Note:If only one programme timeis desired, select dashes whenscrolling through the hours andminutes. These appear between 23and 00 hours and between 59 and00 minutes.
After setting the minutes of thesecond programme time, pressSET/RESET and the cursor will flash.
Press SET/RESET again and thecursor will change to a tick. The tickconfirms that the time schedules arenow stored and that the heater willhave the vehicle warmed up at thetimes set.
Note:It is not possible to select theSeven days in the week, Fivedays in the week and Singleday within week functionssimultaneously as only one set oftimes can be programmed for eachday.
If programme times for one of thesefunctions are stored and active,confirmed by a tick, a lock symbol willappear in the programming displayof the other two, showing that thesefunctions cannot be activated. Toactivate one of the other twofunctions, first deactivate the functioncurrently active by deleting the tick.
To deactivate the function, scroll tothe relevant display and pressSET/RESET repeatedly until the tickflashes. Press SET/RESET again todelete the tick and deactivate thefunction.
Programming procedure forAny time and date
In the Auxiliary heaterprogramming menu, scroll to thisdisplay using the rotary control andpress the SET/RESET button.
The hours will flash.
Set the hours with the rotary control.
Press SET/RESET and the minuteswill flash.
Proceed in the same way to set theminutes, the month and the day.
After setting the day, pressSET/RESET and the cursor will flash.
Press SET/RESET to confirm thesettings. The cursor will change to atick. The tick confirms that the timeschedule is now stored and theheater will have the vehicle warmedup at the time set.
To deactivate the function, scroll tothis display and press SET/RESETrepeatedly until the tick flashes. PressSET/RESET again to delete the tickand deactivate the function.
Chime deactivation
The following chimes can bedeactivated:
•Low fuel warning.
•General warning messages.
102
Information displays

Downloaded from www.Manualslib.com manuals search engine •General information messages.•Door ajar.
