display FORD C MAX 2008 1.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Autolamps........................................65
Front fog lamps...............................65
Rear fog lamps................................65
Headlamp levelling..........................66
Adaptive front lighting system(AFS)..............................................68
Hazard warning flashers................70
Direction indicators..........................71
Interior lamps...................................72
Changing a bulb..............................74
Windows and mirrors
Electric windows.............................84
Exterior mirrors................................85
Electric exterior mirrors..................86
Interior mirror...................................87
Instruments
Gauges.............................................88
Warning lamps and indicators......90
Audible warnings andindicators......................................94
Information displays
General information........................96
Personalised settings.....................99
Information messages.................103
Climate control
Principle of operation....................107
Air vents..........................................107
Manual climate control.................108
Automatic climate control.............111
Heated windows and mirrors......114
Auxiliary heater...............................114
Electric sunroof...............................116
Seats
Sitting in the correct position.......120
Manual seats..................................120
Head restraints...............................121
Electric seats..................................122
Rear seats......................................124
Heated seats.................................132
Convenience features
Sun visors.......................................133
Sun blinds.......................................133
Instrument lighting dimmer..........134
Cigar lighter....................................134
Auxiliary power sockets...............134
Centre console..............................135
Cool box..........................................137
Storage compartments................137
Seat back trays..............................138
Glasses holder...............................139
Toll reader.......................................139
Childminder mirror.........................140
Auxiliary input (AUX IN) socket.....140
Starting the engine
General information.......................141
Ignition switch.................................141
Steering wheel lock.......................142
Starting a petrol engine................142
Starting a diesel engine................144
Keyless starting.............................145
Switching off the engine...............148
Engine heater.................................148
2
Table of contents

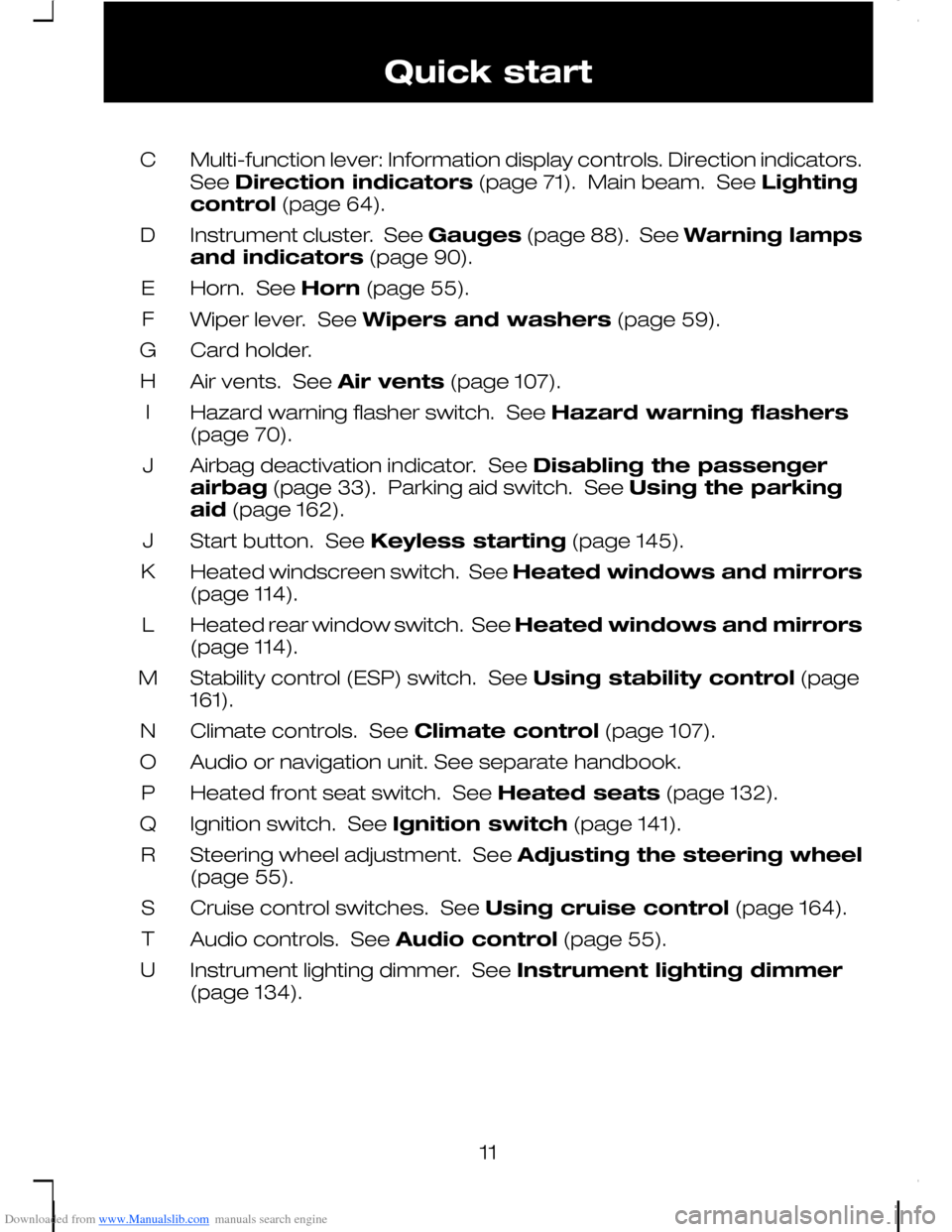

Downloaded from www.Manualslib.com manuals search engine Multi-function lever: Information display controls. Direction indicators.See Direction indicators (page 71). Main beam. See Lightingcontrol (page 64).
C
Instrument cluster. See Gauges (page 88). See Warning lampsand indicators (page 90).
D
Horn. See Horn (page 55).E
Wiper lever. See Wipers and washers (page 59).F
Card holder.G
Air vents. See Air vents (page 107).H
Hazard warning flasher switch. See Hazard warning flashers(page 70).I
Airbag deactivation indicator. See Disabling the passengerairbag (page 33). Parking aid switch. See Using the parkingaid (page 162).
J
Start button. See Keyless starting (page 145).J
Heated windscreen switch. See Heated windows and mirrors(page 114).K
Heated rear window switch. See Heated windows and mirrors(page 114).L
Stability control (ESP) switch. See Using stability control (page161).M
Climate controls. See Climate control (page 107).N
Audio or navigation unit. See separate handbook.O
Heated front seat switch. See Heated seats (page 132).P
Ignition switch. See Ignition switch (page 141).Q
Steering wheel adjustment. See Adjusting the steering wheel(page 55).R
Cruise control switches. See Using cruise control (page 164).S
Audio controls. See Audio control (page 55).T
Instrument lighting dimmer. See Instrument lighting dimmer(page 134).U
11
Quick start

Downloaded from www.Manualslib.com manuals search engine Air vents. See Air vents (page 107).D
Heated windscreen switch. See Heated windows and mirrors(page 114).E
Multi-function lever: Information display controls. See Informationdisplays (page 96). Direction indicators. See Directionindicators (page 71). Main beam. See Lighting control (page64).
F
Horn. See Horn (page 55).G
Instrument cluster. See Gauges (page 88). See Warning lampsand indicators (page 90).
H
Wiper lever. See Wipers and washers (page 59).I
Headlamp levelling control. See Headlamp levelling (page 66).J
Lighting control. See Lighting control (page 64). Front fog lamps.See Front fog lamps (page 65). Rear fog lamp. See Rear foglamps (page 65).
K
Instrument lighting dimmer. See Instrument lighting dimmer(page 134).L
Ignition switch. See Ignition switch (page 141).M
Cruise control switches. See Using cruise control (page 164).N
Steering wheel adjustment. See Adjusting the steering wheel(page 55).O
Audio controls. See Audio control (page 55).P
Heated rear window switch. See Heated windows and mirrors(page 114).Q
Stability control (ESP) switch. See Using stability control (page161).R
Climate controls. See Climate control (page 107).S
Audio/navigation unit. See separate handbook.T
Heated front seat switch. See Heated seats (page 132).U
13
Quick start

Downloaded from www.Manualslib.com manuals search engine Note:If the door handles are pulledrepeatedly during a short period oftime without the presence of a validpassive key, the system mightbecome inoperable for a certain time.
To unlock or lock the vehicle, thepassive key must be located withinone of the three external detectionranges. These are locatedapproximately one and a half metresfrom the driver’s and frontpassenger’s door handles and thetailgate.
Passive key
WARNING
Do not store the passive keywith metal objects or electronicdevices such as mobile phones asthis could cause interference with thekey free system.
The vehicle is operated by means ofa passive key See Type approvals(page 255). . The passive key can alsobe used as a remote control. SeeLocking and unlocking (page40).
Spare key
A spare key is provided for thefollowing situations:
•If the passive key frequencies arejammed.
•If the passive key battery is flat.
•If the key free function has beendeactivated using the informationdisplay.
•When the vehicle is being towed.
•To reactivate a deactivatedpassive key.
The spare key can be used in thefollowing ways:
•To open the bonnet. SeeOpening and closing thebonnet (page 189).
•To lock and unlock the vehicle.
•To start the engine. SeeStarting the engine (page 141).
45
LocksE78276 E78277

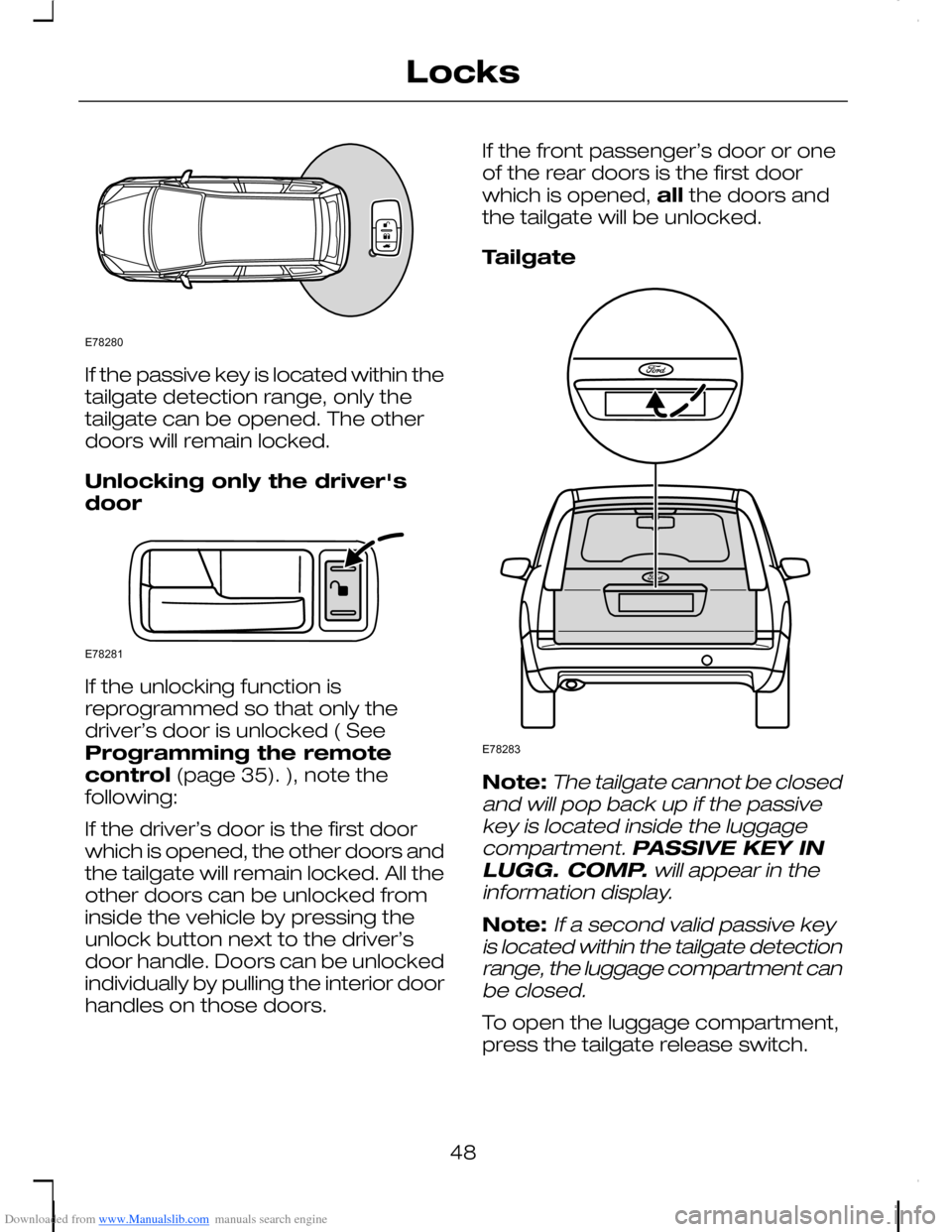

Downloaded from www.Manualslib.com manuals search engine If the passive key is located within thetailgate detection range, only thetailgate can be opened. The otherdoors will remain locked.
Unlocking only the driver'sdoor
If the unlocking function isreprogrammed so that only thedriver’s door is unlocked ( SeeProgramming the remotecontrol (page 35). ), note thefollowing:
If the driver’s door is the first doorwhich is opened, the other doors andthe tailgate will remain locked. All theother doors can be unlocked frominside the vehicle by pressing theunlock button next to the driver’sdoor handle. Doors can be unlockedindividually by pulling the interior doorhandles on those doors.
If the front passenger’s door or oneof the rear doors is the first doorwhich is opened, all the doors andthe tailgate will be unlocked.
Tailgate
Note:The tailgate cannot be closedand will pop back up if the passivekey is located inside the luggagecompartment. PASSIVE KEY INLUGG. COMP. will appear in theinformation display.
Note:If a second valid passive keyis located within the tailgate detectionrange, the luggage compartment canbe closed.
To open the luggage compartment,press the tailgate release switch.
48
LocksE78280 E78281 E78283

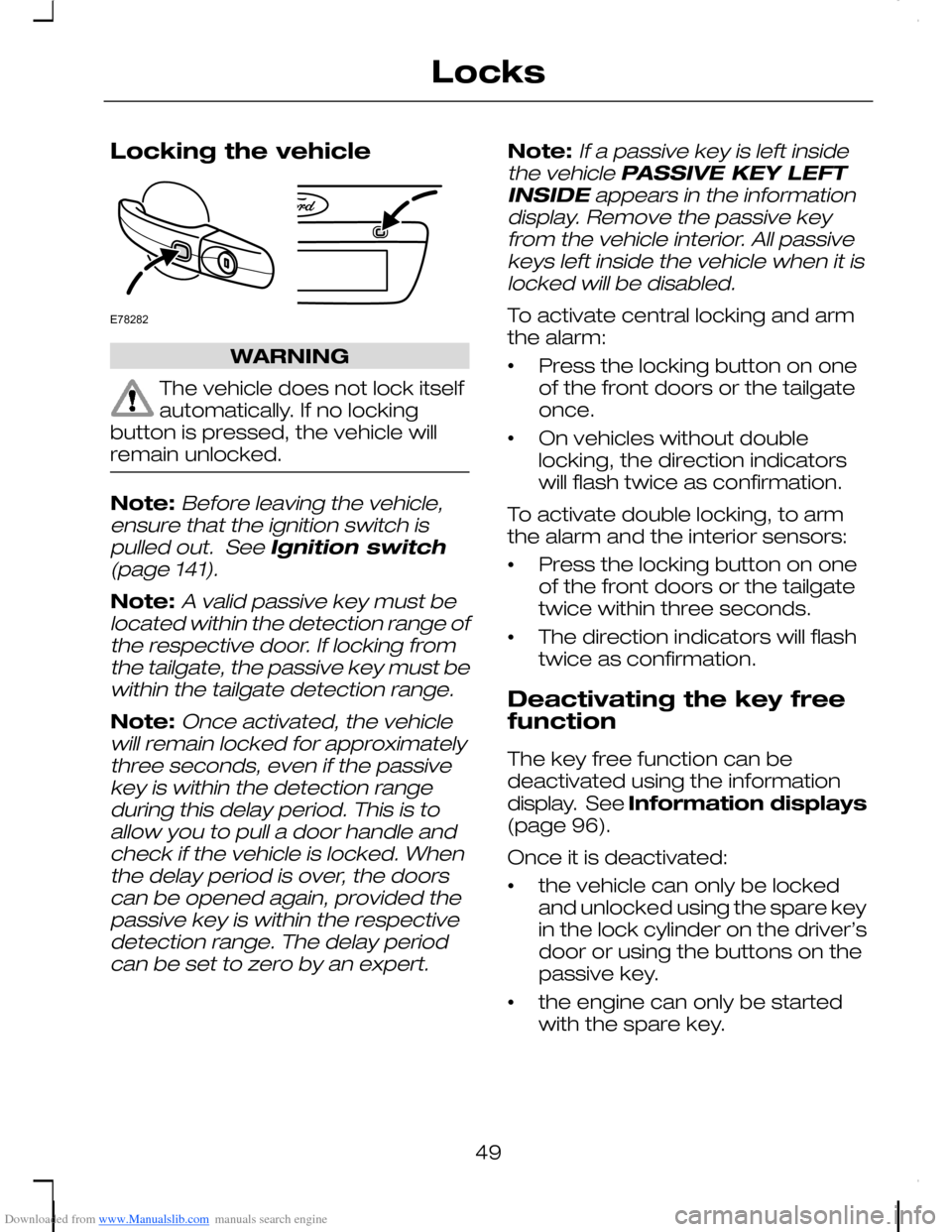

Downloaded from www.Manualslib.com manuals search engine Locking the vehicle
WARNING
The vehicle does not lock itselfautomatically. If no lockingbutton is pressed, the vehicle willremain unlocked.
Note:Before leaving the vehicle,ensure that the ignition switch ispulled out. See Ignition switch(page 141).
Note:A valid passive key must belocated within the detection range ofthe respective door. If locking fromthe tailgate, the passive key must bewithin the tailgate detection range.
Note:Once activated, the vehiclewill remain locked for approximatelythree seconds, even if the passivekey is within the detection rangeduring this delay period. This is toallow you to pull a door handle andcheck if the vehicle is locked. Whenthe delay period is over, the doorscan be opened again, provided thepassive key is within the respectivedetection range. The delay periodcan be set to zero by an expert.
Note:If a passive key is left insidethe vehicle PASSIVE KEY LEFTINSIDE appears in the informationdisplay. Remove the passive keyfrom the vehicle interior. All passivekeys left inside the vehicle when it islocked will be disabled.
To activate central locking and armthe alarm:
•Press the locking button on oneof the front doors or the tailgateonce.
•On vehicles without doublelocking, the direction indicatorswill flash twice as confirmation.
To activate double locking, to armthe alarm and the interior sensors:
•Press the locking button on oneof the front doors or the tailgatetwice within three seconds.
•The direction indicators will flashtwice as confirmation.
Deactivating the key freefunction
The key free function can bedeactivated using the informationdisplay. See Information displays(page 96).
Once it is deactivated:
•the vehicle can only be lockedand unlocked using the spare keyin the lock cylinder on the driver’sdoor or using the buttons on thepassive key.
•the engine can only be startedwith the spare key.
49
LocksE78282

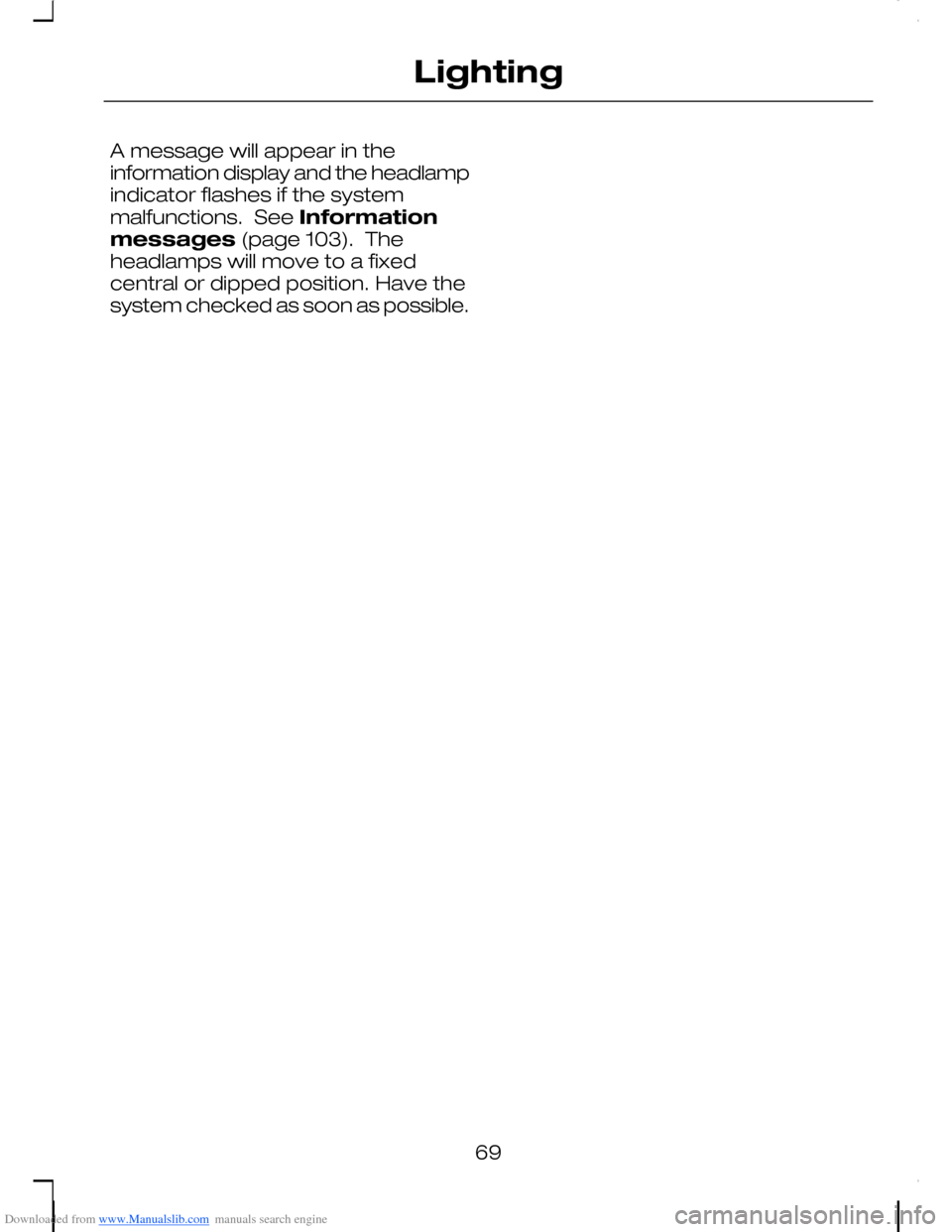

Downloaded from www.Manualslib.com manuals search engine A message will appear in theinformation display and the headlampindicator flashes if the systemmalfunctions. See Informationmessages (page 103). Theheadlamps will move to a fixedcentral or dipped position. Have thesystem checked as soon as possible.
69
Lighting

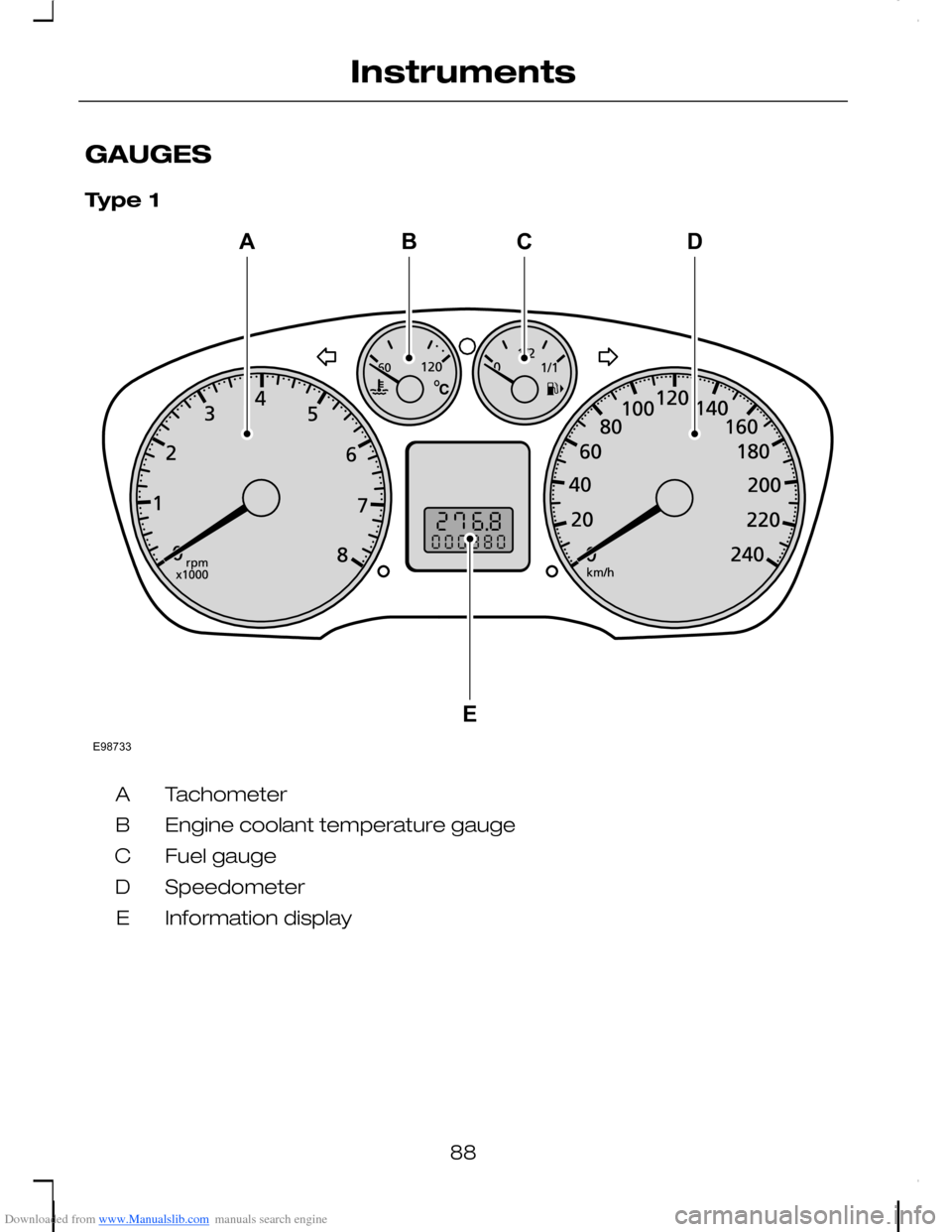

Downloaded from www.Manualslib.com manuals search engine GAUGES
Type 1
TachometerA
Engine coolant temperature gaugeB
Fuel gaugeC
SpeedometerD
Information displayE
88
InstrumentsE98733ABCED

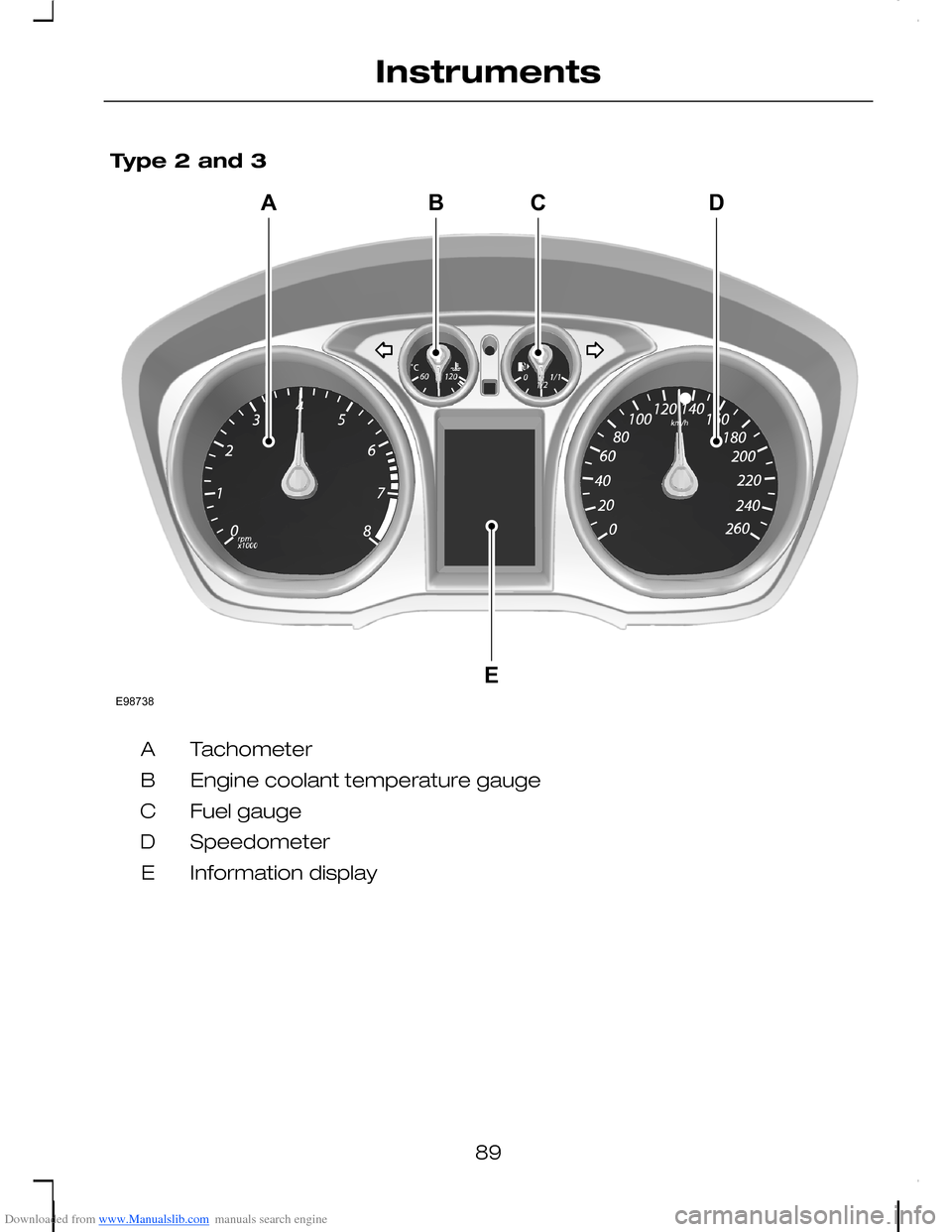

Downloaded from www.Manualslib.com manuals search engine Type 2 and 3
TachometerA
Engine coolant temperature gaugeB
Fuel gaugeC
SpeedometerD
Information displayE
89
InstrumentsE98738ABCED

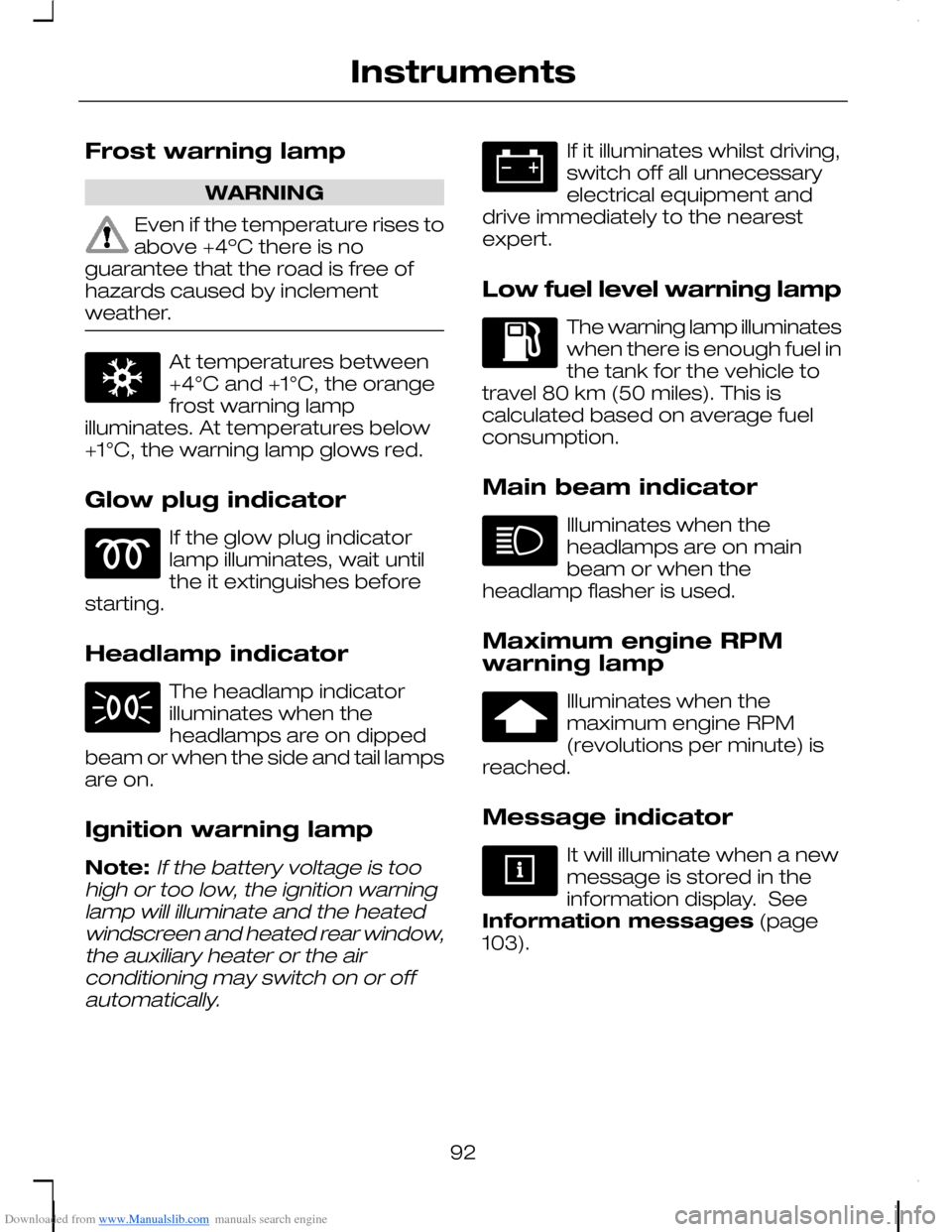

Downloaded from www.Manualslib.com manuals search engine Frost warning lamp
WARNING
Even if the temperature rises toabove +4ºC there is noguarantee that the road is free ofhazards caused by inclementweather.
At temperatures between+4°C and +1°C, the orangefrost warning lampilluminates. At temperatures below+1°C, the warning lamp glows red.
Glow plug indicator
If the glow plug indicatorlamp illuminates, wait untilthe it extinguishes beforestarting.
Headlamp indicator
The headlamp indicatorilluminates when theheadlamps are on dippedbeam or when the side and tail lampsare on.
Ignition warning lamp
Note:If the battery voltage is toohigh or too low, the ignition warninglamp will illuminate and the heatedwindscreen and heated rear window,the auxiliary heater or the airconditioning may switch on or offautomatically.
If it illuminates whilst driving,switch off all unnecessaryelectrical equipment anddrive immediately to the nearestexpert.
Low fuel level warning lamp
The warning lamp illuminateswhen there is enough fuel inthe tank for the vehicle totravel 80 km (50 miles). This iscalculated based on average fuelconsumption.
Main beam indicator
Illuminates when theheadlamps are on mainbeam or when theheadlamp flasher is used.
Maximum engine RPMwarning lamp
Illuminates when themaximum engine RPM(revolutions per minute) isreached.
Message indicator
It will illuminate when a newmessage is stored in theinformation display. SeeInformation messages (page103).
92
Instruments
