display FORD C MAX 2008 1.G Owner's Manual

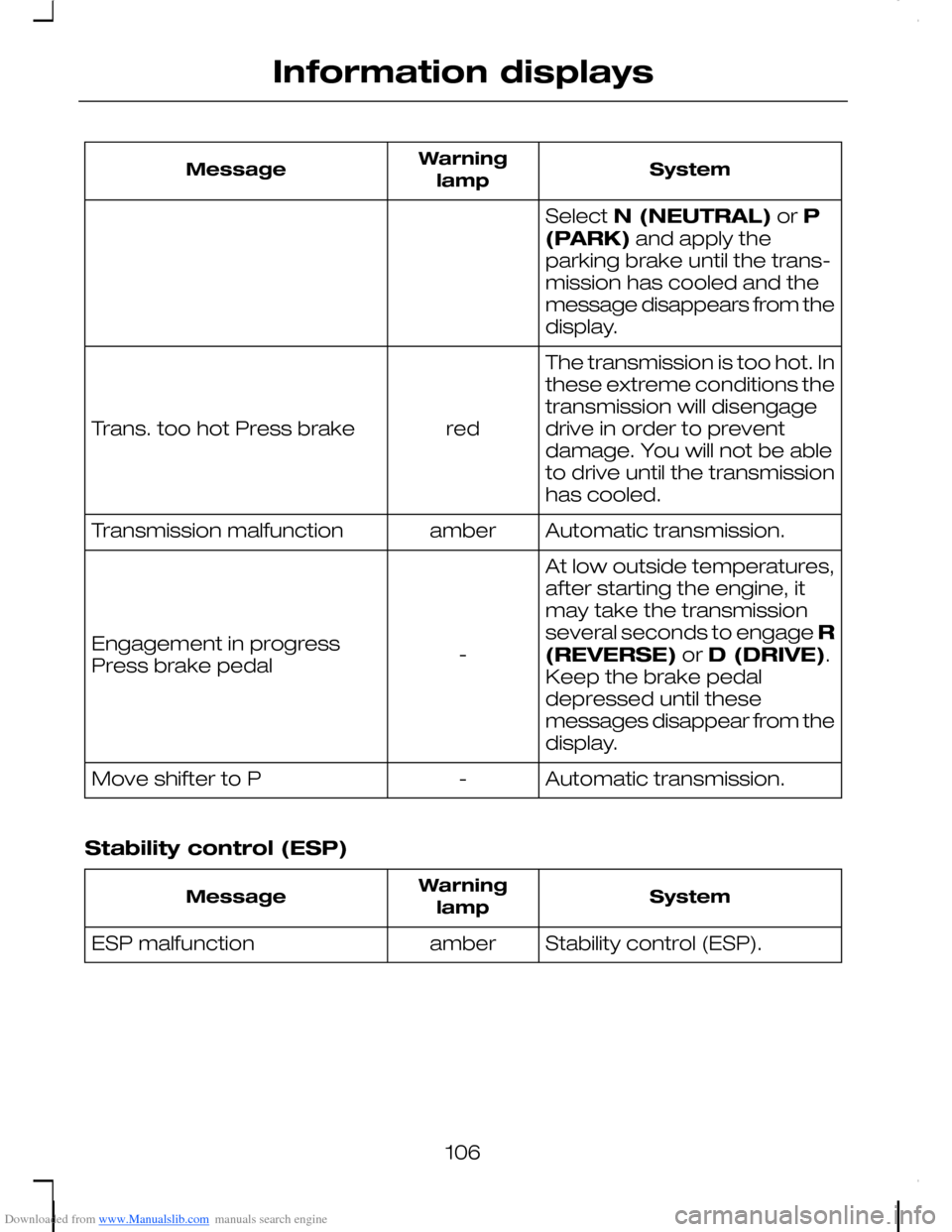

Downloaded from www.Manualslib.com manuals search engine SystemWarninglampMessage
Select N (NEUTRAL) or P(PARK) and apply theparking brake until the trans-mission has cooled and themessage disappears from thedisplay.
The transmission is too hot. Inthese extreme conditions thetransmission will disengagedrive in order to preventdamage. You will not be ableto drive until the transmissionhas cooled.
redTrans. too hot Press brake
Automatic transmission.amberTransmission malfunction
At low outside temperatures,after starting the engine, itmay take the transmissionseveral seconds to engage R(REVERSE) or D (DRIVE).Keep the brake pedaldepressed until thesemessages disappear from thedisplay.
-Engagement in progressPress brake pedal
Automatic transmission.-Move shifter to P
Stability control (ESP)
SystemWarninglampMessage
Stability control (ESP).amberESP malfunction
106
Information displays

Downloaded from www.Manualslib.com manuals search engine You can set the temperaturebetween 16ºC and 28ºC in steps of0.5ºC. In position LO (below 16ºC)the system will switch to permanentcooling, in HI (above 28ºC) topermanent heating, and not regulatea stable temperature.
Mono mode
In mono mode, the temperaturesettings for both the driver’s andpassenger’s side are linked. If youadjust the temperature using therotary control on the driver’s side, thesettings will be adjusted to the samesetting on the passenger’s side. Inmono mode, MONO appears in thedisplay.
To switch mono mode off
Select a temperature for thepassenger’s side with the rotarycontrol on the passenger’s side.Mono mode will switch off andMONO disappears from the display.The temperature for the driver’s sidewill remain unchanged. You can nowadjust the driver and passenger sidetemperatures independently of eachanother. The temperature settingsfor each side are shown in thedisplay. You can set a temperaturedifference of up to 4ºC.
Note:If you set a temperature ofgreater than 4°C, the temperatureon the other side will be adjusted sothat the difference remains 4°C.
Note:If you set one of the sides toHI or LO, both sides will be set to HIor LO.
To switch mono mode backon
To switch mono mode back on,press the MONO button. MONOreappears in the display and thepassenger’s side temperature will beadjusted to the driver’s sidetemperature.
Blower
Use the buttons to adjust the blowerspeed.
The blower setting is indicated in thedisplay.
To return to auto mode, press theAUTO button.
Air distribution
To adjust air distribution, press thedesired button. Any combination ofsettings can be selectedsimultaneously.
112
Climate control

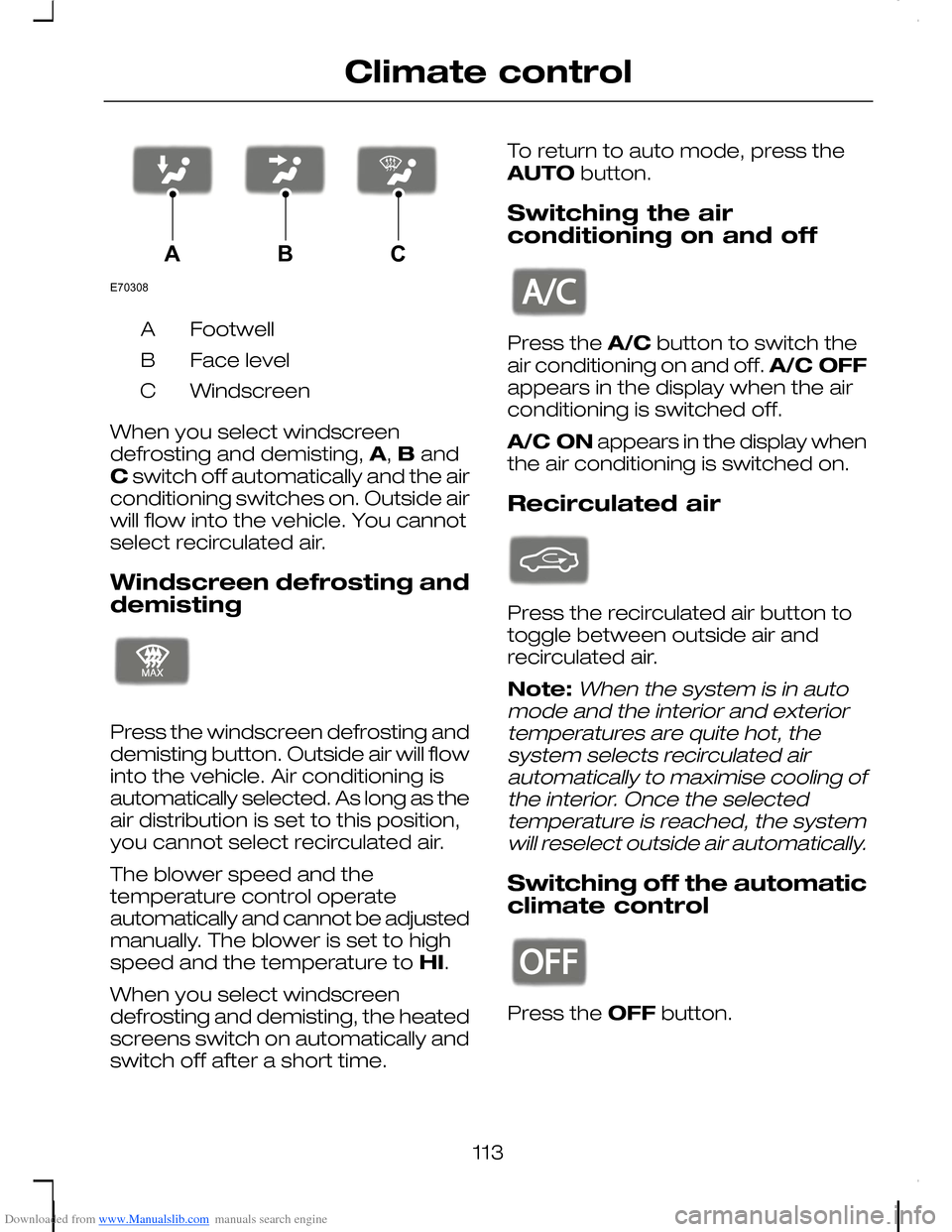

Downloaded from www.Manualslib.com manuals search engine FootwellA
Face levelB
WindscreenC
When you select windscreendefrosting and demisting, A, B andC switch off automatically and the airconditioning switches on. Outside airwill flow into the vehicle. You cannotselect recirculated air.
Windscreen defrosting and
demisting
Press the windscreen defrosting anddemisting button. Outside air will flowinto the vehicle. Air conditioning isautomatically selected. As long as theair distribution is set to this position,you cannot select recirculated air.
The blower speed and thetemperature control operateautomatically and cannot be adjustedmanually. The blower is set to highspeed and the temperature to HI.
When you select windscreendefrosting and demisting, the heatedscreens switch on automatically andswitch off after a short time.
To return to auto mode, press theAUTO button.
Switching the airconditioning on and off
Press the A/C button to switch theair conditioning on and off. A/C OFFappears in the display when the airconditioning is switched off.
A/C ON appears in the display whenthe air conditioning is switched on.
Recirculated air
Press the recirculated air button totoggle between outside air andrecirculated air.
Note:When the system is in automode and the interior and exteriortemperatures are quite hot, thesystem selects recirculated airautomatically to maximise cooling ofthe interior. Once the selectedtemperature is reached, the systemwill reselect outside air automatically.
Switching off the automaticclimate control
Press the OFF button.
113
Climate controlE70308ABC E91392 E91393 E91394

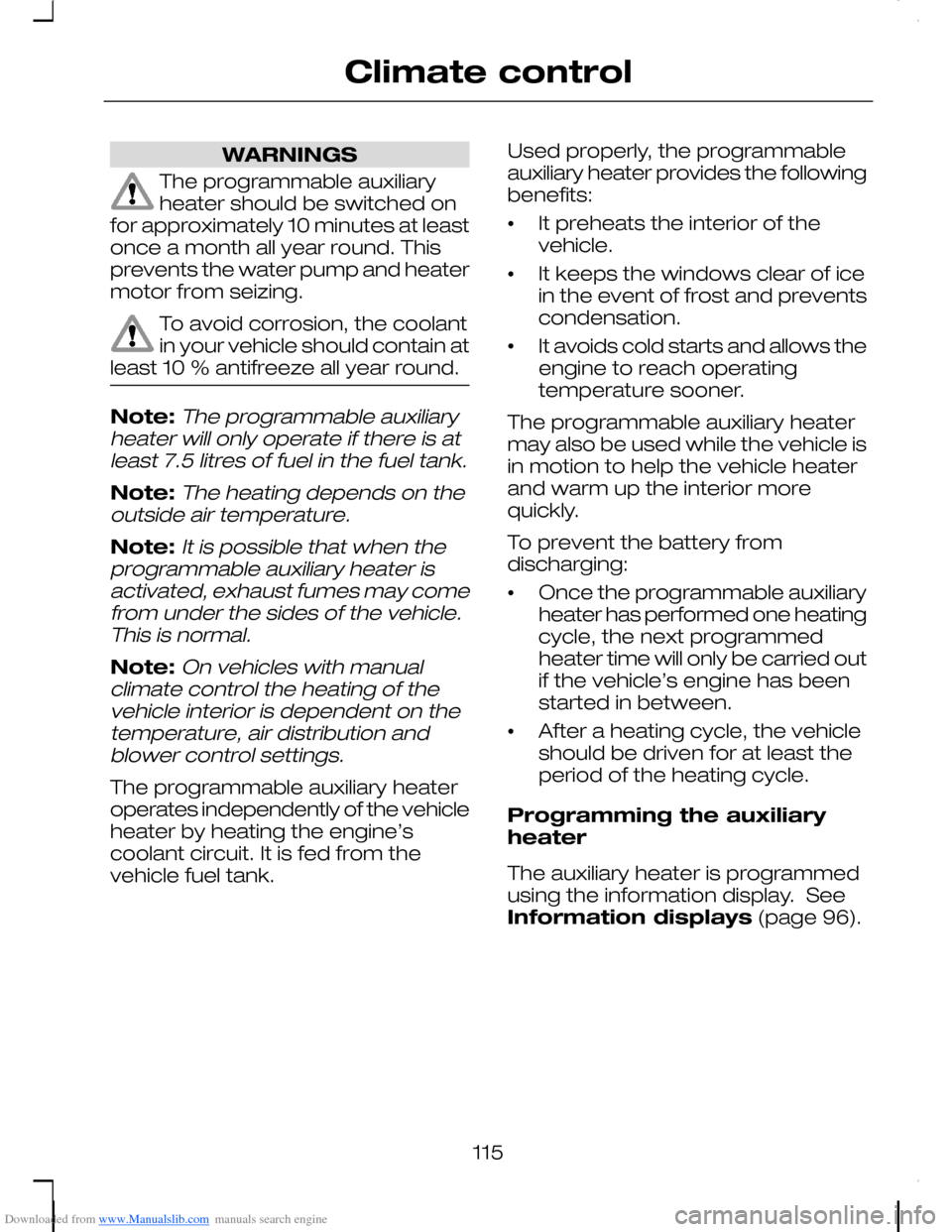

Downloaded from www.Manualslib.com manuals search engine WARNINGS
The programmable auxiliaryheater should be switched onfor approximately 10 minutes at leastonce a month all year round. Thisprevents the water pump and heatermotor from seizing.
To avoid corrosion, the coolantin your vehicle should contain atleast 10 % antifreeze all year round.
Note:The programmable auxiliaryheater will only operate if there is atleast 7.5 litres of fuel in the fuel tank.
Note:The heating depends on theoutside air temperature.
Note:It is possible that when theprogrammable auxiliary heater isactivated, exhaust fumes may comefrom under the sides of the vehicle.This is normal.
Note:On vehicles with manualclimate control the heating of thevehicle interior is dependent on thetemperature, air distribution andblower control settings.
The programmable auxiliary heateroperates independently of the vehicleheater by heating the engine’scoolant circuit. It is fed from thevehicle fuel tank.
Used properly, the programmableauxiliary heater provides the followingbenefits:
•It preheats the interior of thevehicle.
•It keeps the windows clear of icein the event of frost and preventscondensation.
•It avoids cold starts and allows theengine to reach operatingtemperature sooner.
The programmable auxiliary heatermay also be used while the vehicle isin motion to help the vehicle heaterand warm up the interior morequickly.
To prevent the battery fromdischarging:
•Once the programmable auxiliaryheater has performed one heatingcycle, the next programmedheater time will only be carried outif the vehicle’s engine has beenstarted in between.
•After a heating cycle, the vehicleshould be driven for at least theperiod of the heating cycle.
Programming the auxiliaryheater
The auxiliary heater is programmedusing the information display. SeeInformation displays (page 96).
115
Climate control

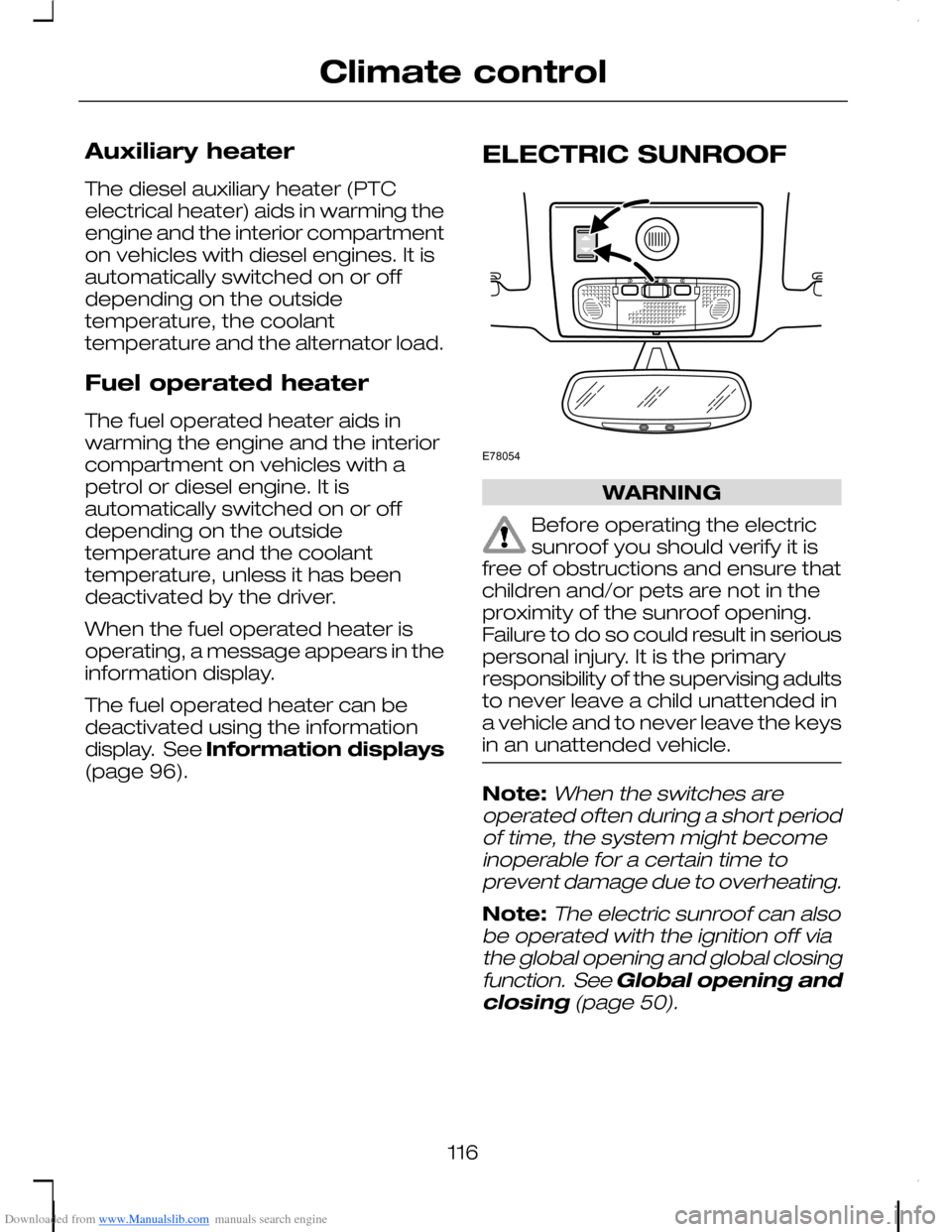

Downloaded from www.Manualslib.com manuals search engine Auxiliary heater
The diesel auxiliary heater (PTCelectrical heater) aids in warming theengine and the interior compartmenton vehicles with diesel engines. It isautomatically switched on or offdepending on the outsidetemperature, the coolanttemperature and the alternator load.
Fuel operated heater
The fuel operated heater aids inwarming the engine and the interiorcompartment on vehicles with apetrol or diesel engine. It isautomatically switched on or offdepending on the outsidetemperature and the coolanttemperature, unless it has beendeactivated by the driver.
When the fuel operated heater isoperating, a message appears in theinformation display.
The fuel operated heater can bedeactivated using the informationdisplay. See Information displays(page 96).
ELECTRIC SUNROOF
WARNING
Before operating the electricsunroof you should verify it isfree of obstructions and ensure thatchildren and/or pets are not in theproximity of the sunroof opening.Failure to do so could result in seriouspersonal injury. It is the primaryresponsibility of the supervising adultsto never leave a child unattended ina vehicle and to never leave the keysin an unattended vehicle.
Note:When the switches areoperated often during a short periodof time, the system might becomeinoperable for a certain time toprevent damage due to overheating.
Note:The electric sunroof can alsobe operated with the ignition off viathe global opening and global closingfunction. See Global opening andclosing (page 50).
116
Climate controlE78054

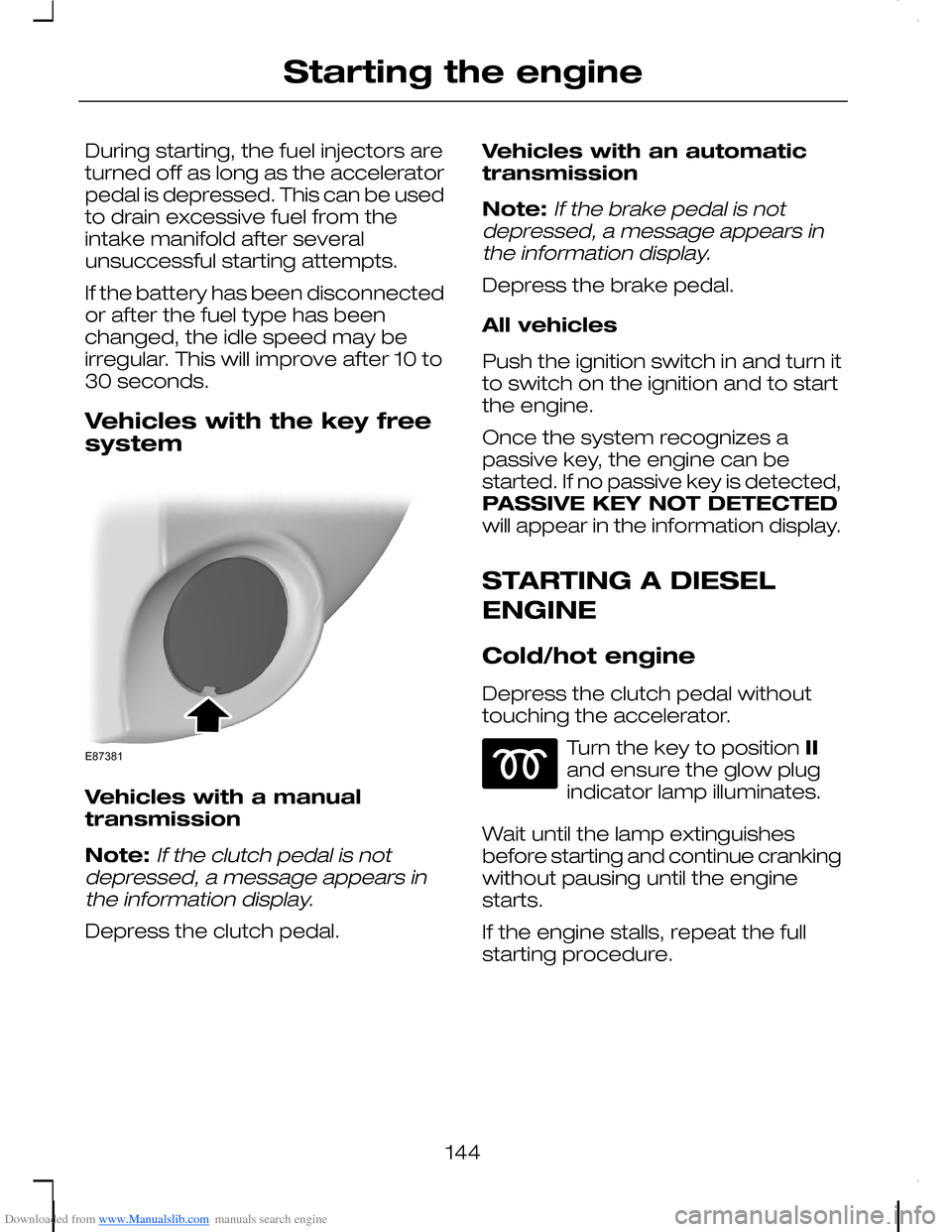

Downloaded from www.Manualslib.com manuals search engine During starting, the fuel injectors areturned off as long as the acceleratorpedal is depressed. This can be usedto drain excessive fuel from theintake manifold after severalunsuccessful starting attempts.
If the battery has been disconnectedor after the fuel type has beenchanged, the idle speed may beirregular. This will improve after 10 to30 seconds.
Vehicles with the key freesystem
Vehicles with a manualtransmission
Note:If the clutch pedal is notdepressed, a message appears inthe information display.
Depress the clutch pedal.
Vehicles with an automatictransmission
Note:If the brake pedal is notdepressed, a message appears inthe information display.
Depress the brake pedal.
All vehicles
Push the ignition switch in and turn itto switch on the ignition and to startthe engine.
Once the system recognizes apassive key, the engine can bestarted. If no passive key is detected,PASSIVE KEY NOT DETECTEDwill appear in the information display.
STARTING A DIESEL
ENGINE
Cold/hot engine
Depress the clutch pedal withouttouching the accelerator.
Turn the key to position IIand ensure the glow plugindicator lamp illuminates.
Wait until the lamp extinguishesbefore starting and continue crankingwithout pausing until the enginestarts.
If the engine stalls, repeat the fullstarting procedure.
144
Starting the engineE87381

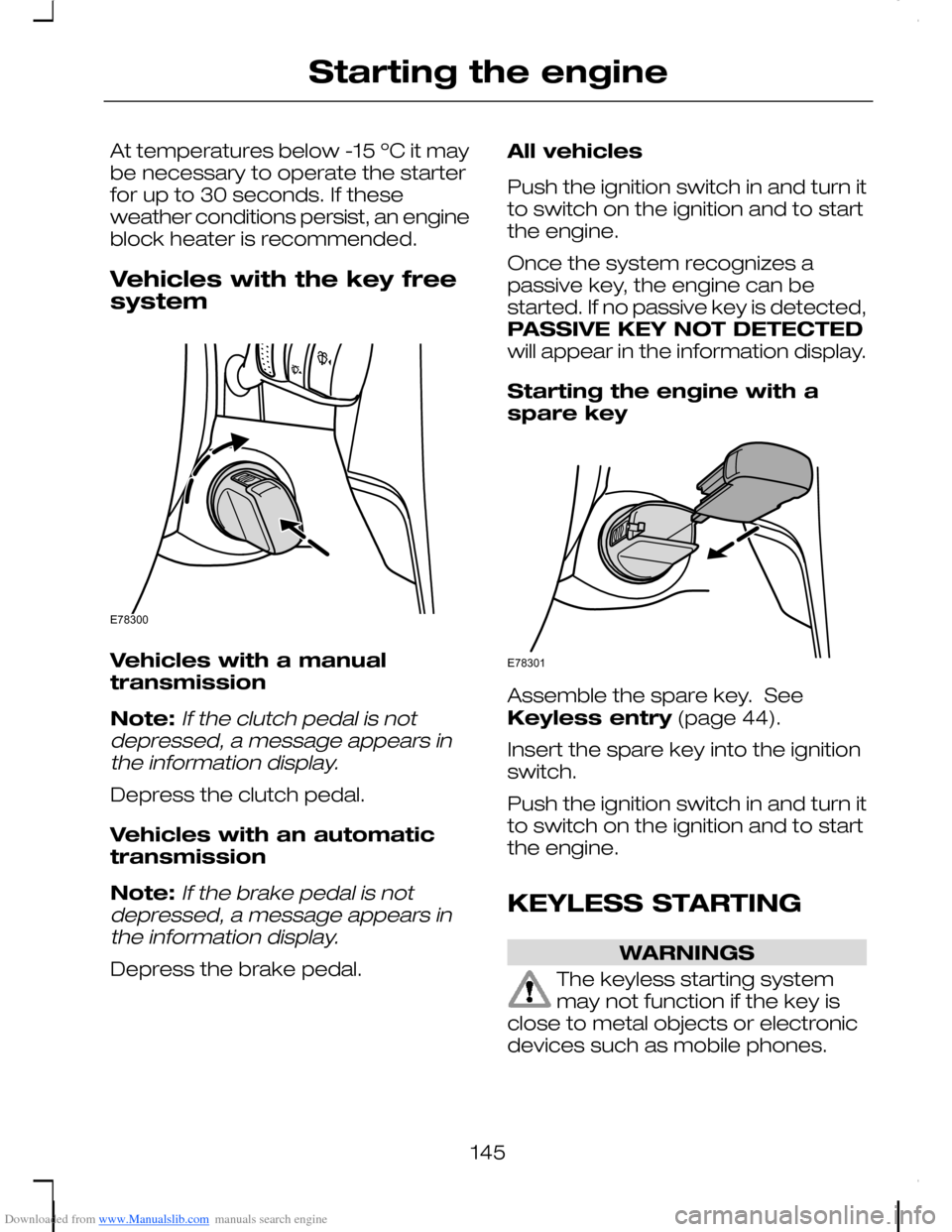

Downloaded from www.Manualslib.com manuals search engine At temperatures below -15 ºC it maybe necessary to operate the starterfor up to 30 seconds. If theseweather conditions persist, an engineblock heater is recommended.
Vehicles with the key freesystem
Vehicles with a manualtransmission
Note:If the clutch pedal is notdepressed, a message appears inthe information display.
Depress the clutch pedal.
Vehicles with an automatictransmission
Note:If the brake pedal is notdepressed, a message appears inthe information display.
Depress the brake pedal.
All vehicles
Push the ignition switch in and turn itto switch on the ignition and to startthe engine.
Once the system recognizes apassive key, the engine can bestarted. If no passive key is detected,PASSIVE KEY NOT DETECTEDwill appear in the information display.
Starting the engine with aspare key
Assemble the spare key. SeeKeyless entry (page 44).
Insert the spare key into the ignitionswitch.
Push the ignition switch in and turn itto switch on the ignition and to startthe engine.
KEYLESS STARTING
WARNINGS
The keyless starting systemmay not function if the key isclose to metal objects or electronicdevices such as mobile phones.
145
Starting the engineE78300 E78301

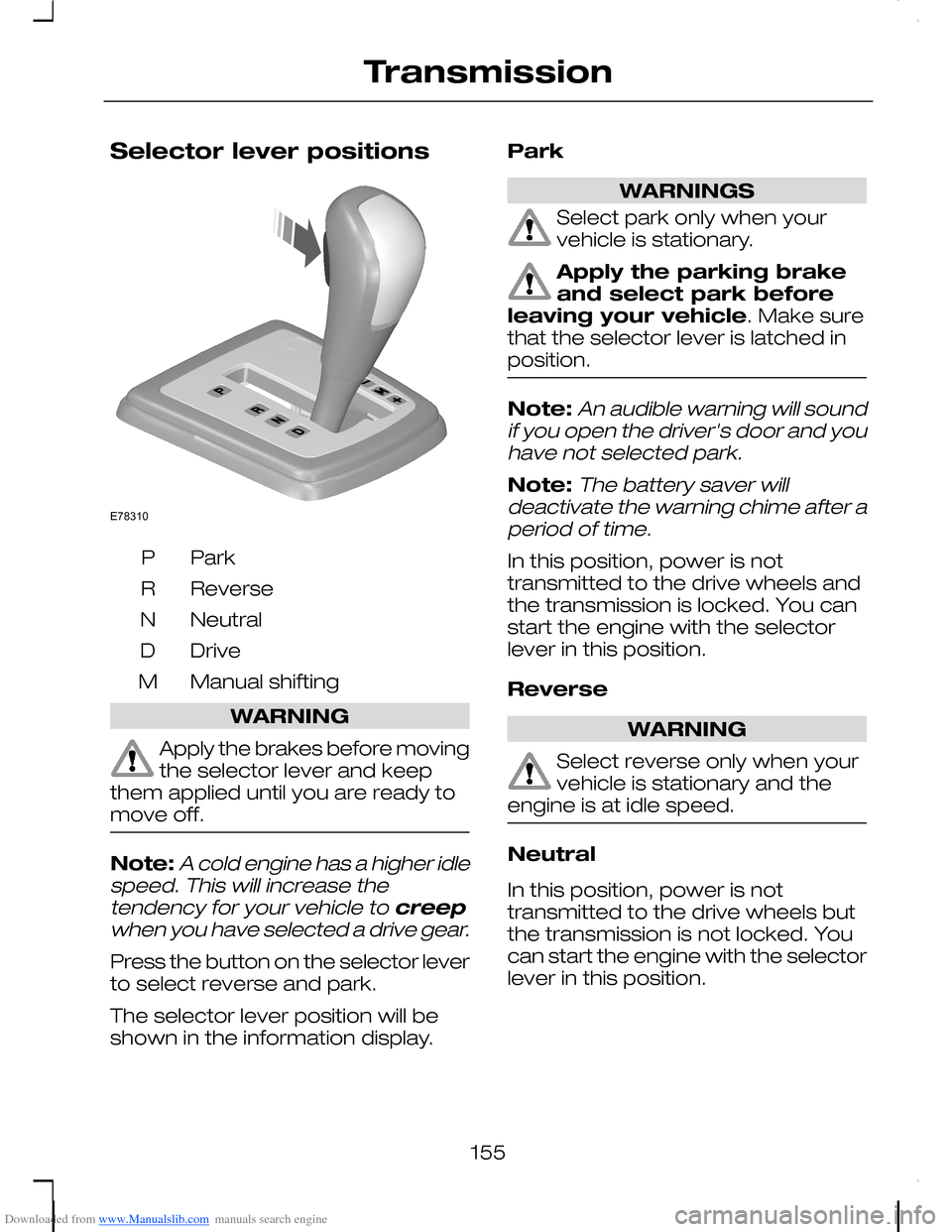

Downloaded from www.Manualslib.com manuals search engine Selector lever positions
ParkP
ReverseR
NeutralN
DriveD
Manual shiftingM
WARNING
Apply the brakes before movingthe selector lever and keepthem applied until you are ready tomove off.
Note:A cold engine has a higher idlespeed. This will increase thetendency for your vehicle to creepwhen you have selected a drive gear.
Press the button on the selector leverto select reverse and park.
The selector lever position will beshown in the information display.
Park
WARNINGS
Select park only when yourvehicle is stationary.
Apply the parking brakeand select park beforeleaving your vehicle. Make surethat the selector lever is latched inposition.
Note:An audible warning will soundif you open the driver's door and youhave not selected park.
Note:The battery saver willdeactivate the warning chime after aperiod of time.
In this position, power is nottransmitted to the drive wheels andthe transmission is locked. You canstart the engine with the selectorlever in this position.
Reverse
WARNING
Select reverse only when yourvehicle is stationary and theengine is at idle speed.
Neutral
In this position, power is nottransmitted to the drive wheels butthe transmission is not locked. Youcan start the engine with the selectorlever in this position.
155
TransmissionE78310

Downloaded from www.Manualslib.com manuals search engine USING STABILITY
CONTROL
Press and hold the switch for onesecond. The switch will illuminate. Amessage will be shown in the display.See Information messages(page 103).
Press the switch again to turn thesystem on. The system will beswitched on automatically every timeyou switch the ignition on.
For item location: See Quick start(page 10).
161
Stability controlE78085

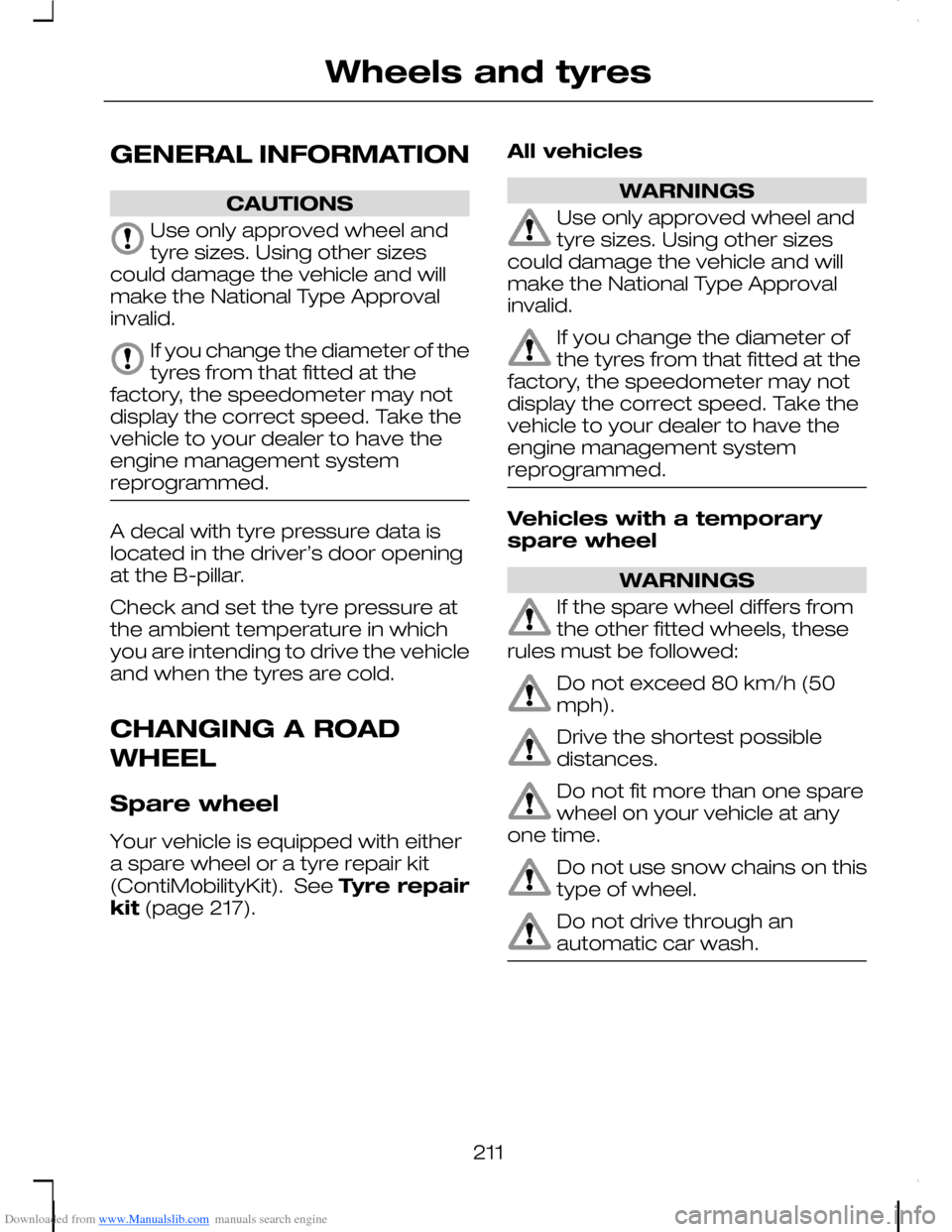

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
CAUTIONS
Use only approved wheel andtyre sizes. Using other sizescould damage the vehicle and willmake the National Type Approvalinvalid.
If you change the diameter of thetyres from that fitted at thefactory, the speedometer may notdisplay the correct speed. Take thevehicle to your dealer to have theengine management systemreprogrammed.
A decal with tyre pressure data islocated in the driver’s door openingat the B-pillar.
Check and set the tyre pressure atthe ambient temperature in whichyou are intending to drive the vehicleand when the tyres are cold.
CHANGING A ROAD
WHEEL
Spare wheel
Your vehicle is equipped with eithera spare wheel or a tyre repair kit(ContiMobilityKit). See Tyre repairkit (page 217).
All vehicles
WARNINGS
Use only approved wheel andtyre sizes. Using other sizescould damage the vehicle and willmake the National Type Approvalinvalid.
If you change the diameter ofthe tyres from that fitted at thefactory, the speedometer may notdisplay the correct speed. Take thevehicle to your dealer to have theengine management systemreprogrammed.
Vehicles with a temporaryspare wheel
WARNINGS
If the spare wheel differs fromthe other fitted wheels, theserules must be followed:
Do not exceed 80 km/h (50mph).
Drive the shortest possibledistances.
Do not fit more than one sparewheel on your vehicle at anyone time.
Do not use snow chains on thistype of wheel.
Do not drive through anautomatic car wash.
211
Wheels and tyres
