Downloaded from www.Manualslib.com manuals search engine Brake and clutch fluid reservoir (left-hand drive)*: See Brake and
clutch fluid check (page 202).
E
Battery: See Vehicle battery (page 209).F
Auxiliary fuse box: See Fuses (page 176).G
Air cleaner: No maintenance necessary.H
Engine oil dipstick*: See Engine oil check (page 200).I
*For easy identification, filler caps and the engine oil dipstick are marked in
colour.
ENGINE OIL DIPSTICK -
1.6L DURATEC-16V
(SIGMA)/1.6L DURATEC-
16V TI-VCT (SIGMA)
MINA
MAXB
ENGINE OIL DIPSTICK -
1.8L DURATEC-HE
(MI4)/2.0L DURATEC-HE
(MI4)
MINA
MAXB
199
MaintenanceE95540BA E92036AB

Downloaded from www.Manualslib.com manuals search engine ENGINE OIL DIPSTICK -
1.6L DURATORQ-TDCI
(DV) DIESEL
MINA
MAXB
ENGINE OIL DIPSTICK -
1.8L DURATORQ-TDCI
(LYNX) DIESEL
MINA
MAXB
ENGINE OIL DIPSTICK -
2.0L DURATORQ-TDCI
(DW) DIESEL
MINA
MAXB
ENGINE OIL CHECK
CAUTION
Do not use oil additives or otherengine treatments. Under certainconditions, they could damage theengine.
Note:The oil consumption of newengines reaches its normal level afterapproximately 5 000 kilometres (3000 miles).
Checking the oil level
CAUTION
Make sure that the level isbetween the MIN and the MAXmarks.
Note:Check the level before startingthe engine.
200
MaintenanceE90983AB E95527BA E95543BA

Downloaded from www.Manualslib.com manuals search engine Note:Make sure that your vehicleis on level ground.
Note:Oil expands when it is hot. Thelevel may therefore extend a fewmillimetres beyond the MAX mark.
Remove the dipstick and wipe it witha clean, lint free cloth. Replace thedipstick and remove it again to checkthe oil level.
If the level is at the MIN mark, top upimmediately.
Topping up
WARNINGS
Only top up when the engine iscold. If the engine is hot, wait 10minutes for the engine to cool down.
Do not remove the filler capwhen the engine is running.
Remove the filler cap.
CAUTION
Do not top up further than theMAX mark.
Top up with fluid that meets the Fordspecification. See Technicalspecifications (page 204).
ENGINE COOLANT
CHECK
CAUTION
Make sure that the coolant levelis between the MIN and theMAX marks.
Note:Coolant expands when it ishot. The level may therefore extendbeyond the MAX mark.
Topping up the coolant
WARNING
Do not remove the coolantreservoir cap when the engineis hot. Wait for the engine to cooldown.
Unscrew the cap slowly. Anypressure will escape slowly as youunscrew the cap.
201
MaintenanceE75521

Downloaded from www.Manualslib.com manuals search engine WARNINGS
Only add coolant when theengine is cold. If the engine ishot, wait 10 minutes for the engine tocool down.
Do not allow coolant to touchyour skin or eyes. If thishappens, rinse the affected areasimmediately with plenty of water andcontact your doctor.
CAUTION
Do not spill coolant on any partof the engine.
Only add coolant that meets the Fordspecification. See Technicalspecifications (page 204).
BRAKE AND CLUTCH
FLUID CHECK
WARNING
Do not allow brake fluid to touchyour skin or eyes. If thishappens, rinse the affected areasimmediately with plenty of water andcontact your doctor.
The brake and the clutch systemsare supplied from the same reservoir.
Make sure that the brake fluid levelis between the MIN and the MAXmarks.
POWER STEERING FLUID
CHECK
Vehicles with 1.4L Duratec-16V (Sigma) or 1.6LDuratec-16V (Sigma) or1.6L Duratec-16V Ti-VCT(Sigma) engine
The fluid level should come up to theMAX mark when the engine is cold.
202
MaintenanceE78897 E73701

Downloaded from www.Manualslib.com manuals search engine If it drops below the MIN mark, topup with the specified fluid. SeeTechnical specifications (page204).
Vehicles with 1.8L Duratec-HE (MI4) or 2.0L Duratec-HE (MI4) or 2.5L Duratec-ST (VI5) or 1.6L Duratorq-TDCi (DV) Diesel or 1.8LDuratorq-TDCi (Kent) Dieselor 2.0L Duratorq-TDCi(Kent) Diesel engine
No fluid level checks are necessary.
WASHER FLUID CHECK
Front and rear washer systems aresupplied from the same reservoir.
Replace the cap securely aftertopping up.
203
MaintenanceE78898

Downloaded from www.Manualslib.com manuals search engine TECHNICAL SPECIFICATIONS
Vehicle fluids
SpecificationRecommended fluidItem
WSS-M2C913-B
Ford or MotorcraftFormula E SAE 5W-30
Engine Oil*Engine oil
WSS-M2C204-A2Ford or MotorcraftPower Steering FluidPower steering fluid
WSS-M97B44-DMotorcraft SuperPlusAntifreezeAntifreeze
ESD-M6C57-AFord or Motorcraft SuperDOT 4 Brake FluidBrake fluid
* You can use an alternative SAE 5W-30 engine oil, providing it meets the
specification defined by WSS-M2C913-B.
Note:If you operate your vehicle in temperatures below -20°C, you mustnot use SAE 10W-40 engine oil.
Topping up the oil: If you are unable to find an oil that meets thespecification defined by WSS-M2C913-B, you must use SAE 5W-30(preferred), SAE 5W-40 (except Flexfuel vehicles) or SAE 10W-40 thatmeets the specification defined by either ACEA A1/B1 (preferred) or ACEAA3/B3. Using these oils can result in longer engine cranking periods, reducedengine performance, reduced fuel economy and increased emission levels.
Capacities
Capacity in litres(gallons)ItemVariant
MAX-markPower assisted steeringfluidAll
55 (12.1)Fuel tankVehicles with a petrolengine
55 (12.1)Fuel tankVehicles with a dieselengine
204
Maintenance

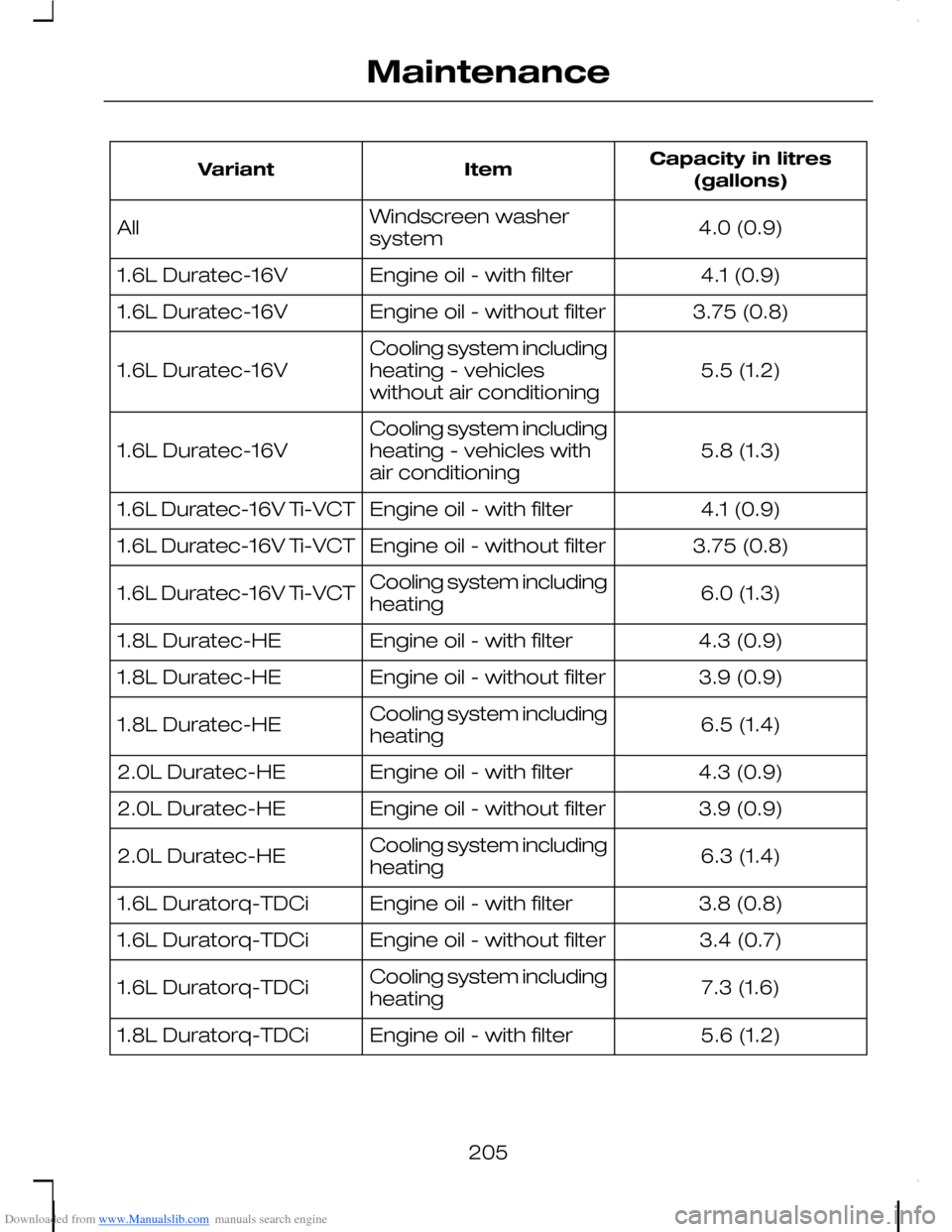

Downloaded from www.Manualslib.com manuals search engine Capacity in litres(gallons)ItemVariant
4.0 (0.9)Windscreen washersystemAll
4.1 (0.9)Engine oil - with filter1.6L Duratec-16V
3.75 (0.8)Engine oil - without filter1.6L Duratec-16V
5.5 (1.2)Cooling system includingheating - vehicleswithout air conditioning1.6L Duratec-16V
5.8 (1.3)Cooling system includingheating - vehicles withair conditioning1.6L Duratec-16V
4.1 (0.9)Engine oil - with filter1.6L Duratec-16V Ti-VCT
3.75 (0.8)Engine oil - without filter1.6L Duratec-16V Ti-VCT
6.0 (1.3)Cooling system includingheating1.6L Duratec-16V Ti-VCT
4.3 (0.9)Engine oil - with filter1.8L Duratec-HE
3.9 (0.9)Engine oil - without filter1.8L Duratec-HE
6.5 (1.4)Cooling system includingheating1.8L Duratec-HE
4.3 (0.9)Engine oil - with filter2.0L Duratec-HE
3.9 (0.9)Engine oil - without filter2.0L Duratec-HE
6.3 (1.4)Cooling system includingheating2.0L Duratec-HE
3.8 (0.8)Engine oil - with filter1.6L Duratorq-TDCi
3.4 (0.7)Engine oil - without filter1.6L Duratorq-TDCi
7.3 (1.6)Cooling system includingheating1.6L Duratorq-TDCi
5.6 (1.2)Engine oil - with filter1.8L Duratorq-TDCi
205
Maintenance

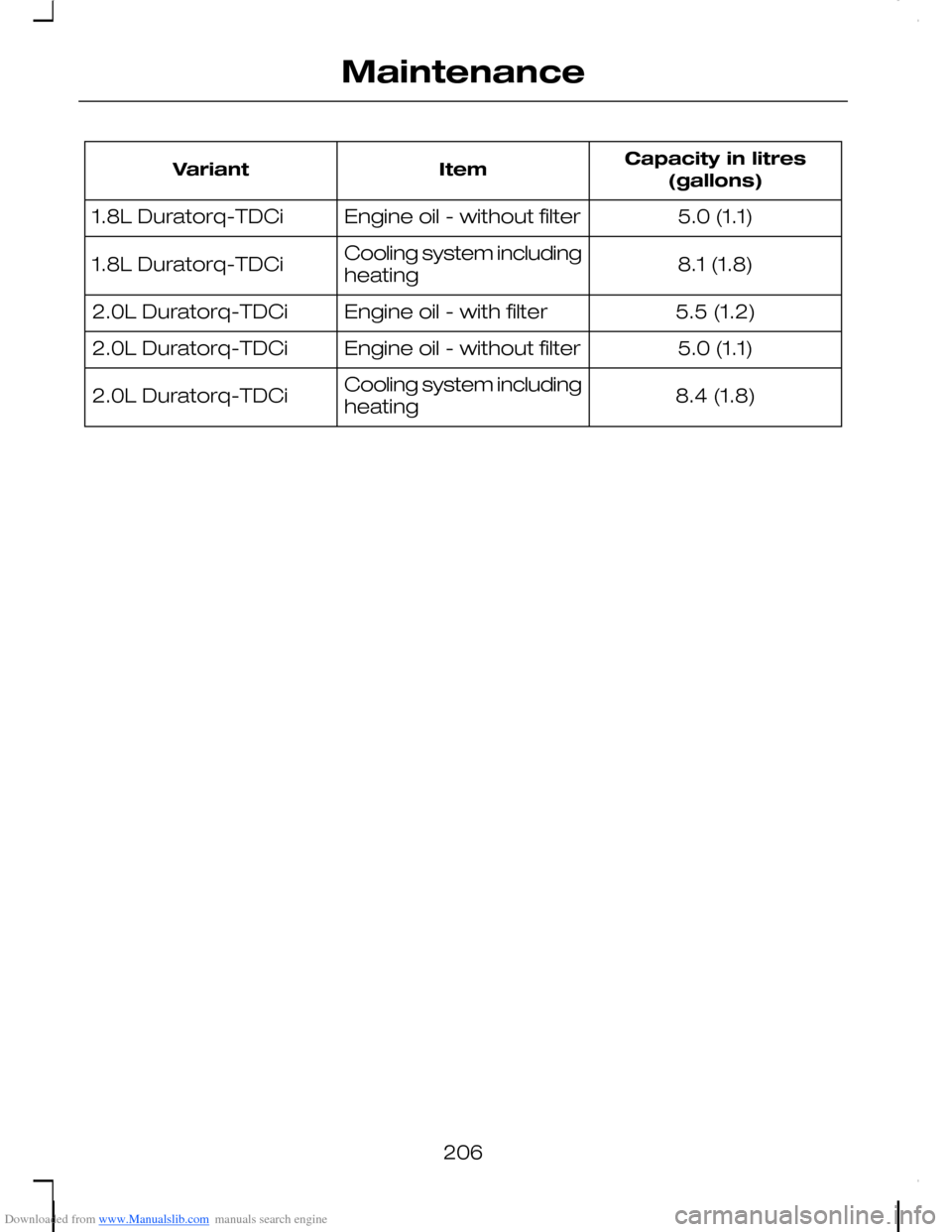

Downloaded from www.Manualslib.com manuals search engine Capacity in litres(gallons)ItemVariant
5.0 (1.1)Engine oil - without filter1.8L Duratorq-TDCi
8.1 (1.8)Cooling system includingheating1.8L Duratorq-TDCi
5.5 (1.2)Engine oil - with filter2.0L Duratorq-TDCi
5.0 (1.1)Engine oil - without filter2.0L Duratorq-TDCi
8.4 (1.8)Cooling system includingheating2.0L Duratorq-TDCi
206
Maintenance

Downloaded from www.Manualslib.com manuals search engine CLEANING THE
EXTERIOR
WARNING
If you use a car wash with awaxing cycle, make sure thatyou remove the wax from thewindscreen.
CAUTIONS
Some car wash installations usewater at high pressure. Thiscould damage certain parts of yourvehicle.
Remove the aerial before usingan automatic car wash.
Switch the heater blower off toprevent contamination of thefresh air filter.
We recommend that you wash yourvehicle with a sponge and lukewarmwater containing a car shampoo.
Cleaning the headlamps
CAUTIONS
Do not scrape the headlamplenses or use abrasives orchemical solvents to clean them.
Do not wipe the headlampswhen they are dry.
Cleaning the rear window
CAUTION
Do not scrape the inside of therear window or use abrasives orchemical solvents to clean it.
Use a clean, lint free cloth or a dampchamois leather to clean the insideof the rear window.
Cleaning the chrome trim
CAUTION
Do not use abrasives or chemicalsolvents. Use soapy water.
Body paintworkpreservation
CAUTIONS
Do not polish your vehicle instrong sunshine.
Do not allow polish to touchplastic surfaces. It could bedifficult to remove.
Do not apply polish to thewindscreen or rear window. Thiscould cause the wipers to becomenoisy and they may not clear thewindow properly.
We recommend that you wax thepaintwork once or twice a year.
207
Vehicle care

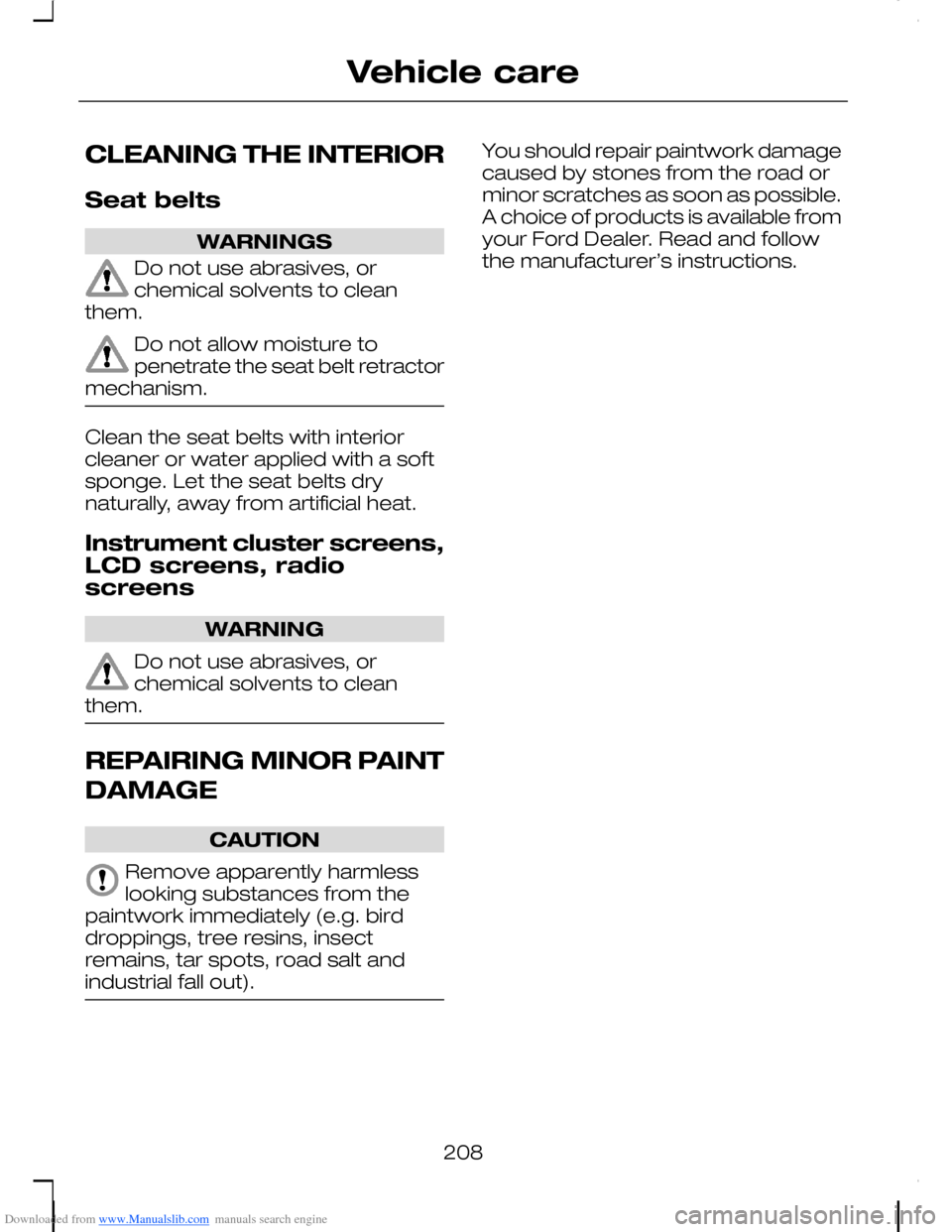

Downloaded from www.Manualslib.com manuals search engine CLEANING THE INTERIOR
Seat belts
WARNINGS
Do not use abrasives, orchemical solvents to cleanthem.
Do not allow moisture topenetrate the seat belt retractormechanism.
Clean the seat belts with interiorcleaner or water applied with a softsponge. Let the seat belts drynaturally, away from artificial heat.
Instrument cluster screens,LCD screens, radioscreens
WARNING
Do not use abrasives, orchemical solvents to cleanthem.
REPAIRING MINOR PAINT
DAMAGE
CAUTION
Remove apparently harmlesslooking substances from thepaintwork immediately (e.g. birddroppings, tree resins, insectremains, tar spots, road salt andindustrial fall out).
You should repair paintwork damagecaused by stones from the road orminor scratches as soon as possible.A choice of products is available fromyour Ford Dealer. Read and followthe manufacturer’s instructions.
208
