Downloaded from www.Manualslib.com manuals search engine Locking the vehicle
WARNING
The vehicle does not lock itselfautomatically. If no lockingbutton is pressed, the vehicle willremain unlocked.
Note:Before leaving the vehicle,ensure that the ignition switch ispulled out. See Ignition switch(page 141).
Note:A valid passive key must belocated within the detection range ofthe respective door. If locking fromthe tailgate, the passive key must bewithin the tailgate detection range.
Note:Once activated, the vehiclewill remain locked for approximatelythree seconds, even if the passivekey is within the detection rangeduring this delay period. This is toallow you to pull a door handle andcheck if the vehicle is locked. Whenthe delay period is over, the doorscan be opened again, provided thepassive key is within the respectivedetection range. The delay periodcan be set to zero by an expert.
Note:If a passive key is left insidethe vehicle PASSIVE KEY LEFTINSIDE appears in the informationdisplay. Remove the passive keyfrom the vehicle interior. All passivekeys left inside the vehicle when it islocked will be disabled.
To activate central locking and armthe alarm:
•Press the locking button on oneof the front doors or the tailgateonce.
•On vehicles without doublelocking, the direction indicatorswill flash twice as confirmation.
To activate double locking, to armthe alarm and the interior sensors:
•Press the locking button on oneof the front doors or the tailgatetwice within three seconds.
•The direction indicators will flashtwice as confirmation.
Deactivating the key freefunction
The key free function can bedeactivated using the informationdisplay. See Information displays(page 96).
Once it is deactivated:
•the vehicle can only be lockedand unlocked using the spare keyin the lock cylinder on the driver’sdoor or using the buttons on thepassive key.
•the engine can only be startedwith the spare key.
49
LocksE78282

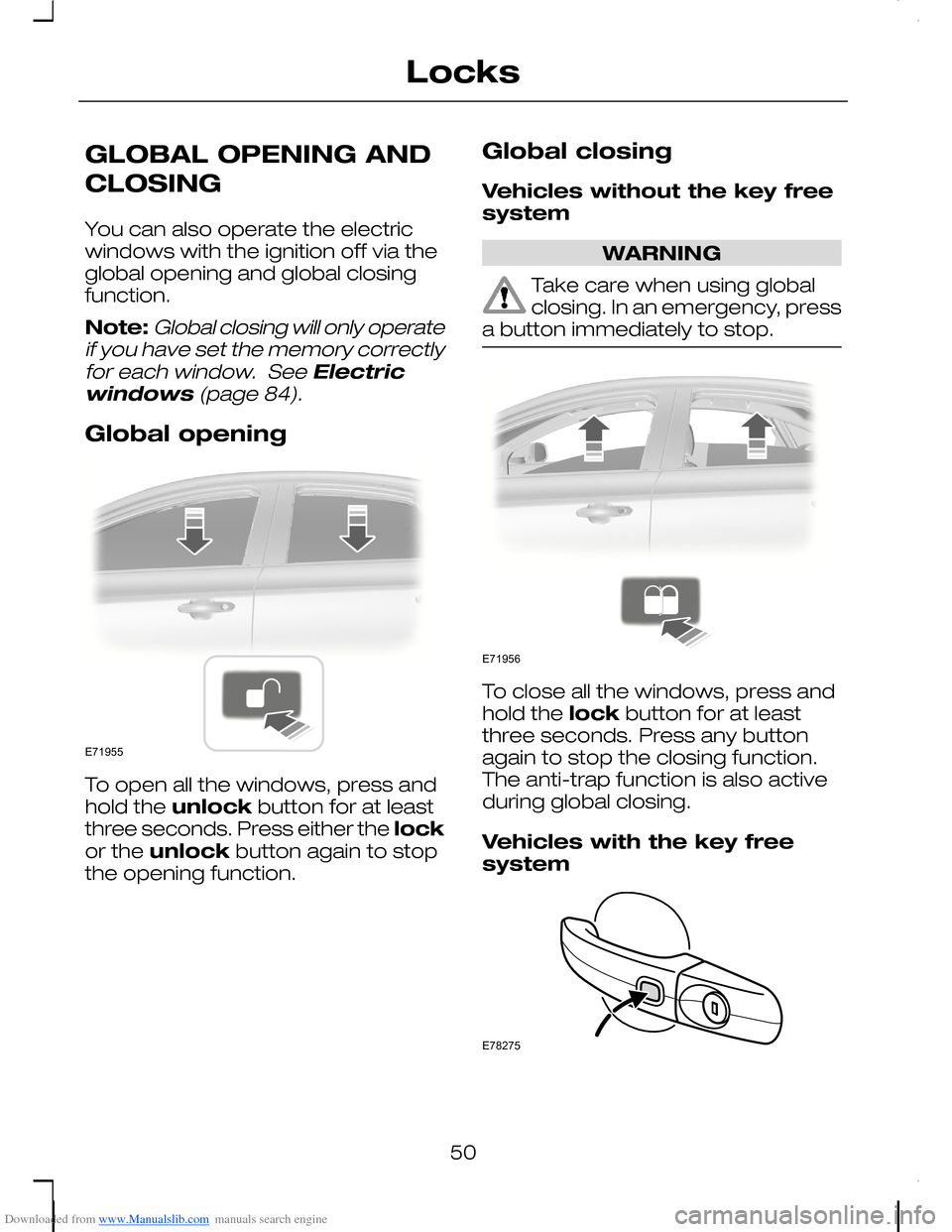

Downloaded from www.Manualslib.com manuals search engine GLOBAL OPENING AND
CLOSING
You can also operate the electricwindows with the ignition off via theglobal opening and global closingfunction.
Note:Global closing will only operateif you have set the memory correctlyfor each window. See Electricwindows (page 84).
Global opening
To open all the windows, press andhold the unlock button for at leastthree seconds. Press either the lockor the unlock button again to stopthe opening function.
Global closing
Vehicles without the key freesystem
WARNING
Take care when using globalclosing. In an emergency, pressa button immediately to stop.
To close all the windows, press andhold the lock button for at leastthree seconds. Press any buttonagain to stop the closing function.The anti-trap function is also activeduring global closing.
Vehicles with the key freesystem
50
LocksE71955 E71956 E78275

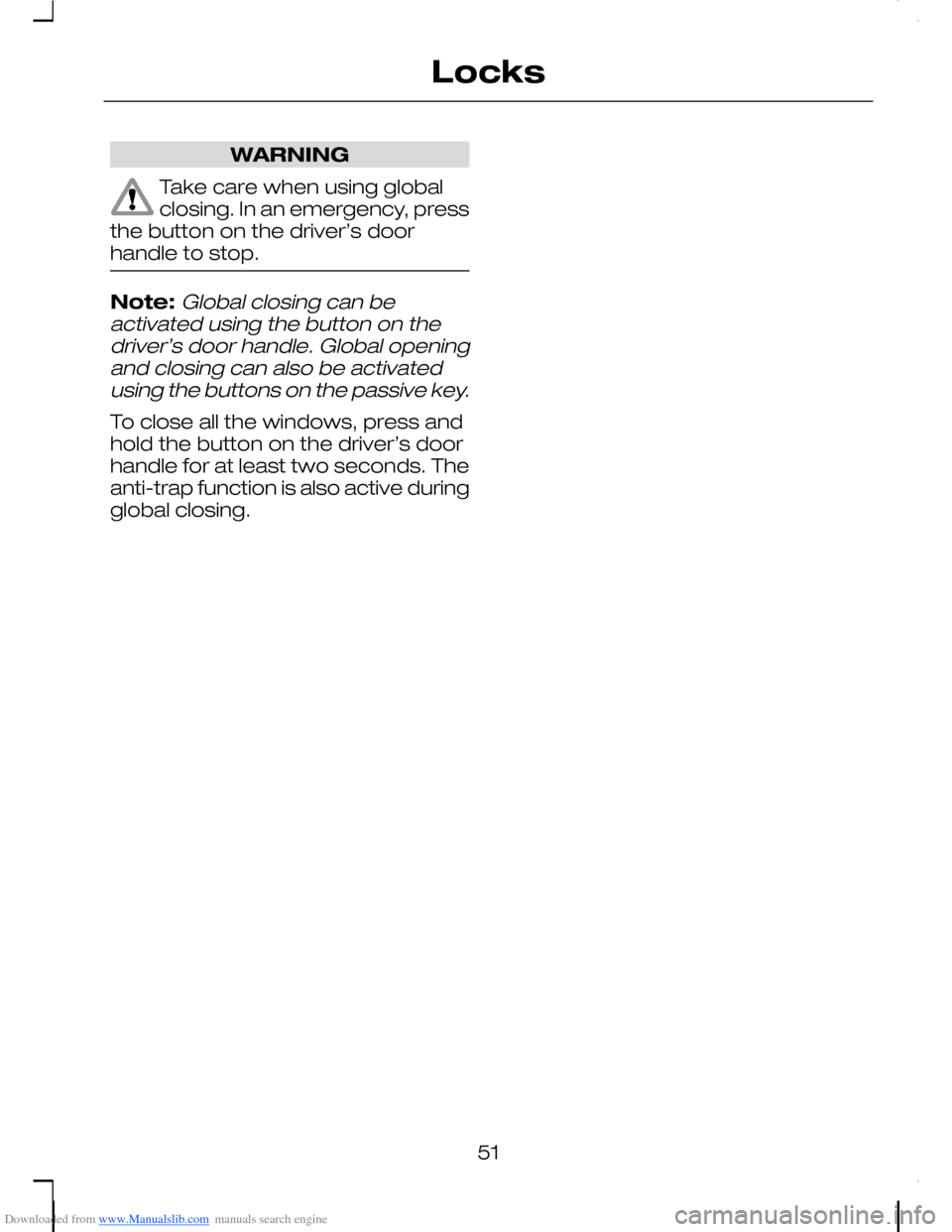

Downloaded from www.Manualslib.com manuals search engine WARNING
Take care when using globalclosing. In an emergency, pressthe button on the driver’s doorhandle to stop.
Note:Global closing can beactivated using the button on thedriver’s door handle. Global openingand closing can also be activatedusing the buttons on the passive key.
To close all the windows, press andhold the button on the driver’s doorhandle for at least two seconds. Theanti-trap function is also active duringglobal closing.
51
Locks

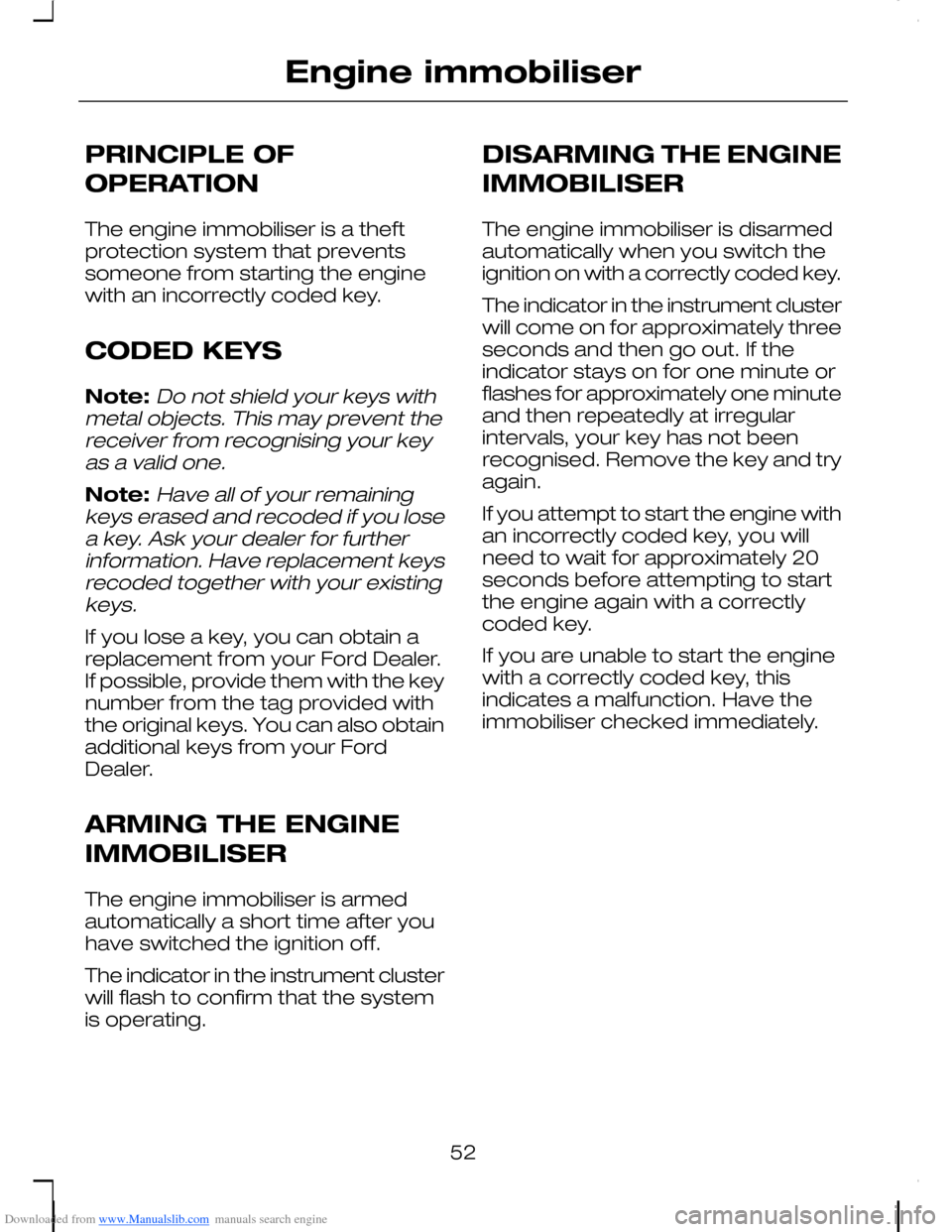

Downloaded from www.Manualslib.com manuals search engine PRINCIPLE OF
OPERATION
The engine immobiliser is a theftprotection system that preventssomeone from starting the enginewith an incorrectly coded key.
CODED KEYS
Note:Do not shield your keys withmetal objects. This may prevent thereceiver from recognising your keyas a valid one.
Note:Have all of your remainingkeys erased and recoded if you losea key. Ask your dealer for furtherinformation. Have replacement keysrecoded together with your existingkeys.
If you lose a key, you can obtain areplacement from your Ford Dealer.If possible, provide them with the keynumber from the tag provided withthe original keys. You can also obtainadditional keys from your FordDealer.
ARMING THE ENGINE
IMMOBILISER
The engine immobiliser is armedautomatically a short time after youhave switched the ignition off.
The indicator in the instrument clusterwill flash to confirm that the systemis operating.
DISARMING THE ENGINE
IMMOBILISER
The engine immobiliser is disarmedautomatically when you switch theignition on with a correctly coded key.
The indicator in the instrument clusterwill come on for approximately threeseconds and then go out. If theindicator stays on for one minute orflashes for approximately one minuteand then repeatedly at irregularintervals, your key has not beenrecognised. Remove the key and tryagain.
If you attempt to start the engine withan incorrectly coded key, you willneed to wait for approximately 20seconds before attempting to startthe engine again with a correctlycoded key.
If you are unable to start the enginewith a correctly coded key, thisindicates a malfunction. Have theimmobiliser checked immediately.
52
Engine immobiliser

Downloaded from www.Manualslib.com manuals search engine ARMING THE ALARM
The system is armed as soon as thevehicle is locked and acts as adeterrent to unauthorised personswho attempt to open the doors,bonnet or luggage compartment, orremove the audio system.
The alarm sounds for 30 seconds ifan unauthorised person opens adoor, the luggage compartment orthe bonnet. The hazard flasher lightswill flash for five minutes.
Any attempt to start the enginewithout a valid key or to remove theaudio system sounds the alarmagain.
Automatic arming delay
The 20 seconds arming delay beginswhen the bonnet, luggagecompartment and all doors areclosed.
Interior sensors
WARNING
This system functions correctlyonly if all windows and thesunroof are completely closed. Inaddition to this, the sensors locatedin the interior lamp unit must not becovered up. The system should notbe activated if any persons, animalsor other moving objects are insidethe vehicle.
Note:The interior sensors will notoperate if the convertible top is open.
This system acts as a deterrentagainst unauthorised intrusion bysensing any movement within thevehicle.
Unauthorised entry into the vehicle’sinterior will trigger the alarm in thesame way as the anti-theft system.
The sensors are located in the interiorlamp unit.
Convertible only
The interior sensors are automaticallydisabled if the convertible top is open.
All except Britain and Ireland
The interior sensing alarm is armedtogether with the double lockingsystem.
Britain and Ireland only
The interior sensing alarm is armedtogether with the central lockingsystem.
To deactivate the interior sensors:
53
AlarmE71401

Downloaded from www.Manualslib.com manuals search engine Vehicles without keyless entrysystem
Press the upper part of the switchnext to the driver’s door handle.
Vehicles with keyless entrysystem
Press the lower part of the switchnext to the driver’s door handle.
DISARMING THE ALARM
The anti-theft alarm system can bedeactivated at any time – even whenthe alarm is sounding – by unlockingthe vehicle from the outside.
The anti-theft alarm system for thetailgate is deactivated if the tailgateis unlocked using the button on theremote control or passive key. Onvehicles with the Key Free System, itis deactivated if a passive key islocated within the tailgate detectionrange when the tailgate is opened.
After closure, the alarm is once againarmed.
Britain and Ireland only
If the vehicle is unlocked using thekey or the spare key for the keylessentry system, a 12 second delaychime starts as soon as the driver’sdoor is opened. The alarm should bedeactivated during this period.
Vehicles without keyless entrysystem
To deactivate the alarm, insert thekey into the ignition and turn it toposition II.
Vehicles with keyless entrysystem
The alarm should be deactivated inone of the following ways:
•If a valid passive key is locatedwithin the vehicle interior, depressthe clutch pedal (manualtransmission) or brake pedal(automatic transmission), pushthe ignition switch in and turn it toposition II.
•Insert the spare key into theignition switch, push the ignitionswitch in and turn it to position II.
•Press the unlock button on thepassive key.
54
AlarmE80555 E80556

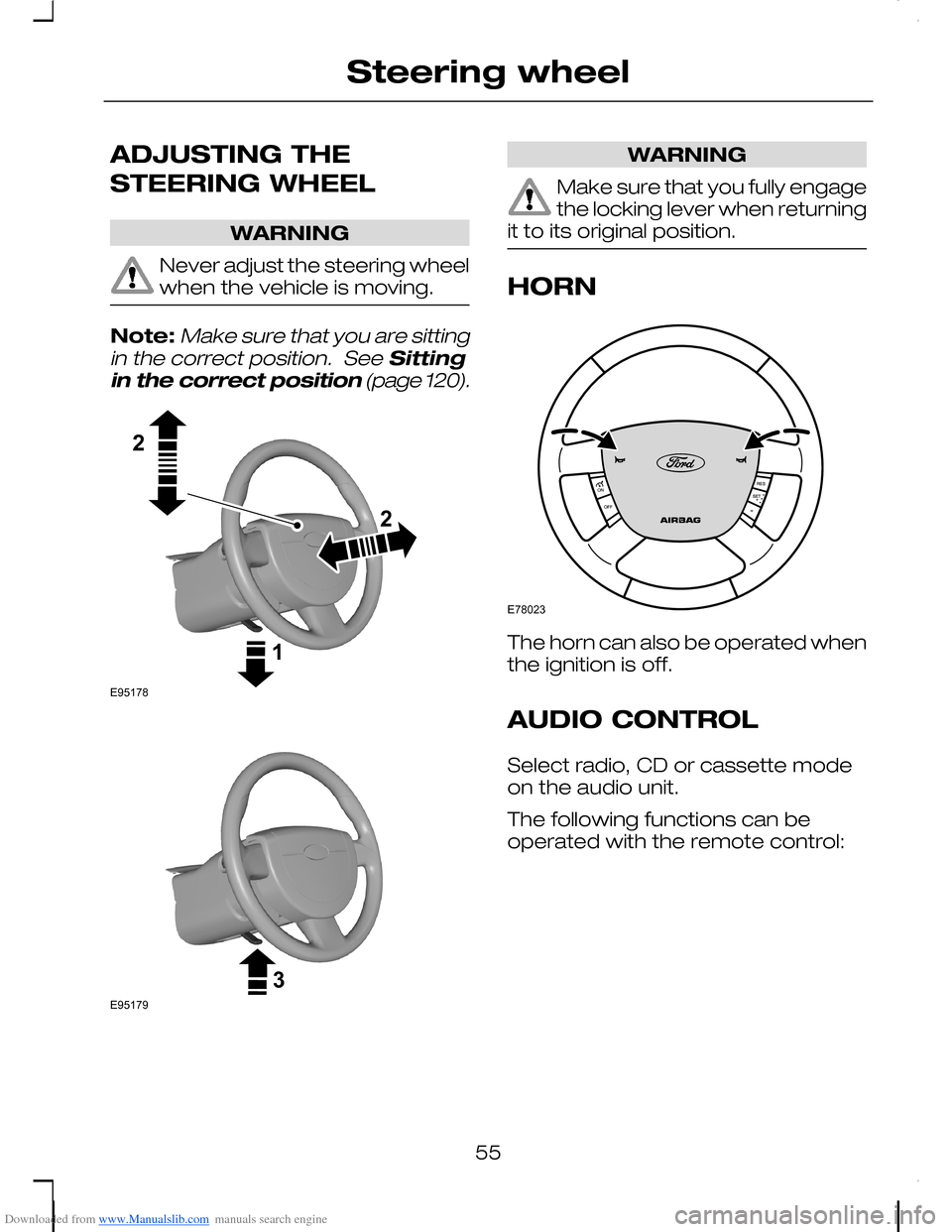

Downloaded from www.Manualslib.com manuals search engine ADJUSTING THE
STEERING WHEEL
WARNING
Never adjust the steering wheelwhen the vehicle is moving.
Note:Make sure that you are sittingin the correct position. See Sittingin the correct position (page 120).
WARNING
Make sure that you fully engagethe locking lever when returningit to its original position.
HORN
The horn can also be operated whenthe ignition is off.
AUDIO CONTROL
Select radio, CD or cassette modeon the audio unit.
The following functions can beoperated with the remote control:
55
Steering wheel122E95178 3E95179 E78023

Downloaded from www.Manualslib.com manuals search engine Volume
Volume up: Press the top button onthe back of the remote control.
Volume down: Press the bottombutton on the back of the remotecontrol.
Seek
Move the lever up or down:
•In radio mode, this will locatethe next radio station up or downthe frequency band.
•In CD mode, it will select thenext or previous track.
Mode
Briefly press the button on the side:
•In radio mode, this will locatethe next pre-set radio station.
•In CD mode, this will select thenext CD if a CD changer is fitted.
•In all modes to abort a trafficmessage during broadcasting.
Press and hold the button on theside:
•In radio mode to change thewaveband.
56
Steering wheelE78046 E78047 E78048

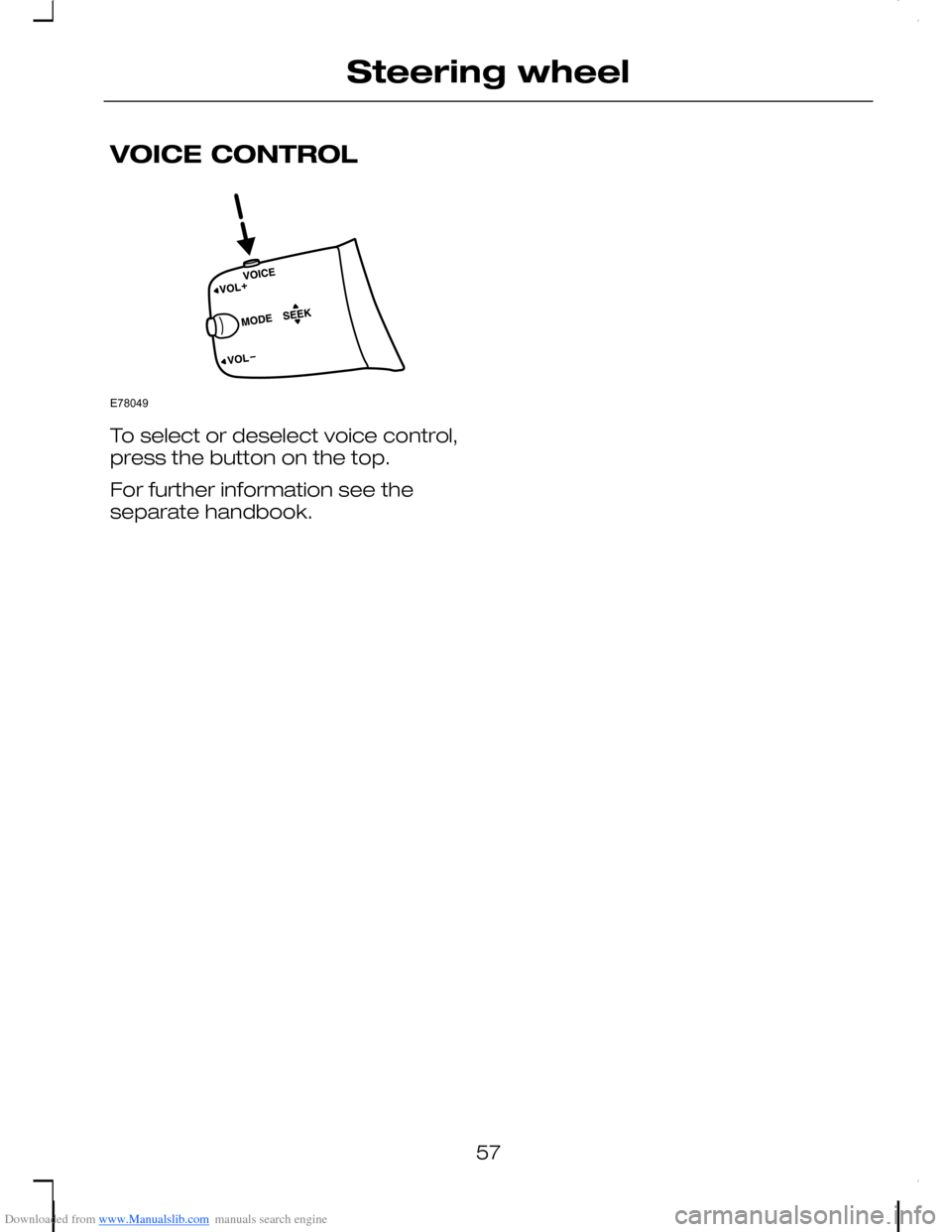

Downloaded from www.Manualslib.com manuals search engine VOICE CONTROL
To select or deselect voice control,press the button on the top.
For further information see theseparate handbook.
57
Steering wheelE78049

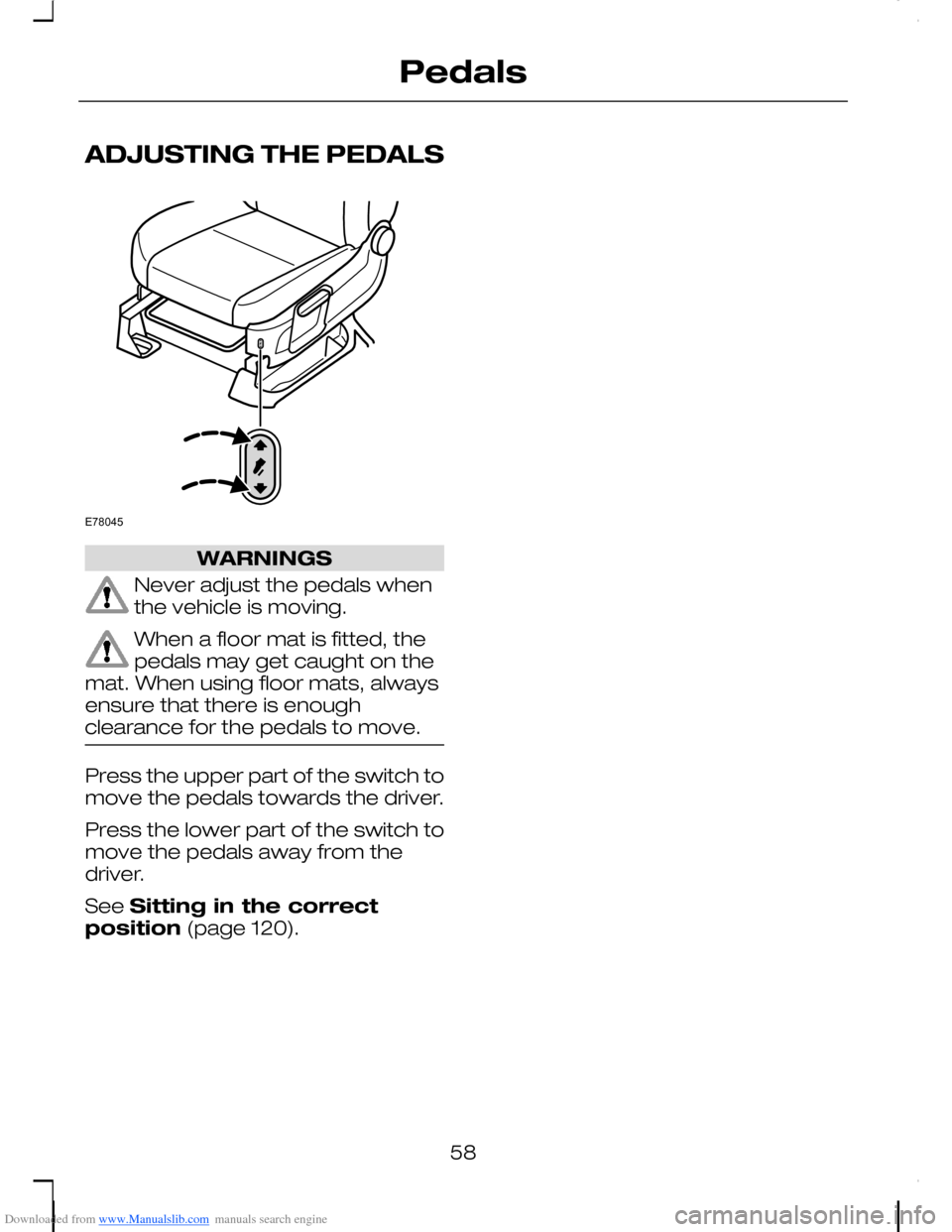

Downloaded from www.Manualslib.com manuals search engine ADJUSTING THE PEDALS
WARNINGS
Never adjust the pedals whenthe vehicle is moving.
When a floor mat is fitted, thepedals may get caught on themat. When using floor mats, alwaysensure that there is enoughclearance for the pedals to move.
Press the upper part of the switch tomove the pedals towards the driver.
Press the lower part of the switch tomove the pedals away from thedriver.
See Sitting in the correctposition (page 120).
58
PedalsE78045
