set clock FORD C MAX 2011 2.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Exterior Mirrors.................................................72
Electric exterior mirrors................................73
Auto-Dimming Mirror....................................74
Blind Spot Monitor.........................................74
Instrument Cluster
Gauges................................................................77
Warning Lamps and Indicators.................79
Audible Warnings and Indicators..............81
Information Displays
General Information......................................83
Trip Computer.................................................89
Personalised Settings..................................89
Information Messages.................................90
Climate Control
Principle of Operation................................100
Air Vents..........................................................100
Manual Climate Control.............................101
Automatic Climate Control......................103
Heated Windows and Mirrors..................105
Auxiliary Heater............................................106
Seats
Sitting in the Correct Position.................109
Manual Seats.................................................109
Head Restraints.............................................110
Power Seats......................................................111
Rear Seats........................................................112
Heated Seats.................................................120
Convenience features
Sun Shades......................................................121
Instrument Lighting Dimmer....................122
Clock..................................................................122
Cigar Lighter....................................................122
Auxiliary Power Points................................123
Cup Holders....................................................123
Storage compartments..............................124
Glasses Holder...............................................124
Childminder Mirror........................................125
Auxiliary input (AUX IN) socket...............125
USB port...........................................................125
Satellite Navigation Unit Holder.............126
Floor Mats........................................................126
Starting and Stopping the
Engine
General Information.....................................127
Ignition Switch................................................127
Steering Wheel Lock....................................127
Starting a Petrol Engine.............................128
Starting a Diesel Engine.............................128
Keyless Starting............................................129
Diesel Particulate Filter..............................130
Switching Off the Engine............................131
Engine Block Heater.....................................131
Start-Stop
Principle of Operation.................................133
Using start-stop............................................133
Eco Mode
Principle of Operation.................................135
Using Eco mode............................................135
Fuel and Refuelling
Safety Precautions......................................136
Fuel Quality - Petrol....................................136
Fuel Quality - Diesel....................................136
Catalytic Converter......................................136
Fuel filler flap..................................................137
Refuelling........................................................138
Fuel Consumption........................................138
Technical Specifications............................139
2
Table of Contents

Downloaded from www.Manualslib.com manuals search engine All vehicles
Menu structure - information and
entertainment display
You can access the menu using the
Information and entertainment display
control. For item location: See At a
Glance (page 10).
86
Information DisplaysCDFMFMASTDAB1DAB2AMAdaptivevolumeiPODUSBBluetoothaudioLineinAMASTRadioAuxiliaryDialnumberPhonebookCalllistsBluetoothRedialSelectphoneRejectallcallsPhoneAudiosettingsSoundNavaudiomixingDSPsettingsDSPequaliserNewsAltfrequencyRDSregionalDABservicelinkBluetoothSettimeClocksettingsSetdateGPStimeSettimezoneSummertime24-hourmodeMenuE130532

Downloaded from www.Manualslib.com manuals search engine TRIP COMPUTER
Trip Odometer
Registers the mileage of individual
journeys.
Distance to empty
Indicates the approximate distance the
vehicle will travel on the fuel remaining in
the tank. Changes in driving pattern may
cause the value to vary.
Instantaneous fuel consumption
Indicates the current average fuel
consumption.
Average fuel consumption
Indicates the average fuel consumption
since the function was last reset.
Average speed
Indicates the average speed calculated
since the function was last reset.
Outside air temperature
Shows the outside air temperature.
Odometer
Registers the total mileage of the vehicle.
Resetting the trip computer
To reset a particular display:
1. Highlight Trip Computer with the up
and down arrow buttons and press the
right arrow button.
2. Highlight the function to be reset.
3. Hold the OK button pressed.
PERSONALISED SETTINGS
Language setting
A choice of eleven languages are available:
English, German, Italian, French, Spanish,
Turkish, Russian, Dutch, Polish, Swedish
and Portuguese.
89
Information DisplaysAudioSettingsClockSettingsSigns/lanesSpeedlimitsNaviconsinlistsClearlastdestinationClearfavouritesDeletehomeaddressClearallAssistanceoptionsPersonaldataResetallsettingsSeeseparatemenustructureSeeseparatemenustructureBCE130536

Downloaded from www.Manualslib.com manuals search engine AUXILIARY HEATER
Parking heater
WARNINGS
The parking heater must not be
operated at filling stations, near
sources of combustible vapours or
dust or in enclosed spaces. The parking heater should be
switched on for approximately 10
minutes at least once a month all
year round. This prevents the water pump
and heater motor from seizing. Note:
The parking heater will only operate
if there is at least 7.5 litres (1.6 gallons) of
fuel in the fuel tank and the ambient
temperature is below 15°C (59°F). The
heater will not operate if the battery is low.
Note: The heating depends on the outside
air temperature.
Note: When the parking heater is activated,
exhaust fumes may come from under the
sides of the vehicle. This is normal.
Note: On vehicles with manual climate
control the heating of the vehicle interior is
dependent on the temperature, air
distribution and blower control settings.
The parking heater operates independently
of the vehicle heater by heating the
engine ’s coolant circuit. It is fed from the
vehicle fuel tank. You can also use it while
the vehicle is in motion to help the vehicle
heater warm up the interior more quickly.
Used properly, the parking heater provides
the following benefits: •
It preheats the interior of the vehicle.
• It keeps the windows clear of ice in the
event of frost and prevents
condensation.
• It avoids cold starts and allows the
engine to reach operating temperature
sooner.
To prevent the battery from discharging:
• Once the parking heater has performed
one heating cycle, the next
programmed heating cycle will only be
carried out if you have started the
vehicle ’s engine in between.
• After a heating cycle, drive the vehicle
for at least the period of the heating
cycle.
Programming the parking heater
Note: The programmed time is the time at
which you wish the vehicle to be warm and
ready to drive, not the time at which the
heater switches on.
Note: You must programme the times at
least 70 minutes in advance of the time you
wish to set.
Note: You must set the time and date
correctly. See Clock (page 122).
To programme the heating times:
1. Use the arrow buttons on the steering wheel to enter the main menu. See
Information Displays (page 83).
2. Select the park heater option.
106
Climate Control

Downloaded from www.Manualslib.com manuals search engine Opening and closing the sun blind
automatically
Press the switch to the second action point
and release it. Press it again to stop the
blind.
Note:
If this does not operate correctly,
follow the relearning procedure below.
Anti-trap function WARNINGS
The anti-trap function is deactivated
until the memory has been reset by
the relearning procedure.
Careless closing of the blind can
override the anti-trap function and
cause injuries.
The sun blind will stop automatically while
opening or closing and reverse some
distance if there is an obstacle in the way.
Sun blind relearning
WARNING
The anti-trap function is not active
during this procedure. Make sure that
there are no obstacles in the way of
the moving blind. Note:
The relearning process must be
started no later than 30 seconds after
turning the ignition on.
In case the blind no longer opens or closes
properly, follow this relearning procedure:
1. Press switch B to the first action point twice and release it within two
seconds.
2. Press switch A to the first action point twice and release it within two
seconds. 3. Press and hold switch B to the first
action point, until the blind fully opens.
4. Press and hold switch A to the first action point, until the blind fully closes.
If step 2 is not completed within 15 seconds
of step 1, the relearning function will be
interrupted. Turn the ignition off, wait for
another 30 seconds and then turn the
ignition back on again. Start the procedure
once more from the beginning.
Confirm that relearning has been
completed by using automatic opening
and closing.
INSTRUMENT LIGHTING
DIMMER CLOCK
See Information Displays (page 83).
CIGAR LIGHTER
CAUTIONS
If you use the socket when the engine
is not running, the battery may
discharge.
Do not hold the cigar lighter element
pressed in.
122
Convenience featuresE70723

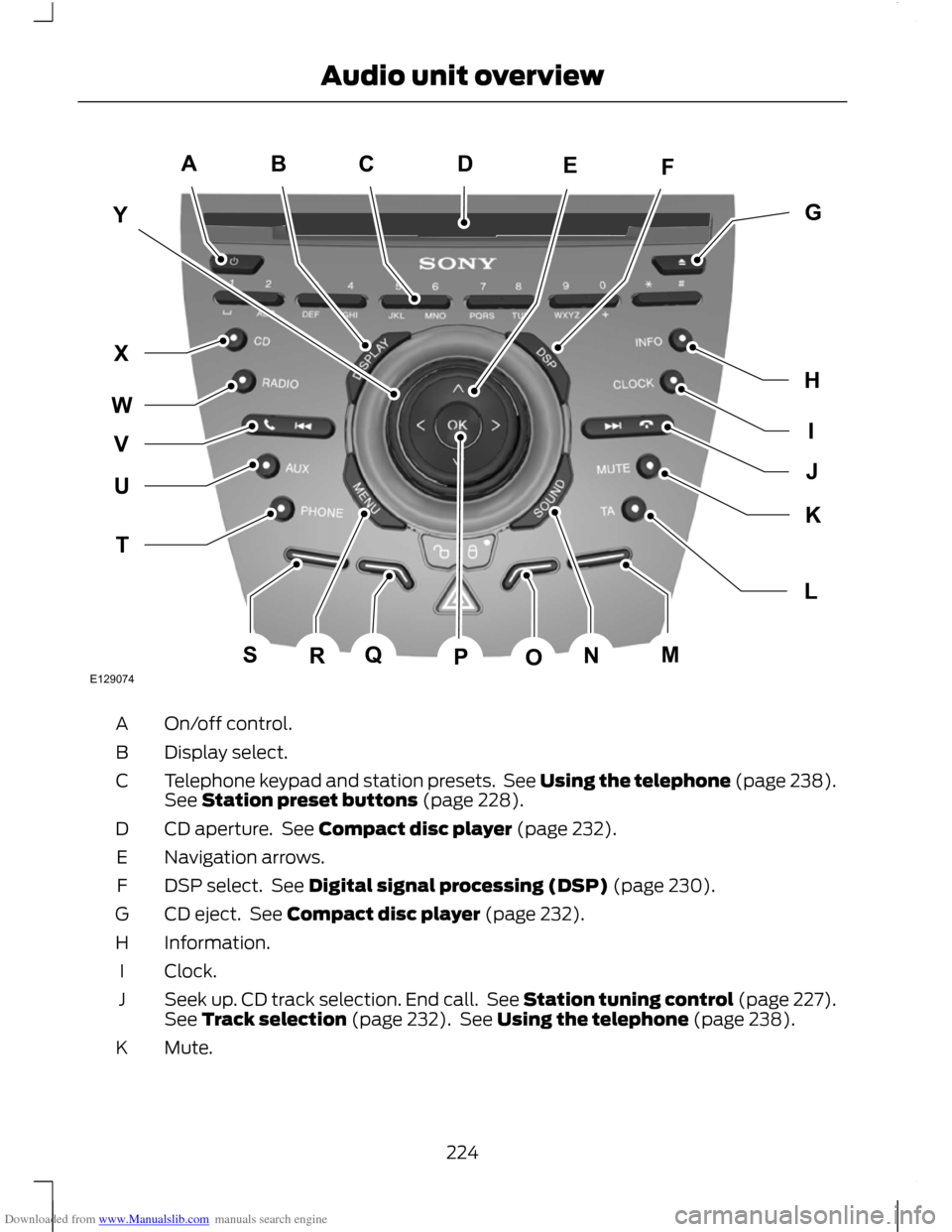

Downloaded from www.Manualslib.com manuals search engine On/off control.
A
Display select.
B
Telephone keypad and station presets. See Using the telephone (page 238).
See Station preset buttons (page 228).
C
CD aperture. See Compact disc player (page 232).
D
Navigation arrows.
E
DSP select. See Digital signal processing (DSP) (page 230).
F
CD eject. See Compact disc player (page 232).
G
Information.
H
Clock.
I
Seek up. CD track selection. End call. See Station tuning control (page 227).
See Track selection (page 232). See Using the telephone (page 238).
J
Mute.
K
224
Audio unit overviewE129074ACBFEYIGHJLKTUWXVQSRNMOPD

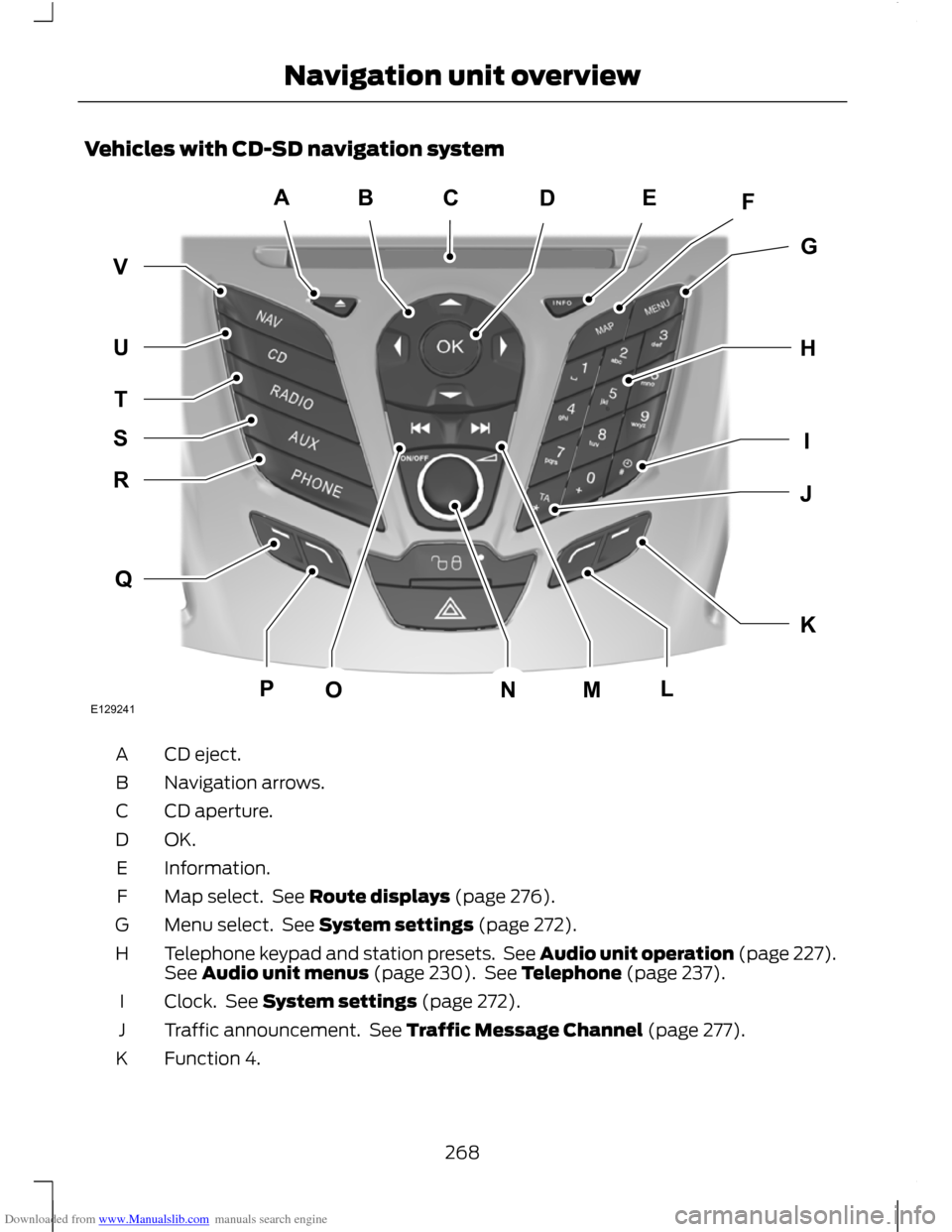

Downloaded from www.Manualslib.com manuals search engine Vehicles with CD-SD navigation system
CD eject.
A
Navigation arrows.
B
CD aperture.
C
OK.D
Information.
E
Map select. See Route displays (page 276).
F
Menu select. See System settings (page 272).
G
Telephone keypad and station presets. See Audio unit operation (page 227).
See Audio unit menus (page 230). See Telephone (page 237).
H
Clock. See System settings (page 272).
I
Traffic announcement. See Traffic Message Channel (page 277).
J
Function 4.
K
268
Navigation unit overviewABEFDGHKIJQRTUVSPOMNLCE129241

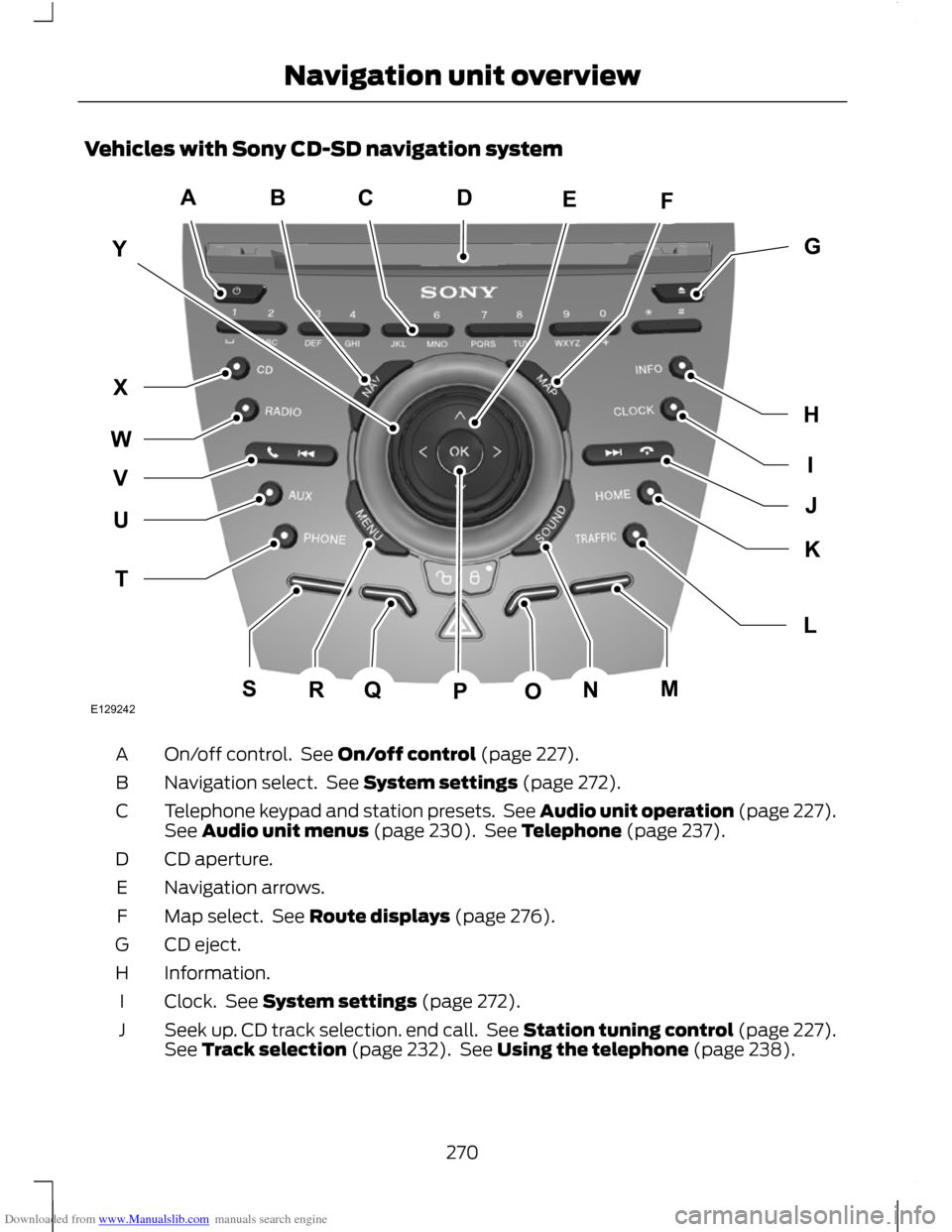

Downloaded from www.Manualslib.com manuals search engine Vehicles with Sony CD-SD navigation system
On/off control. See On/off control (page 227).
A
Navigation select. See System settings (page 272).
B
Telephone keypad and station presets. See Audio unit operation (page 227).
See Audio unit menus (page 230). See Telephone (page 237).
C
CD aperture.
D
Navigation arrows.
E
Map select. See Route displays (page 276).
F
CD eject.
G
Information.
H
Clock. See System settings (page 272).
I
Seek up. CD track selection. end call. See Station tuning control (page 227).
See Track selection (page 232). See Using the telephone (page 238).
J
270
Navigation unit overviewACBFEYIGHJLKTUWXVQSRNMOPDE129242

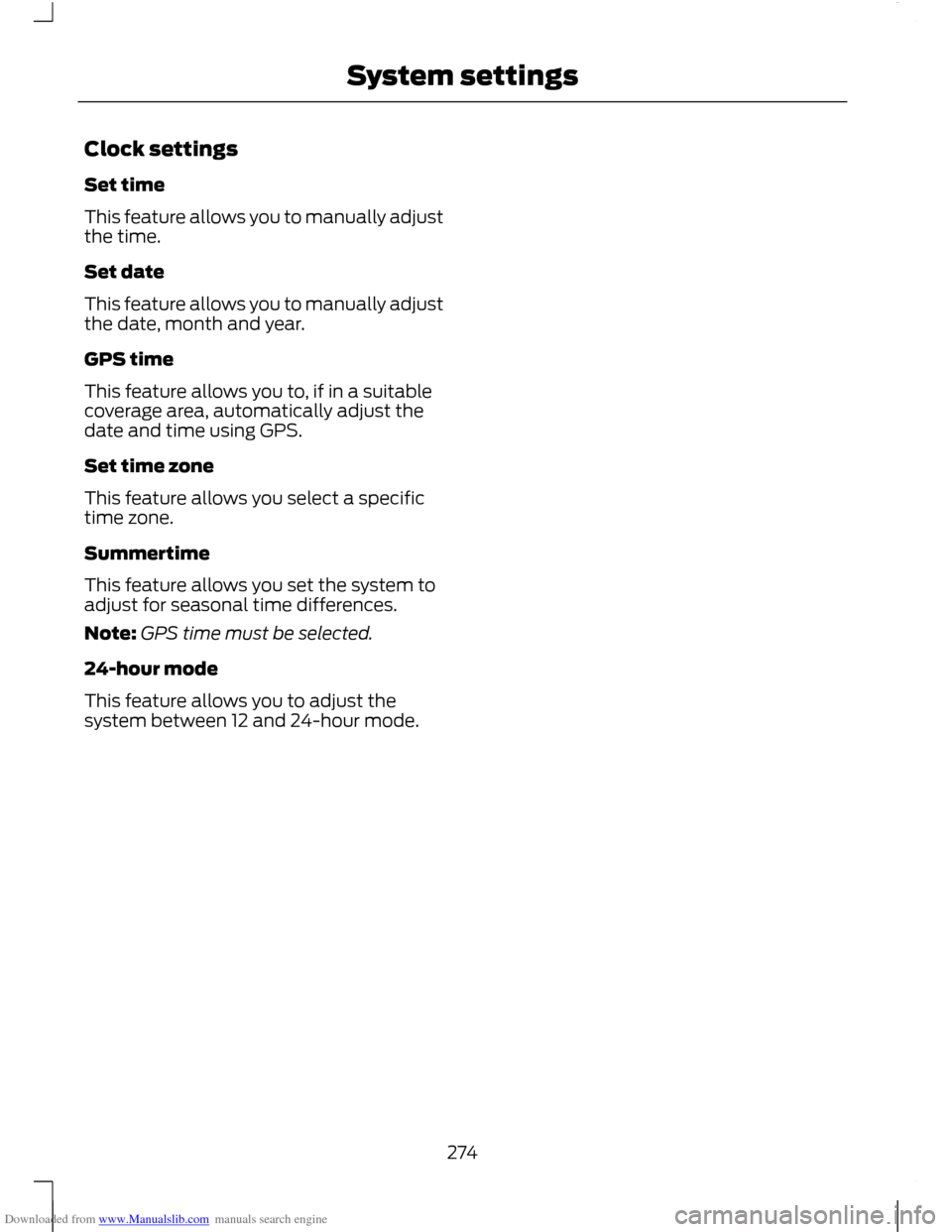

Downloaded from www.Manualslib.com manuals search engine Clock settings
Set time
This feature allows you to manually adjust
the time.
Set date
This feature allows you to manually adjust
the date, month and year.
GPS time
This feature allows you to, if in a suitable
coverage area, automatically adjust the
date and time using GPS.
Set time zone
This feature allows you select a specific
time zone.
Summertime
This feature allows you set the system to
adjust for seasonal time differences.
Note:
GPS time must be selected.
24-hour mode
This feature allows you to adjust the
system between 12 and 24-hour mode.
274
System settings

Downloaded from www.Manualslib.com manuals search engine Changing a Road Wheel............................199
Assembling the wheel brace......................... 201
Installing a road wheel.................................... 203
Jacking and lifting points............................... 200
Locking wheel nuts............................................ 199
Removing a road wheel.................................. 202
Removing the wheel trim............................... 202
Vehicle jack........................................................... 199
Vehicles with a spare wheel........................... 199
Changing the remote control battery.............................................................36
Remote control with a folding key blade.................................................................... 36
Remote control without a folding key blade..................................................................... 37
Changing the Vehicle Battery..................198
Changing the Wiper Blades.......................54 Rear window wiper blade................................. 55
Windscreen wiper blades................................. 54
Checking the Wiper Blades........................54
Childminder Mirror........................................125
Child Safety.......................................................19
Child Safety Locks..........................................25
Child Seat Positioning...................................21
Child Seats.........................................................19 Child restraints for different mass
groups................................................................... 19
Cigar Lighter....................................................122
Cleaning the Exterior...................................195 Body paintwork preservation......................... 195
Cleaning the chrome trim............................... 195
Cleaning the headlamps................................. 195
Cleaning the rear window............................... 195
Cleaning the Interior....................................195 Instrument cluster screens, LCD screens,
radio screens................................................... 196
Rear windows...................................................... 196
Seat belts.............................................................. 195
Climate Control............................................100 Principle of Operation...................................... 100
Climate control commands....................254 Climate.................................................................. 254
Clock..................................................................122
Coded keys........................................................47
Cold Weather Precautions.........................172
Compact disc playback.............................232
Compact disc player...................................232 Compact disc track scanning..................233
Type 1...................................................................... 233
Type 2 and 3......................................................... 233
Connecting an external device...............258 Connection........................................................... 258
Connecting an external device - Vehicles With: Bluetooth.........................................258
Connecting a Bluetooth audio device................................................................ 258
Connectivity...................................................257 General Information.......................................... 257
Convenience features..................................121
Coolant Check See: Engine Coolant Check.............................. 191
Cornering Lamps...........................................60
Cruise Control................................................158 Principle of Operation....................................... 158
Cruise control See: Using Cruise Control................................ 158
Cup Holders....................................................123 Seat back trays.................................................... 124
D
Diesel Particulate Filter..............................130 Regeneration......................................................... 131
Digital signal processing (DSP).............230 Changing the DSP settings............................ 230
DSP equaliser..................................................... 230
DSP occupancy.................................................. 230
Direction Indicators.......................................60
Disabling the passenger airbag................34 Disabling the passenger airbag...................... 34
Enabling the passenger airbag....................... 35
Fitting the passenger airbag deactivation switch.................................................................. 34
Disarming the alarm.....................................49 Vehicles with keyless entry.............................. 49
Vehicles without keyless entry........................ 49
Disarming the engine immobiliser...........47
DPF See: Diesel Particulate Filter.......................... 130
Driving Hints....................................................172
Driving Through Water................................172 Driving through water ....................................... 172
285
Index
