stop start FORD C MAX 2011 2.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Exterior Mirrors.................................................72
Electric exterior mirrors................................73
Auto-Dimming Mirror....................................74
Blind Spot Monitor.........................................74
Instrument Cluster
Gauges................................................................77
Warning Lamps and Indicators.................79
Audible Warnings and Indicators..............81
Information Displays
General Information......................................83
Trip Computer.................................................89
Personalised Settings..................................89
Information Messages.................................90
Climate Control
Principle of Operation................................100
Air Vents..........................................................100
Manual Climate Control.............................101
Automatic Climate Control......................103
Heated Windows and Mirrors..................105
Auxiliary Heater............................................106
Seats
Sitting in the Correct Position.................109
Manual Seats.................................................109
Head Restraints.............................................110
Power Seats......................................................111
Rear Seats........................................................112
Heated Seats.................................................120
Convenience features
Sun Shades......................................................121
Instrument Lighting Dimmer....................122
Clock..................................................................122
Cigar Lighter....................................................122
Auxiliary Power Points................................123
Cup Holders....................................................123
Storage compartments..............................124
Glasses Holder...............................................124
Childminder Mirror........................................125
Auxiliary input (AUX IN) socket...............125
USB port...........................................................125
Satellite Navigation Unit Holder.............126
Floor Mats........................................................126
Starting and Stopping the
Engine
General Information.....................................127
Ignition Switch................................................127
Steering Wheel Lock....................................127
Starting a Petrol Engine.............................128
Starting a Diesel Engine.............................128
Keyless Starting............................................129
Diesel Particulate Filter..............................130
Switching Off the Engine............................131
Engine Block Heater.....................................131
Start-Stop
Principle of Operation.................................133
Using start-stop............................................133
Eco Mode
Principle of Operation.................................135
Using Eco mode............................................135
Fuel and Refuelling
Safety Precautions......................................136
Fuel Quality - Petrol....................................136
Fuel Quality - Diesel....................................136
Catalytic Converter......................................136
Fuel filler flap..................................................137
Refuelling........................................................138
Fuel Consumption........................................138
Technical Specifications............................139
2
Table of Contents

Downloaded from www.Manualslib.com manuals search engine Instrument cluster. See Gauges (page 77). See Warning Lamps and
Indicators (page 79).
D
Left-hand drive vehicles with voice control - Information and entertainment
display control.
E
Left-hand drive vehicles without voice control - Audio control. See Audio
Control (page 50).
E
Right-hand drive vehicles with voice control - Information display control. See
Information Displays (page 83).
E
Right-hand drive vehicles without voice control - Audio control. See Audio
Control (page 50).
E
Wiper lever. See Wipers and Washers (page 52).
F
Information and entertainment display.
G
Audio unit. See Audio unit overview (page 220).
H
Door lock button. See Locking and Unlocking (page 39).
I
Hazard warning flasher switch. See Hazard Warning Flashers (page 59).
J
Power liftgate switch. See Locking and Unlocking (page 39).
K
Parking aid switch. See Parking Aids (page 148).
L
Active park assist switch. See Active Park Assist (page 152).
M
Start-stop switch. See Using start-stop (page 133).
N
Heated rear window switch. See Heated Windows and Mirrors (page 105).
O
Heated windscreen switch. See Heated Windows and Mirrors (page 105).
P
Climate controls. See Climate Control (page 100).
Q
Start button. See Keyless Starting (page 129).
R
Ignition switch. See Ignition Switch (page 127).
S
Audio control. See Audio Control (page 50). Voice control. See Voice Control
(page 51). Telephone control. See Telephone controls (page 238).
T
Steering wheel adjustment. See Adjusting the Steering Wheel (page 50).
U
Horn.
V
Cruise control switches. See Cruise Control (page 158). Speed limiter switches.
See Speed Limiter (page 160).
W
Lighting control. See Lighting Control (page 57). Front fog lamps. See Front
Fog Lamps (page 58). Rear fog lamp. See Rear Fog Lamps (page 58).
Headlamp levelling control. See Headlamp Levelling (page 59). Instrument
lighting dimmer. See Instrument Lighting Dimmer (page 122).
X
12At a Glance

Downloaded from www.Manualslib.com manuals search engine Keyless starting
Press the start button.
Stopping the engine when the vehicle
is moving
WARNING
Switching off the engine when the
vehicle is still moving will result in a
loss of brake and steering assistance.
The steering will not be locked, but higher
effort will be required. When the ignition is
switched off some electrical circuits,
warning lamps and indicators may also be
OFF. Press and hold the start button for two
seconds, or press three times within three
seconds.
Press the start button.
See Keyless Starting (page 129).
Diesel particulate filter (DPF) WARNING
Do not park or idle your vehicle over
dry leaves, dry grass or other
combustible materials. The DPF
regeneration process creates very high
exhaust gas temperatures and the exhaust
will radiate a considerable amount of heat
during and after DPF regeneration, and
after you have switched the engine off.
This is a potential fire hazard. See Diesel Particulate Filter (page 130).
Fuel filler flap Press the flap to open it. Open the flap fully
until it engages.
Insert the fuel nozzle up to and including
the first notch on the nozzle A. Keep it
resting on the cover of the fuel pipe
opening.
16 At a GlanceE85766 E86613 E139202AA

Downloaded from www.Manualslib.com manuals search engine Type 2
Information display. See Information Displays (page 83).
A
Speedometer
B
Engine coolant temperature gauge
C
Fuel gauge
D
Tachometer
E
Engine coolant temperature gauge
All vehicles
Shows the temperature of the engine
coolant. At normal operating temperature,
the needle will remain in the centre section. CAUTION
Do not restart the engine until the
cause of overheating has been
resolved. If the needle enters the red section, the
engine is overheating. Stop the engine,
switch the ignition off and determine the
cause once the engine has cooled down.
See Engine Coolant Check (page 191).
Fuel gauge
The arrow adjacent to the fuel pump
symbol indicates on which side of the
vehicle the fuel filler cap is located.
78
Instrument ClusterBCDEAE130150

Downloaded from www.Manualslib.com manuals search engine Front fog lamp indicator
It will illuminate when you switch
the front fog lamps on.
Frost warning lamp WARNING
Even if the temperature rises to
above 4°C (39°F) there is no
guarantee that the road is free of
hazards caused by inclement weather. It will illuminate and glow orange
when the outside air
temperature is between 4°C
(39°F) and 0°C (32°F). It will glow red
when the temperature is below 0°C
(32°F).
Glow plug indicator See Starting a Diesel Engine
(page 128).
Headlamp indicator It will illuminate when you switch
the headlamp dipped beam or
the side and tail lamps on.
Ignition warning lamp If it illuminates when you are
driving, this indicates a
malfunction. Switch off all
unnecessary electrical equipment. Have
the system checked by a properly trained
technician immediately.
Low fuel level warning lamp If it illuminates, refuel as soon as
possible. Low tyre pressure warning lamp See Tyre Pressure Monitoring
System (page 208).
Main beam indicator It will illuminate when you switch
the headlamp main beam on. It
will flash when you use the
headlamp flasher.
Message indicator It will illuminate when a new
message is stored in the
information display. See
Information Messages (page 90).
Oil pressure warning lamp CAUTION
Do not resume your journey if it
illuminates despite the level being
correct. Have the system checked by
a properly trained technician immediately. If it stays on after starting or
illuminates when driving, this
indicates a malfunction. Stop
your vehicle as soon as it is safe to do so
and switch the engine off. Check the engine
oil level. See Engine Oil Check (page 190).
Rear fog lamp indicator It will illuminate when you switch
the rear fog lamps on.
Seat belt reminder See Seat belt reminder (page
33).
80
Instrument Cluster

Downloaded from www.Manualslib.com manuals search engine Stability control (ESP) indicator
While driving, it flashes during
activation of the system. After
switching on the ignition, if it
does not illuminate or illuminates
continuously while driving, this indicates a
malfunction. During a malfunction, the
system switches off. Have the system
checked by a properly trained technician
as soon as possible. If you switch traction control off,
the warning lamp will illuminate.
The lamp will go out when you
switch the system back on or when you
switch the ignition off.
Start-stop indicator It will illuminate to inform you
when the engine shuts down or
in conjunction with a message.
See Using start-stop (page 133). See
Information Messages (page 90).
AUDIBLE WARNINGS AND
INDICATORS
Switching the chimes on and off
You can deactivate certain chimes using
the Information display control. For item
location: See At a Glance (page 10).
To set which chimes should sound:
1. Press the left arrow button on the steering wheel to enter the main menu.
2. Highlight Settings with the up and down arrow buttons and press the right
arrow button.
3. Highlight Chimes and press the right arrow button. 4.
Highlight Information or Warning and
press the OK button to switch the
chime on and off.
5. Press the left arrow button to exit the menu. Press and hold the left arrow
button to return to the main menu
display.
Automatic transmission
If position P is not selected, a warning
chime will sound when the driver ’s door is
opened.
Frost WARNING
Even if the temperature rises to
above +4°C (39°F) there is no
guarantee that the road is free of
hazards caused by inclement weather. A warning chime will sound in the following
conditions:
•
+4°C (39°F) or lower: frost warning
• 0°C (32°F) or lower: danger of icy
roads.
Key outside car
Vehicles with keyless entry
If the engine is running and a passive key
is no longer detected within the vehicle
interior, a chime will sound.
Key-in-ignition
A warning tone will sound when any door
is opened if the vehicle exceeds a relatively
low speed.
Lights on
A warning chime will sound if the driver ’s
door is opened with the exterior lights
switched on and the ignition switched off.
81
Instrument Cluster

Downloaded from www.Manualslib.com manuals search engine Low fuel
A warning chime will sound when the
remaining fuel is less than 8 litres (1.8
gallons).
Luggage compartment lid - power
liftgate
During operation and programming, the
system may sound various chimes:
•
One short chime indicates that the
liftgate will start to open or close.
• Two short chimes during opening or
closing will indicate that an obstacle
has been detected.
• Three short chimes indicate that the
liftgate will not operate.
• One long chime confirms successful
programming of an end stop position.
See Locking and Unlocking (page 39).
Seat belt reminder WARNINGS
The seat belt reminder remains in
stand-by mode when the front seat
belts have been fastened. It will be
reactivated if either seat belt is unfastened. Do not sit on top of a fastened seat
belt to prevent the seat belt reminder
from coming on. The occupant
protection system will only provide
optimum protection when you use the seat
belt properly. When the vehicle
’s speed exceeds the
pre-determined limit, a warning chime will
sound if either of the front seat belts are
unfastened. The chime will stop after four
minutes. Grand C-MAX rear seat belt reminder WARNING
If multiple belts are unfastened
within a few seconds of each other,
only one audible chime will sound.
When the vehicle
’s speed exceeds the
pre-determined limit, a warning chime will
sound if a rear seat belt is unfastened.
See Seat belt reminder (page 33).
82
Instrument Cluster

Downloaded from www.Manualslib.com manuals search engine 84
Information DisplaysTripComputerTripodometerDisttoemptyInstantfuelAveragefuelAveragespeedOutsideairAllvaluesTractionctrlHillstartassistBLISDisplayDriverassistDeflationdetectionSeatbeltsAutoStartStopAutolightrainDimmingAmbientlightLightingAutoManualSetHdlampdelayManual20seconds40seconds60secondsInformationSettingsBCAE130509FordEcoModeGearshiftingAnticipationSpeedFordEcoModeEnglishDeutschItalianoFrançaisEspañolTürkçePyccкийNederlandsPolskiPortuguêsSvenskaLanguageAlwaysonOndemandAlwaysoffNavigationinfo

Downloaded from www.Manualslib.com manuals search engine Power steering
Action
Message indic-
ator
Message
Stop your vehicle as soon as it is
safe to do so and switch off the
ignition. Have the system checked
by a properly trained technician as
soon as possible.
red
Steering lock malfunction stop
safely
Stop your vehicle as soon as it is
safe to do so and switch off the
ignition. Have the system checked
by a properly trained technician as
soon as possible.
red
Steering loss stop safely
Power steering. Full steering will
be maintained but you will need
to exert greater force on the
steering wheel. Have the system
checked by a properly trained
technician as soon as possible.
amber
Steering assist malfunction service
required
Have the system checked by a
properly trained technician.
amber
Steering malfunction service now
Stability control (ESP) Action
Indicator
Message
See General Information (page 83).
amber
Traction control off
Starting the engine Action
Message
indicator
Message
See Keyless Starting (page 129).
red
Ford KeyFree switch
ignition off press
POWER
See Diesel Particulate Filter (page 130).
amber
Drive to clean exhaust
filter check handbook
See Diesel Particulate Filter (page 130).
amber
Engine malfunction
service now
96
Information Displays

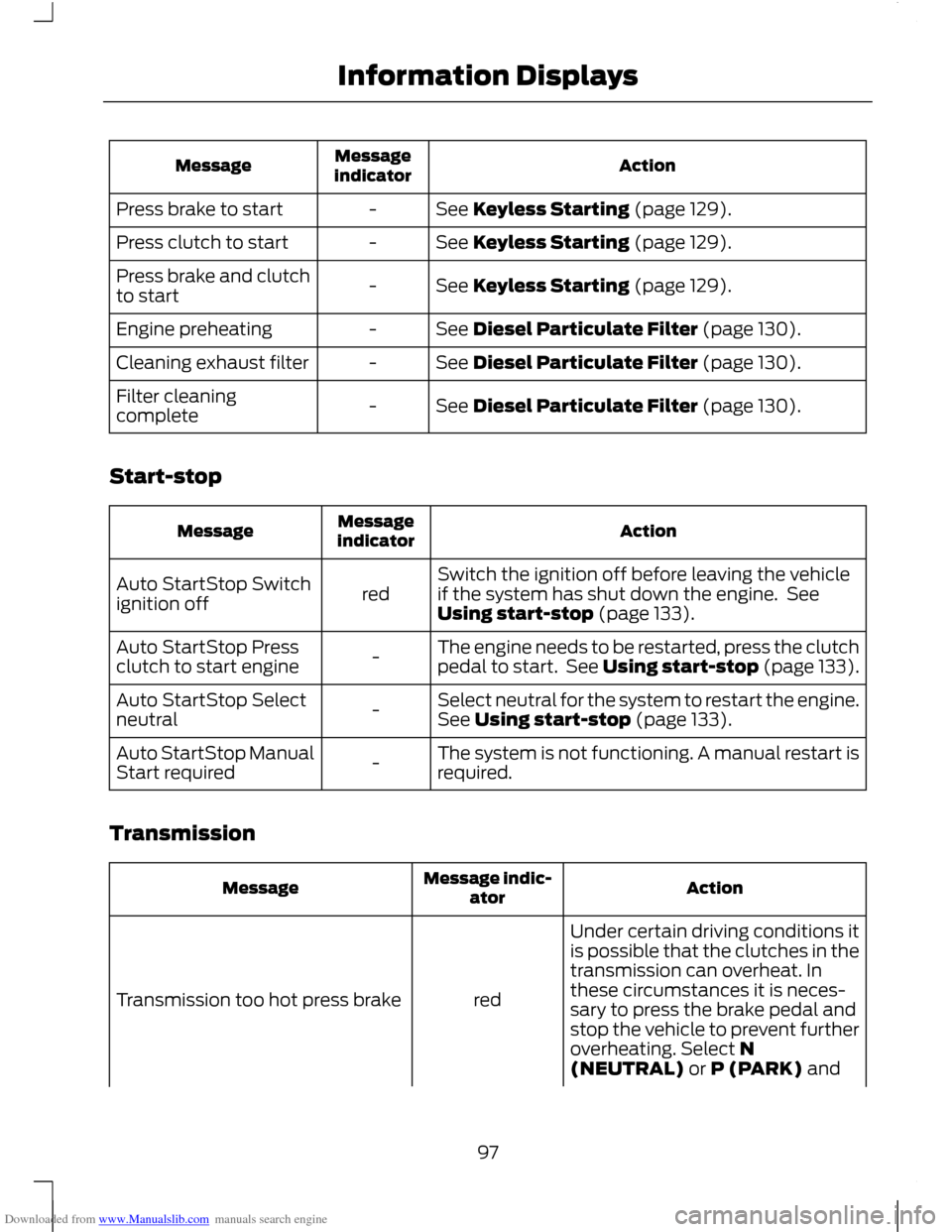

Downloaded from www.Manualslib.com manuals search engine Action
Message
indicator
Message
See Keyless Starting (page 129).
-
Press brake to start
See Keyless Starting (page 129).
-
Press clutch to start
See Keyless Starting (page 129).
-
Press brake and clutch
to start
See Diesel Particulate Filter (page 130).
-
Engine preheating
See Diesel Particulate Filter (page 130).
-
Cleaning exhaust filter
See Diesel Particulate Filter (page 130).
-
Filter cleaning
complete
Start-stop Action
Message
indicator
Message
Switch the ignition off before leaving the vehicle
if the system has shut down the engine. See
Using start-stop (page 133).
red
Auto StartStop Switch
ignition off
The engine needs to be restarted, press the clutch
pedal to start. See Using start-stop (page 133).
-
Auto StartStop Press
clutch to start engine
Select neutral for the system to restart the engine.
See Using start-stop (page 133).
-
Auto StartStop Select
neutral
The system is not functioning. A manual restart is
required.
-
Auto StartStop Manual
Start required
Transmission Action
Message indic-
ator
Message
Under certain driving conditions it
is possible that the clutches in the
transmission can overheat. In
these circumstances it is neces-
sary to press the brake pedal and
stop the vehicle to prevent further
red
Transmission too hot press brake
overheating. Select N
(NEUTRAL) or P (PARK) and
97
Information Displays
