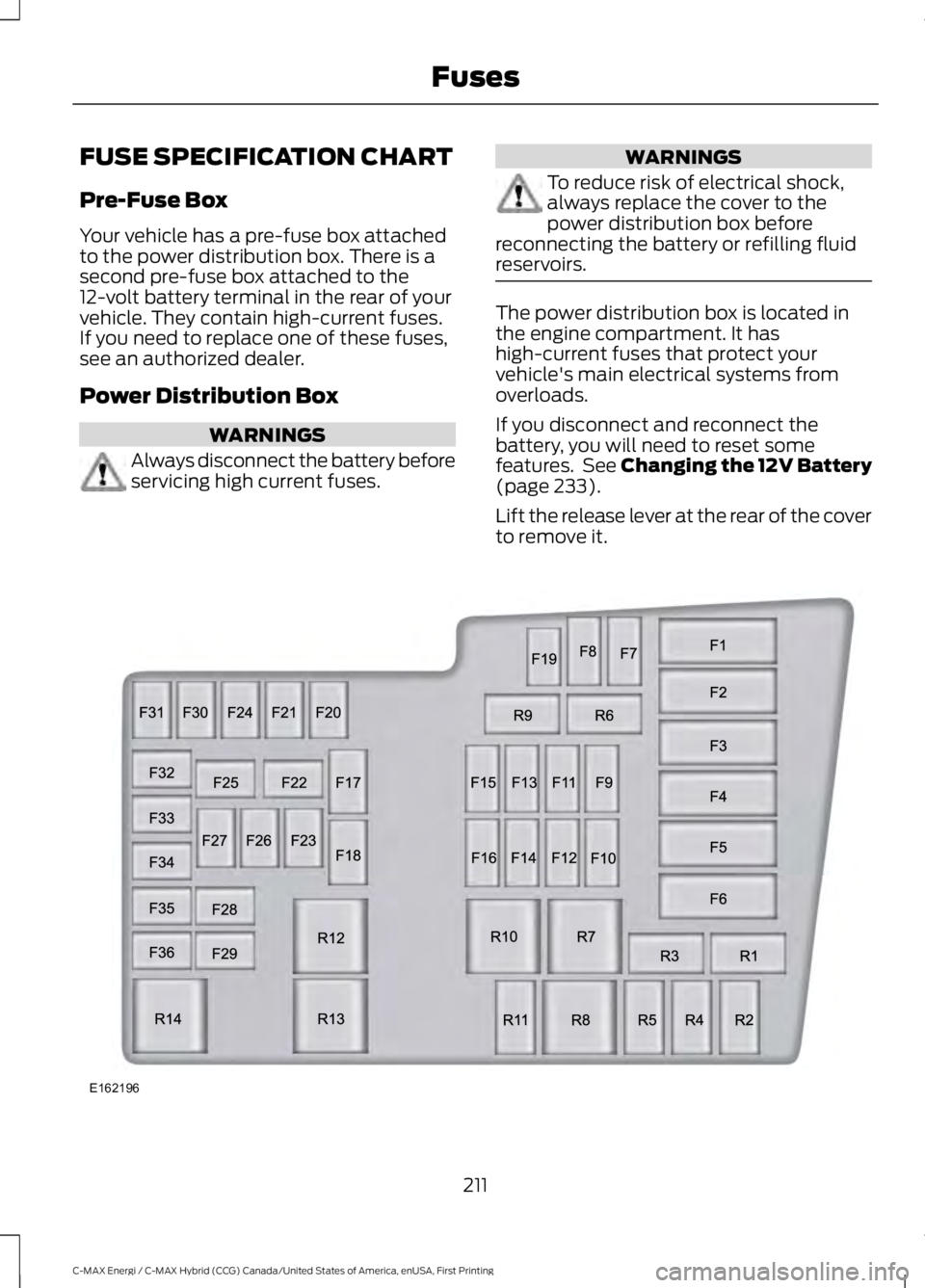

FUSE SPECIFICATION CHART
Pre-Fuse Box
Your vehicle has a pre-fuse box attachedto the power distribution box. There is asecond pre-fuse box attached to the12-volt battery terminal in the rear of yourvehicle. They contain high-current fuses.If you need to replace one of these fuses,see an authorized dealer.
Power Distribution Box
WARNINGS
Always disconnect the battery beforeservicing high current fuses.
WARNINGS
To reduce risk of electrical shock,always replace the cover to thepower distribution box beforereconnecting the battery or refilling fluidreservoirs.
The power distribution box is located inthe engine compartment. It hashigh-current fuses that protect yourvehicle's main electrical systems fromoverloads.
If you disconnect and reconnect thebattery, you will need to reset somefeatures. See Changing the 12V Battery(page 233).
Lift the release lever at the rear of the coverto remove it.
211
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing
FusesE162196
