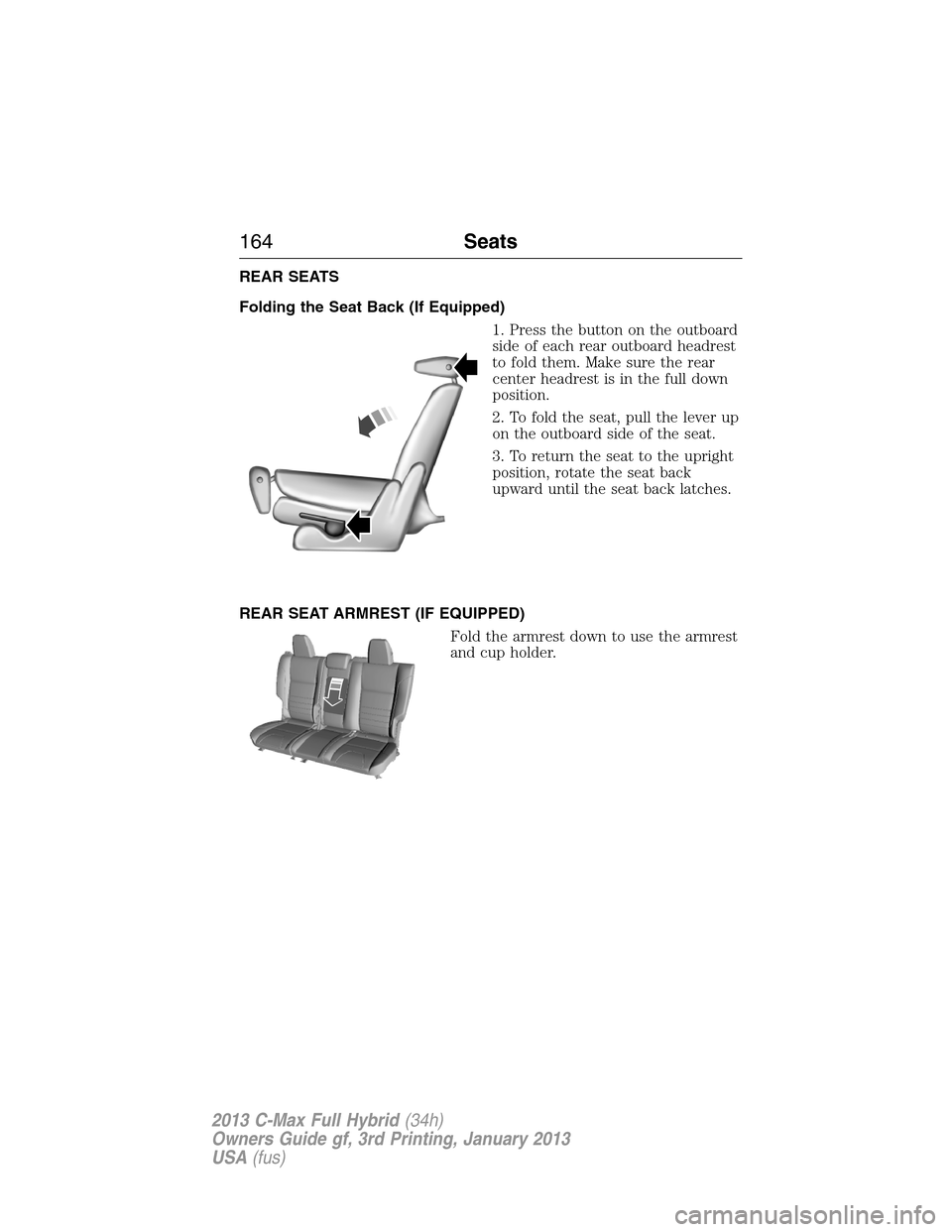

REAR SEATS
Folding the Seat Back (If Equipped)
1. Press the button on the outboard
side of each rear outboard headrest
to fold them. Make sure the rear
center headrest is in the full down
position.
2. To fold the seat, pull the lever up
on the outboard side of the seat.
3. To return the seat to the upright
position, rotate the seat back
upward until the seat back latches.
REAR SEAT ARMREST (IF EQUIPPED)
Fold the armrest down to use the armrest
and cup holder.
164Seats
