key FORD C MAX HYBRID 2013 2.G Owners Manual

Introduction 9
Child Safety 18
Child seats...........................................20
Child seat positioning...................................20
Booster seats.........................................22
Installing child safety seats...............................25
Child safety locks......................................32
Safety Belts 33
Fastening the safety belts................................35
Safety belt height adjustment.............................38
Safetybeltwarninglightandindicatorchime..................39
Safety belt-minder.....................................39
Child restraint and safety belt maintenance...................42
Personal Safety System 43
Supplementary Restraints System 44
Driver and passenger airbags.............................46
Front passenger sensing system...........................48
Knee airbag..........................................51
Side airbags..........................................51
Safety canopy curtain airbags.............................53
Crash sensors and airbag indicator.........................55
Airbag disposal........................................56
Keys and Remote Control 57
General information on radio frequencies.....................57
Remote control.......................................58
Keys...............................................58
Replacing a lost key or remote control.......................65
Table of Contents1
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

MyKey 66
Settings, MyKey.......................................66
Creating.............................................67
Clearing.............................................68
System status.........................................68
Remote start, MyKey...................................69
Troubleshooting, MyKey.................................70
Locks 72
Locking and unlocking..................................72
Security 83
SecuriLock® passive anti-theft system.......................83
Steering Wheel 86
Adjusting the steering wheel..............................86
Steering wheel controls.................................87
Wipers and Washers 89
Windshield wipers.....................................89
Autowipers ..........................................90
Windshield washers....................................91
Rear-window wiper and washer............................91
Lighting 92
Lighting control.......................................92
Autolamps...........................................93
Instrument lighting dimmer...............................93
Headlamp exit delay....................................94
Daytime running lamps..................................94
Front fog lamps.......................................95
Directionindicators ....................................95
Interior lamps........................................95
Ambient lighting.......................................97
2Table of Contents
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Universal Garage Door Opener (If Equipped) 166
HomeLink® wireless control system.......................167
Auxiliary Power Points 171
Storage Compartments 173
Center console.......................................173
Overhead console.....................................173
Starting and Stopping the Engine 174
Ignition switch.......................................175
Keyless starting......................................175
Engine block heater...................................180
Unique Driving Characteristics 182
Hybrid electric vehicles.................................182
Fuel and Refueling 190
Fuel quality.........................................191
Refueling...........................................193
Running out of fuel....................................198
Fuel consumption.....................................200
High Voltage Battery 205
High-voltagebattery...................................205
Charging the high-voltage battery.........................205
Transmission 213
Automatic transmission.................................213
Hill start assist.......................................217
Brakes 218
Brakes.............................................218
Hints on driving with anti-lock brakes......................219
Traction Control 221
TractionControl™ ....................................221
4Table of Contents
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

PRINCIPLE OF OPERATION
The remote control allows you to:
•remotely lock or unlock the vehicle doors
•unlock the doors without actively using a key or remote control
(intelligent access only)
•remotely open the power liftgate (if equipped)
•remotely start or stop the engine (if equipped)
•arm and disarm the anti-theft system
•activate the panic alarm.
GENERAL INFORMATION ON RADIO FREQUENCIES
This device complies with part 15 of the FCC Rules and with Industry
Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Note:Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment. The termICbefore the radio certification number only
signifies that Industry Canada technical specifications were met.
The typical operating range for your transmitter is approximately 33 feet
(10 meters). Vehicles with the remote start feature will have a greater
range. A decrease in operating range could be caused by:
•weather conditions
•nearby radio towers
•structures around your vehicle
•other vehicles parked next to your vehicle.
The radio frequency used by your remote control can also be used by
other short-distance radio transmissions, for example amateur radios,
medical equipment, wireless headphones, remote controls and alarm
systems. If the frequencies are jammed, you will not be able to use your
remote control. You can lock and unlock the doors with the key.
Note:Make sure your vehicle is locked before leaving it unattended.
Note:If you are in range, the remote control will operate if you press
any button unintentionally.
Keys and Remote Control57
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Intelligent Access (If Equipped)
The system uses a radio frequency signal to communicate with your
vehicle and authorize your vehicle to unlock when one of the following
conditions is met:
•You touch the inside of the front exterior door handle.
•You press the luggage compartment button.
•You press a button on the transmitter.
If excessive radio frequency interference is present in the area or if the
transmitter battery is low, it may be necessary to mechanically unlock
your door. You can use the mechanical key blade in your intelligent
access key to open the driver door in this situation. Refer toRemote
Controlin this chapter for more information on the location and use of
the mechanical key blade.
REMOTE CONTROL
Integrated Keyhead Transmitters (IKTs) (If Equipped)
Your vehicle may be equipped with
two integrated keyhead transmitters.
Use the key blade to start your
vehicle and unlock or lock the
driver door from outside the vehicle.
The transmitter portion functions as
the remote control.
Note:Your vehicle’s keys came
with a security label that provides
important key cut information.
Keep the label in a safe place for
future reference.
58Keys and Remote Control
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Intelligent Access Key (If Equipped)
Type 1
Type 2
Your vehicle may be equipped with two intelligent access keys which
operate the power locks and the remote start system. The key must be
in the vehicle to activate the push button start system.
Mechanical Key Blade
The key also contains a removable mechanical key blade that can be
used to unlock the driver door.
Type 1
To release the mechanical key blade:
1. Press and hold the push buttons
on the edges of the transmitter to
release the cover. Carefully remove
the cover.
2. Remove the key blade.
1
1
2
Keys and Remote Control59
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

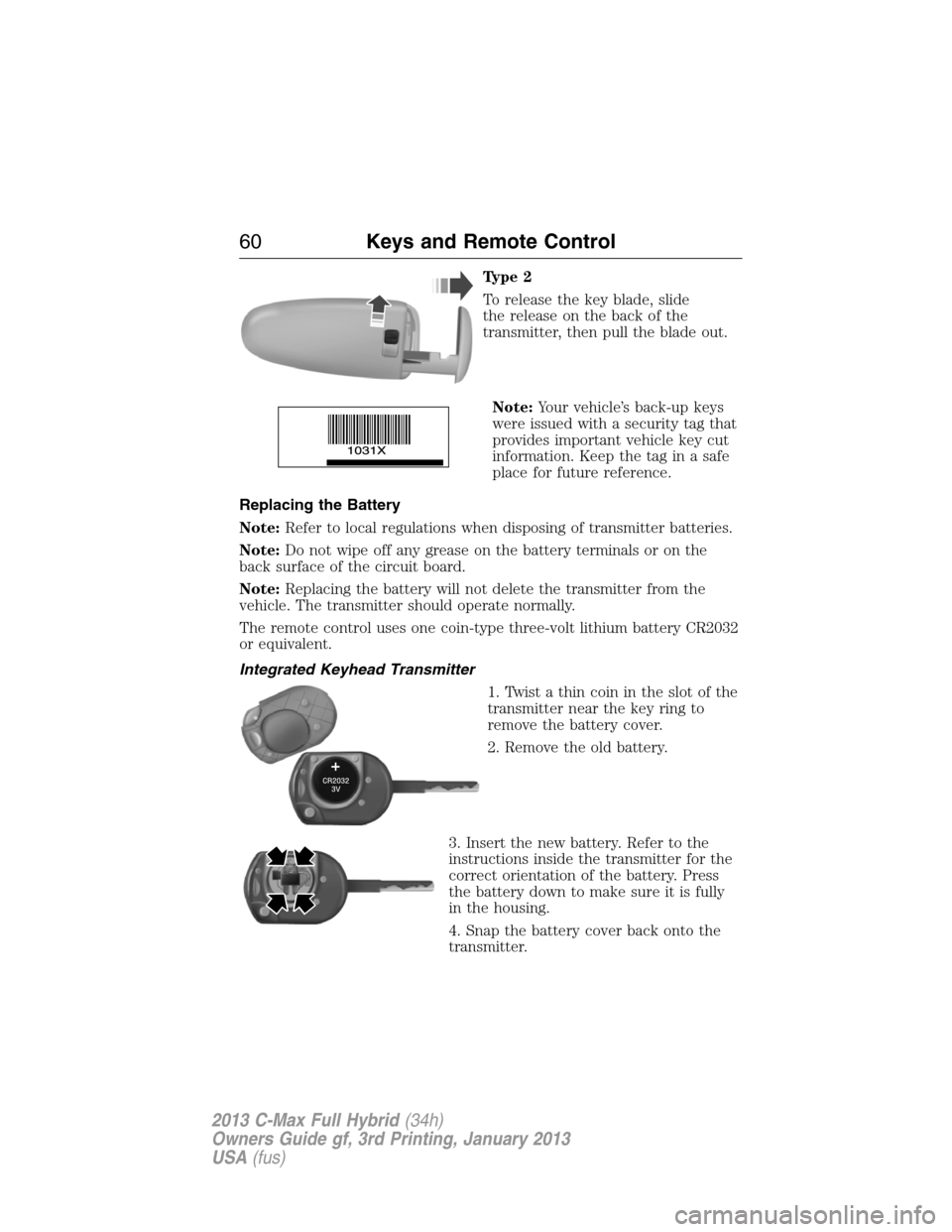

Type 2
To release the key blade, slide
the release on the back of the
transmitter, then pull the blade out.
Note:Your vehicle’s back-up keys
were issued with a security tag that
provides important vehicle key cut
information. Keep the tag in a safe
place for future reference.
Replacing the Battery
Note:Refer to local regulations when disposing of transmitter batteries.
Note:Do not wipe off any grease on the battery terminals or on the
back surface of the circuit board.
Note:Replacing the battery will not delete the transmitter from the
vehicle. The transmitter should operate normally.
The remote control uses one coin-type three-volt lithium battery CR2032
or equivalent.
Integrated Keyhead Transmitter
1. Twist a thin coin in the slot of the
transmitter near the key ring to
remove the battery cover.
2. Remove the old battery.
3. Insert the new battery. Refer to the
instructions inside the transmitter for the
correct orientation of the battery. Press
the battery down to make sure it is fully
in the housing.
4. Snap the battery cover back onto the
transmitter.
60Keys and Remote Control
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Intelligent Access Key (Type 1)
1. Press and hold the push buttons
to release the cover. Carefully
remove the cover.
2. Remove the key blade.
3. Twist the screwdriver in the position
shown to start separating the two
halves of the remote control.
4. Twist the screwdriver in the
position shown to separate the two
halves of the remote control.
Note:Do not touch the battery
contacts or the printed circuit board
with the screwdriver.
5. Carefully remove the battery with
the screwdriver.
1
1
2
3
4
5
Keys and Remote Control61
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

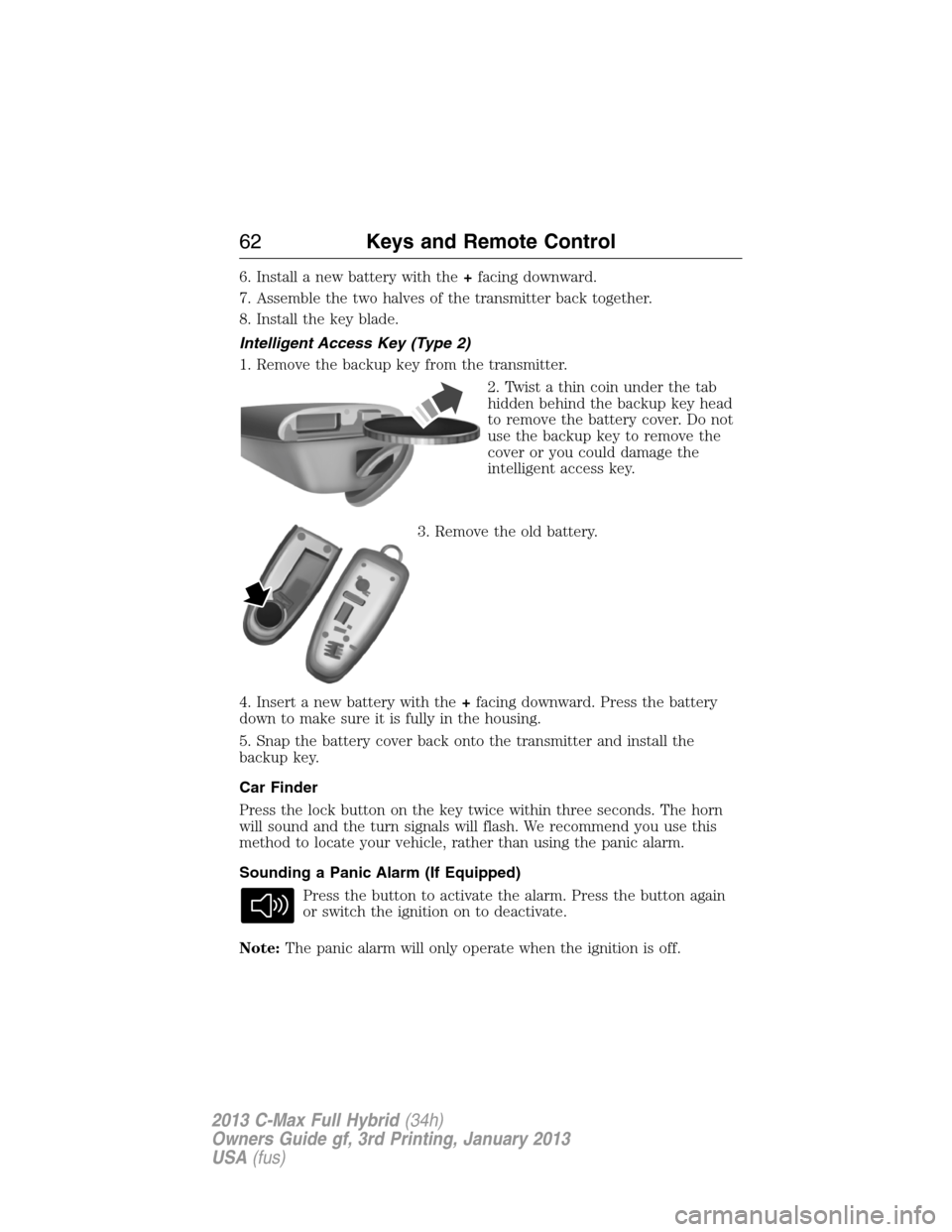

6. Install a new battery with the+facing downward.
7. Assemble the two halves of the transmitter back together.
8. Install the key blade.
Intelligent Access Key (Type 2)
1. Remove the backup key from the transmitter.
2. Twist a thin coin under the tab
hidden behind the backup key head
to remove the battery cover. Do not
use the backup key to remove the
cover or you could damage the
intelligent access key.
3. Remove the old battery.
4. Insert a new battery with the+facing downward. Press the battery
down to make sure it is fully in the housing.
5. Snap the battery cover back onto the transmitter and install the
backup key.
Car Finder
Press the lock button on the key twice within three seconds. The horn
will sound and the turn signals will flash. We recommend you use this
method to locate your vehicle, rather than using the panic alarm.
Sounding a Panic Alarm (If Equipped)
Press the button to activate the alarm. Press the button again
or switch the ignition on to deactivate.
Note:The panic alarm will only operate when the ignition is off.
62Keys and Remote Control
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Remote Start (C-MAX Energi Only)
WARNING:To avoid exhaust fumes, do not use remote start if
your vehicle is parked indoors or areas that are not well
ventilated.
Note:Do not use remote start if your vehicle is low on fuel.
The remote start button is on the transmitter.
This feature allows you to start the vehicle from outside the vehicle.
The transmitter has an extended operating range.
Vehicles with automatic climate control can be configured to operate
when the vehicle is remote started. Refer to theClimate Control
chapter for more information.
Many states and provinces have restrictions for the use of remote start.
Check your local and state or provincial laws for specific requirements
regarding remote start systems.
The remote start system will not work if:
•the ignition is on
•the alarm system is triggered
•the feature has been disabled
•the hood is not closed
•the transmission is not inP
•the vehicle battery voltage is too low
•the powertrain malfunction/reduced power indicator was on the last
time the vehicle was driven.
Keys and Remote Control63
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
