Page 3 of 552
MyKey 66
Settings, MyKey.......................................66
Creating.............................................67
Clearing.............................................68
System status.........................................68
Remote start, MyKey...................................69
Troubleshooting, MyKey.................................70
Locks 72
Locking and unlocking..................................72
Security 83
SecuriLock® passive anti-theft system.......................83
Steering Wheel 86
Adjusting the steering wheel..............................86
Steering wheel controls.................................87
Wipers and Washers 89
Windshield wipers.....................................89
Autowipers ..........................................90
Windshield washers....................................91
Rear-window wiper and washer............................91
Lighting 92
Lighting control.......................................92
Autolamps...........................................93
Instrument lighting dimmer...............................93
Headlamp exit delay....................................94
Daytime running lamps..................................94
Front fog lamps.......................................95
Directionindicators ....................................95
Interior lamps........................................95
Ambient lighting.......................................97
2Table of Contents
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
Page 58 of 552
PRINCIPLE OF OPERATION
The remote control allows you to:
•remotely lock or unlock the vehicle doors
•unlock the doors without actively using a key or remote control
(intelligent access only)
•remotely open the power liftgate (if equipped)
•remotely start or stop the engine (if equipped)
•arm and disarm the anti-theft system
•activate the panic alarm.
GENERAL INFORMATION ON RADIO FREQUENCIES
This device complies with part 15 of the FCC Rules and with Industry
Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Note:Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment. The termICbefore the radio certification number only
signifies that Industry Canada technical specifications were met.
The typical operating range for your transmitter is approximately 33 feet
(10 meters). Vehicles with the remote start feature will have a greater
range. A decrease in operating range could be caused by:
•weather conditions
•nearby radio towers
•structures around your vehicle
•other vehicles parked next to your vehicle.
The radio frequency used by your remote control can also be used by
other short-distance radio transmissions, for example amateur radios,
medical equipment, wireless headphones, remote controls and alarm
systems. If the frequencies are jammed, you will not be able to use your
remote control. You can lock and unlock the doors with the key.
Note:Make sure your vehicle is locked before leaving it unattended.
Note:If you are in range, the remote control will operate if you press
any button unintentionally.
Keys and Remote Control57
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
Page 59 of 552

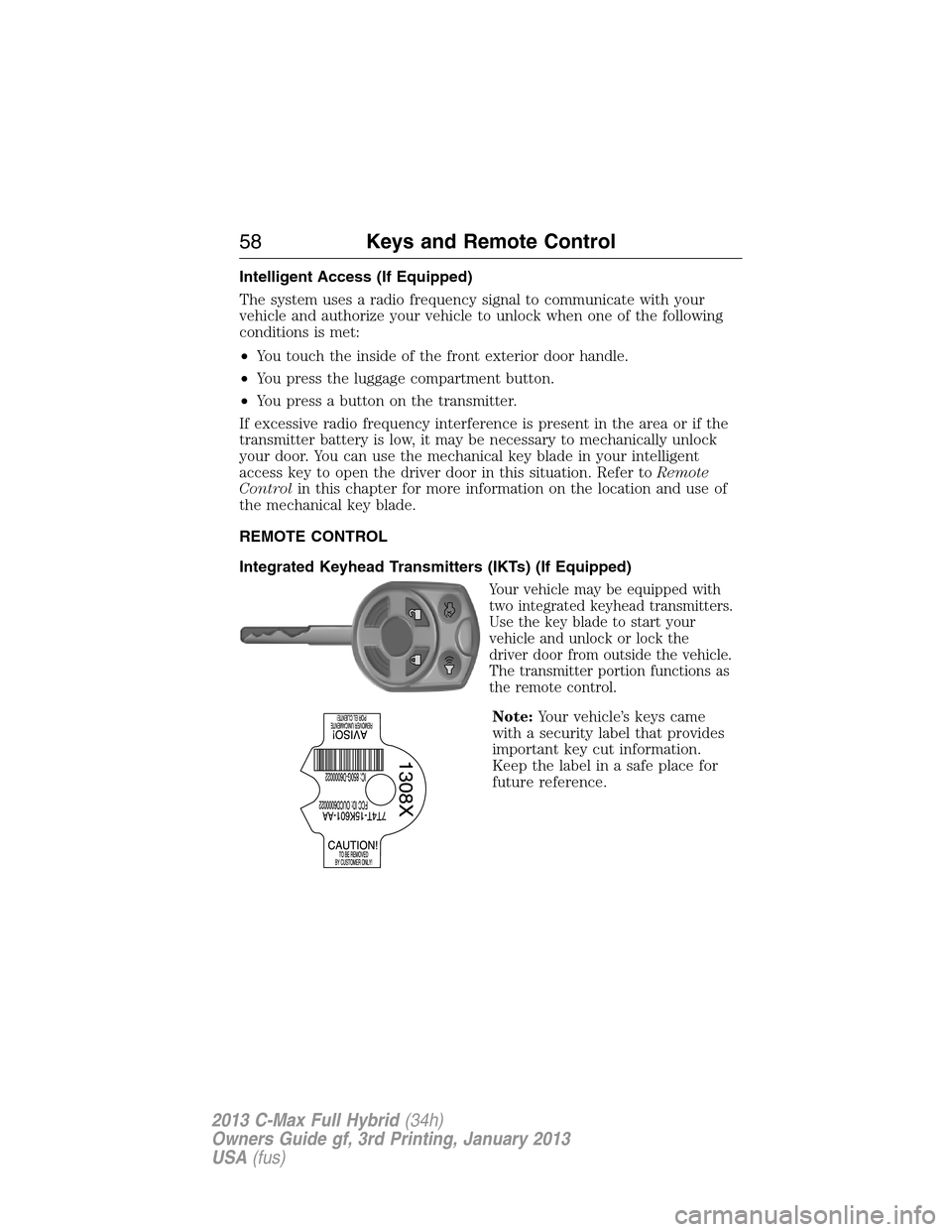

Intelligent Access (If Equipped)
The system uses a radio frequency signal to communicate with your
vehicle and authorize your vehicle to unlock when one of the following
conditions is met:
•You touch the inside of the front exterior door handle.
•You press the luggage compartment button.
•You press a button on the transmitter.
If excessive radio frequency interference is present in the area or if the
transmitter battery is low, it may be necessary to mechanically unlock
your door. You can use the mechanical key blade in your intelligent
access key to open the driver door in this situation. Refer toRemote
Controlin this chapter for more information on the location and use of
the mechanical key blade.
REMOTE CONTROL
Integrated Keyhead Transmitters (IKTs) (If Equipped)
Your vehicle may be equipped with
two integrated keyhead transmitters.
Use the key blade to start your
vehicle and unlock or lock the
driver door from outside the vehicle.
The transmitter portion functions as
the remote control.
Note:Your vehicle’s keys came
with a security label that provides
important key cut information.
Keep the label in a safe place for
future reference.
58Keys and Remote Control
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
Page 60 of 552

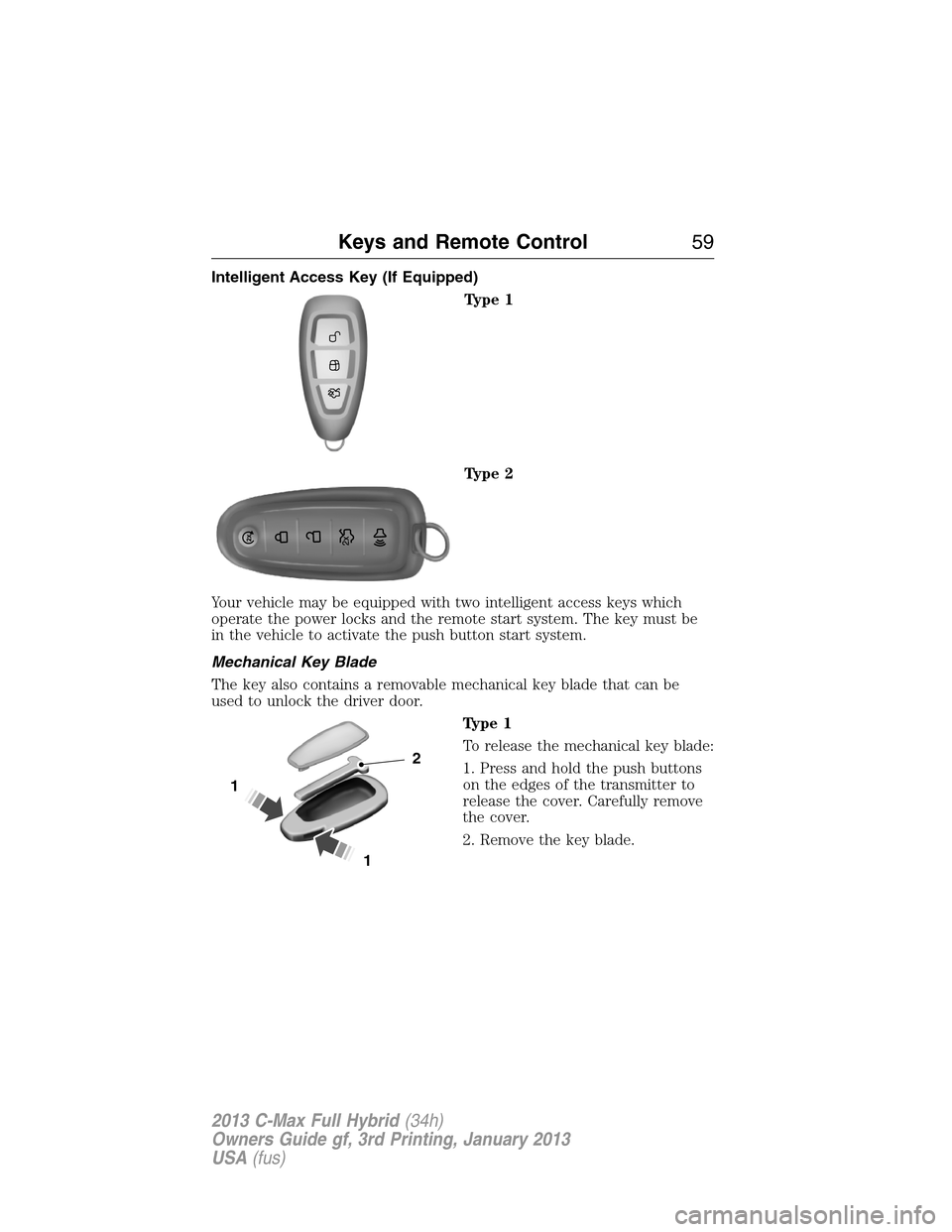

Intelligent Access Key (If Equipped)
Type 1
Type 2
Your vehicle may be equipped with two intelligent access keys which
operate the power locks and the remote start system. The key must be
in the vehicle to activate the push button start system.
Mechanical Key Blade
The key also contains a removable mechanical key blade that can be
used to unlock the driver door.
Type 1
To release the mechanical key blade:
1. Press and hold the push buttons
on the edges of the transmitter to
release the cover. Carefully remove
the cover.
2. Remove the key blade.
1
1
2
Keys and Remote Control59
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
Page 62 of 552

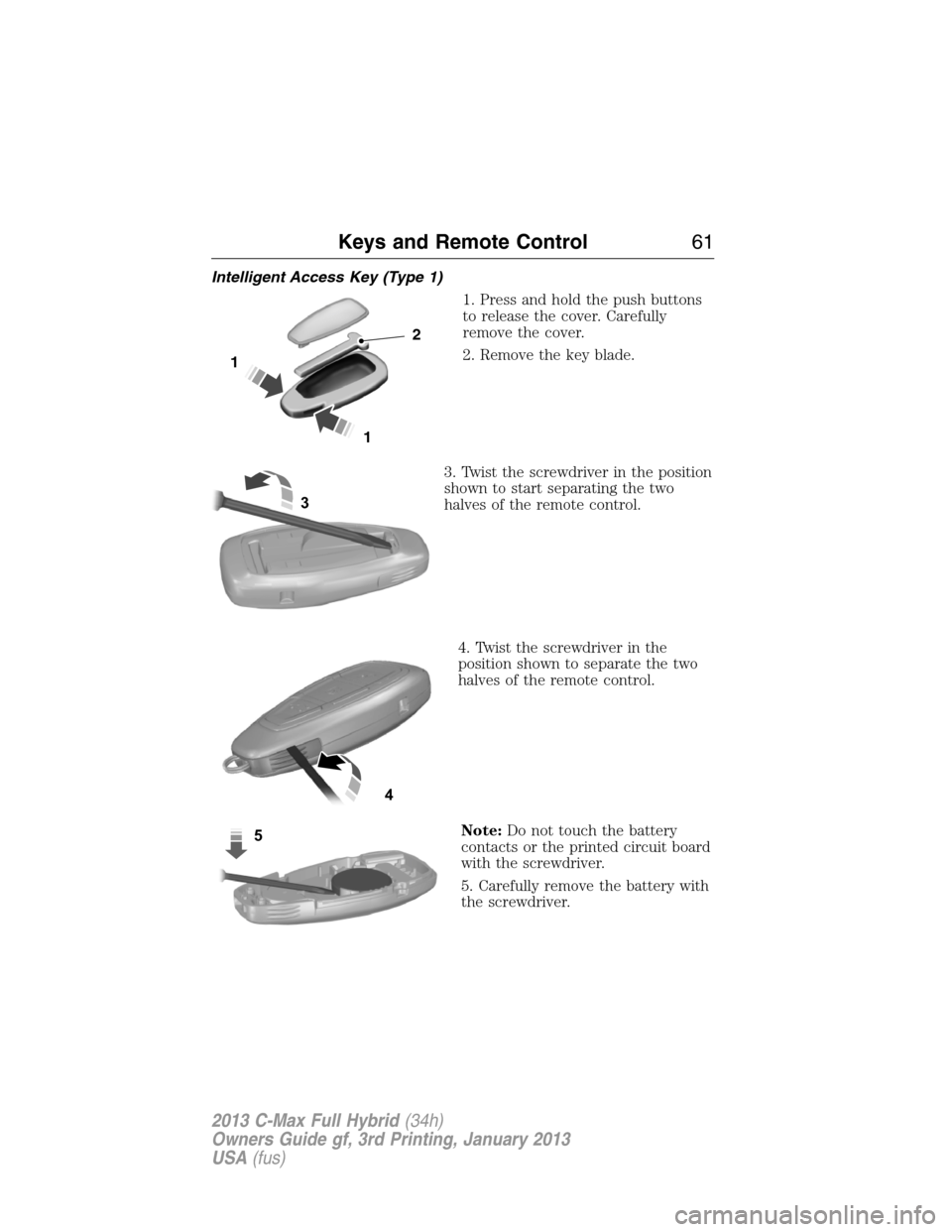

Intelligent Access Key (Type 1)
1. Press and hold the push buttons
to release the cover. Carefully
remove the cover.
2. Remove the key blade.
3. Twist the screwdriver in the position
shown to start separating the two
halves of the remote control.
4. Twist the screwdriver in the
position shown to separate the two
halves of the remote control.
Note:Do not touch the battery
contacts or the printed circuit board
with the screwdriver.
5. Carefully remove the battery with
the screwdriver.
1
1
2
3
4
5
Keys and Remote Control61
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
Page 64 of 552

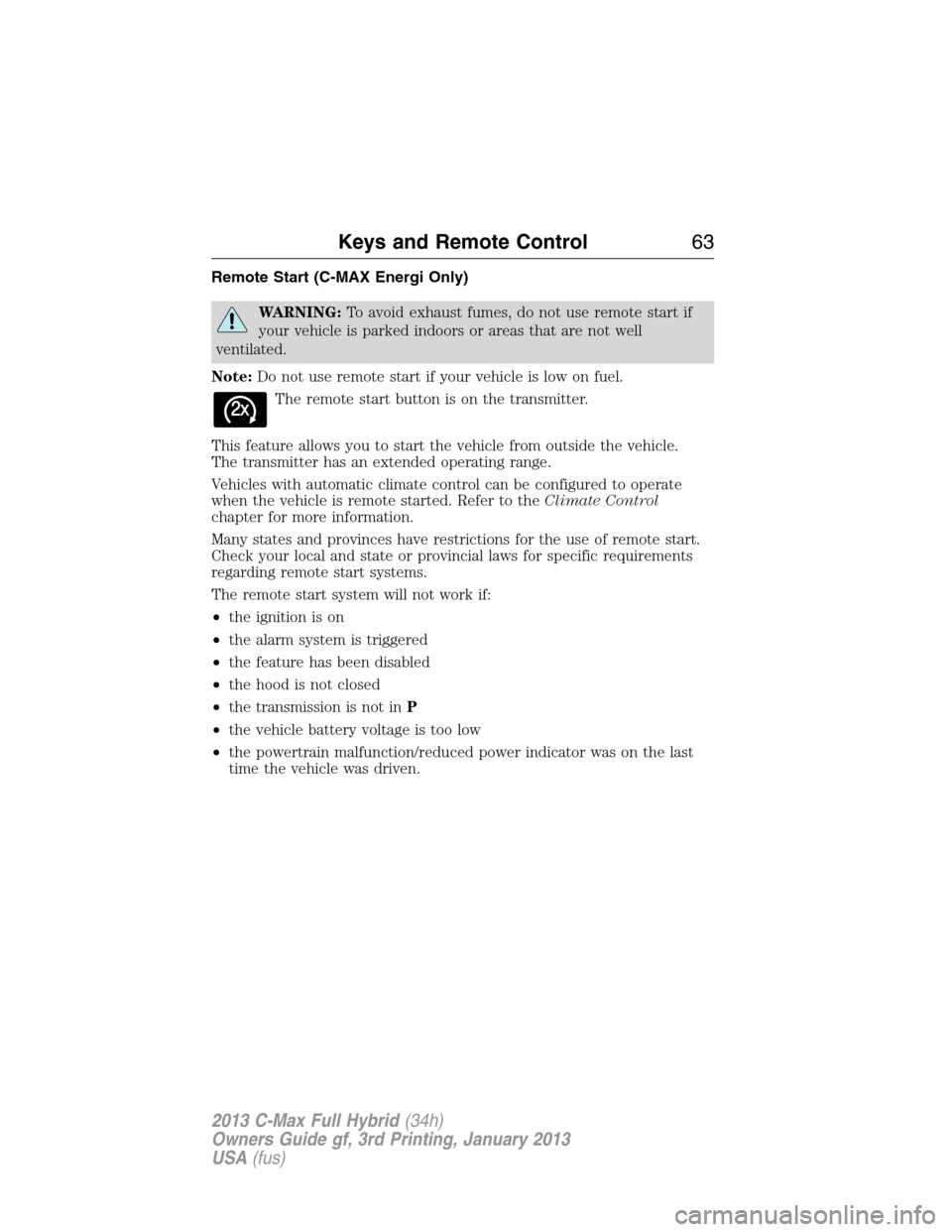

Remote Start (C-MAX Energi Only)
WARNING:To avoid exhaust fumes, do not use remote start if
your vehicle is parked indoors or areas that are not well
ventilated.
Note:Do not use remote start if your vehicle is low on fuel.
The remote start button is on the transmitter.
This feature allows you to start the vehicle from outside the vehicle.
The transmitter has an extended operating range.
Vehicles with automatic climate control can be configured to operate
when the vehicle is remote started. Refer to theClimate Control
chapter for more information.
Many states and provinces have restrictions for the use of remote start.
Check your local and state or provincial laws for specific requirements
regarding remote start systems.
The remote start system will not work if:
•the ignition is on
•the alarm system is triggered
•the feature has been disabled
•the hood is not closed
•the transmission is not inP
•the vehicle battery voltage is too low
•the powertrain malfunction/reduced power indicator was on the last
time the vehicle was driven.
Keys and Remote Control63
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
Page 65 of 552
Remote Starting the Vehicle
Note:Each button press must be done within three seconds of each
other. The vehicle will not remote start if this sequence is not followed
and the horn will not chirp.
The label on your transmitter
details the starting procedure.
To remote start your vehicle:
1. Press the lock button to lock all the doors.
2. Press the remote start button twice. The exterior lamps will flash
twice.
The horn will chirp if the system fails to start (unless quiet start is on).
Quiet start will run the blower fan at a slower speed to reduce noise.
It can be switched on or off. Refer to theInformation Displayschapter.
Note:If the vehicle has been remote started and is equipped with an
integrated keyhead transmitter, you must turn the ignition on before
driving the vehicle. If equipped with an intelligent access transmitter, you
must press theSTART/STOPbutton on the instrument panel once while
applying the brake pedal before driving the vehicle.
The power windows will be inhibited during the remote start and the
radio will not turn on automatically.
The parking lamps will remain on and the vehicle will run for 5, 10,
or 15 minutes, depending on the setting. Refer to theInformation
Displayschapter to select the duration of the remote start system.
64Keys and Remote Control
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
Page 66 of 552

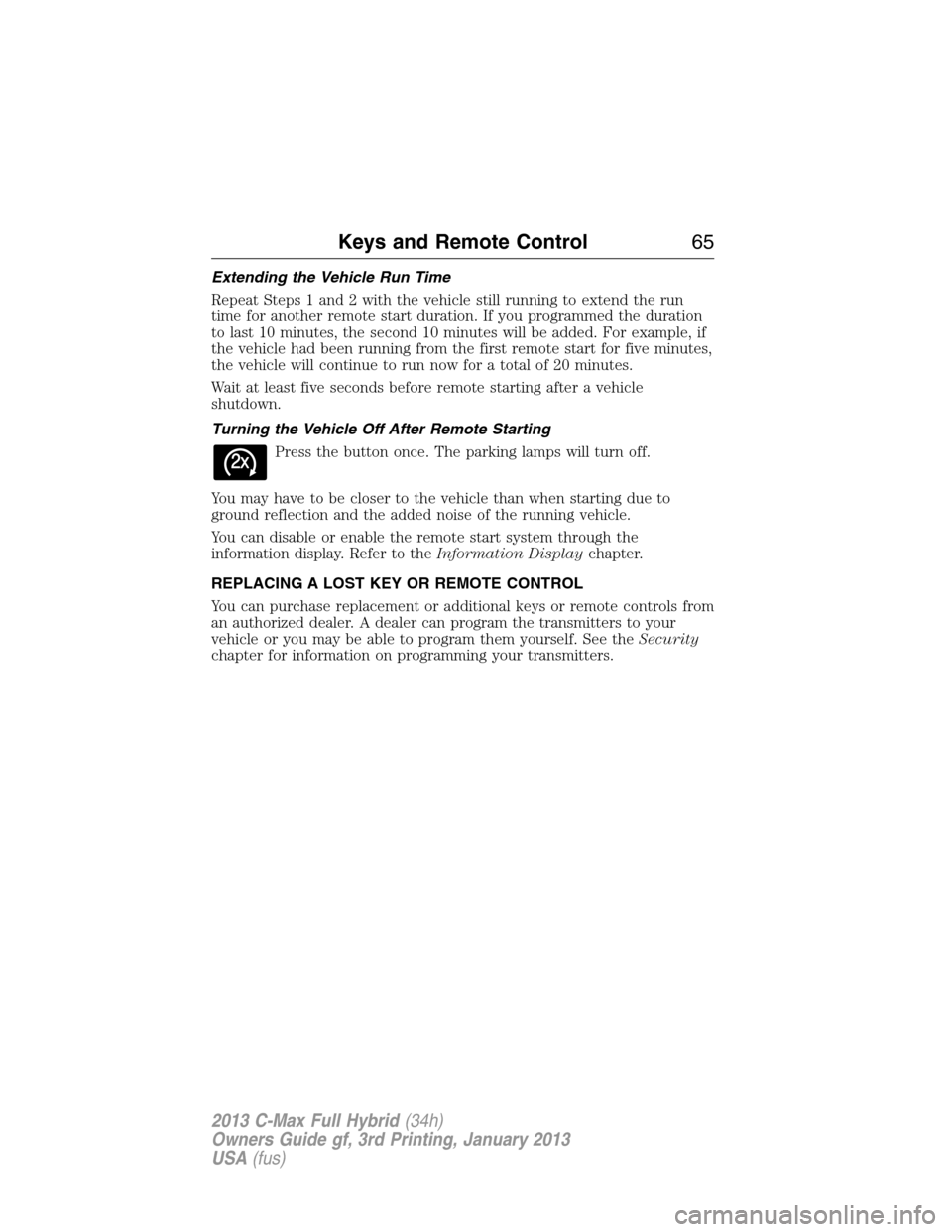

Extending the Vehicle Run Time
Repeat Steps 1 and 2 with the vehicle still running to extend the run
time for another remote start duration. If you programmed the duration
to last 10 minutes, the second 10 minutes will be added. For example, if
the vehicle had been running from the first remote start for five minutes,
the vehicle will continue to run now for a total of 20 minutes.
Wait at least five seconds before remote starting after a vehicle
shutdown.
Turning the Vehicle Off After Remote Starting
Press the button once. The parking lamps will turn off.
You may have to be closer to the vehicle than when starting due to
ground reflection and the added noise of the running vehicle.
You can disable or enable the remote start system through the
information display. Refer to theInformation Displaychapter.
REPLACING A LOST KEY OR REMOTE CONTROL
You can purchase replacement or additional keys or remote controls from
an authorized dealer. A dealer can program the transmitters to your
vehicle or you may be able to program them yourself. See theSecurity
chapter for information on programming your transmitters.
Keys and Remote Control65
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
Page 70 of 552
USING MYKEY WITH REMOTE START SYSTEMS
MyKey is not compatible with non-Ford-approved (unlicensed)
aftermarket remote start systems. If you choose to install a remote start
system, please see your Ford authorized dealer for a Ford-approved
remote start system.
The following information may help customers who choose to install an
unlicensed remote start system. The instructions provided below do not
make the MyKey system or its features compatible with any unlicensed
remote start system, but they may help you retain some MyKey
functions.
Vehicles Equipped with Traditional Keys
MyKey programming and restrictions are not compatible with unlicensed
remote start systems, but there are ways you can retain some of the
MyKey functions. To learn if this is possible, use the remote start to start
your vehicle. While the vehicle’s engine is running: .
1. Insert your key into the ignition cylinder.
2. Restart the engine using the key in the ignition.
3. If MyKey recognizes your unlicensed remote start system as an
additional admin key with its associated privileges, then you can
program it as a MyKey just as you would program a traditional key.
To program an unlicensed remote start system as a MyKey, do the
following:
•Enter the vehicle and close all doors.
•Use the remote start to start your vehicle.
•See theCreating a MyKeysection and follow Steps 1–5.
Vehicles Equipped with Intelligent Access Key (Push-button Start)
It is not possible to program your unlicensed remote start system
as a MyKey if your vehicle is equipped with intelligent access keys
(push-button start), but you can still retain the MyKey programming
with your intelligent access key fob by following this process:
1. Enter the vehicle and close all doors.
2. Start your vehicle with the remote start. Do not open a door or shift
the vehicle out of P (Park) as either action will cause the engine to
stall. While the engine is running, your remote start retains its admin
key status.
3. Restart the engine by pressing the Start/Stop button. SeeKeyless
Startingfor more information. The vehicle will identify your
intelligent access fob as an admin key or a MyKey, depending
on the settings of the actual key used to start the vehicle.
MyKey69
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
Page 71 of 552
Note:When you view your MyKey system status, either the number of
MYKEY(S) PROGRAMMED or ADMIN KEYS PROGRAMMED may include
your unlicensed remote start system in the total count. See the
Checking MyKey System Statussection.
For all vehicles with an unlicensed, non-Ford-approved aftermarket
remote start installed, it is possible to program all keys as MyKeys.
In this case, you will need to use your remote start system to remove all
restrictions and return the key or intelligent access key to its admin key
status by doing the following:
•Enter the vehicle and close all doors.
•Start your vehicle with your remote start.
•See theClearing All MyKeyssection and follow Steps 1–3.
MYKEY TROUBLESHOOTING
Condition Potential Causes
I cannot program a
key.•The key or fob used to start the vehicle
does not have admin privileges.
•The key or fob used to start the vehicle is
the only admin key (there always has to be at
least one admin key).
•Vehicles with push button start: The
intelligent access key is not in the backup slot
or positioned correctly next to the steering
column. See theStarting and Stopping the
Vehiclechapter for more information.
•SecuriLock passive anti-theft system is
disabled or in unlimited mode.
I cannot program the
optional settings.•The key or fob used to start the vehicle
does not have admin privileges.
•No keys are programmed to the vehicle.
See theCreating a MyKeychapter.
70MyKey
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
