Your cabin air filter is located under the
instrument panel in the passenger footwell
area. The particulate filtration system
reduces the concentration of airborne
particles such as dust, spores and pollen
in the air supplied to the interior of your
vehicle.
The particulate filtration system gives you
and your passengers the following
benefits:
•
It improves your driving comfort by
reducing particle concentration.
• It improves the interior compartment
cleanliness.
• It protects the climate control
components from particle deposits.
Replace the filter at regular intervals. See
the Scheduled Maintenance chapter.
For more information about your filter, see
an authorized dealer.
REMOTE START
(If Equipped)
The remote start feature allows you to
pre-condition the interior of your vehicle.
The climate control system works to
achieve comfort according to your previous
settings.
Note: You cannot adjust the system during
remote start operation.
Turn the ignition on to return the system
to its previous settings. You can now make
adjustments normally, but you need to turn
certain vehicle-dependent features back
on, such as:
• Heated seats.
• Cooled seats.
• Heated steering wheel.
• Heated mirrors.
• Heated rear window. You can adjust the default remote start
settings using the information display
controls. See
Information Displays
(page 88).
Automatic Settings
In hot weather, the system is set to 72°F
(22°C). The cooled seats are set to high
(if available, and selected to AUTO in the
information display).
In moderate weather, the system either
heats or cools (based on previous
settings). The rear defroster, heated
mirrors and heated seats do not
automatically turn on.
In cold weather, the system is set to 72°F
(22°C). The heated seats are set to high
(if available, and selected to AUTO in the
information display). The rear defroster
and heated mirrors automatically turn on.
108
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review Climate Control

HomeLink Wireless Control
System (If Equipped)
WARNING
Do not use the system with any
garage door opener that does not
have the safety stop and reverse
feature as required by U.S. Federal Safety
Standards (this includes any garage door
opener manufactured before April 1, 1982).
A garage door opener which cannot detect
an object, signaling the door to stop and
reverse, does not meet current federal
safety standards. Using a garage door
opener without these features increases
the risk of serious injury or death. Note:
Make sure that the garage door and
security device are free from obstruction
when you are programming. Do not program
the system with the vehicle in the garage.
Note: Make sure you keep the original
remote control transmitter for use in other
vehicles as well as for future system
programming.
Note: We recommend that upon the sale
or lease termination of your vehicle, you
erase the programmed function buttons for
security reasons. See Erasing the function
button codes later in this section.
Note: You can program a maximum of
three devices. To change or replace any of
the three devices after it has been initially
programmed, you must first erase the
current settings. See Erasing the function
button codes later in this section. The universal garage door opener replaces
the common hand-held garage door
opener with a three-button transmitter
that is integrated into the driver
’s sun visor.
The system includes two primary features,
a garage door opener and a platform for
remote activation of devices within the
home. As well as being programmed for
garage doors, the system transmitter can
be programmed to operate entry gate
operators, security systems, entry door
locks and home or office lighting.
Additional system information can be
found online at www.homelink.com or by
calling the toll-free help line on
1-800-355-3515.
In-vehicle programming
This process is to program your hand-held
transmitter and your in-vehicle HomeLink
button.
Note: Put a new battery in the hand-held
transmitter. This will ensure quicker training
and accurate transmission of the
radio-frequency signal. 1.
With your vehicle parked outside of the
garage, turn your ignition to the
on
position, but do not start your vehicle.
2. Hold your hand-held garage door transmitter 1– 3 inches (2–8
centimeters) away from the HomeLink
button you want to program.
116
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review Universal Garage Door OpenerE142657 E142658

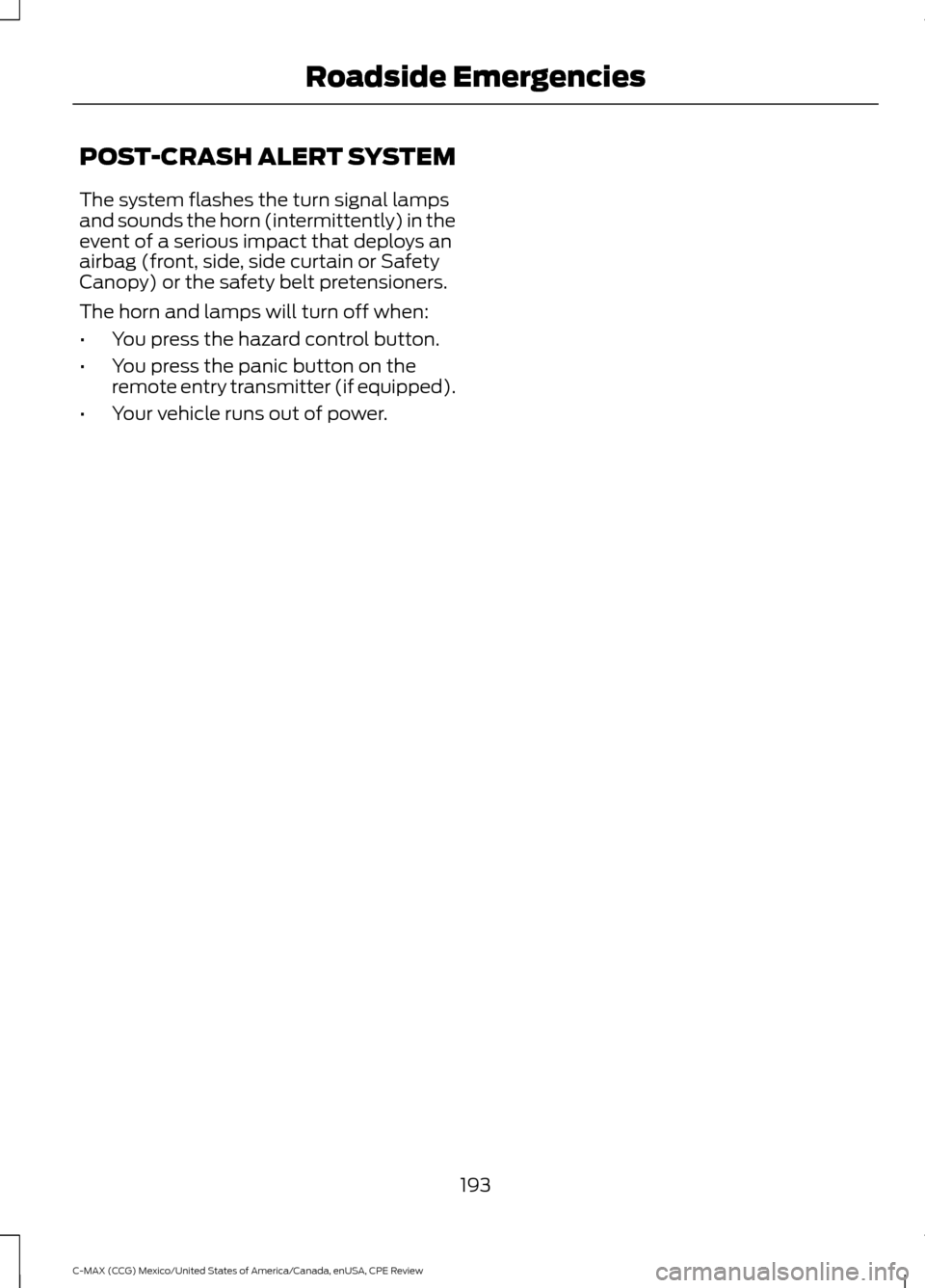

POST-CRASH ALERT SYSTEM
The system flashes the turn signal lamps
and sounds the horn (intermittently) in the
event of a serious impact that deploys an
airbag (front, side, side curtain or Safety
Canopy) or the safety belt pretensioners.
The horn and lamps will turn off when:
•
You press the hazard control button.
• You press the panic button on the
remote entry transmitter (if equipped).
• Your vehicle runs out of power.
193
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review Roadside Emergencies

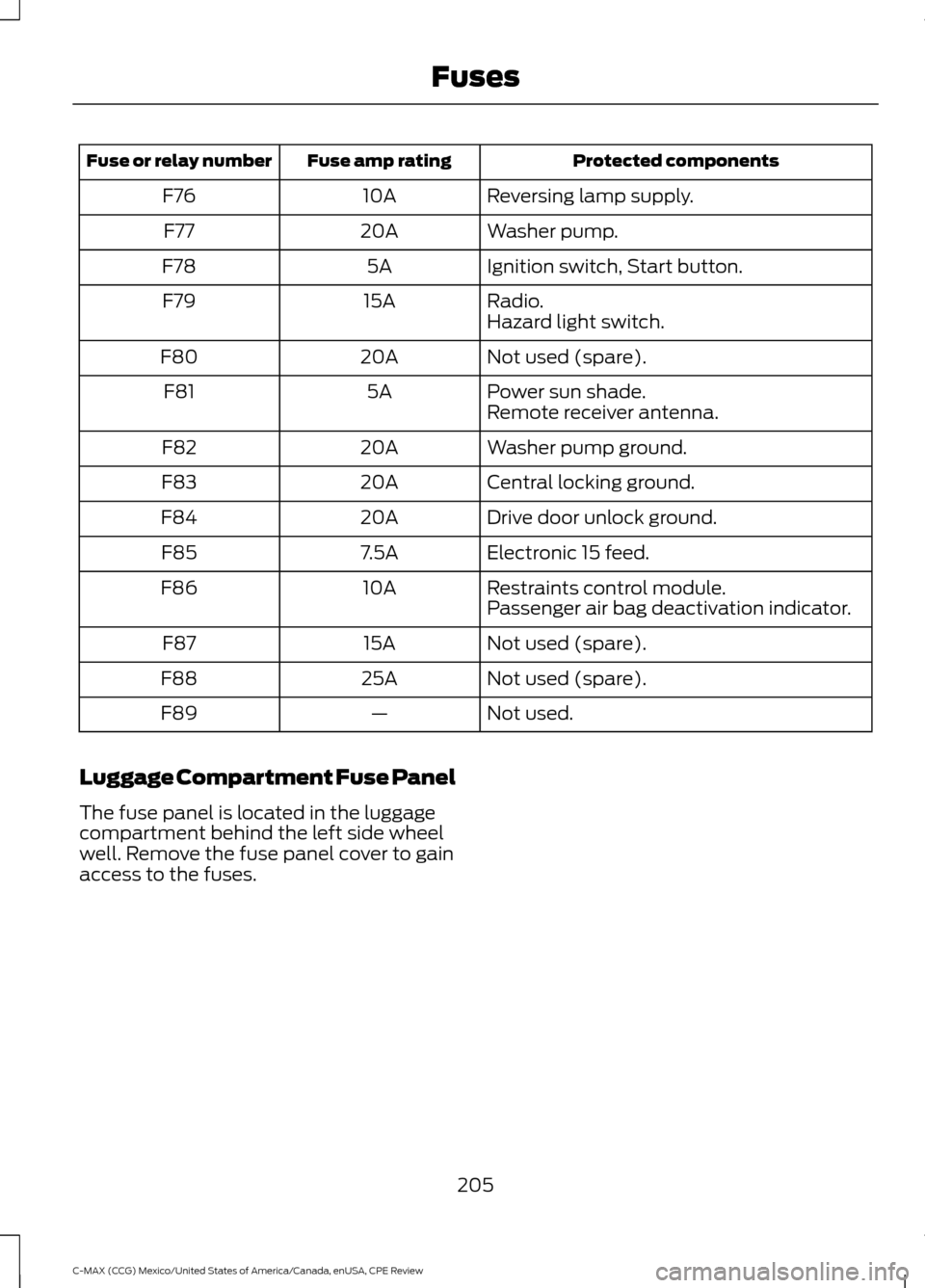

Protected components
Fuse amp rating
Fuse or relay number
Reversing lamp supply.
10A
F76
Washer pump.
20A
F77
Ignition switch, Start button.
5A
F78
Radio.
15A
F79
Hazard light switch.
Not used (spare).
20A
F80
Power sun shade.
5A
F81
Remote receiver antenna.
Washer pump ground.
20A
F82
Central locking ground.
20A
F83
Drive door unlock ground.
20A
F84
Electronic 15 feed.
7.5A
F85
Restraints control module.
10A
F86
Passenger air bag deactivation indicator.
Not used (spare).
15A
F87
Not used (spare).
25A
F88
Not used.
—
F89
Luggage Compartment Fuse Panel
The fuse panel is located in the luggage
compartment behind the left side wheel
well. Remove the fuse panel cover to gain
access to the fuses.
205
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review Fuses

Information....................................................379
911 Assist............................................................... 385
Alerts...................................................................... 385
Calendar............................................................... 385
Sirius Travel Link................................................ 383
SYNC Services (If Equipped, United States Only)................................................................. 380
Vehicle Health Report (If Equipped, United States Only).................................................... 387
Where Am I?....................................................... 388
Information Messages..................................97 AdvanceTrac®....................................................... 97
Alarm........................................................................\
. 97
Battery and Charging System (High Voltage).............................................................. 98
Doors........................................................................\
98
Fuel........................................................................\
.... 99
Hill Start Assist..................................................... 99
Keys and Intelligent Access............................. 99
Maintenance........................................................ 100
MyKey...................................................................... 101
Park Aid.................................................................. 102
Park Brake............................................................. 102
Power Steering.................................................... 102
Remote Start........................................................ 102
Tire Pressure Monitoring System.................103
Transmission........................................................ 103
Installing Child Seats.....................................15 Child Seats............................................................... 15
Using Lap and Shoulder Belts.......................... 16
Using Lower Anchors and Tethers for CHildren (LATCH)............................................ 18
Using Tether Straps............................................. 20
Instrument Cluster.........................................81
Instrument Lighting Dimmer.......................71 Vehicles With Front Fog Lamps....................... 71
Vehicles Without Front Fog Lamps...............72
Interior Lamps
..................................................73
Front Interior Lamp.............................................. 73
Front Interior Lamp - With Panorama Roof....................................................................... 74
Rear Interior Lamp................................................ 74
Interior Mirror
....................................................79
Auto-Dimming Mirror.......................................... 79
Introduction.........................................................7 J
Jump Starting the Vehicle.........................188
Connecting the Jumper Cables..................... 188
Jump Starting...................................................... 190
Preparing Your Vehicle..................................... 188
Removing the Jumper Cables....................... 190
K
Keyless Starting.............................................123 Ignition Modes..................................................... 124
Keys and Remote Controls.........................43
L
Lighting Control..............................................70 Headlamp Flasher............................................... 70
High Beams............................................................ 70
Lighting..............................................................70
Load Carrying
..................................................173
Load Limit........................................................174
Vehicle Loading.................................................... 174
Locking and Unlocking
.................................54
Activating Intelligent Access ........................... 55
Autolock.................................................................. 56
Battery Saver.......................................................... 57
Illuminated Entry................................................... 57
Illuminated Exit...................................................... 57
Mechanical Key..................................................... 55
Opening a Rear Door from Inside................... 55
Power Door Locks................................................ 54
Remote Control.................................................... 54
Smart Unlocks For Integrated Keyhead Transmitter........................................................ 56
Smart Unlocks For Intelligent Access Keys ........................................................................\
........ 56
Locks...................................................................54
Luggage Covers..............................................173 Removing the Shade......................................... 173
M
Maintenance.................................................209 General Information......................................... 209
Manual Liftgate..............................................58 Closing the Liftgate............................................. 58
Opening the Liftgate........................................... 58
447
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review Index

Rear Under Floor Storage..........................173
Rear View Camera........................................167
Using the Rear View Camera System.........167
Rear View Camera See: Rear View Camera.................................... 167
Rear Window Wiper and Washers..........68 Rear Window Washer......................................... 69
Rear Window Wiper............................................ 68
Refueling..........................................................137 Easy Fuel ™ Capless Fuel System
(Non-Energi Vehicles)................................. 138
Easy Fuel ™ Capless System (Energi
Vehicles Only)................................................. 139
Remote Control..............................................43 Car Finder................................................................ 47
Integrated Keyhead Transmitters .................43
Intelligent Access Key........................................ 44
Remote Start (If Equipped)............................. 47
Replacing the Battery......................................... 45
Sounding a Panic Alarm.................................... 47
Remote Start
.................................................108
Automatic Settings........................................... 108
Removing a Headlamp..............................223
Repairing Minor Paint Damage
...............237
Replacement Parts Recommendation.........................................11
Collision Repairs..................................................... 11
Scheduled Maintenance and Mechanical Repairs................................................................... 11
Warranty on Replacement Parts..................... 12
Replacing a Lost Key or Remote Control............................................................48
Reporting Safety Defects (Canada Only)
..............................................................199
Reporting Safety Defects (U.S. Only)..............................................................198
Roadside Assistance..................................186 Vehicles Sold in Canada: Getting Roadside
Assistance........................................................ 186
Vehicles Sold in Canada: Using Roadside Assistance........................................................ 186
Vehicles Sold in the United States: Getting Roadside Assistance.................................... 186
Vehicles Sold in the United States: Using Roadside Assistance.................................... 186
Roadside Emergencies
..............................186
Running-In See: Breaking-In.................................................. 183Running Out of Fuel
....................................136
Refilling With a Portable Fuel
Container.......................................................... 136
S
Safety Belt Height Adjustment.................29
Safety Belt Minder.........................................30 Belt-Minder™........................................................ 30
Safety Belts......................................................26 Principle of Operation........................................ 26
Safety Belt Warning Lamp and Indicator Chime..............................................................30
Conditions of operation..................................... 30
Safety Canopy ™
............................................40
Safety Precautions.......................................134
Satellite Radio..............................................283 Satellite Radio Electronic Serial Number
(ESN)................................................................ 284
Satellite Radio Reception Factors..............284
SIRIUS® Satellite Radio Service.................284
Troubleshooting................................................. 285
Scheduled Maintenance Record...........436
Scheduled Maintenance
..........................426
Seats.................................................................109
Security..............................................................62
Settings...........................................................335 Clock....................................................................... 336
Display................................................................... 336
Settings................................................................. 338
Sound..................................................................... 337
Vehicle.................................................................... 337
Side Airbags
.....................................................38
Sitting in the Correct Position.................109
Snow Chains See: Using Snow Chains................................. 260
Special Notices................................................12 New Vehicle Limited Warranty......................... 12
Notice to Owners of Pickup Trucks and Utility Type Vehicles........................................ 12
Special Instructions.............................................. 12
Using Your Vehicle as an Ambulance............12
Using Your Vehicle With a Snowplow............12
Special Operating Conditions Scheduled Maintenance...............................................433
Exceptions............................................................ 435
Speed Control See: Cruise Control............................................. 170
449
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review Index

U
Under Hood Overview - Hybrid Electric
Vehicle (HEV).............................................210
Under Hood Overview - Plug-In Hybrid Electric Vehicle (PHEV)...........................212
Unique Driving Characteristics................128
Universal Garage Door Opener................116 HomeLink Wireless Control System.............116
USB Port
.........................................................286
Using Cruise Control....................................170
ECO Cruise Control.............................................. 171
Switching Cruise Control Off........................... 171
Switching Cruise Control On.......................... 170
Using MyKey With Remote Start Systems..........................................................53
Using Snow Chains
....................................260
Using Stability Control...............................160 AdvanceTrac® with Roll Stability Control ™
(RSC®)............................................................. 160
Using SYNC™ With Your Media Player.............................................................310
Accessing Your Play Menu.............................. 314
Connecting Your Digital Media Player to the USB Port........................................................... 310
Media Menu Features........................................ 313
Media Voice Commands................................... 311
System Settings.................................................. 316
What's Playing?................................................... 311
Using SYNC™ With Your Phone............292 Accessing Features through the Phone
Menu................................................................. 296
Accessing Your Phone Settings................... 299
Making Calls........................................................ 295
Pairing a Phone for the First Time...............293
Pairing Subsequent Phones.......................... 293
Phone Options during an Active Call.........295
Phone Voice Commands................................ 293
Receiving Calls.................................................... 295
System Settings................................................ 300
Text Messaging.................................................. 298
Using Traction Control................................158 Switching the System Off Using a
Switch................................................................ 158
Switching the System Off Using the Information Display Controls.................... 158
System Indicator Lights and Messages.......................................................... 158Using Voice Recognition
...........................290
Initiating a Voice Session............................... 290
System Interaction and Feedback...............291
Utilizing the Mediation/Arbitration Program (Canada Only).........................196
V
Vehicle Care
...................................................233
General Information.......................................... 233
Vehicle Certification Label.......................268
Vehicle Identification Number
...............268
Vehicle Storage.............................................237 Battery................................................................... 238
Body........................................................................\
238
Brakes.................................................................... 239
Cooling system................................................... 238
Engine.................................................................... 238
Fuel system.......................................................... 238
General.................................................................. 238
Miscellaneous..................................................... 239
Removing Vehicle From Storage.................239
Tires........................................................................\
239
Ventilation See: Climate Control......................................... 104
VIN See: Vehicle Identification Number............268
Voice Control
...................................................65
MyFord Touch® Controls.................................. 65
451
C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review Index
