FORD CONTOUR 1996 2.G Manual Online

Instrument Panel Controls
79
*
[IP25605(ALL)01/95]
Daytime Running Light System
*
[IP25610(ALL)03/95]
(Canadian vehicles only)
*
[IP25615(ALL)03/95]
The Daytime Running Light (DRL) system is designed to turn
the high beam headlamps on, with a reduced light output and
without illuminating the high beam indicator lamp in the
instrument panel. The DRL system operates when all of the
following conditions are met:
*
[IP25620(ALL)03/95]
n
The vehicle is ªrunning.º
*
[IP25630(ALL)03/95]
n
The headlamp system is in the OFF position.
*
[IP25632(ALL)05/95]
The high beam indicator light on the instrument cluster will not
be on.
[IP25633(ALL)05/94]
A flashing high beam light in the instrument cluster indicates a
failure in the DRL system circuit, like a burnt bulb or fuse.
*
[IP25638(ALL)05/95]
RWARNING
The Daytime Running Light (DRL) system will not
illuminate the tail lamps and parking lamps. Turn on
your headlamps at dusk. Failure to do so may result in a
collision.
%*
[IP25700(O )05/95]
Cleaning the Exterior Lamps
*
[IP25800(ALL)05/95]
Do not use dry paper towel, chemical solvents or abrasive
cleaners to clean the lamps, as these may cause scratches or
crack the lamps.
File:cdipo.ex
Update:Thu Jan 25 12:18:07 1996

80
*
[IP29800(ALL)01/95]
Lighting Up the Interior and Instrument Panel
[IP29850(ALL)05/94]
When either front door is opened, the footwell lights and the
door courtesy lights come on.
[IP29900(ALL)05/94]
The instrument panel lights, window control lights and door
handle lights come on whenever the headlamp switch is turned
from the OFF position. To dim the instrument panel lights, use
the thumbwheel on the instrument panel to the right of the
steering wheel.
[IP30001(ALL)03/95]
6 pica art:0001177-B

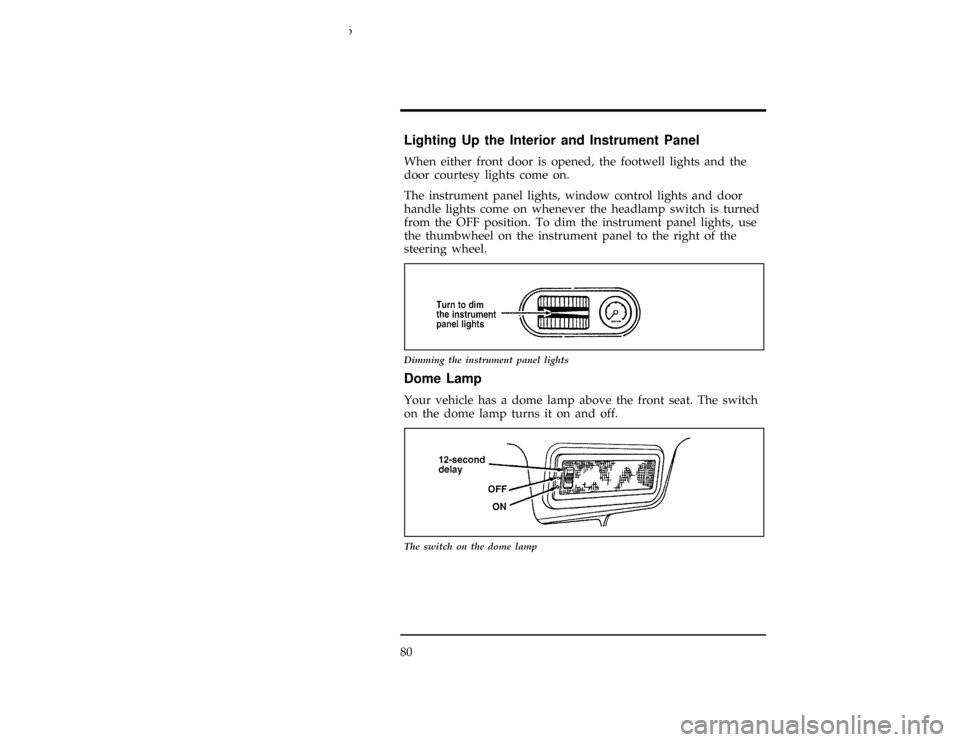

Dimming the instrument panel lights
[IP32600(ALL)02/94]
Dome Lamp
[IP32625(O )02/94]
Your vehicle has a dome lamp above the front seat. The switch
on the dome lamp turns it on and off.
[IP32650(O )02/94]
7-1/2 pica art:0001219-A
The switch on the dome lamp
File:cdipo.ex
Update:Thu Jan 25 12:18:07 1996

Instrument Panel Controls
81
[IP32900(ALL)11/93]
Dome lamp delay
[IP33000(ALL)05/94]
Your vehicle may have a dome lamp delay. If you set the
switch on the dome lamp to the 12-second delay position, the
dome lamp will turn on when either front door is opened.
[IP33100(ALL)11/93]
The dome lamp will turn off after 12 seconds or when the
ignition key is turned to the ON or ACC position. It will not
turn off if either front door is open or if you move the dome
lamp switch to the ON position.
*
[IP33125(ALL)04/95]
Your interior dome lamps and map lamps are plastic and
should be cleaned with a mild detergent diluted in water. Rinse
them with clear water.
[IP33150(ALL)01/95]
Turning On the Map Lamps (If equipped)
*
[IP33200(ALL)01/94]
Your vehicle may have a map lamp for the passenger and one
for the driver.
[IP33250(ALL)11/93]
7-1/2 pica art:0001218-A

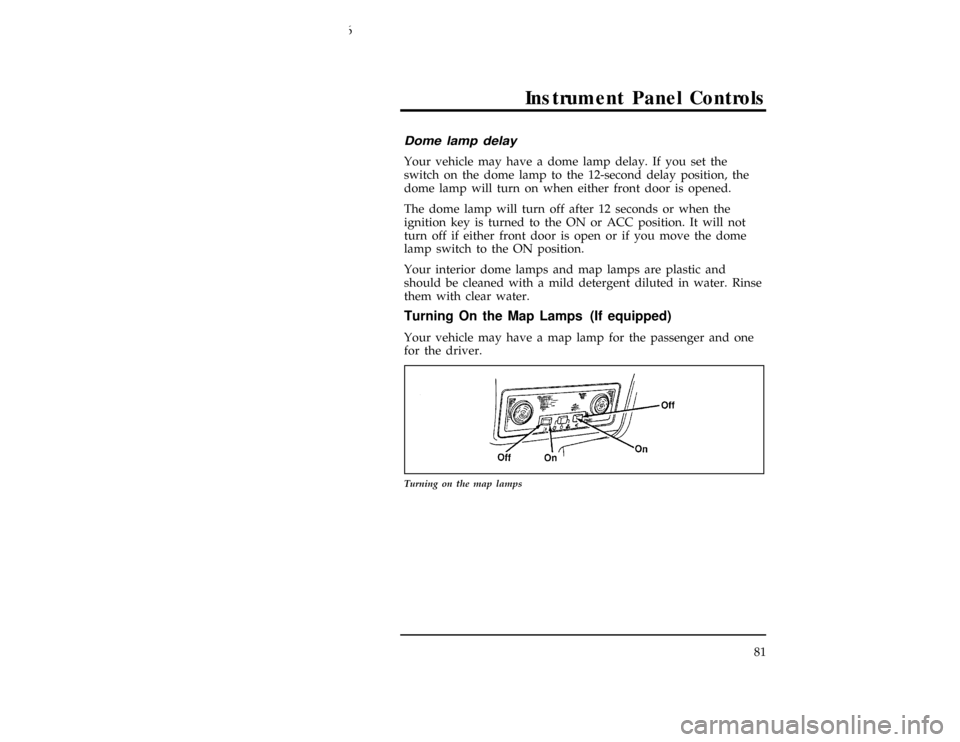

Turning on the map lamps
File:cdipo.ex
Update:Thu Jan 25 12:18:07 1996

82
[IP33400(ALL)11/93]
Traction Control System (If equipped)
[IP33500(ALL)05/94]
This button turns the traction control system off and on. See
Driving Your Vehiclefor more information.
[IP33600(ALL)05/94]
6 pica art:0001179-C

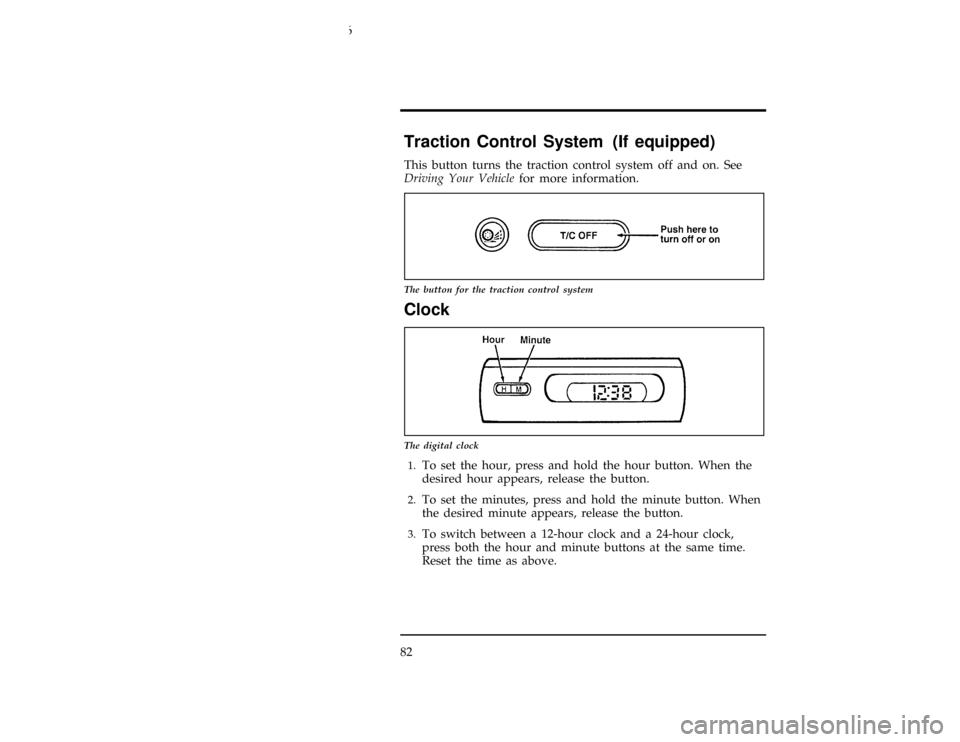

The button for the traction control system
[IP33700(ALL)11/93]
Clock
[IP34100(O )04/94]
7-1/2 pica art:0001220-B
The digital clock
*
[IP34300(ALL)05/95]1.
To set the hour, press and hold the hour button. When the
desired hour appears, release the button.
*
[IP34400(ALL)05/95]2.
To set the minutes, press and hold the minute button. When
the desired minute appears, release the button.
[IP34500(ALL)01/95]3.
To switch between a 12-hour clock and a 24-hour clock,
press both the hour and minute buttons at the same time.
Reset the time as above.
File:cdipo.ex
Update:Thu Jan 25 12:18:07 1996

83
Steering Column Controls
*
[SC00400(ALL)01/95]
The controls on the steering column and wheel are designed to
give you easy access to the controls while you are driving.
*
[SC00500(ALL)01/95]
The Turn Signal Lever
*
[SC00600(ALL)01/95]
You can use the turn signal lever on the left side of the steering
column to:
*
[SC00700(ALL)03/95]
n
operate the turn signals and cornering lamps
*
[SC00800(ALL)01/95]
n
turn the high beams on/off
*
[SC00900(ALL)05/95]
n
flash the lamps
*
[SC01100(ALL)01/95]
Turn Signals
[SC01200(ALL)01/95]
10-1/2 pica
art:0001186-D
The turn signal lever
*
[SC01300(ALL)03/95]
Move the lever up to signal a right turn. Move it down to
signal a left turn. The corresponding indicator light in the
instrument cluster will flash.
*
[SC01400(ALL)03/95]
If the turn signal stays on after you turn, move the lever back
to the center (off) position.
*
[SC01500(ALL)03/95]
For lane changes, move the lever far enough to signal but not to
latch. The lever will return to the off position when you release
it.
File:cdsco.ex
Update:Thu Jan 25 12:10:03 1996

84
*
[SC02800(ALL)05/95]
High Beams and Flashing the Lamps
[SC02900(ALL)05/95]
To turn on the high beams, turn the headlamp control knob to
the headlamp ON position and push the turn signal lever away
from you until it latches. When the high beams are on, the high
beam indicator light on the instrument cluster comes on.
[SC03000(ALL)10/93]
To turn off the high beams, pull the lever back to the off
position.
*
[SC03400(ALL)06/95]
To flash the headlamps, pull the lever toward you for a moment
and then release it. The headlamps will flash whether the
headlamp knob is in the on or off position.
*
[SC03700(ALL)03/95]
Windshield Wipers and Washer
*
[SC03800(ALL)03/95]
To turn on the windshield wipers, the ignition key must be
turned to the ON or ACC position.
[SC04400(ALL)05/95]
10-1/2 pica
art:0001189-D
Using the windshield wiper
[SC04500(ALL)02/94]
The windshield wipers can be set on high, low speed or interval
wipe. Turn the ring on the lever to set a longer or shorter pause
between wiping cycles.
File:cdsco.ex
Update:Thu Jan 25 12:10:03 1996

Steering Column Controls
85
*
[SC04950(ALL)05/95]
Windshield Washer
[SC05000(ALL)01/95]
When the lever is pulled to activate the windshield washer, the
wipers operate for about three cycles after the spray stops.
[SC05110(ALL)05/95]
7-1/2 pica art:0001194-D
Washing the windshield
*
[SC05310(ALL)01/95]
Do not try to clean the windshield when the washer fluid
container is empty or activate the washers at any time for more
than 15 seconds continuously. This could damage the washer
pump system.
*
[SC05350(ALL)01/93]
RWARNING
In freezing weather, the washer solution may freeze on
the windshield and obscure your vision. Always warm
up the windshield with the defroster before you use the
washer fluid. If you cannot see through the windshield
clearly, it can increase the risk of being involved in a
collision.
*
[SC05500(ALL)04/95]
For information about refilling the washer fluid or replacing
your windshield wiper blades, seeWindshield washer fluid and
Wipersin the Index.
File:cdsco.ex
Update:Thu Jan 25 12:10:03 1996

86
%*
[SC05520(ALL)03/95]
Hazard Flasher
*
[SC05530(ALL)03/95]
The hazard flasher serves as a warning to other drivers to be
careful when approaching or passing your vehicle.
[SC05540(ALL)05/94]
10-1/2 pica
art:0001193-A

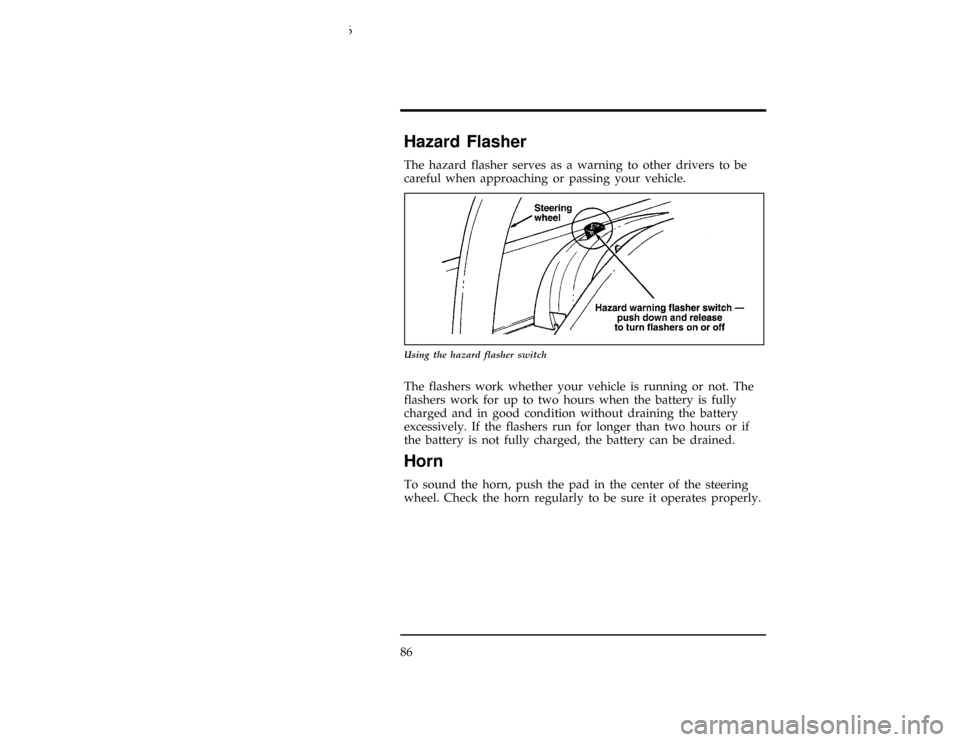

Using the hazard flasher switch
*
[SC05590(ALL)03/95]
The flashers work whether your vehicle is running or not. The
flashers work for up to two hours when the battery is fully
charged and in good condition without draining the battery
excessively. If the flashers run for longer than two hours or if
the battery is not fully charged, the battery can be drained.
*
[SC05600(ALL)01/95]
Horn
*
[SC05800(ALL)03/94]
To sound the horn, push the pad in the center of the steering
wheel. Check the horn regularly to be sure it operates properly.
File:cdsco.ex
Update:Thu Jan 25 12:10:03 1996

Steering Column Controls
87
*
[SC07400(ALL)03/91]
Speed Control (If equipped)
*
[SC07500(ALL)06/95]
If your vehicle has speed control, you can automatically
maintain a constant speed at or above 30 mph (50 km/h).
*
[SC07550(ALL)05/95]
Use of radio transmitting equipment that is not Federal
Communications Commission (FCC) or in Canada the Canadian
Radio and Telecommunications Commission (CRTC) approved
may cause the speed control to malfunction. Therefore, use only
properly installed FCC (CRTC in Canada) approved radio
transmitting equipment in your vehicle.
*
[SC07650(ALL)03/95]
NOTE: Do not shift to N (Neutral) when using the speed
control. This will cause the engine to overspeed.
*
[SC07675(ALL)05/95]
RWARNING
Do not use the speed control in heavy traffic or on roads
that are winding, slippery, or unpaved.
File:cdsco.ex
Update:Thu Jan 25 12:10:03 1996

88
[SC07700(ALL)05/94]
10-1/2 pica
art:0000262-D

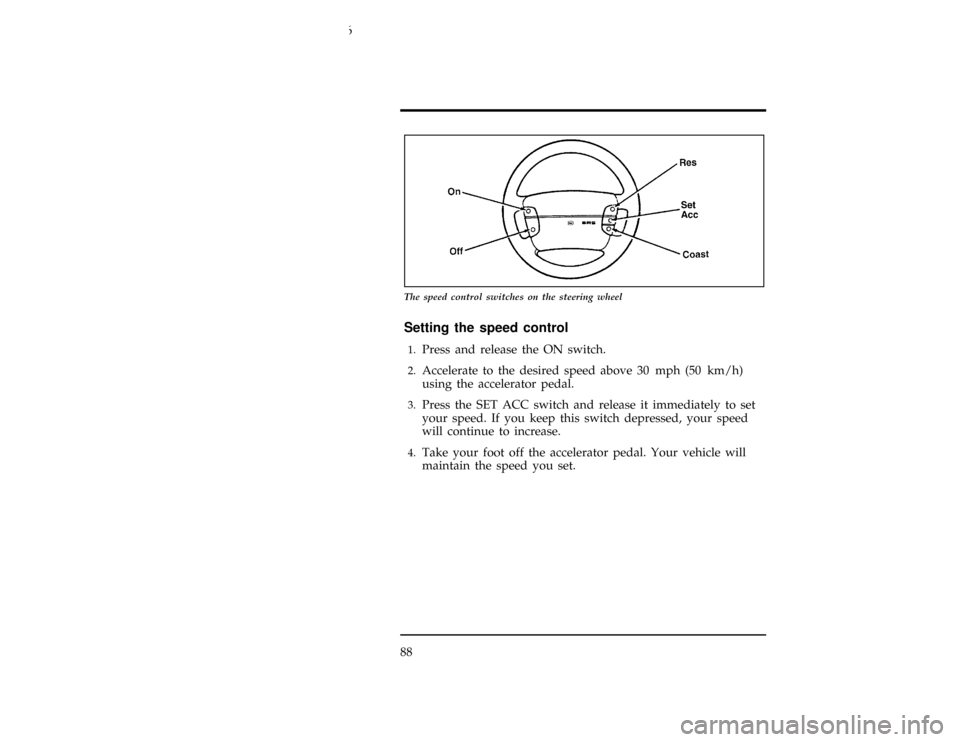

The speed control switches on the steering wheel
[SC08200(ALL)04/95]
Setting the speed control
*
[SC08400(ALL)06/95]1.
Press and release the ON switch.
*
[SC08500(ALL)06/95]2.
Accelerate to the desired speed above 30 mph (50 km/h)
using the accelerator pedal.
[SC08800(ALL)05/95]3.
Press the SET ACC switch and release it immediately to set
your speed. If you keep this switch depressed, your speed
will continue to increase.
[SC08900(ALL)05/95]4.
Take your foot off the accelerator pedal. Your vehicle will
maintain the speed you set.
File:cdsco.ex
Update:Thu Jan 25 12:10:03 1996
