Safety Restraints
11
% [SR05625(ALL)03/95]
Dual Locking Mode Lap/Shoulder Belt Retractor
[SR05650(ALL)12/94]
The front passenger seat and the rear outer seat combination lap
and shoulder belts are equipped with a dual locking mode
retractor on theshoulderbelt portion of the lap/shoulder belt.
This retractor can be switched from vehicle sensitive
(emergency) locking mode to automatic locking mode by pulling
the belt webbing all of the way out of the retractor. The
retractor modes function as follows.
*
[SR05675(ALL)02/95]
Vehicle sensitive (emergency) locking mode
[SR05700(ALL)05/94]
In this operating mode, the lap/shoulder belt retractor will
allow the occupant freedom of movement, locking tight only on
hard braking, hard cornering or impacts of approximately
5 mph (8 km/h) or more.
*
[SR05725(ALL)01/95]
Automatic locking mode
*
[SR05800(ALL)03/95]
This mode must be used when installing a child seat on the
front passenger seat and rear seats where dual locking retractors
are provided. To switch the retractor from the emergency
locking mode to the automatic locking mode, perform the
following steps:
*
[SR05850(ALL)03/95]
RWARNING
Rear facing infant seats should never be placed in the
front seat.
*
[SR05900(ALL)03/95]1.
Buckle the lap/shoulder combination belt.
*
[SR05950(ALL)01/95]2.
Grasp the shoulder portion of the belt and pull downward
until all of the belt is extracted and a click is heard. At this
time, the retractor is in the automatic locking mode (child
restraint mode).
[SR06000(ALL)03/95]3.
Allow the belt to retract. A clicking sound will be heard as
the belt retracts. This indicates that the retractor is in the
automatic locking mode.
File:cdsro.ex
Update:Thu Jan 25 12:13:11 1996

12
[SR06025(ALL)03/95]4.
Pull up on the shoulder belt to remove slack in the lap belt.
*
[SR06050(ALL)05/95]
NOTE: When the combination lap/shoulder belt is unbuckled
and allowed to retract completely, the retractor will
switch to the vehicle sensitive (emergency) locking
mode. See the detailed instructions underSafety Seats
for Childrenin this chapter.
*
[SR06051(ALL)05/95]
Shoulder Belt Height Adjustment
*
[SR06052(ALL)05/95]
Driver and right front passenger
[SR06053(ALL)03/95]
You can adjust the shoulder belt height to one of four (4)
positions.
*
[SR06054(ALL)03/95]

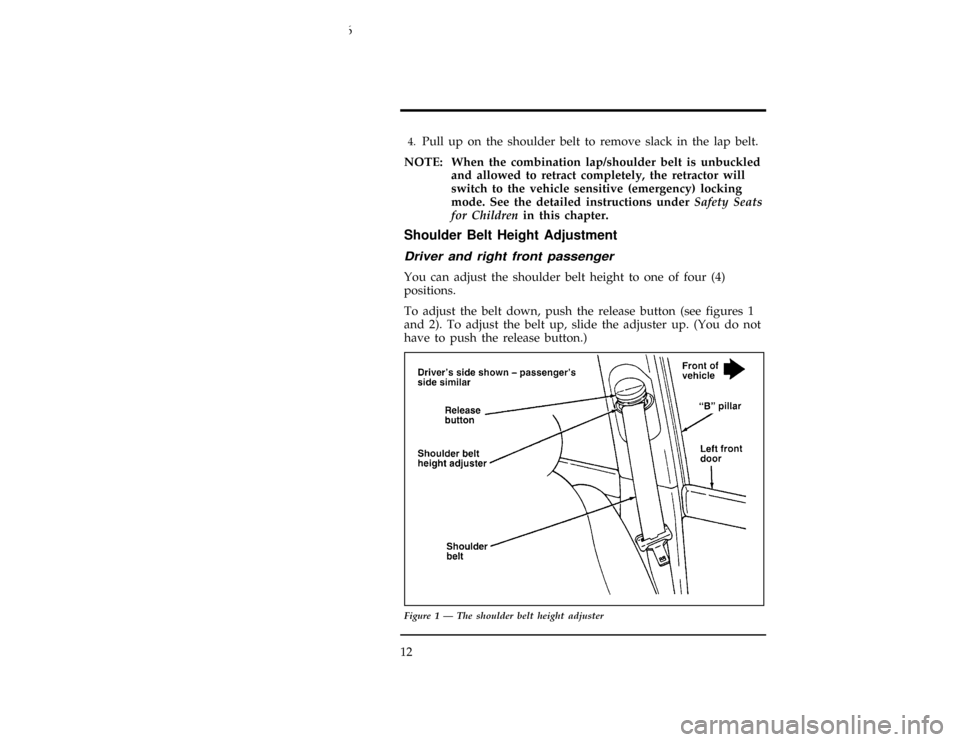

To adjust the belt down, push the release button (see figures 1
and 2). To adjust the belt up, slide the adjuster up. (You do not
have to push the release button.)
[SR06056(ALL)05/95]
17-1/2 pica
art:0001183-C
Figure 1 Ð The shoulder belt height adjuster
File:cdsro.ex
Update:Thu Jan 25 12:13:11 1996

18
*
[SR16050(ALL)05/95]
RWARNING
Rear-facing infant seats should never be placed in the
front seat.
*
[SR16100(ALL)06/95]
In rear-facing infant seats, the infant's head is closer to the air
bag. The force of the rapidly inflating air bag could push the
top of the rear-facing seat against the vehicle seatback or center
armrests (if so equipped), or center console (if so equipped).
REAR-FACING INFANT CARRIERS MUST ALWAYS BE
SECURED IN THE REAR SEAT, and other child safety seats
and infant seats should be secured in the rear seat whenever
possible.
*
[SR16250(ALL)05/95]
RWARNING
When using forward-facing child seats move the
passenger seat as far back from the instrument panel as
possible. NEVER SECURE REAR-FACING INFANT
SEATS IN THE FRONT SEAT.
*
[SR16275(ALL)05/95]
Your vehicle is equipped with a right front passenger air bag.
Air bags deploy with great force, faster than the blink of an eye.
Front passengers, especially children and small adults, must
never sit on the front edge of the seat, stand near the glove
compartment of the instrument panel, or lean over near the air
bag cover when the vehicle is moving. All occupants should sit
with their backs against the seatback, move the seat to the most
rearward position if possible and use the safety belts. Children
weighing less than 40 lbs. (18 kg) always should use child or
infant seats.
File:cdsro.ex
Update:Thu Jan 25 12:13:11 1996

Safety Restraints
19
*
[SR16300(ALL)05/95]
RWARNING
Do not place objects or mount equipment on or near the
air bag cover on the steering wheel or in front seat areas
that may come in contact with a deploying air bag.
Failure to follow this instruction may increase the risk of
personal injury in the event of a collision.
*
[SR16325(ALL)05/95]
For further information about the proper mounting of
equipment in the front seat of this vehicle, please refer to Ford's
brochure entitledSome Important Information About Air Bag
Supplemental Restraint Systemwhich can be obtained by calling
Helm Inc. at 1-800-782-4356. Ask for brochure FPS-8602.
*
[SR16400(ALL)05/95]
For additional important safety information on the proper use of
seat belts, child seats, and infant seats, please read the other
sections of this part of the Owner Guide, especially sections
entitledSafety Belts for ChildrenandSafety Seats for Children.
File:cdsro.ex
Update:Thu Jan 25 12:13:11 1996

Safety Restraints
25
%*
[SR20200(ALL)05/95]
Safety Restraints for Children
*
[SR20300(ALL)02/95]
In the U.S. and Canada, you are required by law to use safety
restraints for children. If small children ride in your vehicle Ð
this generally includes children who are four years old or
younger and who weigh 40 pounds (18 kg) or less Ð you must
put them in safety seats that are made specially for children.
Safety belts alone do not provide maximum protection for these
children. Check your local and state laws for specific
requirements.
*
[SR20400(ALL)05/95]
RWARNING
Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot
protect the child from injury in a collision.
*
[SR20600(ALL)05/95]
RWARNING
Passengers should not be allowed to ride in the cargo
area. Persons not riding in a seat with a fastened seat
belt are much more likely to suffer serious injury in a
collision. Cargo should always be secured to prevent it
from shifting and causing damage to the vehicle or harm
to passengers.
*
[SR20650(ALL)05/95]
When possible, put children in the rear seat of your vehicle.
Accident statistics suggest that children are safer when properly
restrained in the rear seating positions than in the front seating
positions.
*
[SR20700(ALL)05/95]
RWARNING
Carefully follow all of the manufacturer's instructions
included with the safety seat you put in your vehicle. If
you do not install and use the safety seat properly, the
child may be injured in a sudden stop or collision.
File:cdsro.ex
Update:Thu Jan 25 12:13:11 1996

26
*
[SR20750(ALL)05/95]
RWARNING
Safety belts and seats can become hot in a vehicle that
has been closed up in sunny weather; they could burn a
small child. Check seat covers and buckles before you
place a child anywhere near them.
*
[SR20800(ALL)05/95]
RWARNING
Never leave a child unattended in your vehicle.
%*
[SR22000(ALL)01/95]
Safety Seats for Children
*
[SR22100(ALL)05/95]
Use a safety seat that is recommended for the size and weight
of the child. Always follow the safety seat manufacturer's
instructions when installing and using the safety seat.
*
[SR22125(ALL)02/95]
Ford recommends the use of a child safety seat having a top
tether strap. Install the child safety seat in a seating position
which is capable of providing a tether anchorage. For more
information on top tether straps seeAttaching Safety Seats With
Tether Strapsin this chapter.
*
[SR22300(ALL)05/95]
Your vehicle is equipped with a right front passenger air bag.
Air bags deploy with great force, faster than the blink of an eye.
Front passengers, especially children and small adults, must
never sit on the front edge of the seat, stand near the glove
compartment of the instrument panel, or lean over near the air
bag cover when the vehicle is moving. All occupants should sit
with their backs against the seatback, move the seat to the most
rearward position if possible and use the safety belts. Children
weighing less than 40 lbs. (18 kg) always should use child or
infant seats.
File:cdsro.ex
Update:Thu Jan 25 12:13:11 1996

Safety Restraints
27
*
[SR22400(ALL)05/95]
RWARNING
When using forward-facing child seats move the
passenger seat as far back from the instrument panel as
possible. NEVER SECURE REAR-FACING INFANT
SEATS IN THE FRONT SEAT.
[SR22450(ALL)05/95]
THE FORCE OF THE RAPIDLY INFLATING PASSENGER AIR
BAG COULD PUSH THE TOP OF THE REAR-FACING SEAT
AGAINST THE VEHICLE SEATBACK, ARMRESTS OR
CONSOLE. REAR-FACING INFANT SEATS MUST ALWAYS
BE SECURED IN THE REAR SEAT. Failure to follow these
instructions could result in serious injury.
*
[SR22475(ALL)05/95]
All child restraint systems are designed to be secured in vehicle
seats by lap belts or by the lap portion of a lap-shoulder belt.
*
[SR22500(ALL)05/95]
RWARNING
If you do not properly secure the safety seat, the child
occupying the seat may be injured during a collision or
sudden stop. An unsecured safety seat could also injure
other passengers.
*
[SR22600(ALL)05/95]
RWARNING
Carefully follow all of the manufacturer's instructions
included with the safety seat you put in your vehicle. If
you do not install and use the safety seat properly, the
child may be injured in a sudden stop or collision.
*
[SR22625(ALL)05/95]
When installing a child safety seat, be sure to use the correct
safety belt buckle for that seating position, and make sure the
tongue is securely fastened in the buckle.
File:cdsro.ex
Update:Thu Jan 25 12:13:11 1996

28
*
[SR22650(ALL)05/95]

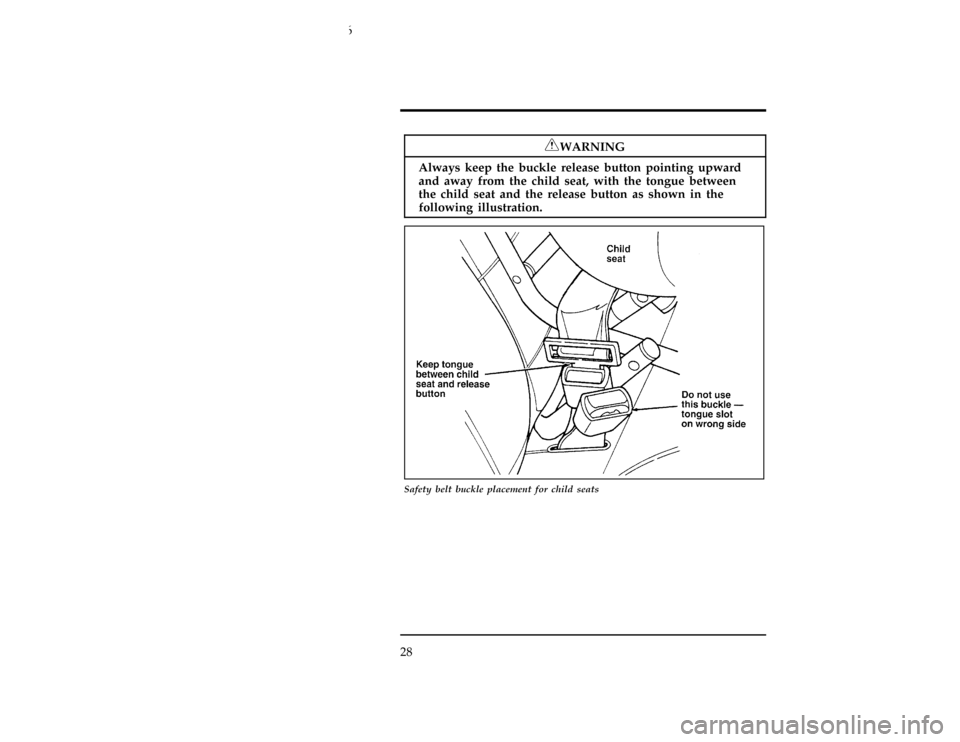

RWARNING
Always keep the buckle release button pointing upward
and away from the child seat, with the tongue between
the child seat and the release button as shown in the
following illustration.
[SR22700(ALL)03/95]
17-1/2 pica
art:0001209-B
Safety belt buckle placement for child seats
File:cdsro.ex
Update:Thu Jan 25 12:13:11 1996

Safety Restraints
29
%*
[SR22750(ALL)11/94]
Installing Child Safety Seats in the Front Passenger
Seat and Outer Rear Seating Positions
[SR22800(ALL)04/95]
Your vehicle is equipped with a dual locking mode retractor on
the shoulder belt portion of the combination lap/shoulder safety
belt for the right front seat passenger and rear outer passengers.
*
[SR22850(ALL)03/95]
If you choose to install a child safety seat in the front seating
position, move vehicle seat as far back as possible.
*

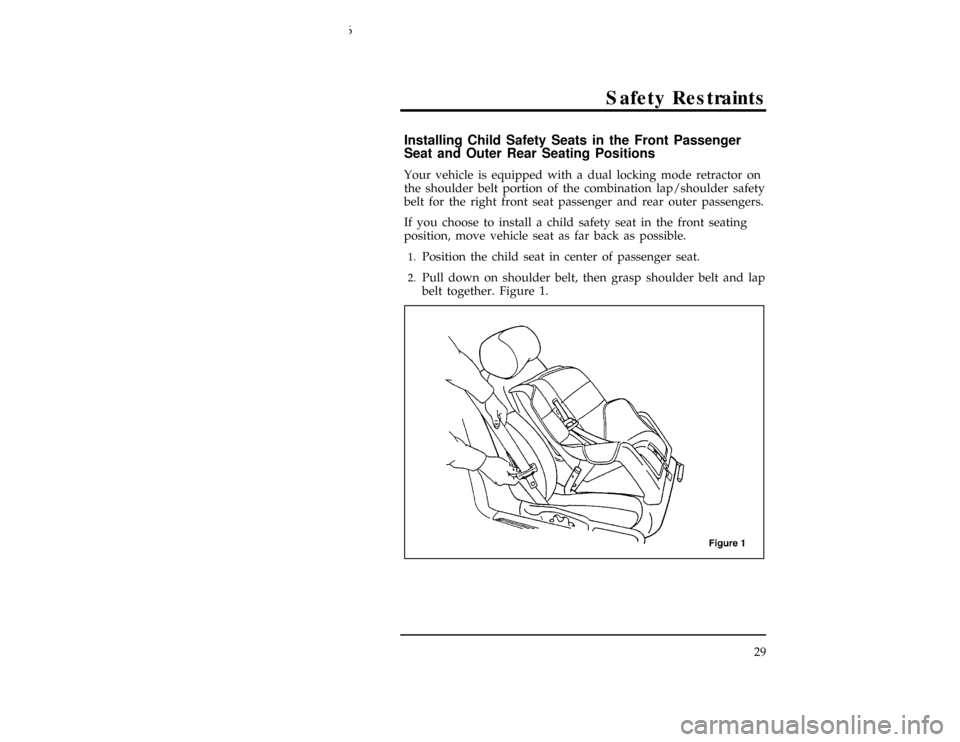

[SR22900(ALL)03/95]1.
Position the child seat in center of passenger seat.
*
[SR22950(ALL)03/95]2.
Pull down on shoulder belt, then grasp shoulder belt and lap
belt together. Figure 1.
[SR23000(ALL)02/94]
17-1/2 pica
art:0001270-AFile:cdsro.ex
Update:Thu Jan 25 12:13:11 1996

Safety Restraints
37
*
[SR23800(ALL)05/95]
RWARNING
Carefully follow all of the manufacturer's instructions
included with the safety seat you put in your vehicle. If
you do not install and use the safety seat properly, the
child may be injured in a sudden stop or collision.
[SR23900(ALL)05/95]
Installing Child Safety Seats in the Rear Center Seating
Position
[SR24000(ALL)05/95]
Some child safety seats are too wide to fit in the rear center
seat. Choose a child safety seat with a narrow base that can fit
between the safety belt buckles.
*
[SR24800(ALL)05/95]
Attaching Safety Seats With Tether Straps
*
[SR24850(ALL)05/95]
Some manufacturers make safety seats that include a tether
strap that goes over the back of the vehicle seat and attaches to
an anchoring point. Other manufacturers offer the tether strap
as an accessory. Contact the manufacturer of your child safety
seat for information about ordering a tether strap.
[SR24901(ALL)05/95]
To install a tether from a child safety seat in the front seat,
route the tether strap under the vehicle seat head restraint and
hook the tether hook into the hole in the tongue of the center
rear lap belt. After the hook is in the hole, pull on the loose end
of the lap belt webbing to shorten the belt and tighten the
tether strap.
[SR25650(ALL)05/95]
To install a tethered child safety seat in the rear seat, you will
need tether anchorage hardware.
[SR25700(ALL)05/95]
Tether anchorage hardware (Canadian vehicles only)
[SR25800(ALL)05/95]
All vehicles built for sale in Canada include a tether anchor
hardware kit for use with child safety seats. Attachment holes
(at each rear seating position) have been provided in your
vehicle to attach the anchor hardware, if required. Additional
kits can be obtained at no charge from any Ford or
Lincoln-Mercury dealer.
File:cdsro.ex
Update:Thu Jan 25 12:13:11 1996
