Seating and Safety Restraints
111
*
[SS16800(ALL)02/96]6.

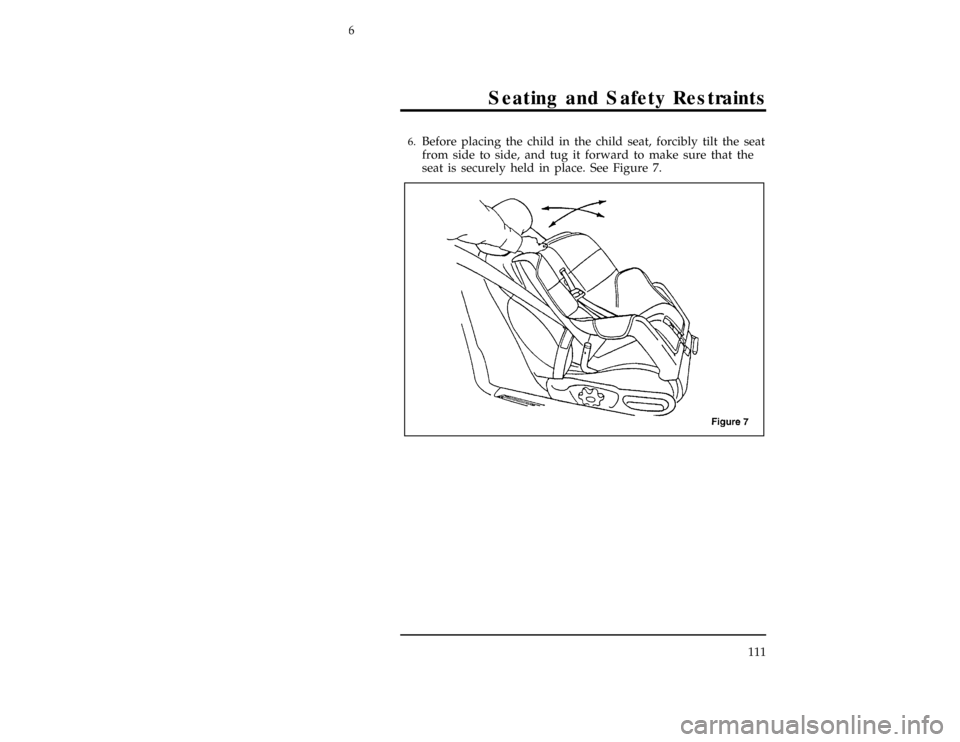

Before placing the child in the child seat, forcibly tilt the seat
from side to side, and tug it forward to make sure that the
seat is securely held in place. See Figure 7.
[SS16900(ALL)12/95]
17-1/2 pica
art:0001276-BFile:06cdsso.ex
Update:Thu Sep 12 11:03:20 1996

112
*
[SS17000(ALL)02/96]7.

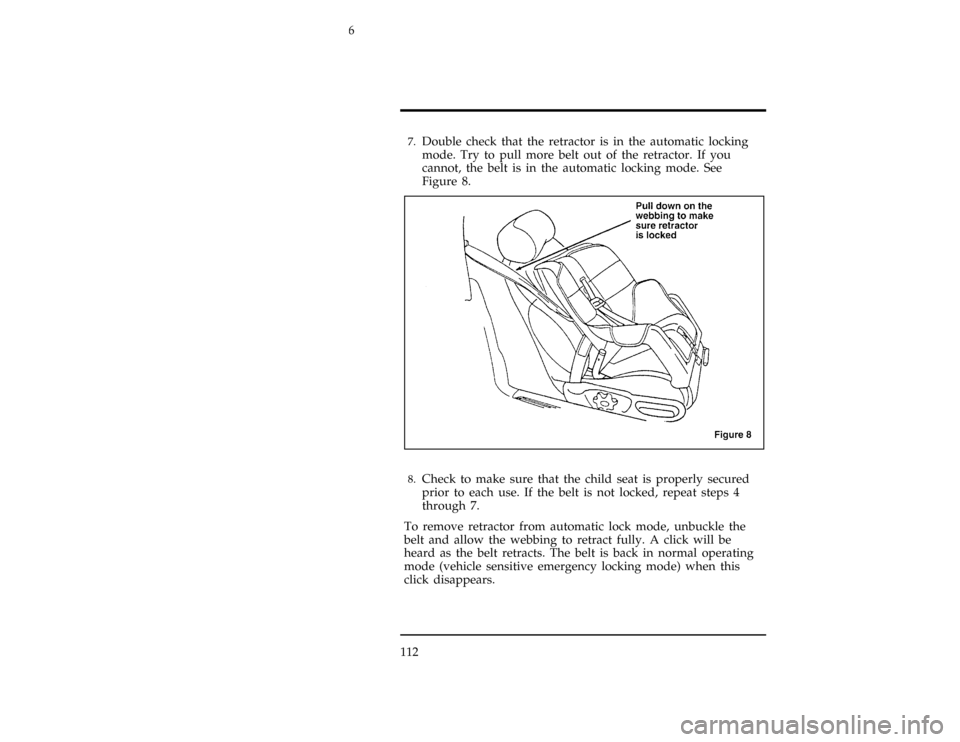

Double check that the retractor is in the automatic locking
mode. Try to pull more belt out of the retractor. If you
cannot, the belt is in the automatic locking mode. See
Figure 8.
[SS17100(ALL)12/95]
17-1/2 pica
art:0001277-B[SS17200(ALL)12/95]8.
Check to make sure that the child seat is properly secured
prior to each use. If the belt is not locked, repeat steps 4
through 7.
[SS17300(ALL)12/95]
To remove retractor from automatic lock mode, unbuckle the
belt and allow the webbing to retract fully. A click will be
heard as the belt retracts. The belt is back in normal operating
mode (vehicle sensitive emergency locking mode) when this
click disappears.
File:06cdsso.ex
Update:Thu Sep 12 11:03:20 1996

Seating and Safety Restraints
113
*
[SS17400(ALL)03/96]
RWARNING
Carefully follow all of the manufacturer's instructions
included with the safety seat you put in your vehicle. If
you do not install and use the safety seat properly, the
child may be injured in a sudden stop or collision.
[SS17500(ALL)12/95]
Installing Child Safety Seats in the Rear Center Seating
Position
[SS17600(ALL)04/96]
Some child safety seats may be too wide to fit in the rear center
seat. If you wish to install a child safety seat in the rear center
seating position, choose a child safety seat with a base that can
fit between the safety belt buckles. Otherwise, secure the child
safety seat in another seating position.
%*
[SS17700(ALL)04/96]
Attaching Safety Seats With Tether Straps
*
[SS17800(ALL)04/96]
Some manufacturers make safety seats that include a tether
strap that goes over the back of the vehicle seat and attaches to
an anchoring point. Other manufacturers offer the tether strap
as an accessory. Contact the manufacturer of your child safety
seat for information about ordering a tether strap.
[SS17900(ALL)12/95]
To install a tether from a child safety seat in the front seat,
route the tether strap under the vehicle seat head restraint and
hook the tether hook into the hole in the tongue of the center
rear lap belt. After the hook is in the hole, pull on the loose end
of the lap belt webbing to shorten the belt and tighten the
tether strap.
[SS18000(ALL)12/95]
To install a tethered child safety seat in the rear seat, you will
need tether anchorage hardware.
File:06cdsso.ex
Update:Thu Sep 12 11:03:20 1996

114
*
[SS18100(ALL)12/95]
Tether anchorage hardware(Canadian vehicles only)
[SS18200(ALL)12/95]
All vehicles built for sale in Canada include a tether anchor
hardware kit for use with child safety seats. Attachment holes
(at each rear seating position) have been provided in your
vehicle to attach the anchor hardware, if required. Additional
kits can be obtained at no charge from any Ford or
Lincoln-Mercury dealer.
*
[SS18300(ALL)12/95]
Tether anchorage hardware(U.S. vehicles only)
[SS18400(ALL)12/95]
All vehicles built for sale in the USA do not include a tether
anchor hardware kit for use with child safety seats. However,
attachment holes (at each rear seating position) have been
provided in your vehicle to attach the tether anchor hardware.
If tether anchorage hardware is required for the child safety
seat, use only the tether anchor kit available at no charge from
any Ford or Lincoln-Mercury dealer (Base part number 613D74).
%*
[SS18500(ALL)01/96]
Safety Belts for Children
*
[SS18600(ALL)01/96]
Children who are too large for child safety seats should always
wear safety belts. (See instructions with your child seat, or
contact its manufacturer, to determine maximum size of child
that will safely fit in the seat.)
*
[SS18700(ALL)01/96]
RWARNING
If safety belts are not properly worn and adjusted as
described, the risk of serious injury to the child in a
collision will be much greater.
*
[SS18800(ALL)01/96]
If the shoulder belt portion of one of the lap and shoulder belts
can be positioned so that it does not cross or rest in front of the
child's face or neck, the child should wear the lap and shoulder
belt. Moving the child closer to the center of the vehicle may
help provide a good shoulder belt fit.
File:06cdsso.ex
Update:Thu Sep 12 11:03:20 1996

Seating and Safety Restraints
115
*
[SS18900(ALL)01/96]
To improve the fit of lap and shoulder belts on children who
have outgrown child safety seats, Ford recommends use of a
belt-positioning booster seat that is labelled as conforming to all
Federal motor vehicle safety standards. Belt-positioning booster
seats raise the child and provide a shorter, firmer seating
cushion that encourages safer seating posture and better fit of
lap and shoulder belts on the child. A belt-positioning booster
should be used if the shoulder belt rests in front of the child's
face or neck, or if the lap belt does not fit snugly on both
thighs, or if the thighs are too short to let the child sit all the
way back on the seat cushion when the lower legs hang over
the edge of the seat cushion. You may wish to discuss the
specific needs of your child with your pediatrician.
*
[SS19000(ALL)01/96]
RWARNING
Do not use a belt-positioning booster with a lap-only
belt.
*
[SS19100(ALL)01/96]
Lap belts and the lap belt portion of lap and shoulder belts
should always be worn snugly and below the hips, touching the
child's thighs.
*
[SS19200(ALL)02/96]
RWARNING
Children should always ride with the seatback in the
fully upright position.
File:06cdsso.ex
Update:Thu Sep 12 11:03:20 1996

117
Starting
%*
[TO00200(ALL)01/96]
Fuel-Injected Engines
*
[TO00300(ALL)01/96]
When starting a fuel-injected engine,the most important thing
to remember is to avoid pressing down on the accelerator
before or during starting. Only use the accelerator when you
have problems getting your vehicle started. SeeStarting Your
Enginein this chapter for details about when to use the
accelerator while you start your vehicle.
*
[TO00400(ALL)01/96]
Starting Your Vehicle
%*
[TO00500(ALL)01/96]
Preparing to Start Your Vehicle
*
[TO00600(ALL)02/96]
RWARNING
Do not start your vehicle in a closed garage or in other
enclosed areas. Exhaust fumes can be toxic. Always open
the garage door before you start the engine.
*
[TO00700(ALL)01/96]
Before you start your vehicle, do the following:
*
[TO00800(ALL)01/96]1.
Make sure all occupants in the vehicle buckle their safety
belts. SeeSafety Restraintsin the Index for more details.
*
[TO00900(ALL)12/95]2.
Make sure your headlamps and other accessories are turned
off and the parking brake is set.
[TO01000(ALL)12/95]3.
If you have a manual transaxle,make sure that the parking
brake is fully set, push the clutch pedal to the floor, and put
the gearshift into Neutral before you turn the key.
(Remember, the starter will operate only if the clutch pedal
is pushed all the way to the floor.)
[TO02000(ALL)12/95]
If you have an automatic transaxle,make sure that the
gearshift is in P (Park) and the parking brake is set before
you turn the key.
*
[TO02100(ALL)02/96]
Before you start your vehicle, you should test the warning lights
on the instrument panel to make sure that they work. Refer to
theInstrumentationchapter.
File:08cdtoo.ex
Update:Thu Sep 12 11:03:39 1996

118
%*
[TO02200(ALL)01/96]
Starting Your Engine
*
[TO02300(ALL)01/96]
To start your engine:
*
[TO02400(ALL)01/96]1.
Follow the steps underPreparing to Start Your Vehicleat the
beginning of this section.
*
[TO02500(ALL)01/96]2.
Keep your foot on the brake pedal and turn the ignition key
to the ON position.
*
[TO02600(ALL)01/96]3.
DO NOT depress the accelerator pedal when starting your
engine. DO NOT use the accelerator while the vehicle is
parked.
*
[TO02700(ALL)01/96]4.
Turn the key to the START position (cranking) until the
engine starts. Allow the key to return to the ON position
after the engine has started.
*
[TO02800(ALL)01/96]
If you have difficulty in turning the key, rotate the steering
wheel slightly because it may be binding.
%*
[TO02900(ALL)01/96]
For a cold engine:
[TO03000(ALL)12/95]
2.0L engine:
[TO03100(ALL)12/95]
n
At temperaturesbelow-10ÊF (-23ÊC):Turn the key to ON,
crank the engine and depress the accelerator about 1/4 of
the way down and hold that position forfive (5) seconds.If
the engine fails to start, continue to crank with the
accelerator depressed about 1/4 of the way down and hold
that position until the engine starts.DO NOT crank for
more than 30 seconds,or you could damage the starter. If
the engine fails to start on the first try, turn the key to OFF
and wait two (2) minutes before trying again. Allow engine
to warm up for a few minutes before putting transaxle into
gear.
File:08cdtoo.ex
Update:Thu Sep 12 11:03:39 1996

Starting
119
[TO03200(ALL)12/95]
n
At temperaturesbetween-10ÊF (-23ÊC) and 10ÊF(-12ÊC):
Turn the key to ON, and crank the engine forfive (5)
seconds.If the engine fails to start, continue to crank and
depress the accelerator about 1/4 of the way down and hold
that position until the engine starts.DO NOT crank for
more than 30 seconds,or you could damage the starter. If
the engine fails to start on the first try, turn the key to OFF
and wait two (2) minutes before trying again.
[TO03300(ALL)12/95]
n
At temperaturesbetween10ÊF (-12ÊC) and 32ÊF (0ÊC):If the
engine does not start infifteen (15) secondson first try, turn
the key to OFF, then try again.
[TO03400(ALL)12/95]
n
At temperaturesabove32ÊF (0ÊC):If the engine does not
start infive (5) secondson the first try, turn the key to OFF,
then try again.
[TO03500(ALL)12/95]
If you have the 4-cylinder 2.0L engine and are not using an
engine block heater, warm up the engine for a minute or two
before putting the transaxle in gear. Depressing the accelerator
slightly will also help with cold starts.
[TO03600(ALL)12/95]
2.5L engine:
*
[TO03700(ALL)01/96]
n
At temperatures10ÊF (-12ÊC) andbelow:If the engine does
not start infifteen (15) secondson the first try, turn the key
to OFF, wait approximately ten (10) seconds so you do not
flood the engine, then try again.
[TO03800(ALL)12/95]
n
At temperaturesabove10ÊF(-12ÊC):If the engine does not
start infive (5) secondson the first try, wait approximately
ten (10) seconds so you do not flood the engine, then try
again.
File:08cdtoo.ex
Update:Thu Sep 12 11:03:39 1996

120
%*
[TO03900(ALL)01/96]
For a warm engine:
[TO04000(ALL)12/95]
n
Do not hold the key in the START position for more than
five (5) secondsat a time. If the engine does not start within
five (5) seconds on the first try, wait a few seconds after the
starter stops, then try again.
*
[TO04100(ALL)01/96]
Whenever you start your vehicle, release the key as soon as the
engine starts. Excessive cranking could damage the starter.
*
[TO04200(ALL)01/96]
After you start the engine, let it idle for a few seconds. Keep
your foot on the brake pedal and put the gearshift lever in gear.
Release the parking brake. Slowly release the brake pedal and
drive away in the normal manner.
*
[TO04300(ALL)12/95]
NOTE: If your vehicle is equipped with an automatic
transaxle, your vehicle has an interlock that prevents
you from shifting out of P (Park) unless your foot is
on the brake pedal.
%*
[TO04400(ALL)01/96]
If the engine does not start after two attempts:
[TO04500(ALL)12/95]1.
Press the accelerator pedal all the way to the floor and hold
it.
[TO04600(ALL)12/95]2.
Turn the ignition key to the START position.
[TO04700(ALL)12/95]3.
Release the ignition key when the engine starts.
[TO04800(ALL)12/95]4.
Release the accelerator gradually as the engine speeds up.
Then drive away in the normal manner.
*
[TO04900(ALL)03/96]
If the engine still does not start, the fuel pump shut-off switch
may have been triggered. For directions on how to reset the
switch seeFuel Pump Shut-Off Switchin the index.
File:08cdtoo.ex
Update:Thu Sep 12 11:03:39 1996
