Determining if System Is Operational
*
[SS11901(ALL)03/96]
The Air Bag Supplemental Restraint System uses a readiness
light and a tone to indicate the condition of the system. The
readiness light is in the instrument cluster. When you turn the
ignition key to ON, this light will illuminate for approximately
six (6) seconds and then turn off. This indicates that the system
is operating normally. NOTE: Routine maintenance of the air
bag system is not required.
%*
[SS12001(ALL)03/96]
A problem with the system is indicated by one or more of the
following:
*
[SS12101(ALL)03/96]
n
the readiness light will either flash or stay lit,
*
[SS12201(ALL)03/96]
n
the readiness light will not light immediately after ignition is
turned on,
%*
[SS12301(ALL)12/95]
n
a group of five beeps will be heard. The tone pattern will
repeat periodically until the problem and light are repaired.
*
[SS12401(ALL)03/96]
If any of these things happen, even intermittently, have the Air
Bag Supplemental Restraint System serviced at your Ford or
Lincoln-Mercury dealer immediately. Unless serviced, the system
may not function properly in the event of a collision.
*
[SS12501(ALL)03/96]
Disposal of Air Bags and Air Bag Equipped Vehicles
*
[SS12601(ALL)03/96]
For disposal of air bags or air bag equipped vehicles, see your
local Ford or Lincoln-Mercury dealer. Air bags MUST BE
disposed of by qualified personnel.
%*
[SS13400(ALL)01/96]
Safety Restraints for Children
*
[SS13500(ALL)01/96]
In the U.S. and Canada, you are required by law to use safety
restraints for children. If small children ride in your vehicle Ð
this generally includes children who are four years old or
younger and who weigh 40 pounds (18 kg) or less Ð you must
put them in safety seats that are made specially for children.
Safety belts alone do not provide maximum protection for these
children. Check your local and state laws for specific
requirements.
File:06cdsso.ex
Update:Thu Sep 12 11:03:20 1996

Seating and Safety Restraints
101
*
[SS13600(ALL)02/96]
RWARNING
Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot
protect the child from injury in a collision.
*
[SS13700(ALL)01/96]
RWARNING
Cargo should always be secured to prevent it from
shifting and causing damage to the vehicle or harm to
passengers.
*
[SS13800(ALL)01/96]
When possible, put children in the rear seat of your vehicle.
Accident statistics suggest that children are safer when properly
restrained in the rear seating positions than in the front seating
positions.
*
[SS13900(ALL)03/96]
RWARNING
Carefully follow all of the manufacturer's instructions
included with the safety seat you put in your vehicle. If
you do not install and use the safety seat properly, the
child may be injured in a sudden stop or collision.
*
[SS14000(ALL)01/96]
RWARNING
Safety belts and seats can become hot in a vehicle that
has been closed up in sunny weather; they could burn a
small child. Check seat covers and buckles before you
place a child anywhere near them.
*
[SS14100(ALL)03/96]
RWARNING
Do not leave children, unreliable adults, or pets
unattended in your vehicle.
File:06cdsso.ex
Update:Thu Sep 12 11:03:20 1996

102
%*
[SS14200(ALL)01/96]
Safety Seats for Children
*
[SS14300(ALL)01/96]
Use a safety seat that is recommended for the size and weight
of the child. Always follow the safety seat manufacturer's
instructions when installing and using the safety seat.
*
[SS14400(ALL)01/96]
Ford recommends the use of a child safety seat having a top
tether strap. Install the child safety seat in a seating position
which is capable of providing a tether anchorage. For more
information on top tether straps seeAttaching Safety Seats With
Tether Strapsin this chapter.
*
[SS14500(ALL)03/96]
Your vehicle is equipped with a right front passenger air bag.
Air bags deploy with great force, faster than the blink of an eye.
Front passengers, especially children and small adults, must
never sit on the front edge of the seat, stand near the glove
compartment of the instrument panel, or lean over near the air
bag cover when the vehicle is moving. All occupants should sit
with their backs against the seatback, move the seat to the most
rearward position if possible and use the safety belts. Children
weighing less than 40 lbs. (18 kg) always should use child or
infant seats.
%*
[SS14600(ALL)03/96]
RWARNING
When using forward-facing child seats move the
passenger seat as far back from the instrument panel as
possible. Never secure rear-facing infant seats in the front
seat.
[SS14700(ALL)12/95]
THE FORCE OF THE RAPIDLY INFLATING PASSENGER AIR
BAG COULD PUSH THE TOP OF THE REAR-FACING SEAT
AGAINST THE VEHICLE SEATBACK, ARMRESTS OR
CONSOLE. REAR-FACING INFANT SEATS MUST ALWAYS
BE SECURED IN THE REAR SEAT. Failure to follow these
instructions could result in serious injury.
File:06cdsso.ex
Update:Thu Sep 12 11:03:20 1996

Seating and Safety Restraints
103
*
[SS14800(ALL)01/96]
All child restraint systems are designed to be secured in vehicle
seats by lap belts or by the lap portion of a lap-shoulder belt.
*
[SS14900(ALL)03/96]
RWARNING
If you do not properly secure the safety seat, the child
occupying the seat may be injured during a collision or
sudden stop. An unsecured safety seat could also injure
other passengers.
*
[SS15000(ALL)03/96]
RWARNING
Carefully follow all of the manufacturer's instructions
included with the safety seat you put in your vehicle. If
you do not install and use the safety seat properly, the
child may be injured in a sudden stop or collision.
*
[SS15100(ALL)01/96]
When installing a child safety seat, be sure to use the correct
safety belt buckle for that seating position, and make sure the
tongue is securely fastened in the buckle. For a shoulder/lap
belt combination with a sliding tongue, make sure the retractor
is in the automatic locking mode.
*
[SS15200(ALL)03/96]
RWARNING
Always keep the buckle release button pointing upward
and away from the child seat, with the tongue between
the child seat and the release button as shown in the
following illustration.
File:06cdsso.ex
Update:Thu Sep 12 11:03:20 1996

104
[SS15300(ALL)12/95]
17-1/2 pica
art:0001209-B
Safety belt buckle placement for child seats
%*
[SS15400(ALL)12/95]
Installing Child Safety Seats in the Front Passenger
Seat and Outer Rear Seating Positions
[SS15500(ALL)12/95]
Your vehicle is equipped with a dual locking mode retractor on
the shoulder belt portion of the combination lap/shoulder safety
belt for the right front seat passenger and rear outer passengers.
*
[SS15600(ALL)12/95]
If you choose to install a child safety seat in the front seating
position, move vehicle seat as far back as possible.
*
[SS15700(ALL)12/95]1.
Position the child seat in center of passenger seat.
*
[SS15800(ALL)02/96]2.
Pull down on shoulder belt, then grasp shoulder belt and lap
belt together. See Figure 1.
File:06cdsso.ex
Update:Thu Sep 12 11:03:20 1996

Seating and Safety Restraints
105
[SS15900(ALL)12/95]
17-1/2 pica
art:0001270-A*
[SS16000(ALL)01/96]3.
While holding the shoulder and lap belt portions together,
route the tongue through the child seat according to the
child seat manufacturer's instructions. See Figure 2. Be sure
the belt webbing is not twisted, and insert the tongue into
the buckle. See Figure 3.
File:06cdsso.ex
Update:Thu Sep 12 11:03:20 1996

106
[SS16100(ALL)12/95]
17-1/2 pica
art:0001271-AFile:06cdsso.ex
Update:Thu Sep 12 11:03:20 1996

Seating and Safety Restraints
107
[SS16200(ALL)12/95]
17-1/2 pica
art:0001272-AFile:06cdsso.ex
Update:Thu Sep 12 11:03:20 1996

108

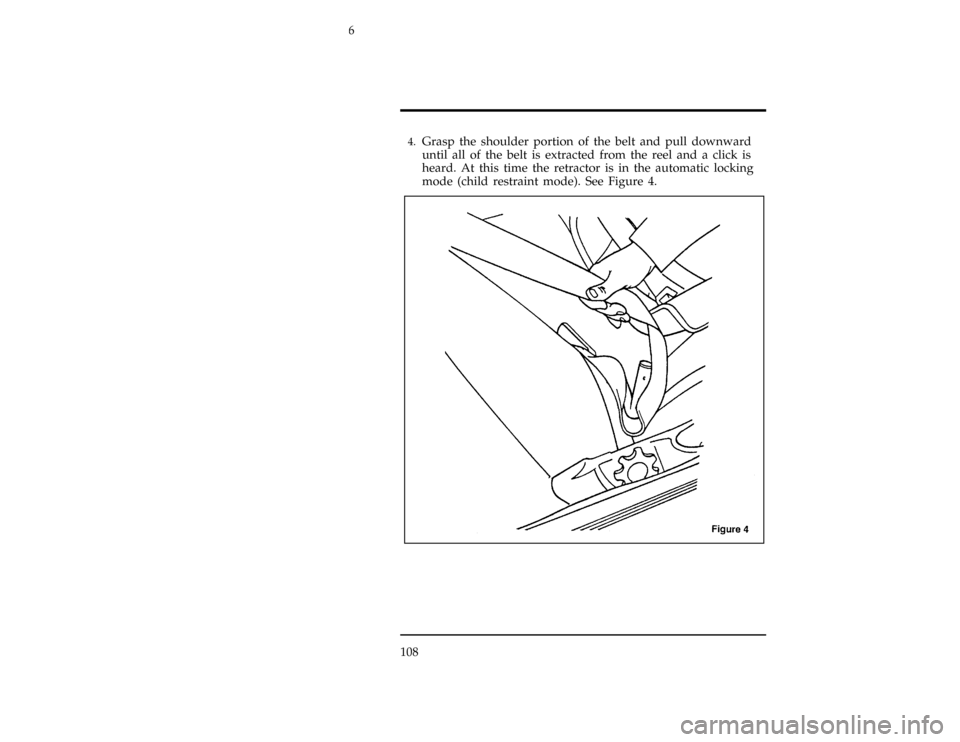

[SS16300(ALL)02/96]4.
Grasp the shoulder portion of the belt and pull downward
until all of the belt is extracted from the reel and a click is
heard. At this time the retractor is in the automatic locking
mode (child restraint mode). See Figure 4.
[SS16400(ALL)12/95]
24 pica art:0001273-AFile:06cdsso.ex
Update:Thu Sep 12 11:03:20 1996

Seating and Safety Restraints
109
*

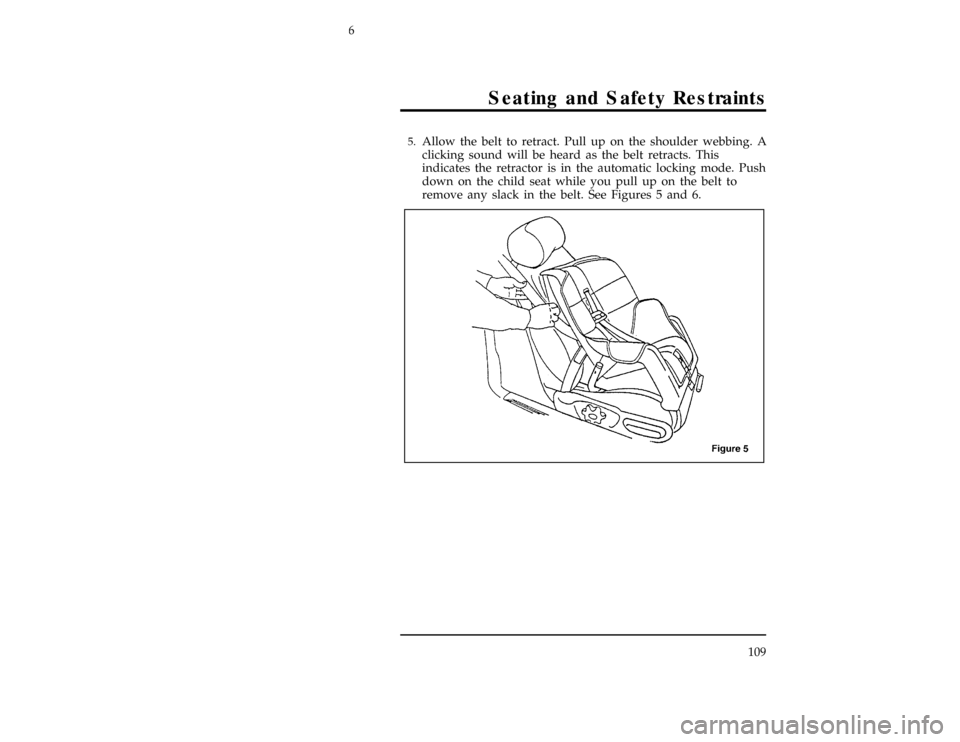

[SS16500(ALL)02/96]5.
Allow the belt to retract. Pull up on the shoulder webbing. A
clicking sound will be heard as the belt retracts. This
indicates the retractor is in the automatic locking mode. Push
down on the child seat while you pull up on the belt to
remove any slack in the belt. See Figures 5 and 6.
[SS16600(ALL)12/95]
17-1/2 pica
art:0001274-BFile:06cdsso.ex
