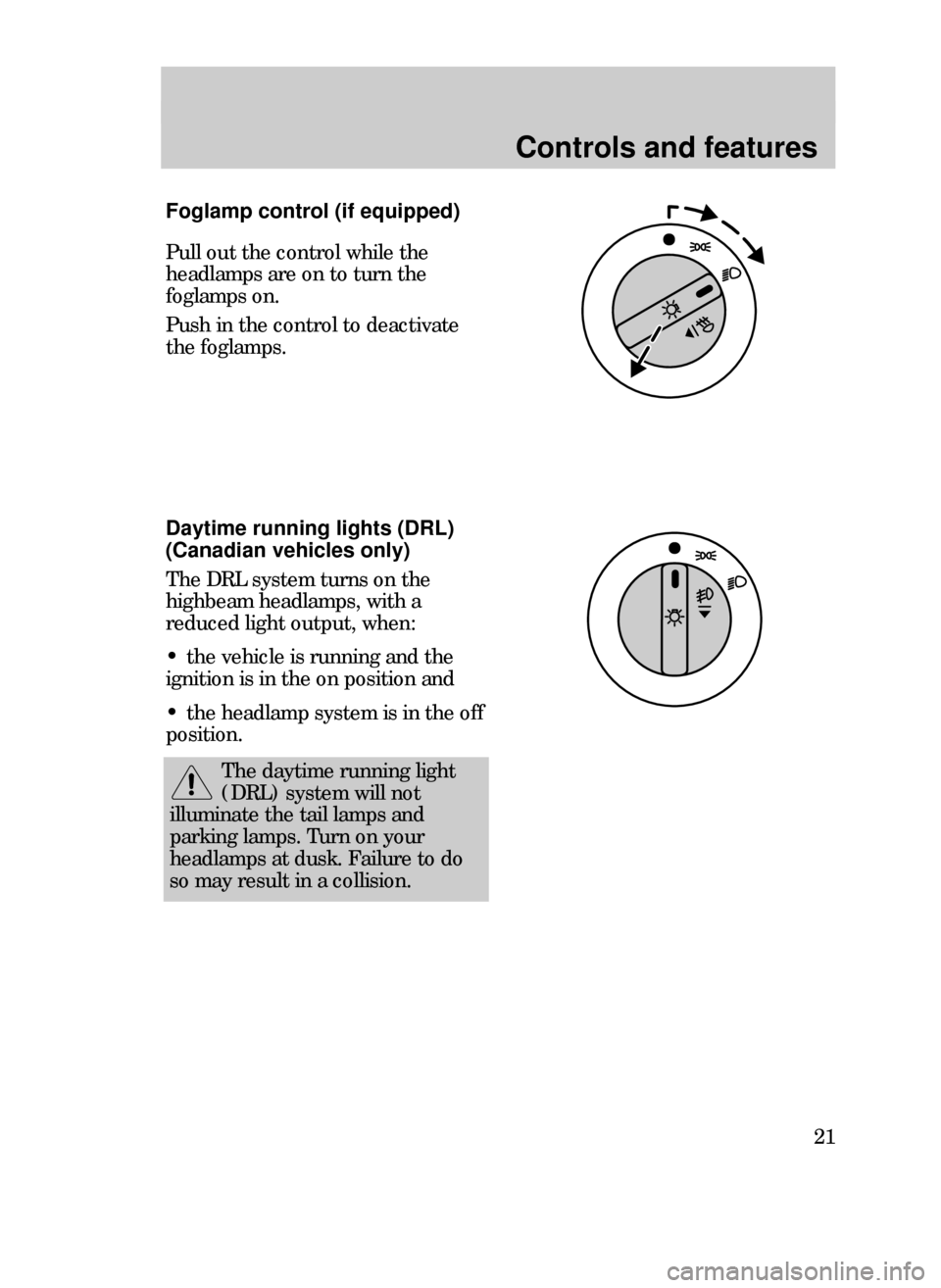

Controls and features
21
Daytime running lights (DRL)
(Canadian vehicles only)
The DRL system turns on the
highbeam headlamps, with a
reduced light output, when:
¥ the vehicle is running and the
ignition is in the on position and
¥ the headlamp system is in the off
position.
The daytime running light
(DRL) system will not
illuminate the tail lamps and
parking lamps. Turn on your
headlamps at dusk. Failure to do
so may result in a collision.
Foglamp control (if equipped)
Pull out the control while the
headlamps are on to turn the
foglamps on.
Push in the control to deactivate
the foglamps.
13CCfen 3/25/99 1:50 PM Page 21

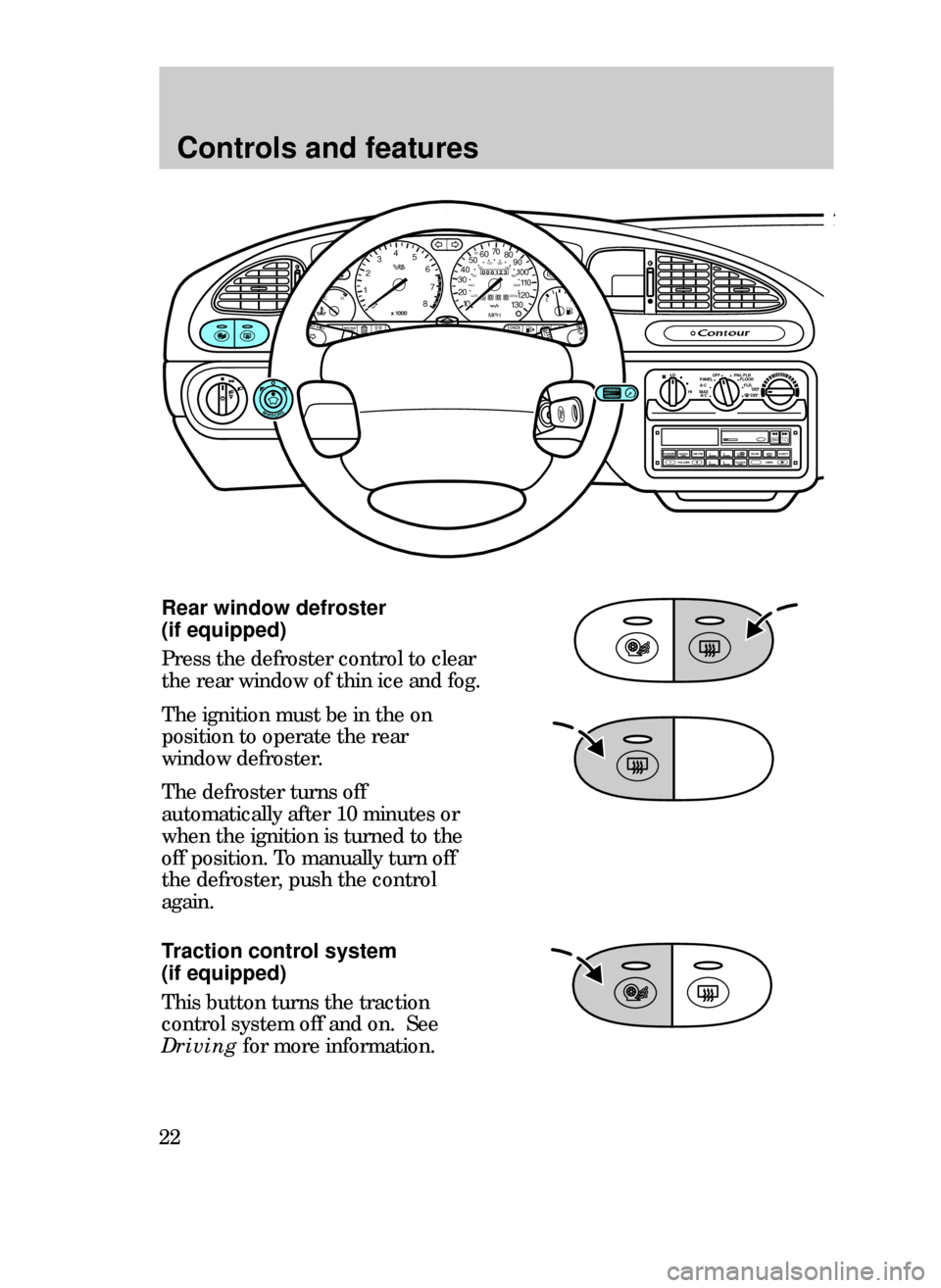

Controls and features
22
Rear window defroster
(if equipped)
Press the defroster control to clear
the rear window of thin ice and fog.
The ignition must be in the on
position to operate the rear
window defroster.
The defroster turns off
automatically after 10 minutes or
when the ignition is turned to the
off position. To manually turn off
the defroster, push the control
again.
Traction control system
(if equipped)
This button turns the traction
control system off and on. See
Driving for more information.
OFFPNL/FLR
PANEL
A/CFLOOR
DEF FLR
DEF
MAX
A/C HI/
POWER AUDIO AM/FM
SCAN
SEEK 31245ANSSIDE 1-2EJECTVOLUME
000123
000010 20 3040506070
80
90
10 0
110
120
13 0MPH20 406055
80120 10 0
14 0
160
18 0
200EF12
03
x 1000
4
5
6
7
8
CHECK
ENGINE TRACTION
CONTROLO/D
OFF
CLOCK
MIRRORS
TRACTION
TROL
CH
13CCfen 3/25/99 1:50 PM Page 22

Controls and features
23
Panel dimmer control
Adjust the control to vary the
intensity of the panel lighting.
Operates only when the exterior
lights are switched on.
To switch on the interior lamp,
rotate the control completely to the
left.
Power mirrors (if equipped)
The control can be swivelled and
turned.
Turn the control counterclockwise
to adjust the driverÕs side mirror,
clockwise to adjust the passenger
side mirror. Adjust the selected
mirror by moving the center
control in the desired direction.
Then turn the control back to the
center position.
MIRRORS
MIRRORS
13CCfen 3/25/99 1:50 PM Page 23

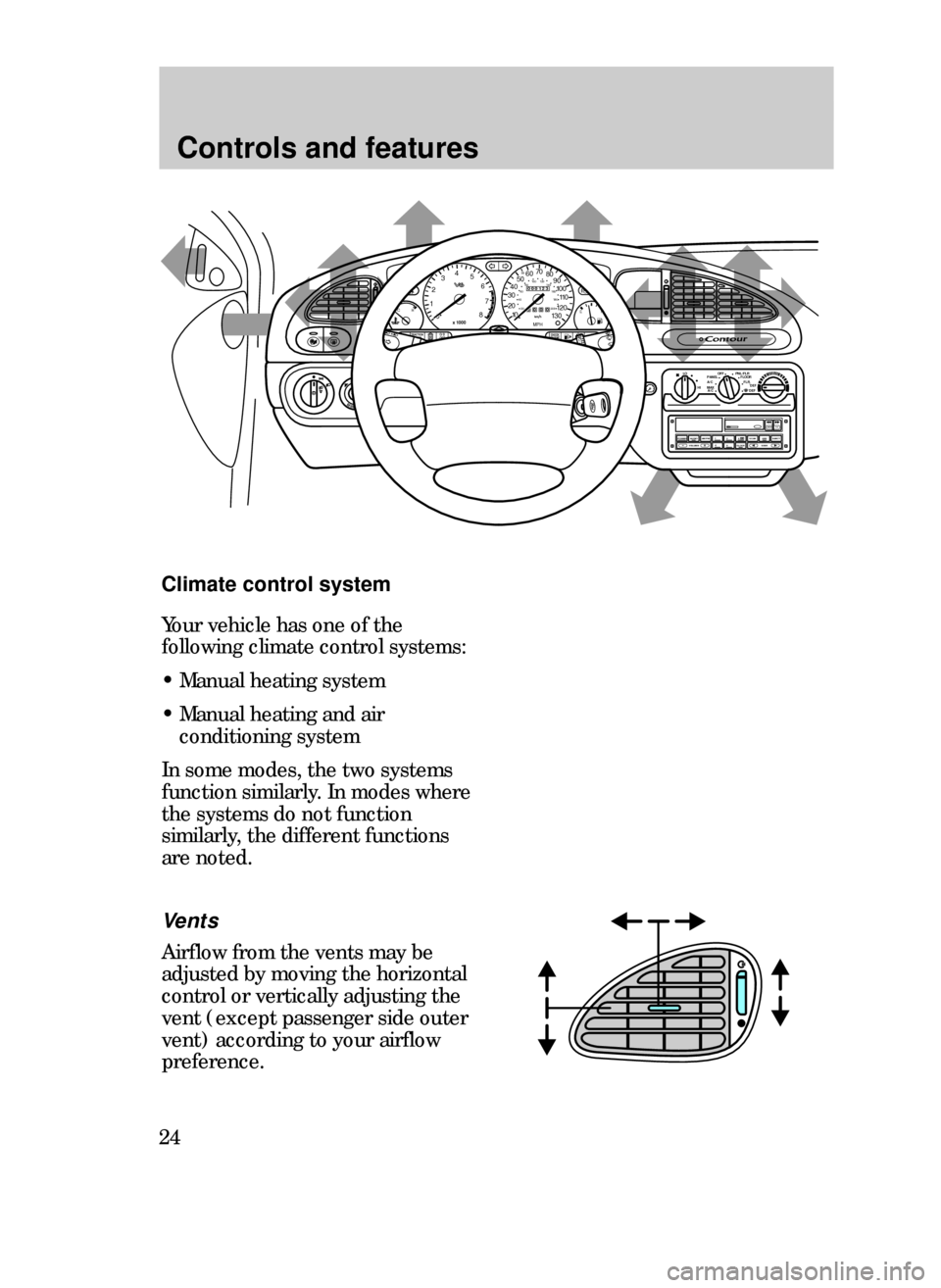

Controls and features
24
Climate control system
Vents
Airflow from the vents may be
adjusted by moving the horizontal
control or vertically adjusting the
vent (except passenger side outer
vent) according to your airflow
preference.
Your vehicle has one of the
following climate control systems:
¥ Manual heating system
¥ Manual heating and air
conditioning system
In some modes, the two systems
function similarly. In modes where
the systems do not function
similarly, the different functions
are noted.
OFF LO PNL/FLR
PANEL
A/CFLOOR
DEF FLR
DEF
MAX
A/C HI/
POWER AUDIO AM/FM
SCAN
SEEK 31245ANSSIDE 1-2EJECTVOLUME
000123
000010 20 3040506070
80
90
10 0
110
120
13 0MPH20 406055
80120 10 0
14 0
160
18 0
200EF12
03x 1000
4
5
6
7
8
CHECK
ENGINE TRACTION
CONTROLO/D
OFF
MIRRORS
CLOCK
TRACTION
ROL
CH
13CCfen 3/25/99 1:50 PM Page 24

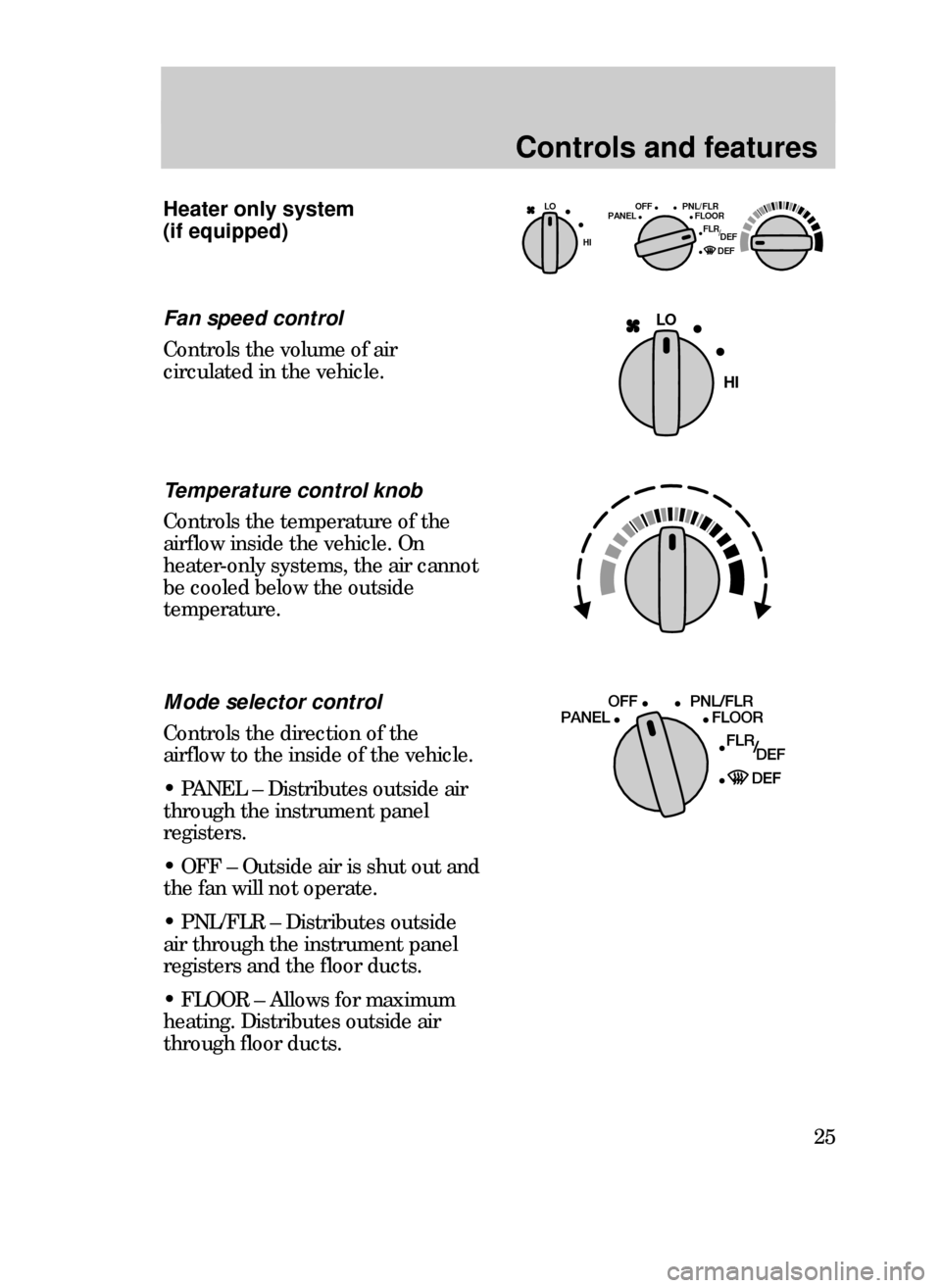

Controls and features
25
Heater only system
(if equipped)OFF LO PNL/FLR
PANEL FLOOR
DEF FLR
DEF
HI/
LO
HI
Temperature control knob
Controls the temperature of the
airflow inside the vehicle. On
heater-only systems, the air cannot
be cooled below the outside
temperature.
Mode selector control
Controls the direction of the
airflow to the inside of the vehicle.
¥ PANEL Ð Distributes outside air
through the instrument panel
registers.
¥ OFF Ð Outside air is shut out and
the fan will not operate.
¥ PNL/FLR Ð Distributes outside
air through the instrument panel
registers and the floor ducts.
¥ FLOOR Ð Allows for maximum
heating. Distributes outside air
through floor ducts.
Fan speed control
Controls the volume of air
circulated in the vehicle.
13CCfen 3/25/99 1:50 PM Page 25

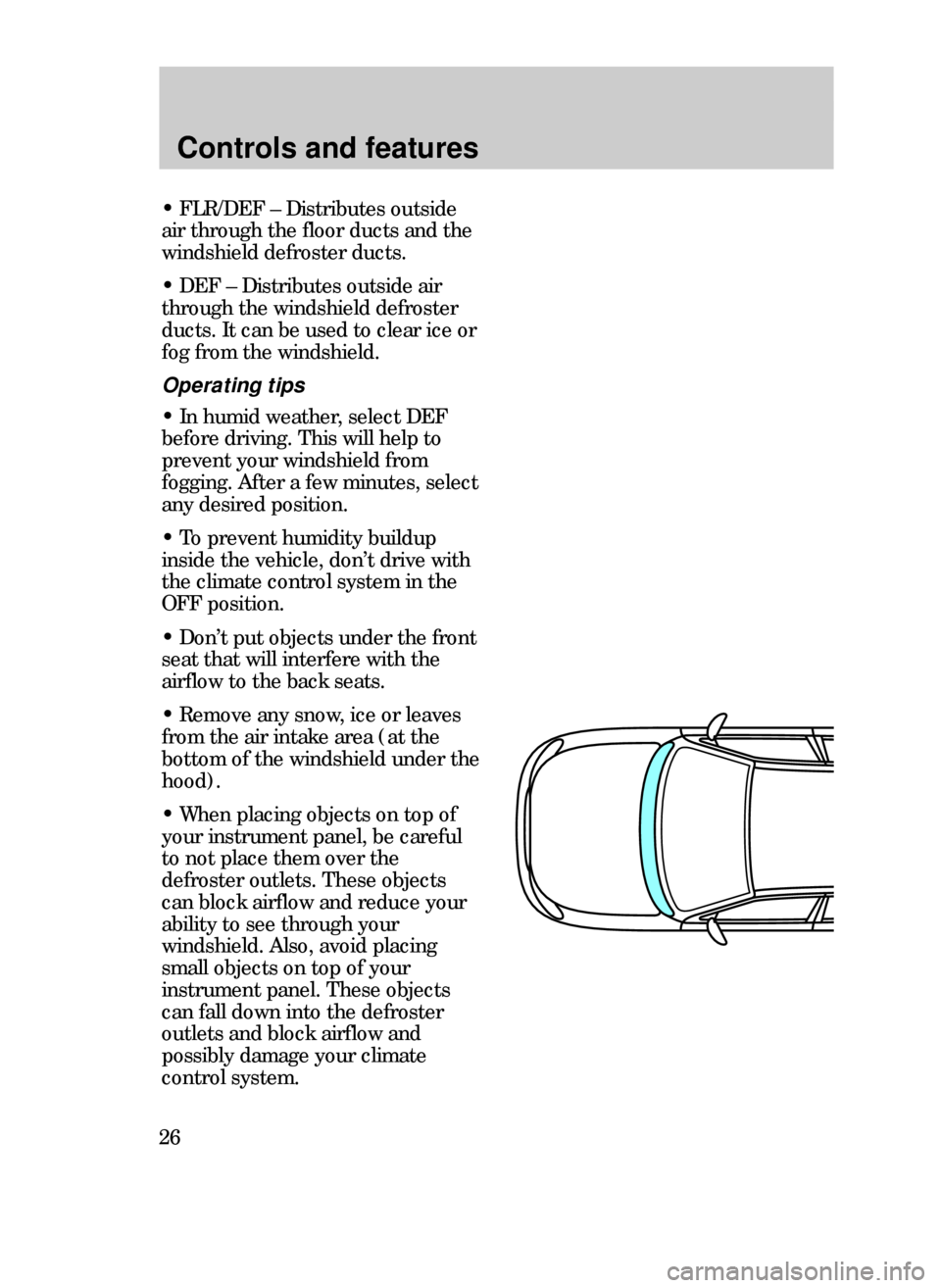

Controls and features
26
¥ FLR/DEF Ð Distributes outside
air through the floor ducts and the
windshield defroster ducts.
¥ DEF Ð Distributes outside air
through the windshield defroster
ducts. It can be used to clear ice or
fog from the windshield.
Operating tips
¥ In humid weather, select DEF
before driving. This will help to
prevent your windshield from
fogging. After a few minutes, select
any desired position.
¥ To prevent humidity buildup
inside the vehicle, donÕt drive with
the climate control system in the
OFF position.
¥ DonÕt put objects under the front
seat that will interfere with the
airflow to the back seats.
¥ Remove any snow, ice or leaves
from the air intake area (at the
bottom of the windshield under the
hood).
¥ When placing objects on top of
your instrument panel, be careful
to not place them over the
defroster outlets. These objects
can block airflow and reduce your
ability to see through your
windshield. Also, avoid placing
small objects on top of your
instrument panel. These objects
can fall down into the defroster
outlets and block airflow and
possibly damage your climate
control system.
13CCfen 3/25/99 1:50 PM Page 26

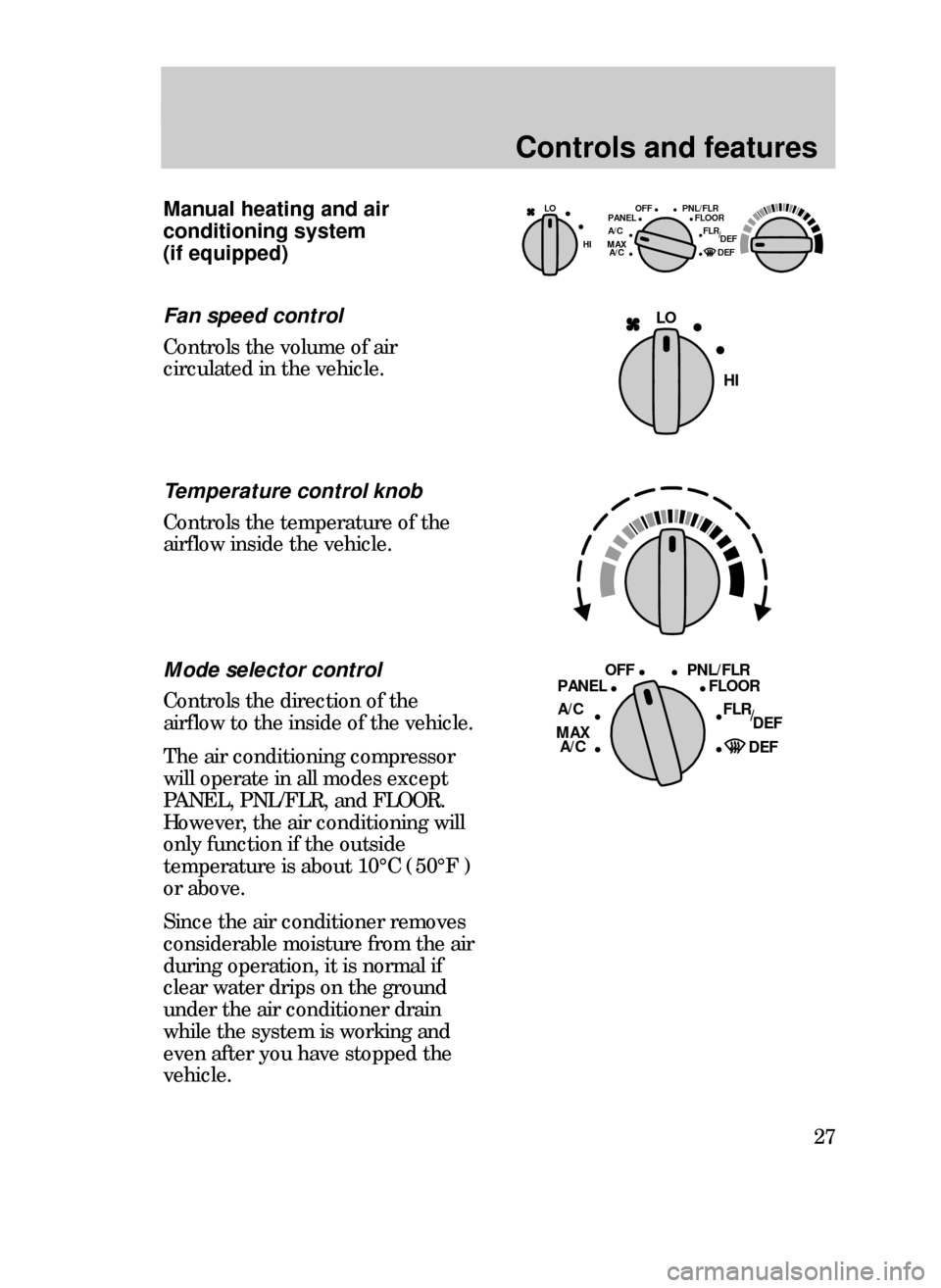

Controls and features
27
Manual heating and air
conditioning system
(if equipped)OFF LO PNL/FLR
PANEL
A/CFLOOR
DEF FLR
DEF
MAX
A/C HI/
LO
HIFan speed control
Controls the volume of air
circulated in the vehicle.
Temperature control knob
Controls the temperature of the
airflow inside the vehicle.
OFF PNL/FLR
PANEL
A/CFLOOR
DEF FLR
DEF
MAX
A/C/Mode selector control
Controls the direction of the
airflow to the inside of the vehicle.
The air conditioning compressor
will operate in all modes except
PANEL, PNL/FLR, and FLOOR.
However, the air conditioning will
only function if the outside
temperature is about 10¡C (50¡F )
or above.
Since the air conditioner removes
considerable moisture from the air
during operation, it is normal if
clear water drips on the ground
under the air conditioner drain
while the system is working and
even after you have stopped the
vehicle.
13CCfen 3/25/99 1:50 PM Page 27

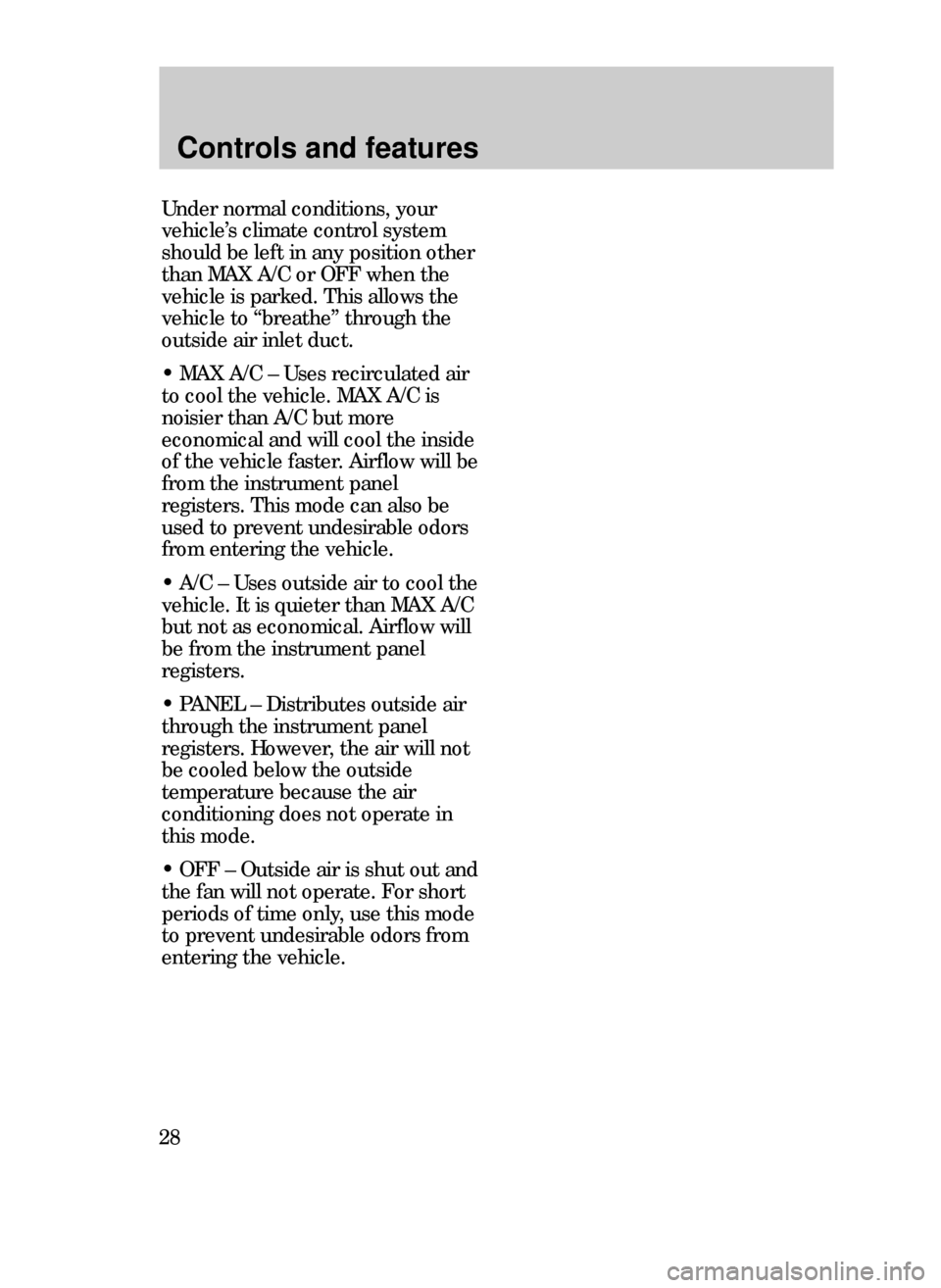

Controls and features
28
Under normal conditions, your
vehicleÕs climate control system
should be left in any position other
than MAX A/C or OFF when the
vehicle is parked. This allows the
vehicle to ÒbreatheÓ through the
outside air inlet duct.
¥ MAX A/C Ð Uses recirculated air
to cool the vehicle. MAX A/C is
noisier than A/C but more
economical and will cool the inside
of the vehicle faster. Airflow will be
from the instrument panel
registers. This mode can also be
used to prevent undesirable odors
from entering the vehicle.
¥ A/C Ð Uses outside air to cool the
vehicle. It is quieter than MAX A/C
but not as economical. Airflow will
be from the instrument panel
registers.
¥ PANEL Ð Distributes outside air
through the instrument panel
registers. However, the air will not
be cooled below the outside
temperature because the air
conditioning does not operate in
this mode.
¥ OFF Ð Outside air is shut out and
the fan will not operate. For short
periods of time only, use this mode
to prevent undesirable odors from
entering the vehicle.
13CCfen 3/25/99 1:50 PM Page 28

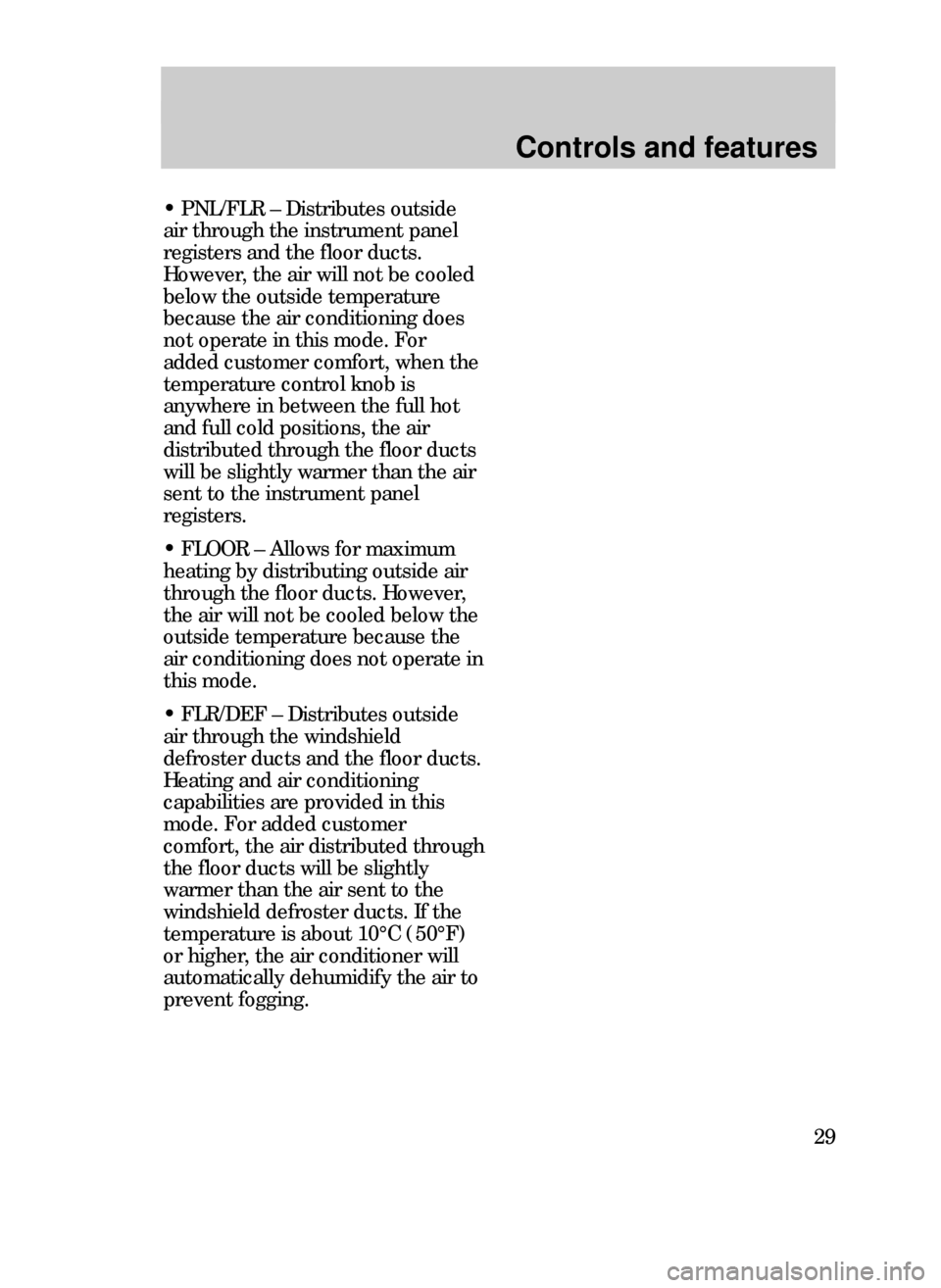

Controls and features
29
¥ PNL/FLR Ð Distributes outside
air through the instrument panel
registers and the floor ducts.
However, the air will not be cooled
below the outside temperature
because the air conditioning does
not operate in this mode. For
added customer comfort, when the
temperature control knob is
anywhere in between the full hot
and full cold positions, the air
distributed through the floor ducts
will be slightly warmer than the air
sent to the instrument panel
registers.
¥ FLOOR Ð Allows for maximum
heating by distributing outside air
through the floor ducts. However,
the air will not be cooled below the
outside temperature because the
air conditioning does not operate in
this mode.
¥ FLR/DEF Ð Distributes outside
air through the windshield
defroster ducts and the floor ducts.
Heating and air conditioning
capabilities are provided in this
mode. For added customer
comfort, the air distributed through
the floor ducts will be slightly
warmer than the air sent to the
windshield defroster ducts. If the
temperature is about 10¡C (50¡F)
or higher, the air conditioner will
automatically dehumidify the air to
prevent fogging.
13CCfen 3/25/99 1:50 PM Page 29

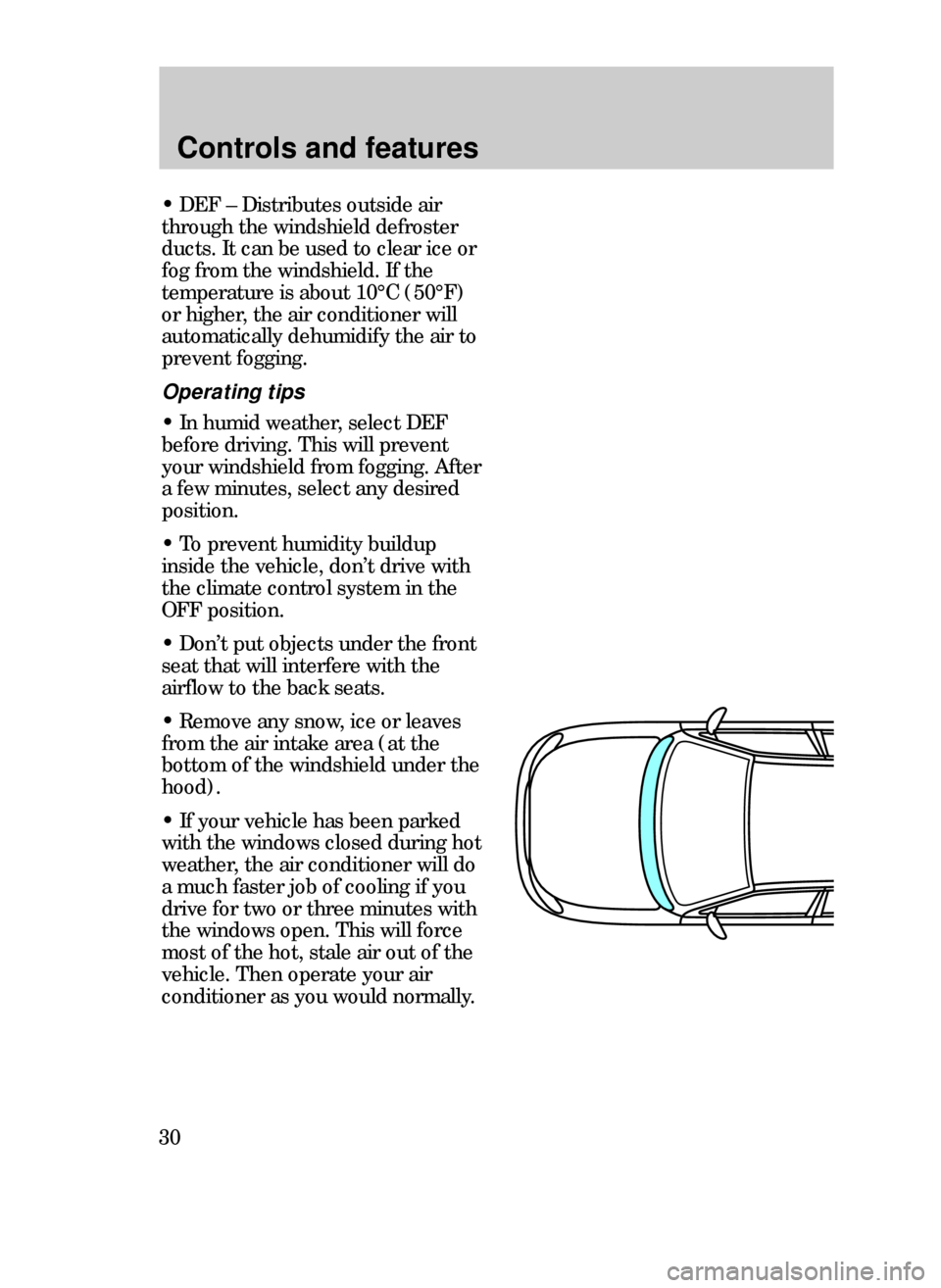

Controls and features
30
¥ DEF Ð Distributes outside air
through the windshield defroster
ducts. It can be used to clear ice or
fog from the windshield. If the
temperature is about 10¡C (50¡F)
or higher, the air conditioner will
automatically dehumidify the air to
prevent fogging.
Operating tips
¥ In humid weather, select DEF
before driving. This will prevent
your windshield from fogging. After
a few minutes, select any desired
position.
¥ To prevent humidity buildup
inside the vehicle, donÕt drive with
the climate control system in the
OFF position.
¥ DonÕt put objects under the front
seat that will interfere with the
airflow to the back seats.
¥ Remove any snow, ice or leaves
from the air intake area (at the
bottom of the windshield under the
hood).
¥ If your vehicle has been parked
with the windows closed during hot
weather, the air conditioner will do
a much faster job of cooling if you
drive for two or three minutes with
the windows open. This will force
most of the hot, stale air out of the
vehicle. Then operate your air
conditioner as you would normally.
