Controls and features
61
12
SEC
On Off 12 SEC

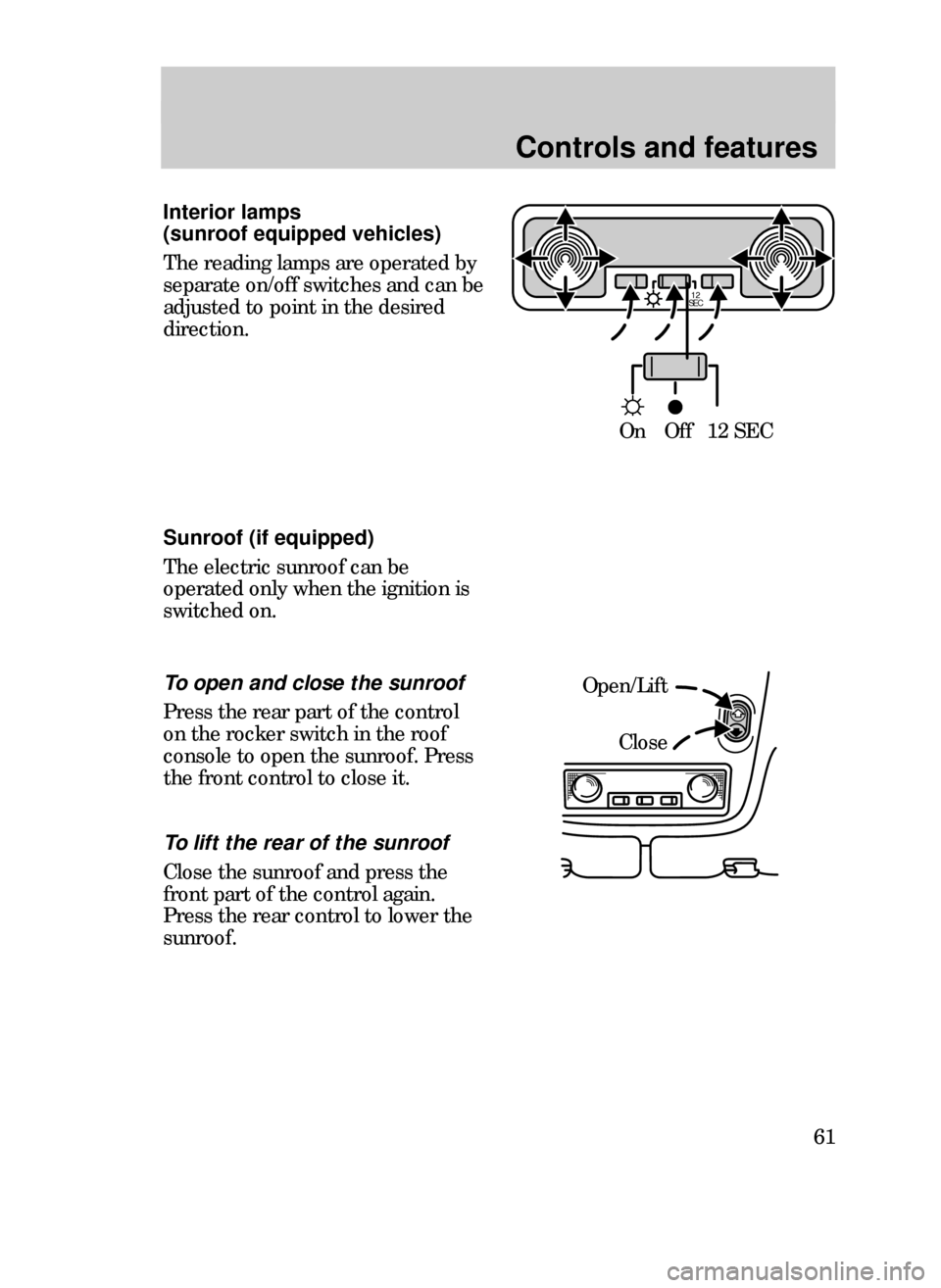

Interior lamps
(sunroof equipped vehicles)
The reading lamps are operated by
separate on/off switches and can be
adjusted to point in the desired
direction.
Open/Lift
Close
Sunroof (if equipped)
The electric sunroof can be
operated only when the ignition is
switched on.
To open and close the sunroof
Press the rear part of the control
on the rocker switch in the roof
console to open the sunroof. Press
the front control to close it.
To lift the rear of the sunroof
Close the sunroof and press the
front part of the control again.
Press the rear control to lower the
sunroof.
13CCfen 3/25/99 1:51 PM Page 61

Controls and features
62

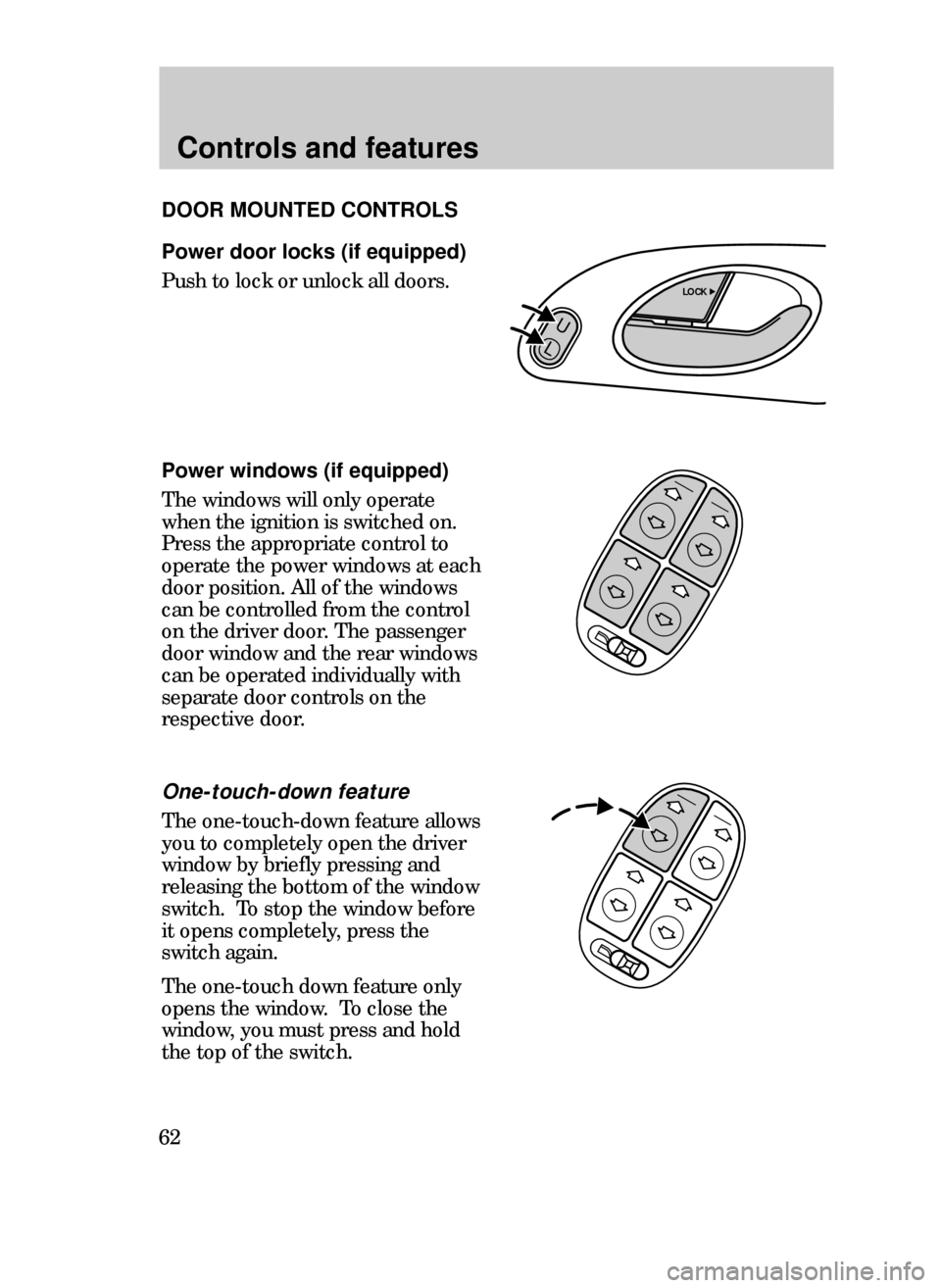

Power door locks (if equipped)
Push to lock or unlock all doors.
Power windows (if equipped)
The windows will only operate
when the ignition is switched on.
Press the appropriate control to
operate the power windows at each
door position. All of the windows
can be controlled from the control
on the driver door. The passenger
door window and the rear windows
can be operated individually with
separate door controls on the
respective door.
One-touch-down feature
The one-touch-down feature allows
you to completely open the driver
window by briefly pressing and
releasing the bottom of the window
switch. To stop the window before
it opens completely, press the
switch again.
The one-touch down feature only
opens the window. To close the
window, you must press and hold
the top of the switch.
DOOR MOUNTED CONTROLS
U
L
LOCK
13CCfen 3/25/99 1:51 PM Page 62

Controls and features
63

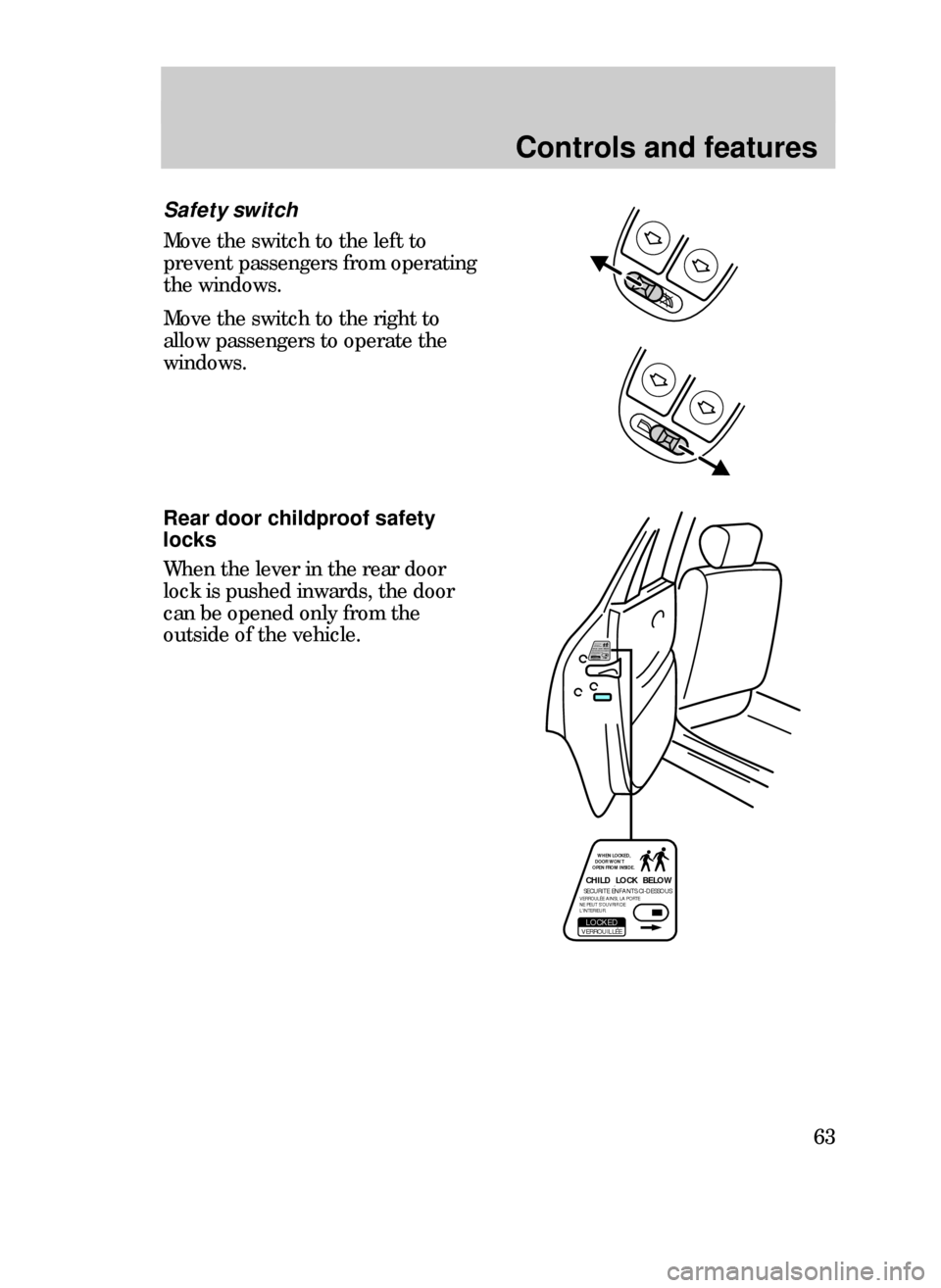

Safety switch
Move the switch to the left to
prevent passengers from operating
the windows.
Move the switch to the right to
allow passengers to operate the
windows.
CHILD LOCK BELOWSECURITE ENFANTS CI-DESSOUS´VERROUILLEE,LOCKED WHEN LOCKED,
DOOR WON`T
OPEN FROM INSIDE.´VERROULEE AINSI, LA PORTE
NE PEUT S´OUVRIR DE
L´INTERIEUR.
CHILD LOCK BELOWSECURITE ENFANTS CI-DESSOUS´
VERROUILLEE,LOCKED
WHEN LOCKED,
DOOR WON`T
OPEN FROM INSIDE.
´VERROULEE AINSI, LA PORTE
NE PEUT S´OUVRIR DE
L´INTERIEUR.
Rear door childproof safety
locks
When the lever in the rear door
lock is pushed inwards, the door
can be opened only from the
outside of the vehicle.
13CCfen 3/25/99 1:51 PM Page 63

Controls and features
64
PULL

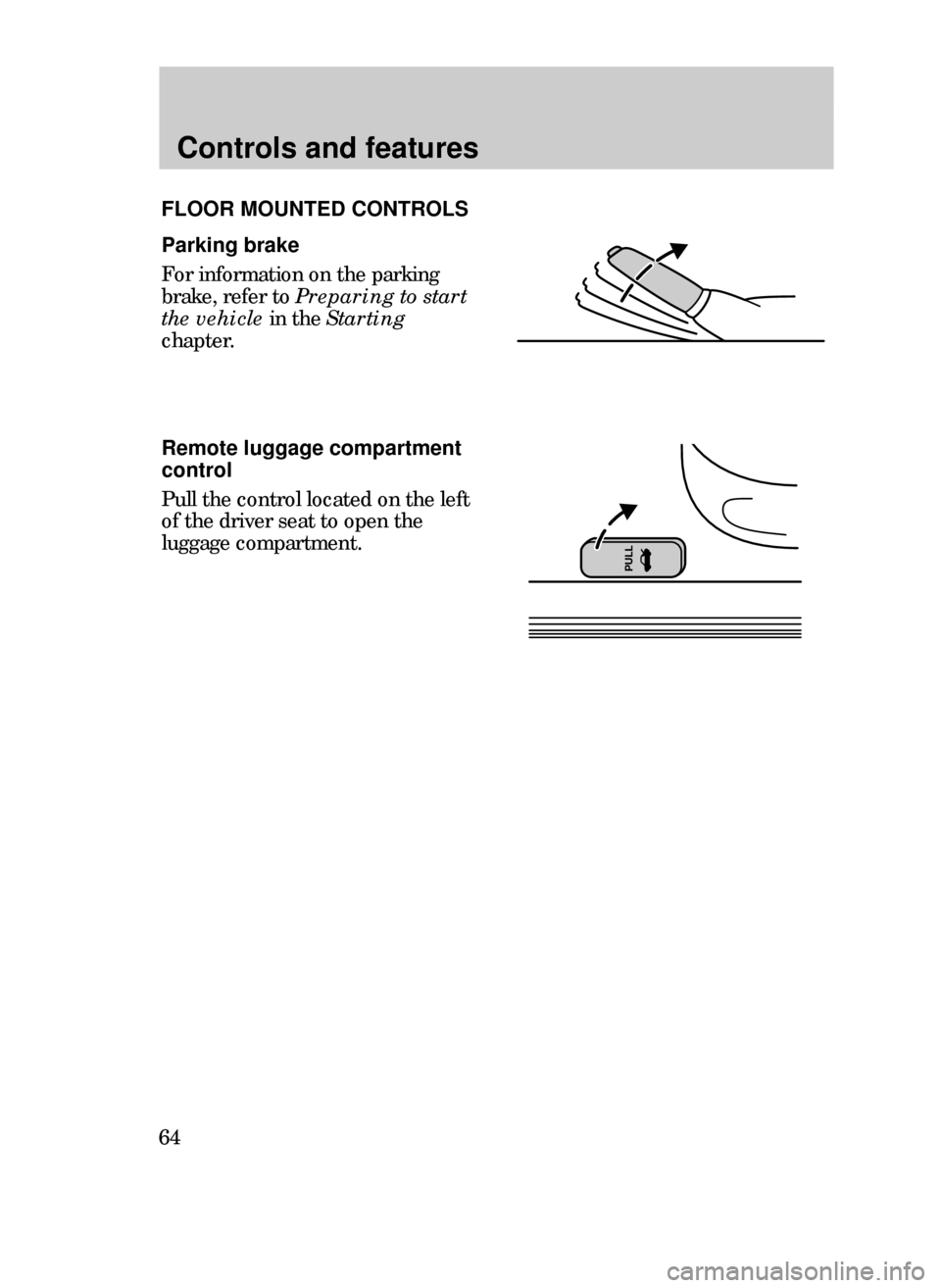

Remote luggage compartment
control
Pull the control located on the left
of the driver seat to open the
luggage compartment.
FLOOR MOUNTED CONTROLS
Parking brake
For information on the parking
brake, refer to Preparing to start
the vehicle in the Starting
chapter.
13CCfen 3/25/99 1:51 PM Page 64

Controls and features
65
Fuel pump shut-off switch
For information on the fuel pump
shut-off switch, refer to Fuel
pump shut-off switch in the
Roadside emergencies chapter.

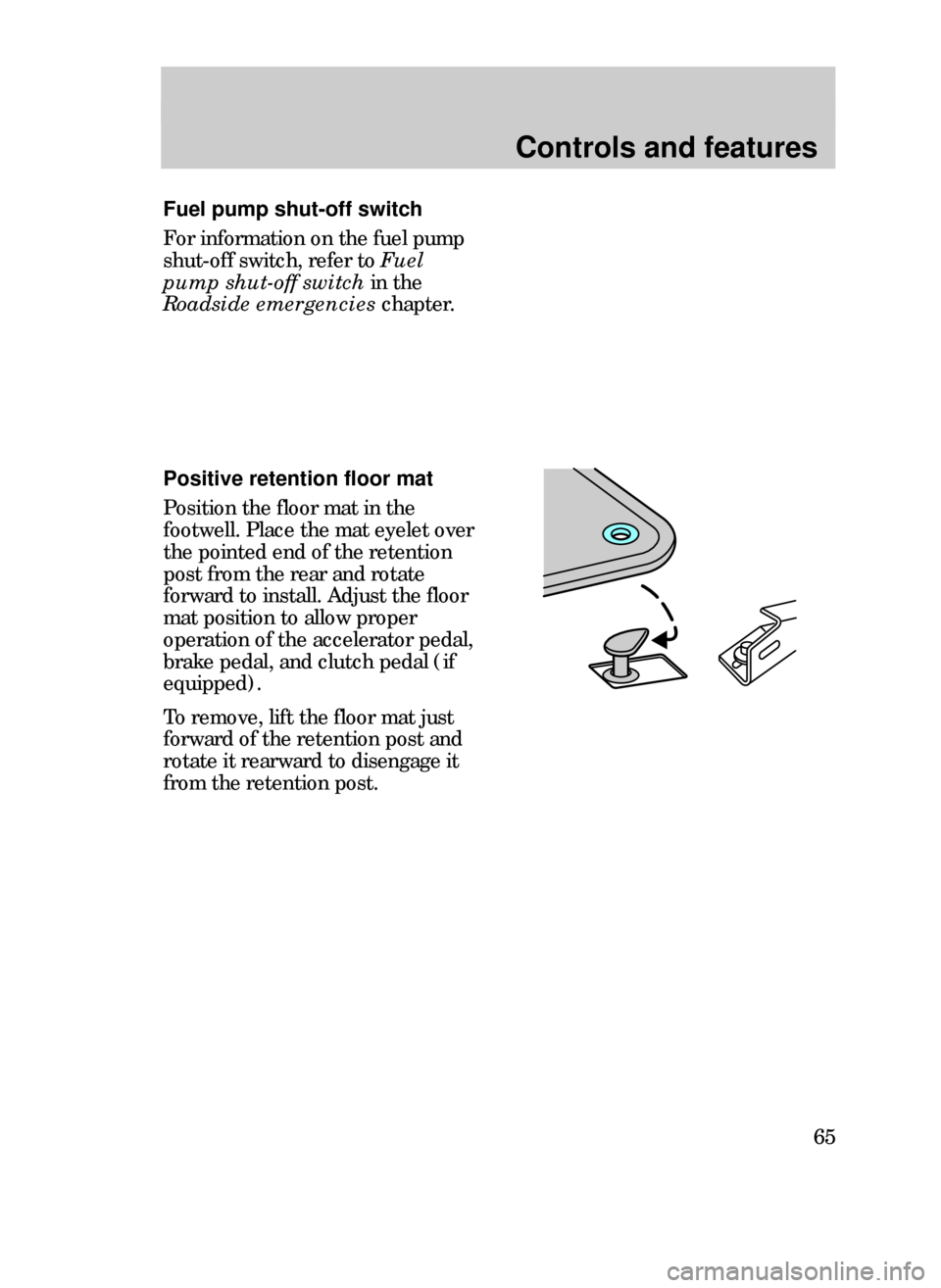

Positive retention floor mat
Position the floor mat in the
footwell. Place the mat eyelet over
the pointed end of the retention
post from the rear and rotate
forward to install. Adjust the floor
mat position to allow proper
operation of the accelerator pedal,
brake pedal, and clutch pedal (if
equipped).
To remove, lift the floor mat just
forward of the retention post and
rotate it rearward to disengage it
from the retention post.
13CCfen 3/25/99 1:51 PM Page 65

Controls and features
66
TRUNKUN
LOCK
PANIC LOCK

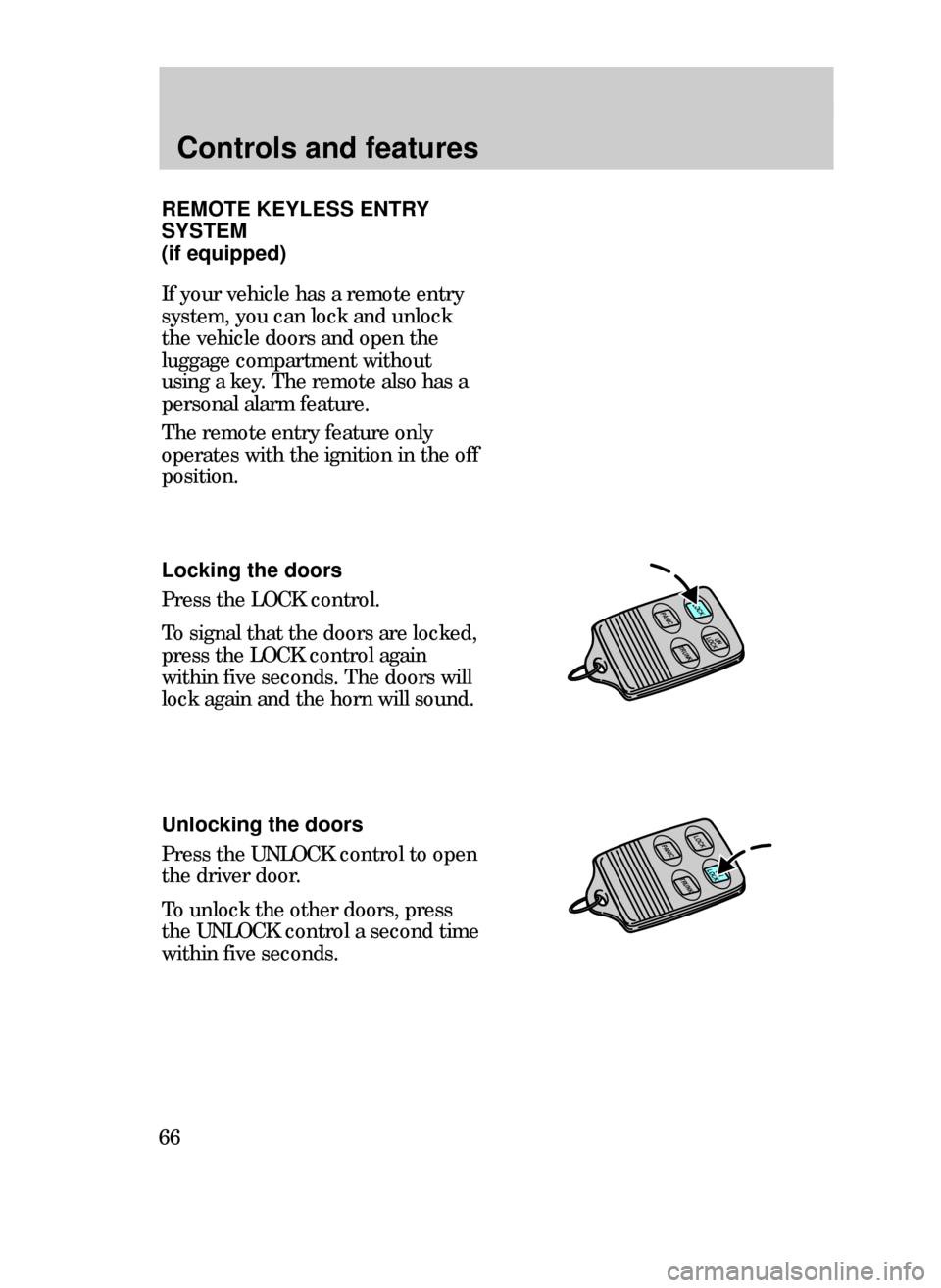

REMOTE KEYLESS ENTRY
SYSTEM
(if equipped)
If your vehicle has a remote entry
system, you can lock and unlock
the vehicle doors and open the
luggage compartment without
using a key. The remote also has a
personal alarm feature.
The remote entry feature only
operates with the ignition in the off
position.
Locking the doors
Press the LOCK control.
To signal that the doors are locked,
press the LOCK control again
within five seconds. The doors will
lock again and the horn will sound.
Unlocking the doors
Press the UNLOCK control to open
the driver door.
To unlock the other doors, press
the UNLOCK control a second time
within five seconds.
TRUNK
LOCKPANICUN
LOCK
13CCfen 3/25/99 1:51 PM Page 66

Controls and features
67

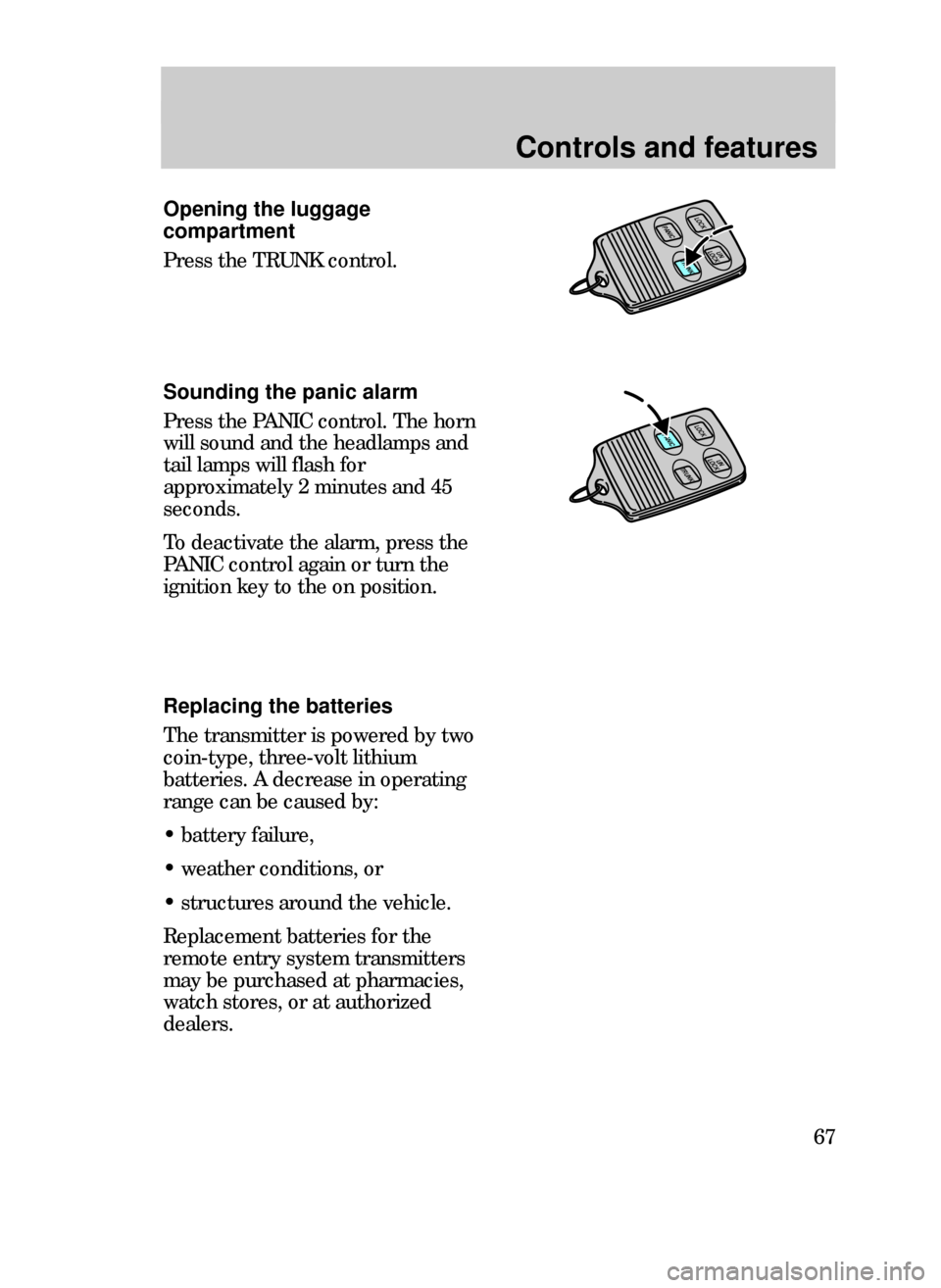

Opening the luggage
compartment
Press the TRUNK control.
Sounding the panic alarm
Press the PANIC control. The horn
will sound and the headlamps and
tail lamps will flash for
approximately 2 minutes and 45
seconds.
To deactivate the alarm, press the
PANIC control again or turn the
ignition key to the on position.
Replacing the batteries
The transmitter is powered by two
coin-type, three-volt lithium
batteries. A decrease in operating
range can be caused by:
¥ battery failure,
¥ weather conditions, or
¥ structures around the vehicle.
Replacement batteries for the
remote entry system transmitters
may be purchased at pharmacies,
watch stores, or at authorized
dealers.
UN
LOCK
LOCKPANIC
TRUNK
TRUNKUN
LOCK
LOCKPANIC
13CCfen 3/25/99 1:51 PM Page 67

Controls and features
68
Replacing lost transmitters
Take your transmitters to the
dealer for reprogramming if:
¥ a transmitter is lost, or
¥ you want to purchase additional
transmitters.
This device complies with part 15
of the FCC rules. Operation is
subject to the two following
conditions: (1) The device may not
cause harmful interference, and
(2) This device must accept any
interference received, including
interference that may cause
undesired operation.

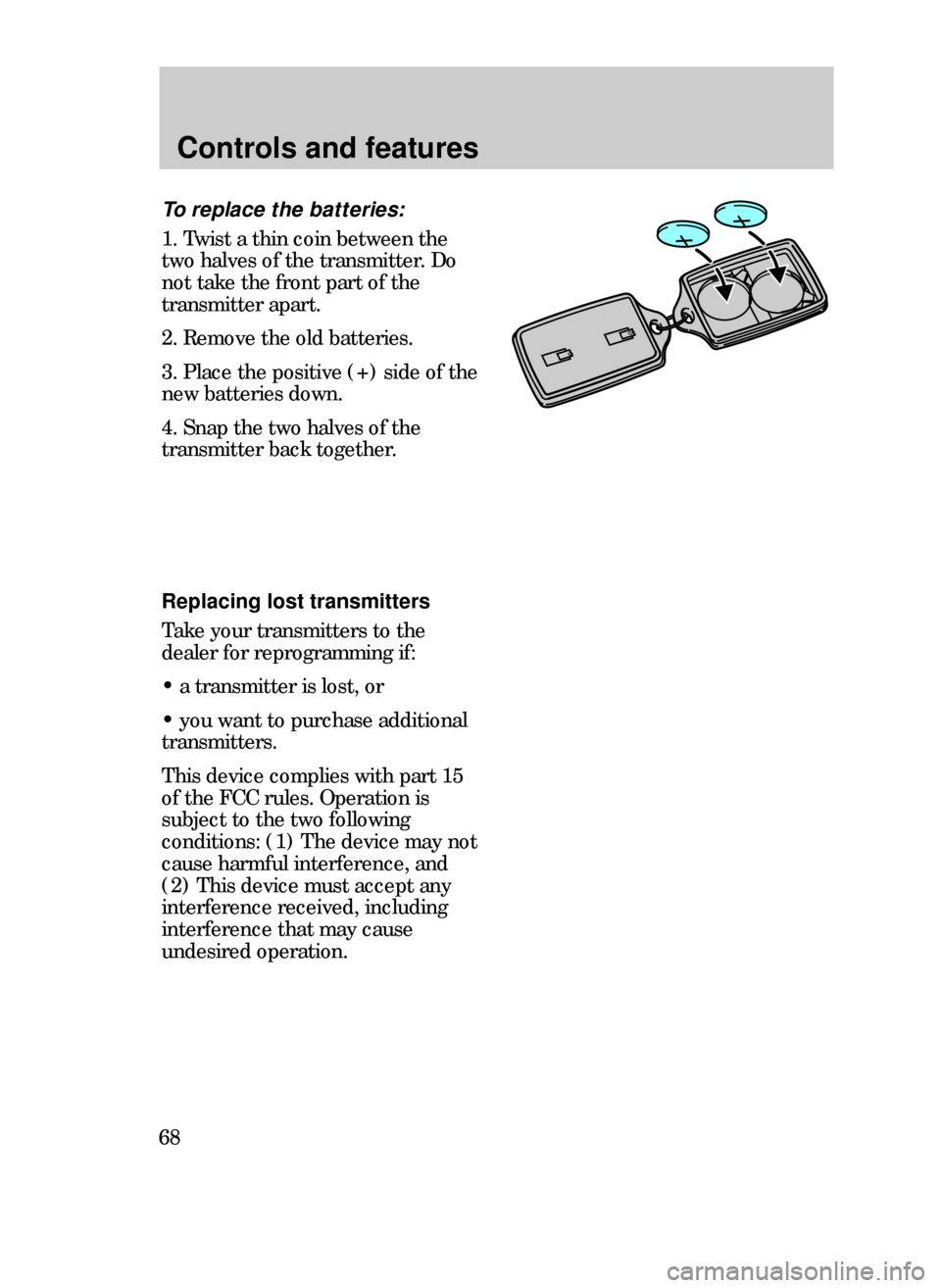

To replace the batteries:
1. Twist a thin coin between the
two halves of the transmitter. Do
not take the front part of the
transmitter apart.
2. Remove the old batteries.
3. Place the positive (+) side of the
new batteries down.
4. Snap the two halves of the
transmitter back together.
13CCfen 3/25/99 1:51 PM Page 68

Controls and features
69

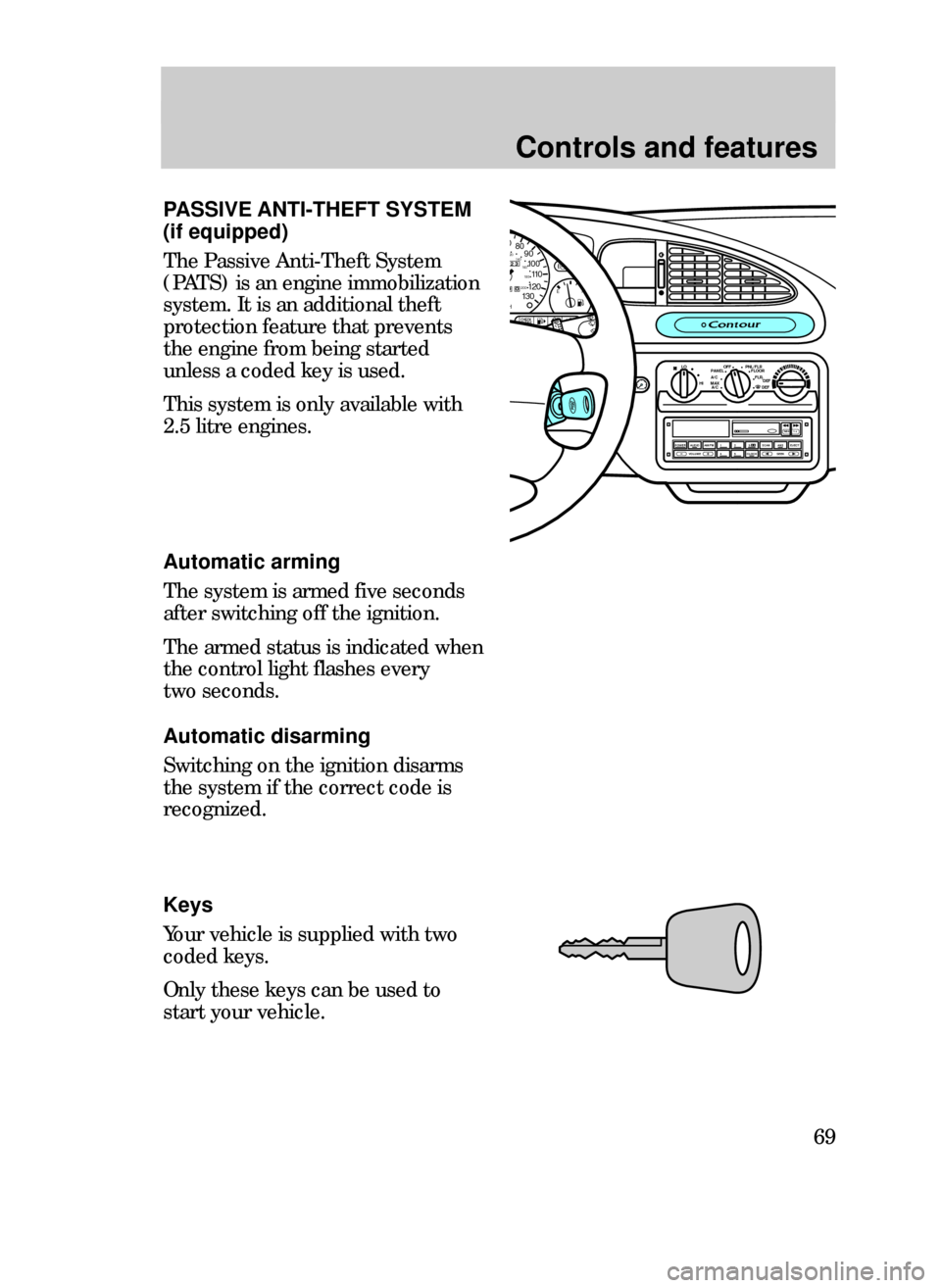

PASSIVE ANTI-THEFT SYSTEM
(if equipped)
The Passive Anti-Theft System
(PATS) is an engine immobilization
system. It is an additional theft
protection feature that prevents
the engine from being started
unless a coded key is used.
This system is only available with
2.5 litre engines.
OFF LO PNL/FLR
PANEL
A/CFLOOR
DEF FLR
DEF
MAX
A/C HI/
POWER AUDIO AM/FM
SCAN
SEEK 31245ANSSIDE 1-2EJECTVOLUME
23
00
080
90
10 0
110
120
13 0
H
20
14 0
160
18 0
200
EF
BRAKE
CHECK
ENGINE
CLOCK
Automatic arming
The system is armed five seconds
after switching off the ignition.
The armed status is indicated when
the control light flashes every
two seconds.
Automatic disarming
Switching on the ignition disarms
the system if the correct code is
recognized.
Keys
Your vehicle is supplied with two
coded keys.
Only these keys can be used to
start your vehicle.
13CCfen 3/25/99 1:51 PM Page 69

Controls and features
70

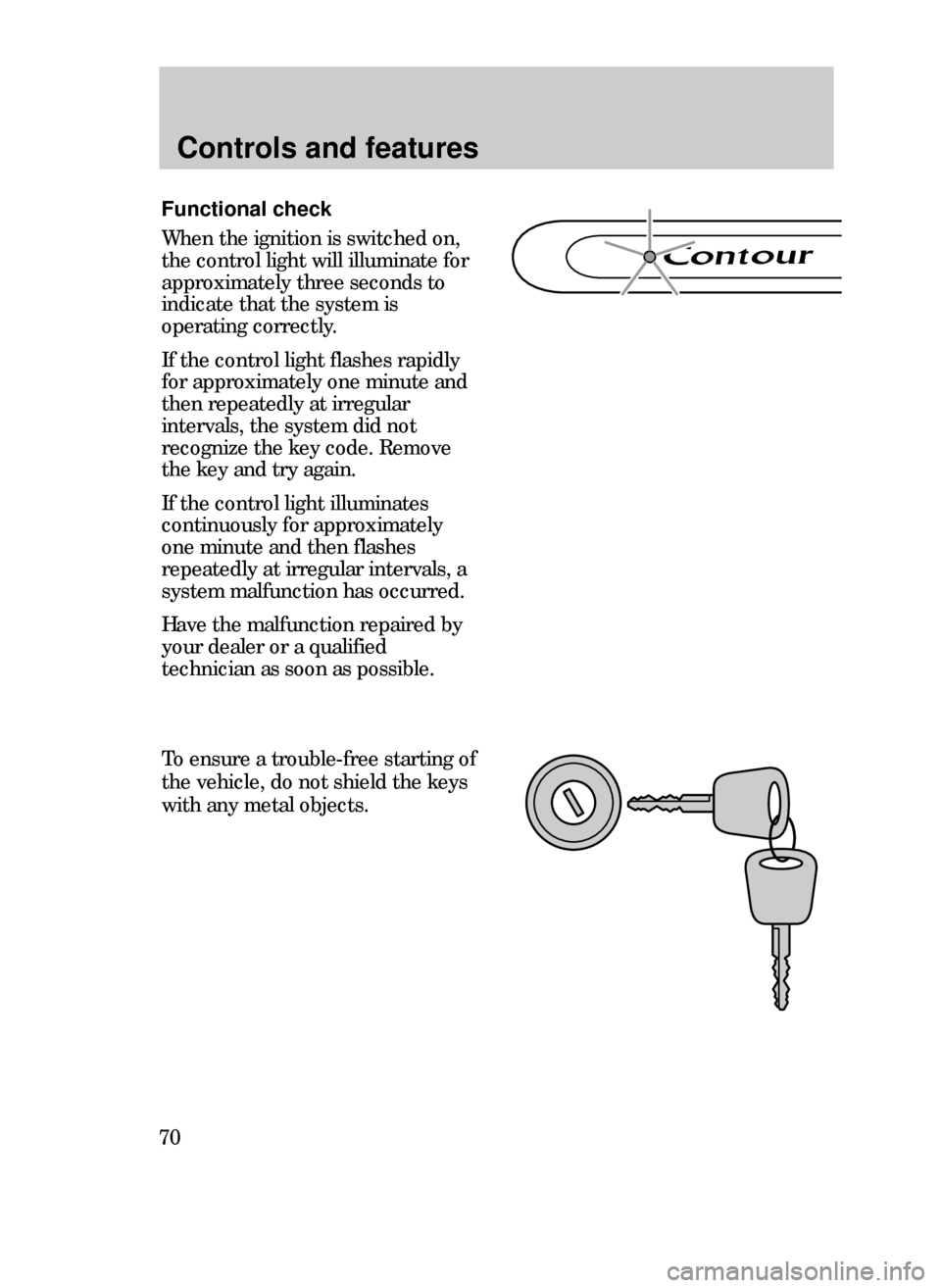

Functional check
When the ignition is switched on,
the control light will illuminate for
approximately three seconds to
indicate that the system is
operating correctly.
If the control light flashes rapidly
for approximately one minute and
then repeatedly at irregular
intervals, the system did not
recognize the key code. Remove
the key and try again.
If the control light illuminates
continuously for approximately
one minute and then flashes
repeatedly at irregular intervals, a
system malfunction has occurred.
Have the malfunction repaired by
your dealer or a qualified
technician as soon as possible.
To ensure a trouble-free starting of
the vehicle, do not shield the keys
with any metal objects.
13CCfen 3/25/99 1:51 PM Page 70
