Page 51 of 244
Controls and features
51

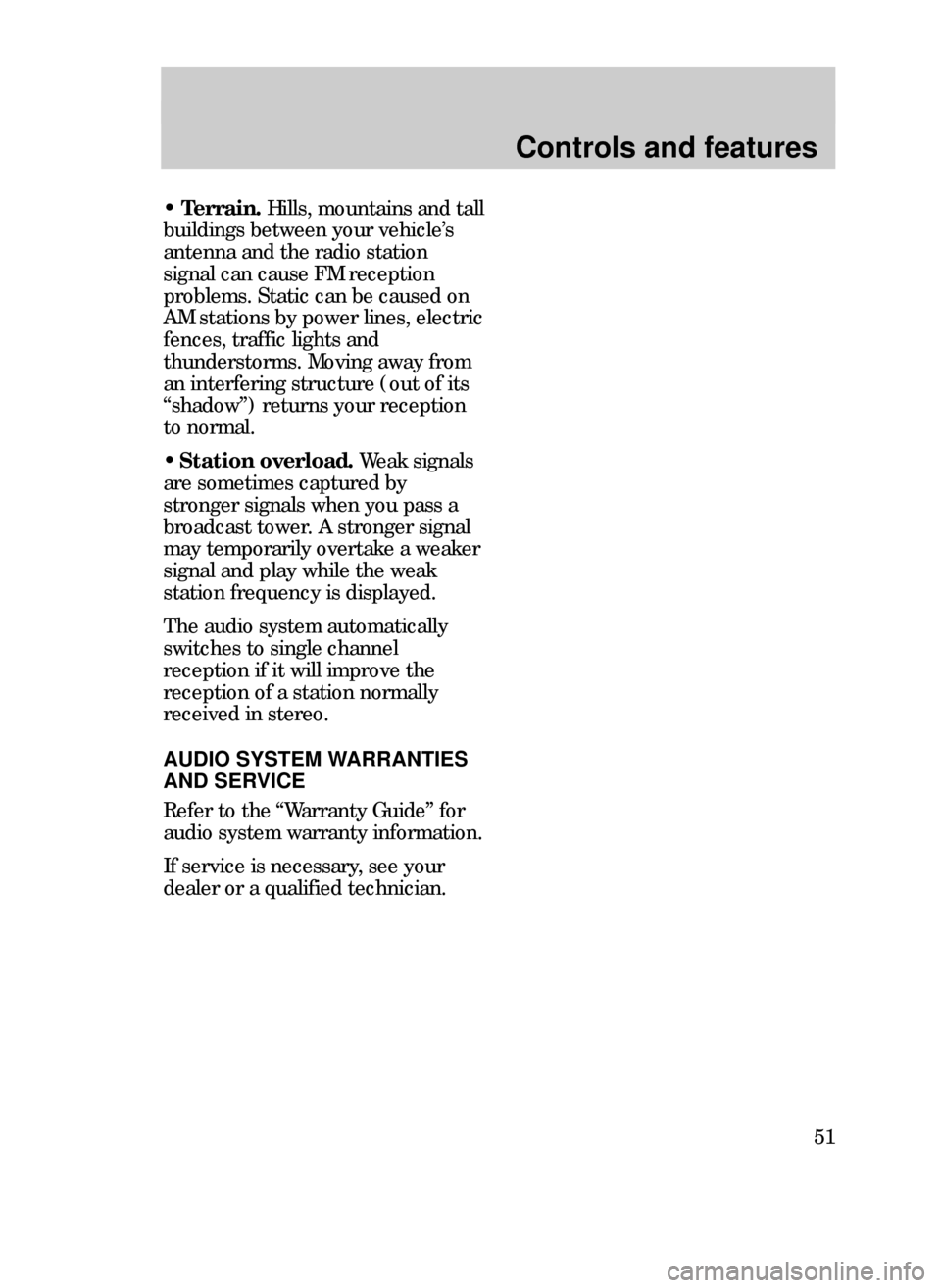

¥Terrain.Hills, mountains and tall
buildings between your vehicleÕs
antenna and the radio station
signal can cause FM reception
problems. Static can be caused on
AM stations by power lines, electric
fences, traffic lights and
thunderstorms. Moving away from
an interfering structure (out of its
ÒshadowÓ) returns your reception
to normal.
¥ Station overload.Weak signals
are sometimes captured by
stronger signals when you pass a
broadcast tower. A stronger signal
may temporarily overtake a weaker
signal and play while the weak
station frequency is displayed.
The audio system automatically
switches to single channel
reception if it will improve the
reception of a station normally
received in stereo.
AUDIO SYSTEM WARRANTIES
AND SERVICE
Refer to the ÒWarranty GuideÓ for
audio system warranty information.
If service is necessary, see your
dealer or a qualified technician.
13CCfen 3/25/99 1:51 PM Page 51
Page 52 of 244
Controls and features
52
STEERING COLUMN
CONTROLS
Ignition
1. Ignition off, steering wheel
locked.
On vehicles with automatic
transaxles, the ignition key can
return to this position only if the
gearshift lever is in P (Park).
2. The accessory position. Steering
unlocked, radio operational.
Ignition and all main electrical
circuits are disabled.
The ignition key should not be left
in this position for too long to avoid
discharging the battery
unnecessarily.
3. Ignition switched on, all
electrical circuits operational.
Warning and indicator lights
illuminate. This key position is for
normal driving.
4. Starter motor activated. Release
the key as soon as the engine
starts.
3
4
21
000123
000010 20 3040506070
80
90
10 0
110
120
13 0MPH20 406055
80120 10 0
14 0
160
18 0
200EF12
03x 1000
4
5
6
7
8
CHECK
ENGINE TRACTION
CONTROLO/D
OFF
IRRORS
TRACTION
NTROL
CH
13CCfen 3/25/99 1:51 PM Page 52
Page 53 of 244
Controls and features
53
Tilt steering
Pull the locking lever on the
steering column cover up to adjust
the steering column position.
Secure the wheel by releasing the
lever thereby allowing the lever to
return to the lock position.
Never adjust the steering
wheel while the vehicle is
moving.
OFF LO PNL/FLR
PANEL
A/CFLOOR
DEF FLR
DEF
MAX
A/C HI/
POWER AUDIO AM/FM
SCAN
SEEK 31245ANSSIDE 1-2EJECTVOLUME
000123
000010 20 3040506070
80
90
10 0
110
120
13 0MPH20 406055
80120 10 0
14 0
160
18 0
200EF12
03
x 1000
4
5
6
7
8
CHECK
ENGINE TRACTION
CONTROLO/D
OFF
MIRRORS
CLOCK
TRACTION
TROL
CH
13CCfen 3/25/99 1:51 PM Page 53
Page 54 of 244
Controls and features
54

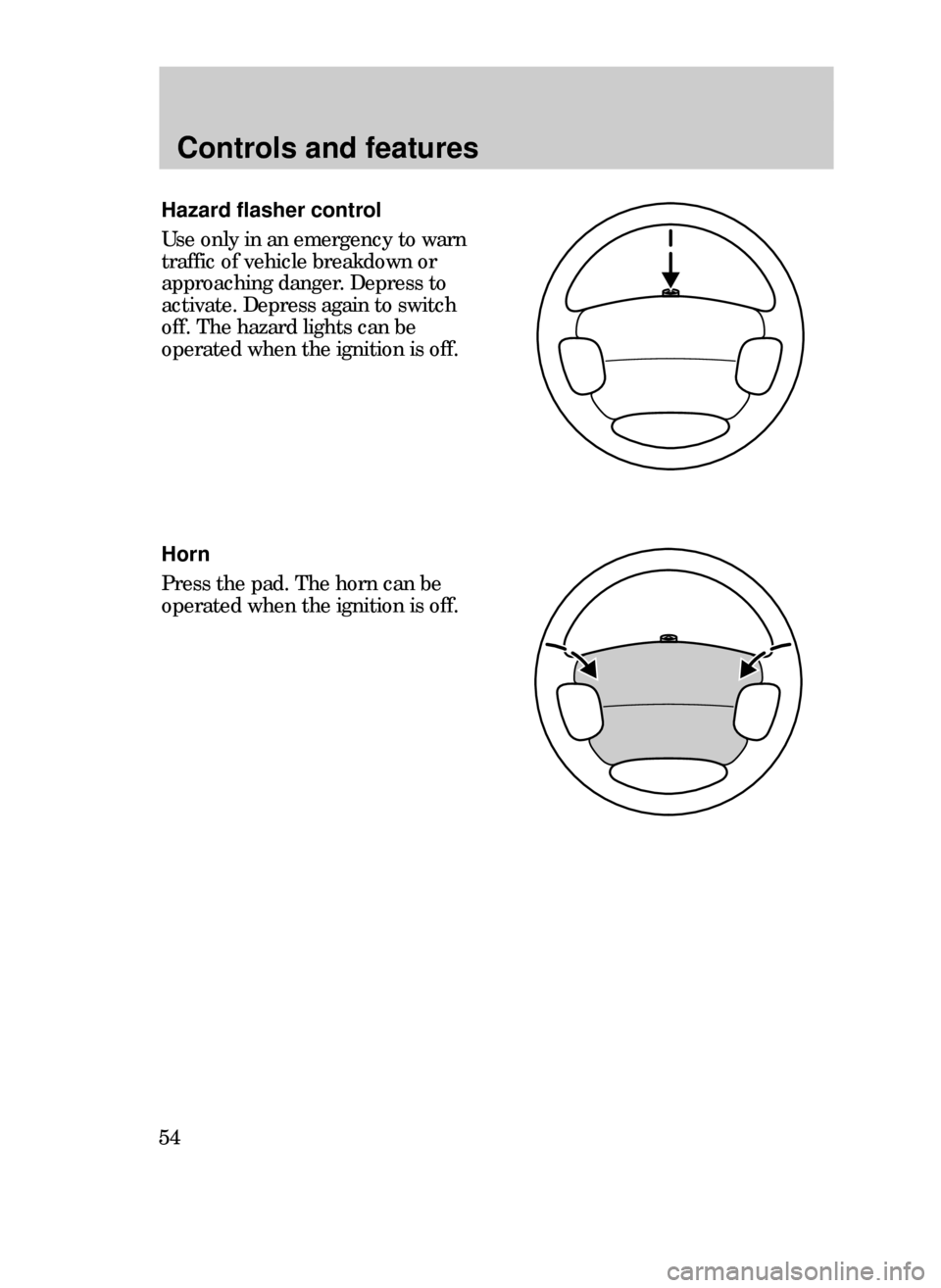

Hazard flasher control
Use only in an emergency to warn
traffic of vehicle breakdown or
approaching danger. Depress to
activate. Depress again to switch
off. The hazard lights can be
operated when the ignition is off.
Horn
Press the pad. The horn can be
operated when the ignition is off.
13CCfen 3/25/99 1:51 PM Page 54
Page 55 of 244
Controls and features
55
Multi-function switch
The turn signal functions are
available only with the ignition
switch on.
Right turn signal
Move the lever up.
Left turn signal
Move the lever down.
OFF LO PNL/FLR
PANEL
A/CFLOOR
DEF FLR
DEF
MAX
A/C HI/
POWER AUDIO AM/FM
SCAN
SEEK 31245ANSSIDE 1-2EJECTVOLUME
000123
000010 20 3040506070
80
90
10 0
110
120
13 0MPH20 406055
80120 10 0
14 0
160
18 0
200EF12
03
x 1000
4
5
6
7
8
CHECK
ENGINE TRACTION
CONTROLO/D
OFF
MIRRORS
CLOCK
TRACTION
TROL
CH
Flash-to-pass
Pull the lever toward you and
release quickly for Òflash-to-passÓ
operation.
High beam headlamps
Push the lever toward the
instrument panel.
13CCfen 3/25/99 1:51 PM Page 55
Page 56 of 244
Controls and features
56

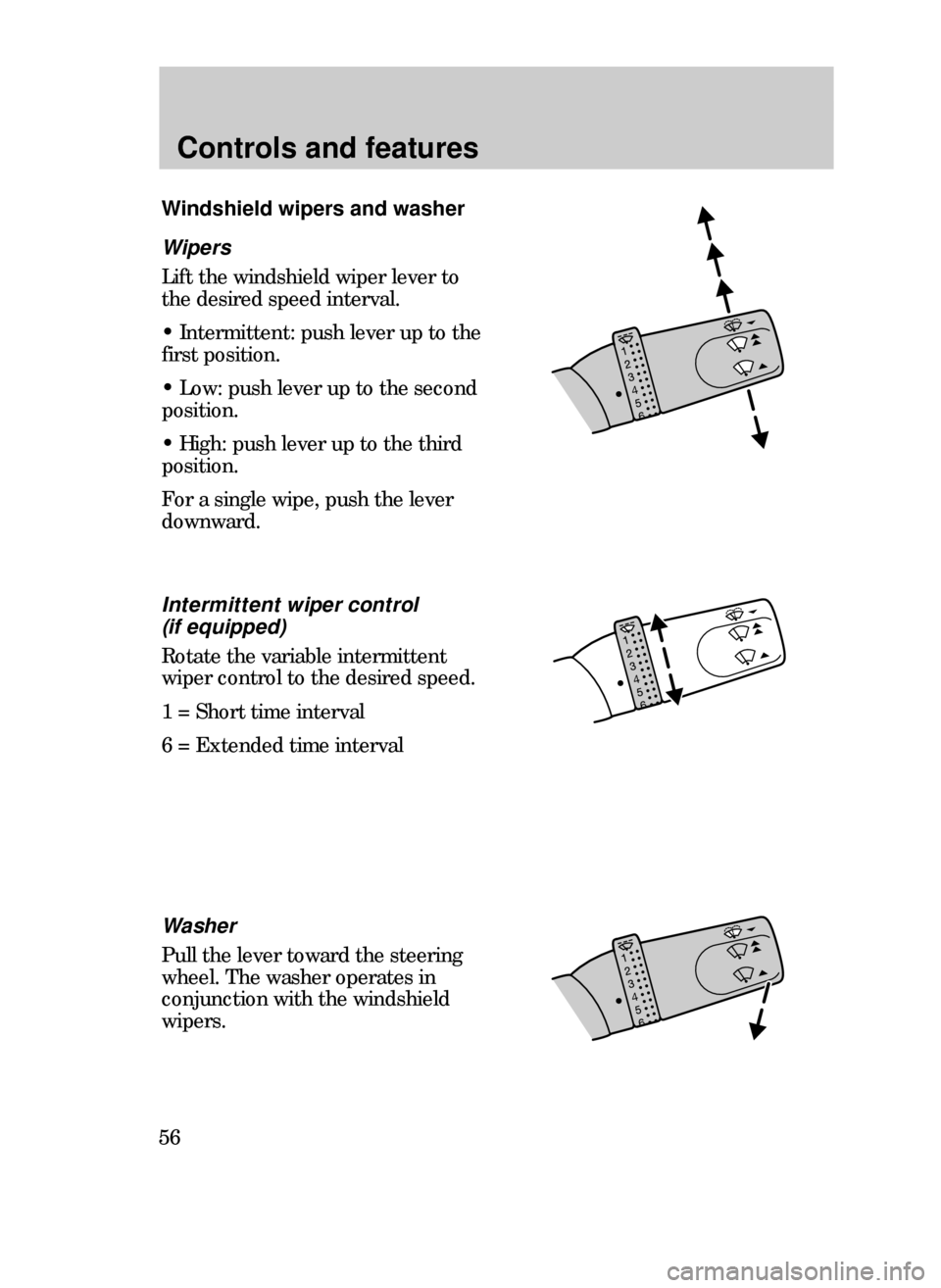

Wipers
Lift the windshield wiper lever to
the desired speed interval.
¥ Intermittent: push lever up to the
first position.
¥ Low: push lever up to the second
position.
¥ High: push lever up to the third
position.
For a single wipe, push the lever
downward.
Windshield wipers and washer
Intermittent wiper control
(if equipped)
Rotate the variable intermittent
wiper control to the desired speed.
1 = Short time interval
6 = Extended time interval
Washer
Pull the lever toward the steering
wheel. The washer operates in
conjunction with the windshield
wipers.
13CCfen 3/25/99 1:51 PM Page 56
Page 57 of 244
Controls and features
57
Do not use the speed control
in heavy traffic or on roads
that are winding, slippery, or
unpaved.
Off
On
Speed control (if equipped)
To turn speed control off
¥ Press Off, or
¥ turn off the vehicle ignition.
Once the speed control is switched
off, the previously programmed set
speed will be erased.
To turn speed control on
¥ Press On.
MIRRORS
OFF LO PNL/FLR
PANEL
A/CFLOOR
DEF FLR
DEF
MAX
A/C HI/
POWER AUDIO AM/FM
SCAN
SEEK 31245ANSSIDE 1-2EJECTVOLUME
000123
000010 20 3040506070
80
90
10 0
110
120
13 0MPH20 406055
80120 10 0
14 0
160
18 0
200EF12
03
x 1000
4
5
6
7
8
BRAKE
CHECK
ENGINE TRACTION
CONTROLO/D
OFF
CLOCK
Res
Set
AccCoastOff
On
TRACTION
TROL
CH
13CCfen 3/25/99 1:51 PM Page 57
Page 58 of 244
Controls and features
58

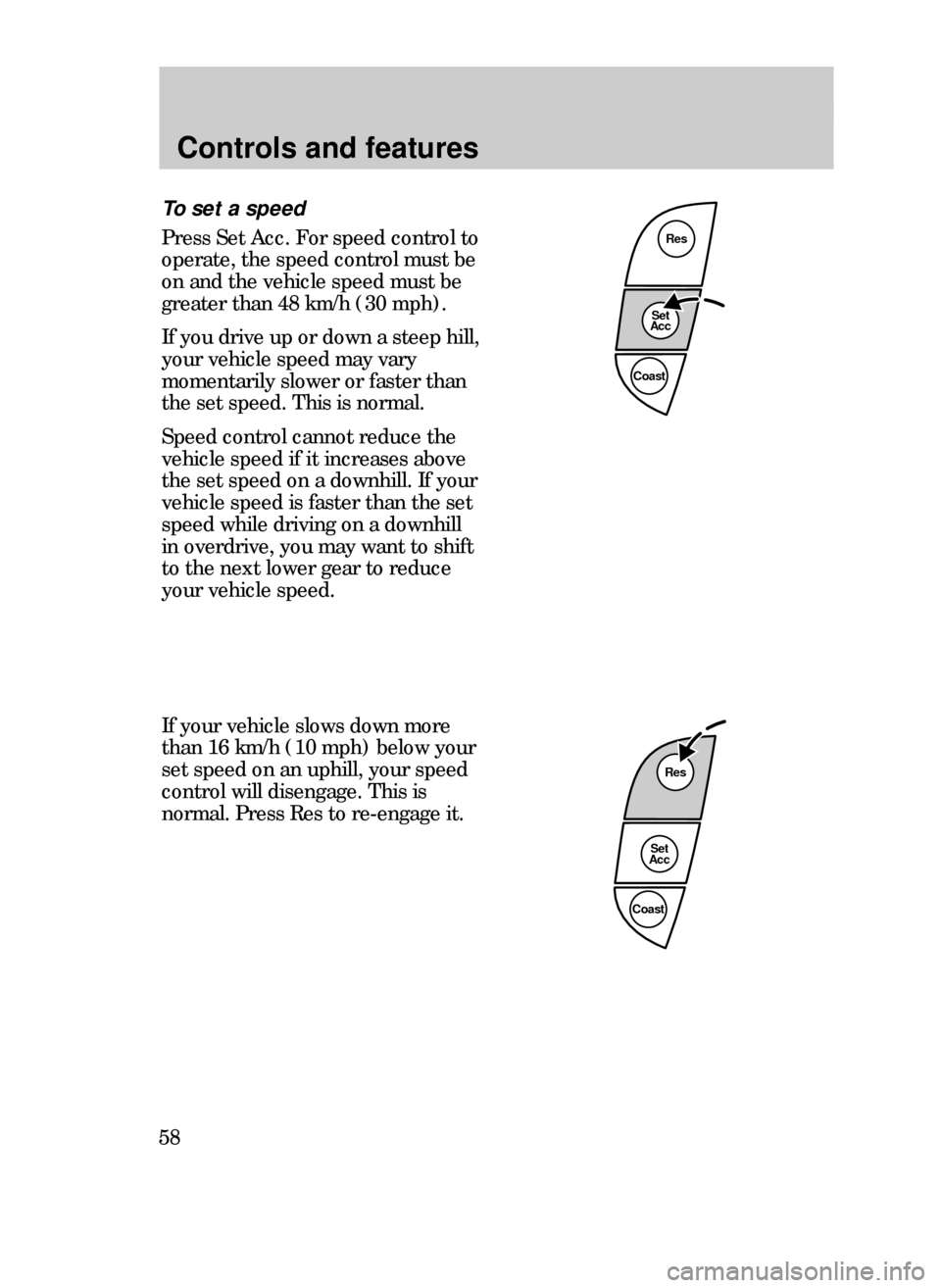

To set a speed
Press Set Acc. For speed control to
operate, the speed control must be
on and the vehicle speed must be
greater than 48 km/h (30 mph).
If you drive up or down a steep hill,
your vehicle speed may vary
momentarily slower or faster than
the set speed. This is normal.
Speed control cannot reduce the
vehicle speed if it increases above
the set speed on a downhill. If your
vehicle speed is faster than the set
speed while driving on a downhill
in overdrive, you may want to shift
to the next lower gear to reduce
your vehicle speed.
Res
Set
Acc
Coast
Res
Set
Acc
Coast
If your vehicle slows down more
than 16 km/h (10 mph) below your
set speed on an uphill, your speed
control will disengage. This is
normal. Press Res to re-engage it.
13CCfen 3/25/99 1:51 PM Page 58
Page 59 of 244
Controls and features
59
Res
Set
Acc
Coast

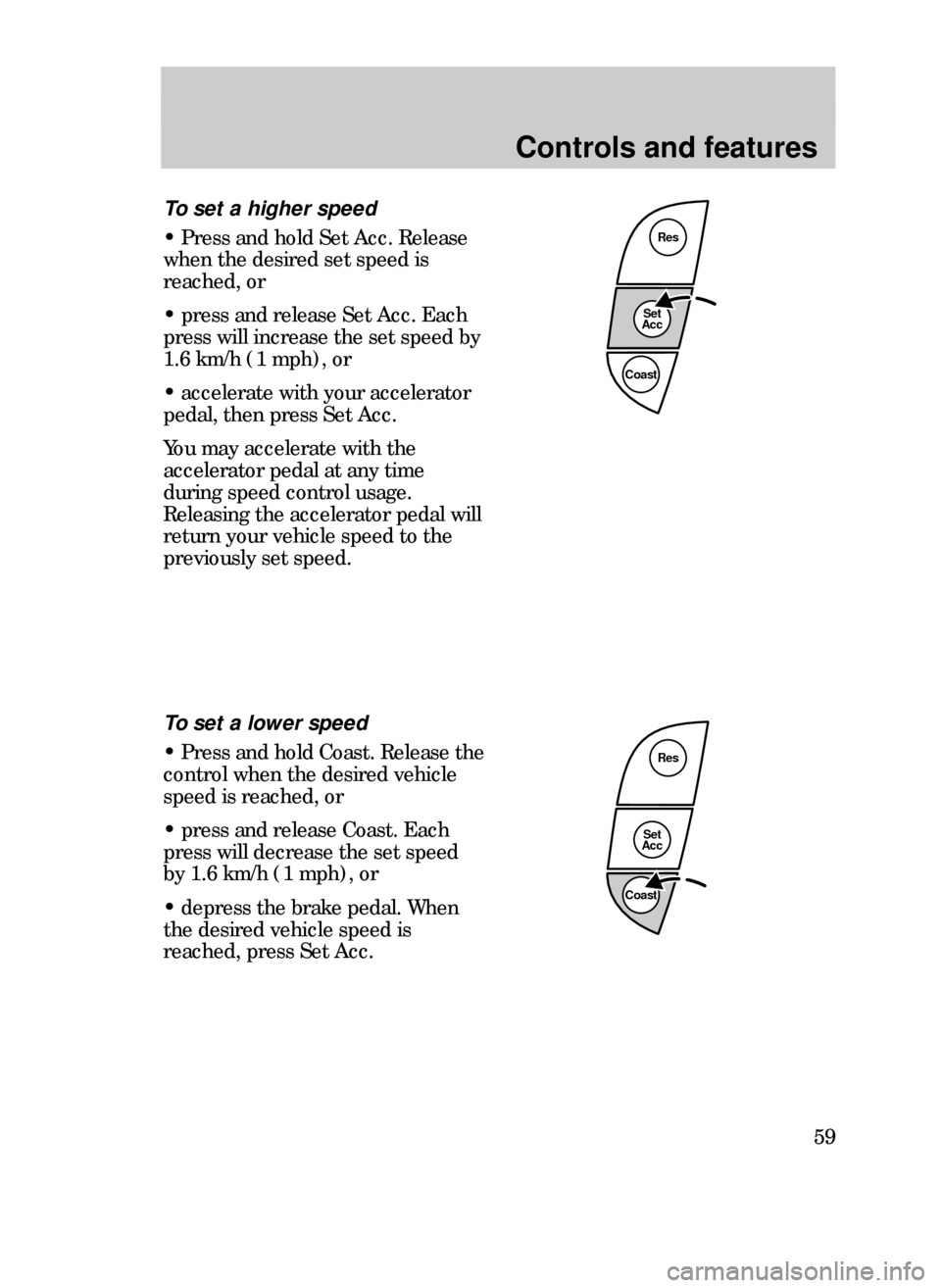

To set a lower speed
¥ Press and hold Coast. Release the
control when the desired vehicle
speed is reached, or
¥ press and release Coast. Each
press will decrease the set speed
by 1.6 km/h (1 mph), or
¥ depress the brake pedal. When
the desired vehicle speed is
reached, press Set Acc.
To set a higher speed
¥ Press and hold Set Acc. Release
when the desired set speed is
reached, or
¥ press and release Set Acc. Each
press will increase the set speed by
1.6 km/h (1 mph), or
¥ accelerate with your accelerator
pedal, then press Set Acc.
You may accelerate with the
accelerator pedal at any time
during speed control usage.
Releasing the accelerator pedal will
return your vehicle speed to the
previously set speed.
Res
Set
Acc
Coast
13CCfen 3/25/99 1:51 PM Page 59
Page 60 of 244
Controls and features
60
Res
Set
Acc
Coast

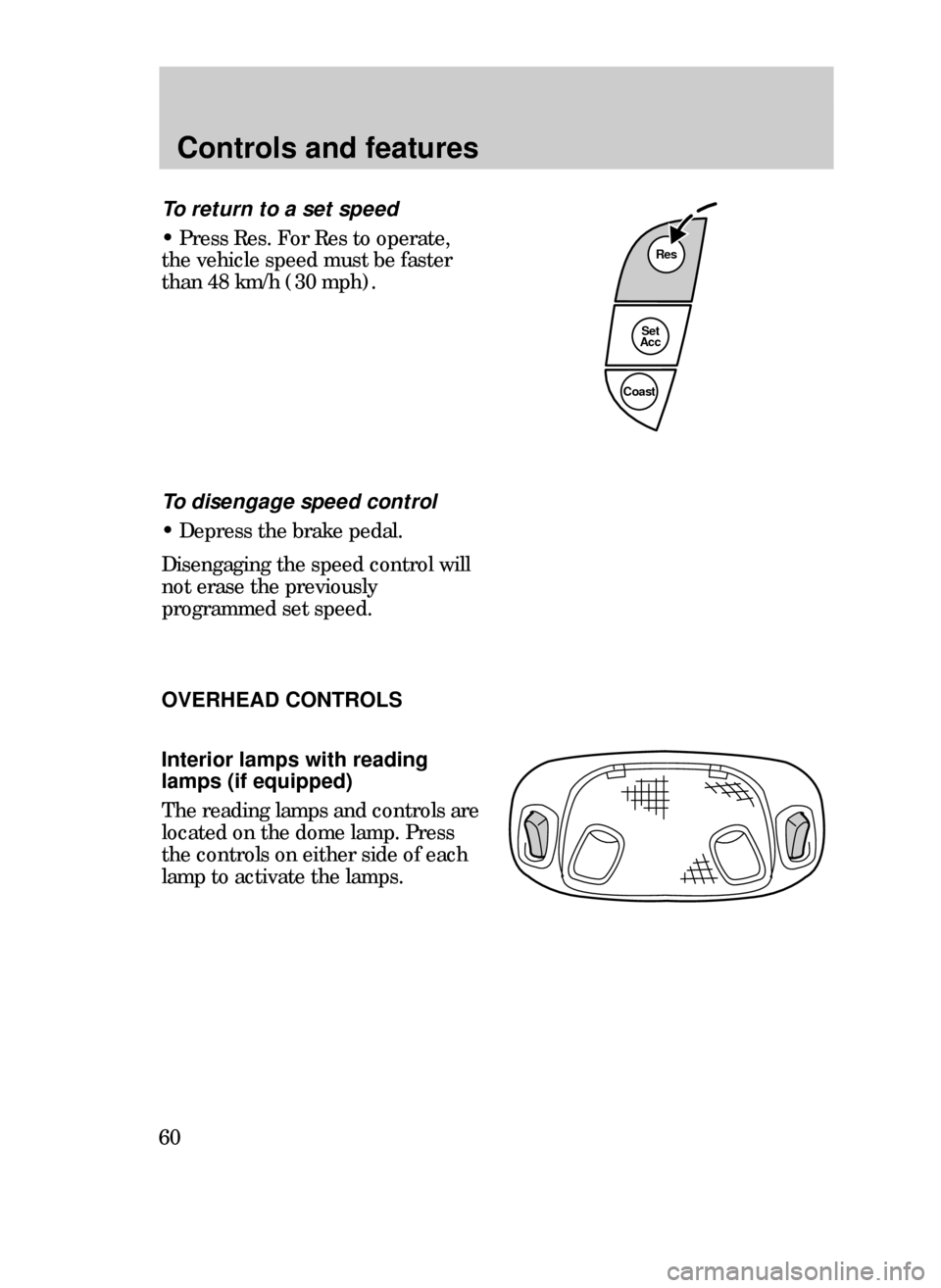

To return to a set speed
¥ Press Res. For Res to operate,
the vehicle speed must be faster
than 48 km/h (30 mph).
To disengage speed control
¥ Depress the brake pedal.
Disengaging the speed control will
not erase the previously
programmed set speed.
OVERHEAD CONTROLS
Interior lamps with reading
lamps (if equipped)
The reading lamps and controls are
located on the dome lamp. Press
the controls on either side of each
lamp to activate the lamps.
13CCfen 3/25/99 1:51 PM Page 60
