Page 131 of 388

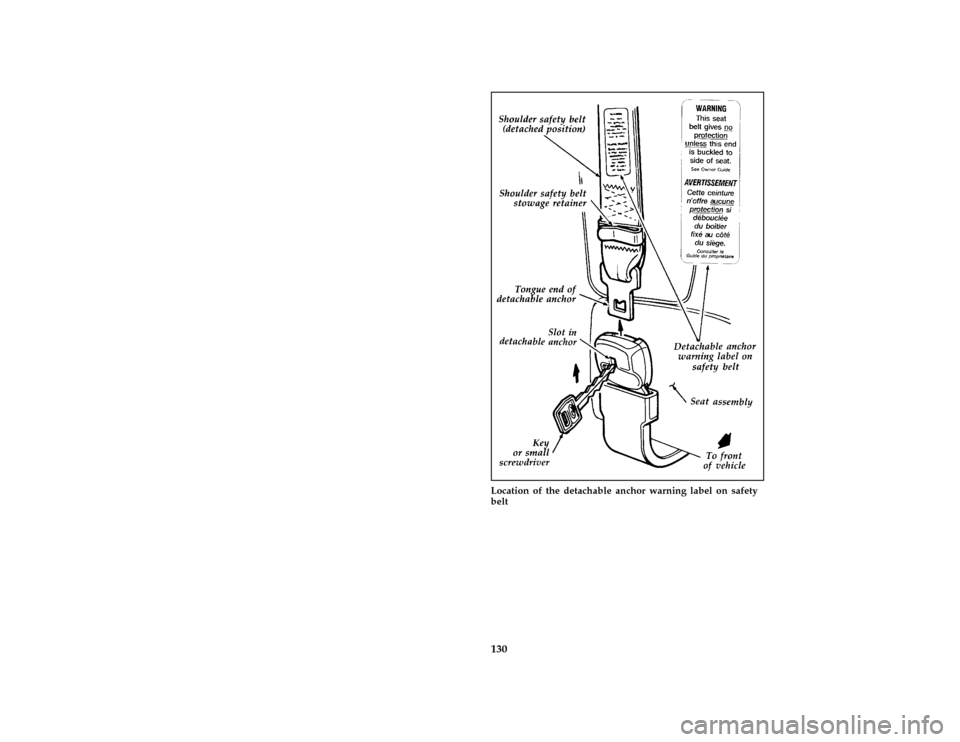

130 [FV36500( E )05/91]
three fourths page art:0020783-BLocation of the detachable anchor warning label on safety
belt
File:08ltfve.ex
Update:Wed Apr 17 08:47:13 1996
Page 132 of 388

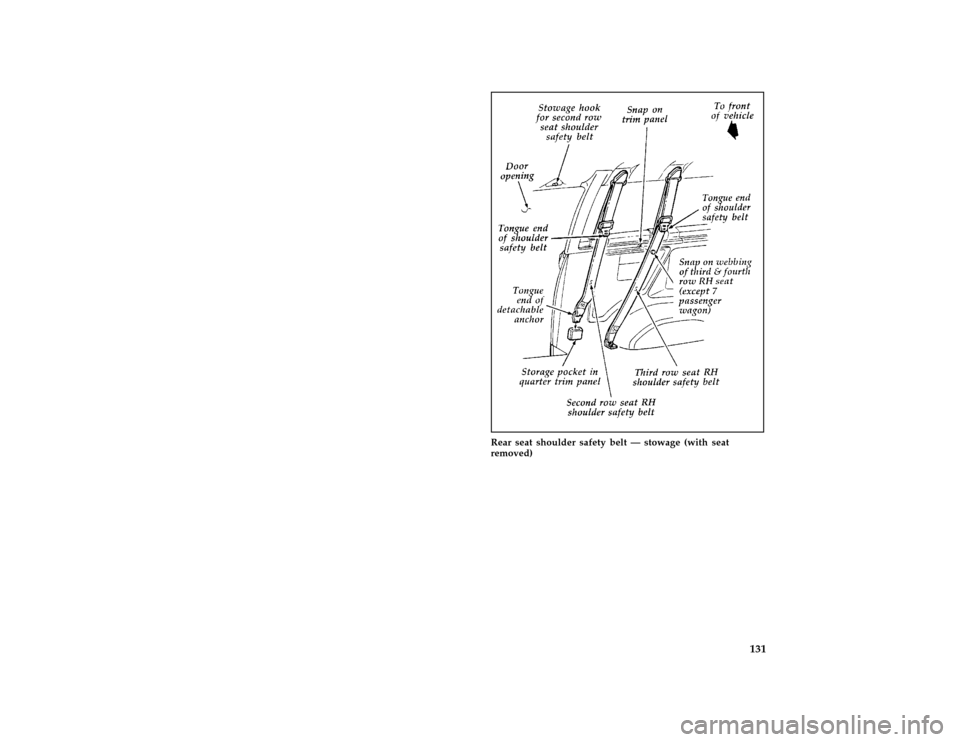

131 [FV36600( E )05/95]
two third page art:0020856-C
Rear seat shoulder safety belt Ð stowage (with seat
removed)
File:08ltfve.ex
Update:Wed Apr 17 08:47:13 1996
Page 133 of 388

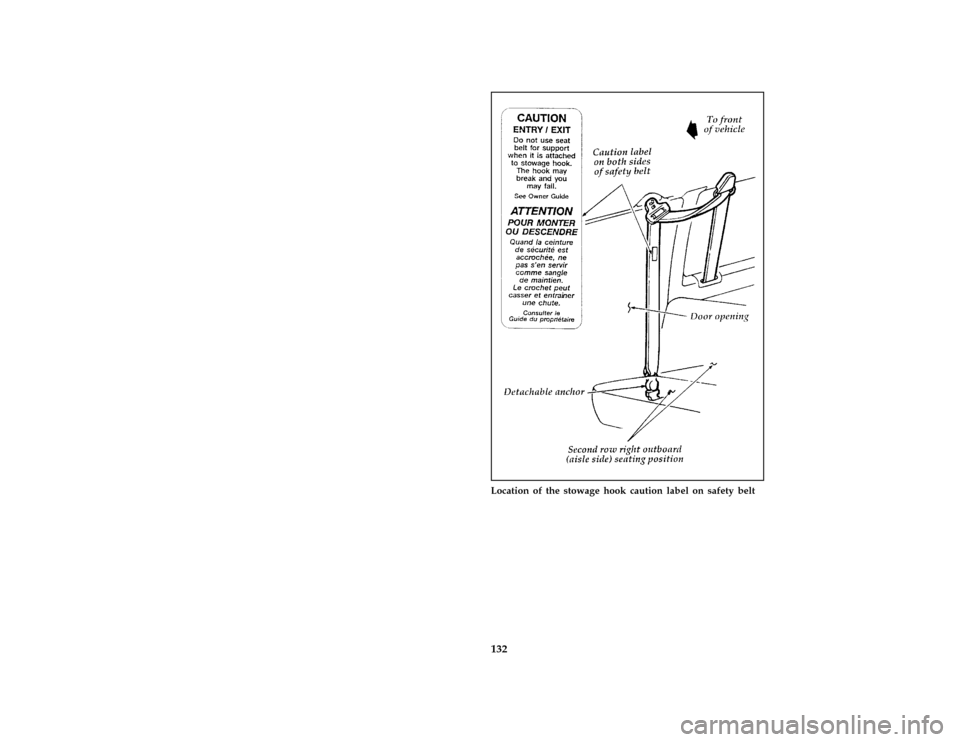

132 [FV36700( E )05/95]
three fourths page art:0020784-CLocation of the stowage hook caution label on safety belt
File:08ltfve.ex
Update:Wed Apr 17 08:47:13 1996
Page 134 of 388

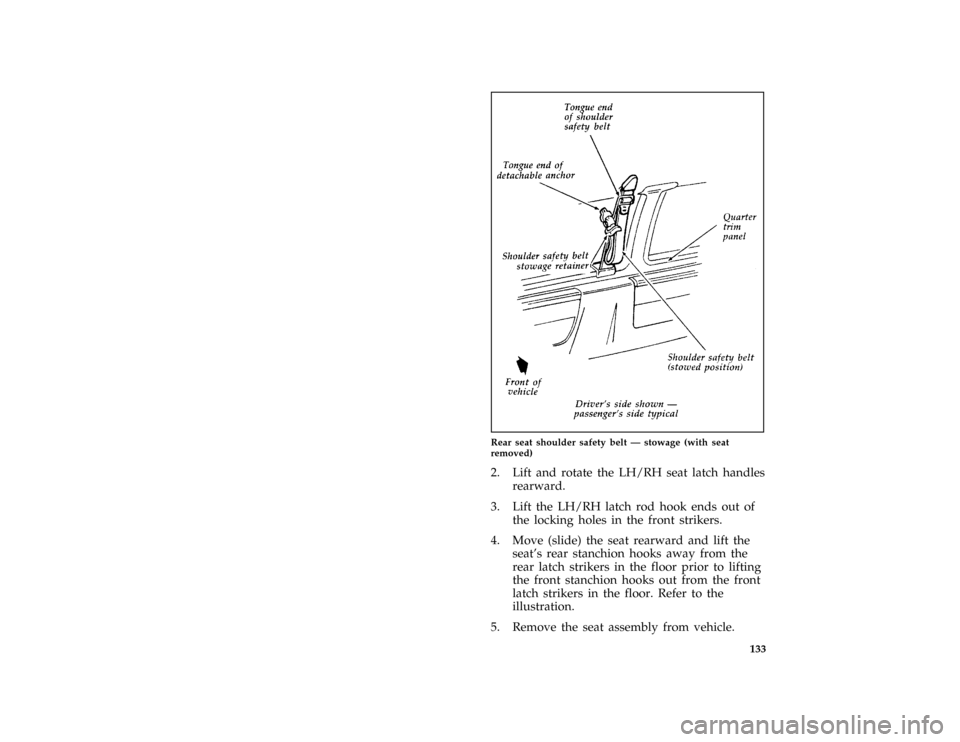

133 [FV36801( E )05/95]
two third page art:0020857-B
Rear seat shoulder safety belt Ð stowage (with seat
removed)
[FV36900( E )03/91]
2. Lift and rotate the LH/RH seat latch handles
rearward.
[FV37000( E )06/92]
3. Lift the LH/RH latch rod hook ends out of
the locking holes in the front strikers.
[FV37101( E )06/92]
4. Move (slide) the seat rearward and lift the
seat's rear stanchion hooks away from the
rear latch strikers in the floor prior to lifting
the front stanchion hooks out from the front
latch strikers in the floor. Refer to the
illustration.
[FV37201( E )03/91]
5. Remove the seat assembly from vehicle.
File:08ltfve.ex
Update:Wed Apr 17 08:47:13 1996
Page 135 of 388
![FORD E SERIES 1996 4.G Owners Manual 134
*
[FV37301( E )05/89]
To install the seat assembly:
[FV37401( E )06/92]
1. Place the seat assembly in the vehicle.
[FV37501( E )06/92]
2. Align the front stanchion hooks to the front
latch striker FORD E SERIES 1996 4.G Owners Manual 134
*
[FV37301( E )05/89]
To install the seat assembly:
[FV37401( E )06/92]
1. Place the seat assembly in the vehicle.
[FV37501( E )06/92]
2. Align the front stanchion hooks to the front
latch striker](/img/11/4788/w960_4788-134.png)
134
*
[FV37301( E )05/89]
To install the seat assembly:
[FV37401( E )06/92]
1. Place the seat assembly in the vehicle.
[FV37501( E )06/92]
2. Align the front stanchion hooks to the front
latch strikers in the floor prior to lowering
the seat's rear stanchion hooks and aligning
them with the rear latch strikers in the floor.
[FV37601( E )06/92]
3. Engage the LH/RH latch rod hook ends in
the front striker locking holes.
[FV37701( E )06/92]
4. Rotate the LH/RH latch handles forward,
and at the same time, slide the seat assembly
forward to engage the floor strikers.
Continue forward movement until it reaches
the end of its travel.
[FV37801( E )06/92]
5. Before you engage the lap/shoulder safety
belt to the seat, make sure the belt is not
twisted. A twisted belt may cause the
retractor to not work properly. Remove any
twist, then insert the tongue end of the
detachable anchor into the detachable anchor
until you hear a ªsnapº and feel the latch
engage. Refer to the previous illustration.
File:08ltfve.ex
Update:Wed Apr 17 08:47:13 1996
Page 136 of 388

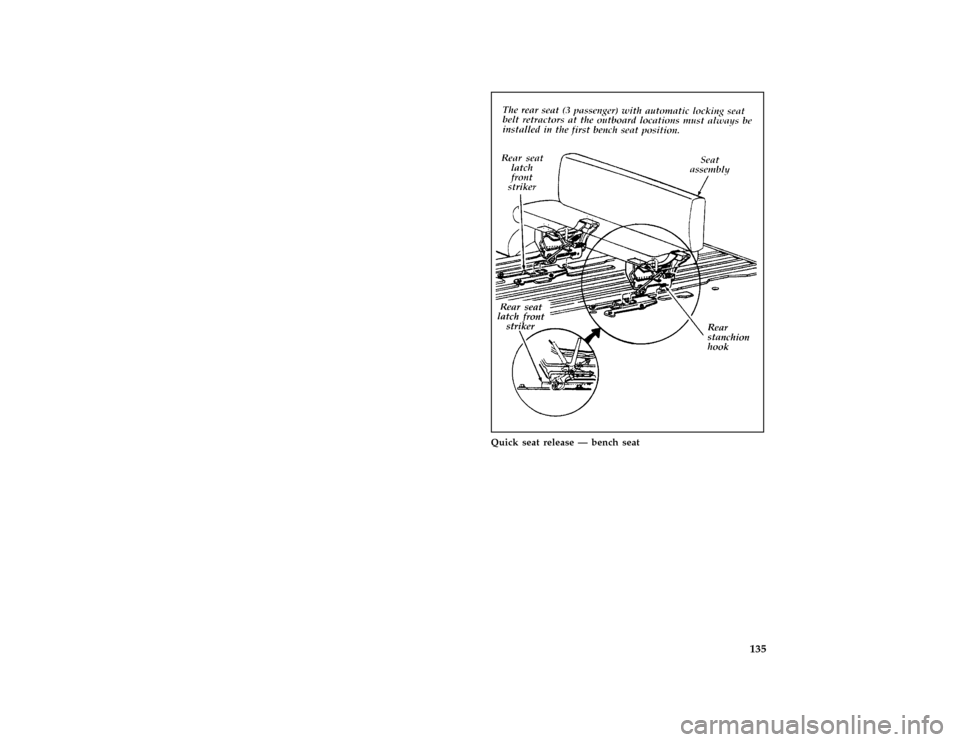

135 [FV37901( E )02/92]
two third page art:0020231-C
Quick seat release Ð bench seat
File:08ltfve.ex
Update:Wed Apr 17 08:47:13 1996
Page 137 of 388
136 [FV38001( E )02/92]
two third page art:0020917-BQuick seat release Ð bed seat
[FV38101( E )01/89]
RWARNING
Keep striker area free of foreign objects
that would prevent front and rear
retainers from engaging the strikers
properly.
*
[FV38201( E )05/93]
RWARNING
Before using the seat, make sure that the
latch hooks are securely locked around the
floor pins.
File:08ltfve.ex
Update:Wed Apr 17 08:47:13 1996
Page 138 of 388
![FORD E SERIES 1996 4.G Owners Manual 137
*
[FV38301( E )05/95]
RWARNING
Never adjust the drivers seat or seatback
when the vehicle is moving.
*
[FV38350( E )05/95]
RWARNING
Always latch the vehicle seat to the floor,
whether the seat is FORD E SERIES 1996 4.G Owners Manual 137
*
[FV38301( E )05/95]
RWARNING
Never adjust the drivers seat or seatback
when the vehicle is moving.
*
[FV38350( E )05/95]
RWARNING
Always latch the vehicle seat to the floor,
whether the seat is](/img/11/4788/w960_4788-137.png)
137
*
[FV38301( E )05/95]
RWARNING
Never adjust the driver's seat or seatback
when the vehicle is moving.
*
[FV38350( E )05/95]
RWARNING
Always latch the vehicle seat to the floor,
whether the seat is occupied or empty. If
not latched, the seat may cause injury
during a sudden stop.
[FV38501( E )01/89]
Floor Striker Removal
[FV38601( E )01/89]
To remove striker:
[FV38701( E )12/89]
1. Remove striker attaching bolts and washers.
[FV38801( E )12/89]
2. Remove striker.
[FV38901( E )02/89]
3. Apply a bead of Ford Caulking Cord, Part
No. D6AZ-19560-A or an equivalent to the
floor pan side of the washers.
[FV39001( E )12/91]
4. Ensure proper sealing by installing the bolts
and washers into the mounting holes
without the striker. Tighten to 5-10 ft-lb
(7-13 N.
m).Do not over tighten.
[FV39101( E )05/89]
To reinstall floor striker:
[FV39201( E )12/89]
1. Remove the bolts and washers.
[FV39301( E )12/91]
2. Install striker and bolts and washers. Tighten
bolts to 34-46 ft-lb (47-63 N.
m).
[FV39401( E )05/90]
NOTE: Never substitute other than specified
bolts and washers.
File:08ltfve.ex
Update:Wed Apr 17 08:47:13 1996
Page 139 of 388
138 %
*
[FV42101( E )12/89]
Seat/bed conversion
*
[FV42301( E )05/89]
To convert the seat/bed to a bed:
[FV42501( E )12/91]
1. While in the rear of the vehicle, behind the
seat, rotate the release lever on the right side
of the seat while pulling the seat back
extension panel rearward and up until flat.
[FV42800( E )12/91]
2. Tuck the safety belts into the pockets on the
seat cushion while in the bed position.
*
[FV42900( E )01/89]
To convert the bed to a seat:
*
[FV43000( E )07/92]
1. While in front of the seat, pull the release
lever up and at the same time pull the
seatback up. Raise the seatback to the full
upright and locked position.
*
[FV43100( E )01/89]
2. Make sure the safety belts are free and
available for use.
[FV43200( E )12/91]
3. Push the seat back extension forward,
making sure the latch engages.
File:08ltfve.ex
Update:Wed Apr 17 08:47:13 1996
Page 140 of 388
139
*
[FV43300( E )05/95]
RWARNING
The seat/bed should not be occupied
while the vehicle is moving unless it is in
the upright, fully-latched position.
[FV43400( E )03/91]

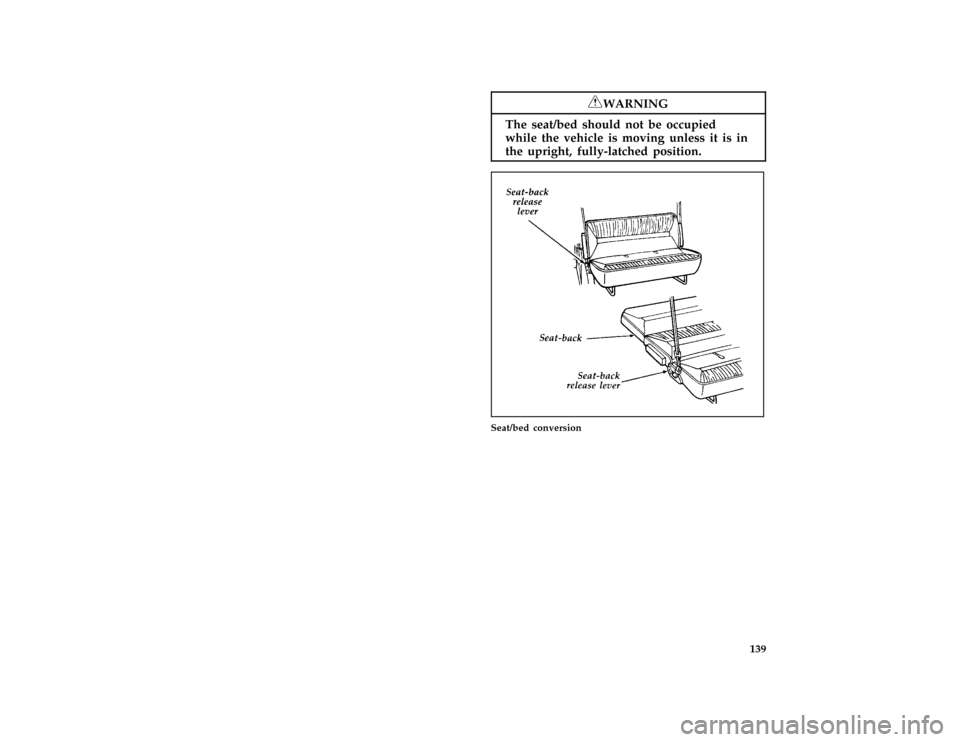

half page art:0020237-B
Seat/bed conversion
File:08ltfve.ex
Update:Wed Apr 17 08:47:13 1996
