FORD E SERIES 1996 4.G Owners Manual

140
*
[FV46600( EF )05/95]
Using the Power Seats (If equipped)
*
[FV46700( EF )08/94]
If your vehicle has the power seat option, you
can adjust it in several directions. The controls
are on the outboard side of the seat.
[FV46900( E )05/91]
half page art:0020889-A
The power controls on the driver's seat
File:08ltfve.ex
Update:Wed Apr 17 08:47:13 1996

141 %
*
[FV47000(BEF )03/94]
Using the Power Lumbar Support and Side
Bolsters
*
[FV47400(BEF )12/91]
If your vehicle is equipped with this option, you
can inflate a lumbar support pad in the seat
back. To inflate the lumbar pad, push the (+)
side of the rocker switch. To deflate push the (-)
side of the switch.
*
[FV47500(BEF )06/92]
quarter page art:0020860-B
Power lumbar switch
%*
[FV47600(BEF )04/95]
Cleaning the Seats
*
[FV47620(BEF )05/95]
Leather and vinyl
*
[FV47625(BEF )05/95]
For routine cleaning, wipe the surface with a
soft, damp cloth. For more thorough cleaning,
wipe the surface with a leather and vinyl cleaner
or a mild soap.
*
[FV47630(BEF )04/95]
Wipe the surface with a damp, soft cloth, then
dry and buff with a dry, soft cloth.
%*
[FV47640(BEF )04/95]
Fabric
*
[FV47650(BEF )04/95]
Remove dust and loose dirt with a whisk broom
or a vacuum cleaner. Remove fresh spots
immediately. Follow the directions that come
with the cleaner.
*
[FV47660(BEF )04/95]
NOTE: Before using any cleaner, test it on a
small, hidden area of fabric. If the
fabric's color or texture is adversely
affected by a particular cleaner, do not
use it.
File:08ltfve.ex
Update:Wed Apr 17 08:47:13 1996

142
%*
[FV49400( E )03/91]
Underseat stowage drawer
(If equipped)
[FV49600( E )12/91]
If your Econoline is equipped with the optional
front passenger seat drawer, it can be opened by
moving the latch lever upward and pulling the
drawer toward the center of the vehicle. The
drawer can be removed by pulling it to the full
open position and lifting the tab on the top
surface, inside the drawer. The drawer is not
lockable.
[FV49900( E )08/91]
half page art:0020861-A
Underseat stowage drawer Ð RH front passenger seat only
File:08ltfve.ex
Update:Wed Apr 17 08:47:13 1996

143
*
[FV50000(BEF )01/95]
Mirrors
*
[FV50200(BEF )05/95]
With the door closed and the seat adjusted for
comfort and proper vehicle control, move the
mirrors for best view by tilting up or down, left
or right. Do not adjust the mirrors while the
vehicle is in motion.
[FV50300( E )05/95]
NOTE: Models equipped without rear door
windows are not equipped with a
rearview mirror.
*
[FV50325(BEF )05/95]
RWARNING
Make sure you can see clearly through the
rearview mirror at all times. Do not allow
anything to block your vision. If you can't
see through the mirror, you could be
involved in an accident and injure
yourself or others.
*
[FV52400( EF )06/95]
Illuminated Vanity Mirror (If equipped)
%*
[FV52500( EF )06/95]
Your vehicle may feature illuminated vanity
mirrors on the sun visors. You can turn on the
lighted mirror by lifting the mirror door cover.
*
[FV52600( EF )06/95]
quarter page art:0020251-A
Visor vanity mirror
File:08ltfve.ex
Update:Wed Apr 17 08:47:13 1996

144 %
*
[FV52900(BEF )06/95]
Outside Mirrors (Manual Control)
*
[FV53000(BEF )06/95]
Adjust outside mirrors with the door closed and
the seat adjusted for comfort and proper vehicle
control. Move the mirrors for best view by
tilting up or down, left or right.
*
[FV53100(BEF )06/95]
On vehicles equipped with fold-away mirrors,
the mirrors should be folded rearward into the
body position before entering automatic car
wash systems.
[FV53600( E )05/95]
one third page art:0020884-C
Outside mirrors Ð manual control
File:08ltfve.ex
Update:Wed Apr 17 08:47:13 1996

145 [FV53700( E )05/91]
half page art:0020885-A
Outside mirrors Ð manual control
*
[FV53900( EF )05/90]
On vehicles equipped with ªnonº folding
(swing-out recreational) mirrors, automatic car
wash systems are not recommended. Use special
truck wash facilities for vehicles with this type
of mirror.
[FV54200( E )11/90]
For the Econoline van without rear door
windows and all Econolines equipped with the
swing-out recreational mirrors, the right-hand
side mirror is a flat glass mirror. All other
right-hand side/view mirrors used on the
Econoline are convex. Convex mirrors have a
curved surface and will show a wider view of
the lane next to and behind your vehicle.
*
[FV54400(BEF )05/95]
RWARNING
The side view mirror on the right makes
objects appear smaller and farther away
than they actually are.
File:08ltfve.ex
Update:Wed Apr 17 08:47:13 1996

146
*
[FV54500(BEF )08/91]
Dual Electric Remote Control Mirrors
(If equipped)
*
[FV54600(BEF )08/91]
To adjust the remote controlled side mirrors:
*
[FV54800(BEF )06/94]
1. Find the control switch in the driver's door
panel.
*
[FV55000(BEF )06/94]
2. Select the right or left mirror by moving the
selector switch to R or L.
*
[FV55200(BEF )06/94]
3. Move the control knob in the direction you
want to move the mirror.
*
[FV55400(BEF )06/94]
4. Return the selector switch to the middle
position to keep the mirror in place.
[FV55600( E )12/91]
quarter page art:0020908-A

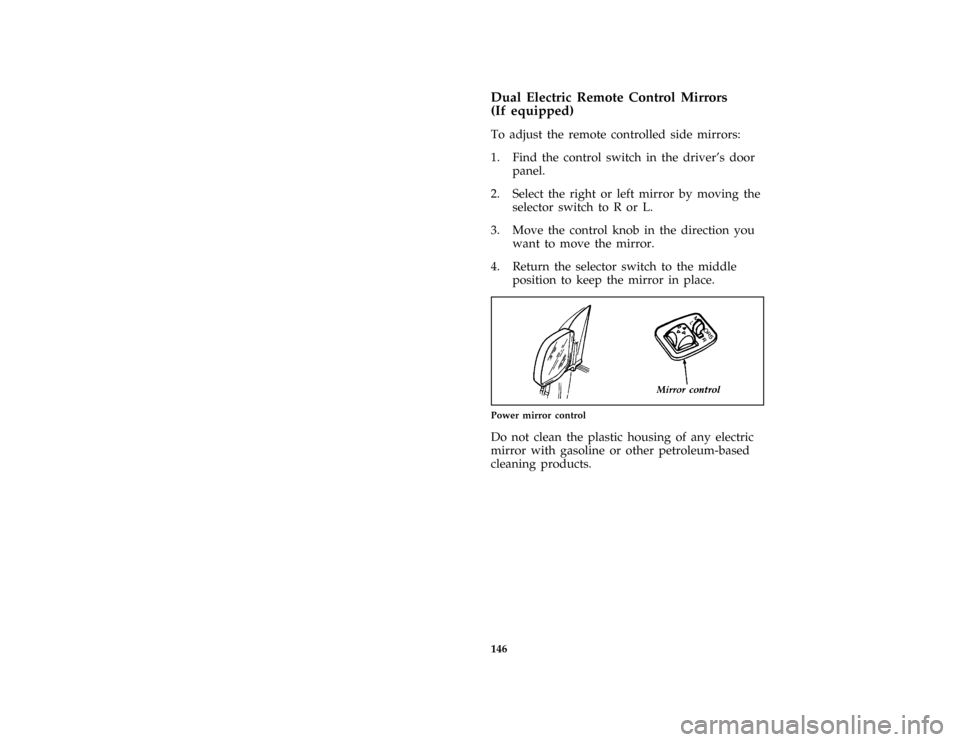

Power mirror control
*
[FV55900(BEF )12/91]
Do not clean the plastic housing of any electric
mirror with gasoline or other petroleum-based
cleaning products.
File:08ltfve.ex
Update:Wed Apr 17 08:47:13 1996

147
*
[FV59400(BEF )01/95]
Console
*
[FV59500(BEF )12/91]
Your vehicle may have a full console. The full
console has the features shown in the illustration
below.
[FV60000( E )03/94]
half page art:0020682-D

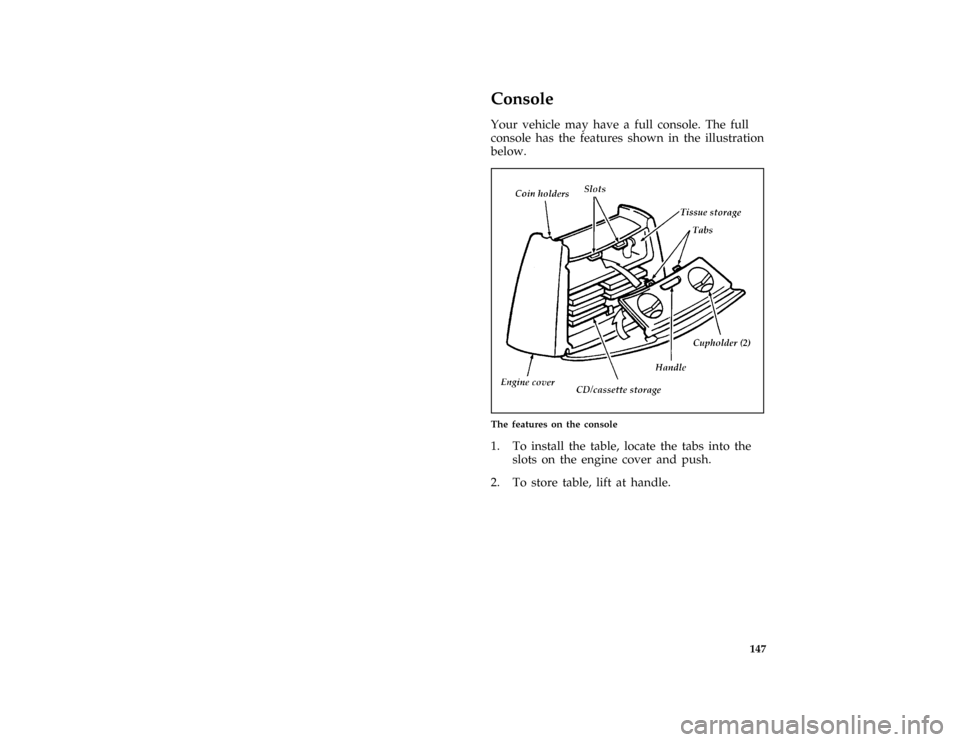

The features on the console
[FV60050( E )03/94]
1. To install the table, locate the tabs into the
slots on the engine cover and push.
[FV60055( E )03/94]
2. To store table, lift at handle.
File:08ltfve.ex
Update:Wed Apr 17 08:47:13 1996

148
%*
[FV69900(BEF )03/95]
Power Point Electrical Outlet
[FV70100( E )06/92]
The power point outlet is located in the left
hand (driver's side) quarter panel, next to the
rear ashtray. This outlet should be used in place
of the cigarette lighter for optional electrical
accessories.
*
[FV70200(BEF )06/92]
NOTE: Do not use the cigarette lighter in
place of the power point.
[FV70400( E )06/92]

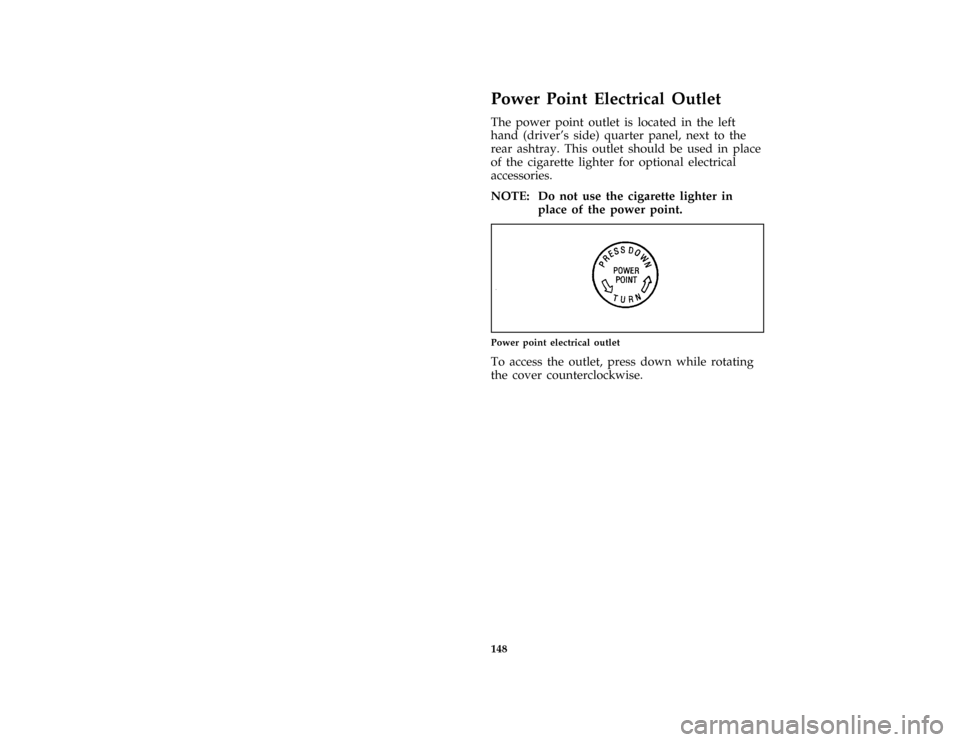

quarter page art:0020930-A
Power point electrical outlet
[FV70600( E )07/92]
To access the outlet, press down while rotating
the cover counterclockwise.
File:08ltfve.ex
Update:Wed Apr 17 08:47:13 1996

149
Electronic Sound Systems
*
[AS01100(BEF )04/95]
full page art:0060648-B

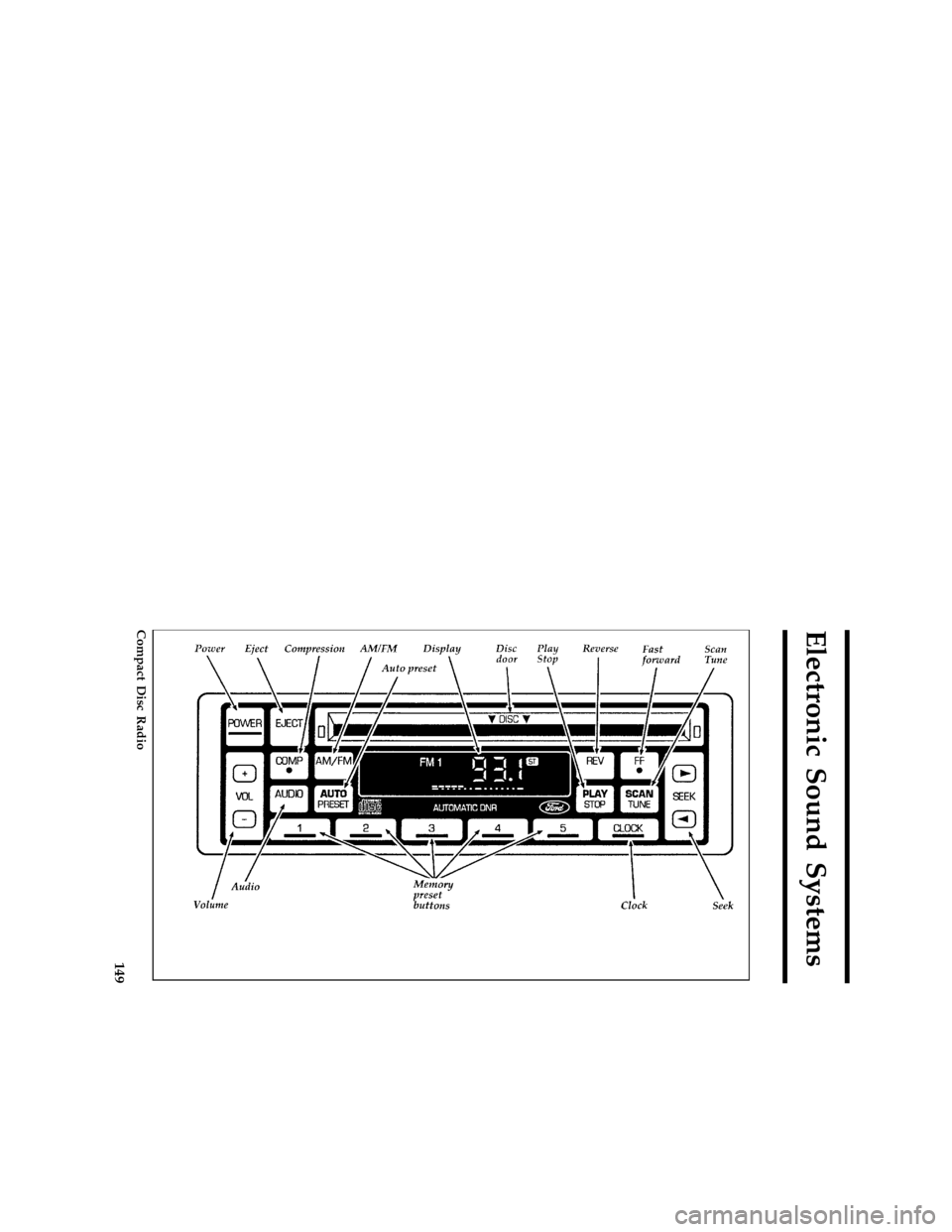

Compact Disc Radio
