FORD E SERIES 1996 4.G User Guide

8
*
[IN06000( ALL)01/95]
Breaking Your Vehicle In
*
[IN06100( ALL)03/95]
Your new vehicle goes through an adjustment or
break-in period during the first 1,000 miles
(1,600 km) that you drive it. During the break-in
period, you need to pay careful attention to how
you drive your vehicle.
%*
[IN06300( ALL)01/95]
q
Avoid sudden stops.Because your vehicle
has new brake linings, you should take these
steps:
*
[IN06400( ALL)01/95]
Ð Watch traffic carefully so that you can
anticipate when to stop.
*
[IN06500( ALL)01/95]
Ð Begin braking well in advance.
*
[IN06600( ALL)01/95]
Ð Apply the brakes gradually.
*
[IN06700( ALL)01/95]
The break-in period for new brake linings
lasts for 100 miles (160 km) of city driving or
1,000 miles (1,600 km) of highway driving.
*
[IN06750( ALL)12/93]
q
Wheel lug nuts must be retightened to proper
torque specifications at 500 miles/800 km of
new vehicle operation. Proper torque
specifications are provided in this guide. Also
retighten to proper torque specification at 500
miles/800 km after any wheel change or any
other time the wheel lug nuts have been
loosened.
%*
[IN06800(BEF )01/95]
q
Use only the type of engine oil that Ford
recommends.SeeEngine oil recommendations
in the Index. Do not use special ªbreak-inº
oils.
File:02ltine.ex
Update:Wed Apr 17 08:49:46 1996

9
%*
[IN07100(BEF )04/95]
Cleaning the Outside of Your
Vehicle
%*
[IN07200(BEF )04/95]
Washing and Polishing Your Vehicle
*
[IN07300(BEF )04/95]
Wash the outside of your vehicle, including the
underside, with a mild detergent.
*
[IN07400(BEF )06/95]
DO NOT:
*
[IN07500(BEF )04/95]
q
Wash your vehicle with hot water
*
[IN07600(BEF )04/95]
q
Wash your vehicle while it sits in direct
sunlight
*
[IN07700(BEF )04/95]
q
Wash your vehicle while the body is hot
*
[IN07800(BEF )05/95]
Pollen, bird droppings and tree sap can damage
the paint, especially in hot weather. Wash your
vehicle as often as necessary to keep it clean.
*
[IN07900(BEF )05/95]
Take similar precautions if your vehicle is
exposed to chemical industrial fallout.
*
[IN08000(BEF )06/95]
Paint damage resulting from fallout is not
related to a defect in paint materials or
workmanship and therefore is not covered by
warranty. Ford, however, believes that continual
improvement in customer satisfaction is a high
priority. For this reason, Ford has authorized its
dealers to repair, at no charge to the owner, the
surfaces of new vehicles damaged by
environmental fallout within 12 months or 12,000
miles (20,000 km) of purchase, whichever comes
first. Customers may be required to bring their
vehicle in for inspection by a Ford
representative.
*
[IN08100(BEF )04/95]
Polish your vehicle to remove harmful deposits
and protect the finish.
File:02ltine.ex
Update:Wed Apr 17 08:49:46 1996

10
*
[IN08200(BEF )04/95]
Cleaning Chrome and Aluminum Parts
*
[IN08300(BEF )04/95]
Wash chrome and aluminum parts with the
same detergent you use to wash the vehicle
body, such as Ford Premium Car Wash
Concentrate. You can use Ford Extra Strength
Tar and Road Oil Remover or equivalent to
clean grease, oil, and tar from chrome-plated
parts, including wheelcovers, aluminum wheels,
bumpers, or anodized aluminum parts.
%*
[IN08400(BEF )04/95]
Cleaning Plastic Parts
*
[IN08500(BEF )04/95]
Some of your vehicle's exterior trim parts are
plastic. Clean with a tar and road oil remover if
necessary. Use a vinyl cleaner for routine
cleaning.
*
[IN08600(BEF )04/95]
Do not clean plastic parts with thinners, solvents
or petroleum-based cleaners.
%*
[IN08700(BEF )04/95]
If you have your vehicle rustproofed, remove
oversprayed rustproofing with a tar and road oil
remover. If rustproofing is not removed from
plastic and rubber parts, it can cause
deterioration.
File:02ltine.ex
Update:Wed Apr 17 08:49:46 1996

11
Safety Restraints
*
[SR00500(BEF )04/95]
Important Safety Belt Information
*
[SR00600(BEF )03/95]
The use of safety belts helps to restrain you and
your passengers in case of a collision. In most
states and in Canada the law requires their use.
*
[SR00700(BEF )01/95]
Safety belts provide best restraint when:
*
[SR00800(BEF )01/95]
q
the seatback is upright
*
[SR00900(BEF )01/95]
q
the occupant is sitting upright (not slouched)
*
[SR01000(BEF )01/95]
q
the lap belt is snug and low on the hips
*
[SR01100(BEF )01/95]
q
the shoulder belt is snug against the chest
*
[SR01200(BEF )01/95]
q
the knees are straight forward
*
[SR02000(BEF )05/95]
To help you remember to fasten your safety belt,
a warning light may come on and a chime may
sound. SeeSafety Belt Warning Light and Chimein
theWarning Lights and Gaugeschapter.
*
[SR02100(BEF )06/95]
See the following sections in this chapter for
directions on how to properly use these safety
belts. Also seeSafety Restraints for Childrenin this
chapter for special instructions about using
safety belts for children.
%*
[SR02200(BEF )05/95]
RWARNING
Make sure that you and your passengers
wear safety belts. Always drive and ride
with your seatback upright and the lap
belt snug and low across the hips.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

12
*
[SR02400(BEF )06/95]
RWARNING
Passengers should not be allowed to ride
in the cargo area. Persons not riding in a
seat with a fastened seat belt are much
more likely to suffer serious injury in a
collision. Cargo should always be secured
to prevent it from shifting and causing
damage to the vehicle or harm to
passengers.
*
[SR02500(BEF )05/95]
RWARNING
Never let a passenger hold a child on his
or her lap while the vehicle is moving.
The passenger cannot protect the child
from injury in a collision.
*
[SR02600(BEF )05/95]
RWARNING
To reduce the risk of serious injury in a
collision, children should always ride with
the seatback upright.
*
[SR02800(BEF )06/95]
RWARNING
Never wear the shoulder belt under the
arm. Never swing it around the neck over
the inside shoulder. Never use a single
belt for more than one person or across
more than one seating position. Each
seating position in your vehicle has a
specific safety belt assembly which is
made up of one buckle and one tongue
that are designed to be used as a pair.
Failure to follow these precautions could
increase the risk and/or severity of injury
in a collision.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

13
*
[SR02900(BEF )05/95]
RWARNING
Lock the doors of your vehicle before
driving to lessen the risk of the door
coming open in a collision.
[SR02910( EF )04/95]
Your vehicle is equipped with a dual locking
mode retractor on the shoulder belt portion of
the combination lap/shoulder safety belt for
front seat passenger and rear seat outboard
passengers.
% [SR02930(BEF )04/95]
Dual Locking Mode Retractors
[SR02940(BEF )04/95]
Vehicle Sensitive (Emergency) Locking Mode
[SR02950(BEF )04/95]
In this operating mode, the shoulder belt
retractor will allow the occupant freedom of
movement, locking tight only on hard braking,
hard cornering or impacts of approximately
5 mph (8 km/h) or more.
[SR02960(BEF )04/95]
The front seat belt retractor can also be made to
lock by pulling/jerking on the belt.
% [SR02970(BEF )04/95]
Automatic Locking Mode
[SR02980(BEF )04/95]
In this operating mode, the shoulder belt
retractor will be automatically locked and remain
locked when the combination lap/shoulder
safety belt is buckled, and does not allow the
occupant freedom of movement. This mode
provides the following:
[SR02990(BEF )04/95]
q
A tight lap/shoulder belt fit on occupant
[SR03000(BEF )04/95]
q
Child seat/infant carrier installation restraint
[SR03020(BEF )04/95]
This mode must be used when installing a child
seat on the front passenger seat and rear
outboard seats where dual locking retractors are
provided.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

14 [SR03030(BEF )04/95]To switch the retractor from the ªemergency
locking modeº to the ªautomatic locking mode,º
perform the following steps:
[SR03040(BEF )04/95]
1. Buckle the lap/shoulder combination belt.
[SR03050(BEF )04/95]
2. Grasp the shoulder portion of the belt and
pull downward until all of the belt is
extracted, and when allowed to retract, a
clicking sound will be heard. At this time,
the belt retractor is in the ªautomatic locking
modeº (child restraint mode).
[SR03060(BEF )04/95]
3. A clicking sound will continue to be heard
as the belt is allowed to retract. This
indicates that the retractor is in the
ªautomatic locking mode.º
[SR03070(BEF )04/95]
NOTE: When the combination lap/shoulder
belt is unbuckled and allowed to
retract completely, the retractor will
switch back to the vehicle sensitive
(emergency) locking mode. See the
detailed instructions underSafety Seats
for Childrenin this chapter.
*
[SR03120(BEF )05/95]
Combination Lap and Shoulder
Belts
*
[SR03125(BEF )05/95]
While your vehicle is in motion, the combination
lap and shoulder belt adjusts to your movement.
However, if you brake hard, corner hard or if
your truck receives an impact of 5 mph
(8 km/h) or more, the combination lap/shoulder
belt locks and helps reduce your forward
movement. The front seat belt systems can also
be made to lock by jerking on the shoulder belt.
*
[SR03130(BEF )05/95]
NOTE: The rear belts cannot be made to lock
up by jerking on shoulder belt.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

15
*
[SR03135(BEF )05/95]
After you get into your vehicle, close the door
and lock it. Then adjust the seat to the position
that suits you best.
[SR03137(BEF )05/95]

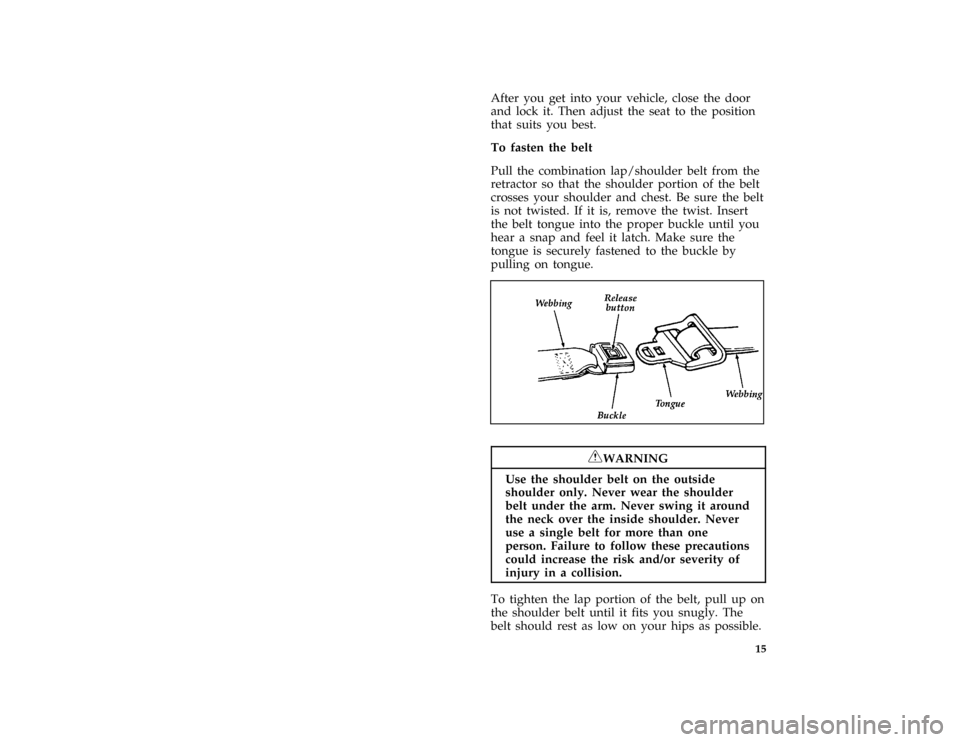

To fasten the belt
*
[SR03140(BEF )05/95]
Pull the combination lap/shoulder belt from the
retractor so that the shoulder portion of the belt
crosses your shoulder and chest. Be sure the belt
is not twisted. If it is, remove the twist. Insert
the belt tongue into the proper buckle until you
hear a snap and feel it latch. Make sure the
tongue is securely fastened to the buckle by
pulling on tongue.
[SR03145( EF )05/95]
7-1/2 pica art:0020639-D*
[SR03160(BEF )05/95]
RWARNING
Use the shoulder belt on the outside
shoulder only. Never wear the shoulder
belt under the arm. Never swing it around
the neck over the inside shoulder. Never
use a single belt for more than one
person. Failure to follow these precautions
could increase the risk and/or severity of
injury in a collision.
*
[SR03165(BEF )05/95]
To tighten the lap portion of the belt, pull up on
the shoulder belt until it fits you snugly. The
belt should rest as low on your hips as possible.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

16 [SR03170( E )05/95]
RWARNING
Front and rear seat occupants, including
pregnant women, should wear safety belts
for optimum protection in an accident.
[SR03185(BEF )05/95]

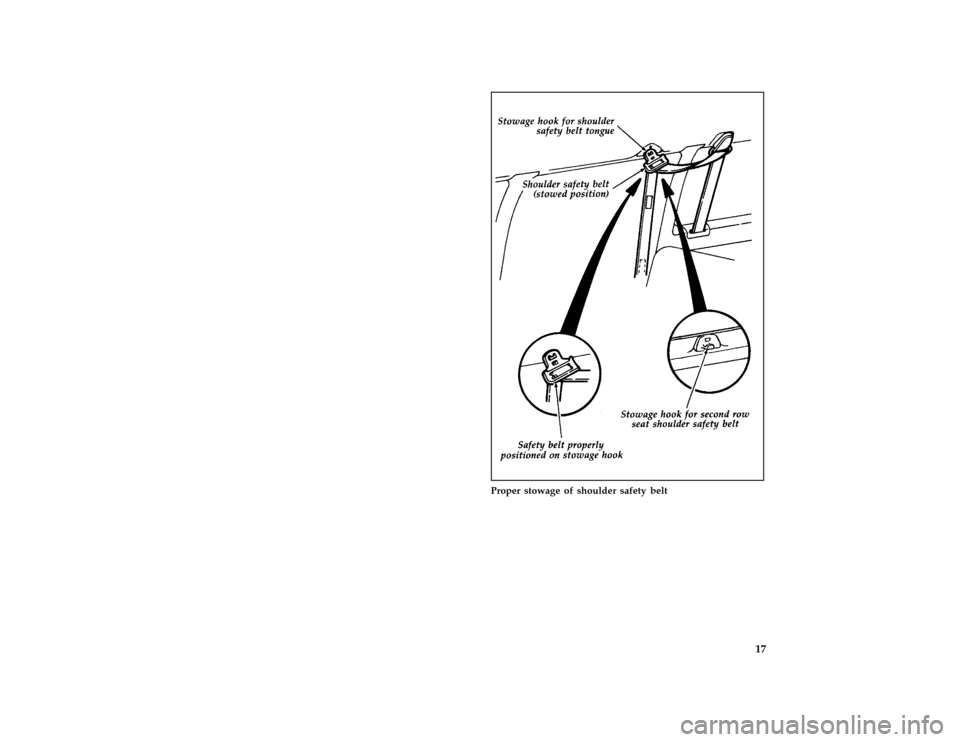

Due to folding rear seats, sometimes the buckles
and tongues toward the center of the vehicle
may be hidden by the rear edge of the seat
cushion. Pull them out so they will be accessible.
[SR03190(BEF )05/95]
While you are fastened in the seat belt, the
combination lap and shoulder belt adjusts to
your movement. However, if you brake hard,
turn hard, or if your vehicle receives an impact
of 5 mph (8 km/h) or more, the lap and
shoulder belt will become locked and help
reduce your forward movement.
% [SR04300( E )05/95]
All Three Passenger Bench/Bed Seat or
Captain's Chair
*
[SR04400( E )12/91]
In addition to anchorages in the floor and roof
structures, some rear safety belts have a
detachable anchor mounted to the outboard side
of the rear seats. This should remain attached,
except when removing the rear seats.
*
[SR04500( E )11/93]
The second row passenger side outboard seating
position uses a hook above the sliding/cargo
door to stow the shoulder safety belt when
entering or exiting the vehicle or when it is not
being used.
*
[SR04525( E )11/93]
NOTE: When the belt is stowed using the
hook, DO NOT use the hanging belt as
an assist when entering the vehicle.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

17 [SR04701( E )03/93]
three fourths page art:0020854-B
Proper stowage of shoulder safety belt
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996
