18 [SR04750( E )05/95]

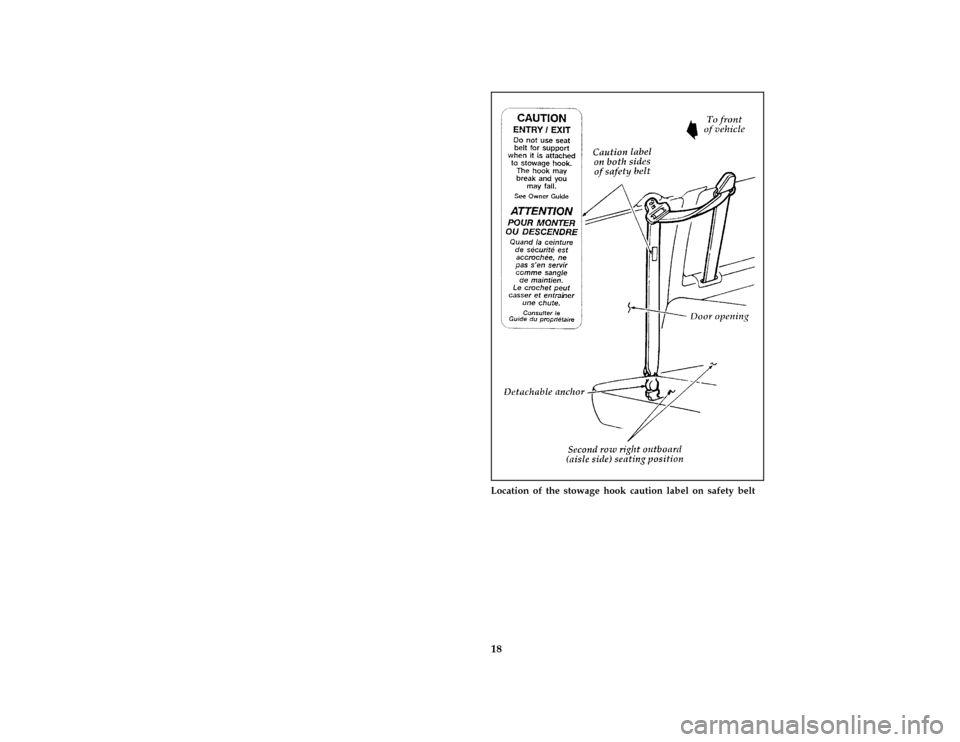

three fourths page art:0020784-CLocation of the stowage hook caution label on safety belt
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

19 [SR04800( E )05/91]
three fourths page art:0020783-B

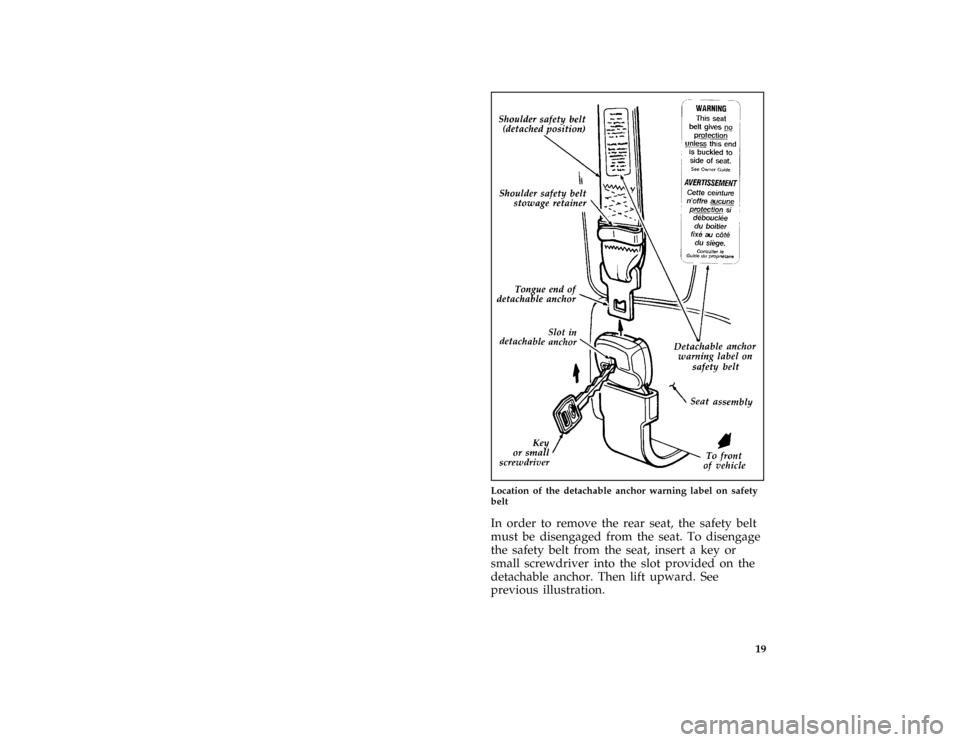

Location of the detachable anchor warning label on safety
belt
[SR04850( E )05/95]
In order to remove the rear seat, the safety belt
must be disengaged from the seat. To disengage
the safety belt from the seat, insert a key or
small screwdriver into the slot provided on the
detachable anchor. Then lift upward. See
previous illustration.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

20 [SR05200( E )02/95]Whenever a rear seat has been removed, the
tongue end of the detachable anchor must be
correctly stowed. See the following illustrations.
[SR05400( E )05/95]
two third page art:0020856-C

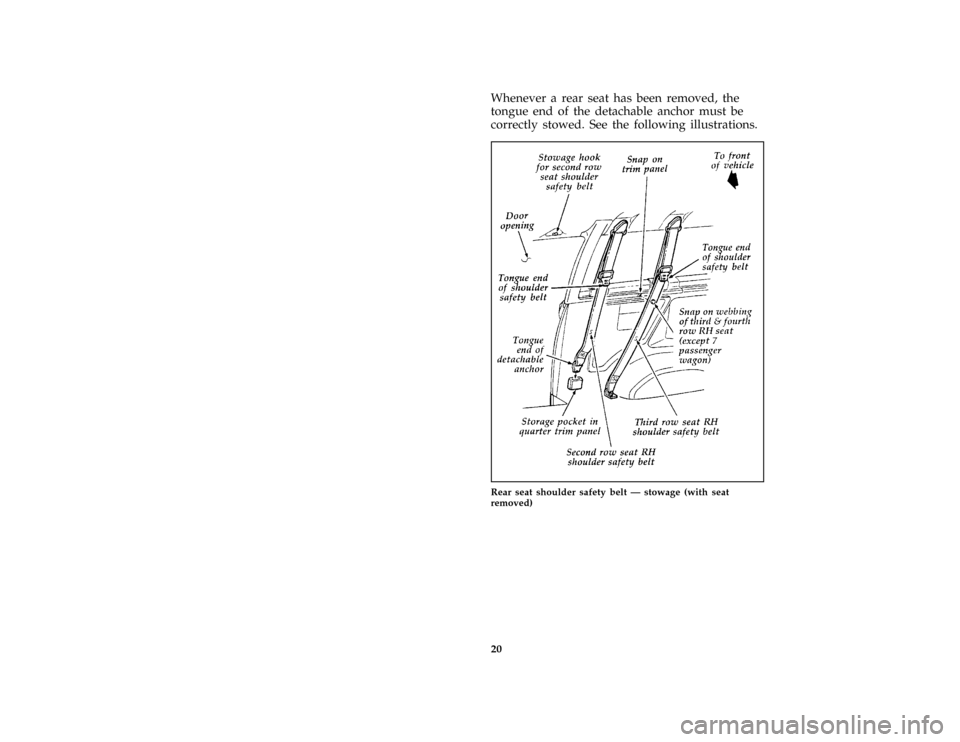

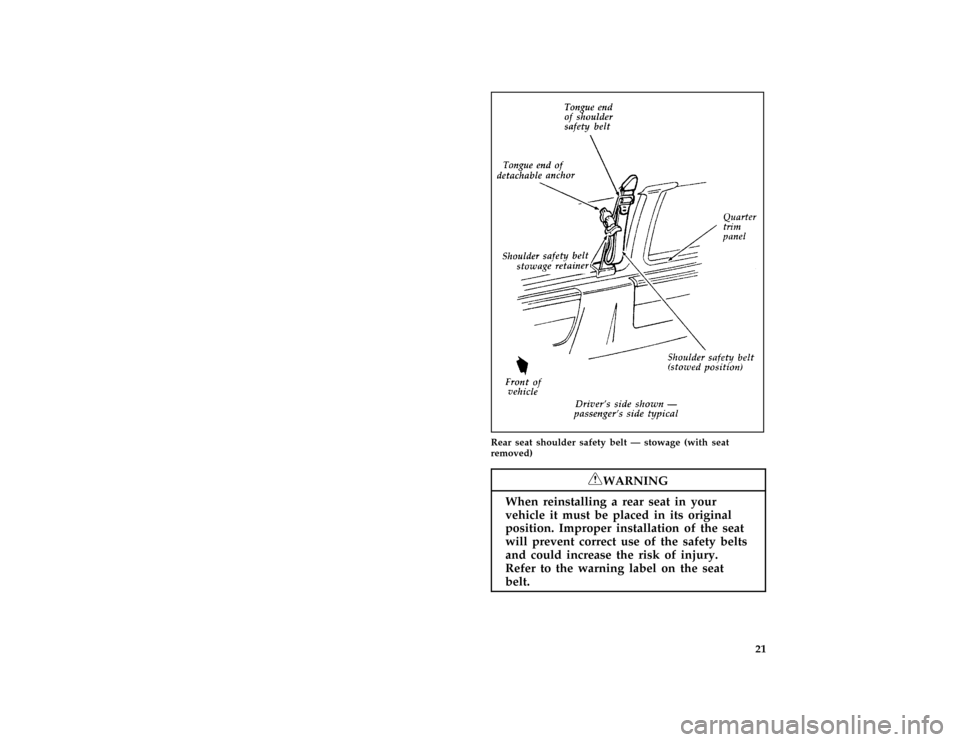

Rear seat shoulder safety belt Ð stowage (with seat
removed)
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

21 [SR05500( E )05/95]
two third page art:0020857-B
Rear seat shoulder safety belt Ð stowage (with seat
removed)
*
[SR05600( E )06/95]
RWARNING
When reinstalling a rear seat in your
vehicle it must be placed in its original
position. Improper installation of the seat
will prevent correct use of the safety belts
and could increase the risk of injury.
Refer to the warning label on the seat
belt.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

22
*
[SR05700( E )03/95]
After installing the rear seat, make sure the
safety belt is not twisted before you insert it into
the detachable anchor. A twisted safety belt may
cause the retractor to not work properly. Then
insert the detachable anchor tongue into the
detachable anchor until you hear a ªsnapº and
feel the latch engage.
%*
[SR06800(BEF )05/95]
Adjustable Lap Belts Without Retractors
[SR07200( E )05/95]
On the center seat of the three-passenger bench
seat, and both inboard seats of the
four-passenger bench seat, you will find a lap
belt without a retractor, but does have a locking
adjustable tongue. Shorten and fasten these belts
when you are not using them. To make each
belt longer, tip the tongue at a right angle to the
belt and pull the belt over your lap until the
tongue reaches the buckle.
[SR07400(BEF )05/95]
one third page art:0020638-C

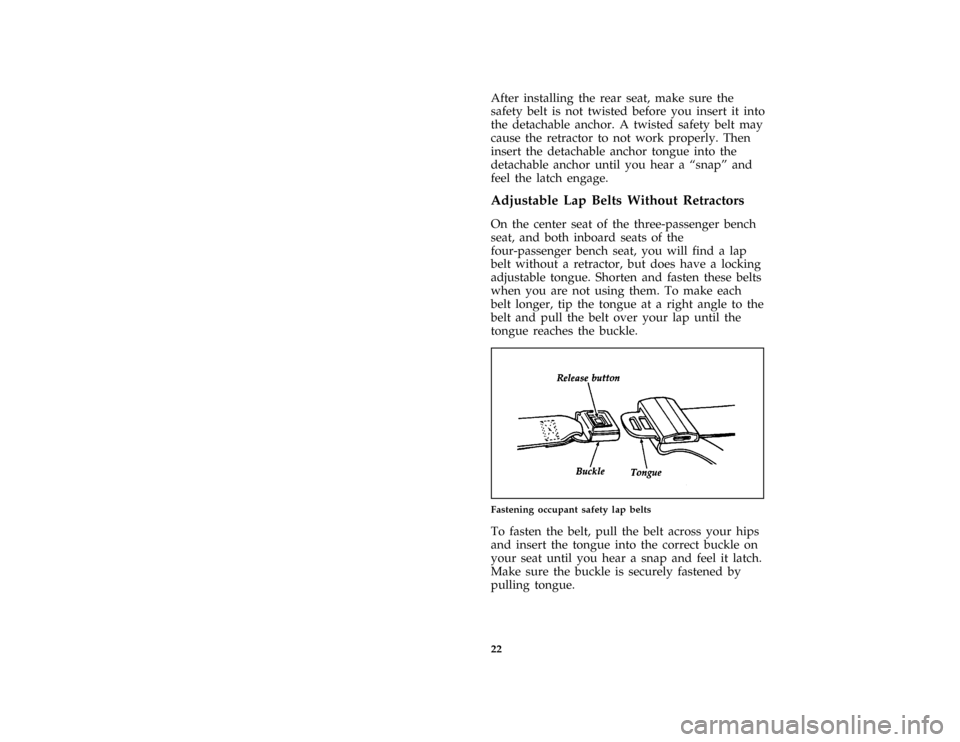

Fastening occupant safety lap belts
[SR07500(BEF )04/95]
To fasten the belt, pull the belt across your hips
and insert the tongue into the correct buckle on
your seat until you hear a snap and feel it latch.
Make sure the buckle is securely fastened by
pulling tongue.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

23
*
[SR07600(BEF )05/95]
Adjust the belt so that it fits snugly and as low
as possible around the hips:
*
[SR07700(BEF )06/95]
q
If you need to lengthen the belt, unfasten it
and repeat the procedure above.
*
[SR07800(BEF )06/95]
q
If you need to shorten the belt, pull on the
loose end of the webbing.
[SR08200( E )05/95]
Safety Belt Bed/Seat Pocket
[SR08450( E )05/95]
one third page art:0020862-B

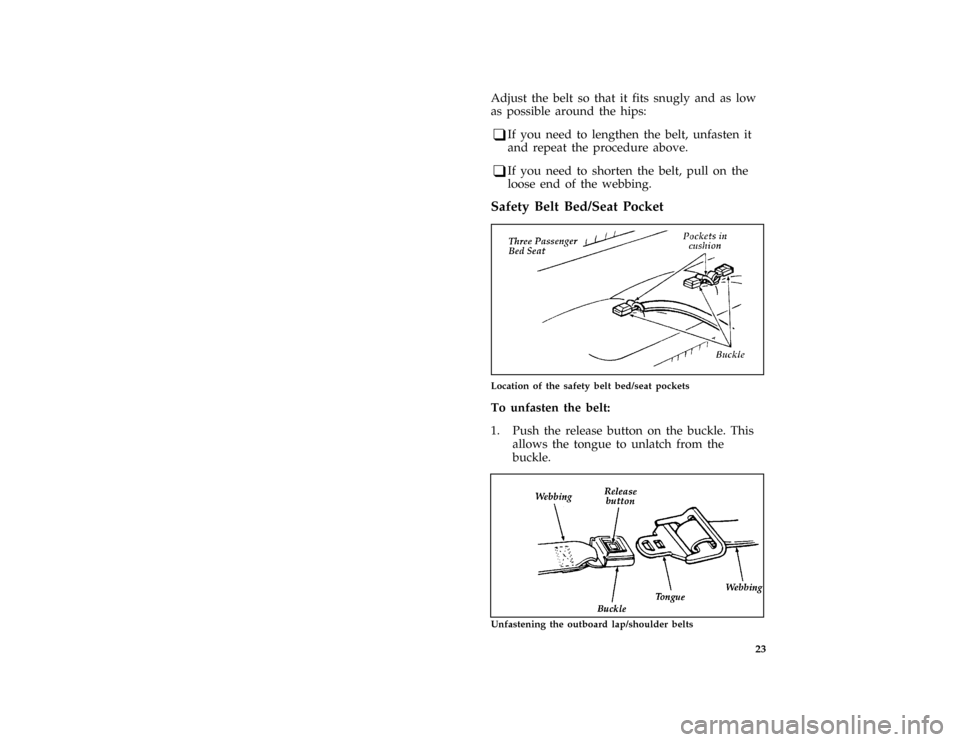

Location of the safety belt bed/seat pockets
[SR08500(BEF )05/95]
To unfasten the belt:
[SR08525(BEF )05/95]
1. Push the release button on the buckle. This
allows the tongue to unlatch from the
buckle.
[SR08550( EF )05/95]
7-1/2 pica art:0020639-D
Unfastening the outboard lap/shoulder belts
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

24 [SR08650(BEF )05/95]2. While the belt retracts, guide the tongue to
its stowed position. If you do not guide the
tongue, it may strike you or part of the
vehicle.
*
[SR08800(BEF )03/95]
How to Untwist or Unjam a Safety Belt
Retractor
*
[SR08900(BEF )03/95]
If you should jam the lap belt retractor by
allowing the belt to retract when it is twisted,
you can free the webbing with this procedure:
*
[SR09000(BEF )06/95]
1. Pull on the belt with both hands to tighten it
on the retractor spool.
*
[SR09100(BEF )03/95]
2. Feed the belt back into the retractor until it
is completely retracted. Repeat previous step
if necessary.
[SR09200(BEF )02/95]
3. Pull the belt out of the retractor as far as it
will go and untwist the belt or remove the
object that is jamming the belt. Let the belt
retract.
*
[SR09300(BEF )03/95]
4. Then, pull the belt out and let it retract
several times to make sure that the belt
works properly.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

25 [SR09505(BEF )06/95]
Procedure to Correct a Twisted Safety
Shoulder Belt at the ªDº Ring (if so
equipped) Front and/or Rear Outboard
Seating Positions.
[SR09507(BEF )05/95]
NOTE: The restraint system shown in the
following figures may be different than
the restraint system in your vehicle.
However, use these figures and this
procedure to correct a twisted safety
shoulder belt at any outboard seating
position that has a ªDº ring.
[SR09510(BEF )05/95]
half page art:0060598-CFile:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

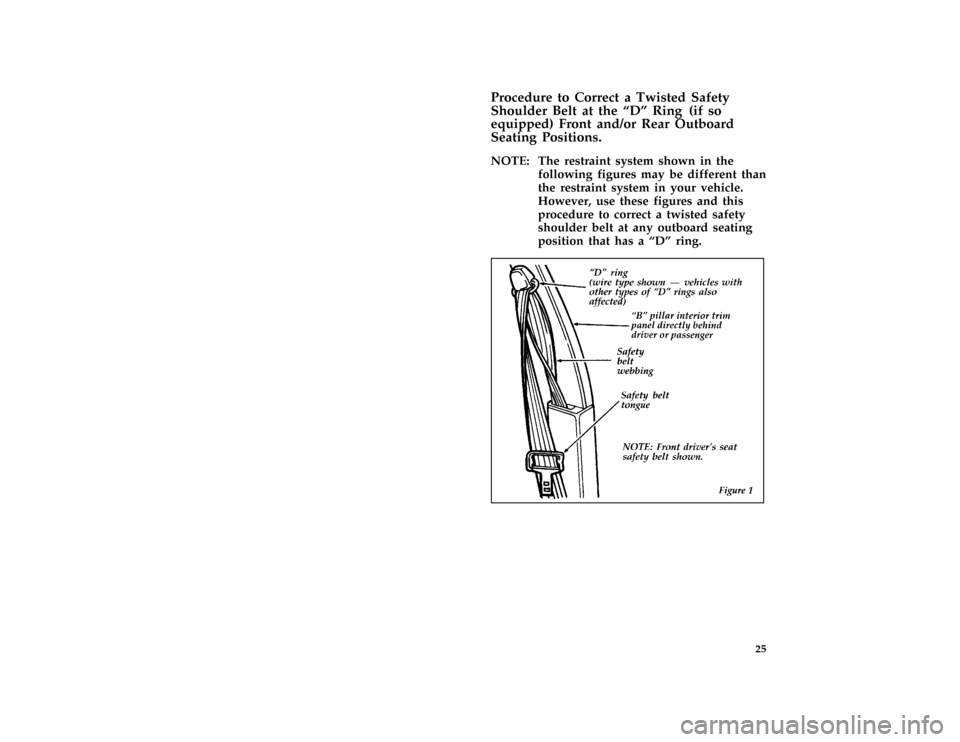

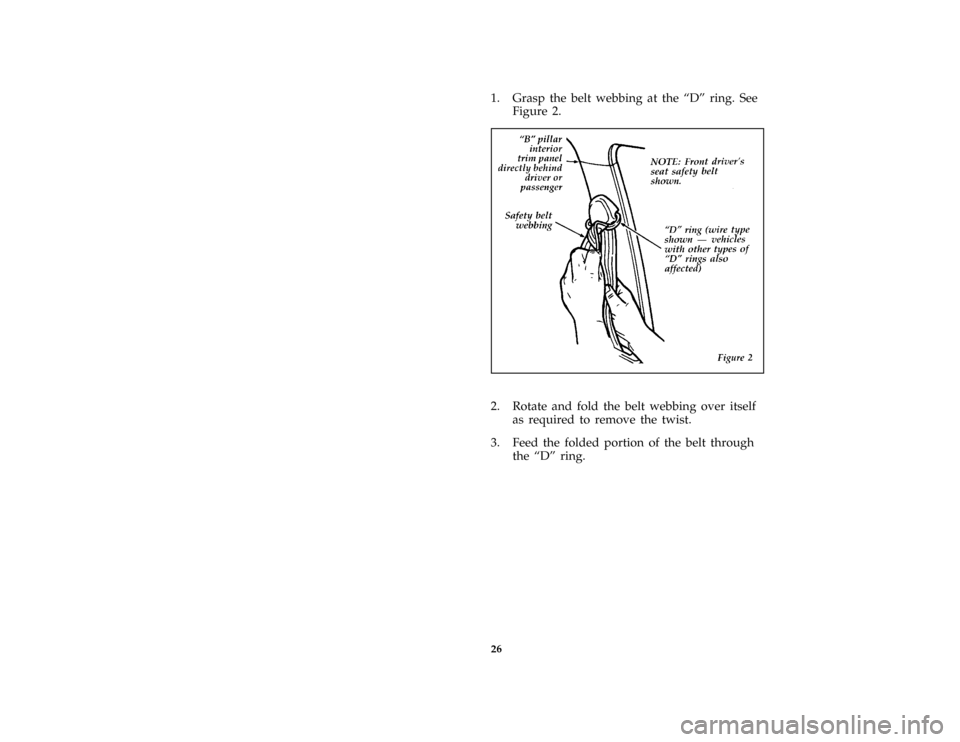

26 [SR09515(BEF )05/95]1. Grasp the belt webbing at the ªDº ring. See
Figure 2.
[SR09520(BEF )05/95]
half page art:0060599-D[SR09525(BEF )05/95]
2. Rotate and fold the belt webbing over itself
as required to remove the twist.
[SR09527(BEF )05/95]
3. Feed the folded portion of the belt through
the ªDº ring.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996

27 [SR09530(BEF )05/95]

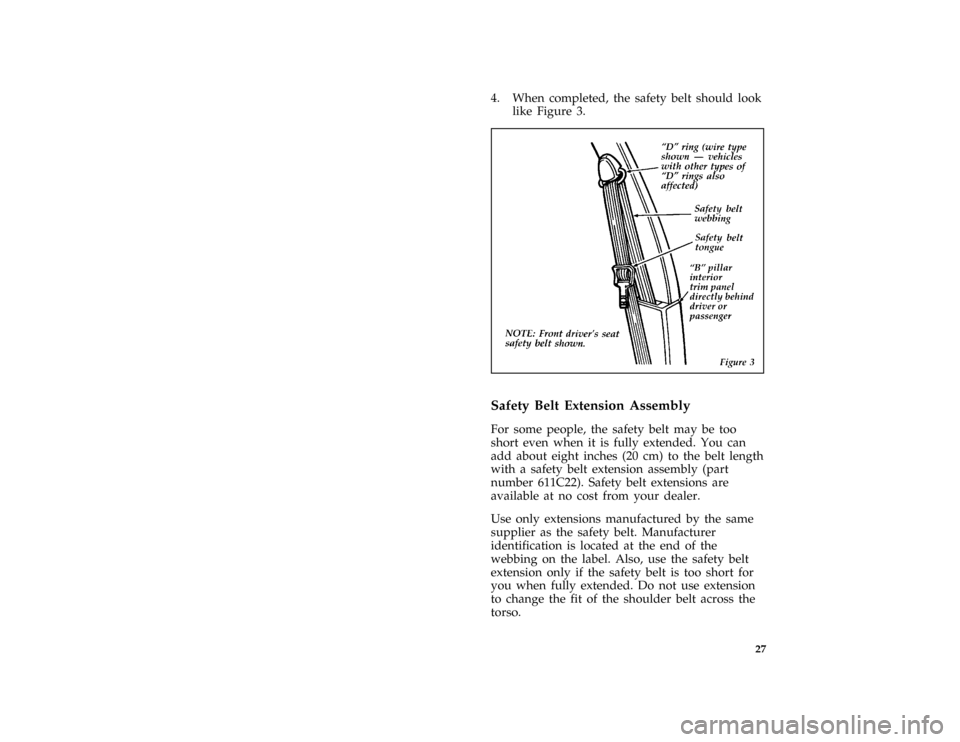

4. When completed, the safety belt should look
like Figure 3.
[SR09535(BEF )05/95]
half page art:0060600-D%*
[SR09600(BEF )06/95]
Safety Belt Extension Assembly
*
[SR09700(BEF )06/95]
For some people, the safety belt may be too
short even when it is fully extended. You can
add about eight inches (20 cm) to the belt length
with a safety belt extension assembly (part
number 611C22). Safety belt extensions are
available at no cost from your dealer.
*
[SR09750(BEF )06/95]
Use only extensions manufactured by the same
supplier as the safety belt. Manufacturer
identification is located at the end of the
webbing on the label. Also, use the safety belt
extension only if the safety belt is too short for
you when fully extended. Do not use extension
to change the fit of the shoulder belt across the
torso.
File:03ltsre.ex
Update:Wed Apr 17 08:51:22 1996
