TECHNICAL SPECIFICATIONS
Item CapacityFord part name or
equivalentFord part number /
Ford specification
Brake fluid
1
Between MIN and
MAX on reservoirMotorcraft High
Performance DOT 4 LV
Motor Vehicle Brake
FluidPM-20 / WSS-M6C65-A2
Door weatherstrips — Silicone Spray LubricantXL-6 /
ESR-M13P4-A
Hinges, latches,
striker plates and
rotors, seat tracks,
fuel filler door hinge
and spring—Motorcraft Multi-Purpose
Grease SprayXL-5 or equivalent /
ESB-M1C93-B
Lock cylinders —Motorcraft Penetrating
and Lock LubricantXL-1 /
None
Engine coolant
2
5.4L engine
28.8 qt (27.2L)
Motorcraft Gold
Antifreeze/Coolant
Prediluted.VC-7DIL-B (U.S.);
CVC-7DIL-B2 (Canada) /
WSS-M97B51-A1 5.4L engine with
auxiliary rear heat
30.8 qt (29.1L)
6.8L engine
30.4 qt (28.8L)
6.8L engine with
auxiliary rear heat
32.6 qt (30.8L)
250Capacities and Specifications
2015 Econoline(eco)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

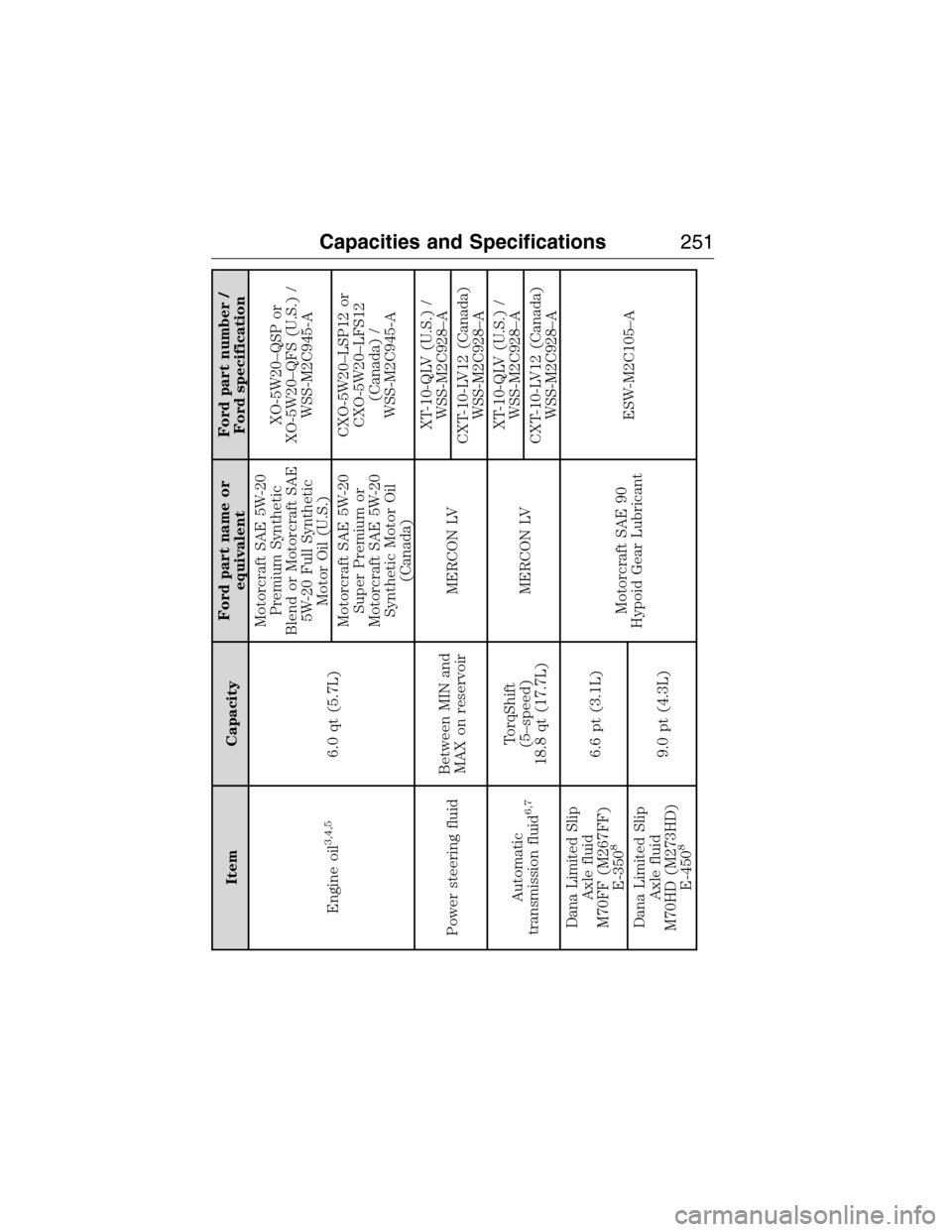

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Engine oil
3,4,5
6.0 qt (5.7L)Motorcraft SAE 5W-20
Premium Synthetic
Blend or Motorcraft SAE
5W-20 Full Synthetic
Motor Oil (U.S.)XO-5W20–QSP or
XO-5W20–QFS (U.S.) /
WSS-M2C945-A
Motorcraft SAE 5W-20
Super Premium or
Motorcraft SAE 5W-20
Synthetic Motor Oil
(Canada)CXO-5W20–LSP12 or
CXO-5W20–LFS12
(Canada) /
WSS-M2C945-A
Power steering fluidBetween MIN and
MAX on reservoirMERCON LVXT-10-QLV (U.S.) /
WSS-M2C928–A
CXT-10-LV12 (Canada)
WSS-M2C928–A
Automatic
transmission fluid
6,7
TorqShift
(5–speed)
18.8 qt (17.7L)MERCON LVXT-10-QLV (U.S.) /
WSS-M2C928–A
CXT-10-LV12 (Canada)
WSS-M2C928–A
Dana Limited Slip
Axle fluid
M70FF (M267FF)
E-350
8
6.6 pt (3.1L)
Motorcraft SAE 90
Hypoid Gear LubricantESW-M2C105–A
Dana Limited Slip
Axle fluid
M70HD (M273HD)
E-450
8
9.0 pt (4.3L)
Capacities and Specifications251
2015 Econoline(eco)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

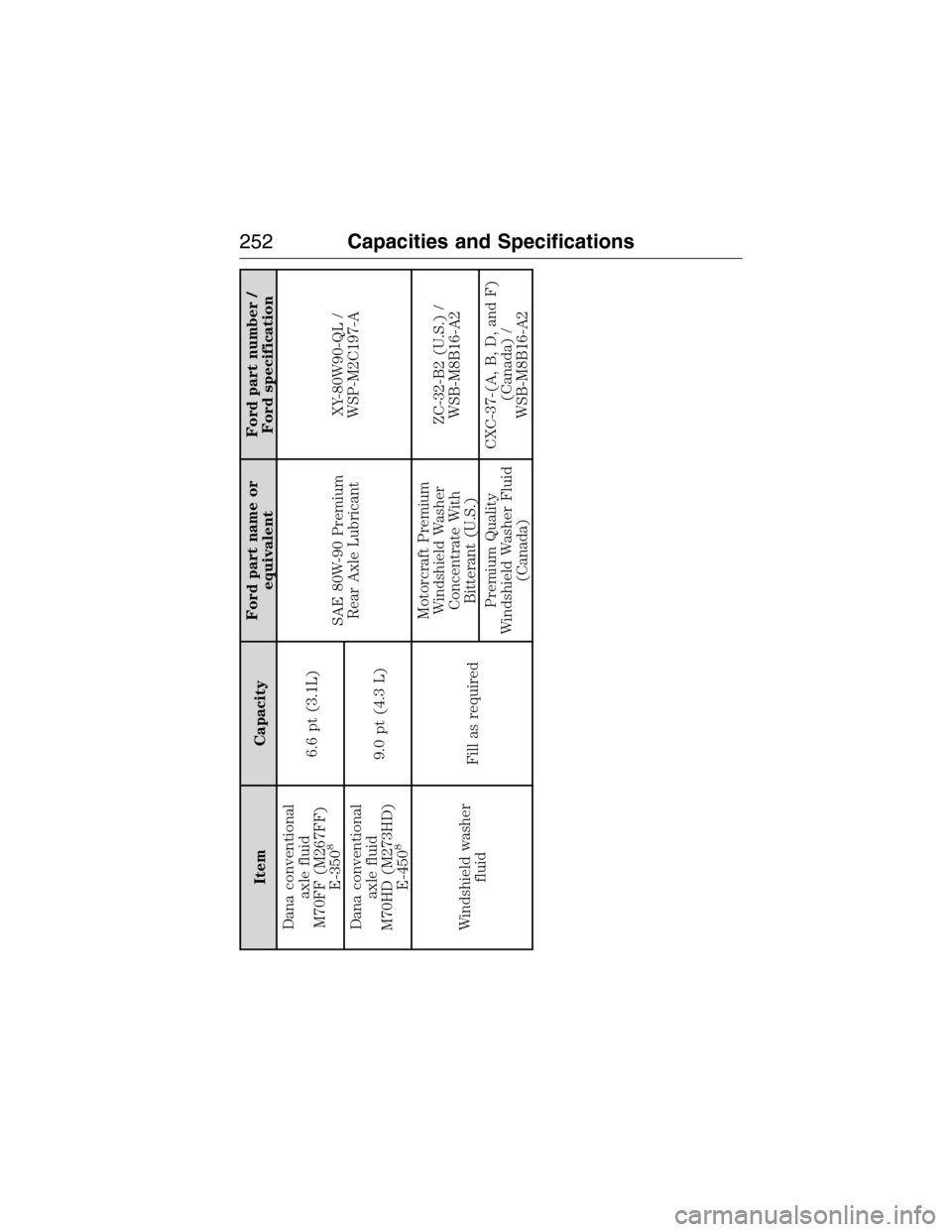

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Dana conventional
axle fluid
M70FF (M267FF)
E-350
8
6.6 pt (3.1L)
SAE 80W-90 Premium
Rear Axle LubricantXY-80W90-QL /
WSP-M2C197-A
Dana conventional
axle fluid
M70HD (M273HD)
E-450
8
9.0 pt (4.3 L)
Windshield washer
fluidFill as requiredMotorcraft Premium
Windshield Washer
Concentrate With
Bitterant (U.S.)ZC-32-B2 (U.S.) /
WSB-M8B16-A2
Premium Quality
Windshield Washer Fluid
(Canada)CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2
252Capacities and Specifications
2015 Econoline(eco)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

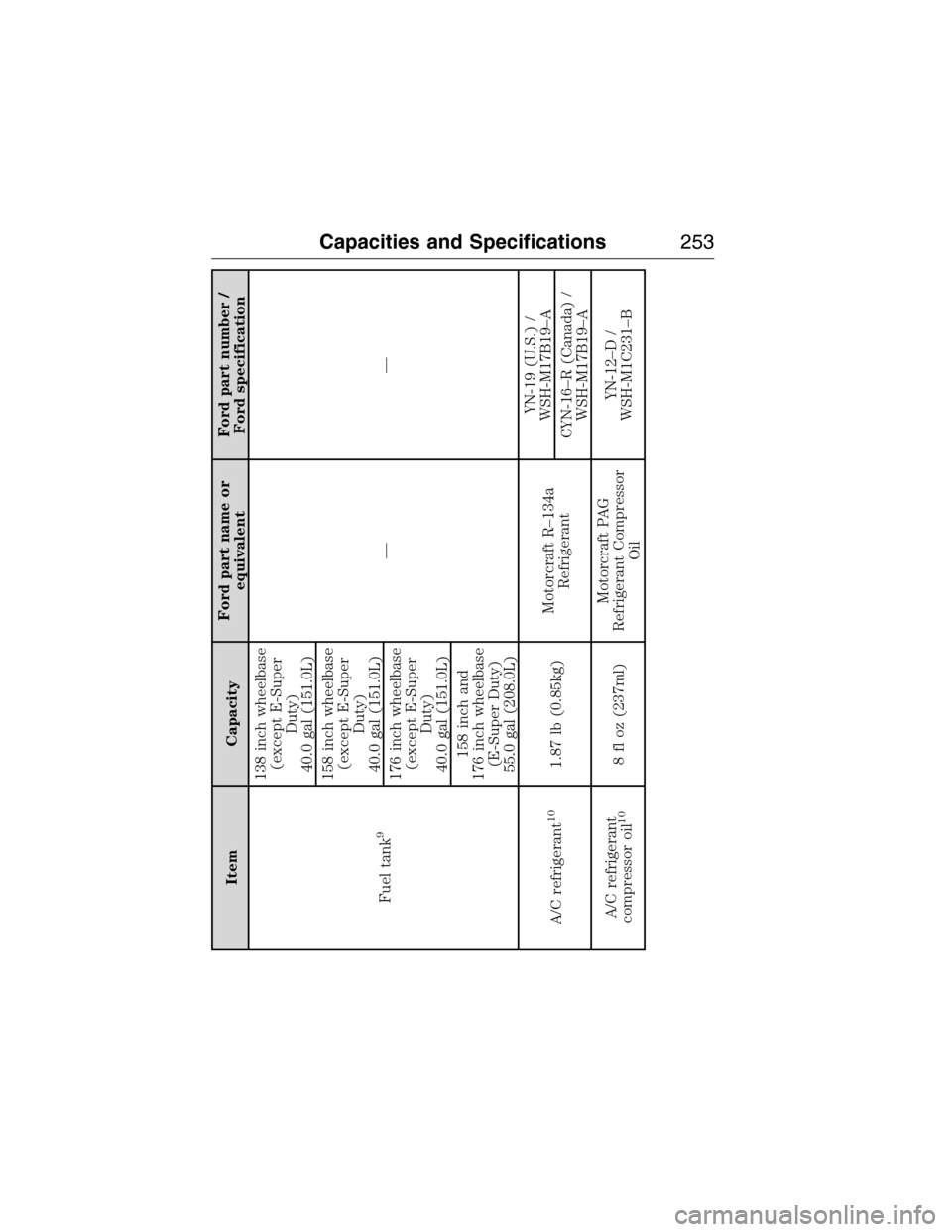

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Fuel tank
9
138 inch wheelbase
(except E-Super
Duty)
40.0 gal (151.0L)
—— 158 inch wheelbase
(except E-Super
Duty)
40.0 gal (151.0L)
176 inch wheelbase
(except E-Super
Duty)
40.0 gal (151.0L)
158 inch and
176 inch wheelbase
(E-Super Duty)
55.0 gal (208.0L)
A/C refrigerant
10
1.87 lb (0.85kg)Motorcraft R–134a
RefrigerantYN-19 (U.S.) /
WSH-M17B19–A
CYN-16–R (Canada) /
WSH-M17B19–A
A/C refrigerant
compressor oil
10
8 fl oz (237ml)Motorcraft PAG
Refrigerant Compressor
OilYN-12–D /
WSH-M1C231–B
Capacities and Specifications253
2015 Econoline(eco)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

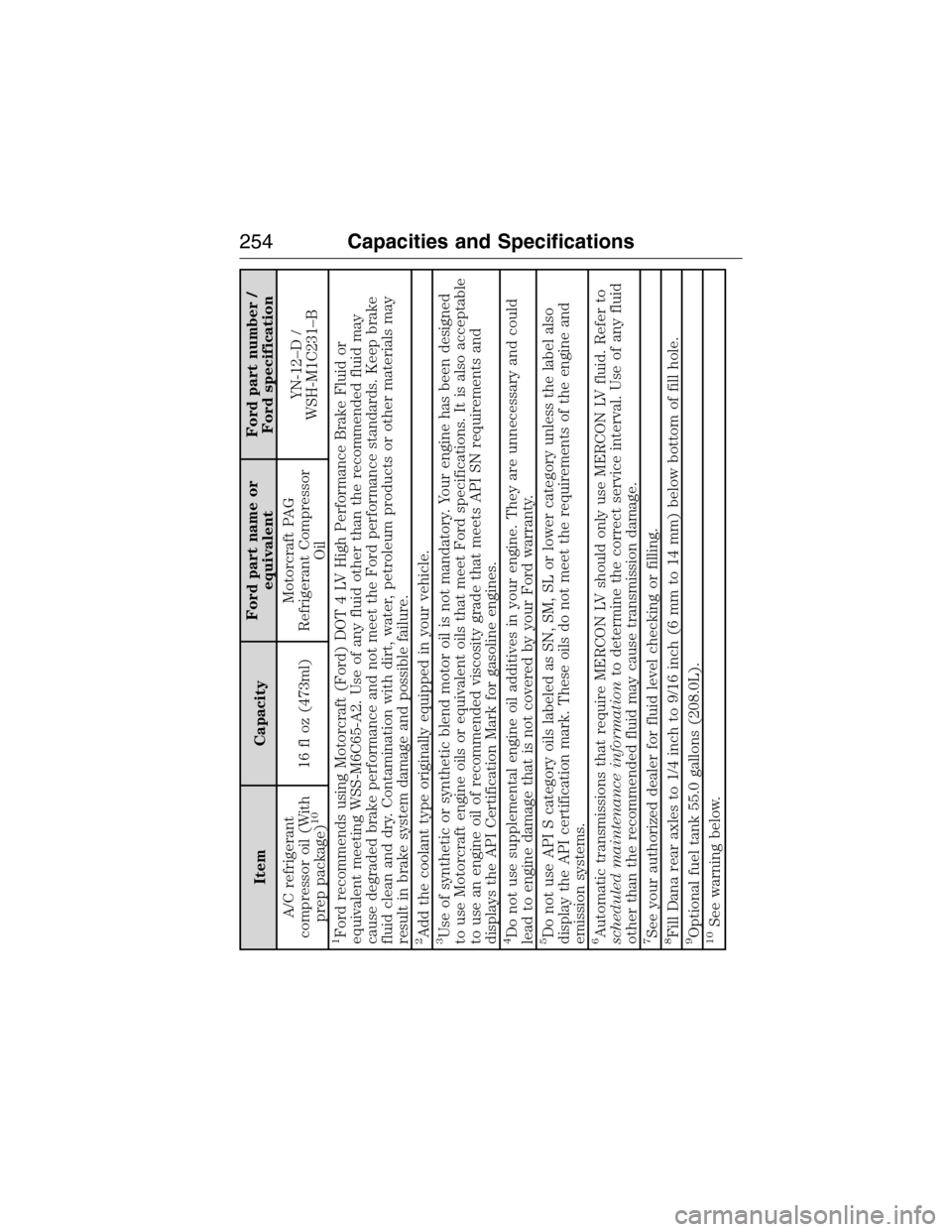

Item CapacityFord part name or
equivalentFord part number /
Ford specification
A/C refrigerant
compressor oil (With
prep package)
10
16 fl oz (473ml)Motorcraft PAG
Refrigerant Compressor
OilYN-12–D /
WSH-M1C231–B
1Ford recommends using Motorcraft (Ford) DOT 4 LV High Performance Brake Fluid or
equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may
cause degraded brake performance and not meet the Ford performance standards. Keep brake
fluid clean and dry. Contamination with dirt, water, petroleum products or other materials may
result in brake system damage and possible failure.2Add the coolant type originally equipped in your vehicle.3Use of synthetic or synthetic blend motor oil is not mandatory. Your engine has been designed
to use Motorcraft engine oils or equivalent oils that meet Ford specifications. It is also acceptable
to use an engine oil of recommended viscosity grade that meets API SN requirements and
displays the API Certification Mark for gasoline engines.4Do not use supplemental engine oil additives in your engine. They are unnecessary and could
lead to engine damage that is not covered by your Ford warranty.5Do not use API S category oils labeled as SN, SM, SL or lower category unless the label also
display the API certification mark. These oils do not meet the requirements of the engine and
emission systems.6Automatic transmissions that require MERCON LV should only use MERCON LV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.7See your authorized dealer for fluid level checking or filling.8Fill Dana rear axles to 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.9Optional fuel tank 55.0 gallons (208.0L).10
See warning below.
254Capacities and Specifications
2015 Econoline(eco)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

WARNING:The air conditioning refrigerant system contains
refrigerant R–134a under high pressure. Opening the air
conditioning refrigerant system can cause personal injury. Only qualified
personnel should service the air conditioning refrigerant system.
MOTORCRAFT® PART NUMBERS
Component 5.4L V8 engine 6.8L V10 engine
Air filter element FA-1632 FA-1632
Battery- standard /
(auxiliary)BXT-65-650 /
(BXT-65-750)BXT-65-650 /
(BXT-65-750)
Oil filter FL-820-S FL-820-S
Spark plugs SP-521 SP-521
Torqshift automatic
transmission internal
bottom–pan filterFT-180 FT-180
Windshield wiper blade WW-2005 WW-2005
Motorcraft replacement parts are recommended for scheduled
maintenance and are available at your Ford dealer or at fordparts.com.
These parts meet or exceed Ford Motor Company’s specifications, and
are engineered for your vehicle. Use of other parts may impact vehicle
performance, emissions, and durability. Your warranty may be void for
any damage related to use of other parts.
Should a Motorcraft oil filter not be available, use an oil filter that meets
industry performance specification SAE/USCAR-36.
For spark plug replacement, see your authorized dealer. Replace the
spark plugs at the appropriate intervals. Refer toScheduled
Maintenancefor the replacement intervals.
Capacities and Specifications255
2015 Econoline(eco)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

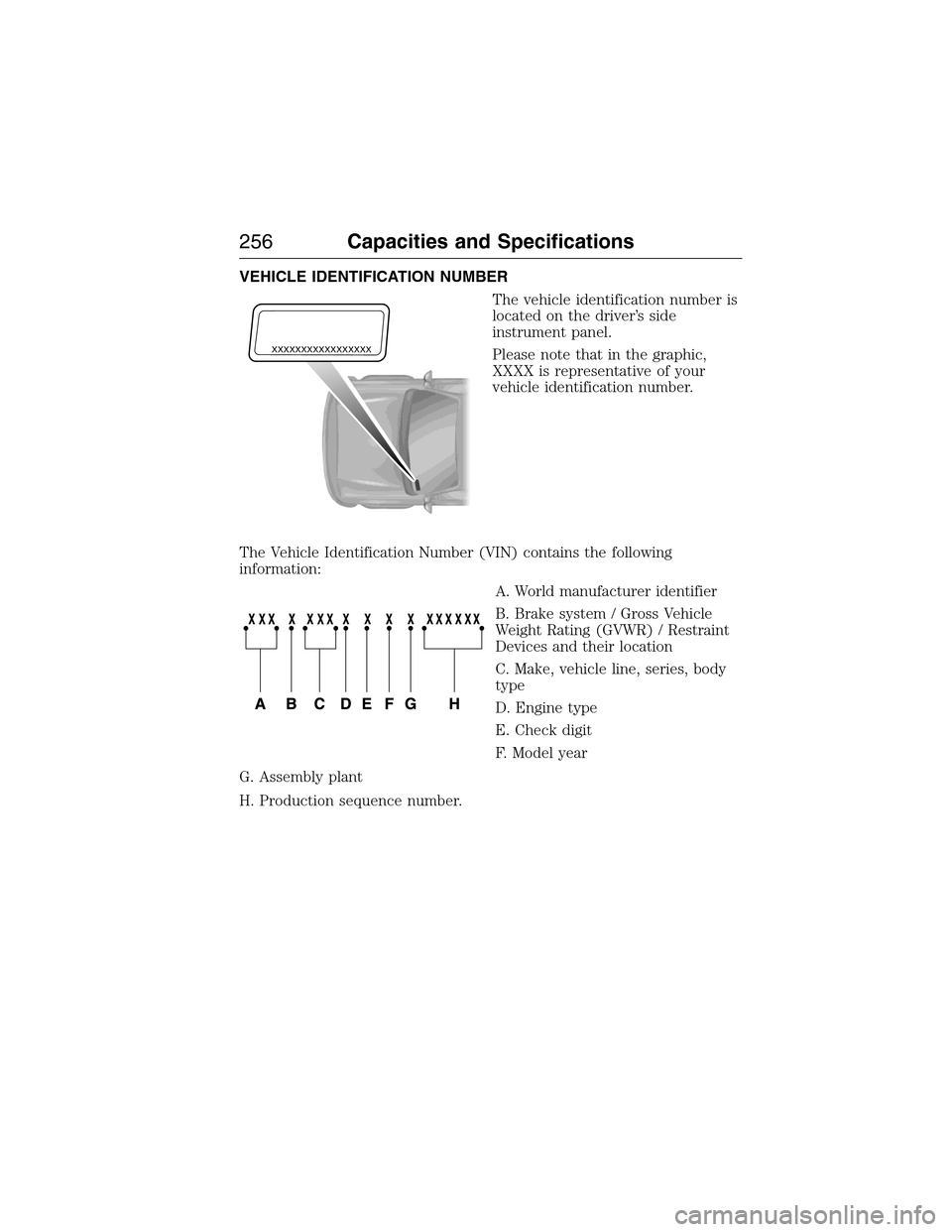

VEHICLE IDENTIFICATION NUMBER
The vehicle identification number is
located on the driver’s side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
A. World manufacturer identifier
B. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
C. Make, vehicle line, series, body
type
D. Engine type
E. Check digit
F. Model year
G. Assembly plant
H. Production sequence number.
XXXXXXXXXXXXXXXXX
256Capacities and Specifications
2015 Econoline(eco)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

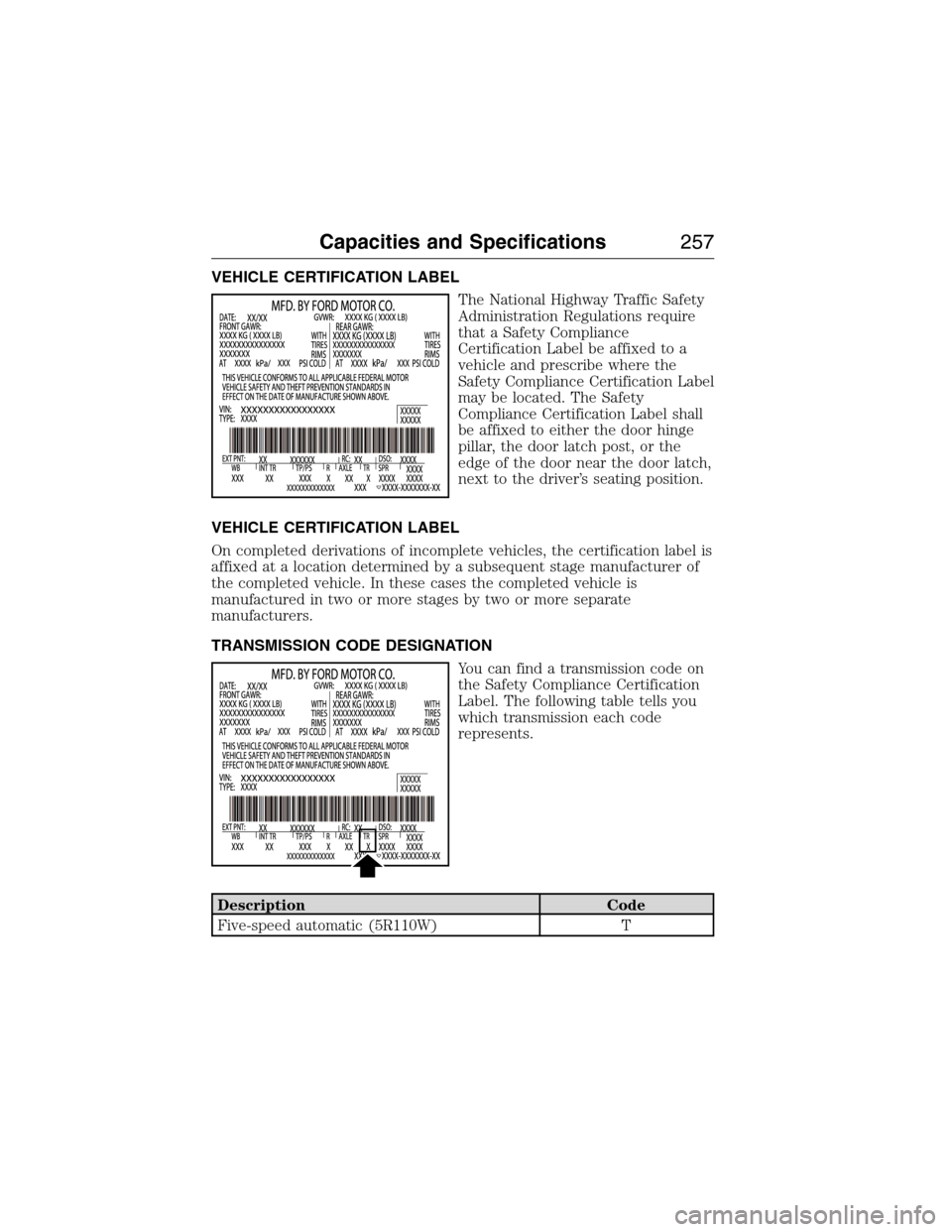

VEHICLE CERTIFICATION LABEL
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification Label
may be located. The Safety
Compliance Certification Label shall
be affixed to either the door hinge
pillar, the door latch post, or the
edge of the door near the door latch,
next to the driver’s seating position.
VEHICLE CERTIFICATION LABEL
On completed derivations of incomplete vehicles, the certification label is
affixed at a location determined by a subsequent stage manufacturer of
the completed vehicle. In these cases the completed vehicle is
manufactured in two or more stages by two or more separate
manufacturers.
TRANSMISSION CODE DESIGNATION
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Five-speed automatic (5R110W) T
Capacities and Specifications257
2015 Econoline(eco)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

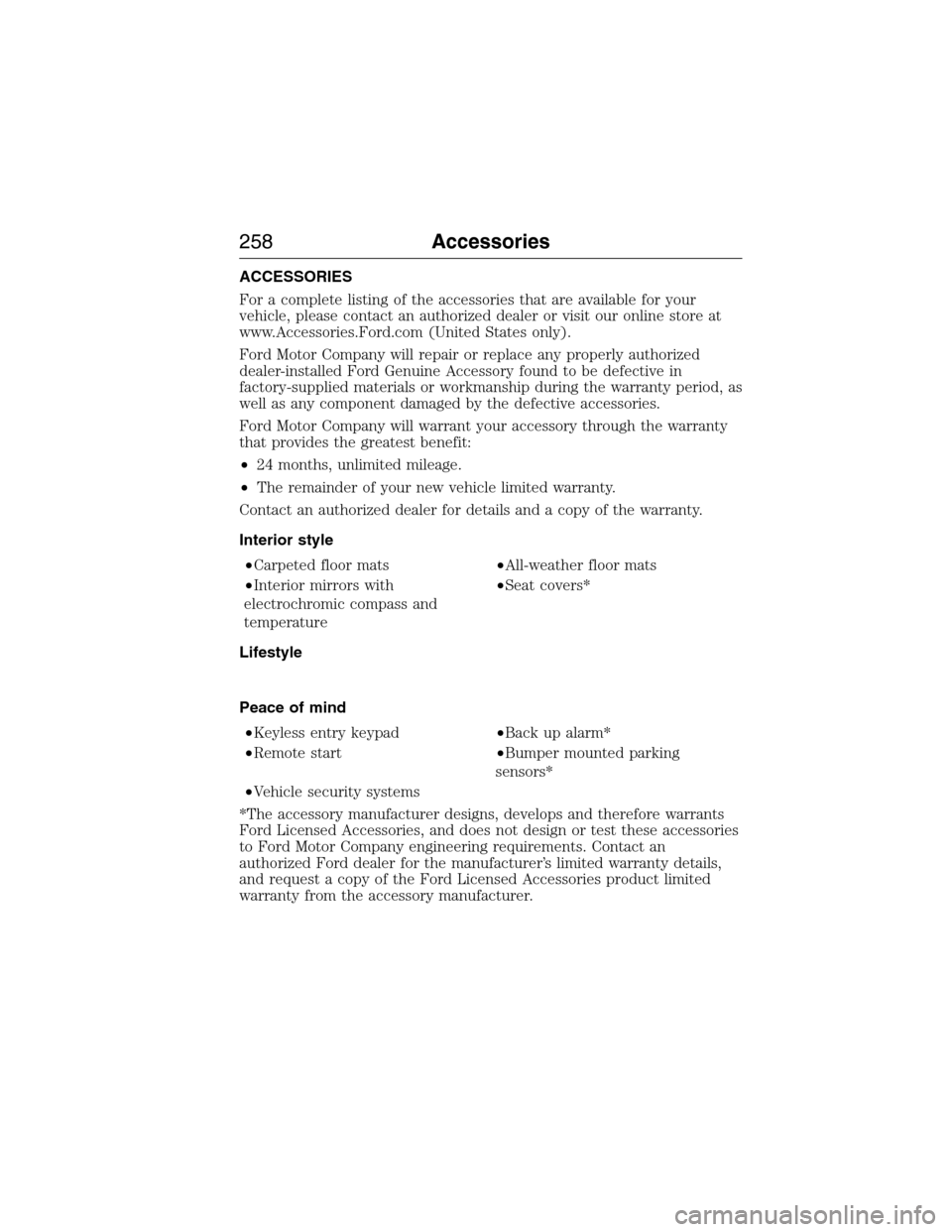

ACCESSORIES
For a complete listing of the accessories that are available for your
vehicle, please contact an authorized dealer or visit our online store at
www.Accessories.Ford.com (United States only).
Ford Motor Company will repair or replace any properly authorized
dealer-installed Ford Genuine Accessory found to be defective in
factory-supplied materials or workmanship during the warranty period, as
well as any component damaged by the defective accessories.
Ford Motor Company will warrant your accessory through the warranty
that provides the greatest benefit:
•24 months, unlimited mileage.
•The remainder of your new vehicle limited warranty.
Contact an authorized dealer for details and a copy of the warranty.
Interior style
•Carpeted floor mats•All-weather floor mats
•Interior mirrors with
electrochromic compass and
temperature•Seat covers*
Lifestyle
Peace of mind
•Keyless entry keypad•Back up alarm*
•Remote start•Bumper mounted parking
sensors*
•Vehicle security systems
*The accessory manufacturer designs, develops and therefore warrants
Ford Licensed Accessories, and does not design or test these accessories
to Ford Motor Company engineering requirements. Contact an
authorized Ford dealer for the manufacturer’s limited warranty details,
and request a copy of the Ford Licensed Accessories product limited
warranty from the accessory manufacturer.
258Accessories
2015 Econoline(eco)
Owners Guide gf, 1st Printing, June 2014
USA(fus)

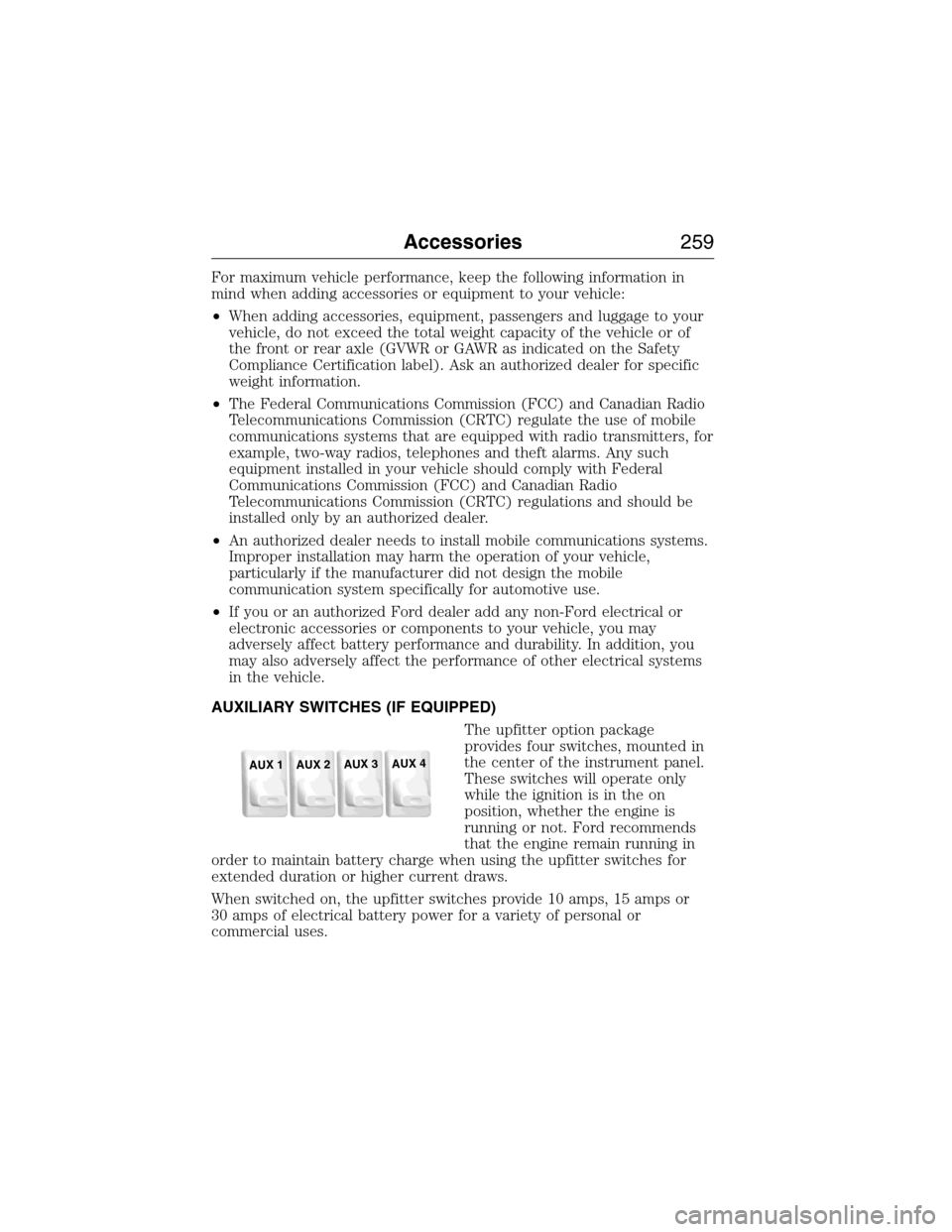

For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Ask an authorized dealer for specific
weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems that are equipped with radio transmitters, for
example, two-way radios, telephones and theft alarms. Any such
equipment installed in your vehicle should comply with Federal
Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulations and should be
installed only by an authorized dealer.
•An authorized dealer needs to install mobile communications systems.
Improper installation may harm the operation of your vehicle,
particularly if the manufacturer did not design the mobile
communication system specifically for automotive use.
•If you or an authorized Ford dealer add any non-Ford electrical or
electronic accessories or components to your vehicle, you may
adversely affect battery performance and durability. In addition, you
may also adversely affect the performance of other electrical systems
in the vehicle.
AUXILIARY SWITCHES (IF EQUIPPED)
The upfitter option package
provides four switches, mounted in
the center of the instrument panel.
These switches will operate only
while the ignition is in the on
position, whether the engine is
running or not. Ford recommends
that the engine remain running in
order to maintain battery charge when using the upfitter switches for
extended duration or higher current draws.
When switched on, the upfitter switches provide 10 amps, 15 amps or
30 amps of electrical battery power for a variety of personal or
commercial uses.
AUX 1
AUX 2
AUX 3
AUX 4
Accessories259
2015 Econoline(eco)
Owners Guide gf, 1st Printing, June 2014
USA(fus)
