FORD ECOSPORT 2018 Owners Manual

Settings
Intelligent 4WDInformation
MyKey Info
Tire Pressure
Auto StartStop
LanguageDisplay
L/100 kmDistance Unit
km/L
Miles & Gallons
Celsius (°C)Temperature Unit
Fahrenheit (°F)
psiTire Pressure
kPa
bar
Blind SpotDriver Assistance
Cross Traffic Alert
Rear Parking Aid
All SensorsAlarm SettingsAlarm systemVehicle Settings
Perimeter Sensing
Ask on Exit
Auto Engine Off
InformationChimes
OffAutolamp DelayLighting
10 Seconds
20 Seconds
120 Seconds
Daytime Running Lights
87EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingInformation Displays

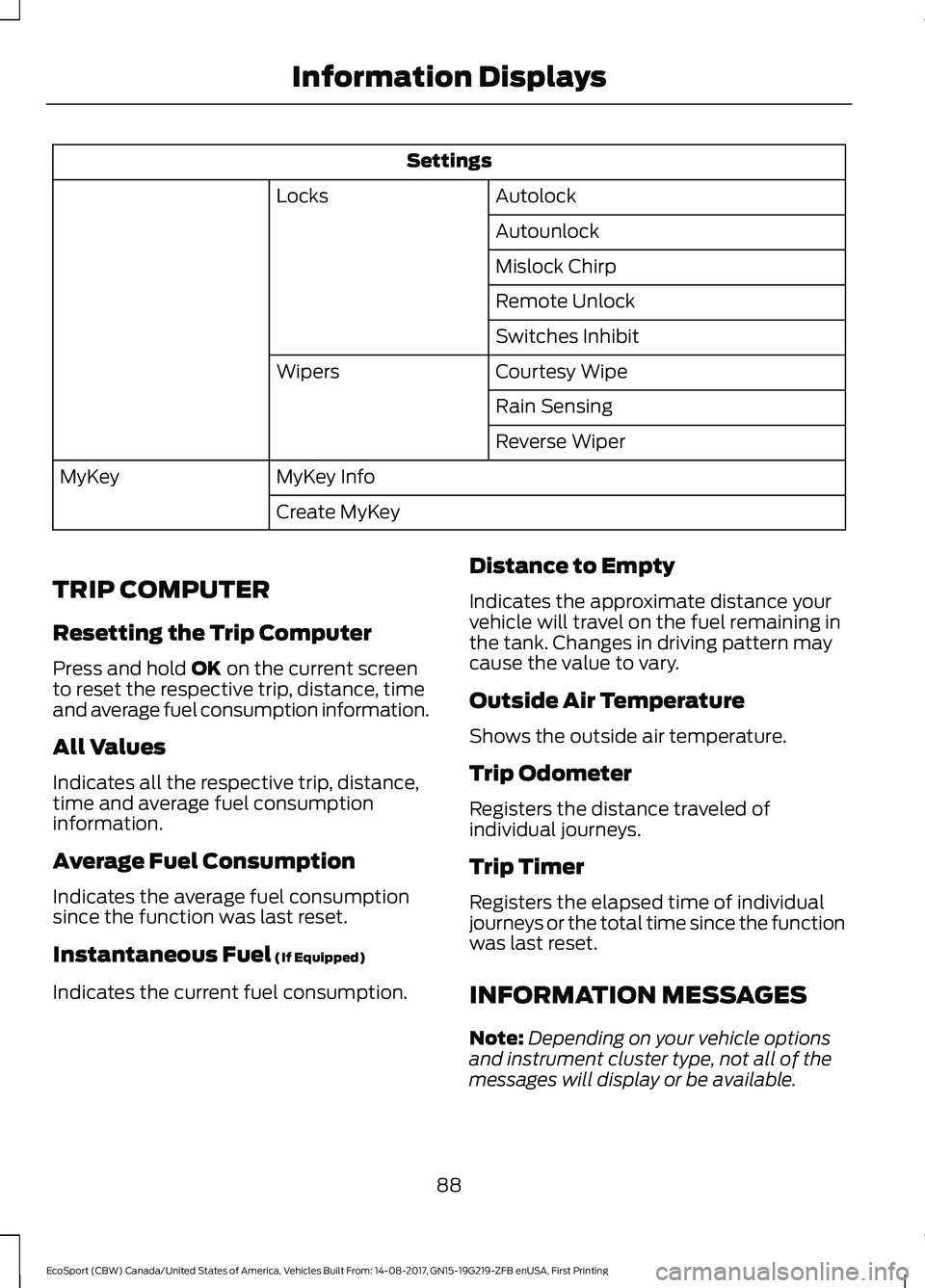

Settings
AutolockLocks
Autounlock
Mislock Chirp
Remote Unlock
Switches Inhibit
Courtesy WipeWipers
Rain Sensing
Reverse Wiper
MyKey InfoMyKey
Create MyKey
TRIP COMPUTER
Resetting the Trip Computer
Press and hold OK on the current screento reset the respective trip, distance, timeand average fuel consumption information.
All Values
Indicates all the respective trip, distance,time and average fuel consumptioninformation.
Average Fuel Consumption
Indicates the average fuel consumptionsince the function was last reset.
Instantaneous Fuel (If Equipped)
Indicates the current fuel consumption.
Distance to Empty
Indicates the approximate distance yourvehicle will travel on the fuel remaining inthe tank. Changes in driving pattern maycause the value to vary.
Outside Air Temperature
Shows the outside air temperature.
Trip Odometer
Registers the distance traveled ofindividual journeys.
Trip Timer
Registers the elapsed time of individualjourneys or the total time since the functionwas last reset.
INFORMATION MESSAGES
Note:Depending on your vehicle optionsand instrument cluster type, not all of themessages will display or be available.
88EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingInformation Displays

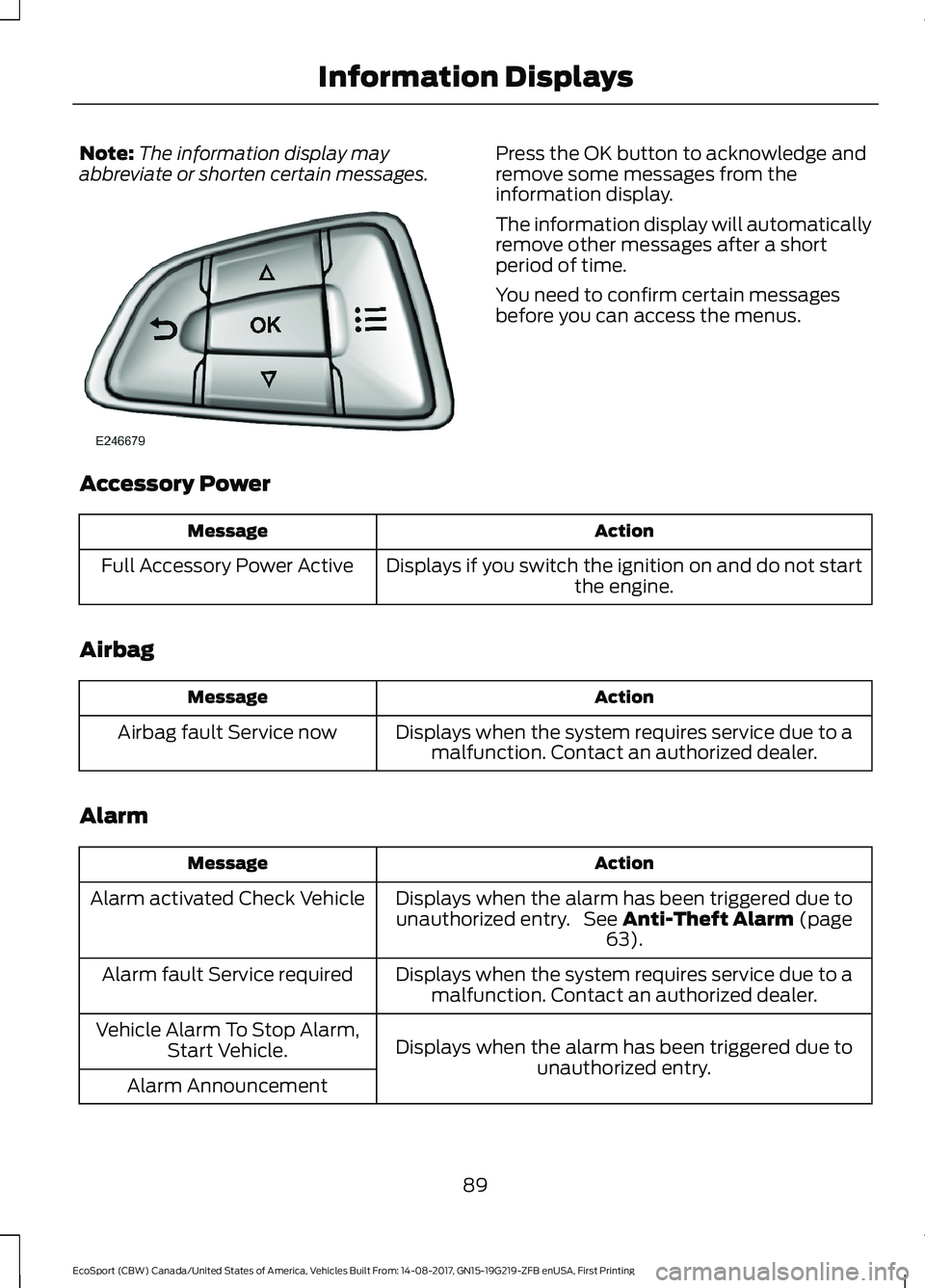

Note:The information display mayabbreviate or shorten certain messages.Press the OK button to acknowledge andremove some messages from theinformation display.
The information display will automaticallyremove other messages after a shortperiod of time.
You need to confirm certain messagesbefore you can access the menus.
Accessory Power
ActionMessage
Displays if you switch the ignition on and do not startthe engine.Full Accessory Power Active
Airbag
ActionMessage
Displays when the system requires service due to amalfunction. Contact an authorized dealer.Airbag fault Service now
Alarm
ActionMessage
Displays when the alarm has been triggered due tounauthorized entry. See Anti-Theft Alarm (page63).
Alarm activated Check Vehicle
Displays when the system requires service due to amalfunction. Contact an authorized dealer.Alarm fault Service required
Displays when the alarm has been triggered due tounauthorized entry.
Vehicle Alarm To Stop Alarm,Start Vehicle.
Alarm Announcement
89EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingInformation Displays

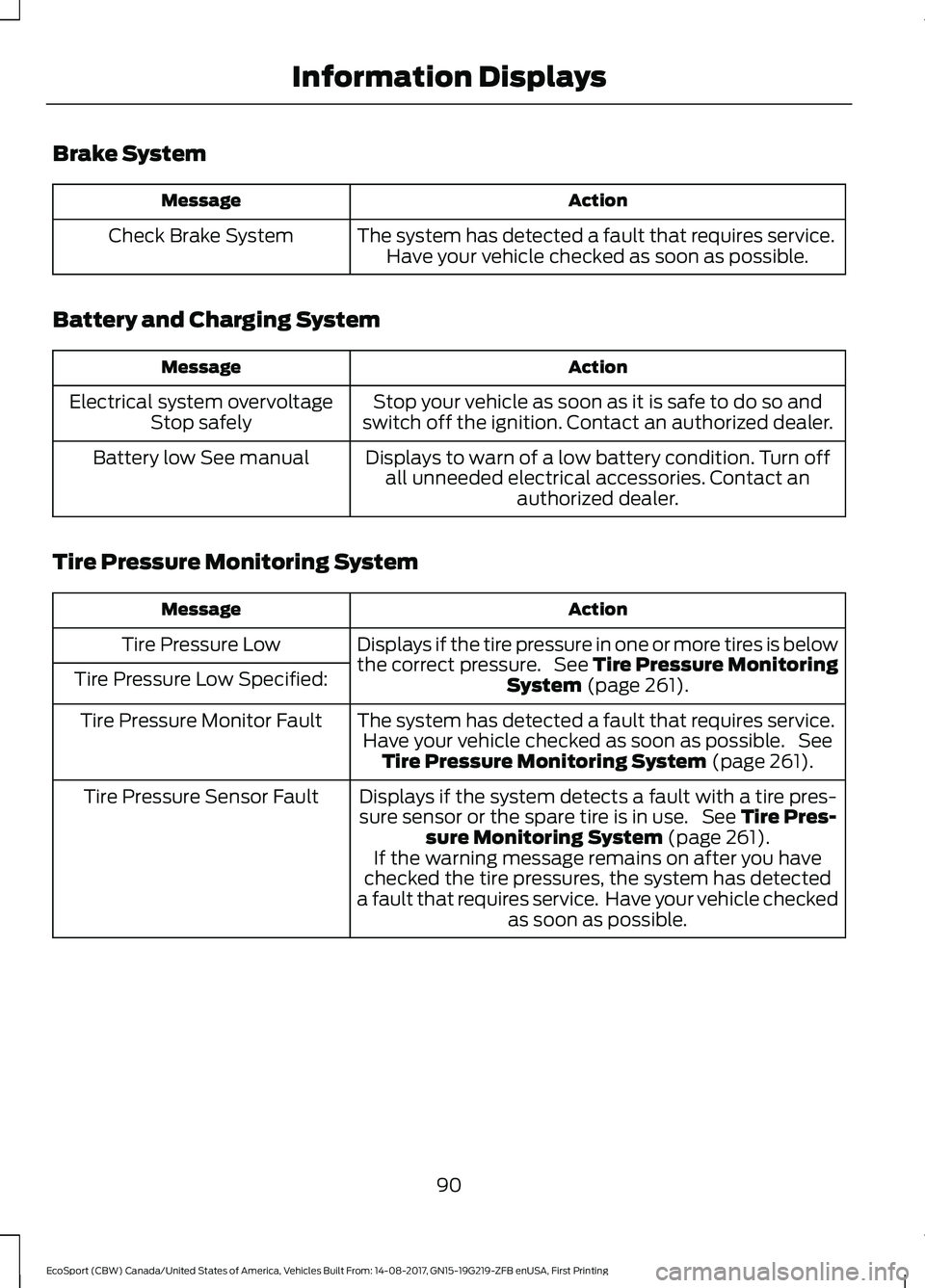

Brake System
ActionMessage
The system has detected a fault that requires service.Have your vehicle checked as soon as possible.Check Brake System
Battery and Charging System
ActionMessage
Stop your vehicle as soon as it is safe to do so andswitch off the ignition. Contact an authorized dealer.Electrical system overvoltageStop safely
Displays to warn of a low battery condition. Turn offall unneeded electrical accessories. Contact anauthorized dealer.
Battery low See manual
Tire Pressure Monitoring System
ActionMessage
Displays if the tire pressure in one or more tires is belowthe correct pressure. See Tire Pressure MonitoringSystem (page 261).
Tire Pressure Low
Tire Pressure Low Specified:
The system has detected a fault that requires service.Have your vehicle checked as soon as possible. SeeTire Pressure Monitoring System (page 261).
Tire Pressure Monitor Fault
Displays if the system detects a fault with a tire pres-sure sensor or the spare tire is in use. See Tire Pres-sure Monitoring System (page 261).If the warning message remains on after you havechecked the tire pressures, the system has detecteda fault that requires service. Have your vehicle checkedas soon as possible.
Tire Pressure Sensor Fault
90EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingInformation Displays

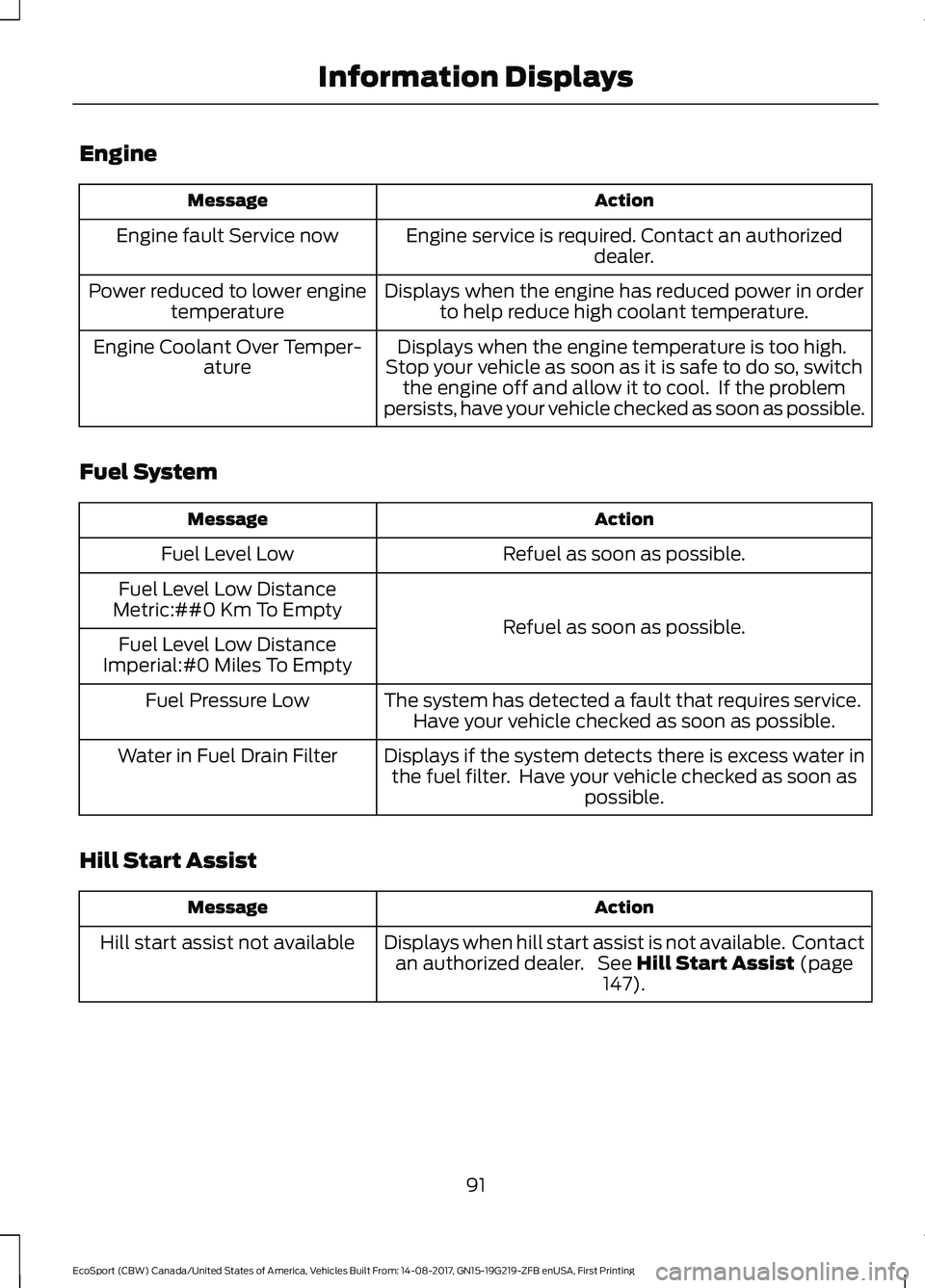

Engine
ActionMessage
Engine service is required. Contact an authorizeddealer.Engine fault Service now
Displays when the engine has reduced power in orderto help reduce high coolant temperature.Power reduced to lower enginetemperature
Displays when the engine temperature is too high.Stop your vehicle as soon as it is safe to do so, switchthe engine off and allow it to cool. If the problempersists, have your vehicle checked as soon as possible.
Engine Coolant Over Temper-ature
Fuel System
ActionMessage
Refuel as soon as possible.Fuel Level Low
Refuel as soon as possible.
Fuel Level Low DistanceMetric:##0 Km To Empty
Fuel Level Low DistanceImperial:#0 Miles To Empty
The system has detected a fault that requires service.Have your vehicle checked as soon as possible.Fuel Pressure Low
Displays if the system detects there is excess water inthe fuel filter. Have your vehicle checked as soon aspossible.
Water in Fuel Drain Filter
Hill Start Assist
ActionMessage
Displays when hill start assist is not available. Contactan authorized dealer. See Hill Start Assist (page147).
Hill start assist not available
91EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingInformation Displays

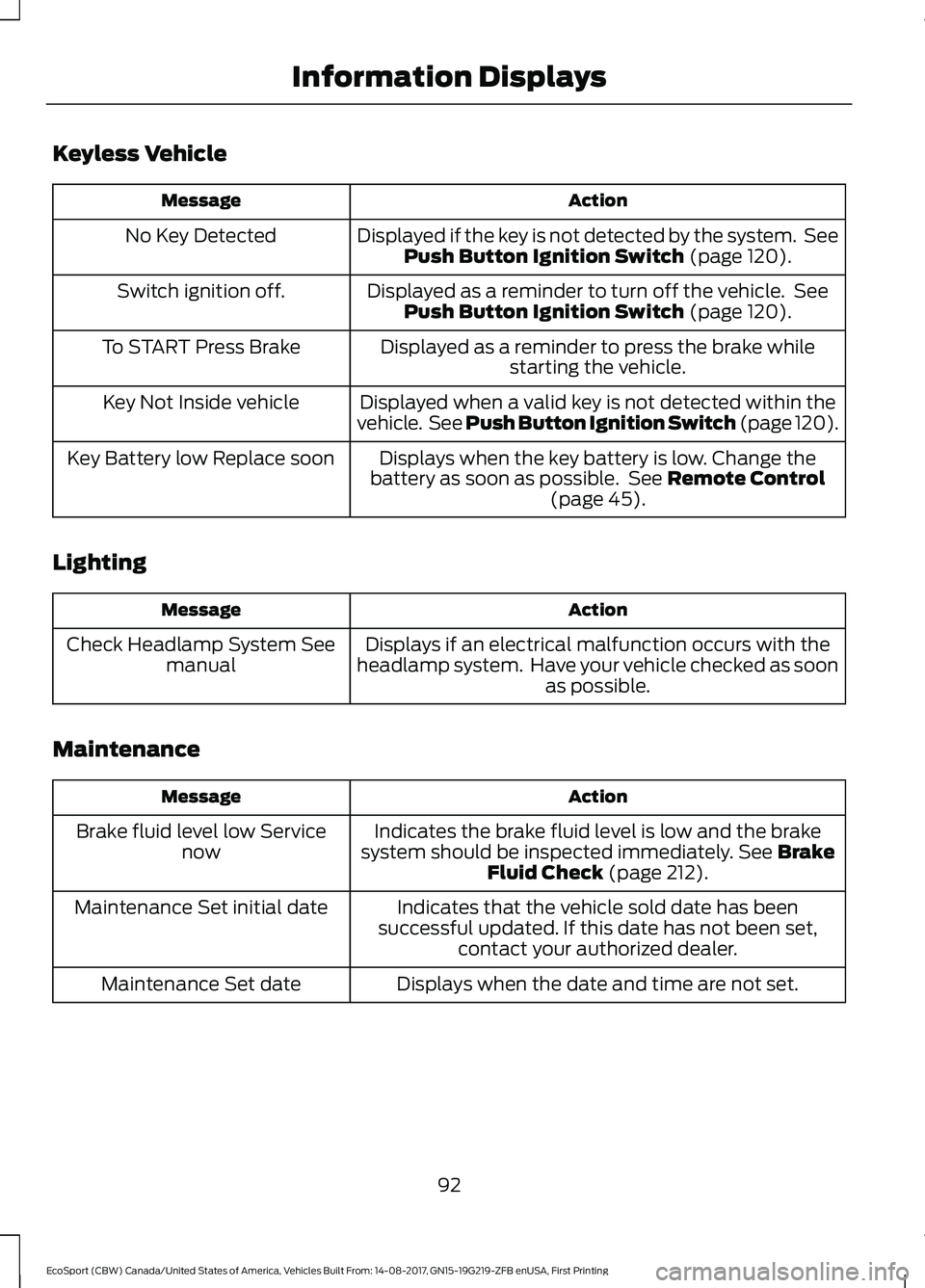

Keyless Vehicle
ActionMessage
Displayed if the key is not detected by the system. SeePush Button Ignition Switch (page 120).No Key Detected
Displayed as a reminder to turn off the vehicle. SeePush Button Ignition Switch (page 120).Switch ignition off.
Displayed as a reminder to press the brake whilestarting the vehicle.To START Press Brake
Displayed when a valid key is not detected within thevehicle. See Push Button Ignition Switch (page 120).Key Not Inside vehicle
Displays when the key battery is low. Change thebattery as soon as possible. See Remote Control(page 45).
Key Battery low Replace soon
Lighting
ActionMessage
Displays if an electrical malfunction occurs with theheadlamp system. Have your vehicle checked as soonas possible.
Check Headlamp System Seemanual
Maintenance
ActionMessage
Indicates the brake fluid level is low and the brakesystem should be inspected immediately. See BrakeFluid Check (page 212).
Brake fluid level low Servicenow
Indicates that the vehicle sold date has beensuccessful updated. If this date has not been set,contact your authorized dealer.
Maintenance Set initial date
Displays when the date and time are not set.Maintenance Set date
92EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingInformation Displays

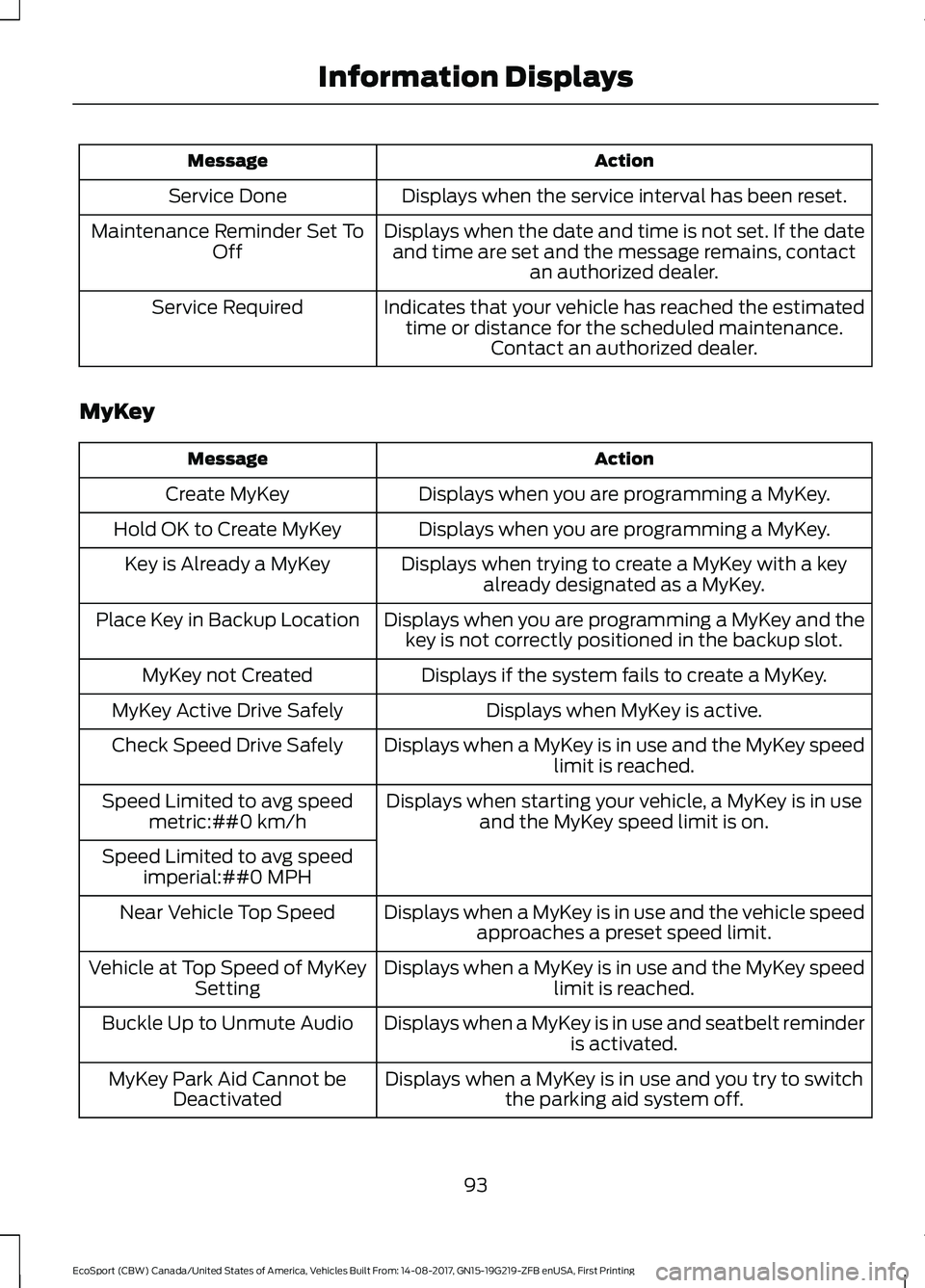

ActionMessage
Displays when the service interval has been reset.Service Done
Displays when the date and time is not set. If the dateand time are set and the message remains, contactan authorized dealer.
Maintenance Reminder Set ToOff
Indicates that your vehicle has reached the estimatedtime or distance for the scheduled maintenance.Contact an authorized dealer.
Service Required
MyKey
ActionMessage
Displays when you are programming a MyKey.Create MyKey
Displays when you are programming a MyKey.Hold OK to Create MyKey
Displays when trying to create a MyKey with a keyalready designated as a MyKey.Key is Already a MyKey
Displays when you are programming a MyKey and thekey is not correctly positioned in the backup slot.Place Key in Backup Location
Displays if the system fails to create a MyKey.MyKey not Created
Displays when MyKey is active.MyKey Active Drive Safely
Displays when a MyKey is in use and the MyKey speedlimit is reached.Check Speed Drive Safely
Displays when starting your vehicle, a MyKey is in useand the MyKey speed limit is on.Speed Limited to avg speedmetric:##0 km/h
Speed Limited to avg speedimperial:##0 MPH
Displays when a MyKey is in use and the vehicle speedapproaches a preset speed limit.Near Vehicle Top Speed
Displays when a MyKey is in use and the MyKey speedlimit is reached.Vehicle at Top Speed of MyKeySetting
Displays when a MyKey is in use and seatbelt reminderis activated.Buckle Up to Unmute Audio
Displays when a MyKey is in use and you try to switchthe parking aid system off.MyKey Park Aid Cannot beDeactivated
93EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingInformation Displays

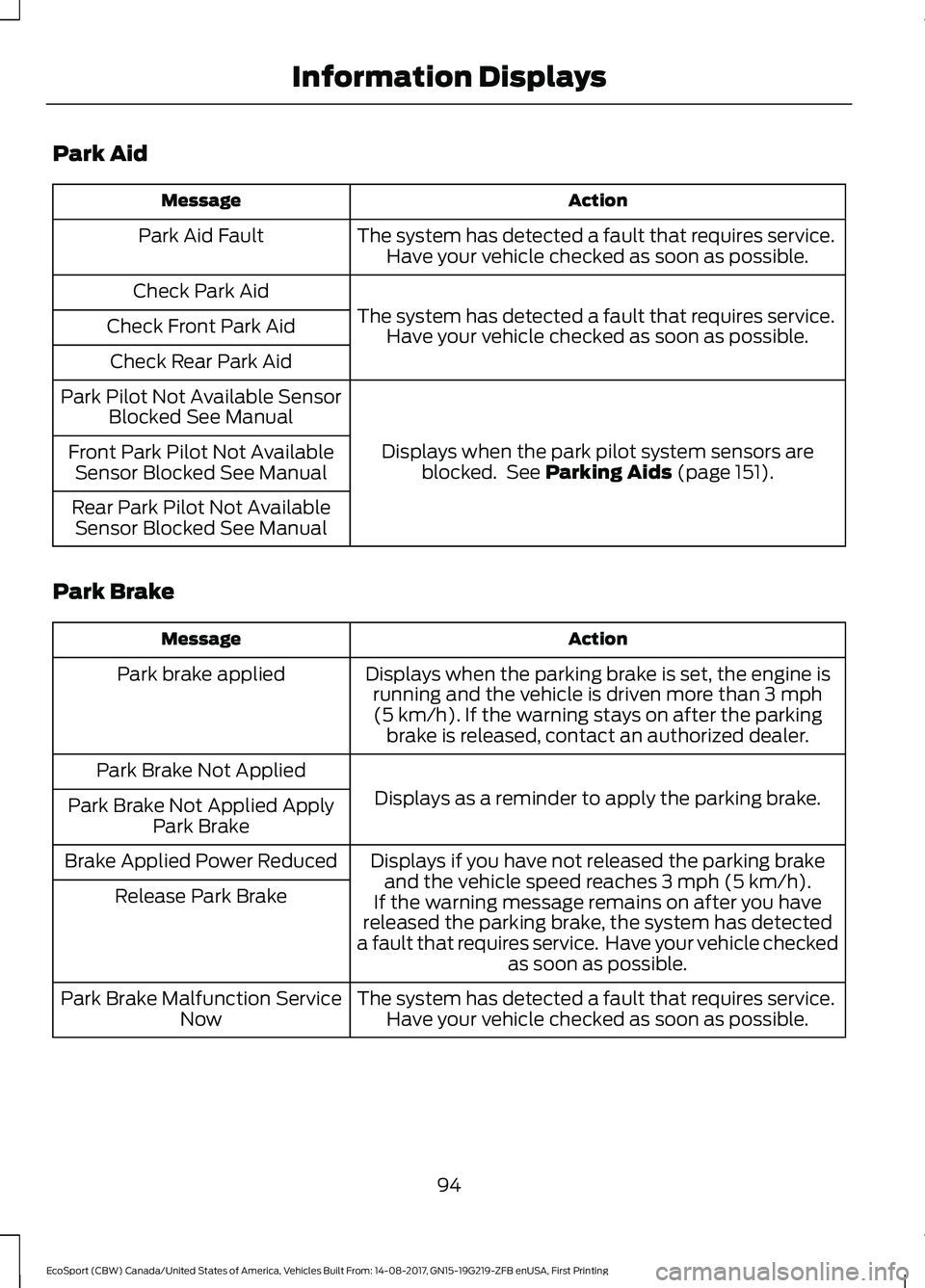

Park Aid
ActionMessage
The system has detected a fault that requires service.Have your vehicle checked as soon as possible.Park Aid Fault
The system has detected a fault that requires service.Have your vehicle checked as soon as possible.
Check Park Aid
Check Front Park Aid
Check Rear Park Aid
Displays when the park pilot system sensors areblocked. See Parking Aids (page 151).
Park Pilot Not Available SensorBlocked See Manual
Front Park Pilot Not AvailableSensor Blocked See Manual
Rear Park Pilot Not AvailableSensor Blocked See Manual
Park Brake
ActionMessage
Displays when the parking brake is set, the engine isrunning and the vehicle is driven more than 3 mph(5 km/h). If the warning stays on after the parkingbrake is released, contact an authorized dealer.
Park brake applied
Displays as a reminder to apply the parking brake.
Park Brake Not Applied
Park Brake Not Applied ApplyPark Brake
Displays if you have not released the parking brakeand the vehicle speed reaches 3 mph (5 km/h).Brake Applied Power Reduced
Release Park BrakeIf the warning message remains on after you havereleased the parking brake, the system has detecteda fault that requires service. Have your vehicle checkedas soon as possible.
The system has detected a fault that requires service.Have your vehicle checked as soon as possible.Park Brake Malfunction ServiceNow
94EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingInformation Displays

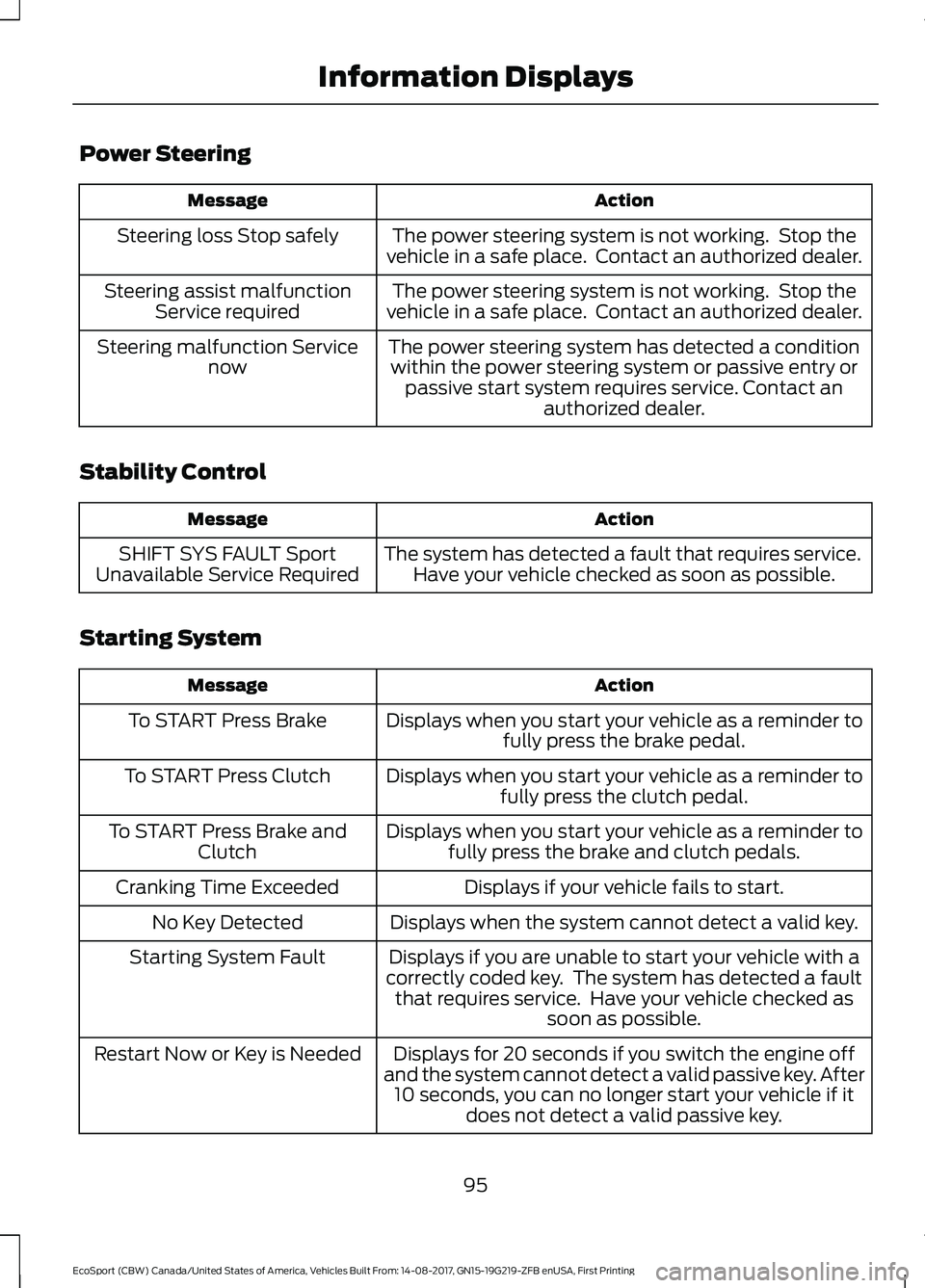

Power Steering
ActionMessage
The power steering system is not working. Stop thevehicle in a safe place. Contact an authorized dealer.Steering loss Stop safely
The power steering system is not working. Stop thevehicle in a safe place. Contact an authorized dealer.Steering assist malfunctionService required
The power steering system has detected a conditionwithin the power steering system or passive entry orpassive start system requires service. Contact anauthorized dealer.
Steering malfunction Servicenow
Stability Control
ActionMessage
The system has detected a fault that requires service.Have your vehicle checked as soon as possible.SHIFT SYS FAULT SportUnavailable Service Required
Starting System
ActionMessage
Displays when you start your vehicle as a reminder tofully press the brake pedal.To START Press Brake
Displays when you start your vehicle as a reminder tofully press the clutch pedal.To START Press Clutch
Displays when you start your vehicle as a reminder tofully press the brake and clutch pedals.To START Press Brake andClutch
Displays if your vehicle fails to start.Cranking Time Exceeded
Displays when the system cannot detect a valid key.No Key Detected
Displays if you are unable to start your vehicle with acorrectly coded key. The system has detected a faultthat requires service. Have your vehicle checked assoon as possible.
Starting System Fault
Displays for 20 seconds if you switch the engine offand the system cannot detect a valid passive key. After10 seconds, you can no longer start your vehicle if itdoes not detect a valid passive key.
Restart Now or Key is Needed
95EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingInformation Displays

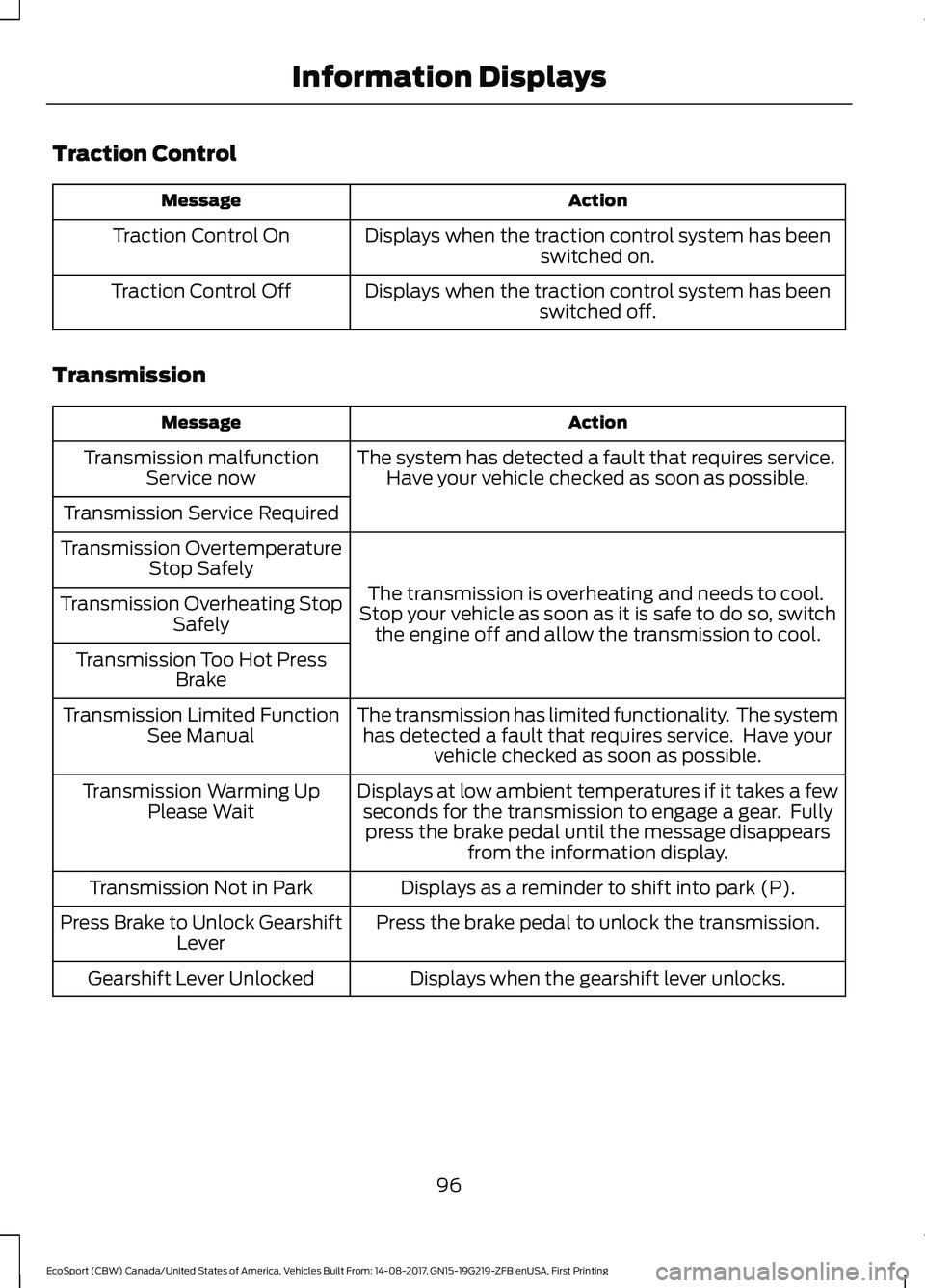

Traction Control
ActionMessage
Displays when the traction control system has beenswitched on.Traction Control On
Displays when the traction control system has beenswitched off.Traction Control Off
Transmission
ActionMessage
The system has detected a fault that requires service.Have your vehicle checked as soon as possible.Transmission malfunctionService now
Transmission Service Required
The transmission is overheating and needs to cool.Stop your vehicle as soon as it is safe to do so, switchthe engine off and allow the transmission to cool.
Transmission OvertemperatureStop Safely
Transmission Overheating StopSafely
Transmission Too Hot PressBrake
The transmission has limited functionality. The systemhas detected a fault that requires service. Have yourvehicle checked as soon as possible.
Transmission Limited FunctionSee Manual
Displays at low ambient temperatures if it takes a fewseconds for the transmission to engage a gear. Fullypress the brake pedal until the message disappearsfrom the information display.
Transmission Warming UpPlease Wait
Displays as a reminder to shift into park (P).Transmission Not in Park
Press the brake pedal to unlock the transmission.Press Brake to Unlock GearshiftLever
Displays when the gearshift lever unlocks.Gearshift Lever Unlocked
96EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingInformation Displays
