3.Turn on the low beam headlamps toilluminate the wall or screen and openthe hood.
4.There is a distinct cut-off (change fromlight to dark) in the left portion of thebeam pattern. The top edge of thiscut-off should be positioned twoinches (5 centimeters) below thehorizontal reference line.
5.Locate the vertical adjuster on eachheadlamp. Using a Phillips #2screwdriver, turn the adjuster eitherclockwise or counterclockwise in orderto aim the headlamp.
6.Close the hood and turn off the lamps.
Horizontal Aim Adjustment
Horizontal aim is not required for thisvehicle and is non-adjustable.
REMOVING A HEADLAMP
Open the hood. See Opening andClosing the Hood (page 212).
Disconnect the electrical connector.
Note:When fitting the headlamp, makesure that you reconnect the electricalconnector correctly.
Note:When fitting the headlamp, makesure that you fully engage the headlamp inthe lower fixing point.
227
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingMaintenance

CHANGING A BULB
Note:Handle a halogen headlamp bulbcarefully and keep out of children’s reach.Grasp the bulb by only its plastic base anddo not touch the glass. The oil from yourhand could cause the bulb to break the nexttime the headlamps are operated.
WARNING: Bulbs can become hot.Let the bulb cool down before removingit. Failure to do so could result inpersonal injury.
Note:Switch the lights and the ignition off.
Note:Do not touch the bulb glass.
Note:Only fit bulbs of the correctspecification.
Note:The following instructions describehow to remove the bulbs. Fit replacementsin the reverse order unless otherwise stated.
Headlamp
Note:Disconnect the bulb electricalconnectors and remove the covers to gainaccess to the bulbs.
Headlamp low beamA
Main beam.B
Side Marker.C
Headlamp Main Beam
Note:Do not touch the glass of the bulb.
1.Open the hood.
2.Carefully remove the cover.
228
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingMaintenance

3.Disconnect the electrical connector.
4.Release the clip and remove the bulb.
Headlamp Low Beam
Note:Do not touch the glass of the bulb.
1.Open the hood.
2.Carefully remove the cover.
3.Disconnect the electrical connector.
4.Release the clip and remove the bulb.
Side Marker
1.Carefully remove the cover.
2.Disconnect the electrical connector.
3.Release the clip and remove the bulb.
Glove box lamp (If Equipped)
1.Press the compartment.
2.Remove the box.
229
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingMaintenance

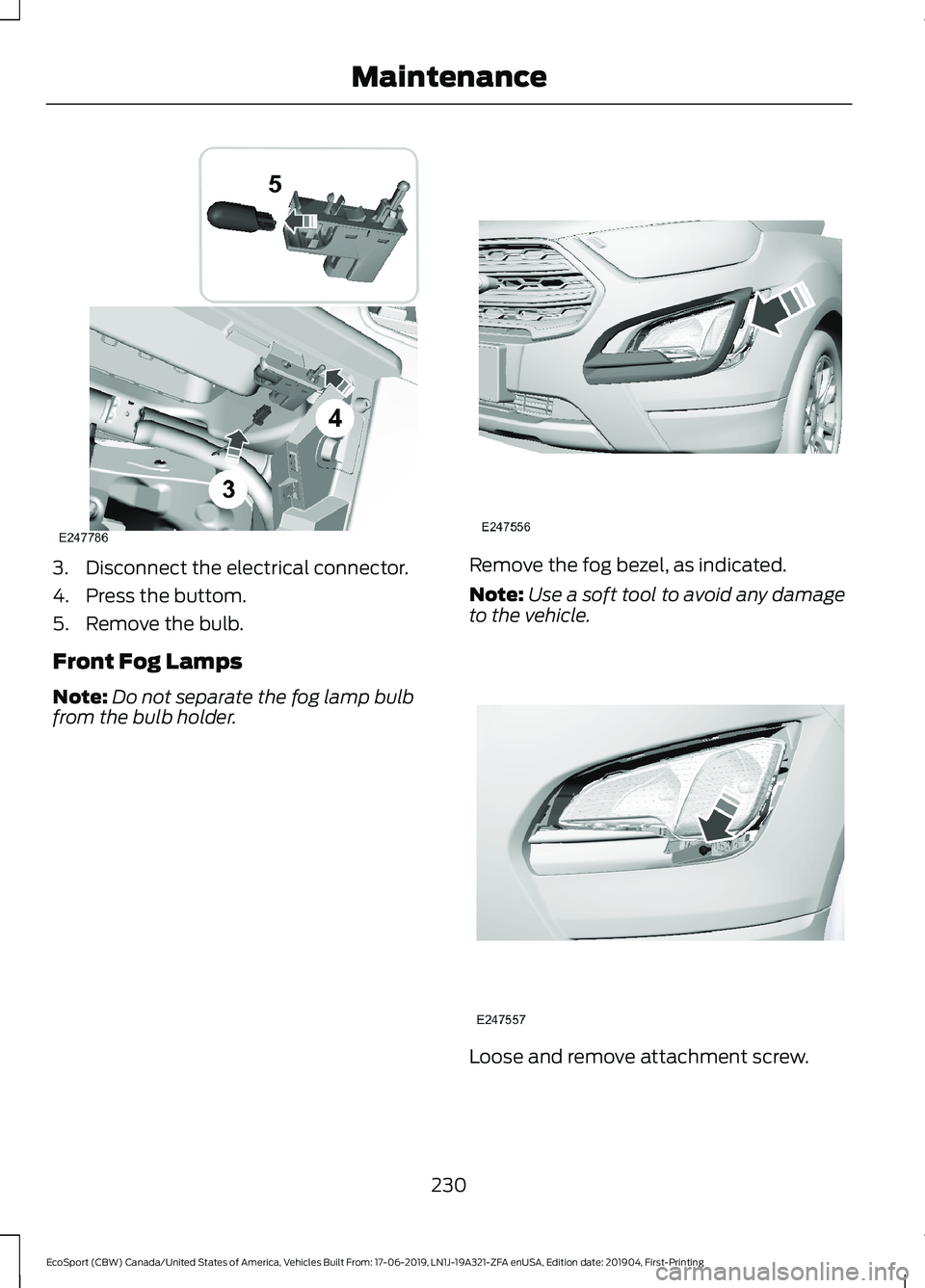

3.Disconnect the electrical connector.
4.Press the buttom.
5.Remove the bulb.
Front Fog Lamps
Note:Do not separate the fog lamp bulbfrom the bulb holder.
Remove the fog bezel, as indicated.
Note:Use a soft tool to avoid any damageto the vehicle.
Loose and remove attachment screw.
230
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingMaintenance

Put your fingers at the back of the foglamp.
Unplug bulb conector.
Turn the bulb holder counterclockwise andremove it.
Direction indicators
Note:Do not separate the fog lamp bulbfrom the bulb holder.
Use the same process to remove the fogand turn indicator Lamp.
231
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingMaintenance

Remove the turn indicator bulb holdercounterclockwise and remove it.
Side Repeater
1.Press the side of the cover to releasethe clips.
2.Remove the cover.
3.Move the cover that covers the lamp.
4.Remove the cap that covers the lamp.
5.Remove the bulb and bulb holder.Remove the bulb.
232
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingMaintenance

Rear lamps
Direction Indicator, Tail and BrakeLamp
1.Open the trim panel.
2.Disconnect the electrical connector.
3.Remove the wing nut.
4.Remove the screws.
5.Remove the bulb holder.
6.Remove the lamp.
7.Gently press the bulb into the bulbholder, turn it anti-clockwise andremove it.
233
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingMaintenance

Reversing Lamp
1.Remove wheel arch cover.
Disconnect the electrical connector.
Turn the bulb holder anti-clockwise andremove the bulb holder from the housing.
Remove the bulb from the holder.
Gently press the new bulb into the bulbholder, install new bulb and holder into thehousing, turning it clockwise.
234
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingMaintenance

Central High Mounted Brake Lamp
Note:On some vehicles the lamps are LED.They are not serviceable items, pleaseconsult a Ford Dealer if they fail.
Vanity lamp (If Equipped)
1.Carefully release the spring clip.
2.Remove the lamp.
3.Turn the bulb anti-clockwise andremove it.
Interior Lamp
1.Carefully remove the lamp.
2.Turn the bulb holder counterclockwiseand remove it.
3.Remove the bulb.
235
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingMaintenance

Reading Lamps
1.Carefully remove the lamp.
2.Turn the bulb holder counterclockwiseand remove it.
3.Remove the bulb.
Map Lamp (driver side) (If Equipped)
1.Position the visor down.
2.Carefully remove the lamp.
3.Turn the bulb holder counterclockwiseand remove it.
4.Remove the bulb.
Luggage Compartment Lamp,Footwell Lamp and Tailgate Lamp
(If Equipped)
1.Carefully remove the lamp.
2.Carefully remove
3.Remove the bulb.
BULB SPECIFICATION CHART
Power (watt)SpecificationLamp
28/8W28/8WFront direction indicator.
35H8WFront fog lamps.
5WY5WSide repeater.
5W5WSide marker reflector.
21WY21WRear direction indicator.
21/5W21/5WBrake and tail lamp.
21P21WReversing lamps.
236
