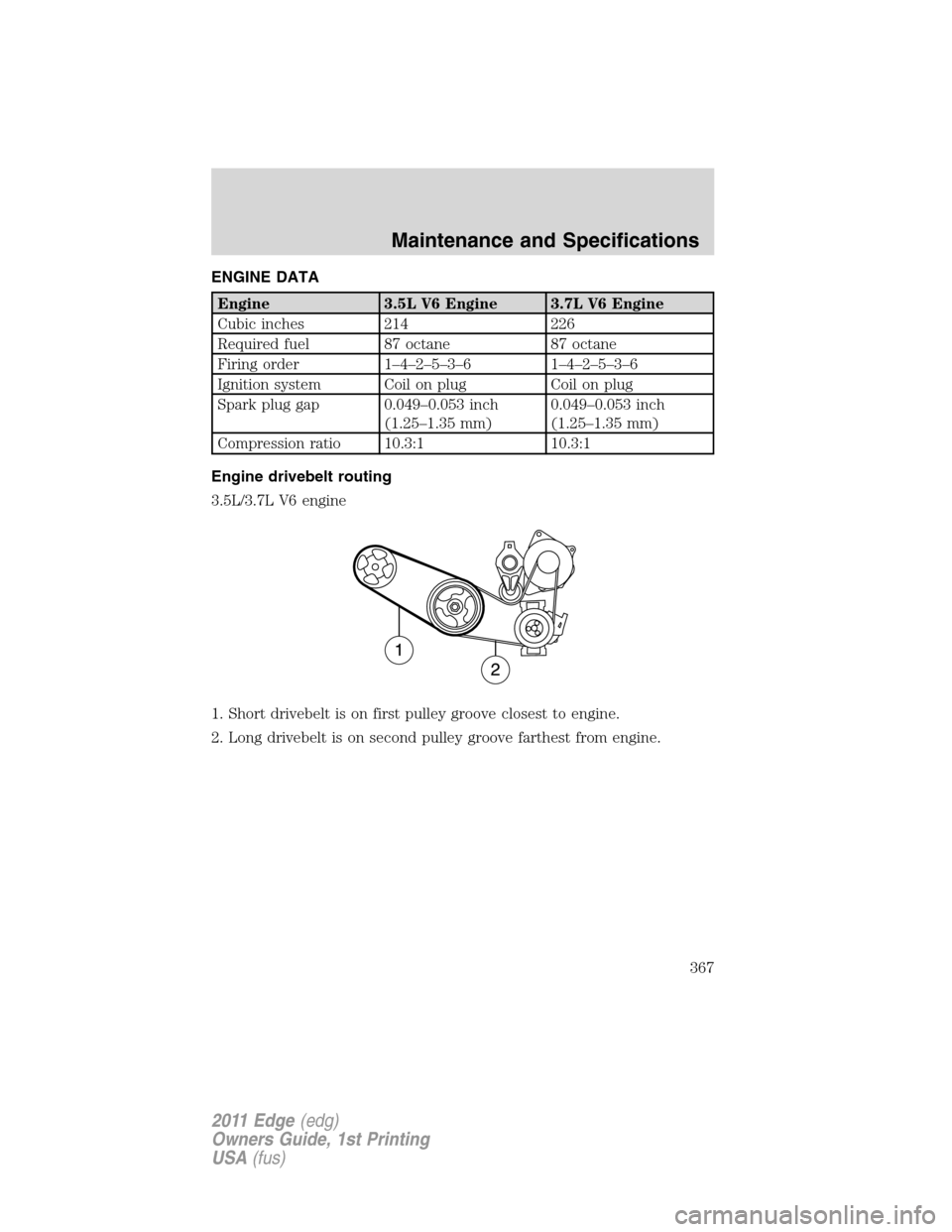

ENGINE DATA
Engine 3.5L V6 Engine 3.7L V6 Engine
Cubic inches 214 226
Required fuel 87 octane 87 octane
Firing order 1–4–2–5–3–6 1–4–2–5–3–6
Ignition system Coil on plug Coil on plug
Spark plug gap 0.049–0.053 inch
(1.25–1.35 mm)0.049–0.053 inch
(1.25–1.35 mm)
Compression ratio 10.3:1 10.3:1
Engine drivebelt routing
3.5L/3.7L V6 engine
1. Short drivebelt is on first pulley groove closest to engine.
2. Long drivebelt is on second pulley groove farthest from engine.
Maintenance and Specifications
367
